Abstract
The utility model relates to a portable rapid sterilizer, which comprises a shell main body, a sterilization unit and a control switch, wherein the front end surface of the shell main body is provided with a light outlet; a grasping part convenient for a user to grasp is arranged on the upper surface of the shell main body; the sterilizing unit comprises a UVC LED ultraviolet sterilizing module and a rechargeable battery, the UVC LED ultraviolet sterilizing module is fixedly arranged in the shell main body and is positioned on the same horizontal plane with the light outlet, the rechargeable battery is fixedly arranged in the shell main body and is electrically connected with the UVC LED ultraviolet sterilizing module and the control switch respectively, and the electrical connection and disconnection between the rechargeable battery and the UVC LED ultraviolet sterilizing module are adjusted through the control switch. The utility model discloses in integrating the shell main part that has the portion of grabbing with UVC LED ultraviolet sterilization module, realize portablely, facilitate the use, and then make ultraviolet disinfection obtain extensive application and popularization to effective sterilization efficiency improves greatly, effectively saves disinfection time.
Description
Technical Field
The utility model belongs to the technical field of the product that disinfects, especially, relate to a portable quick sterilization appearance.
Background
The ultraviolet ray has the function of disinfection and sterilization, and the ultraviolet lamp tube is applied in various places. However, the ultraviolet lamp tube has some disadvantages, for example, because ultraviolet rays have a certain killing effect on skin cells of a human body, the ultraviolet lamp tube is not suitable for disinfection in places with intensive personnel, such as factories, workshops, classrooms of schools, theaters and the like, so as to avoid injury to the human body. Most ultraviolet lamp tubes are fixed on walls or cavities and used for disinfecting the closed environment of hospitals and operating rooms and instruments, and portable ultraviolet sterilization instruments are lacked, so that the application of ultraviolet disinfection is limited, and the ultraviolet lamp tubes are not widely applied and popularized.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a portable quick sterilization appearance aims at solving and lacks portable ultraviolet sterilization apparatus among the prior art, makes ultraviolet disinfection's application receive the technical problem of limitation.
In order to achieve the above object, an embodiment of the present invention provides a portable rapid sterilizer, which includes a housing main body having a front end surface provided with a light outlet, a sterilization unit disposed inside the housing main body, and a control switch mounted on the housing main body; a grasping part convenient for a user to grasp is arranged on the upper surface of the shell main body; the sterilizing unit comprises a UVC LED ultraviolet sterilizing module and a rechargeable battery, the UVC LED ultraviolet sterilizing module is fixedly arranged in the shell main body and is positioned on the same horizontal plane with the light outlet, the rechargeable battery is fixedly arranged in the shell main body and is respectively electrically connected with the UVC LED ultraviolet sterilizing module and the control switch, and the electrical connection and disconnection between the rechargeable battery and the UVC LED ultraviolet sterilizing module are adjusted through the control switch.
Optionally, the UVC LED ultraviolet sterilization module includes a substrate and a plurality of UVC LED lamp beads, and the UVC LED lamp beads are linearly arranged on the substrate at intervals.
Optionally, the control switch is including installing dab switch and mistake proofing touch switch on the casing main part lateral wall, mistake proofing touch switch respectively with dab the switch with rechargeable battery electric connection, mistake proofing touch switch slides and sets up and is provided with the end of switching on and the end of breaking.
Optionally, the control switch further comprises a prompting lamp installed on the upper surface of the shell main body, and the prompting lamp is electrically connected with the tact switch and the mis-touch prevention switch.
Optionally, the grasping portion is a thumb holding groove recessed in an upper surface of the housing main body.
Optionally, the grasping portion is a plurality of stripe protruding strips protruding from the upper surface of the housing main body.
Optionally, a hanging through hole is formed in the shell main body in a penetrating mode, and a hanging rope is tied to the hanging through hole.
Optionally, a charging port connected to the rechargeable battery is provided on a side wall of the housing main body.
Optionally, the length of the light outlet is matched with the length of the UVC LED ultraviolet sterilization module, and the width of the light outlet is matched with the width of the UVC LED ultraviolet sterilization module.
Optionally, the rechargeable battery is a power battery.
The embodiment of the utility model provides an above-mentioned one or more technical scheme in the portable quick sterilization appearance has one of following technological effect at least: firstly, the portable rapid sterilizer of the utility model integrates the UVC LED ultraviolet sterilization module into the shell main body with the grasping part, thereby realizing portability and convenient use, and further leading the ultraviolet sterilization to be widely applied and popularized; secondly, through adopting UVC LED ultraviolet sterilization module as the unit of disinfecting, thereby it can destroy DNA and kill bacterium and virus, with "light intensity 90 mu W/c square meter (being equivalent to 0.09mW/c square meter) shine 30 minutes promptly 1800 seconds and just can successfully kill the virus" compare, "the utility model discloses portable quick sterilization appearance shortens the time to the second of 1.8 seconds and kills the degree, and intensity improves to 90000 mu W/c square meter (being equivalent to 90mW/c square meter), and effective bactericidal efficiency improves greatly, effectively saves disinfection time; thirdly, the control switch is arranged to adjust the electrical connection and disconnection between the rechargeable battery and the UVC LED ultraviolet sterilization module, so that users or other people are prevented from being accidentally injured, and children are prevented from being accidentally touched and injured; and fourthly, the rechargeable battery is adopted for supplying power, wiring is not needed, and the portable solar cell is convenient to carry and can be used for multiple times.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings required for the embodiments or the prior art descriptions will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art to obtain other drawings without inventive labor.

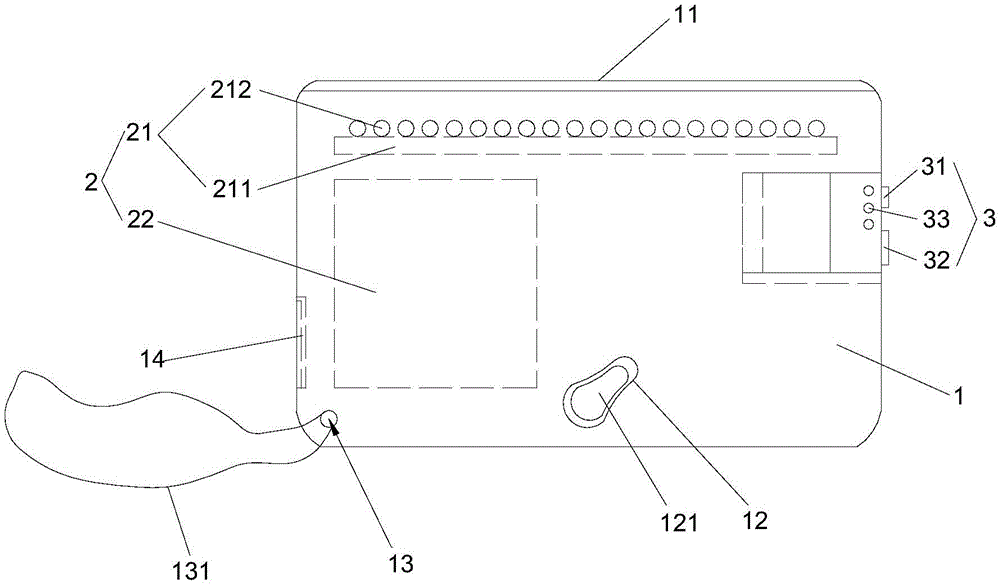

Fig. 1 is a schematic structural diagram of a portable rapid sterilizer provided in the embodiment of the present invention.
Fig. 2 is a schematic structural diagram of a portable rapid sterilizer provided in the embodiment of the present invention.
Fig. 3 is a front view of the portable rapid sterilizer provided by the embodiment of the present invention.
Fig. 4 is a side view of the portable rapid sterilizer provided by the embodiment of the present invention.
Wherein, in the figures, the respective reference numerals:
1-housing body 11-light outlet 12-grasping part
121-thumb holding groove 122-stripe convex strip 13-hanging hole
131-lifting rope 14-charging port 2-sterilization unit
21-UVC LED ultraviolet sterilization module 211-base plate 212-UVC LED lamp pearl
22-rechargeable battery 3-control switch 31-tact switch
32-false touch prevention switch 33-prompting lamp
Detailed Description
Reference will now be made in detail to embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below by referring to the drawings are exemplary and intended to explain the embodiments of the present invention and are not to be construed as limiting the present invention.
In the description of the embodiments of the present invention, it should be understood that the terms "length," "width," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientation or positional relationship indicated in the drawings, which is only for convenience in describing the embodiments of the present invention and simplifying the description, and do not indicate or imply that the device or element so indicated must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the invention.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the embodiments of the present invention, "a plurality" means two or more unless specifically limited otherwise.
In the embodiments of the present invention, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "fixed" are to be construed broadly, e.g., as fixed or detachable connections or as an integral part; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meaning of the above terms in the embodiments of the present invention can be understood by those skilled in the art according to specific situations.
In an embodiment of the present invention, as shown in fig. 1, a portable rapid sterilizer is provided, which includes a casing main body 1 having a front end surface provided with a light outlet 11, a sterilization unit 2 disposed inside the casing main body 1, and a control switch 3 mounted on the casing main body 1; a gripping part 12 convenient for a user to grip is arranged on the upper surface of the shell main body 1; the sterilizing unit 2 comprises a UVC LED ultraviolet sterilizing module 21 and a rechargeable battery 22, the UVC LED ultraviolet sterilizing module 21 is fixedly arranged in the shell main body 1 and is positioned on the same horizontal plane with the light outlet 11, the rechargeable battery 22 is fixedly arranged in the shell main body 1 and is respectively electrically connected with the UVC LED ultraviolet sterilizing module 21 and the control switch 3, and the electrical connection and disconnection between the rechargeable battery 22 and the UVC LED ultraviolet sterilizing module 21 are adjusted through the control switch 3. Specifically, when the portable rapid sterilization instrument is used: the control switch 3 is turned on, so that the rechargeable battery 22 is communicated with the UVC LED uv sterilization module 21, at this time, the UVC LED uv sterilization module 21 emits uv rays with corresponding wavelengths and emits the uv rays from the light outlet 11, and the individual articles can be irradiated and sterilized in one direction by holding the housing body 1 and grasping the grasping portion 12.
The embodiment of the utility model provides a portable quick sterilization instrument is further explained as follows: firstly, the portable rapid sterilizer of the utility model integrates the UVC LED ultraviolet sterilization module 21 into the shell main body 1 with the grasping part 12, thereby realizing portability and convenient use, and further leading the ultraviolet sterilization to be widely applied and popularized; secondly, by adopting the UVC LED ultraviolet sterilization module 21 as the sterilization unit 2, the module can destroy DNA to kill bacteria and viruses, compared with the situation that the viruses can be successfully killed by irradiating a square meter with a light intensity of 90 mu W/c (equivalent to 0.09 mW/c) for 30 minutes (equivalent to 1800 seconds), the portable rapid sterilization instrument shortens the time to the second killing degree of 1.8 seconds, improves the strength to 90000 mu W/c square meters (equivalent to 90 mW/mW square meters), greatly improves the effective sterilization efficiency and effectively saves the sterilization time; thirdly, the control switch 3 is arranged to adjust the electrical connection and disconnection between the rechargeable battery 22 and the UVC LED ultraviolet sterilization module 21, so as to prevent users or others from being accidentally injured and prevent children from being accidentally touched and injured; fourthly, the rechargeable battery 22 is adopted to supply power, wiring is not needed, and the rechargeable battery is convenient to carry and can be used for multiple times.
In another embodiment of the present invention, as shown in fig. 1, the UVC LED uv sterilization module 21 of the portable rapid sterilizer includes a substrate 211 and a plurality of UVC LED lamp beads 212, and the UVC LED lamp beads 212 are linearly arranged on the substrate 211 at intervals. Specifically, a plurality of UVC LED lamp beads 212 are connected in parallel, so that each UVC LED lamp bead 212 can work in a constant current state, and the control of the light emitting effect of each UVC LED lamp bead 212 is enhanced; the UVC LED lamp beads 212 are arranged at intervals, so that heat dissipation among devices is not interfered with each other, and the service life of the UVC LED lamp beads 212 is effectively prolonged by matching with a thermoelectric separation arrangement structure.
In another embodiment of the present invention, as shown in fig. 1, the control switch 3 of the portable rapid sterilizer includes a tact switch 31 and a mis-touch prevention switch 32 installed on the side wall of the housing main body 1, the mis-touch prevention switch 32 is respectively electrically connected to the tact switch 31 and the rechargeable battery 22, and the mis-touch prevention switch 32 is slidably disposed and provided with a connection end and a disconnection end. Specifically, adopt above-mentioned structure the utility model discloses portable quick sterilization appearance can reduce effectively dab switch 31 is by the probability of spurious triggering, only prevent that spurious triggering switch 32 slides when switching-on end, presses it can just communicate to dab switch 31 rechargeable battery 22 with UVC LED sterilamp module 21, and then make UVC LED sterilamp module 21 sends the ultraviolet ray that corresponds the wavelength, has improved widely the utility model discloses portable quick sterilization appearance's security performance.
In another embodiment of the present invention, as shown in fig. 1, the control switch 3 of the portable rapid sterilizer is further installed on the indicator light 33 on the upper surface of the housing main body 1, the indicator light 33 is in electrical connection with the touch switch 31 and the anti-mistouch switch 32, through the indicator light 33 can display the current actual state of the portable rapid sterilizer in time, so that the user can make corresponding operations.
In another embodiment of the present invention, as shown in fig. 1, the grasping portion 12 of the portable rapid sterilizer is a thumb holding groove 121 formed in the upper surface of the housing body 1. Specifically, when the user holds the case main body 1 and grasps the grasping portion 12, the thumb of the user can be pressed in the thumb holding groove 121, and even during the swing, since the thumb of the user is restricted by the thumb holding groove 121, the portable rapid sterilizer is not easily detached.
In another embodiment of the present invention, as shown in fig. 2, the grasping portion 12 of the portable rapid sterilizer is a plurality of stripe protruding strips 122 protruding from the upper surface of the housing body 1. Specifically, when the user holds the housing body 1 and grasps the grasping portion 12, the thumb of the user can press the plurality of stripe ribs 122, and even in the swinging process, the portable rapid sterilizer cannot be easily detached because the thumb of the user is limited by the plurality of stripe ribs 122.
In another embodiment of the present invention, as shown in fig. 1, a hanging hole 13 is provided on the housing body 1, and a hanging rope 131 is tied on the hanging hole 13. Specifically, the user is through passing the hand lifting rope 131 can with the utility model discloses portable quick sterilization appearance quick cover is established on hand to anti falling.
In another embodiment of the present invention, as shown in fig. 4, the side wall of the main housing 1 of the portable rapid sterilizer is provided with a charging port 14 connected to the rechargeable battery 22, through the charging port 14, the rechargeable battery 22 can be charged, so that the portable rapid sterilizer can be used many times, and is more environment-friendly.
In another embodiment of the present invention, as shown in fig. 3, in the portable rapid sterilizer, the length of the light outlet 11 is adapted to the length of the UVC LED uv sterilization module 21, and the width of the light outlet 11 is adapted to the width of the UVC LED uv sterilization module 21. Specifically, through inciting somebody to action light-emitting window 11 set to with the opening of UVC LED ultraviolet sterilization module 21 length, width looks adaptation, and then make the ultraviolet ray that UVC LED ultraviolet sterilization module 21 sent can directly jet out as much as possible, improves the utility model discloses the efficiency of disinfecting of portable quick sterilization appearance.
In another embodiment of the present invention, the rechargeable battery 22 in the portable rapid sterilizer is a power battery, and the UVC LED ultraviolet sterilization module 21 provides a power source, and has the advantages of high energy, high power, high energy density, etc., and has an ultra-long service life, safety in use, and large capacity for a lithium battery.
The above description is only exemplary of the present invention and should not be taken as limiting the scope of the present invention, as any modifications, equivalents, improvements and the like made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.
Claims (10)
1. A portable rapid sterilization instrument comprises a shell main body, a sterilization unit and a control switch, wherein the front end face of the shell main body is provided with a light outlet; the method is characterized in that: a grasping part convenient for a user to grasp is arranged on the upper surface of the shell main body; the sterilizing unit comprises a UVC LED ultraviolet sterilizing module and a rechargeable battery, the UVC LED ultraviolet sterilizing module is fixedly arranged in the shell main body and is positioned on the same horizontal plane with the light outlet, the rechargeable battery is fixedly arranged in the shell main body and is respectively electrically connected with the UVC LED ultraviolet sterilizing module and the control switch, and the electrical connection and disconnection between the rechargeable battery and the UVC LED ultraviolet sterilizing module are adjusted through the control switch.
2. The portable rapid sterilizer of claim 1, wherein: the UVC LED ultraviolet sterilization module comprises a substrate and a plurality of UVC LED lamp beads, and the plurality of UVC LED lamp beads are linearly arranged on the substrate at intervals.
3. The portable rapid sterilizer of claim 1, wherein: the control switch is including installing dab switch and mistake proofing touch switch on the shell main part lateral wall, mistake proofing touch switch respectively with dab the switch with rechargeable battery electric connection, mistake proofing touch switch slides and sets up and is provided with switch-on end and disconnection end.
4. The portable rapid sterilizer of claim 3, wherein: the control switch is characterized by further comprising a prompting lamp arranged on the upper surface of the shell main body, and the prompting lamp is electrically connected with the light touch switch and the mistaken touch preventing switch.
5. The portable rapid sterilizer of claim 1, wherein: the grabbing part is a thumb holding groove which is concavely arranged on the upper surface of the shell main body.
6. The portable rapid sterilizer of claim 1, wherein: the grabbing part is a plurality of stripe convex strips which are convexly arranged on the upper surface of the shell main body.
7. The portable rapid sterilizer of any one of claims 1 to 6, wherein: the shell main body is provided with a hanging through hole in a penetrating mode, and a lifting rope is tied on the hanging through hole.
8. The portable rapid sterilizer of any one of claims 1 to 6, wherein: and a charging port connected with the rechargeable battery is arranged on the side wall of the shell main body.
9. The portable rapid sterilizer of any one of claims 1 to 6, wherein: the length of the light outlet is matched with that of the UVC LED ultraviolet sterilization module, and the width of the light outlet is matched with that of the UVC LED ultraviolet sterilization module.
10. The portable rapid sterilizer of any one of claims 1 to 6, wherein: the rechargeable battery is a power battery.
