CN213720123U - Patient trousers and patient suit - Google Patents

Abstract

The utility model relates to a medical clothing field discloses a patient's trousers and patient suit, and patient's trousers include: the trousers comprise a trousers body and a trousers body, wherein the trousers body comprises a trousers upper crotch and a trousers lower crotch which are detachably connected, and the trousers upper crotch is provided with a trousers crotch opening capable of being opened and closed; a tube passing hole including a crotch tube passing hole formed at an upper crotch of the trousers and a crotch tube passing hole formed at a lower crotch of the trousers; a slide rail provided at the crotch of the trousers and arranged along the length direction of the crotch of the trousers; and the pipeline fixing piece is slidably arranged on the sliding rail. Dismantle the trousers crotch from the trousers crotch and make things convenient for medical personnel to nurse patient's shank, medical personnel can nurse patient's perineum through trousers crotch convenient and fast ground, and the drainage tube can pass the hole through the pipeline and wear out, and medical personnel of being convenient for observe the interior liquid flow condition of drainage tube, and simultaneously, the pipeline mounting can be fixed with the pipeline, and the pipeline mounting can move on the slide rail and be fixed in suitable position with the pipeline.

Description

Patient trousers and patient suit

Technical Field

The utility model relates to a medical clothing field, concretely relates to patient's trousers and patient's suit.

Background

The patient trousers are the clothes worn by patients or wounded in hospital or in the rehabilitation institution, are convenient to wear, take off and clean, and are also convenient for hospital management. Along with the development of medical treatment, medical personnel are meticulous to inpatient's nursing specialty more, more can regard the use of disease to experience from the multiple aspect, but traditional patient trousers are not convenient for medical personnel and carry out operations such as shank nursing, perineum district nursing, medicine injection and drainage tube are fixed.

SUMMERY OF THE UTILITY MODEL

To the above-mentioned defect or not enough of prior art, the utility model provides a patient trousers and patient suit can be convenient for medical personnel carry out shank nursing, perineum district nursing, medicine injection and drainage tube to the patient and fix.

In order to achieve the above object, the utility model discloses an aspect provides a patient's trousers, include:

the trousers comprise a trousers body and a trousers body, wherein the trousers body comprises a trousers upper crotch and a trousers lower crotch which are detachably connected, and the trousers upper crotch is provided with a trousers crotch opening which can be opened and closed;

a pipeline passing hole including a crotch pipeline passing hole formed at the crotch of the trousers and a crotch pipeline passing hole formed at the crotch of the trousers;

the sliding rails are arranged at the crotch of the trousers and are arranged along the length direction of the crotch of the trousers; and

and the pipeline fixing piece can be slidably arranged on the sliding rail.

Preferably, the slide rail includes fixed part fixed connection in trousers crotch and connects in the guide part of fixed part, and the pipeline mounting includes sliding part, locking portion and pre-compaction elastic component, and the sliding part is formed with and runs through with guide part complex spout and the outer wall of sliding part and is provided with the locking hole, and locking portion penetrates locking hole and butt in the guide part by outer to interior, and the outer end fixed connection of pre-compaction elastic component is in locking hole and inner fixed connection in locking portion.

Preferably, the pipe fixing member further includes a pipe clamping portion provided on the sliding portion.

Preferably, the sliding tracks are arranged at the side positions of the crotch of the trousers; and/or the sliding track extends from a top end of the crotch of the pants to a bottom end of the crotch of the pants.

Preferably, the crotch opening of the pants covers from a front crotch portion of the upper crotch of the pants to a rear crotch portion of the upper crotch of the pants.

Preferably, the crotch line is formed through the hole at a position of a side of the crotch of the pants; and/or, the crotch line is formed through the hole at a position of a side edge of the crotch of the pants.

Preferably, the crotch line is formed through the hole at a central position of the crotch of the trousers; and/or, a crotch line is formed through the hole at an upper position of the crotch of the trousers.

Preferably, the crotch pipeline is passed the hole, the crotch pipeline passes the hole, slide rail and pipeline mounting are a plurality ofly, and a plurality of crotch pipelines pass the hole symmetric arrangement in two crotch bottom of trousers crotch, and a plurality of crotch pipelines pass the hole, a plurality of slide rails and the equal symmetric arrangement in two crotch bottom of trousers of a plurality of pipeline mountings in trousers crotch.

The utility model discloses the second aspect provides a patient suit, including patient clothing and foretell patient's trousers.

Preferably, the patient gown comprises: the clothes body comprises a clothes body and sleeves, a drainage tube passing hole is formed in the lap position of the clothes body, and elbow holes are formed in the elbow positions of the sleeves;

the infusion tube fixing piece comprises a shoulder position fixing piece connected to the shoulder position of the coat body and a front arm position fixing piece connected to the front arm position of the coat sleeve;

the drainage bag fixing piece is connected to the lower hem of the coat body; and

the hole shading cloth is detachably connected to the sleeves and used for opening or closing the elbow hole.

Through above-mentioned technical scheme, medical personnel dismantle the back with trousers crotch from trousers crotch, conveniently nurse patient's shank, also be convenient for inject the medicine in patient's buttock position. In addition, medical personnel's accessible trousers crotch mouth nurses the operation to patient's perineum district, reduces medical personnel's nursing operation degree of difficulty. The pipeline can be worn out by the drainage tube through the hole, so that medical personnel can observe the liquid flowing condition in the drainage tube, and the pipeline blockage and other problems can be found in time. The pipeline mounting is with the fixed back of drainage tube, can follow the slide rail and slide and be fixed in the suitable position of trousers crotch with it, reduces the pipeline slippage risk, makes the pipeline more orderly simultaneously, and the medical personnel of being convenient for observe, and the patient's of also being convenient for simultaneously moves about.

Drawings

FIG. 1 is a front view of a patient gown according to an embodiment of the present invention;

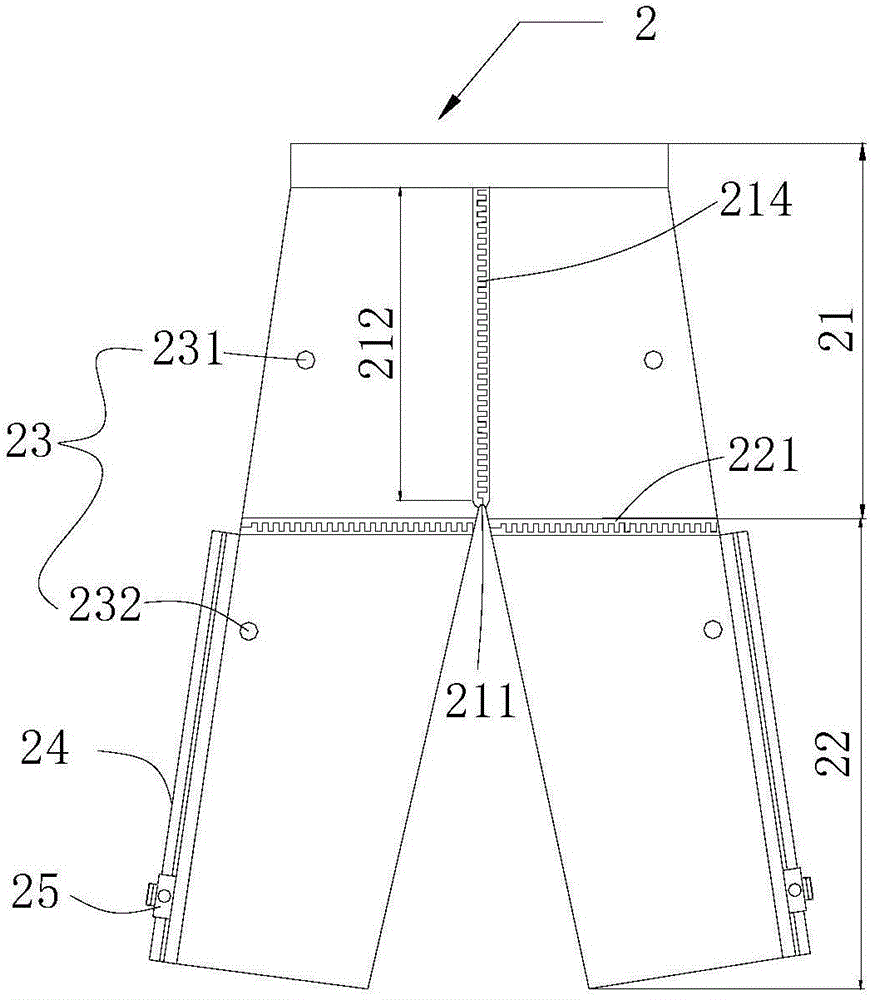

FIG. 2 is a front view of patient pants according to an embodiment of the present invention;

FIG. 3 is a rear view of patient pants according to an embodiment of the present invention;

FIG. 4 is a side view of patient pants according to an embodiment of the present invention;

fig. 5 is a partial cross-sectional view a-a of the patient pant of fig. 4.

Description of the reference numerals

1 clothes body 11 clothes body

12-coat-sleeve 13 infusion tube fixing piece

14 drainage bag 111 drainage tube passes through the hole

112 through hole shielding cloth 113 drainage bag fixing part

121 elbow position cave mouth 122 cave mouth shelters from cloth

123 zipper

131 shoulder position fixing piece 132 forearm position fixing piece

133 elastic ring 134 magic tape

1121 connector 1122 suture connection

1131 strip 1132 buckle

1133 female buckle

1221 outer layer covering cloth 1222 inner layer gauze

2 trousers body 21 trousers crotch

22 trousers crotch 23 pipeline passing through hole

24 slide rail 25 pipeline fixing piece

211 crotch 212 front crotch

213 rear crotch part 214 first zipper

221 second zipper 231 through hole for upper crotch pipeline

232 crotch pipeline passing hole 241 fixing part

242 guide portion 251 sliding portion

252 locking portion 253 precompresses elastic member

254 line clamp 2511 locking hole

Detailed Description

The following describes in detail embodiments of the present invention with reference to the accompanying drawings. It is to be understood that the description herein is only intended to illustrate and explain embodiments of the present invention, and is not intended to limit embodiments of the present invention.

As shown in fig. 2 to 5, the utility model provides a pair of patient trousers, which comprises a trousers body 2, a pipeline passing hole 23, a slide rail 24 and a pipeline fixing piece 25.

Wherein, trousers body 2 is including dismantling trousers crotch 21 and trousers crotch 22 of connecting, and trousers crotch 21 is equipped with trousers crotch 211 that can open and shut, and pipeline passes hole 23 is including forming the crotch pipeline of trousers crotch 21 and passing hole 231 and the crotch pipeline of formation at trousers crotch 22 and pass hole 232 through the hole, and the slide rail sets up in trousers crotch 22 and arranges along the length direction of trousers crotch 22, and pipeline mounting 25 slidable mounting is on slide rail 24.

When medical personnel nursed the leg wound patient, because patient's shank can't be crooked, be difficult for putting on trousers and take off, medical personnel's accessible is pulled down trousers crotch 22 from trousers upper part of the leg 21 in order to expose patient's shank to be convenient for nurse. After the trousers crotch 22 is detached, the medical staff can directly lift the trousers crotch 21 to inject the medicine to the buttocks of the patient, which is convenient and fast. In the embodiment shown in fig. 2 and 3, the trousers crotch 21 and 22 are detachably connected by the second zipper 221, so that the structure is simple and the cost is low.

In addition, for some patients who are inconvenient to turn over, medical care personnel can directly carry out nursing operation on the perineum area through the crotch opening 211 of the trousers without taking off the patient trousers, so that the nursing difficulty of the medical care personnel is reduced, even one medical care personnel can conveniently operate, the manpower resource is effectively saved, and meanwhile, the pain of the patient caused by turning over can be relieved. In the embodiment shown in fig. 2 and 3, the crotch 21 of the trousers is provided with a first zipper 214 for opening and closing the crotch opening 211 of the trousers, which is simple in structure and convenient for the medical staff to operate.

To keeping somewhere the patient that has the drainage tube, the drainage tube can pass through the crotch pipeline and pass through hole 231 or the crotch pipeline passes through hole 232 and wear out, and medical personnel need not roll up trousers crotch 21 or take off trousers crotch 22 and just can observe the liquid flow condition in the drainage tube, is favorable to medical personnel in time to discover the pipeline jam scheduling problem. In addition, pipeline mounting 25 can slide on the slide rail 24 that extends along trousers crotch 22 length direction, and medical personnel or patient's accessible pipeline mounting 25 fix the drainage tube in trousers crotch 22's suitable position, reduce the pipeline slippage risk, make the pipeline more orderly, and the medical personnel of being convenient for observe, the patient's of also being convenient for simultaneously activity.

In one embodiment, as shown in fig. 5, the slide rail 24 includes a fixing portion 241 fixedly coupled to the crotch 22 of the trousers and a guide portion 242 coupled to the fixing portion 241. The slide rail 24 is made of plastic having a certain flexibility, so that the slide rail 24 can be bent along with the crotch 22 of the trousers when the patient trousers are worn, and the cross section of the guide part 242 is T-shaped.

The pipeline fixing member 25 includes a sliding portion 251, a locking portion 252 and a pre-pressure elastic member 253, the sliding portion 251 is formed with a sliding groove matched with the guide portion 242, the outer wall of the sliding portion 251 is provided with a locking hole in a penetrating manner, the locking portion 252 penetrates into the locking hole from outside to inside and abuts against the guide portion 242, the outer end of the pre-pressure elastic member 253 is fixedly connected to the locking hole, and the inner end of the pre-pressure elastic member 253 is fixedly connected to the locking portion 252.

Specifically, the sliding portion 251 is in a clearance fit with the guide portion 242, and when the locking portion 252 is pulled out from the locking hole to disengage the locking portion 252 from the guide portion 242, the locking portion 252 does not lock the sliding portion 251 and the guide portion 242, so that the sliding portion 251 can be moved along the guide portion 242. When the pulling force applied to the locking portion 252 is removed, the locking portion 252 abuts against the guide portion 242 by the resilient action of the pre-pressing elastic member 253, thereby fixing the sliding portion 251 to the guide portion 242. It can be seen that medical personnel and patients can quickly fix the drainage tube at a proper position on the crotch 22 of the trousers as required.

It is understood that the pre-pressing elastic member 253 may be any one of a compression spring and a rubber spring, which is simple in structure, low in cost, and easy to manufacture.

Further, the line fixing member 25 may further include a line clamping portion 254 provided on the sliding portion 251. The tube holding portion 254 is used to hold and fix the drainage tube. In the embodiment shown in fig. 5, the conduit-holding portion 254 is a clip, and it is understood that the conduit-holding portion 254 can be any one or a combination of a clip, a hook and loop fastener, which is low in cost and easy to manufacture.

In one embodiment, as shown in figures 2-4, sliding tracks 24 are provided at the sides of the crotch 22 of the pants to facilitate the patient's handling of the tubing fasteners 25 and to facilitate observation by the medical staff. Slide rail 24 extends to the bottom end of trousers crotch 22 from the top end of trousers crotch 22, and slide rail 24 arranges along whole trousers crotch 22's length direction promptly, and medical personnel can be fixed in the arbitrary position of whole trousers crotch 22 length direction with the pipeline, and medical personnel of being convenient for arrange the pipeline in order.

In one embodiment, as shown in fig. 2 and 3, the crotch opening 211 of the trousers covers from the front crotch portion 212 of the upper crotch 21 of the trousers to the back crotch portion 213 of the upper crotch 21 of the trousers, so that the opening of the whole crotch opening 211 of the trousers is larger, and the nursing operation of the perineum area by medical staff is more convenient.

In one embodiment, as shown in fig. 2 and 3, the crotch panel passing hole 231 is formed at a position of a side of the crotch 21 of the trousers; and/or, a crotch line pass-through hole 232 is formed at a side position of the crotch 22 of the pants. To go up the crotch pipeline and pass hole 231 and the crotch pipeline and set up the side position at trousers body 2 through hole 232, avoid exposing patient's secret position, protect patient's privacy.

In one embodiment, as shown in fig. 2 and 3, the crotch upward line passing hole 231 is formed at a middle position (i.e., a middle position in the vertical direction) of the crotch upward 21 of the trousers; and/or, a crotch line pass-through hole 232 is formed at an upper position of the crotch 22 of the trousers. So set up for the position that the crotch pipeline passed hole 231 and the crotch pipeline passed hole 232 is close to the urethra that has the catheter patient, makes things convenient for medical personnel to wear out the catheter from the crotch through the hole or the crotch passes through in the hole.

In one embodiment, as shown in fig. 2 and 3, the crotch line passing hole 231, the crotch line passing hole 232, the slide rail 24, and the line fixing member 25 are all plural, the plurality of crotch lines passing holes 231 are symmetrically arranged at two crotch legs of the crotch 21 of the trousers, and the plurality of crotch lines passing holes 232, the plurality of slide rails 24, and the plurality of line fixing members 25 are symmetrically arranged at two crotch legs of the crotch 22 of the trousers. Specifically, the crotch pipe passing hole 231, the crotch pipe passing hole 232, the slide rail 24 and the pipe fixing member 25 are all symmetrically disposed on the trousers body 2, and medical staff or patients can fix the drainage tube to the left side, the right side, the front side or the back side of the trousers body 2 according to different situations.

As shown in fig. 1, the utility model provides a patient clothing, which comprises a clothing body 1, a transfusion tube fixing member 13, a drainage bag fixing member 113 and a cave mouth blocking cloth 122. The clothes body 1 comprises a clothes body 11 and sleeves 12, a drainage tube through hole 111 is formed at the lap position of the clothes body 11, and elbow holes 121 are formed at the elbow positions of the elbow sleeves 12 of the sleeves 12. The infusion tube holder 13 includes a shoulder holder 131 attached to the shoulder of the body 11 and a forearm holder 132 attached to the forearm of the sleeve 12. The drainage bag fixing part 113 is connected at the lower hem position of the clothes body 11; and a hole blocking cloth 122 detachably coupled to the sleeves 12 for opening or closing the elbow hole 121.

Specifically, the drainage tube passes through the hole 111 and is set up to be used for supplying the abdomen drainage tube to wear out, and medical personnel can observe the flowing condition of liquid in the abdomen drainage tube without lifting the lower hem of the clothes body 11, and are favorable for medical personnel to find out the problems such as pipeline blockage in time. One end of the abdominal drainage tube penetrates out of the drainage tube through the hole 111 and then is connected with the drainage bag 14, the drainage bag 14 is fixed at the lower hem position of the clothes body 11 through the drainage bag fixing part 113, and the drainage bag 14 is reduced to shake to improve the safety when a patient moves.

To carrying the periphery to put into the patient of central venous catheter or when needing to carry out the upper arm puncture operation, medical personnel can open the cave mouth and shelter from cloth 122 in order to carry out the infusion, change dressings and puncture operation, avoid obeying the patient's shoulder to take off the operation, prevent to appear the too much skin condition of exposed patient, both be favorable to protecting patient's privacy, also be favorable to the patient to keep warm.

When the patient is infusing, transfer line mounting 13 can fix the transfer line, reduces the risk that leads to the pipeline slippage because of the pipeline tractive for the pipeline is neat orderly, and the medical personnel of being convenient for observe, the patient's activity of also being convenient for simultaneously.

In one embodiment, the elbow holes 121 extend continuously at least from an elbow-forward position to an elbow-rearward position of the sleeves 12 in the circumferential direction of the sleeves 12. Specifically, the elbow hole 121 can expose the elbow joint, which is convenient for the patient to move.

In one embodiment, the hole shielding cloth 122 comprises an inner layer mesh fabric 1222 and an outer layer covering cloth 1221 which are arranged on the inner layer and the outer layer, and the inner layer mesh fabric 1222 and the outer layer covering cloth 1221 are respectively detachably connected with the sleeves 12.

Specifically, when puncturing the upper arm, the medical staff can detach both the inner gauze 1222 and the outer covering cloth 1221 from the elbow hole 121 to puncture the upper arm. When measuring accurate blood pressure, medical personnel only need pull down outer laminating cloth 1221 from elbow position cave mouth 121, remain inner net gauze 1222, avoid skin and sphygmomanometer ground direct contact for a long time, can effectively reduce the risk that forms the pressure sore.

In one embodiment, the cloth 122 is connected with the elbow hole 121 by a zipper 123, which is simple in structure, low in cost and convenient for operation.

In one embodiment, the patient garment further includes a pass-through hole blocking cloth 112 attached to the lower position of the body 11 and capable of opening or closing the drain pass-through hole 111.

Specifically, can cover whole drainage tube through hole 111 through hole shielding cloth 112, part border that passes hole shielding cloth 112 is sewed up with clothing body 11 and is connected formation sewing junction 1122, and pass the hole and be equipped with connecting piece 1121 between shielding cloth 112 and the clothing body 11, be used for opening or closed drainage tube passes hole 111, avoid the drainage wound that the belly was seted up direct with the outer air contact of clothing body 1, reduce the risk of drainage wound infection, can understand, connecting piece 1121 all need use in pairs, and the difference of public mother's nature between a pair of connection structure just can reach the connection effect, wherein a slice of subsides of magic is public subsides, then another slice is female subsides, one of the button is public button, another then is female button.

In one embodiment, shoulder mount 131 is provided for securing tubing connected to the deep venous access of the neck.

Specifically, in the process of deep venous transfusion of the neck, the deep venous transfusion tube of the neck can be fixed at the shoulder position of the clothes body 11 through the shoulder position fixing piece 131, so that the pipeline is orderly, and when a patient moves the neck, the risk of pipeline slippage caused by pipeline traction is reduced.

In one embodiment, a forearm site fixation member 132 is provided for securing an infusion tube connected to a venous access on the back of the hand; and/or, a forearm site fixation member 132 may be provided for securing an infusion tube connected to a venous access in the forearm.

Specifically, the venous transfusion tube on the back of the hand and/or the venous transfusion tube on the forearm can be fixed at the forearm position of the sleeve 12 through the forearm position fixing part 132, so that the pipeline is orderly, and the risk of pipeline slippage caused by pipeline pulling is reduced when the patient moves the arm.

In one embodiment, the infusion tube fixing member 13 includes a hook and loop fastener 134 and an elastic ring 133, and the elastic ring 133 is fixedly connected to the hook and loop fastener 134.

Specifically, hook faces of the hook and loop fasteners 134 are sewn on the shoulders of the clothes body 11 and the forearms of the sleeves 12, the infusion tube fixing piece 13 is provided with a hair face of the hook and loop fasteners 134, the hook face and the hair face of the hook and loop fasteners 134 can be interchanged, and the infusion tube fixing piece 13 can be detachably connected with the shoulders of the clothes body 11 or the forearms of the sleeves 12 through the hook and loop fasteners 134. The magic tape 134 is fixedly connected with an elastic ring 133, the elastic ring 133 is made of elastic rubber materials, and the infusion tube can be clamped and fixed after passing through the elastic ring 133.

In one embodiment, the drainage bag fixing member 113 is a button or a clip sewn on the lower hem of the body 11, which is simple in structure and low in cost. In the embodiment shown in fig. 1, on the strip-shaped cloth 1131, a female buckle 1133 is sewn at the fixed end of the strip-shaped cloth 1131 and is sewn at the lower hem of the garment body 11, a male buckle 1132 is sewn at the movable end of the strip-shaped cloth 1131, and the movable end of the strip-shaped cloth 1131 penetrates through the lifting ring of the drainage bag 14 and buckles the male buckle 1132 with the female buckle 1133, so that the drainage bag 14 can be fixed, and the drainage bag 14 is prevented from shaking to improve the safety.

In one embodiment, the infusion tube fixing member 13, the drainage tube passing hole 111, the drainage bag fixing member 113, the elbow hole 121, and the hole blocking cloth 122 are symmetrically arranged on the left and right side portions of the patient clothes.

Specifically, the infusion tube fixing member 13, the drainage tube passing hole 111 and the drainage bag fixing member 113 are respectively disposed on the left and right sides of the garment body 11, the elbow hole 121 and the hole blocking cloth 122 are respectively disposed on the left and right sleeves 12, and the medical care personnel or the patient can fix the infusion tube or the drainage bag 14 on the left or right side of the patient garment according to their own habits.

The utility model also provides a patient suit, this patient suit include above-mentioned patient clothing and patient's trousers, and above-mentioned patient clothing and patient's trousers can regard as the suit to use together promptly.

Of course, the patient gown and the patient pants can be used independently. For example, the patient gown can be used in combination with traditional patient pants, or the patient pants can be used in combination with traditional patient gowns.

In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", "axial", "radial", "circumferential", and the like, indicate the orientation or positional relationship indicated based on the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature. In the description of the present invention, "a plurality" means at least two, e.g., two, three, etc., unless specifically limited otherwise.

In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," and "fixed" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally formed; may be mechanically coupled, may be electrically coupled or may be in communication with each other; they may be directly connected or indirectly connected through intervening media, or they may be connected internally or in any other suitable relationship, unless expressly stated otherwise. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.

In the present application, unless expressly stated or limited otherwise, the first feature may be directly on or directly under the second feature or indirectly via intermediate members. Also, a first feature "on," "over," and "above" a second feature may be directly or diagonally above the second feature, or may simply indicate that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature may be directly under or obliquely under the first feature, or may simply mean that the first feature is at a lesser elevation than the second feature.

In the description herein, references to the description of the term "one embodiment," "some embodiments," "an example," "a specific example," or "some examples," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above are not necessarily intended to refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples. Furthermore, various embodiments or examples and features of different embodiments or examples described in this specification can be combined and combined by one skilled in the art without contradiction.

Although embodiments of the present invention have been shown and described, it is understood that the above embodiments are exemplary and should not be construed as limiting the present invention, and that variations, modifications, substitutions and alterations can be made to the above embodiments by those of ordinary skill in the art without departing from the scope of the present invention.

Claims (10)

1. The utility model provides a patient's trousers which characterized in that, patient's trousers include:

the trousers comprise a trousers body (2) and a trousers crotch (21) and a trousers crotch (22), wherein the trousers crotch (21) is provided with a trousers crotch opening (211) which can be opened and closed;

a tube passing hole (23) including a crotch tube passing hole (231) formed at the trousers crotch (21) and a crotch tube passing hole (232) formed at the trousers crotch (22);

a slide rail (24) provided to the pants crotch (22) and arranged in a longitudinal direction of the pants crotch (22); and

and the pipeline fixing piece (25) is slidably arranged on the sliding rail (24).

2. The patient trousers according to claim 1, wherein said sliding rail (24) comprises a fixing portion (241) fixedly connected to the crotch (22) of the trousers and a guide portion (242) connected to said fixing portion (241), said pipeline fixing member (25) comprises a sliding portion (251), a locking portion (252) and a pre-pressure elastic member (253), said sliding portion (251) is formed with a sliding slot engaged with said guide portion (242) and the outer wall of said sliding portion (251) is provided with a locking hole (2511) therethrough, said locking portion (252) penetrates said locking hole (2511) from outside to inside and abuts against said guide portion (242), the outer end of said pre-pressure elastic member (253) is fixedly connected to said locking hole (2511) and the inner end is fixedly connected to said locking portion (252).

3. The patient pants according to claim 2, wherein the tube holder (25) further comprises a tube clamping portion (254) provided on the sliding portion (251).

4. The patient pant of claim 1, wherein the sliding tracks (24) are disposed at lateral positions of the pant crotch (22); and/or the sliding track (24) extends from a top end of the pant crotch (22) to a bottom end of the pant crotch (22).

5. The patient pant of claim 1, wherein the pant crotch opening (211) covers from a front crotch portion (212) of the pant crotch (21) to a back crotch portion (213) of the pant crotch (21).

6. The patient pants according to claim 1, wherein the crotch passage passing hole (231) is formed at a side position of a crotch (21) of the pants; and/or, the crotch line pass-through hole (232) is formed at a lateral position of the crotch (22) of the trousers.

7. The patient pants according to claim 1, wherein the crotch passage passing hole (231) is formed at a central position of the crotch (21) of the pants; and/or, the crotch line pass-through hole (232) is formed at an upper position of the trousers crotch (22).

8. The patient pants according to claim 1, wherein the crotch line passing hole (231), the crotch line passing hole (232), the slide rail (24), and the line fastener (25) are each plural, the plural crotch line passing holes (231) are symmetrically arranged at both crotch legs of the pants crotch (21), and the plural crotch line passing holes (232), the plural slide rail (24), and the plural line fastener (25) are each symmetrically arranged at both crotch legs of the pants crotch (22).

9. Patient suit, characterized in that it comprises a patient gown and a pair of patient pants according to any one of claims 1 to 8.

10. The patient kit of claim 9, wherein the patient gown comprises:

the clothes comprise a clothes body (1) and sleeves (12), wherein a drainage tube through hole (111) is formed in the lap position of the clothes body (11), and elbow holes (121) are formed in the elbow positions of the sleeves (12);

an infusion tube holder (13) including a shoulder holder (131) connected to a shoulder position of the body (11) and a forearm holder (132) connected to a forearm position of the cuff (12);

the drainage bag fixing piece (113) is connected to the lower hem position of the clothes body (11); and

a hole shading cloth (122) detachably connected to the sleeves (12) for opening or closing the elbow hole (121).
