Abstract
本实用新型公开了一种避免堵塞的人工湿地用输水装置，包括输水装置本体、电机、刮板、固定框和过滤网16，所述输水装置本体的左侧开设有进水管，且输水装置本体上方设置有电机，所述输水装置本体右下方连接有出水管，且出水管右侧连接有水泵，所述固定框内侧设置有过滤网16，且过滤网(16)左右两侧连接有固定块，所述固定块内侧开设有卡槽，且卡槽内部设置有卡块。该避免堵塞的人工湿地用输水装置设置有伸缩杆、刮板和喷头，在使用的过程中，由于长时间的输水工作，导致大量的泥土沉淀不易清理，通过喷头向输水装置本体内部喷水，且刮板可刮除内部和装置内部沉淀的泥土，并且伸缩杆可调节不同高度使得刮板全方位刮除清理内部。
The utility model discloses a water conveying device for constructed wetlands that avoids clogging, comprising a water conveying device body, a motor, a scraper, a fixing frame and a filter screen 16. The left side of the water conveying device body is provided with a water inlet pipe, and A motor is arranged above the body of the water delivery device, a water outlet pipe is connected to the lower right of the water delivery device body, and a water pump is connected to the right side of the water outlet pipe, a filter screen 16 is arranged inside the fixing frame, and the filter screen (16) is two on the left and right. A fixing block is connected on the side, a card slot is opened on the inner side of the fixing block, and a card block is arranged inside the card slot. The water delivery device for constructed wetlands that avoids blockage is provided with a telescopic rod, a scraper and a nozzle. During the use process, due to the long-term water delivery work, a large amount of soil sediment is not easy to clean up, and the nozzle is sent to the inside of the water delivery device body through the nozzle. Water is sprayed, and the scraper can scrape the soil deposited inside and inside the device, and the telescopic rod can be adjusted to different heights so that the scraper can scrape and clean the interior in all directions.
Description
Technical Field
The utility model relates to a water delivery technical field specifically is a avoid water delivery device for constructed wetland who blocks up.
Background
The water delivery device for the artificial wetland pumps filtered water into the edge of the artificial wetland system through the water delivery device, and distributes the filtered water into the artificial wetland uniformly, and the water body enters the artificial wetland again after being treated by the artificial wetland, but the existing water delivery device has certain problems in the using process;
current water delivery device is at the in-process that uses, the water that water delivery device carried often contains a large amount of silt, long-time use takes place to block up easily and influences the transport effect, and when current filtration takes place to dismantle when damaging, often need multiple instrument, it is very troublesome, use not nimble enough, and long-time water delivery in-process can be at this internal multiple earth stone that remains of water delivery device, long-time accumulation sclerosis can lead to difficult washing, make the life that has reduced water delivery device.
We have proposed a constructed wetland water delivery device that avoids clogging in order to solve the problems set forth above.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an avoid water delivery device for constructed wetland who blocks up to easily block up, the difficult dismantlement of filter screen and difficult abluent problem on solving the existing market that above-mentioned background art provided.
In order to achieve the above object, the utility model provides a following technical scheme: a constructed wetland water delivery device capable of avoiding blockage comprises a water delivery device body, a motor, a scraper blade, a fixed frame and a filter screen, wherein a water inlet pipe is arranged on the left side of the water delivery device body, the motor is arranged above the water delivery device body, a sleeve is connected below the motor, a telescopic rod is connected below the sleeve, a fixing bolt is connected on the left side of the telescopic rod, a connecting rod is connected around the telescopic rod, the scraper blade is fixedly connected on one side of the connecting rod, a water tank is arranged on the left side of the motor, a water pipe is arranged below the water tank, a spray head is connected below the water pipe, a partition plate is arranged on the inner side of the water delivery device body, a water outlet is arranged below the partition plate, the right side of the water outlet is connected with the fixed frame, a water outlet pipe is connected on, and the left and right sides of the filter screen are connected with fixing blocks, the inner sides of the fixing blocks are provided with clamping grooves, and clamping blocks are arranged in the clamping grooves.
Preferably, the water inlet pipe and the water outlet pipe are designed in a cylindrical structure, and the water inlet pipe and the water outlet pipe are perpendicular to the water delivery device body.
Preferably, the sleeve and the telescopic rod are in sliding connection, the inner diameter of the sleeve is larger than the outer diameter of the telescopic rod, and the central line of the sleeve and the central line of the telescopic rod are overlapped.
Preferably, the number of the scrapers is 4, the scrapers are designed to be T-shaped, and the scrapers are perpendicular to the connecting rod.
Preferably, the number of the spray heads is 2, and the spray heads are perpendicular to the water passing pipe.
Preferably, the clamping groove and the clamping block are in sliding connection, the inner diameter of the clamping groove is larger than the outer diameter of the clamping block, and the center line of the clamping groove and the center line of the clamping block are overlapped.
Compared with the prior art, the beneficial effects of the utility model are that: the water delivery device for the constructed wetland for avoiding blockage;
1. the telescopic rod, the scraper and the spray head are arranged, so that a large amount of soil is not easy to clean due to long-time water delivery work in the using process, water is sprayed into the water delivery device body through the spray head, the scraper can scrape the soil deposited inside and inside the device, and the telescopic rod can adjust different heights to enable the scraper to scrape and clean the inside in an all-round manner;
2. be provided with filter screen, draw-in groove and fixture block, at the in-process that uses, possess the filter action to rivers through the filter screen, can filter the impurity of aquatic to improved water delivery device's work efficiency, and through draw-in groove and fixture block, can wholly dismantle the filter screen get off, thereby conveniently wash or change, need not to use multiple extracting tool to dismantle, make more facilitates the use.
Drawings

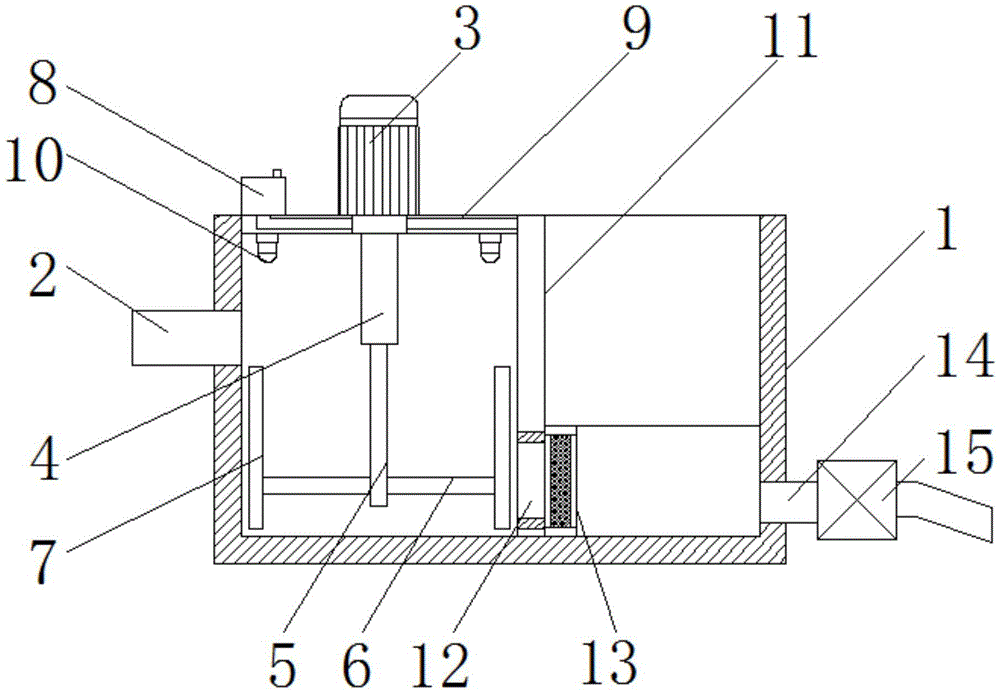

FIG. 1 is a schematic sectional view of the present invention;
FIG. 2 is a schematic view of the structure of the present invention;
FIG. 3 is a schematic sectional view of the telescopic rod and the sleeve according to the present invention;
fig. 4 is the schematic view of the cross-sectional structure of the filter screen of the present invention.
In the figure: 1. a water delivery device body; 2. a water inlet pipe; 3. a motor; 4. a sleeve; 5. a telescopic rod; 6. a connecting rod; 7. a squeegee; 8. a water tank; 9. a water pipe; 10. a spray head; 11. a partition plate; 12. a water outlet; 13. a fixing frame; 14. a water outlet pipe; 15. a water pump; 16. a filter screen; 17. a fixed block; 18. a card slot; 19. a clamping block; 20. and (5) fixing the bolt.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: a constructed wetland water delivery device capable of avoiding blockage comprises a water delivery device body 1, a water inlet pipe 2, a motor 3, a sleeve 4, a telescopic rod 5, a connecting rod 6, a scraper 7, a water tank 8, a water service pipe 9, a spray head 10, a partition plate 11, a water outlet 12, a fixing frame 13, a water outlet pipe 14, a water pump 15, a filter screen 16, a fixing block 17, a clamping groove 18, a clamping block 19 and a fixing bolt 20, wherein the water inlet pipe 2 is arranged on the left side of the water delivery device body 1, the motor 3 is arranged above the water delivery device body 1, the sleeve 4 is connected below the motor 3, the telescopic rod 5 is connected below the sleeve 4, the fixing bolt 20 is connected on the left side of the telescopic rod 5, the connecting rod 6 is connected around the telescopic rod 5, the scraper 7 is fixedly connected on one side of the connecting rod 6, the water tank 8 is arranged on the left side, the inboard division board 11 that is provided with of water delivery device body 1, and division board 11 below has seted up delivery port 12 to delivery port 12 right side is connected with fixed frame 13, and 1 right side below of water delivery device body is connected with outlet pipe 14, and the outlet pipe 14 right side is connected with water pump 15, and fixed frame 13 inboard is provided with filter screen 16, and the filter screen 16 left and right sides is connected with fixed block 17, and draw-in groove 18 has been seted up to fixed block 17 inboard, and the inside fixture block 19 that is provided with of draw-.
The inlet tube 2 is cylindrical structural design with outlet pipe 14 and forms, and mutually perpendicular between inlet tube 2 and outlet pipe 14 and the water delivery device body 1, and the design of above-mentioned structure is convenient for the entering and the output of rivers through inlet tube 2 and outlet pipe 14, has strengthened the practicality of device.
The shower nozzle 10 is provided with 2, and mutually perpendicular between shower nozzle 10 and the water service pipe 9, and the design of above-mentioned structure can be more comprehensive more convenient washs the device through shower nozzle 10, has strengthened the practicality of device.
The clamping groove 18 and the clamping block 19 are in sliding connection, the inner diameter of the clamping groove 18 is larger than the outer diameter of the clamping block 19, the center line of the clamping groove 18 and the center line of the clamping block 19 are overlapped, the filter screen 16 can be stably fixed through the clamping groove 18 and the clamping block 19 due to the structural design, the filter screen 16 can be detached at will, and the usability of the device is improved.
The working principle is as follows: when the water delivery device for the constructed wetland is used, firstly, as shown in figures 1-3, the device is placed at a proper position, a power supply is turned on, water enters the water delivery device body 1 from the water inlet pipe 2, the water flows into the filter screen 16 through the water outlet 12 under the action of the water pump 15, the water is filtered by the filter screen 16 and can filter impurities in the water, so that the working efficiency of the water delivery device is improved, the filtered water flows out through the water outlet pipe 14, after the water delivery work is finished, the motor 3 can be turned on, the water in the water tank 8 enters the spray head 10 through the water pipe 9 and is sprayed out of the spray head 10 into the water delivery device body 1, the scraper 7 can scrape the deposited soil in the water delivery device body and the inner part under the driving of the motor 3, and the telescopic rod 5 can adjust different heights to enable the scraper 7 to scrape and clean the inner part in all directions, as shown in figures 1-4, and redundant soil impurities can be left on the filter screen 16, and the filter screen 16 can be integrally detached through the clamping groove 18 and the clamping block 19, so that the filter screen is convenient to clean or replace, and a user can use the filter screen more conveniently.
To thereby carry out a series of tasks, the contents of which are not described in detail in the present specification are prior art well known to those skilled in the art.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.
Claims (6)
1. The utility model provides an avoid water delivery device for constructed wetland who blocks up, includes water delivery device body (1), motor (3), scraper blade (7), fixed frame (13) and filter screen (16), its characterized in that: the water delivery device is characterized in that a water inlet pipe (2) is arranged on the left side of a water delivery device body (1), a motor (3) is arranged above the water delivery device body (1), a sleeve (4) is connected below the motor (3), a telescopic rod (5) is connected below the sleeve (4), a fixing bolt (20) is connected on the left side of the telescopic rod (5), connecting rods (6) are connected around the telescopic rod (5), a scraper (7) is fixedly connected on one side of each connecting rod (6), a water tank (8) is arranged on the left side of the motor (3), a water service pipe (9) is arranged below the water tank (8), a spray head (10) is connected below the water service pipe (9), a partition plate (11) is arranged on the inner side of the water delivery device body (1), a water outlet (12) is arranged below the partition plate (11), and a fixing, the water delivery device is characterized in that a water outlet pipe (14) is connected to the lower right side of the water delivery device body (1), a water pump (15) is connected to the right side of the water outlet pipe (14), a filter screen (16) is arranged on the inner side of the fixing frame (13), fixing blocks (17) are connected to the left side and the right side of the filter screen (16), a clamping groove (18) is formed in the inner side of each fixing block (17), and a clamping block (19) is arranged inside each.
2. The constructed wetland water delivery device capable of avoiding blockage according to claim 1, which is characterized in that: the water inlet pipe (2) and the water outlet pipe (14) are designed into a cylindrical structure, and the water inlet pipe (2) and the water outlet pipe (14) are perpendicular to the water delivery device body (1).
3. The constructed wetland water delivery device capable of avoiding blockage according to claim 1, which is characterized in that: the telescopic rod is characterized in that the sleeve (4) is in sliding connection with the telescopic rod (5), the inner diameter of the sleeve (4) is larger than the outer diameter of the telescopic rod (5), and the central line of the sleeve (4) and the central line of the telescopic rod (5) are overlapped.
4. The constructed wetland water delivery device capable of avoiding blockage according to claim 1, which is characterized in that: the number of the scrapers (7) is 4, the scrapers (7) are designed to be T-shaped, and the scrapers (7) and the connecting rod (6) are perpendicular to each other.
5. The constructed wetland water delivery device capable of avoiding blockage according to claim 1, which is characterized in that: the number of the spray heads (10) is 2, and the spray heads (10) are perpendicular to the water through pipe (9).
6. The constructed wetland water delivery device capable of avoiding blockage according to claim 1, which is characterized in that: the clamping groove (18) is in sliding connection with the clamping block (19), the inner diameter of the clamping groove (18) is larger than the outer diameter of the clamping block (19), and the center line of the clamping groove (18) and the center line of the clamping block (19) are overlapped.
