CN213664344U

CN213664344U - a multifunctional cabinet

Info

Publication number: CN213664344U
Application number: CN202022331218.9U
Authority: CN
Inventors: 叶国华
Original assignee: Foshan Sanpnt Household Products Co ltd
Current assignee: Foshan Sanpnt Household Products Co ltd
Priority date: 2020-10-20
Filing date: 2020-10-20
Publication date: 2021-07-13
Anticipated expiration: 2030-10-20

Abstract

The utility model belongs to the technical field of cabinets, in particular to a multifunctional cabinet, which includes a cabinet. Some commonly used spoons and other kitchen utensils can be hung in the through holes of the hanging plate, and some commonly used dishes and bowls can be placed on the placing plate. Under the action of the shaft seat, the hanging plate and the placing plate are manually rotated, and can be rotated and taken according to the required kitchen utensils. When the cutting board needs to be used, the cutting board can be pulled upward, so that the cutting board is forced to drive the connecting rod and the telescopic rod to move upward. , until the cutting board rises to the outside of the opening, so that the cutting board is in contact with the countertop of the cabinet in a horizontal state. On the contrary, lift the cutting board upward to make the cutting board and the connecting rod return to the vertical state, and press the cutting board downward to make the cutting board The board enters the interior of the cutting board cabinet through the opening, which prevents the cutting board from being exposed to the outside to breed bacteria. Pull the table board to move the table board to the outside of the placing slot, and turn the support legs to be perpendicular to the table board and contact the ground at the same time. The flexible use of the table top and the versatility of the cabinet are realized.

Description

Multifunctional cupboard

Technical Field

The utility model relates to a cupboard technical field, concretely relates to multifunctional cabinet.

Background

With the continuous improvement of living standards of people, the consciousness of pursuing all-round high-quality life of people is continuously enhanced, kitchen supplies are continuously updated, so that the cabinet is used in ordinary families, the cabinet is an essential part in daily life of people and is a necessary storage for a kitchen, and the cabinet is generally used for holding various utensils, such as cutters, bowls and chopsticks, plates and the like.

However, the existing multifunctional cabinet has the following problems:

1. most of cabinets in the market at present are simple in structure and single in function, most of cabinets consist of sliding door cabinets with larger spaces, and people are very inconvenient to find certain articles;

2. the existing cupboard can only be used for cooking food, when people cook meals and need to have meals, the cooked meals need to be held on another dining table for eating, and meanwhile, a common chopping board is often exposed outside, so that bacteria are easily generated and the space is occupied.

SUMMERY OF THE UTILITY MODEL

For solving the problem that proposes among the above-mentioned background art, the utility model provides a multifunctional cabinet has the multifunctionality cupboard and is convenient for look for kitchen utensils and appliances to and avoid the chopping board to breed the characteristics of bacterium.

In order to achieve the above object, the utility model provides a following technical scheme: a multifunctional cupboard comprises a cupboard body, wherein the cupboard body comprises a placing cupboard, a drawer, a storage cupboard, a placing groove, a chopping board cupboard, a water collecting tank and an idle cupboard, the placing cupboard and the storage cupboard are respectively positioned on the upper end surfaces of the drawer and the placing groove, the chopping board cupboard is positioned between the placing groove and the idle cupboard, two shaft seats are installed inside the idle cupboard, a rotating rod is fixedly connected between the two shaft seats, a hanging plate and two placing plates are fixedly connected to the outer wall of the rotating rod, the hanging plate is positioned above the placing plates, and a plurality of through holes which are uniformly distributed are formed in the lower end surface of the hanging plate;

the interior of the chopping board cabinet is fixedly connected with a telescopic rod, the upper end face of the telescopic rod is fixedly connected with a connecting rod, one end of the connecting rod is hinged with a chopping board, the lower end face of the chopping board is provided with a support plate, and the upper end face of the chopping board cabinet is provided with an opening in a penetrating manner;

the inside mounting of standing groove has the table, the lower terminal surface of table articulates there is the supporting leg, the table is perpendicular with the standing groove after expanding, the supporting leg is perpendicular with the table.

In order to increase the practicality of cupboard, as the utility model relates to a multi-functional cupboard is preferred, two cabinet doors are installed in the front of storing compartment, a plurality of baffles are all installed, and are a plurality of to the inside of storing compartment and cabinet door the baffle separates the inside of storing compartment and cabinet door and has formed a plurality of accomodating cabinets different in size.

In order to avoid colliding between the kitchen utensils and appliances and cause the damage, further keep apart a plurality of products simultaneously, do the utility model relates to a multi-functional cupboard is preferred, the inner wall of placing the cabinet has seted up the slide rail, the inside sliding connection of placing the cabinet has a plurality of vertically and horizontally staggered's baffle, and is a plurality of the baffle will be placed the cabinet and separate and form a plurality of cavities.

In order to increase the practicality and the multifunctionality of cupboard, as the utility model relates to a multi-functional cupboard is preferred, the filter is installed to the up end of water catch bowl, the filter is network structure, place the lower terminal surface of cabinet and install the drawer, the below of drawer is provided with the peg, a plurality of evenly distributed's hanging hole has been seted up to the lower terminal surface of peg.

In order to avoid the cupboard humidity to breed the bacterium, conduct the utility model relates to a multi-functional cupboard is preferred, two dry boxes are installed to the lower terminal surface of the cabinet body, the drier has been placed to the inside of dry box, sterilamp is installed to the up end of the cabinet body.

In order to reduce the frictional force of ground and cupboard, as the utility model relates to a multi-functional cupboard is preferred, four branches of the lower terminal surface fixedly connected with of the cabinet body, four the equal fixedly connected with rubber pad of lower terminal surface of branch.

Compared with the prior art, the beneficial effects of the utility model are that:

1. this kind of multifunctional cabinet can hang other kitchen utensils and appliances such as the ladle that some were used commonly in the through-hole that hangs the board, places the dish and can place some dishes and bowls that are used commonly, through hang the board and place the dish in the effect of axle bed manual rotation, can take according to required kitchen utensils and appliances are rotatory, and then can also avoid the problem of inconvenient searching when storing kitchen utensils and appliances.

2. This kind of multifunctional cabinet, when needs use the chopping board, can upwards stimulate the chopping board, make the chopping board atress drive connecting rod and telescopic link rebound, rise to the open-ended outside until the chopping board, push down the chopping board, make the chopping board be the mesa contact of horizontality and cupboard, otherwise, upwards lift the chopping board, make chopping board and connecting rod resume to the vertical state, push down the chopping board, make the chopping board advance the inside that the opening got into the chopping board cabinet, and then can use according to the demand is nimble, avoided the chopping board to expose and breed the bacterium outside.

3. This kind of multifunctional cabinet, the pulling table makes the table remove to the outside of standing groove, with the supporting leg upset to with the table vertically in with the ground contact, and then realized the nimble use of table and the multifunctionality of cupboard.

To sum up, this kind of multi-functional cupboard has realized being convenient for simultaneously to look for kitchen utensils and appliances of the multifunctionality of cupboard to and avoid the chopping board to breed the effect of bacterium.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

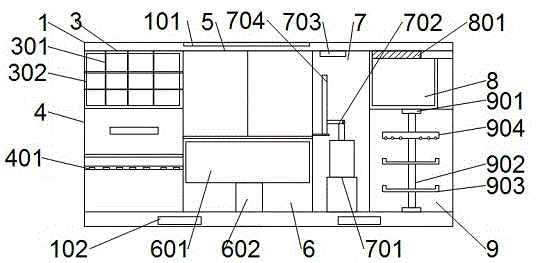

FIG. 1 is a structural view of a multifunctional cabinet of the present invention;

FIG. 2 is a view showing the internal structure of the multifunctional cabinet of the present invention;

FIG. 3 is a structural view of the storage cabinet of the present invention;

fig. 4 is a left side view of the placement groove of the present invention.

In the figure, 1, a cabinet body; 101. an ultraviolet germicidal lamp; 102. drying the box; 2. a strut; 201. a rubber pad; 3. a placing cabinet; 301. a partition plate; 302. a slide rail; 4. a drawer; 401. a hanging rod; 5. a storage cabinet; 501. a cabinet door; 502. a storage cabinet; 503. a baffle plate; 6. a placement groove; 601. a table plate; 602. supporting legs; 7. a chopping board cabinet; 701. a telescopic rod; 702. a connecting rod; 703. an opening; 704. chopping boards; 8. a water collection tank; 801. a filter plate; 9. an idle cabinet; 901. a shaft seat; 902. a rotating rod; 903. placing a tray; 904. a suspension plate.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.

In the description of the present invention, it is to be understood that the terms "length", "width", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are merely for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. In addition, in the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.

Referring to fig. 1-4, the present invention provides the following technical solutions: a multifunctional cupboard comprises a cupboard body 1, wherein the cupboard body 1 comprises a placing cupboard 3, a drawer 4, a storage cupboard 5, a placing groove 6, a chopping board cupboard 7, a water collecting tank 8 and an idle cupboard 9, the placing cupboard 3 and the storage cupboard 5 are respectively positioned on the upper end surfaces of the drawer 4 and the placing groove 6, the chopping board cupboard 7 is positioned between the placing groove 6 and the idle cupboard 9, two shaft seats 901 are installed inside the idle cupboard 9, a rotating rod 902 is fixedly connected between the two shaft seats 901, a hanging plate 904 and two placing dishes 903 are fixedly connected to the outer wall of the rotating rod 902, the hanging plate 904 is positioned above the placing dishes 903, and a plurality of through holes which are uniformly distributed are formed in the lower end surface of the hanging plate 904;

an expansion link 701 is fixedly connected inside the chopping board cabinet 7, the upper end face of the expansion link 701 is fixedly connected with a connecting rod 702, one end of the connecting rod 702 is hinged with a chopping board 704, a supporting board is installed on the lower end face of the chopping board 704, and an opening 703 is formed in the upper end face of the chopping board cabinet 7 in a penetrating mode;

a table 601 is arranged inside the placing groove 6, a supporting leg 602 is hinged to the lower end face of the table 601, the table 601 is perpendicular to the placing groove 6 after being unfolded, and the supporting leg 602 is perpendicular to the table 601.

In this embodiment: other kitchen utensils and appliances such as spoon that will use a few commonly can hang in the through-hole that hangs board 904, places some dishes and bowls that use a few commonly of dish 903 can be placed, through hang board 904 and place dish 903 in axle bed 901's effect manual rotation, can take according to required kitchen utensils and appliances are rotatory, and then can also avoid the problem of inconvenient searching when storing kitchen utensils and appliances.

When the chopping board 704 is needed to be used, the chopping board 704 can be pulled upwards, the chopping board 704 is stressed to drive the connecting rod 702 and the telescopic rod 701 to move upwards until the chopping board 704 rises to the outside of the opening 703, the chopping board 704 is pressed downwards, the chopping board 704 is made to be in a horizontal state to be in contact with the table top of the cabinet, otherwise, the chopping board 704 is lifted upwards, the chopping board 704 and the connecting rod 702 are made to be in a vertical state, the chopping board 704 is pressed downwards, the chopping board 704 enters the opening 703 to enter the inside of the chopping board cabinet 7, the use can be flexibly carried out according to requirements, and bacteria breeding caused by the fact that the chopping board 704 is exposed outside is avoided.

Pulling table 601 makes table 601 remove to the outside of standing groove 6, contacts with the ground when overturning supporting leg 602 to perpendicular with table 601, and then has realized the nimble use of table 601 and the multifunctionality of cupboard.

As the utility model discloses a technical optimization scheme, two cabinet doors 501 are installed in the front of storing compartment 5, and a plurality of baffles 503 are all installed to the inside of storing compartment 5 and cabinet door 501, and a plurality of baffles 503 separate storing compartment 5 and cabinet door 501's inside and have formed a plurality of not of uniform size's of accomodating cabinet 502.

In this embodiment: some kitchen utensils and appliances not commonly used can be placed in the storage cabinet 502 according to the size, and the storage cabinet 502 is also arranged in the cabinet door 501, so that the appearance is attractive, and the practicability is improved.

As a technical optimization scheme of the utility model, the inner wall of placing cabinet 3 has seted up slide rail 302, and the inside sliding connection of placing cabinet 3 has a plurality of vertically and horizontally staggered's baffle 301, and a plurality of baffles 301 will place cabinet 3 and separate and form a plurality of cavities.

In this embodiment: through moving baffle 301 about in slide rail 302, and then can place according to the size of kitchen utensils and appliances, can fix kitchen utensils and appliances, avoided colliding between the kitchen utensils and appliances and cause the damage.

As the utility model discloses a technical optimization scheme, filter 801 is installed to the up end of water catch bowl 8, and filter 801 is network structure, and the lower terminal surface of placing cabinet 3 installs drawer 4, and the below of drawer 4 is provided with peg 401, and a plurality of evenly distributed's hanging hole has been seted up to peg 401's lower terminal surface.

In this embodiment: can place the dish after washing on the surface of filter 801, and then can collect the water on dish surface through the inside that filter 801 flows into water catch bowl 8, and then reached the effect with the vegetables waterlogging caused by excessive rainfall, can place smallclothes kitchen utensils such as chopsticks and ladle in the drawer 4, can hang some ladles commonly used, rag etc. in the hanging hole through peg 401, and then can place some kitchen utensils classification commonly used, increased the practicality and the multifunctionality of cupboard.

As a technical optimization scheme of the utility model, two dry box 102 are installed to the lower terminal surface of the cabinet body 1, and the drier has been placed to the inside of dry box 102, and sterilamp 101 is installed to the up end of the cabinet body 1.

In this embodiment: by adding the drying agent into the drying box 102, the cabinet can be prevented from being wet and breeding bacteria, the dryness of the cabinet is ensured, and the ultraviolet sterilizing lamp 101 can sterilize and disinfect the kitchenware.

As a technical optimization scheme of the utility model, four branches 2 of the lower terminal surface fixedly connected with of the cabinet body 1, the equal fixedly connected with rubber pad 201 of the lower terminal surface of four branches 2.

In this embodiment: the cupboard can be supported by the support rod 2, so that the cupboard is more stable, and the rubber pad 201 can reduce the friction force between the ground and the cupboard.

The utility model discloses a theory of operation and use flow: the partition board 301 moves up and down and left and right in the sliding rail 302, and can be placed according to the size of the kitchen ware, then small kitchen ware such as chopsticks and spoons can be placed in the drawer 4, some common spoons and cleaning cloths can be hung in the hanging holes through the hanging rod 401, some unusual kitchen ware can be placed in the storage cabinet 502 according to the size, then the table board 601 is pulled, the table board 601 is moved to the outside of the placing groove 6, the supporting legs 602 are overturned to be vertical to the table board 601 and are contacted with the ground, then when the kitchen board 704 is needed to be used, the kitchen board 704 can be pulled upwards, the kitchen board 704 is forced to drive the connecting rod 702 and the telescopic rod 701 to move upwards until the kitchen board 704 rises to the outside of the opening, the kitchen board 703 is pressed downwards, the kitchen board 704 is made to be contacted with the table top of the cabinet in a horizontal state, water on the surface of the kitchen ware flows into the inside of the water collecting groove 8 through the filter board, and finally, other common kitchenware such as a spoon and the like can be hung in the through hole of the hanging plate 904, a placing disc 903 can be used for placing a dish and a bowl which are commonly used, and the hanging plate 904 and the placing disc 903 can be manually rotated under the action of the shaft seat 901 to be taken out according to the rotation of the required kitchenware.

The above description is only exemplary of the present invention and should not be construed as limiting the present invention, and any modifications, equivalents and improvements made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.

Claims

1. A multifunctional cabinet, comprising a cabinet body (1), characterized in that: the cabinet body (1) comprises a placement cabinet (3), a drawer (4), a storage cabinet (5), a placement slot (6), The cutting board cabinet (7), the water collecting tank (8) and the idle cabinet (9), the placing cabinet (3) and the storage cabinet (5) are respectively located on the upper end surfaces of the drawer (4) and the placing trough (6). The cutting board cabinet (7) is located between the placement slot (6) and the idle cabinet (9), and two shaft seats (901) are installed inside the idle cabinet (9), and the two shaft seats (901) are located between the two shaft seats (901). A rotating rod (902) is fixedly connected between the rotating rods (902), and a suspension plate (904) and two placing plates (903) are fixedly connected to the outer wall of the rotating rod (902). Above, the lower end surface of the suspension plate (904) is provided with a plurality of evenly distributed through holes;

A telescopic rod (701) is fixedly connected to the inside of the vegetable board cabinet (7), a connecting rod (702) is fixedly connected to the upper end surface of the telescopic rod (701), and one end of the connecting rod (702) is hinged with a vegetable a board (704), a support plate is installed on the lower end surface of the cutting board (704), and an opening (703) is formed through the upper end surface of the cutting board cabinet (7);

A table board (601) is installed inside the placement slot (6), a support leg (602) is hinged on the lower end surface of the table board (601), and the table board (601) is unfolded and connected to the placement slot (6) Vertical, the support legs (602) are vertical to the table board (601).

2 . The multifunctional cabinet according to claim 1 , wherein two cabinet doors ( 501 ) are installed on the front of the storage cabinet ( 5 ), the storage cabinet ( 5 ) and the cabinet door ( 501 ). 3 . ) are installed with a plurality of baffles (503), and the plurality of baffles (503) separate the interior of the storage cabinet (5) and the cabinet door (501) to form a plurality of storage cabinets (503) of different sizes ( 502).

3. The multifunctional cabinet according to claim 1, characterized in that: the inner wall of the placing cabinet (3) is provided with sliding rails (302), and the interior of the placing cabinet (3) is slidably connected with a plurality of sliding rails (302). Criss-crossing partitions (301), a plurality of the partitions (301) partition the placement cabinet (3) to form a plurality of chambers.

4. The multifunctional cabinet according to claim 1, characterized in that: a filter plate (801) is installed on the upper end surface of the water collecting tank (8), and the filter plate (801) is a mesh structure, so A drawer (4) is installed on the lower end surface of the storage cabinet (3), a hanging rod (401) is arranged below the drawer (4), and a plurality of evenly distributed hanging rods (401) are provided on the lower end surface of the hanging rod (401). hole.

5 . The multifunctional cabinet according to claim 1 , wherein two drying boxes ( 102 ) are installed on the lower end surface of the cabinet body ( 1 ), and inside the drying boxes ( 102 ) are placed Desiccant, an ultraviolet germicidal lamp (101) is installed on the upper end surface of the cabinet body (1).

6. The multifunctional cabinet according to claim 1, characterized in that: the lower end surface of the cabinet body (1) is fixedly connected with four struts (2), and the four struts (2) are Rubber pads (201) are fixedly connected to the lower end surfaces.
