CN213651427U

CN213651427U - Cable reel anti-mildew device

Info

Publication number: CN213651427U
Application number: CN202022164434.9U
Authority: CN
Inventors: 刘国中; 陈志和
Original assignee: Dongguan University of Technology
Current assignee: Dongguan University of Technology
Priority date: 2020-09-27
Filing date: 2020-09-27
Publication date: 2021-07-09
Anticipated expiration: 2030-09-27

Abstract

The utility model relates to a cable storage technology field discloses a cable drum anti-mildew device, including base, bracing piece, fixture and fan, the bracing piece with the fan is connected respectively on the base, fixture includes a plurality of grip blocks, and is a plurality of the grip block is followed the length direction parallel arrangement of bracing piece just respectively with the bracing piece is connected, the grip block can be followed the length direction of bracing piece removes, can part the cable drum that piles up along vertical direction, and the ventilation of being convenient for can remove the tide to a plurality of cable drums that pile up, and it is comprehensive to remove the tide, improves and removes damp efficiency, guarantees to remove the tide effect, prevents that the cable drum and the last cable humidity of cable drum from mildening and rot.

Description

Cable reel anti-mildew device

Technical Field

The utility model relates to a technical field is stored to the cable, especially relates to a cable drum device of preventing moulding.

Background

The cable reel is a wire reel which provides the function of winding wires and cables for industrial and mining enterprises, and is widely applied to industries such as oil field mines, building construction, mechanical manufacturing units, scientific research units, ports and docks, markets, hotels, road and bridge construction and the like. Along with the more and more diversified industrial demands, the mobile cable reel also becomes a new favorite in the cable reel market, so that the production environment is improved, and the production efficiency is improved. Although the cable winding is more convenient on the cable drum, when stacking the storage to the cable, the phenomenon of weing appears very easily in the cable of stacking, and then makes the cable take place to milden and rot, causes the damage to the cable, especially some wooden cable drums can cause milden and rot, also can make milden and rot and pass to the cable, cause the damage to the cable.

The cable reel includes the reel and the disk body of fixed connection at the reel both ends, to small-size cable reel, in order to save the space of piling up to and in order to prevent that the cable reel from removing, generally stack a plurality of cable reels, and the coil plate of two adjacent cable reels is piled up and is formed the cylinder and place promptly. The existing dehumidifying mode is to blow the stacked cable reels, and due to the stacking, the surfaces of the disc bodies attached to the adjacent cable reels cannot be blown by wind, the damp cannot be completely removed, and the efficiency is low.

Chinese utility model CN207375511U (2018, 05 and 18 days), discloses a cable tray for storage with moisture-proof function, including base and first support roller, base right side surface is provided with the backplate, the fastener is installed to the upper end of gyro wheel, base right side fixed surface has the grudging post, the backplate passes through axis of rotation and handle interconnect, first support roller is installed inside the upper end of grudging post, and the lower extreme of first support roller and second support roller all is provided with the supporting plate, first support roller is installed in the upper end of second support roller, the side surface of grudging post is provided with heating wire switch and fan switch respectively, ventilation unit's inside includes heater strip group and the fan of arranging in proper order from left to right. This patent only blows and heats one or two cable drums placed on a stand and is not suitable for dehumidifying a large number of stacked cable drums.

SUMMERY OF THE UTILITY MODEL

The utility model aims at providing a can remove the tide, remove the cable drum anti-mildew device that the tide is efficient to a plurality of cable drums of stacking.

In order to realize the above-mentioned purpose, the utility model provides a cable drum anti-mildew device, including base, bracing piece, fixture and fan, the bracing piece with the fan is connected respectively on the base, fixture includes a plurality of grip blocks, and is a plurality of the grip block is followed the length direction parallel arrangement of bracing piece and respectively with the bracing piece is connected, the grip block can be followed the length direction of bracing piece removes.

As the preferred scheme, the grip block is equipped with the centre gripping mouth, just the grip block is kept away from the one end of centre gripping mouth with the bracing piece is connected.

As the preferred scheme, still include two push pedals and two support frames, two the support frame symmetry is located the both sides of bracing piece, the support frame with the bracing piece is close to respectively the relative both sides setting of base, the push pedal is connected just can be followed and be close to or keep away from on the support frame the direction of bracing piece removes.

Preferably, the clamping plate is connected with a heating plate.

Preferably, the clamping plates comprise a first clamping plate and a second clamping plate, the second clamping plate is arranged on the upper side and the lower side of the first clamping plate respectively, the first clamping plate is connected with the supporting rod, and the second clamping plate can move along the length direction of the supporting rod and is connected with the first clamping plate.

Preferably, the clamping mechanism further comprises a connecting ring, the connecting ring is slidably sleeved outside the supporting rod, and the first clamping plate is connected with the connecting ring.

Preferably, the base includes a bottom plate and a support plate, the support plate is connected to the bottom plate to be movable up and down, and the support rod is connected to the support plate.

As a preferred scheme, the supporting plate is connected with the bottom plate through a first moving mechanism, the moving mechanism comprises a lifting motor, a rotary table, a pull rope and a first return spring, a guide rod is arranged on the bottom plate, a first connecting through hole is arranged on the supporting plate, the guide rod penetrates through the first connecting through hole, the first return spring is sleeved outside the guide rod and is positioned between the supporting plate and the bottom plate, the lifting motor is arranged on the bottom plate, the rotary table is sleeved on an output shaft of the lifting motor, one end of the pull rope is connected to the rotary table, and the other end of the pull rope is connected to the supporting plate.

As a preferred scheme, the first clamping plate can move along a direction perpendicular to the supporting rod through a second moving mechanism, a connecting block is arranged on the connecting ring, a second connecting through hole is arranged on the connecting block, a movable connecting rod penetrates through the second connecting through hole, a second return spring is sleeved on the connecting rod, the first clamping plate is connected to one end of the connecting rod, and two ends of the second return spring are respectively connected with the first clamping plate and the connecting block;

the second moving mechanism comprises a rotating shaft and a top plate, the rotating shaft is rotatably connected to the supporting plate and located on one side, away from the first clamping plate, of the connecting rod, the top plate is connected to the side face of the rotating shaft, and the top plate is a cylindrical arc-shaped panel.

Preferably, the fan is connected to the push plate, the push plate is hollow inside, the push plate is provided with an air inlet hole communicated with the inside of the push plate, the air outlet end of the fan is communicated with the air inlet hole, and a side face, close to the support rod, of the push plate is provided with a plurality of air outlet holes communicated with the inside of the push plate.

Compared with the prior art, the beneficial effects of the utility model reside in that:

the utility model discloses a set up the fan, can blow and remove the tide to through a plurality of parallel arrangement and can follow the grip block that the length direction of bracing piece removed, can separately along vertical direction the cable drum that piles up, the ventilation of being convenient for can remove the tide to a plurality of cable drums that pile up, removes the tide comprehensively, improves and removes damp efficiency, guarantees to remove the tide effect, prevents that the cable drum and the last cable humidity from mildening and rot.

Drawings

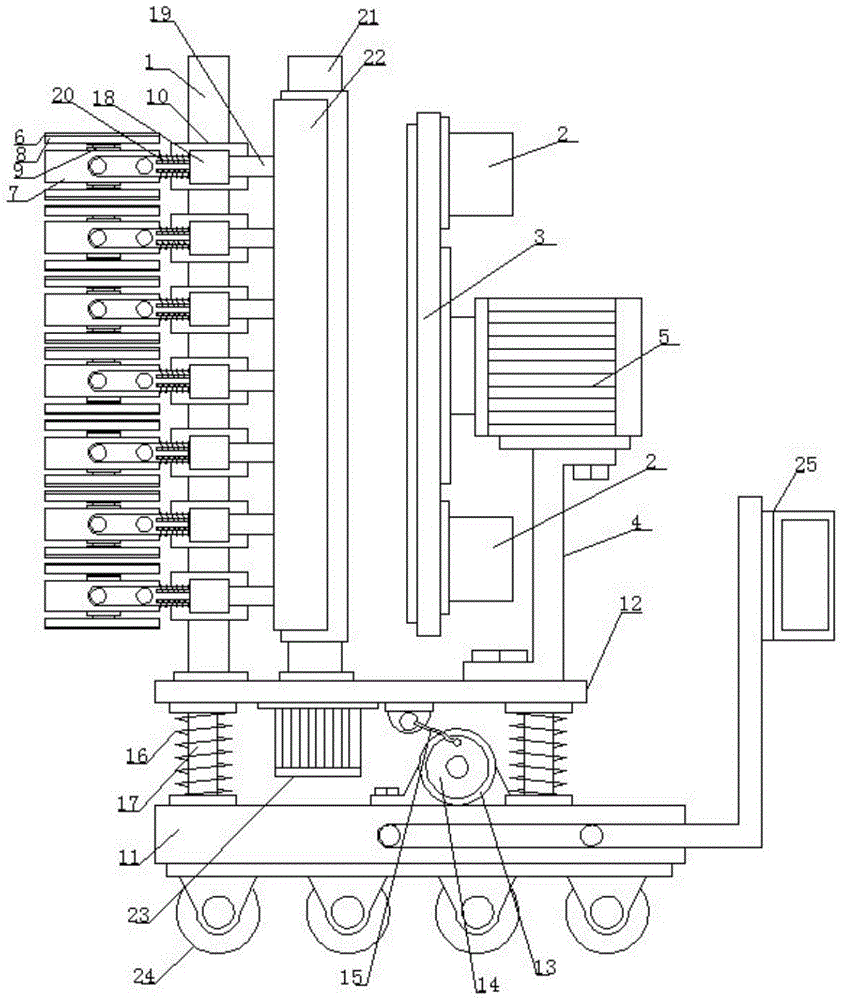

Fig. 1 is a schematic structural diagram of a cable reel anti-mildew device according to an embodiment of the present invention.

Fig. 2 is a distribution schematic diagram of the supporting rods and the supporting frames of the anti-mildew device for cable drum of the embodiment of the present invention in the supporting plate.

Fig. 3 is a schematic structural diagram of a clamping plate according to an embodiment of the present invention.

In the figures, 1-support bar; 2-a fan; 3-pushing the plate; 4-a support frame; 5-a first hydraulic cylinder; 6-heating plate; 7-a first clamping plate; 8-a second clamping plate; 9-a second hydraulic cylinder; 10-a connecting ring; 11-a base plate; 12-a support plate; 13-a lifting motor; 14-a turntable; 15-pulling a rope; 16-a first return spring; 17-a guide rod; 18-connecting blocks; 19-a connecting rod; 20-a second return spring; 21-a rotating shaft; 22-a top plate; 23-a moving motor; 24-a moving wheel; 25-handle.

Detailed Description

The following detailed description of the embodiments of the present invention is provided with reference to the accompanying drawings and examples. The following examples are intended to illustrate the invention, but are not intended to limit the scope of the invention.

In the description of the present invention, it should be noted that the terms "center", "longitudinal", "lateral", "up", "down", "front", "back", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate the orientation or positional relationship based on the orientation or positional relationship shown in the drawings, and are only for convenience of description and simplification of the description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

In addition, in the description of the present invention, "a plurality" means two or more unless otherwise specified.

Referring to fig. 1 to 3, the utility model discloses a cable drum device of preventing mildew of preferred embodiment, including base, bracing piece 1, fixture and fan 2, bracing piece 1 and fan 2 connect respectively on the base, and fixture includes a plurality of grip blocks, and a plurality of grip blocks are along the length direction parallel arrangement of bracing piece 1 and be connected with bracing piece 1 respectively, and the grip block can be followed the length direction removal of bracing piece 1. This embodiment can blow and remove the tide through setting up fan 2 to through a plurality of parallel arrangement and can follow the grip block that the length direction of bracing piece 1 removed, can part along vertical direction with the cable drum that piles up, the ventilation of being convenient for can remove the tide to a plurality of cable drums that pile up, removes the tide comprehensively, improves and removes damp efficiency, guarantees to remove the tide effect, prevents that the cable drum and the last cable humidity from mildening and rot.

Further, the grip block of this embodiment is equipped with the centre gripping mouth, and the grip block is kept away from the one end of centre gripping mouth and is connected with bracing piece 1, makes the grip block type of U-shaped, can make the bobbin of cable drum be arranged in the centre gripping mouth, and the grip block offsets and lifts up the cable drum with the disk body contact of cable drum, can more stabilize, conveniently centre gripping cable drum.

Further, the device of preventing mildew of this embodiment still includes two push pedal 3 and two support frames 4, the both sides of bracing piece 1 are located to two support frame 4 symmetries, support frame 4 sets up with bracing piece 1 is close to the relative both sides of base respectively, push pedal 3 is connected on support frame 4 and can be followed the direction removal that is close to or keeps away from bracing piece 1, before the cable drum that the grip block separation was piled up, push pedal 3 removes the both sides to the cable drum, can carry on spacingly, prevent that the cable drum that piles up from overturning, make the grip block centre gripping cable drum smoothly. Be provided with first pneumatic cylinder 5 on the support frame 4 of this embodiment, the end that stretches out at first pneumatic cylinder 5's piston rod is connected to push pedal 3, and the flexible push pedal 3 that drives through first pneumatic cylinder 5 removes.

Further, be connected with hot plate 6 on the grip block of this embodiment, the heat stoving cable drum that the accessible hot plate 6 gived off dehumidifies, prevents to milden and rot. The clamping plate of this embodiment includes first clamping plate 7 and second clamping plate 8, and the upper and lower both sides of first clamping plate 7 are equipped with second clamping plate 8 respectively, and first clamping plate 7 is connected with bracing piece 1, and second clamping plate 8 can be connected with first clamping plate 7 along the length direction removal ground of bracing piece 1, and the distance between adjustable second clamping plate 8 of removal through second clamping plate 8 and first clamping plate 7 is adaptable different length's cable drum. The upper and lower both sides of the first clamping plate 7 of this embodiment are provided with the second pneumatic cylinder 9 respectively, and two second clamping plates 8 are connected respectively at the end that stretches out of the piston rod of two second pneumatic cylinders 9, and the direction of stretching out of the piston rod of two second pneumatic cylinders 9 is opposite. The heating plate 6 of this embodiment is made for copper material and its inside winding has the resistance wire, can produce heat to the resistance wire circular telegram.

In this embodiment, the clamping mechanism further includes a connecting ring 10, the connecting ring 10 is slidably sleeved outside the support rod 1, and the first clamping plate 7 is connected to the connecting ring 10, so that the connecting ring 10 can slide along the support rod 1, and further the first clamping plate 7 is driven to move along the length direction of the support rod 1. The first clamping plate 7 and the two second clamping plates 8 connected with the first clamping plate 7 are a clamping unit, when the stacked cable reel is separated, the second clamping plate 8 above the first clamping plate 7 in the clamping unit below offsets with the second clamping plate 8 below the first clamping plate 7 in the clamping unit above, the clamping unit above is jacked, the second clamping plate 8 above the first clamping plate 7 in the clamping unit above offsets with the cable reel body to lift the cable reel, the clamping plates are moved, and then the stacked cable reel is separated.

The base of this embodiment includes bottom plate 11 and backup pad 12, and backup pad 12 can connect on bottom plate 11 with reciprocating, and bracing piece 1 is connected in backup pad 12, through the removal of backup pad 12, can drive bracing piece 1 and remove, and then drives the cable drum of grip block centre gripping and reciprocate, realizes that the air current flows, improves ventilation efficiency, improves dehumidification efficiency. The backup pad 12 of this embodiment is connected with bottom plate 11 through first moving mechanism, moving mechanism includes elevator motor 13, the carousel 14, stay cord 15 and first reset spring 16, be equipped with guide arm 17 on the bottom plate 11, be equipped with first connect the via hole on the backup pad 12, guide arm 17 passes first connect the via hole, first reset spring 16 suit is outside guide arm 17 and is located between backup pad 12 and the bottom plate 11, elevator motor 13 is located on bottom plate 11, the output shaft of carousel 14 suit on elevator motor 13, the one end of stay cord 15 is connected on carousel 14, the other end is connected on backup pad 12. The lifting motor 13 of this embodiment rotates to drive the rotary table 14 to rotate, so that the pull rope 15 pulls the support plate 12 to descend, the first return spring 16 is compressed, the lifting motor 13 stops, the first return spring 16 recovers, the support plate 12 ascends, and the up-and-down movement of the support plate 12 is realized.

Further, the first clamping plate 7 of the present embodiment can move along the direction perpendicular to the support rod 1 through the second moving mechanism, the connecting ring 10 is provided with a connecting block 18, the connecting block 18 is provided with a second connecting through hole, a movable connecting rod 19 penetrates through the second connecting through hole, the connecting rod 19 is sleeved with a second return spring 20, the first clamping plate 7 is connected to one end of the connecting rod 19, and two ends of the second return spring 20 are respectively connected to the first clamping plate 7 and the connecting block 18; the second moving mechanism comprises a rotating shaft 21 and a top plate 22, the rotating shaft 21 is rotatably connected to the supporting plate 12 and located on one side, away from the first clamping plate 7, of the connecting rod 19, the top plate 22 is connected to the side face of the rotating shaft 21, and the top plate 22 is a cylindrical cambered plate. The first clamping plate 7 moves along the direction vertical to the supporting rod 1, so that the heating plate 6 connected to the second clamping plate 8 moves along the direction vertical to the wire drum of the cable drum, and uniform heating and drying are performed. The rotating shaft 21 of the embodiment rotates to enable the top plate 22 connected with the rotating shaft to rotate along with the rotating shaft, when the top plate 22 moves to be opposite to the connecting rod 19, the connecting rod 19 can be pushed to move forwards, the second return spring 20 is compressed, and when the top plate 22 leaves a position opposite to the connecting rod 18, the second return spring 20 is restored to drive the connecting rod 20 to move backwards, so that the first clamping plate 7 and the second clamping plate 8 are moved. The bottom surface of the support plate 12 of this embodiment is connected with the mobile motor 23, is equipped with the rotation hole on the support plate 12, and the output shaft of the mobile motor 23 is connected through the shaft connecting piece with the pivot 21, drives the pivot 21 through the mobile motor 23 and rotates.

In this embodiment, fan 2 is connected on push pedal 3, and push pedal 3's inside cavity is equipped with on push pedal 3 rather than inside communicating fresh air inlet, and fan 2's air-out end and fresh air inlet intercommunication, push pedal 3 are close to a side of bracing piece 1 and are equipped with a plurality ofly rather than inside communicating exhaust vent, and fan 2's air current is discharged through push pedal 3's exhaust vent, can increase the air-out area, is convenient for blow to the cable drum that piles up.

In addition, the bottom plate 11 of the present embodiment is connected with a moving wheel 24 so that the mildew-proof device of the present embodiment is movable. The bottom plate 11 is provided with a handle 25 which is convenient to move.

The utility model discloses a working process does: holding the handle 25, the apparatus of the present embodiment is moved to the vicinity of the stacked cable drum; starting the first hydraulic cylinder 5 to extend the push plates 3, so that the two push plates 3 are positioned at two sides of the stacked cable drum; starting a second hydraulic cylinder 9, sequentially jacking the upper clamping units by the lower clamping units, and separating the stacked cable trays in the vertical direction; the first hydraulic cylinder 5 is retracted, the fan 2 is started, and air is blown to the cable reel; starting the lifting motor 13, rotating the rotary table 14, pulling the support plate 12 to descend by the pull rope 15, pausing the lifting motor 13, rotating the rotary table 14 in the reverse direction, and enabling the support plate 12 to be arranged above under the action of the first return spring 16, so that the operation is repeated, the air flow is accelerated, and the ventilation efficiency is improved; starting the heating plate 6, and heating and drying the cable coil; the second hydraulic cylinder 9 is reset, and the cable reel returns to the original position; the moving motor 23 is started, the rotating shaft 21 rotates, and the top plate 22 intermittently pushes the connecting rod 19, so that the clamping plate extends and retracts, the heating plate 6 is driven to move, and uniform heating is facilitated.

To sum up, the embodiment of the utility model provides a cable drum device of preventing mildening and rot, it is through setting up fan 2, can blow and remove the tide to through a plurality of parallel arrangement and can follow the grip block that the length direction of bracing piece 1 removed, can part the cable drum that piles up along vertical direction, the ventilation of being convenient for can remove the tide to a plurality of cable drums that pile up, removes the tide comprehensively, improves and removes damp efficiency, guarantees to remove the tide effect, prevents that the cable drum and the last cable humidity of cable drum from mildening and rot.

The foregoing is only a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, a plurality of modifications and replacements can be made without departing from the technical principle of the present invention, and these modifications and replacements should also be regarded as the protection scope of the present invention.

Claims

1. The utility model provides a cable drum device of preventing mildew, its characterized in that, includes base, bracing piece (1), fixture and fan (2), bracing piece (1) with fan (2) are connected respectively on the base, fixture includes a plurality of grip blocks, and is a plurality of the grip block is followed the length direction parallel arrangement of bracing piece (1) and respectively with bracing piece (1) is connected, the grip block can be followed the length direction of bracing piece (1) removes.

2. Mould proof device for cable drums according to claim 1, characterized in that the clamping plate is provided with a clamping opening and that the end of the clamping plate remote from the clamping opening is connected to the support bar (1).

3. The cable drum mildew-proof device of claim 1, further comprising two push plates (3) and two support frames (4), wherein the two support frames (4) are symmetrically arranged at two sides of the support rod (1), the support frames (4) and the support rod (1) are respectively close to two opposite sides of the base, and the push plates (3) are connected to the support frames (4) and can move along the direction close to or away from the support rod (1).

4. Mould proof device for cable drums according to claim 1, characterized in that a heating plate (6) is connected to the clamping plate.

5. Mould proof device for cable drums according to claim 4, characterized in that the clamping plate comprises a first clamping plate (7) and a second clamping plate (8), the second clamping plate (8) is respectively arranged on the upper and lower sides of the first clamping plate (7), the first clamping plate (7) is connected with the support rod (1), and the second clamping plate (8) is movably connected with the first clamping plate (7) along the length direction of the support rod (1).

6. Mould proof device for cable drums according to claim 5, characterized in that said clamping means further comprise a connecting ring (10), said connecting ring (10) being slidably sleeved outside said supporting bar (1), said first clamping plate (7) being connected to said connecting ring (10).

7. Mould proof device for cable drums according to claim 6, characterized in that the base comprises a bottom plate (11) and a support plate (12), the support plate (12) being connected to the bottom plate (11) in a way that it can move up and down, the support bar (1) being connected to the support plate (12).

8. Device according to claim 7, characterized in that said support plate (12) is connected to said base plate (11) by means of a first movement mechanism, the moving mechanism comprises a lifting motor (13), a rotary table (14), a pull rope (15) and a first return spring (16), the bottom plate (11) is provided with a guide rod (17), the support plate (12) is provided with a first connecting through hole, the guide rod (17) penetrates through the first connecting through hole, the first return spring (16) is sleeved outside the guide rod (17) and positioned between the support plate (12) and the bottom plate (11), the lifting motor (13) is arranged on the bottom plate (11), the rotary disc (14) is sleeved on an output shaft of the lifting motor (13), one end of the pull rope (15) is connected to the rotary disc (14), and the other end of the pull rope is connected to the supporting plate (12).

9. The cable reel anti-mildew device of claim 7, wherein the first clamping plate (7) is movable along a direction perpendicular to the support rod (1) by a second moving mechanism, the connecting ring (10) is provided with a connecting block (18), the connecting block (18) is provided with a second connecting through hole, a movable connecting rod (19) penetrates through the second connecting through hole, the connecting rod (19) is sleeved with a second return spring (20), the first clamping plate (7) is connected to one end of the connecting rod (19), and two ends of the second return spring (20) are respectively connected with the first clamping plate (7) and the connecting block (18);

the second moving mechanism comprises a rotating shaft (21) and a top plate (22), the rotating shaft (21) is rotatably connected to the supporting plate (12) and located on one side, away from the first clamping plate (7), of the connecting rod (19), the top plate (22) is connected to the side face of the rotating shaft (21), and the top plate (22) is a cylindrical arc panel.

10. The cable reel mildew-resistant device of claim 3, wherein the fan (2) is connected to the push plate (3), the push plate (3) is hollow, an air inlet hole communicated with the interior of the push plate (3) is formed in the push plate (3), the air outlet end of the fan (2) is communicated with the air inlet hole, and a plurality of air outlet holes communicated with the interior of the push plate (3) are formed in one side surface, close to the support rod (1), of the push plate (3).
