Abstract
The utility model discloses a withstand voltage corrugated box, its technical scheme main points are: comprises a bottom plate, a first mounting frame is fixedly mounted on the upper surface of the bottom plate, four first mounting grooves which are mutually symmetrical are arranged on the inner surface of the first mounting frame, a cavity is arranged between the bottom plate and the first mounting frame, a corrugated paper box body is arranged in the cavity, the lower surface of the corrugated case body is fixed on the upper surface of the bottom plate, the outer surface of the corrugated case body is connected with the inner surface of the first mounting frame, a first fixed block is arranged on the outer surface of the corrugated case body and matched with the first mounting groove, the installation of the reinforcing plates is convenient through the second installation groove, the four corners of the corrugated case have better structural strength through the four symmetrically installed reinforcing plates, prevent to receive external force when using and lead to deformation, receive the damage to the article in the corrugated box.
Description
Technical Field
The utility model relates to a nonrust steel pipe processing field, in particular to withstand voltage corrugated box.
Background
The corrugated paper board is made into a corrugated paper box through die cutting, indentation, box nailing or box gluing. The corrugated case is a packaging product with the widest application, and the use amount is always the first of various packaging products. Comprises a calcium plastic corrugated case. For more than half a century, corrugated cartons gradually replace transport packaging containers such as wooden boxes and the like with excellent service performance and good processing performance, and become the leading force of transport packaging. It not only protects the goods, is convenient for storage and transportation, but also beautifies the goods and publicizes the goods. The corrugated paper box belongs to green environmental protection products, which is beneficial to environmental protection and loading, unloading and transportation
The existing corrugated case is low in self strength and poor in pressure resistance, and the case body is easily deformed by external force when in use, so that articles in the corrugated case are damaged and inconvenient to use.
SUMMERY OF THE UTILITY MODEL
To the problem mentioned in the background art, the utility model aims at providing a withstand voltage corrugated box to solve the problem mentioned in the background art.
The above technical purpose of the present invention can be achieved by the following technical solutions:
a pressure-resistant corrugated case comprises a bottom plate, a first mounting frame is fixedly arranged on the upper surface of the bottom plate, four first mounting grooves which are mutually symmetrical are arranged on the inner surface of the first mounting frame, a cavity is arranged between the bottom plate and the first mounting frame, a corrugated paper box body is arranged in the cavity, the lower surface of the corrugated paper box body is fixed on the upper surface of the bottom plate, the outer surface of the corrugated case body is connected with the inner surface of the first mounting frame, the outer surface of the corrugated case body is provided with a first fixed block, the first fixed block is matched with the first mounting groove, four symmetrical second mounting grooves are arranged on the upper surface of the corrugated case body, reinforcing plates are slidably mounted in the four second mounting grooves, the lower surface of reinforcing plate with the bottom plate is connected, corrugated box body's top is equipped with the case lid.
Through adopting the above technical scheme, the first installing frame that is equipped with in this withstand voltage corrugated box, the corrugated box body and the bottom plate fixed connection of being convenient for, through first mounting groove and the first fixed block that are equipped with, the corrugated box body and the first installing frame reciprocal anchorage of being convenient for, improve and the structural strength between bottom plate and the first installing frame, the second mounting groove that is equipped with, the installation of the reinforcing plate of being convenient for, the reinforcing plate through the installation of four symmetries, make four turnings of corrugated box have better structural strength, prevent to receive external force when using and lead to deformation, article to in the corrugated box receive the damage.
Preferably, the reinforcing plate is a plastic reinforcing plate, and the length of the reinforcing plate is the same as the height of the corrugated case body.
Through adopting above-mentioned technical scheme, the light in weight and firm of plastics reinforcing plate, but the easy bulk production of processing, the low price, the processing cost are low, still have better impact resistance, are convenient for fix corrugated box.
Preferably, a plurality of triangle connecting blocks are fixedly connected to the reinforcing plate, and the triangle connecting blocks are distributed on the surface of the reinforcing plate at equal intervals.
Through adopting above-mentioned technical scheme, through a plurality of triangle connecting blocks, be convenient for improve the structural strength between reinforcing plate and the corrugated box body for have better resistance to pressure, be difficult for receiving deformation.
Preferably, a plurality of the triangular connecting blocks are fixed on the inner surface of the corrugated case body through strong glue.
Through adopting above-mentioned technical scheme, through the strong glue with the firm fixing of triangle connecting block on corrugated box's internal surface, prevent to drop.
Preferably, the box cover comprises a top plate and a second mounting frame, the top plate is located above the second mounting frame, the second mounting frame is fixed to the lower surface of the top plate, and the outer surface of the corrugated box body is matched with the inner surface of the second mounting frame.
Through adopting above-mentioned technical scheme, through the case lid that roof and second installing frame constitute, be convenient for install on corrugated box body, improve the convenience of installation.
Preferably, a third mounting groove is formed in the surface of the upper portion of the corrugated case body, a second fixing block is fixedly mounted on the inner surface of the second mounting frame, and the third mounting groove is mounted in a matched mode with the second fixing block.
Through adopting above-mentioned technical scheme, the second fixed block of fixing on the internal surface through third mounting groove on the corrugated box body and second installing frame mutually supports, waits to use the case lid when corrugated box uses and fixes the corrugated box body.
Preferably, the bottom plate, the corrugated case body and the case cover are all provided with waterproof coatings on the surfaces.
Through adopting above-mentioned technical scheme, through the waterproof coating on the surface of bottom plate, corrugated box body and case lid, the effectual back that wets that prevents soaks corrugated container board, the compressive property of the corrugated container case that reduces.
To sum up, the utility model discloses mainly have following beneficial effect:
the first mounting frame is arranged in the pressure-resistant corrugated case, so that the corrugated case body and the bottom plate can be fixedly connected, the corrugated case body and the first mounting frame can be fixed with each other conveniently through the first mounting groove and the first fixing block, and the structural strength between the corrugated case body and the bottom plate and the first mounting frame is improved;
second, through the second mounting groove that is equipped with in this withstand voltage corrugated box, the reinforcing plate of being convenient for through the reinforcing plate of the installation of four symmetries for four turnings of corrugated box have better structural strength, prevent to receive external force when using and lead to deformation, receive the damage to the article in the corrugated box.
Drawings

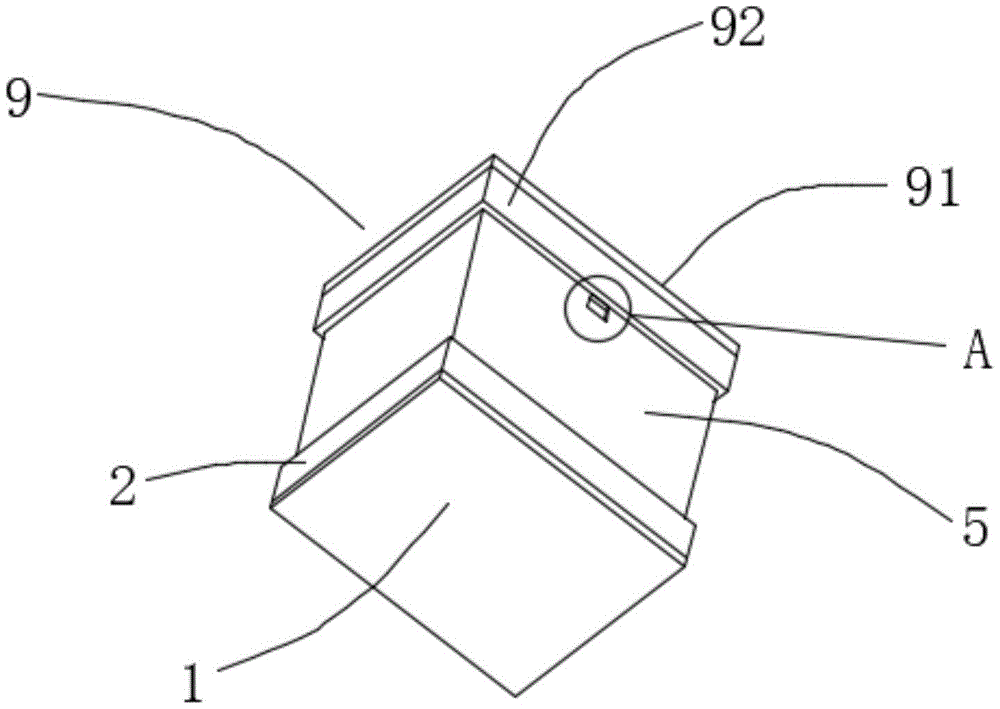

Fig. 1 is one of the schematic structural diagrams of the present invention;
fig. 2 is a second schematic structural diagram of the present invention;
FIG. 3 is a schematic top view of the present invention;
fig. 4 is a partially enlarged view of a portion a in fig. 1.
Reference numerals: 1. a base plate; 2. a first mounting frame; 3. a first mounting groove; 4. a cavity; 5. a corrugated paper box body; 6. a first fixed block; 7. a second mounting groove; 8. a reinforcing plate; 9. a box cover; 91. a top plate; 92. a second mounting frame; 10. a triangular connecting block; 11. a third mounting groove; 12. a second fixed block; 13. and (3) a waterproof coating.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Example 1
Referring to fig. 1-4, a pressure-resistant corrugated case includes a base plate 1, a first mounting frame 2 is fixedly mounted on an upper surface of the base plate 1, four mutually symmetrical first mounting grooves 3 are formed on an inner surface of the first mounting frame 2, a cavity 4 is formed between the base plate 1 and the first mounting frame 2, a corrugated case body 5 is arranged in the cavity 4, the lower surface of the corrugated case body 5 is fixed on the upper surface of the base plate 1, an outer surface of the corrugated case body 5 is connected with an inner surface of the first mounting frame 2, a first fixing block 6 is arranged on an outer surface of the corrugated case body 5, the first fixing block 6 is matched with the first mounting groove 3, four symmetrical second mounting grooves 7 are formed in the upper surface of the corrugated case body 5, reinforcing plates 8 are slidably mounted in the four second mounting grooves 7, a lower surface of each reinforcing plate 8 is connected with the base plate 1, and a case.
Referring to fig. 1 and 3, the reinforcing plate 8 is a plastic reinforcing plate, the length of the reinforcing plate 8 is the same as the height of the corrugated box body 5, the plastic reinforcing plate is light and firm, the processing is easy and mass-producible, the price is low, the processing cost is low, and the plastic reinforcing plate also has good impact resistance and is convenient for fixing the corrugated box body 5.
Referring to fig. 1, fig. 2 and fig. 3, a plurality of triangular connecting blocks 10 of fixedly connected with on the reinforcing plate 8, a plurality of triangular connecting blocks 10 are equidistant to be distributed on the surface of the reinforcing plate 8, and through a plurality of triangular connecting blocks 10, the structural strength between the reinforcing plate 8 and the corrugated case body 5 is convenient to improve, so that the corrugated case has better pressure resistance and is not easy to deform.
Referring to fig. 1 and 3, the plurality of triangular connection blocks 10 are fixed to the inner surface of the corrugated cardboard box 5 by strong glue, and the triangular connection blocks 10 are firmly fixed to the inner surface of the corrugated cardboard box 5 by strong glue to prevent the triangular connection blocks from falling off.
Referring to fig. 1, the box cover 9 includes a top plate 91 and a second mounting frame 92, the top plate 91 is located above the second mounting frame 92, the second mounting frame 92 is fixed on the lower surface of the top plate 91, the outer surface of the corrugated box body 5 is matched with the inner surface of the second mounting frame 92, and the box cover 9 formed by the top plate 91 and the second mounting frame 92 is convenient to mount on the corrugated box body 5, so that the mounting convenience is improved.
Referring to fig. 1, 2 and 4, a third mounting groove 11 is formed on the upper surface of the corrugated box body 5, a second fixing block 12 is fixedly mounted on the inner surface of the second mounting frame 92, the third mounting groove 11 is mounted in cooperation with the second fixing block 12, and the corrugated box body 5 is fixed by the box cover 9 when the corrugated box is used by mutually matching the third mounting groove 11 on the corrugated box body 5 with the second fixing block 12 fixed on the inner surface of the second mounting frame 92.
Referring to fig. 1 and 2, the surfaces of the base plate 1, the corrugated case 5 and the case cover 9 are all provided with waterproof coatings 13, and the waterproof coatings 13 on the surfaces of the base plate 1, the corrugated case 5 and the case cover 9 effectively prevent the corrugated board from being soaked after being affected with damp, so that the pressure resistance of the corrugated case is reduced.
The use principle and the advantages are as follows:
this withstand voltage corrugated box is bottom plate 1 and first installing frame 2 when using, the installation of the corrugated box body 5 of being convenient for, through first mounting groove 3 and first fixed block 6, the corrugated box body 5 and first installing frame 2 reciprocal anchorage of being convenient for, improve and the structural strength between bottom plate 1 and the first installing frame 2, through second mounting groove 7, the installation of the reinforcing plate 8 of being convenient for, reinforcing plate 8 through the installation of four symmetries, make four turnings of corrugated box have better structural strength, prevent to receive external force and lead to deformation when using, article to in the corrugated box receive the damage, through waterproof coating 13, effectually prevent to soak corrugated container board after weing, the compressive property of the corrugated box that reduces.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. A pressure-resistant corrugated carton comprising a bottom plate (1), characterized in that: the corrugated paper box is characterized in that a first mounting frame (2) is fixedly mounted on the upper surface of the base plate (1), four first mounting grooves (3) which are symmetrical to each other are formed in the inner surface of the first mounting frame (2), a cavity (4) is formed between the base plate (1) and the first mounting frame (2), a corrugated paper box body (5) is arranged in the cavity (4), the lower surface of the corrugated paper box body (5) is fixed on the upper surface of the base plate (1), the outer surface of the corrugated paper box body (5) is connected with the inner surface of the first mounting frame (2), a first fixing block (6) is arranged on the outer surface of the corrugated paper box body (5), the first fixing block (6) is matched with the first mounting grooves (3), four second mounting grooves (7) which are symmetrical to each other are formed in the upper surface of the corrugated paper box body (5), and reinforcing plates (8) are arranged in the four second mounting grooves (, the lower surface of reinforcing plate (8) with bottom plate (1) is connected, corrugated box body (5)'s top is equipped with case lid (9).
2. A pressure-resistant corrugated carton as set forth in claim 1, wherein: the reinforcing plate (8) is a plastic reinforcing plate, and the length of the reinforcing plate (8) is the same as the height of the corrugated case body (5).
3. A pressure-resistant corrugated carton as set forth in claim 1, wherein: a plurality of triangle connecting blocks (10) are fixedly connected to the reinforcing plate (8), and the triangle connecting blocks (10) are distributed on the surface of the reinforcing plate (8) at equal intervals.
4. A pressure-resistant corrugated carton as set forth in claim 3, wherein: the triangular connecting blocks (10) are fixed on the inner surface of the corrugated case body (5) through strong glue.
5. A pressure-resistant corrugated carton as set forth in claim 1, wherein: the case lid (9) comprises a top plate (91) and a second mounting frame (92), wherein the top plate (91) is located above the second mounting frame (92), the second mounting frame (92) is fixed on the lower surface of the top plate (91), and the outer surface of the corrugated case body (5) is matched with the inner surface of the second mounting frame (92).
6. A pressure-resistant corrugated carton as set forth in claim 5, wherein: the top of corrugated box body (5) is equipped with third mounting groove (11) on the surface, fixed mounting has second fixed block (12) on the internal surface of second installing frame (92), third mounting groove (11) with second fixed block (12) cooperation installation.
7. A pressure-resistant corrugated carton as set forth in claim 6, wherein: the corrugated case is characterized in that the bottom plate (1), the corrugated case body (5) and the case cover (9) are respectively provided with a waterproof coating (13) on the surface.
