CN213639791U

CN213639791U - Special sick clothes of disability old man

Info

Publication number: CN213639791U
Application number: CN202022496127.0U
Authority: CN
Inventors: 廖超; 时春红; 郑滨冰; 张莹; 汪林
Original assignee: Xiangnan University
Current assignee: Xiangnan University
Priority date: 2020-11-02
Filing date: 2020-11-02
Publication date: 2021-07-09
Anticipated expiration: 2030-11-02

Abstract

The utility model provides a special sick clothes of disability old man, including jacket and trousers, the jacket includes front part, back part of a garment and coat-sleeve, the front part of a garment includes shoulder area and pectoral area, all be equipped with the longitudinal connecting piece that sets up along the clothing length direction and the transverse connecting piece that sets up along the shoulder width direction on shoulder area and the pectoral area, be equipped with the back part of a garment connecting piece that sets up along the clothing length direction on the back part of a garment, the side of coat-sleeve is equipped with the coat-sleeve connecting piece, the trouser legs side of trousers is equipped with the trouser legs connecting piece that sets up along the trousers length direction; the utility model provides a special sick clothes of disability old man simple structure, convenient and practical, it is cold-proof effectual, can protect patient's privacy, improve patient's comfort level.

Description

Special sick clothes of disability old man

Technical Field

The utility model belongs to the field of medical and health supplies, specifically relate to a special sick clothes of disability old man.

Background

The disabled old people refer to the old people who cannot completely take care of at least one of six life indexes of eating, dressing, getting on and off a bed, going to a toilet, walking indoors and bathing and have to depend on the care of other people. The old people who are disabled currently in China have three old age care modes: home care, institutional care and perennial hospitalization. Because home care has problems in lack of medical facilities, weak nursing ability, heavy burden pressure and the like, and hospital hospitalization nursing costs are high, more and more families select nursing institutions to care disabled elderly.

With the improvement of science and technology and the improvement of medical level, humanistic care becomes more and more important, and the development of hospital gowns suitable for patients with different conditions becomes a new research and development direction in the medical field. Most of the special hospital clothes are simple in structure, convenient and practical, the comfort of the patient is improved, the functions of keeping warm and protecting the privacy of the patient are achieved, and the nursing operation is facilitated due to the design of a plurality of special hospital clothes, so that the clinical requirement can be effectively met, and the nursing work efficiency is improved.

In current clinical work, a number of specialized hospital gowns for different patients have been developed. For example: is suitable for hospital gowns of intubated patients, hospital gowns of critical patients, hospital gowns of fracture patients and the like. In contrast, hospital gowns suitable for disabled elderly people are not common, which indicates that research and development of hospital gowns special for disabled people are incomplete. According to the analysis and prediction of data in the medical industry, 4250 thousands of disabled/semi-disabled elderly people in China will be reached in 2020, so that the design of special hospital gowns for disabled elderly people is very necessary.

SUMMERY OF THE UTILITY MODEL

The to-be-solved technical problem of the utility model is to provide a simple structure, convenient and practical, it is cold-proof effectual, can protect patient's privacy, improve the special sick clothes of disability old man of patient's comfort level.

In order to achieve the purpose, the technical scheme of the utility model as follows, a special sick clothes of disability old man, including jacket and trousers, the jacket includes the front of a garment, the back front of a garment and coat-sleeve, the front of a garment includes shoulder area and pectoral area, all be equipped with the longitudinal tie that sets up along the clothing length direction and the transverse connection who sets up along the shoulder width direction on shoulder area and the pectoral area, be equipped with the back front of a garment connecting piece that sets up along the clothing length direction on the back front of a garment, the side of coat-sleeve is equipped with the coat-sleeve connecting piece, the trouser legs side of trousers is equipped with the trouser legs connecting piece that sets up along the trousers length direction.

Preferably, the front opening is provided with a collar, the collar is provided with a bib connector, and the bib connector is connected with a detachable bib.

Preferably, the front part is provided with a transparent label bag, and the transparent label bag can be inserted into a nameplate with patient information.

Preferably, the nameplate is internally provided with a GPS chip.

Preferably, the sleeve is provided with an elbow pad.

Preferably, the front part is provided with a folding storage bag, and a storage zipper is arranged on a bag opening of the folding storage bag.

Preferably, the trouser legs of the trousers are provided with a urine bag containing bag and a window for passing through the catheter, the window is arranged on the trouser leg area covered by the urine bag containing bag, and the opening of the urine bag containing bag is provided with a urine bag containing connecting piece.

Preferably, the crotch part of the trousers is provided with a baffle plate, and the baffle plate is connected with the trousers through a crotch connecting piece.

Preferably, knee pads are arranged on the trouser legs of the trousers.

Preferably, the waist of the trousers is provided with a lace.

The utility model has the advantages that the left and the right shoulder areas and/or the left and the right precordial areas can be selected to leak through the matching of the longitudinal connecting piece and the transverse connecting piece; the outer leakage arms are arranged through the sleeve connectors, the leg parts can be leaked through the trouser leg connectors, when nursing is carried out, the corresponding operation parts are selectively pulled for the parts needing nursing, the whole piece of clothes does not need to be taken off, the warm-keeping effect is good, the catching of cold can be avoided, the nursing operation is convenient, the working efficiency can be improved, the pain of a patient is relieved, and the privacy of the patient is protected; the back of the patient with the leakage can be pulled open through the back-flap connecting piece, the time for the middle-severe disabled old people to lie in bed is long, the operations of back puncture, blood massage, wiping and the like can be performed on the patient by pulling open the magic tape, and the medical operation is facilitated while the unnecessary skin exposure of the patient is reduced.

Drawings

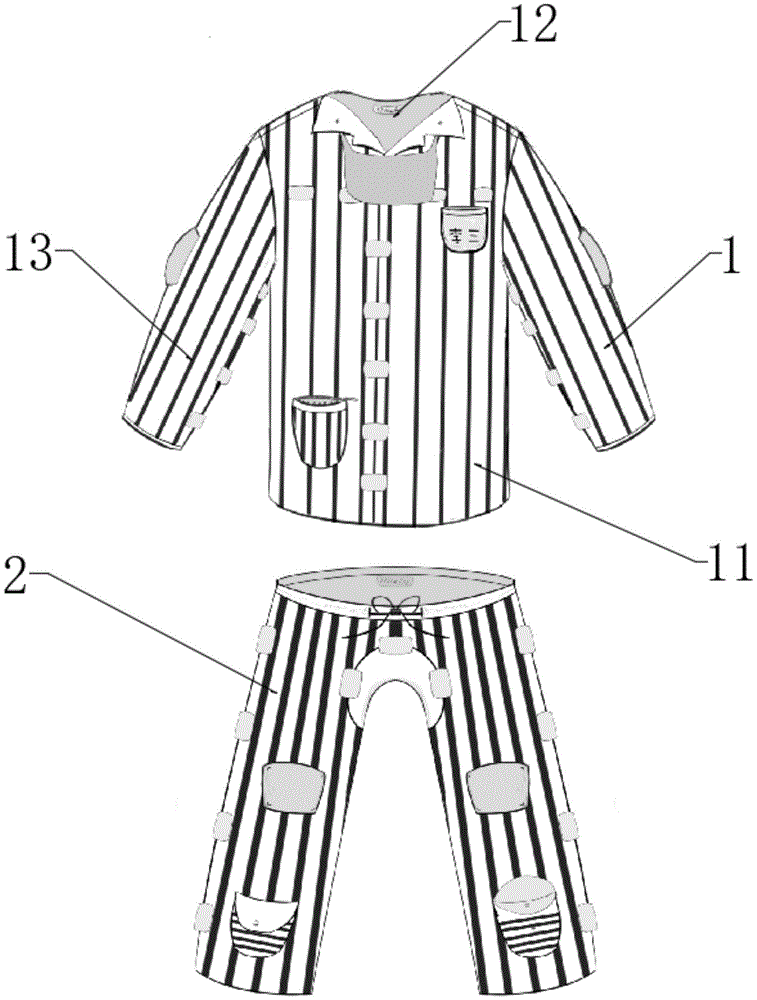

Fig. 1 is a schematic structural diagram of an embodiment of the present invention;

FIG. 2 is a schematic view of the structure of the front sheet shown in FIG. 1;

FIG. 3 is a schematic view of the structure of the rear flap shown in FIG. 1;

fig. 4 is a schematic view of the structure of the pants shown in fig. 1.

In the figure, 1-coat; 11-front opening; 111-shoulder area; 112-precordial region; 113-longitudinal connectors; 114-transverse connectors; 12-rear part of a garment; 121-rear flap connector; 13-sleeves; 131-sleeve connectors; 132-an elbow pad; 14-transparent label bags; 15-folding the storage bag; 151-receiving a zipper; 16-a collar; 17-bibs; 2-trousers; 21-trouser leg connectors; 22-knee bolster; 23-a baffle plate; 24-urine bag storage bag; 241-urine bag receiving connecting piece; 25-tie.

Detailed Description

The technical scheme of the utility model is further described in detail with reference to the accompanying drawings and specific embodiments:

referring to fig. 1-4 together, the special hospital dress for disabled elderly people provided in this embodiment includes a jacket 1 and trousers 2, the jacket 1 includes a front sheet 11, a rear sheet 12 and sleeves 13, the front sheet 11 includes a shoulder region 111 and a chest region 112, the shoulder region 111 and the chest region 112 are respectively provided with a longitudinal connecting piece 113 arranged along the length direction of the jacket and a transverse connecting piece 114 arranged along the width direction of the shoulder, the rear sheet 12 is provided with a rear sheet connecting piece 121 arranged along the length direction of the jacket, the side surfaces of the sleeves 13 are provided with sleeve connecting pieces 131, and the side surfaces of the trouser legs of the trousers 2 are provided with trouser leg connecting pieces 21 arranged along the length direction of the trousers.

By the cooperation of the longitudinal connecting elements 113 and the transverse connecting elements 114, left and right shoulder regions 111 and/or left and right anterior chest regions 112 of the hourglass can be selected; an outer leaking arm is arranged through the sleeve connecting piece 131, the leg part can be leaked through the trouser leg connecting piece 21, when nursing is carried out, the corresponding operation part is selectively pulled away according to the part needing nursing, the whole piece of clothes does not need to be taken off, the nursing operation is convenient, the working efficiency can be improved, the pain of a patient is relieved, and the patient is prevented from catching a cold; the back of the patient with the leakage can be pulled open through the back-flap connecting piece 121, the time for the middle-severe disabled old people to lie in bed is long, the operations of back puncture, blood massage, wiping and the like can be performed on the patient by pulling open the magic tape, and the medical operation is facilitated while the unnecessary skin exposure of the patient is reduced.

The collar 16 is arranged on the front fly 11, the neckline of the collar 16 is designed to be wide, so that operations such as tracheotomy, neck wound drainage, neck postoperative care and the like are facilitated, the collar 16 is provided with a bib connector, and the bib connector is connected with a detachable bib 17; the collar 16 is a shirt type collar, and the bib connector on the collar 16 is a button, so that the appearance is attractive, and the bib 17 is convenient to detach; bib 17 adopts the waterproof type material of silica gel, contains the bleeder vent, wears not sultry, possesses waterproof nature, can effectively reduce the pollution to the patient clothing among the patient's daily life, reduces the abluent number of times of patient clothing whole piece, sparingly washs the expense of whole piece, improves nursing efficiency.

The front opening 11 is provided with a transparent label bag 14, the transparent label bag 14 can be inserted into a nameplate with patient information, and a GPS chip is arranged in the nameplate; transparent label bag 14 is double-deck material, and the outside is the transparent mould, and the inboard is the surface fabric of the same material with the clothes, can insert patient information data plate between the outside and the inboard, and is clearly visible, and the medical personnel of being convenient for easily master patient's information, and the inboard GPS chip of placing prevents that the old person wanders away.

The sleeve 13 is provided with an elbow pad 132; knee pads 22 are arranged on the trouser legs of the trousers 2 to support the stability of joints, limit the movement of the joints, prevent injuries and prevent patients from falling down; the elbow pad and the knee pad can prevent the joint from catching cold, and have good heat preservation effect; the knee pad can brake, keep the big and small legs on the same straight line as much as possible, protect the joints, and prevent the knee from getting ill and aggravating the state of an illness.

A folding storage bag 15 is arranged on the front fly 11, and a storage zipper 151 is arranged on the opening of the folding storage bag 15; the jacket 1 can be folded into the folding storage bag 15, and the storage zipper 151 is pulled, so that the patient gown can be conveniently stored and arranged.

Urine bag containing bags 24 and fenestrations for passing through the urinary catheters are arranged on the trouser legs of the trousers 2, the fenestrations are arranged on trouser leg areas covered by the urine bag containing bags 24, urine bag containing connecting pieces 241 are arranged on bag openings of the urine bag containing bags 24, the urinary catheters pass through the fenestrations in the trouser legs to be connected with the urine bags, the two urine bag containing bags 24 are respectively arranged at the front centers of the outer parts of the left trouser leg and the right trouser leg, the urine bag containing connecting pieces 241 can prevent the urine bags from being exposed, and the self-esteem of the old is protected; urine bag storage bag 24 can deposit the urine bag, reduces the old man like the lavatory number of times, reduces the risk of tumbleing to can handle by oneself according to the urine volume, improve nursing efficiency.

The crotch portion of trousers 2 is equipped with separation blade 23, separation blade 23 is connected with trousers 2 through crotch portion connecting piece, and separation blade 23 is "the U" type of falling, and 3 crotch portion connecting pieces are respectively made up at the edge of the preceding crotch portion of separation blade 23 and back crotch portion, are convenient for insert the ureter when protecting patient's privacy, carry out operations such as perineum washing.

The crotch opening of trousers 2 can reduce the risk that patient takes place to press the sore when the lateral position, and the opening is nimble, when carrying out operations such as catheterization, enema and perineum washing, need not take off patient trousers 2, can protect patient privacy, brings the facility for operating personnel. The material is removable aseptic cloth, changes aseptic cloth regularly, can prevent the infection of bacterium, virus, guarantees the health and safety of patient's privacy portion.

The waist part of the trousers 2 is provided with the lacing 25, which is convenient for putting on and taking off and can prevent the trousers from sliding down after the urine bag stores urine.

The longitudinal connector 113, the transverse connector 114, the rear flap connector 121, the trouser leg connector 21, the sleeve connector 131, the urine bag storage connector 241 and the bib connector can be any one of buttons, snap fasteners, zippers, straps and snap nylon velcro tapes.

When the primary and secondary nylon magic tapes are used as connecting pieces, troubles caused by putting on and taking off of common buttons and binding bands can be avoided, the hard surface of the magic tape is outwards contacted and adhered with the soft surface towards the skin, only the magic tape corresponding to an operation part needs to be pulled open during nursing, time and labor are saved, the interval between adjacent magic tapes is 10cm, the distance between the magic tapes and an opening is 0.5cm, the magic tapes are ensured not to be contacted with the skin of a patient, and skin friction is reduced; when the zipper is used as the connecting piece, the flexible zipper is selected to reduce unnecessary damage to the skin of a patient.

Jacket 1 chooses for use that sweat-absorbing nature is strong, and the gas permeability is good, and alkali-resisting acidproof dresses and the high compliance pure cotton surface fabric of cleaning performance, and the magic subsides are the nylon material of soft environmental protection, and bib 17 is the ventilative waterproof material of silica gel, and the compliance zip fastener can reduce the unnecessary damage to patient's skin.

The utility model provides a sick clothes is for disabling, half disabling old man design, but also is applicable to other surgery postoperative or inpatients, and audience crowd is extensive.

The above embodiments are only used for illustrating the technical solution of the present invention, and not for limiting the same; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention in its corresponding aspects.

Claims

1. The utility model provides a special sick clothes of disability old man which characterized in that: the jacket comprises a jacket (1) and trousers (2), wherein the jacket (1) comprises a front part (11), a rear part (12) and sleeves (13), the front part (11) comprises a shoulder area (111) and a chest area (112), the shoulder area (111) and the chest area (112) are respectively provided with a longitudinal connecting piece (113) arranged along the length direction of the jacket and a transverse connecting piece (114) arranged along the width direction of the shoulder, the rear part (12) is provided with a rear part connecting piece (121) arranged along the length direction of the jacket, the side surfaces of the sleeves (13) are provided with sleeve connecting pieces (131), and the side surfaces of the trouser legs of the trousers (2) are provided with trouser leg connecting pieces (21) arranged along the length direction of the trousers.

2. The special hospital gown for disabled elderly according to claim 1, wherein: the collar (16) is arranged on the front fly (11), the collar (16) is provided with a bib connector, and the bib connector is connected with a detachable bib (17).

3. The special hospital gown for disabled elderly according to claim 1 or 2, wherein: the front opening (11) is provided with a transparent label bag (14), and the transparent label bag (14) can be inserted into a nameplate with patient information.

4. The special hospital gown for disabled elderly according to claim 3, wherein: the nameplate is internally provided with a GPS chip.

5. The special hospital gown for disabled elderly according to claim 1, 2 or 4, wherein: the sleeve (13) is provided with an elbow pad (132).

6. The special hospital gown for disabled elderly according to claim 5, wherein: the front fly (11) is provided with a folding storage bag (15), and a storage zipper (151) is arranged on the pocket mouth of the folding storage bag (15).

7. The special hospital gown for disabled elderly as claimed in claim 1, 2, 4 or 6, wherein: the trousers are characterized in that the trouser legs of the trousers (2) are provided with urine bag storage bags (24) and windows for passing through the urinary catheters, the windows are arranged on trouser leg areas covered by the urine bag storage bags (24), and the bag openings of the urine bag storage bags (24) are provided with urine bag storage connecting pieces (241).

8. The special hospital gown for disabled elderly according to claim 7, wherein: the crotch part of the trousers (2) is provided with a baffle (23), and the baffle (23) is connected with the trousers (2) through a crotch part connecting piece.

9. The special hospital gown for disabled elderly as claimed in claim 1, 2, 4, 6 or 8, wherein: knee protection pads (22) are arranged on the trouser legs of the trousers (2).

10. The special hospital gown for disabled elderly according to claim 9, wherein: the waist part of the trousers (2) is provided with a lace (25).
