CN213610050U

CN213610050U - Environment-friendly filter equipment for sewage treatment

Info

Publication number: CN213610050U
Application number: CN202022469260.7U
Authority: CN
Inventors: 范云鹰; 席晓爽
Original assignee: Yancheng Dianke Technology Development Co ltd
Current assignee: Ningbo Zhuhang Intelligent Technology Co ltd
Priority date: 2020-10-30
Filing date: 2020-10-30
Publication date: 2021-07-06
Anticipated expiration: 2030-10-30

Abstract

The utility model relates to the technical field of sewage treatment, and discloses an environment-friendly sewage treatment filter device, comprising a cylinder body, the left and right sides of the cylinder body are fixedly installed with sealing covers, and the two sealing covers are movable between the two sealing covers. A filter cartridge is installed, the left side of the sealing cover on the left side is connected with a sewage joint, a connecting pipe is connected between the top and the bottom of the cylinder body, and an electric push rod is fixedly installed on the right side of the sealing cover on the right side, The left side of the electric push rod is fixedly installed with a disc located in the filter cylinder, the outside of the disc is fixedly installed with a wiper rubber in contact with the filter cylinder, and the left side of the disc is provided with a rotating groove, so A cleaning brush plate in contact with the filter cartridge is movably installed in the rotating groove. In the filter device for environmental protection sewage treatment, the inner wall of the filter cartridge is wiped and cleaned by scraping rubber, so that impurities are discharged into the sewage storage box connected with the sewage outlet for storage, so as to avoid the blockage of the filter cartridge and affect the filtering effect.

Description

Environment-friendly filter equipment for sewage treatment

Technical Field

The utility model relates to a sewage treatment technical field specifically is an environment-friendly filter equipment for sewage treatment.

Background

Sewage treatment (sewage treatment, water treatment): in order to achieve the process of purifying sewage which is discharged into a certain water body or reused, the sewage treatment is widely applied to various fields such as buildings, agriculture, traffic, energy, petrifaction, environmental protection, urban landscape, medical treatment, catering and the like, and the sewage treatment also increasingly enters the daily life of common people.

With the development of times and science and technology, the technological progress of the environment-friendly sewage treatment filtering device is promoted, but the defect still exists, the existing environment-friendly sewage treatment filtering device is simple in structure, is not convenient for treating impurities and is easy to cause the phenomenon of blockage, and therefore the environment-friendly sewage treatment filtering device is provided for solving the problem.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a not enough to prior art, the utility model provides an environment-friendly is filter equipment for sewage treatment possesses the advantage such as being convenient for handle filtration impurity, has solved present filter equipment for sewage treatment simple structure and is not convenient for handle impurity, causes the problem of the phenomenon of jam easily.

(II) technical scheme

For the above-mentioned purpose of being convenient for handle filtering impurity, the utility model provides a following technical scheme: the utility model provides an environment-friendly filter equipment for sewage treatment, includes the barrel, the equal fixed mounting in the left and right sides of barrel has sealed lid, two movable mounting has the cartridge filter between the sealed lid, and the left side intercommunication of sealed lid has the blowdown to connect, the intercommunication has the connecting pipe between the top of barrel and the bottom, and the right side the right side fixed mounting of sealed lid has electric putter, electric putter's left side fixed mounting has the disc that is located the cartridge filter, the outside fixed mounting of disc has the wiping rubber with the cartridge filter contact, the left side of disc has seted up the rotation groove, movable mounting has the cleaning brush dish with the cartridge filter contact in the rotation groove, the inside fixed mounting of disc has the micro motor of output shaft department and cleaning brush dish fixed connection, the rear surface intercommunication of connecting pipe has the drain pipe, the rear surface intercommunication of barrel has the inlet, the top intercommunication of blowdown joint has electric valve, the left side intercommunication of blowdown joint has the blowdown bin.

Preferably, the front surface of the cylinder body is fixedly provided with a charging storage battery, and the electric push rod, the micro motor and the electric valve are all electrically connected with the charging storage battery.

Preferably, the cylinder body and the filter cylinder are both hollow cylinders, the filter cylinder is composed of a first-stage filter layer, a second-stage filter layer and a third-stage filter layer, and the first-stage filter layer, the second-stage filter layer and the third-stage filter layer are bonded with each other.

Preferably, the cleaning brush disc is a cylinder, the outer part of the cylinder is fixedly provided with a brush, the diameter of the cleaning brush disc is equal to the inner diameter of the filter cylinder, and the diameter of the scraping rubber is equal to the inner diameter of the filter cylinder.

Preferably, the rotating groove is circular, the right side fixed mounting of cleaning brush dish has the sliding block, and the cleaning brush dish passes through sliding block and rotating groove sliding connection.

Preferably, the filter cartridge is provided with an adaptive hole matched with the water inlet pipe, and the electric push rod is fixedly provided with a protective cover outside.

(III) advantageous effects

Compared with the prior art, the utility model provides an environment-friendly filter equipment for sewage treatment possesses following beneficial effect:

this environment-friendly filter equipment for sewage treatment, through the electric putter who sets up, micro motor drives the cleaning brush dish and rotates when the promotion disc removes in the cartridge filter and scrapes rubber and scrape the inner wall of cartridge filter when carrying out the cleanness to the inner wall of cartridge filter and wipe off cleanly, makes impurity discharge store in the blowdown bin that connects the intercommunication with the blowdown, avoids causing the jam of cartridge filter to influence filterable effect.

Drawings

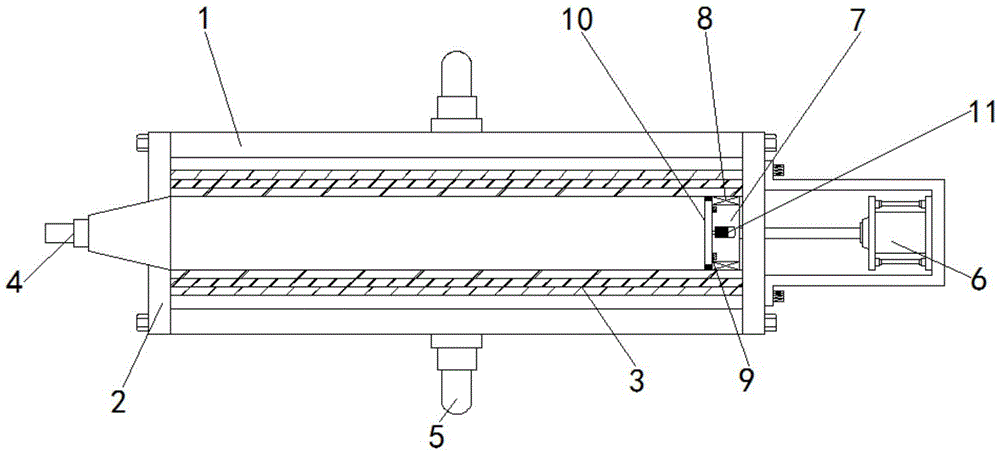

Fig. 1 is a cross-sectional view of the present invention;

fig. 2 is a rear view of the present invention;

fig. 3 is the structure diagram of the utility model discloses barrel and rechargeable battery are connected.

In the figure: the device comprises a cylinder body 1, a sealing cover 2, a filter cylinder 3, a pollution discharge joint 4, a connecting pipe 5, an electric push rod 6, a disc 7, scraping rubber 8, a rotating groove 9, a cleaning brush disc 10, a micro motor 11, a water discharge pipe 12, a water inlet pipe 13, an electric valve 14, a pollution discharge storage box 15 and a charging storage battery 16.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, an environment-friendly filtering device for sewage treatment comprises a cylinder body 1, sealing covers 2 are fixedly installed on the left side and the right side of the cylinder body 1, a filter cartridge 3 is movably installed between the two sealing covers 2, the cylinder body 1 and the filter cartridge 3 are both hollow cylinders, the filter cartridge 3 is composed of a first-stage filter layer, a second-stage filter layer and a third-stage filter layer, the first-stage filter layer, the second-stage filter layer and the third-stage filter layer are bonded with each other, a sewage discharge joint 4 is communicated with the left side of the left sealing cover 2, a connecting pipe 5 is communicated between the top and the bottom of the cylinder body 1, an electric push rod 6 is fixedly installed on the right side of the right sealing cover 2, a disc 7 positioned in the filter cartridge 3 is fixedly installed on the left side of the electric push rod 6, scraping rubber 8 in contact with the filter cartridge 3 is fixedly installed on, the cleaning brush disc 10 is a cylinder, the outer part of the cleaning brush disc 10 is fixedly provided with a brush, the diameter of the cleaning brush disc 10 is equal to the inner diameter of the filter cartridge 3, the diameter of the scraping rubber 8 is equal to the inner diameter of the filter cartridge 3, the rotating groove 9 is circular, the right side of the cleaning brush disc 10 is fixedly provided with a sliding block, the cleaning brush disc 10 is in sliding connection with the rotating groove 9 through the sliding block, the inner part of the disc 7 is fixedly provided with a micro motor 11, the output shaft of the micro motor is fixedly connected with the cleaning brush disc 10, the rear surface of the connecting pipe 5 is communicated with a drain pipe 12, the rear surface of the cylinder 1 is communicated with a water inlet pipe 13 penetrating through the filter cartridge 3, the filter cartridge 3 is provided with an adaptive hole matched with the water inlet pipe 13, the outer part of the electric push rod 6 is fixedly provided with a protective cover, the top of, the electric push rod 6, the micro motor 11 and the electric valve 14 are all electrically connected with the charging storage battery 16.

To sum up, this filter equipment for environment-friendly sewage treatment, electric putter 6 through setting up, micro motor 11 drives cleaning brush dish 10 and rotates when cartridge filter 3 moves and scrapes rubber 8 and scrape the inner wall of cartridge filter 3 and scrape and wipe out cleanly when micro motor 6 promotes disc 7 and removes in cartridge filter 3 carries out the cleanness to the inner wall of cartridge filter 3, make impurity discharge to store in the blowdown bin 15 with blowdown joint 4 intercommunication, avoid causing the jam of cartridge filter 3 to influence filterable effect, it is not convenient for handle impurity to have solved present filter equipment for environment-friendly sewage treatment simple structure, cause the problem of the phenomenon of jam easily.

It is to be noted that the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. An environment-friendly filter device for sewage treatment, comprising a cylindrical body (1), characterized in that: both the left and right sides of the cylindrical body (1) are fixedly installed with sealing covers (2), and two of the sealing covers are A filter cartridge (3) is movably installed between (2), a drain joint (4) is communicated with the left side of the sealing cover (2) on the left side, and a connection is communicated between the top and bottom of the cylinder body (1). The pipe (5), the right side of the sealing cover (2) on the right side is fixedly installed with an electric push rod (6), and the left side of the electric push rod (6) is fixedly installed with a circle located in the filter cartridge (3). Disc (7), the outside of the disc (7) is fixedly installed with a wiper rubber (8) in contact with the filter cartridge (3), and the left side of the disc (7) is provided with a rotating groove (9), A cleaning brush plate (10) in contact with the filter cartridge (3) is movably installed in the rotating groove (9), and the inside of the disk (7) is fixedly installed with the output shaft and is fixedly connected with the cleaning brush plate (10). The micro motor (11) is connected with a drain pipe (12) on the rear surface of the connecting pipe (5), and a water inlet pipe (13) through the filter cartridge (3) is connected on the rear surface of the cylinder (1), An electric valve (14) is communicated with the top of the sewage joint (4), and a sewage storage tank (15) is communicated with the left side of the sewage joint (4).

2. An environmentally friendly sewage treatment filter device according to claim 1, characterized in that: a rechargeable battery (16) is fixedly installed on the front surface of the cylinder (1), and the electric push rod (6) , the micro motor (11) and the electric valve (14) are all electrically connected with the rechargeable battery (16).

3. An environment-friendly sewage treatment filter device according to claim 1, characterized in that: the cylinder body (1) and the filter cylinder (3) are both hollow cylinders, and the filter cylinder (3) consists of a The first-level filter layer, the second-level filter layer and the third-level filter layer are formed by bonding with each other.

4. An environment-friendly sewage treatment filter device according to claim 1, characterized in that: the cleaning brush plate (10) is in the form of a cylinder and is fixedly installed with a brush, and the diameter of the cleaning brush plate (10) is equal to The inner diameter of the filter cartridge (3) and the diameter of the wiper rubber (8) are equal to the inner diameter of the filter cartridge (3).

5. An environment-friendly sewage treatment filter device according to claim 1, characterized in that: the rotating groove (9) is circular, and a sliding block is fixedly installed on the right side of the cleaning brush plate (10), and The cleaning brush plate (10) is slidably connected with the rotating groove (9) through a sliding block.

6. An environment-friendly filter device for sewage treatment according to claim 1, characterized in that: the filter cartridge (3) is provided with a fitting hole adapted to the water inlet pipe (13), and the electric push rod A protective cover is fixedly installed on the outside of (6).
