CN213605586U - Goods shelf with angle-adjustable goods shelf board - Google Patents
Goods shelf with angle-adjustable goods shelf board Download PDFInfo
- Publication number
- CN213605586U CN213605586U CN202022343323.4U CN202022343323U CN213605586U CN 213605586 U CN213605586 U CN 213605586U CN 202022343323 U CN202022343323 U CN 202022343323U CN 213605586 U CN213605586 U CN 213605586U
- Authority
- CN
- China
- Prior art keywords
- adjusting
- plate
- shelf
- base
- goods shelf
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- 230000000712 assembly Effects 0.000 claims abstract description 6
- 238000000429 assembly Methods 0.000 claims abstract description 6
- 241000251468 Actinopterygii Species 0.000 description 1
- 230000007547 defect Effects 0.000 description 1
- 238000000034 method Methods 0.000 description 1
- 238000012986 modification Methods 0.000 description 1
- 230000004048 modification Effects 0.000 description 1
- 230000000149 penetrating effect Effects 0.000 description 1
Images
Landscapes
- Display Racks (AREA)
Abstract
The utility model discloses a goods shelf with an adjustable angle of a goods shelf plate, which comprises a base, wherein a supporting upright post is arranged on the base; a plurality of shelf board assemblies are arranged among the four supporting upright columns along the height direction; the goods shelf plate assembly comprises a bottom plate and goods shelf plates; the end part of a telescopic rod of the angle adjusting cylinder is upwards hinged with the adjusting piece; the adjusting piece comprises a U-shaped hinged plate, a hinged shaft and a first sliding block; the bottom surface of the goods shelf plate is provided with a first sliding chute which extends along the front-back direction and is used for sliding matching with the corresponding first sliding block; the bottom of the goods shelf plate is provided with a shaft sleeve which extends along the left-right direction and is used for being in running fit with the rotating shaft. The utility model discloses under the sliding fit of first slider and first spout, articulated shaft and the articulated cooperation of angle adjusting cylinder telescopic link tip, when angle adjusting cylinder's telescopic link is flexible, the shelf plate can revolute the rotation of axes to realize shelf plate inclination's regulation.
Description
Technical Field
The utility model belongs to the technical field of goods shelves, concretely relates to goods shelves of shelf plate angularly adjustable.
Background
Pallets are used for displaying and storing goods and generally comprise support uprights and deck boards located between the support uprights.
However, the deck boards used for storing goods in the existing shelves are usually horizontally arranged, and the horizontally arranged deck boards cannot meet the requirements for some special products such as CDs or products needing to be obliquely arranged.
Therefore, it is highly desirable to design a shelf with adjustable shelf board angles.
SUMMERY OF THE UTILITY MODEL
The utility model aims at overcoming the defects of the prior art and providing a goods shelf with an adjustable angle of a goods shelf plate.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a goods shelf with an adjustable angle of a goods shelf plate comprises a base, wherein four supporting upright posts which extend vertically and upwards are arranged on the base, and the four supporting upright posts are distributed in a rectangular shape;
a plurality of shelf board assemblies are arranged among the four supporting upright columns along the height direction; the deck plate assembly comprises a base plate and deck plates;
the left end and the right end of the bottom plate are symmetrically provided with sliding blocks, and the end surface of the supporting upright column facing the bottom plate is provided with sliding grooves which extend along the height direction and are used for sliding matching with the sliding blocks; a rotating shaft extending along the left-right direction is arranged on one side of the upper part of the bottom plate; an angle adjusting cylinder is arranged at the upper part of the bottom plate, and the end part of a telescopic rod of the angle adjusting cylinder is upwards hinged with an adjusting piece; the adjusting piece comprises a U-shaped hinged plate, and a hinged shaft for being hinged with the end part of a telescopic rod of the angle adjusting cylinder is arranged between two support legs of the U-shaped hinged plate; a first sliding block is arranged at the upper part of the U-shaped hinged plate;
the bottom surface of the goods shelf plate is provided with a first sliding chute which extends along the front-back direction and is used for sliding matching with the corresponding first sliding block;
the bottom of the goods shelf plate is provided with a shaft sleeve which extends along the left-right direction and is used for rotationally matching with the rotating shaft;
the base is provided with a first height adjusting assembly for adjusting the height of the bottommost shelf board;
and a second height adjusting component for adjusting the height of the upper shelf board component is arranged at one end of the bottom board.
Preferably, the first height adjusting assembly is a first adjusting screw rod, and the bottom end of the first adjusting screw rod is rotatably connected with the base;
the second height adjusting assembly is a second adjusting screw rod, and the bottom end of the second adjusting screw rod is rotatably connected with one end of the bottom plate in the corresponding goods shelf plate assembly;
the other end of the bottom plate is provided with an adjusting threaded sleeve;
the adjusting threaded sleeve on the bottom plate is in threaded connection with the upper part of the first adjusting screw rod; the adjusting screw sleeves on the other bottom plates are in threaded connection with the upper parts of the second adjusting screws on the bottom plates in the adjacent lower-layer goods shelf plate assemblies.
Preferably, the sliding block is a T-shaped sliding block, and the sliding groove is a T-shaped sliding groove.
Preferably, a first adjusting handle is arranged at the lower part of the first adjusting screw rod;
and a second adjusting handle is arranged at the lower part of the second adjusting screw rod.
Preferably, the bottom of the base is provided with four rollers.
Preferably, four right angles of the base are respectively provided with a support stud;
the four right angles of the base are respectively provided with a threaded hole which penetrates through the top surface and the bottom surface of the base; the support stud is in threaded connection with the threaded hole;
the bottom end of the supporting stud is rotatably connected with the supporting seat.
Preferably, the upper part of the support stud is provided with a support adjusting handle.
Preferably, a level gauge is arranged on the base.
The utility model has the advantages that:
(1) the utility model discloses under the sliding fit of first slider and first spout, articulated shaft and the articulated cooperation of angle adjusting cylinder telescopic link tip, when angle adjusting cylinder's telescopic link is flexible, the shelf plate can revolute the rotation of axes to realize shelf plate inclination's regulation.
(2) The height of each layer of shelf board assembly can be adjusted through the arrangement of the first adjusting screw and the second adjusting screw in the shelf with the adjustable shelf board angle; meanwhile, the structure is simple, and the operation is convenient.
(3) The utility model discloses the structure setting of gyro wheel and support double-screw bolt, supporting seat on the base, when needs remove this application goods shelves, rotate four support double-screw bolts respectively, make support double-screw bolt move upwards, until the gyro wheel contacts ground, remove this application goods shelves through the gyro wheel; when the goods shelf is required to be fixed, the support stud is rotated reversely to move downwards until the support base contacts the ground to play a supporting role; therefore, this application goods shelves both be convenient for remove, can realize again supporting fixed action.
Drawings
The accompanying drawings, which are incorporated in and constitute a part of this application, illustrate embodiments of the application and, together with the description, serve to explain the application and are not intended to limit the application.

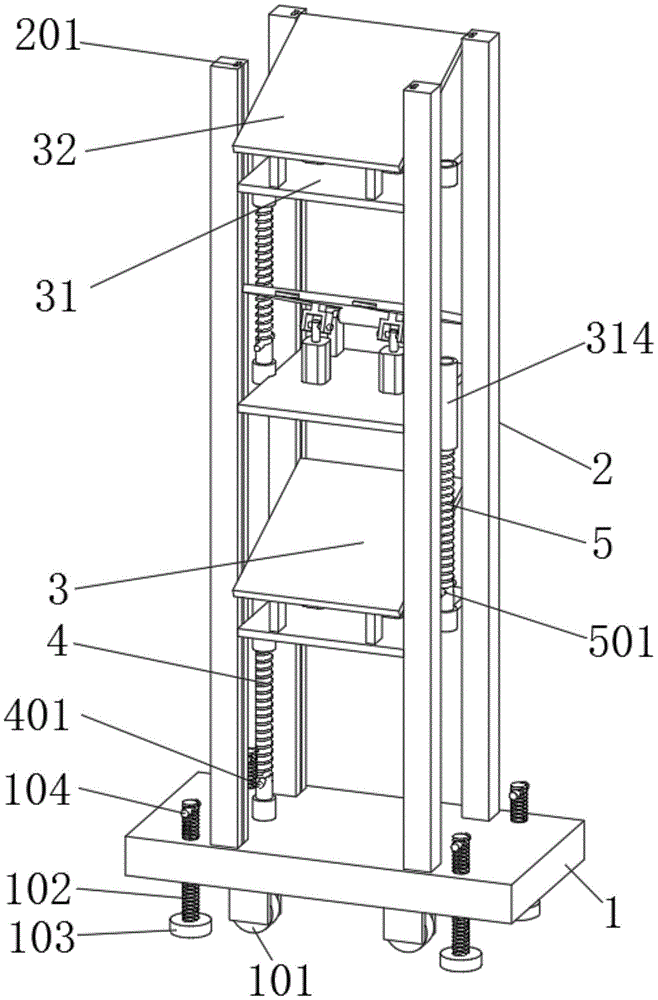

Fig. 1 is a schematic perspective view of the structure of the shelf with adjustable shelf board angles of the present invention;
FIG. 2 is a left side view of the shelf with adjustable shelf board angle of the present invention;
fig. 3 is a schematic perspective view of the shelf plate assembly of the present invention;
FIG. 4 is a schematic structural view of the adjusting member of the present invention;
wherein,
1-base, 101-roller, 102-support stud, 103-support base, 104-support adjusting handle, 2-support upright post, 201-sliding groove, 3-shelf board component, 31-bottom board, 311-sliding block, 312-rotating shaft, 313-angle adjusting cylinder, 314-adjusting screw sleeve, 32-shelf board, 321-first sliding groove, 322-shaft sleeve, 33-adjusting piece, 331-U-shaped hinged board, 332-hinged shaft, 333-first sliding block, 4-first adjusting screw rod, 401-first adjusting handle, 5-second adjusting screw rod and 501-second adjusting handle.
Detailed Description
It should be noted that the following detailed description is exemplary and is intended to provide further explanation of the disclosure. Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this application belongs.
It is noted that the terminology used herein is for the purpose of describing particular embodiments only and is not intended to be limiting of example embodiments according to the present application. As used herein, the singular forms "a", "an" and "the" are intended to include the plural forms as well, and it should be understood that when the terms "comprises" and/or "comprising" are used in this specification, they specify the presence of stated features, steps, operations, devices, components, and/or combinations thereof, unless the context clearly indicates otherwise.
In the present invention, the terms such as "bottom" and "top" are used to indicate the position or positional relationship based on the position or positional relationship shown in the drawings, and are only the terms determined for convenience of describing the structural relationship between the components or elements of the present invention, and are not specific to any component or element of the present invention, and should not be construed as limiting the present invention.
In the present invention, terms such as "connected" and "connected" should be understood in a broad sense, and may be either fixedly connected or integrally connected or detachably connected; may be directly connected or indirectly connected through an intermediate. The meaning of the above terms in the present invention can be determined according to specific situations by persons skilled in the art, and should not be construed as limiting the present invention.
The present invention will be further explained with reference to the drawings and examples.
As shown in fig. 1-2, a shelf board angle-adjustable shelf comprises a base 1, wherein four vertically and upwardly extending support columns 2 are arranged on the base 1, and the four support columns 2 are distributed in a rectangular shape;
a plurality of shelf board assemblies 3 are arranged among the four supporting upright posts 2 along the height direction; as shown in fig. 3, the deck board assembly 3 includes a bottom panel 31 and deck boards 32;
the left end and the right end of the bottom plate 31 are symmetrically provided with sliding blocks 311, and the end surface of the support upright post 2 facing the bottom plate 31 is provided with sliding grooves 201 which extend along the height direction and are used for sliding matching with the sliding blocks 311; a rotating shaft 312 extending along the left-right direction is arranged on one side of the upper part of the bottom plate 31; an angle adjusting cylinder 313 is arranged at the upper part of the bottom plate 31, and the end part of an expansion link of the angle adjusting cylinder 313 is upwards hinged with an adjusting part 33; as shown in fig. 4, the adjusting member 33 includes a U-shaped hinge plate 331, and a hinge shaft 332 for hinge-connecting with the end of the telescopic rod of the angle adjusting cylinder 313 is provided between the two legs of the U-shaped hinge plate 331; a first sliding block 333 is arranged at the upper part of the U-shaped hinge plate 331;
a first sliding groove 321 which extends along the front-back direction and is used for sliding matching with the corresponding first sliding block 333 is arranged on the bottom surface of the goods shelf plate 32;
the bottom of the shelf board 32 is provided with a shaft sleeve 322 which extends along the left-right direction and is used for rotationally matching with the rotating shaft 312;
under the sliding fit of the first sliding block 333 and the first sliding groove 321, and the hinged shaft 332 and the end of the telescopic rod of the angle adjusting cylinder, when the telescopic rod of the angle adjusting cylinder 313 extends and retracts, the shelf plate 32 can rotate around the rotating shaft 312, so that the inclination angle of the shelf plate 32 can be adjusted.
The base 1 is provided with a first height adjusting assembly for adjusting the height of the bottommost shelf board assembly 3;
one end of the floor 31 is provided with a second height adjustment assembly for adjusting the height of the upper deck board assembly 3.
Preferably, the first height adjusting assembly is a first adjusting screw rod 4, and the bottom end of the first adjusting screw rod 4 is rotatably connected with the base 1;
the second height adjusting assembly is a second adjusting screw 5, and the bottom end of the second adjusting screw 5 is rotatably connected with one end of the bottom plate 31 in the corresponding shelf plate assembly 3;
the other end of the bottom plate 31 is provided with an adjusting threaded sleeve 314;
the adjusting screw sleeve 314 on the bottom floor 31 is in threaded connection with the upper part of the first adjusting screw rod 4; the adjustment turnbuckles 314 on the remaining bottom panel 31 are threadedly engaged with the upper portions of the second adjustment screws 5 on the bottom panel 31 of the adjacent lower deck board assembly 3.
Preferably, the slide block 311 is a T-shaped slide block, and the sliding groove 201 is a T-shaped sliding groove.
Preferably, a first adjusting handle 401 is arranged at the lower part of the first adjusting screw rod 4;
a second adjusting handle 501 is arranged at the lower part of the second adjusting screw 5.
Preferably, the bottom of the base 1 is provided with four rollers 101 for moving.
Preferably, four right angles of the base 1 are respectively provided with a support stud 102;
four right angles of the base 1 are respectively provided with a threaded hole penetrating through the top surface and the bottom surface of the base 1; the support stud 102 is in threaded connection with the threaded hole;
the bottom end of the support stud 102 is rotatably connected with the support base 103, and specifically, the bottom end of the support stud 102 is rotatably connected with the support base 103 through a bearing.
Preferably, a support adjusting handle 104 is arranged at the upper part of the support stud 102.
Preferably, a level is arranged on the base 1.
When the shelf is required to be moved, the four support studs 102 are respectively rotated to enable the support studs 102 to move upwards until the rollers 101 contact the ground, and the shelf is moved through the rollers 101;
when the shelf is required to be fixed, the support studs 102 are rotated reversely, so that the support studs 102 move downwards until the support seats 103 contact the ground to play a supporting role; when the ground of the supporting shelf is uneven, the four supporting studs 102 are respectively adjusted, the base 1 can be adjusted to be horizontal, and meanwhile, the gradienter on the base 1 detects the levelness of the base 1, so that the regulation of the supporting studs 102 is guided; simultaneously in this application support stud 102 not with ground contact, supporting seat 103 and ground direct contact, and can rotate relatively between supporting seat 103 and the support stud 102, consequently at the in-process of rotatory support stud 102, supporting seat 103 does not take place to rotate, can not fish tail contact surfaces such as subaerial floor.
A goods shelf with adjustable shelf board angles comprises the following specific implementation modes:
the shelf of the application is moved to a proper position through a roller 101; then the support stud 102 is rotated to move the support stud 102 downwards until the support seat 103 contacts the ground to support.
Angular adjustment of the shelf boards 32 in the shelf board assembly 3: under the sliding fit of the first sliding block 333 and the first sliding groove 321, and the hinged shaft 332 and the end of the telescopic rod of the angle adjusting cylinder, when the telescopic rod of the angle adjusting cylinder 313 extends and retracts, the shelf plate 32 can rotate around the rotating shaft 312, so that the inclination angle of the shelf plate 32 can be adjusted.
The operation of height adjustment of each deck board assembly 3 is as follows:
the bottommost deck board assembly: rotating the first adjusting screw rod 4, and realizing the up-and-down movement of the bottommost shelf board assembly under the sliding limit fit of the sliding block 311 and the sliding groove 201 and the thread fit of the first adjusting screw rod 4 and the adjusting thread sleeve 314 on the bottommost floor, thereby realizing the height adjustment of the bottommost shelf board assembly; meanwhile, when the bottom layer shelf board assembly moves up and down, the shelf board assembly on the upper portion can be driven to move up and down synchronously.
Other levels of deck board assembly: rotating a second adjusting screw 5 on a bottom plate in the lower layer of the rack plate assembly, and realizing the up-and-down movement of the layer of the rack plate assembly under the sliding limit fit of a sliding block 311 and a sliding groove 201 and the threaded fit of the second adjusting screw 5 on the bottom plate in the lower layer of the rack plate assembly and an adjusting screw sleeve 314 on the bottom plate in the layer of the rack plate assembly, thereby realizing the height adjustment of the layer of the rack plate assembly; meanwhile, when the layer of shelf board assembly moves up and down, the shelf board assembly on the upper portion can be driven to move up and down synchronously.
Although the present invention has been described with reference to the accompanying drawings, it is not intended to limit the present invention, and those skilled in the art should understand that, based on the technical solution of the present invention, various modifications or variations that can be made by those skilled in the art without inventive labor are still within the scope of the present invention.
Claims (8)
1. A goods shelf with an adjustable angle of a goods shelf plate is characterized by comprising a base, wherein four supporting upright columns which extend vertically and upwards are arranged on the base, and the four supporting upright columns are distributed in a rectangular shape;
a plurality of shelf board assemblies are arranged among the four supporting upright columns along the height direction; the deck plate assembly comprises a base plate and deck plates;
the left end and the right end of the bottom plate are symmetrically provided with sliding blocks, and the end surface of the supporting upright column facing the bottom plate is provided with sliding grooves which extend along the height direction and are used for sliding matching with the sliding blocks; a rotating shaft extending along the left-right direction is arranged on one side of the upper part of the bottom plate; an angle adjusting cylinder is arranged at the upper part of the bottom plate, and the end part of a telescopic rod of the angle adjusting cylinder is upwards hinged with an adjusting piece; the adjusting piece comprises a U-shaped hinged plate, and a hinged shaft for being hinged with the end part of a telescopic rod of the angle adjusting cylinder is arranged between two support legs of the U-shaped hinged plate; a first sliding block is arranged at the upper part of the U-shaped hinged plate;
the bottom surface of the goods shelf plate is provided with a first sliding chute which extends along the front-back direction and is used for sliding matching with the corresponding first sliding block;
the bottom of the goods shelf plate is provided with a shaft sleeve which extends along the left-right direction and is used for rotationally matching with the rotating shaft;
the base is provided with a first height adjusting assembly for adjusting the height of the bottommost shelf board;
and a second height adjusting component for adjusting the height of the upper shelf board component is arranged at one end of the bottom board.
2. The shelf board angularly adjustable shelf of claim 1, wherein said first height adjustment assembly is a first adjustment screw, the bottom end of said first adjustment screw being pivotally connected to the base;
the second height adjusting assembly is a second adjusting screw rod, and the bottom end of the second adjusting screw rod is rotatably connected with one end of the bottom plate in the corresponding goods shelf plate assembly;
the other end of the bottom plate is provided with an adjusting threaded sleeve;
the adjusting threaded sleeve on the bottom plate is in threaded connection with the upper part of the first adjusting screw rod; the adjusting screw sleeves on the other bottom plates are in threaded connection with the upper parts of the second adjusting screws on the bottom plates in the adjacent lower-layer goods shelf plate assemblies.
3. The shelf board angularly adjustable shelf of claim 1, wherein said slide is a T-shaped slide and said chute is a T-shaped chute.
4. The shelf board angularly adjustable shelf of claim 2, wherein a first adjustment handle is provided at a lower portion of said first adjustment screw;
and a second adjusting handle is arranged at the lower part of the second adjusting screw rod.
5. The shelf board angularly adjustable shelf of claim 1, wherein the bottom of said base is provided with four rollers.
6. The shelf board angularly adjustable shelf of claim 5, wherein said base has a support stud disposed at each of four corners;
the four right angles of the base are respectively provided with a threaded hole which penetrates through the top surface and the bottom surface of the base; the support stud is in threaded connection with the threaded hole;
the bottom end of the supporting stud is rotatably connected with the supporting seat.
7. The shelf board angle adjustable shelf of claim 6 wherein the upper portion of said support studs is provided with a support adjustment handle.
8. The shelf board angularly adjustable shelf of claim 7, wherein a level is provided on said base.
