The utility model relates to a steel construction technical field just discloses a cutting equipment of steel construction, comprises a workbench, the top fixedly connected with support frame of workstation, the support frame is "L" shape down, the top fixedly connected with hydraulic press of support frame horizontal plate, the flexible end of hydraulic press runs through the inside of support frame diaphragm and extends to the outside of support frame diaphragm, the flexible end fixedly connected with motor of hydraulic press. This cutting equipment of steel construction, it is fixed to press from both sides the clamp of steel sheet through locating plate and baffle, make the steel sheet at the in-process that carries out the cutting, and then make the workman more convenient to the cutting of steel sheet, make the workman obtain certain guarantee to the cutting quality of steel sheet, reduce the condemned probability of steel sheet cutting, iron fillings that produce when can cutting the steel sheet through locating plate and baffle simultaneously block, to a certain extent, reduce iron fillings and kick off and cause the injury to the workman, make the safety that workman's operational environment is more.

Description

Cutting equipment of steel construction

Technical Field

The utility model relates to a steel construction technical field specifically is a cutting equipment of steel construction.

Background

The steel structure is a structure made of steel materials, is one of main building structure types, and mainly comprises beam steel, steel columns, steel trusses and other members made of section steel, steel plates and the like, the steel structure needs to research high-strength steel and greatly improve the yield strength of the high-strength steel, and in addition, new-variety section steel needs to be rolled, such as H-shaped steel, wide-flange section steel, T-shaped steel, profiled steel plates and the like so as to adapt to the needs of large-span structures and super high-rise buildings; the existing cutting equipment for some steel structures consists of a cutting device and a workbench; but some less square steel structure panel when cutting to the safety risk in the course of working is high, and when steel structure panel cut, steel structure panel easily takes place to slide, and then makes the cutting quality of panel descend, and the workman is splashed to the iron fillings of cutting easily, makes workman's health receive the injury simultaneously.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a not enough to prior art, the utility model provides a cutting equipment of steel construction, the iron fillings that produce when possessing and can cutting the steel sheet block, to a certain extent, reduce iron fillings and kick up to spatter and cause the injury to the workman, make advantages such as workman's operational environment safety more, some less square steel structure panel have been solved when cutting, generally adopt artifical setting-out again manual cutting off, lead to machining efficiency low, the error is big, and the safety risk in the course of working is high, when steel structure panel cuts, steel structure panel easily takes place to slide, and then make the cutting quality of panel descend, the iron fillings of cutting are easily kicked up and are spattered the workman simultaneously, make workman's health receive the problem of injury.

(II) technical scheme

In order to achieve the above object, the utility model provides a following technical scheme: a cutting device for a steel structure comprises a workbench, wherein a support frame is fixedly connected to the top of the workbench, the support frame is inverted L-shaped, a hydraulic press is fixedly connected to the top of a transverse plate of the support frame, a telescopic end of the hydraulic press penetrates through the inner portion of the transverse plate of the support frame and extends to the outer portion of the transverse plate of the support frame, a motor is fixedly connected to the telescopic end of the hydraulic press, a cutting wheel is fixedly connected to the rotating end of the motor, a first support block is fixedly connected to the top of the workbench, a first sliding groove is formed in the top of the first support block, the vertical section of the first sliding groove is inverted T-shaped, a roller is rotatably connected to the rear side of the first support block, a second support block is fixedly connected to the top of the workbench, a second sliding groove is formed in the top of the second support block, and the front side and the rear side of the second support block, and a positioning adjusting device is arranged in the second sliding groove.

Preferably, the positioning adjusting device comprises a second threaded rod, the rear end of the second threaded rod is connected with the inner rotation of a second sliding groove, the left end of the second threaded rod is fixedly connected with a handle, the inner sliding of the first sliding groove is connected with a positioning plate, a sliding groove is formed in the bottom of the positioning plate, a rolling ball is inlaid in the sliding groove, the inner sliding of the first sliding groove is connected with a baffle, the structure of the bottom of the baffle is the same as that of the bottom of the positioning plate, a fixing frame is fixedly connected to the right side of the positioning plate and is in a transverse U shape, a first threaded rod is fixedly connected to the right side of the baffle, a fixing ring is connected to the surface of the first threaded rod, and the fixing ring is in the left side of a longitudinal rod of the fixing frame and is not in contact.

Preferably, the number of the first supporting blocks is two, the first supporting blocks are arranged on the front side and the rear side of the top of the workbench in a mirror image mode, the first supporting blocks are provided with the same structures, and the second supporting blocks are arranged between the two first supporting blocks and are not in contact with the first supporting blocks.

Preferably, the surface of the rolling ball is in sliding connection with the inside of the first sliding groove, the bottom of the positioning plate is in sliding connection with the inside of the second sliding groove, and the surface of the second threaded rod is in threaded connection with the bottom of the positioning plate.

Preferably, the left end of the second threaded rod penetrates through the inside of the second sliding groove and extends to the outside of the second supporting block, and the front end of the second threaded rod penetrates through the inside of the positioning plate and extends to the outside of the positioning plate.

Preferably, the right end of the transverse rod of the fixing frame penetrates through the inside of the baffle and extends to the outside of the baffle, the surface of the transverse rod of the fixing frame is connected with the inside of the baffle in a sliding manner, the left side of the first threaded rod penetrates through the inside of the longitudinal rod of the fixing frame and extends to the outside of the longitudinal rod of the fixing frame, and the surface of the first threaded rod is connected with the inside of the longitudinal rod of the fixing frame in a sliding manner.

(III) advantageous effects

Compared with the prior art, the utility model provides a cutting equipment of steel construction possesses following beneficial effect:

1. this cutting equipment of steel construction, it is fixed to press from both sides through locating plate and baffle to the clamp of steel sheet, make the steel sheet at the in-process that carries out the cutting, difficult emergence is slided, and then make the cutting quality of steel sheet obtain the guarantee, can make the steel sheet when cutting through locating plate and baffle simultaneously, it is vertical to keep, difficult emergence slope, and then make the workman to the more convenience of cutting of steel sheet, make the workman obtain certain guarantee to the cutting quality of steel sheet, reduce the condemned probability of steel sheet cutting, iron fillings that produce when can cutting the steel sheet through locating plate and baffle simultaneously block, to a certain extent, it causes the injury to the workman to reduce iron fillings to splash, make the safety that workman's operational environment is more.

2. This cutting equipment of steel construction, through placing the steel sheet on the roller bearing, make the baffle remove left, when the relative side of locating plate and baffle all contacts with the both ends of steel sheet, anticlockwise rotation solid fixed ring, and then make solid fixed ring remove right, the board and then realize the clamp of location and baffle both ends about the steel sheet, make the handle rotate, and then make the locating plate remove about the inside of second sliding tray, and then realize removing about the steel sheet, make that the workman can be more convenient cut the steel sheet, make the workman can be more convenient carry out the shift register to the steel sheet simultaneously, make the workman obtain promoting to the cutting speed of steel sheet to a certain extent, make the workman when cutting the steel sheet, can be faster find the cutting position of steel sheet.

3. This cutting equipment of steel construction can make the frictional force between locating plate and the first sliding tray obtain reducing through the spin, and then makes the locating plate can more smooth move about first sliding tray, and the vertical cross-section through first sliding tray is for falling the cooperation of "T" font and locating plate bottom simultaneously, makes the locating plate difficult emergence slope when moving about, and then makes the operative installations that the workman can be more convenient cut the steel sheet.

Drawings

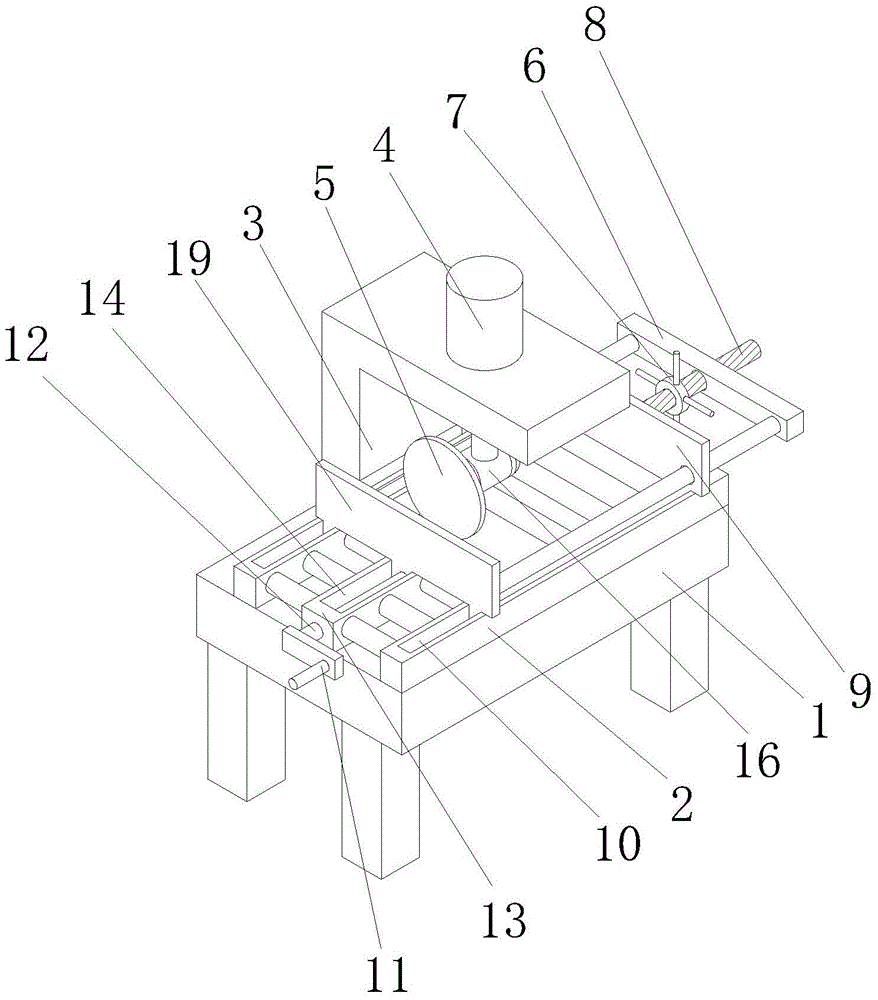

FIG. 1 is a schematic structural view of a steel structure cutting apparatus of the present invention;

FIG. 2 is a schematic view of the structure of the working table of the present invention;

fig. 3 is a schematic view of the left side plane structure of the first supporting block of the present invention.

In the figure: the cutting machine comprises a working table 1, a first supporting block 2, a supporting frame 3, a hydraulic machine 4, a cutting wheel 5, a fixing frame 6, a fixing ring 7, a first threaded rod 8, a baffle 9, a first sliding groove 10, a handle 11, a second threaded rod 12, a second supporting block 13, a second sliding groove 14, a rolling shaft 15, a motor 16, a sliding groove 17, a rolling ball 18 and a positioning plate 19.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: a cutting device of a steel structure comprises a workbench 1, wherein a support frame 3 is fixedly connected to the top of the workbench 1, the support frame 3 is inverted L-shaped, a hydraulic machine 4 is fixedly connected to the top of a transverse plate of the support frame 3, the hydraulic machine 4 is of a conventional structure and is not described herein in much detail, the hydraulic machine 4 is connected with an external power supply to be started, a telescopic end of the hydraulic machine 4 penetrates through the inner part of the transverse plate of the support frame 3 and extends to the outer part of the transverse plate of the support frame 3, a motor 16 is fixedly connected to the telescopic end of the hydraulic machine 4, the motor 16 is of a conventional structure and is not described herein in much detail, the motor 16 is connected with the external power supply to be started, a cutting wheel 5 is fixedly connected to the rotating end of the motor 16, the motor 16 rotates to drive the cutting wheel 5 to rotate, the cutting wheel 5 rotates to cut a steel plate, the two first supporting blocks 2 are arranged on the front side and the rear side of the top of the workbench 1 in a mirror image mode, the two first supporting blocks 2 are provided with the same structure, the top of each first supporting block 2 is provided with a first sliding groove 10, the vertical section of each first sliding groove 10 is in an inverted T shape, the rear side of each first supporting block 2 is rotatably connected with a roller 15, each roller 15 can rotate on the rear side of the workbench 1, the number of the rollers 15 is multiple, the multiple rollers 15 are equidistantly arranged on the rear side of each first supporting block 2, the top of the workbench 1 is fixedly connected with a second supporting block 13, each second supporting block 13 is arranged between the two first supporting blocks 2 and is not in contact with each other with the first supporting blocks 2, the top of each second supporting block 13 is provided with a second sliding groove 14, the front side and the rear side of each second supporting block 13 are rotatably connected with the rollers 15, the rollers 15 can rotate on the front side and the rear side of each second supporting block 13, a steel plate can be placed on the surface of the rolling shaft 15, the steel plate can be moved more conveniently through the rotation of the rolling shaft 15, and a positioning adjusting device is arranged inside the second sliding groove 14;

the positioning and adjusting device comprises a second threaded rod 12, the rear end of the second threaded rod 12 is rotatably connected with the inside of a second sliding groove 14, the second threaded rod 12 can rotate inside the second sliding groove 14, the left end of the second threaded rod 12 penetrates through the inside of the second sliding groove 14 and extends to the outside of a second supporting block 13, the left end of the second threaded rod 12 is fixedly connected with a handle 11, the handle 11 can rotate to enable the second threaded rod 12 to rotate, a positioning plate 19 is slidably connected inside the first sliding groove 10, the positioning plate 19 can move left and right inside the first sliding groove 10, a sliding groove 17 is formed in the bottom of the positioning plate 19, a rolling ball 18 is inlaid in the sliding groove 17, the rolling ball 18 can roll inside the sliding groove 17, the surface of the rolling ball 18 is slidably connected with the inside of the first sliding groove 10, and the rolling ball 18 can move inside the first sliding groove 10, the friction force between the positioning plate 19 and the first sliding groove 10 can be reduced through the rolling ball 18, so that the positioning plate 19 can move left and right in the first sliding groove 10 more smoothly, meanwhile, the positioning plate 19 is not easy to incline when moving left and right through the matching of the inverted T-shaped vertical section of the first sliding groove 10 and the bottom of the positioning plate 19, the bottom of the positioning plate 19 is connected with the inside of the second sliding groove 14 in a sliding manner, the positioning plate 19 can move left and right in the second sliding groove 14, the surface of the second threaded rod 12 is in threaded connection with the bottom of the positioning plate 19, the front end of the second threaded rod 12 penetrates through the inside of the positioning plate 19 and extends to the outside of the positioning plate 19, the positioning plate 19 can move through the rotation of the second threaded rod 12, the baffle plate 9 is connected with the inside of the first sliding groove 10 in a sliding manner, and the baffle plate 9 can move left and right in the inside, the structure of the bottom of the baffle 9 is the same as that of the bottom of the positioning plate 19, the right side of the positioning plate 19 is fixedly connected with a fixing frame 6, the fixing frame 6 is in a transverse U shape, the right end of a transverse rod of the fixing frame 6 penetrates through the inside of the baffle 9 and extends to the outside of the baffle 9, the surface of the transverse rod of the fixing frame 6 is in sliding connection with the inside of the baffle 9, the baffle 9 can slide on the surface of the transverse rod of the fixing frame 6, the right side of the baffle 9 is fixedly connected with a first threaded rod 8, the left side of the first threaded rod 8 penetrates through the inside of a longitudinal rod of the fixing frame 6 and extends to the outside of the longitudinal rod of the fixing frame 6, the surface of the first threaded rod 8 is in sliding connection with the inside of the longitudinal rod of the fixing frame 6, the first threaded rod 8 can move leftwards and rightwards inside the, the fixing ring 7 is arranged on the left side of the longitudinal rod of the fixing frame 6 and is not contacted with the longitudinal rod of the fixing frame 6;

the steel plate is placed on the rolling shaft 15, the baffle plate 9 moves leftwards, when the opposite sides of the positioning plate 19 and the baffle plate 9 are both contacted with the two ends of the steel plate, the fixing ring 7 is rotated anticlockwise, the fixing ring 7 moves rightwards, the positioning plate 19 and the baffle plate 9 clamp the left end and the right end of the steel plate, the handle 11 is rotated, the positioning plate 19 moves leftwards and rightwards in the second sliding groove 14, the steel plate moves leftwards and rightwards, workers can cut the steel plate more conveniently, the workers can move and position the steel plate more conveniently, the cutting speed of the workers to the steel plate is increased to a certain degree, the workers can find the cutting position of the steel plate more quickly when cutting the steel plate, and the steel plate is clamped and fixed by the positioning plate 19 and the baffle plate 9, so that the steel plate is in the cutting process, difficult emergence is slided, and then the cutting quality that makes the steel sheet obtains the guarantee, can make the steel sheet when cutting through locating plate 19 and baffle 9 simultaneously, keep vertical, difficult emergence slope, and then make workman's cutting more convenient to the steel sheet, make the workman obtain certain guarantee to the cutting quality of steel sheet, reduce the condemned probability of steel sheet cutting, iron fillings that produce when can cutting the steel sheet through locating plate 19 and baffle 9 simultaneously block, to a certain extent, it splashes and causes the injury to the workman to reduce iron fillings, make the safety that workman's operational environment is more.

The working principle is as follows:

this cutting equipment of steel construction is when using, through placing the steel sheet on roller bearing 15, make baffle 9 remove left, when the opposite side of locating plate 19 and baffle 9 all contacts with the both ends of steel sheet, solid fixed ring 7 of anticlockwise rotation, and then make solid fixed ring 7 remove right, and then realize that locating plate 19 and baffle 9 press from both sides tight at both ends about the steel sheet, make handle 11 rotate, and then make locating plate 19 remove about the inside of second sliding tray 14, and then realize removing about of steel sheet, make that the workman can be more convenient cut the steel sheet, make the workman can be more convenient remove the location to the steel sheet simultaneously, make the workman obtain promoting to the cutting speed of steel sheet to a certain extent, make the workman when cutting the steel sheet, can be faster find the cutting position of steel sheet.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a cutting equipment of steel construction, includes workstation (1), top fixedly connected with support frame (3) of workstation (1), support frame (3) are for falling "L" shape, the top fixedly connected with hydraulic press (4) of support frame (3) horizontal plate, the flexible end of hydraulic press (4) runs through the inside of support frame (3) diaphragm and extends to the outside of support frame (3) diaphragm, the flexible end fixedly connected with motor (16) of hydraulic press (4), the rotation end fixedly connected with cutting wheel (5) of motor (16), its characterized in that: the top fixedly connected with first supporting block (2) of workstation (1), first sliding tray (10) have been seted up at the top of first supporting block (2), the vertical cross-section of first sliding tray (10) is "T" font of falling, the rear side rotation of first supporting block (2) is connected with roller bearing (15), top fixedly connected with second supporting block (13) of workstation (1), second sliding tray (14) have been seted up at the top of second supporting block (13), both sides all rotate with roller bearing (15) and are connected around second supporting block (13), the inside of second sliding tray (14) is provided with positioning adjustment device.

2. The cutting apparatus of a steel structure according to claim 1, characterized in that: the positioning adjusting device comprises a second threaded rod (12), the rear end of the second threaded rod (12) is rotatably connected with the inside of a second sliding groove (14), a handle (11) is fixedly connected with the left end of the second threaded rod (12), a positioning plate (19) is slidably connected with the inside of a first sliding groove (10), a sliding groove (17) is formed in the bottom of the positioning plate (19), a rolling ball (18) is embedded in the sliding groove (17), a baffle plate (9) is slidably connected with the inside of the first sliding groove (10), the structure of the bottom of the baffle plate (9) is the same as that of the bottom of the positioning plate (19), a fixing frame (6) is fixedly connected to the right side of the positioning plate (19), the fixing frame (6) is in a transverse U shape, a first threaded rod (8) is fixedly connected to the right side of the baffle plate (9), and a fixing ring (7) is connected to the surface of the first threaded rod (8), the fixing ring (7) is arranged on the left side of the longitudinal rod of the fixing frame (6) and is not contacted with the longitudinal rod of the fixing frame (6).

3. The cutting apparatus of a steel structure according to claim 1, characterized in that: the quantity of first supporting block (2) is two, two first supporting block (2) are mirror image form and set up both sides around workstation (1) top, two be provided with the same structure on first supporting block (2), second supporting block (13) between two first supporting block (2) and with first supporting block (2) each other contactless.

4. The cutting apparatus of a steel structure according to claim 2, characterized in that: the surface of the rolling ball (18) is in sliding connection with the inner part of the first sliding groove (10), the bottom of the positioning plate (19) is in sliding connection with the inner part of the second sliding groove (14), and the surface of the second threaded rod (12) is in threaded connection with the bottom of the positioning plate (19).

5. The cutting apparatus of a steel structure according to claim 2, characterized in that: the left end of the second threaded rod (12) penetrates through the inside of the second sliding groove (14) and extends to the outside of the second supporting block (13), and the front end of the second threaded rod (12) penetrates through the inside of the positioning plate (19) and extends to the outside of the positioning plate (19).

6. The cutting apparatus of a steel structure according to claim 2, characterized in that: the right-hand member of mount (6) transverse bar runs through the inside of baffle (9) and extends to the outside of baffle (9), the inside sliding connection of the surface of mount (6) transverse bar and baffle (9), the left side of first threaded rod (8) runs through the inside of mount (6) longitudinal bar and extends to the outside of mount (6) longitudinal bar, the inside sliding connection of the surface of first threaded rod (8) and mount (6) longitudinal bar.
