Abstract
The utility model relates to a machine in fluidic device and cabinet air conditioner for machine in cabinet air conditioner, machine in the cabinet air conditioner have the heat transfer air current export that is used for seeing off heat transfer air current, and fluidic device includes: the jet air duct is internally provided with an air outlet cavity, and one side surface of the jet air duct is provided with a jet air outlet used for sending out air flow; the jet flow fan is communicated with the air outlet cavity and is used for controllably driving airflow outside the jet flow device to flow into the air outlet cavity and be sent out through the jet flow air outlet so as to be mixed with the heat exchange airflow flowing out from the heat exchange airflow outlet; and at least one additional function module, wherein each additional function module is selectively communicated with the air outlet cavity through a damper so as to selectively apply corresponding additional functions to the airflow entering the air outlet cavity or flowing out of the air outlet cavity. The fluidic device of the present application not only integrates one or more additional functions, but also has a very simple structure, making it very suitable for application in cabinet air conditioning indoor units.
Description
Technical Field
The utility model relates to an air conditioning technology field especially relates to a fluidic device and cabinet air conditioner indoor set for cabinet air conditioner indoor set.
Background
At present, the air conditioner with the active air homogenizing function can mix cold air and hot air to blow out by utilizing an air jet technology, so that cold air blown out does not freeze people, hot air does not dry faces, and the user experience is more comfortable and healthier. However, the structure of the active air-evening function arranged on the existing air conditioner is complex, the required space is large, and other functions cannot be added. If a user wants to realize other additional functions such as humidification, purification, aroma and the like on the air conditioner, only modules capable of realizing the additional functions can be added on the air conditioner independently, and various additional functions can be realized only independently, so that higher use requirements of the user cannot be met.
SUMMERY OF THE UTILITY MODEL
The utility model discloses an object of first aspect aims at overcoming at least one defect of prior art, provides a simple structure's fluidic device that can realize even wind of efflux and at least one additional function simultaneously suitable for cabinet air conditioner indoor set.
It is a further object of the first aspect of the present invention to improve the flexibility of the additional function module position setting.
The utility model discloses the purpose of the second aspect provides a cabinet air conditioner indoor set with above-mentioned fluidic device.
According to the utility model discloses an in the first aspect, the utility model provides a fluidic device for indoor unit of cabinet air conditioner, indoor unit of cabinet air conditioner has the heat transfer air current export that is used for seeing off heat transfer air current, fluidic device includes:
the jet air duct is internally provided with an air outlet cavity, and one side surface of the jet air duct is provided with a jet air outlet used for sending out air flow;
the jet flow fan is communicated with the air outlet cavity and is used for controllably driving airflow outside the jet flow device to flow into the air outlet cavity and send out through the jet flow air outlet so as to be mixed with the heat exchange airflow flowing out of the heat exchange airflow outlet; and
and each additional function module is selectively communicated with the air outlet cavity through a damper so as to selectively apply corresponding additional functions to the airflow entering the air outlet cavity or flowing out of the air outlet cavity.
Optionally, the jet device is provided with an indoor air inlet communicated with the indoor space where the jet device is located; and is
At least one additional function module is including the fresh air pipe that is used for introducing outdoor new trend, the fresh air pipe have with the adjacent outdoor air intake that sets up of indoor air intake, indoor air intake with outdoor air intake department is equipped with first automatically controlled air door, first automatically controlled air door is controlled and is shielded indoor air intake or outdoor air intake, with through the efflux fan is selectively to introduce outdoor new trend or introduce the room air in the efflux wind channel.
Optionally, the jet device further comprises at least one air outlet pipeline led out from the jet air duct, and each air outlet pipeline is opened towards the indoor space where the jet device is located; and is
Each air outlet pipeline is provided with a corresponding additional function module, and a section of each air outlet pipeline between the additional function module and the air outlet cavity is provided with a second electric control air door so as to controllably conduct the air outlet pipeline and the air outlet cavity, so that part of air flow in the air outlet cavity flows through the additional function module in the air outlet pipeline and then is sent out through the air outlet pipeline.
Optionally, the fluidic device further comprises at least one additional functional chamber attached alongside the fluidic duct;
each additional function cavity is internally provided with a corresponding additional function module, a third electric control air door is arranged between each additional function cavity and the air outlet cavity, and the third electric control air door is arranged to controllably place the additional function module in the additional function cavity on an airflow flow path between the jet flow fan and the jet flow air outlet so as to apply corresponding additional functions to airflow flowing to the jet flow air outlet through the additional function module.
Optionally, the jet device has an indoor air inlet communicated with the indoor space where the jet device is located, the indoor air inlet is connected in parallel with at least one air inlet pipeline, and each air inlet pipeline is open towards the indoor space where the jet device is located;
every all be equipped with corresponding one in the air inlet pipeline additional function module, and every the air inlet pipeline with all be equipped with fourth automatically controlled air door between indoor air intake and the air inlet duct between the efflux fan, fourth automatically controlled air door sets up to switch on this air inlet pipeline with the air inlet duct to make indoor air flow through this air inlet pipeline flow direction efflux fan, thereby add corresponding additional function to the air current that flows to the efflux fan through the additional function module in this air inlet pipeline.
Optionally, the at least one additional function module comprises one or more of a humidification module, a purification module, and an aromatherapy module.
Optionally, the jet air duct includes an air outlet duct extending vertically and an air inlet duct extending horizontally outwards from the bottom of the air outlet duct; and is
The air outlet cavity is formed in the air outlet duct, the jet air outlet is formed on the front side surface of the air outlet duct, and the jet fan is arranged at the intersection of the air outlet duct and the air inlet duct.
Optionally, the jet fan is a centrifugal fan, so as to controllably drive the airflow outside the jet air duct to horizontally flow into the centrifugal fan through the air inlet duct and to flow into the air outlet duct from bottom to top.
According to the utility model discloses a second aspect, the utility model discloses still provide a cabinet air conditioner indoor set, it includes:
the shell is provided with a heat exchange airflow outlet used for conveying heat exchange airflow to the indoor space; and
the jet device is used for controllably promoting the airflow outside the jet device to flow into the jet device and send out through the jet air outlet of the jet device, and the airflow sent out through the jet air outlet is mixed with the heat exchange airflow flowing out through the heat exchange airflow outlet.
Optionally, a through channel penetrating the casing from front to back, and a first heat exchange air duct and a second heat exchange air duct located at two lateral sides of the through channel and independent from each other are formed inside the casing, the first heat exchange air duct and the second heat exchange air duct both have heat exchange airflow outlets, and a heat exchanger and a fan are arranged in each of the first heat exchange air duct and the second heat exchange air duct, so that the fan can drive the heat exchange airflow in the first heat exchange air duct and the second heat exchange air duct to be sent out through the heat exchange airflow outlets of the first heat exchange air duct and the second heat exchange air duct;
the jet air duct, the first heat exchange air duct and the second heat exchange air duct are arranged in the penetrating channel independently, so that natural air which flows out through the jet air duct and is not subjected to heat exchange is mixed with heat exchange air flow sent out through the first heat exchange air duct and the second heat exchange air duct.
The utility model discloses a fluidic device have the efflux wind channel and with the efflux fan of the interior air-out chamber intercommunication of efflux wind channel, accessible efflux fan initiatively jets into the air-out intracavity with the outside air current of fluidic device to flow through the efflux air outlet, thereby be convenient for and the heat transfer air current that flows from the heat transfer air outlet of cabinet air conditioner indoor set mix mutually, avoided the machine air-out supercooling or overheated in the cabinet air conditioner, improved its travelling comfort and experienced. Compare the mode that utilizes the passive drainage of negative pressure among the prior art, the utility model discloses a set up efflux fan initiative efflux, the efflux amount of wind improves greatly.
And, the utility model discloses a fluidic device still has at least one additional function module, and every additional function module all communicates with the air-out chamber through the air door selectivity to corresponding additional function is applyed to the air current that gets into the air-out chamber or flow out through the air-out chamber selectively. The additional function module is communicated with the air outlet cavity by a very simple structure of an air door, not only can the number and the types of the additional function modules be selected according to actual requirements so as to apply various corresponding additional functions to the airflow sent by the jet device, but also the structure of the jet device is simplified, the volume of the jet device is reduced, and the jet device is very suitable for being integrated on a cabinet air conditioner indoor unit.
Furthermore, because the additional function module is selectively communicated with the air outlet cavity through the air door, the additional function module can be arranged in an air inlet pipeline for introducing air flow into the air outlet cavity, can also be arranged in an air outlet pipeline for leading out the air flow in the air outlet cavity, and can also be arranged on an air flow path between the jet flow fan and the jet flow air outlet, so that the flexibility of the position arrangement of the additional function module is improved.
The above and other objects, advantages and features of the present invention will become more apparent to those skilled in the art from the following detailed description of specific embodiments thereof, taken in conjunction with the accompanying drawings.
Drawings
Some specific embodiments of the present invention will be described in detail hereinafter, by way of illustration and not by way of limitation, with reference to the accompanying drawings. The same reference numbers in the drawings identify the same or similar elements or components. Those skilled in the art will appreciate that the drawings are not necessarily drawn to scale. In the drawings:

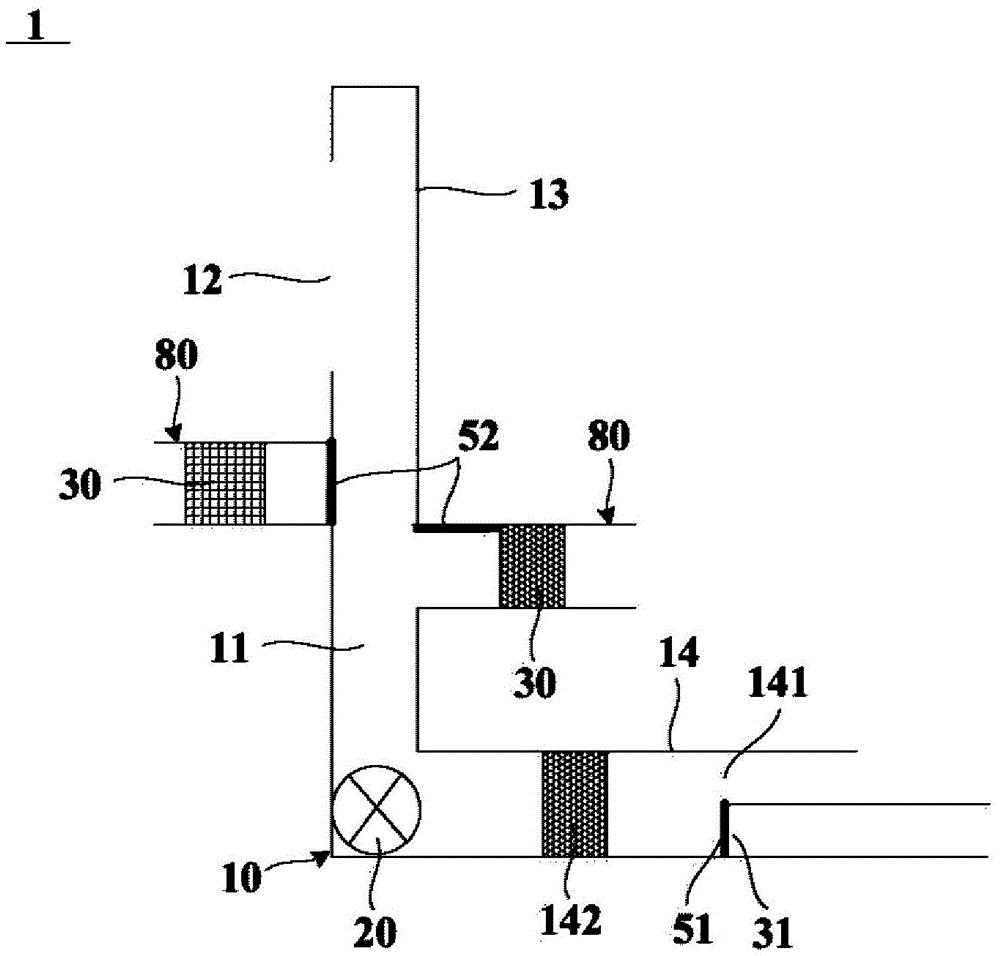

fig. 1 is a schematic block diagram of a fluidic device according to one embodiment of the present invention;
fig. 2 and 3 are schematic structural views of a fluidic device according to a second embodiment of the present invention in different states;
fig. 4 is a schematic structural view of a fluidic device according to a third embodiment of the present invention;
fig. 5 is a schematic structural view of a cabinet air conditioner indoor unit according to an embodiment of the present invention;
fig. 6 is a schematic cross-sectional view of a cabinet air conditioner indoor unit according to an embodiment of the present invention.
Detailed Description
The utility model provides an at first, this fluidic device is applied to machine in the cabinet air conditioner, and this machine in the cabinet air conditioner has the heat transfer air current export that is used for seeing off heat transfer air current for to the indoor heat transfer air current of carrying after the heat transfer of indoor heat exchanger.
Fig. 1 is a schematic structural diagram of a jet device for a cabinet air conditioner indoor unit according to an embodiment of the present invention, referring to fig. 1, the jet device 1 of the present invention may include a jet air duct 10 and a jet fan 20.
An air outlet cavity 11 is defined inside the jet air duct 10, and a jet air outlet 12 for sending out air flow is arranged on one side surface of the jet air duct 10. The jet fan 20 is communicated with the air outlet cavity 11 and is used for controllably driving the airflow outside the jet device 1 to flow into the air outlet cavity 11 and be sent out through the jet air outlet 12 so as to be mixed with the heat exchange airflow flowing out from the heat exchange airflow outlet. Therefore, the air flow outside the jet flow device 1 can be actively injected into the air outlet cavity through the jet flow fan 20 and flows out through the jet flow air outlet 12, so that the air flow can be conveniently mixed with the heat exchange air flow flowing out from the heat exchange air flow outlet of the cabinet air conditioner indoor unit, the air outlet of the cabinet air conditioner indoor unit is prevented from being too cold or too hot, and the comfort experience of the cabinet air conditioner indoor unit is improved. Compare the mode that utilizes the passive drainage of negative pressure among the prior art, the utility model discloses a set up efflux fan initiative efflux, the efflux amount of wind improves greatly. In addition, the specific air quantity entering the jet air duct 10 can be controlled by adjusting the rotating speed of the jet fan 20, and the air quantity is not influenced by other external factors and is accurately and stably controlled.
In particular, the fluidic device 1 further comprises at least one additional functional module 30, each additional functional module 30 being selectively in communication with the outlet plenum 11 through a damper to selectively apply a corresponding additional function to the airflow entering the outlet plenum 11 or exiting through the outlet plenum 11. The additional function module 30 of the present application is integrated on the fluidic device 1, and is selectively communicated with the air outlet cavity 11 through a very simple structure such as an air door, so that not only the number and the types of the additional function modules 30 communicated with the air outlet cavity 11 can be selected according to actual requirements to apply various corresponding additional functions to the airflow sent by the fluidic device 1, but also the structure of the fluidic device 1 is simplified, the volume of the fluidic device is reduced, and the fluidic device is very suitable for being integrated on a cabinet air conditioner indoor unit.
In some embodiments, the jet duct 10 includes an outlet duct 13 extending vertically and an inlet duct 14 extending horizontally outward from the bottom of the outlet duct 13. The air outlet cavity 11 is formed in the air outlet duct 13, and the air outlet cavity 11 can be a vertically extending strip-shaped air outlet cavity. The heat exchange airflow outlet is usually located at the front side of the cabinet air conditioner indoor unit so as to supply air towards the front side. Therefore, the jet outlet 12 may be formed on the front side 131 of the outlet duct 13 so as to be mixed with the heat exchange air flowing out from the heat exchange air outlet. The jet fan 20 is arranged at the intersection of the air outlet duct 13 and the air inlet duct 14, so that the size of the jet device 1 in the transverse direction or the front-back direction is not increased, the jet device 1 is more suitable for being integrated in a cabinet air-conditioning indoor unit with higher vertical height and smaller size in other directions, and the cabinet air-conditioning indoor unit is prevented from being large in size or complex in structure. That is to say, the fluidic device 1 of the present application makes full use of the advantage of the cabinet air conditioner indoor unit in the height direction, so that the layout between the fluidic device 1 and other structures of the cabinet air conditioner indoor unit is more compact, and the problems of the cabinet air conditioner indoor unit being too large in size and too much in occupied space caused by applying the fluidic device 1 to the cabinet air conditioner indoor unit are avoided.
Further, the jet fan 20 may be a centrifugal fan, so as to controllably drive the airflow outside the jet air duct 10 to horizontally flow into the centrifugal fan through the air inlet duct 14 and flow into and out of the air duct 13 from bottom to top. In other embodiments, the jet fan 20 may also be an axial fan, and in this case, the jet duct 10 may extend vertically as a whole. The centrifugal fan and the axial flow fan have small volume and long range, are beneficial to sucking air from the side or the bottom and supplying air upwards, and do not occupy the space in the transverse direction and the front-back direction, so that the jet device 1 is more suitable for the indoor unit of the cabinet air conditioner.
Furthermore, a filtering device 142 may be disposed in the air inlet duct 14 to filter the airflow entering the air outlet duct 13 from the air inlet duct 14. In some alternative embodiments, the filter device 142 may be disposed at other positions, for example, the filter device 142 may be disposed in the outlet duct 13.
In some embodiments, the fluidic device 1 has an indoor air intake 141 in communication with the indoor space in which it is located. Specifically, the indoor air inlet 141 may be opened at an end of the air inlet duct 14 far from the air outlet channel 13.
Further, the at least one additional function module 30 includes a fresh air pipe for introducing outdoor fresh air, that is, one of the additional function modules 30 may be a fresh air module for introducing outdoor fresh air. The fresh air duct has an outdoor air inlet 31 disposed adjacent to the indoor air inlet 141, first electrically controlled dampers 51 are disposed at the indoor air inlet 141 and the outdoor air inlet 31, and the first electrically controlled dampers 51 controllably shield the indoor air inlet 141 or the outdoor air inlet 31 to selectively introduce outdoor fresh air or indoor air into the jet air duct 10 through the jet fan 20. One end port of the fresh air pipe is communicated with the air inlet duct 14, the other end of the fresh air pipe is used for extending to the outside, and the outdoor air inlet 31 can be formed at one end of the fresh air pipe communicated with the air inlet duct 14.
In some embodiments, the fluidic device 1 further comprises at least one air outlet duct 80 led out from the fluidic air duct 10, and each air outlet duct 80 is open to the indoor space where the fluidic device 1 is located. That is, each air outlet duct 80 communicates with the indoor space where the jet device 1 is located.
Furthermore, each air outlet pipeline 80 is provided with a corresponding additional function module 30, and a section of each air outlet pipeline 80 between the additional function module 30 and the air outlet cavity 11 is provided with a second electrically controlled damper 52 to controllably connect the air outlet pipeline 80 and the air outlet cavity 11, so that part of the air flow in the air outlet cavity 11 flows through the additional function module 30 in the air outlet pipeline 80 and then is sent out through the air outlet pipeline 80. That is, the second electrically controlled damper 52 can be controlled to connect the fluid communication between the air outlet duct 80 and the air outlet chamber 11, or to block the fluid communication between the air outlet duct 80 and the air outlet chamber 11. Therefore, when the additional function module 30 in a certain air outlet pipeline 80 needs to be started, the second electric control air door 52 in the air outlet pipeline 80 can be controlled, so that the air outlet pipeline 80 is communicated with the air outlet cavity 11, part of air flow in the air outlet cavity 11 flows to the air outlet pipeline 80 and flows to the indoor space after flowing through the additional function module 30 in the air outlet pipeline 80, and the additional function module 30 is utilized to apply corresponding additional functions to the air flow flowing through the additional function module.
Fig. 2 and 3 are schematic structural views of a fluidic device according to a second embodiment of the present invention in different states, and the dotted arrows in fig. 3 indicate the flow direction of the air stream. In some embodiments, the fluidic device 1 further comprises at least one additional functional chamber 60 attached alongside the fluidic air duct 10. Each additional function chamber 60 is provided with a corresponding additional function module 30, and a third electrically controlled damper 53 is arranged between each additional function chamber 60 and the air outlet cavity 11, wherein the third electrically controlled damper 53 is configured to controllably position the additional function module 30 in the additional function chamber 60 on the airflow path from the jet flow fan 20 to the jet flow outlet 12, so as to apply a corresponding additional function to the airflow flowing to the jet flow outlet 12 through the additional function module 30.
Specifically, the third electrically controlled damper 53 is in a closed state, see fig. 2, the additional function chamber 60 is isolated from the outlet chamber 11, and the airflow in the outlet chamber 11 does not flow to the additional function chamber 60. In the open state of the third electrically controlled damper 53, see fig. 3, the outlet air chamber 11 is blocked and divided into a first section communicating with the jet outlet 12 and a second section communicating with the jet fan 20, the first and second sections communicating through the additional function chamber 60. Therefore, the airflow driven by the jet fan 20 flows to the additional function chamber 60 through the second section, flows to the first section after flowing through the additional function module 30 in the additional function chamber 60, and is further sent out from the jet air outlet 12, and the airflow sent out from the jet air outlet 12 carries the additional functions applied by the additional function module 30, such as humidification, aromatherapy, purification, and the like.
Fig. 4 is a schematic structural view of a fluidic device according to a third embodiment of the present invention. In some embodiments, the jet device 1 has an indoor air inlet 141 communicated with the indoor space where it is located, and specifically, the indoor air inlet 141 may be opened at an end of the air inlet duct 14 far from the air outlet channel 13. At least one air inlet duct 70 is connected in parallel to the indoor air inlet 141, and each air inlet duct 70 is open to an indoor space where the jet device 1 is located. That is, each air intake duct 70 communicates with the indoor space where the jet device 1 is located.
Further, a corresponding additional function module 30 is disposed in each air inlet duct 70, and a fourth electrically controlled damper 54 is disposed between each air inlet duct 70 and the air inlet duct 14 between the indoor air inlet 141 and the jet flow fan 20, the fourth electrically controlled damper 54 being configured to controllably communicate the air inlet duct 70 and the air inlet duct 14, so that the indoor air flows through the air inlet duct 70 to the jet flow fan 20, and thus the corresponding additional function module 30 in the air inlet duct 70 applies a corresponding additional function to the air flowing to the jet flow fan 20. Therefore, when the additional function module 30 in a certain air inlet pipeline 70 needs to be started, the fourth electrically controlled damper 54 in the air inlet pipeline 70 can be controlled, so that the air inlet pipeline 70 is communicated with the air inlet duct 14, the air flow in the indoor space flows to the air outlet duct 13 through the air inlet pipeline 70 and flows to the indoor space through the jet air outlet 12, and the additional function module 30 is utilized to apply corresponding additional functions to the air flow flowing through the additional function module.
Specifically, when the fourth electrically controlled damper 54 is in the closed state, the fluid connection between the air inlet line 70 and the air inlet duct 14 is blocked, and the air flow driven by the jet fan 20 flows through the air inlet duct 14 to the air outlet duct 13. When the fourth electrically controlled damper 54 is in the open state (in fig. 4, the fourth electrically controlled damper 54 is in the open state), the fluid connection between the air inlet pipeline 70 and the air inlet duct 14 is opened, and the air flow driven by the jet fan 20 flows at least partially through the air inlet pipeline 70 to the air outlet duct 13. It should be noted that the fourth electrically controlled damper 54 may block the air inlet duct 14 when in the open state, at this time, the airflow driven by the jet fan 20 flows to the air outlet duct 13 completely through the air inlet pipeline 70, and the air inlet duct 14 may not be blocked when the fourth electrically controlled damper 54 is in the open state.
As can be seen from the above embodiments, since the additional function module 30 is selectively communicated with the air outlet cavity 11 through the air door, the additional function module 30 may be disposed in the air inlet pipe 70 for introducing the air flow into the air outlet cavity 11, may also be disposed in the air outlet pipe 80 for introducing the air flow in the air outlet cavity 11, and may also be disposed on the air flow path between the jet flow fan 20 and the jet flow outlet 12, so as to improve the flexibility of the position arrangement of the additional function module 30.
In some embodiments, the at least one additional function module 30 may include one or more of a humidification module, a purification module, and an aromatherapy module. In other embodiments, the additional function module 30 may also include modules capable of performing other additional functions on the airflow.
In some embodiments, the fluidic device 1 can include one or more of the outlet duct 80, the inlet duct 70, and the additional function chamber 60. When the number of the additional function modules 30 is plural, the plural additional function modules 30 may be disposed at different positions according to actual situations. For example, when the fluidic device 1 includes three additional function modules 30, the three additional function modules 30 may be respectively disposed in the three outlet ducts 80, respectively disposed in the three inlet ducts 70, respectively disposed in the three additional function chambers 60, respectively disposed in one outlet duct 80, one inlet duct 70, and one additional function chamber 60, respectively disposed in two outlet ducts 80 and one inlet duct 70, and so on.
The present application further provides a cabinet air-conditioning indoor unit, fig. 5 is a schematic structural diagram of the cabinet air-conditioning indoor unit according to an embodiment of the present invention, the cabinet air-conditioning indoor unit 100 of the present invention includes a casing 40, and the casing 40 has a heat exchange airflow outlet for conveying heat exchange airflow indoors. The number of the heat exchange gas flow outlets can be one, and two or more. The casing 40 may be provided therein with a heat exchange device for exchanging heat with an air flow to generate a heat exchange air flow, and an air supply fan for driving the air flow to enter through an air inlet of the casing 40 and to be sent out through a heat exchange air flow outlet, where the air supply fan may be a cross flow fan, and the number of the cross flow fans may be one or two.
In particular, the cabinet air-conditioning indoor unit 100 further comprises a fluidic device 1 according to any of the embodiments described above. The jet device 1 is used for controllably causing the air flow outside the cabinet air conditioner to flow into the cabinet air conditioner and to be sent out through the jet air outlet 12, and mixing the air flow sent out through the jet air outlet 12 with the heat exchange air flow flowing out through the heat exchange air flow outlet, so that the air outlet of the cabinet air conditioner indoor unit 100 is prevented from being too cold or too hot, and the air outlet softness and the user comfort experience are improved.
The cabinet air-conditioning indoor unit 100 with the jet device 1 has large airflow without heat exchange and long air supply distance, and improves the whole air supply amount and air supply range of the cabinet air-conditioning indoor unit 100. Moreover, the fluidic device 1 is integrated with at least one additional functional module 30, which not only can satisfy various additional functional requirements of users, but also has a very simple structure, and does not increase the structural complexity and volume of the cabinet air conditioner indoor unit 100.
Fig. 6 is a schematic cross-sectional view of a cabinet air conditioner indoor unit according to an embodiment of the present invention. In some embodiments, a through channel 41 penetrating the casing 40 from front to back, and a first heat exchange air duct 42 and a second heat exchange air duct 43 located at two lateral sides of the through channel 41 and independent from each other are formed inside the casing 40, the first heat exchange air duct 42 and the second heat exchange air duct 43 both have heat exchange airflow outlets, and a heat exchanger and a fan are disposed in the first heat exchange air duct 42 and the second heat exchange air duct 43, so that the heat exchange airflow in the first heat exchange air duct 42 and the heat exchange airflow in the second heat exchange air duct 43 are sent out through their own heat exchange airflow outlets by the fan.
The air paths of the first heat exchange air duct 42 and the second heat exchange air duct 43 are independent from each other, the first heat exchange air duct 42 has a first heat exchange airflow outlet 421, a first heat exchanger 51 and a first fan 61 are arranged in the first heat exchange air duct 42, the first heat exchanger 51 is used for exchanging heat with the airflow in the first heat exchange air duct 42 to generate heat exchange airflow, and the first fan 61 is used for promoting the heat exchange airflow to flow to the first heat exchange airflow outlet 421 and flow out through the first heat exchange airflow outlet 421. Similarly, the second heat exchange air duct 43 has a second heat exchange air outlet 431, and the second heat exchanger 52 and the second fan 62 are disposed therein. The second heat exchanger 52 is configured to exchange heat with the air flow in the second heat exchange air duct 43 to generate a heat exchange air flow, and the second fan 62 is configured to promote the heat exchange air flow to the second heat exchange air flow outlet 431 and flow out through the second heat exchange air flow outlet 431.
The jet air duct 10 and the first heat exchange air duct 42 and the second heat exchange air duct 43 are independently disposed inside the through channel 41, so that the natural air flowing out through the jet air duct 10 without heat exchange is mixed with the heat exchange air flow sent out through the first heat exchange air duct 42 and the second heat exchange air duct 43. That is, the jet air duct 10 is independent from the first heat exchange air duct 42 and the second heat exchange air duct 43, and the air paths of the three air ducts are independent from each other and do not affect each other.
In some embodiments, the casing 40 further defines a first air inlet 451 and a second air inlet (not shown), and the first heat exchange air duct 42 and the second heat exchange air duct 43 are respectively communicated with the first air inlet 451 and the second air inlet, so that the air outside the cabinet air conditioner indoor unit 1 is forced to flow into the first heat exchange air duct 42 through the first air inlet 451 by the first fan 61, and the air outside the cabinet air conditioner indoor unit 1 is forced to flow into the second heat exchange air duct 43 through the second air inlet by the second fan 62.
Further, the through channel 41 may be formed in the middle of the casing 40, and the first air inlet 451 and the second air inlet may be respectively located at two lateral sides of the casing 40 to prevent the interference of the inlet air of the first heat exchange air duct 42 and the second heat exchange air duct 43.
In some embodiments, the fans in the first heat exchange air duct 42 and the second heat exchange air duct 43 are cross-flow fans with rotating shafts extending in the vertical direction. Correspondingly, the first air inlet 451, the second air inlet, the first heat exchange air flow outlet 421 and the second heat exchange air flow outlet 431 are all elongated air inlets extending along the vertical direction. The jet air duct 10 is an elongated air duct extending vertically. Therefore, the air outlet height of the cabinet air conditioner indoor unit 1 in the vertical direction can be increased, and the air supply range is expanded. The first and second heat exchangers 51 and 52 are V-shaped or arc-shaped heat exchangers disposed laterally outside the first and second fans 61 and 62, respectively.
It should be further understood by those skilled in the art that the terms "upper", "lower", "front", "rear", and the like used in the embodiments of the present invention to indicate the orientation or the positional relationship are based on the actual usage state of the fluidic device 1 and the cabinet air conditioner indoor unit 100, and these terms are only used for the convenience of description and understanding of the technical solution of the present invention, and do not indicate or imply that the device referred to must have a specific orientation, be constructed and operated in a specific orientation, and therefore, should not be interpreted as limiting the present invention.
Thus, it should be appreciated by those skilled in the art that while a number of exemplary embodiments of the invention have been shown and described in detail herein, many other variations and modifications can be made, consistent with the principles of the invention, which are directly determined or derived from the disclosure herein, without departing from the spirit and scope of the invention. Accordingly, the scope of the present invention should be understood and interpreted to cover all such other variations or modifications.
Claims (10)
1. A fluidic device for a cabinet air-conditioning indoor unit having a heat exchange air flow outlet for delivering a heat exchange air flow, comprising:
the jet air duct is internally provided with an air outlet cavity, and one side surface of the jet air duct is provided with a jet air outlet used for sending out air flow;
the jet flow fan is communicated with the air outlet cavity and is used for controllably driving airflow outside the jet flow device to flow into the air outlet cavity and send out through the jet flow air outlet so as to be mixed with the heat exchange airflow flowing out of the heat exchange airflow outlet; and
and each additional function module is selectively communicated with the air outlet cavity through a damper so as to selectively apply corresponding additional functions to the airflow entering the air outlet cavity or flowing out of the air outlet cavity.
2. The fluidic device of claim 1,
the jet device is provided with an indoor air inlet communicated with the indoor space where the jet device is positioned; and is
At least one additional function module is including the fresh air pipe that is used for introducing outdoor new trend, the fresh air pipe have with the adjacent outdoor air intake that sets up of indoor air intake, indoor air intake with outdoor air intake department is equipped with first automatically controlled air door, first automatically controlled air door is controlled and is shielded indoor air intake or outdoor air intake, with through the efflux fan is selectively to introduce outdoor new trend or introduce the room air in the efflux wind channel.
3. The fluidic device of claim 1,
the jet device also comprises at least one air outlet pipeline which is led out from the jet air duct, and each air outlet pipeline is opened towards the indoor space where the jet device is located; and is
Each air outlet pipeline is provided with a corresponding additional function module, and a section of each air outlet pipeline between the additional function module and the air outlet cavity is provided with a second electric control air door so as to controllably conduct the air outlet pipeline and the air outlet cavity, so that part of air flow in the air outlet cavity flows through the additional function module in the air outlet pipeline and then is sent out through the air outlet pipeline.
4. The fluidic device of claim 1,
the fluidic device further comprises at least one additional functional chamber attached alongside the fluidic duct;
each additional function cavity is internally provided with a corresponding additional function module, a third electric control air door is arranged between each additional function cavity and the air outlet cavity, and the third electric control air door is arranged to controllably place the additional function module in the additional function cavity on an airflow flow path between the jet flow fan and the jet flow air outlet so as to apply corresponding additional functions to airflow flowing to the jet flow air outlet through the additional function module.
5. The fluidic device of claim 1,
the jet device is provided with an indoor air inlet communicated with the indoor space where the jet device is located, the indoor air inlet is connected with at least one air inlet pipeline in parallel, and each air inlet pipeline is open towards the indoor space where the jet device is located;
every all be equipped with corresponding one in the air inlet pipeline additional function module, and every the air inlet pipeline with all be equipped with fourth automatically controlled air door between indoor air intake and the air inlet duct between the efflux fan, fourth automatically controlled air door sets up to switch on this air inlet pipeline with the air inlet duct to make indoor air flow through this air inlet pipeline flow direction efflux fan, thereby add corresponding additional function to the air current that flows to the efflux fan through the additional function module in this air inlet pipeline.
6. The fluidic device of any of claims 3-5,
the at least one additional function module comprises one or more of a humidifying module, a purifying module and an aromatherapy module.
7. The fluidic device of claim 1,
the jet air duct comprises an air outlet duct extending vertically and an air inlet duct extending horizontally outwards from the bottom of the air outlet duct; and is
The air outlet cavity is formed in the air outlet duct, the jet air outlet is formed on the front side surface of the air outlet duct, and the jet fan is arranged at the intersection of the air outlet duct and the air inlet duct.
8. The fluidic device of claim 7,
the jet fan is a centrifugal fan, so that airflow outside the jet air duct is driven to horizontally flow into the centrifugal fan through the air inlet duct and flow into the air outlet duct from bottom to top in a controlled manner.
9. A cabinet air-conditioning indoor unit, comprising:
the shell is provided with a heat exchange airflow outlet used for conveying heat exchange airflow to the indoor space; and
the fluidic device of any one of claims 1 to 8, configured to controllably cause an airflow from outside the fluidic device to flow into the fluidic device and exit the fluidic device through the fluidic outlet port of the fluidic device, and to mix the airflow exiting the fluidic outlet port with the heat-exchange airflow exiting the heat-exchange airflow outlet port.
10. The cabinet air-conditioning indoor unit of claim 9, wherein,
a through channel which penetrates through the shell from front to back and a first heat exchange air duct and a second heat exchange air duct which are respectively positioned at two transverse sides of the through channel and are independent of each other are formed in the shell, the first heat exchange air duct and the second heat exchange air duct are both provided with heat exchange airflow outlets, and heat exchangers and fans are arranged in the first heat exchange air duct and the second heat exchange air duct so as to drive the heat exchange airflows in the first heat exchange air duct and the second heat exchange air duct to be sent out through the heat exchange airflow outlets of the fans;
the jet air duct, the first heat exchange air duct and the second heat exchange air duct are arranged in the penetrating channel independently, so that natural air which flows out through the jet air duct and is not subjected to heat exchange is mixed with heat exchange air flow sent out through the first heat exchange air duct and the second heat exchange air duct.
