The utility model discloses an animal doctor's instrument is with cleaning and disinfecting device, including main part, control panel, ultraviolet ray disinfection lamp, fan, workstation, motor, water pump, water spout and battery, the main part front side is equipped with control panel, the main part front side is connected with the chamber door, the main part upper end is connected with the top cap, the top cap upper end is equipped with the ultraviolet ray disinfection lamp, the top cap lower extreme is equipped with the workstation, workstation one side is connected with the inlet tube, the inlet tube other end intercommunication and clear water tank, the clear water tank inboard is equipped with the water pump. The utility model discloses an ultraviolet ray disinfection lamp disinfects, and the motor drives the workstation downstream and gets into to wash the intracavity and wash through the water spout after the disinfection, and water among the water spout derives from in the clear water case and carries by the water pump, and the water spout can wash animal doctor's instrument, and sewage after the washing is handled through sewage pipe row income sewage incasement, weathers the instrument on the workstation through the fan.
Description
Technical Field
The utility model relates to an animal doctor's equipment technical field particularly, relates to an animal doctor is cleaning and disinfecting device for instrument.
Background
Veterinarian refers to a physician who administers disease prevention, diagnosis and treatment to an animal. In particular, veterinarians are a class of workers that medically motivate the bodies of animals (including wildlife and poultry, livestock, and aquatic animals) to coordinate with microorganisms and the natural environment.
Veterinarian, both refer to the trade of preventing and treating animal diseases, also refer to the people who engages in preventing and treating animal diseases, the main task is to study and implement diagnosis and treatment, prevention and cure, quarantine and domestic animal product health inspection etc. of domestic animal poultry disease, and veterinary instrument needs the cleaning and disinfection after the use, and present veterinary instrument disinfection belt cleaning device function is more single, is unfavorable for the veterinarian to carry out continuous medical work, needs a veterinary instrument to solve this problem with cleaning and disinfecting device.
An effective solution to the problems in the related art has not been proposed yet.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a veterinarian is cleaning and disinfecting device for instrument to solve the problem that provides among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a cleaning and disinfecting device for veterinary tools comprises a main body, a control panel, an ultraviolet disinfection lamp, a fan, a workbench, a motor, a water pump, water nozzles and a storage battery, wherein the control panel is arranged on the front side of the main body, a box door is connected on the front side of the main body, a top cover is connected on the upper end of the main body, the ultraviolet disinfection lamp is arranged on the upper end of the top cover, the workbench is arranged at the lower end of the top cover, a threaded rod is connected at the bottom end of the workbench, the motor is connected at the bottom end of the threaded rod, the storage battery is arranged on one side of the motor, the fan is arranged at both ends of the workbench, a cleaning cavity is arranged at the lower end of the workbench, the water nozzles are arranged at both ends of the cleaning cavity, a sewage pipe is connected at the bottom end of the cleaning cavity, the other, the water pump is arranged on the inner side of the clear water tank.
Furthermore, a first hinge is connected between the box door and the main body, and the box door is hinged to the main body through the first hinge.
Furthermore, a first handle is arranged on the box door, and the box door is fixedly connected with the first handle.
Furthermore, a second hinge is connected between the top cover and the main body, and the top cover is hinged to the main body through the second hinge.
Furthermore, a second handle is arranged on the top cover, and the top cover is fixedly connected with the second handle.
Further, the control panel is electrically connected with the storage battery, and the motor and the fan are electrically connected with the storage battery.
Furthermore, a bearing is arranged between the workbench and the threaded rod, and the threaded rod is rotatably connected with the bearing.
Compared with the prior art, the utility model discloses following beneficial effect has:
(1) the utility model relates to an animal doctor's instrument is with cleaning and disinfecting device, this device comes the height of control table through the motor control threaded rod, the instrument that will wash disinfection is put into on the workstation, through closing the top cap, disinfect by control panel control ultraviolet ray disinfection lamp, the motor drives the workstation downstream entering washing intracavity and washs through the water spout after the disinfection, water in the water spout derives from in the clear water case and is carried by the water pump, the water spout can wash animal doctor's instrument, sewage after the washing is handled in the sewage case is gone into through the sewer pipe, drive the workstation by the motor after the washing and move upwards, weather the instrument on to the workstation through the fan, can improve animal doctor's efficiency of carrying out continuous medical treatment.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings required to be used in the embodiments will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

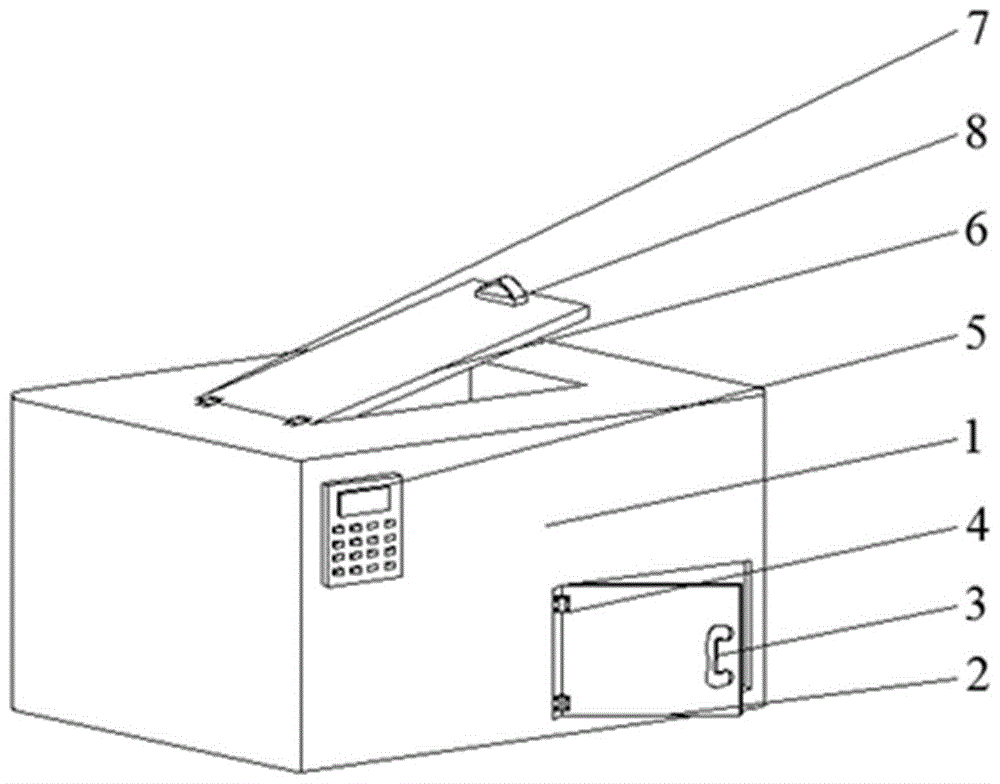

Fig. 1 is a schematic structural view of a cleaning and disinfecting device for veterinary tools according to an embodiment of the present invention;
fig. 2 is a schematic structural view of the interior of a cleaning and disinfecting device for veterinary tools according to an embodiment of the present invention.
Reference numerals:
1. a main body; 2. a box door; 3. a first handle; 4. a first hinge; 5. a control panel; 6. a top cover; 7. a second hinge; 8. a second handle; 9. an ultraviolet disinfection lamp; 10. a fan; 11. a work table; 12. a bearing; 13. a threaded rod; 14. a motor; 15. a water inlet pipe; 16. a clear water tank; 17. a water pump; 18. a cleaning chamber; 19. a water spray nozzle; 20. a sewage pipe; 21. a sewage tank; 22. and (4) a storage battery.
Detailed Description
The following, with reference to the drawings and the detailed description, further description of the present invention is made:
referring to fig. 1-2, a cleaning and disinfecting device for veterinary tools according to an embodiment of the present invention comprises a main body 1, a control panel 5, an ultraviolet disinfection lamp 9, a blower 10, a workbench 11, a motor 14, a water pump 17, a water nozzle 19 and a storage battery 22, wherein the control panel 5 is arranged on the front side of the main body 1, a box door 2 is connected to the front side of the main body 1, a top cover 6 is connected to the upper end of the main body 1, the ultraviolet disinfection lamp 9 is arranged on the upper end of the top cover 6, the workbench 11 is arranged on the lower end of the top cover 6, a threaded rod 13 is connected to the bottom end of the workbench 11, the motor 14 is connected to the bottom end of the threaded rod 13, the storage battery 22 is arranged on one side of the motor 14, the blower 10 is arranged on both ends of the workbench 11, a cleaning chamber 18 is arranged on the lower end of the workbench, the bottom end of the cleaning cavity 18 is connected with a sewage pipe 20, the other end of the sewage pipe 20 is communicated with a sewage tank 21, one side of the workbench 11 is connected with a water inlet pipe 15, the other end of the water inlet pipe 15 is communicated with a clean water tank 16, and the water pump 17 is arranged on the inner side of the clean water tank 16.
Through the above scheme of the utility model, the first hinge 4 is connected between the box door 2 and the main body 1, the box door 2 is hinged with the main body 1 through a first hinge 4, a first handle 3 is arranged on the box door 2, the box door 2 is fixedly connected with the first handle 3, a second hinge 7 is connected between the top cover 6 and the main body 1, the top cover 6 is hinged with the main body 1 through a second hinge 7, a second handle 8 is arranged on the top cover 6, the top cover 6 is fixedly connected with the second handle 8, the control panel 5 is electrically connected with the storage battery 22, the motor 14 and the fan 10 are electrically connected with a storage battery 22, a bearing 12 is arranged between the workbench 11 and the threaded rod 13, the bearing 12 is mainly used for being rotationally connected with the threaded rod, the threaded rod 13 is fixedly connected with the workbench 11, so that the workbench 11 does not rotate, and the threaded rod is rotatably connected with the bearing 12.
When specifically using, the utility model relates to an animal doctor is cleaning and disinfecting device for instrument, this device comes control table 11's height through motor 14 control threaded rod 13, the sterile instrument that will wash is put into on workstation 11, through closing top cap 6, disinfect by control panel 5 control ultraviolet disinfection lamp 9, motor 14 drives workstation 11 and removes downwards and washs through water spout 19 in getting into washing chamber 18 after the disinfection, water among the water spout 19 derives from in clear water tank 16 and carries by water pump 17, water spout 19 can wash animal doctor's instrument, sewage after the washing is handled in discharging sewage tank 21 through sewage pipe 20, drive workstation 11 by motor 14 after the washing again and move upwards, weather the instrument on workstation 11 through fan 10, can improve the efficiency that animal doctor carries out continuous medical treatment.
In the description of the present invention, it should be noted that the terms "top", "bottom", "one side", "the other side", "front", "back", "middle part", "inside", "top", "bottom", etc. indicate the orientation or positional relationship based on the orientation or positional relationship shown in the drawings, which is only for the convenience of description and simplification of the description, but does not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance; furthermore, unless expressly stated or limited otherwise, the terms "mounted," "connected," and "connected" are to be construed broadly, as they may be fixedly connected, detachably connected, or integrally connected, for example; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (7)
1. The cleaning and disinfecting device for the veterinary tools is characterized by comprising a main body (1), a control panel (5), an ultraviolet disinfection lamp (9), a fan (10), a workbench (11), a motor (14), a water pump (17), a water nozzle (19) and a storage battery (22), wherein the control panel (5) is arranged on the front side of the main body (1), a box door (2) is connected on the front side of the main body (1), a top cover (6) is connected on the upper end of the main body (1), the ultraviolet disinfection lamp (9) is arranged on the upper end of the top cover (6), the workbench (11) is arranged at the lower end of the top cover (6), a threaded rod (13) is connected at the bottom end of the workbench (11), the motor (14) is connected at the bottom end of the threaded rod (13), the storage battery (22) is arranged on one side of the motor (14), and the fan (10), workstation (11) lower extreme is equipped with washs chamber (18), it all is equipped with to wash chamber (18) both ends water spout (19), it is connected with sewage pipe (20) to wash chamber (18) bottom, the sewage pipe (20) other end communicates in sewage case (21), workstation (11) one side is connected with inlet tube (15), inlet tube (15) other end intercommunication and clear water case (16), clear water case (16) inboard is equipped with water pump (17).
2. A cleaning and disinfecting device for veterinary tools according to claim 1 characterized in that a first hinge (4) is connected between said box door (2) and said main body (1), said box door (2) being hinged to said main body (1) by means of said first hinge (4).
3. A cleaning and disinfecting device for veterinary medical tools as claimed in claim 1, characterized in that said box door (2) is provided with a first handle (3), said box door (2) being fixedly connected to said first handle (3).
4. A cleaning and disinfecting device for veterinary tools according to claim 1 characterized in that a second hinge (7) is connected between said cap (6) and said main body (1), said cap (6) being hinged to said main body (1) by means of said second hinge (7).
5. A cleaning and disinfecting device for veterinary tools as claimed in claim 1 wherein said cap (6) is provided with a second handle (8), said cap (6) being fixedly connected to said second handle (8).
6. A cleaning and disinfecting device for veterinary tools according to claim 1 characterized in that said control panel (5) is electrically connected to an accumulator (22) and said motor (14) and fan (10) are electrically connected to said accumulator (22).
7. A cleaning and disinfecting device as claimed in claim 1, characterized in that a bearing (12) is provided between said table (11) and a threaded rod (13), said threaded rod (13) being rotatably connected to said bearing (12).
