Abstract
本实用新型公开了一种用于拆卸灌环氧树脂胶的机构，包括机构底板、第一气缸安装座、第二气缸安装座、产品定位柱、第一拆卸气缸及第二拆卸气缸，第一拆卸气缸上具有第一气缸伸出轴，第一气缸伸出轴的内端部具有第一卡紧拉伸环，第二拆卸气缸上具有第二气缸伸出轴，第二气缸伸出轴的内端部具有第二卡紧拉伸环，第一拆卸气缸、第二拆卸气缸可分别通过第一卡紧拉伸环、第二卡紧拉伸环将左治具板、右治具板分离。该种用于拆卸灌环氧树脂胶的机构具有结构简单、生产效率高、节省人工成本、操作方便、提升产品质量等现有技术所不具备的优点。
The utility model discloses a mechanism for disassembling and pouring epoxy resin glue. The dismantling cylinder has a first cylinder extension shaft, the inner end of the first cylinder extension shaft has a first clamping stretch ring, the second disassembly cylinder has a second cylinder extension shaft, and the second cylinder extension shaft is provided on the inner end of the first cylinder extension shaft. The inner end is provided with a second clamping and stretching ring, and the first disassembling cylinder and the second disassembling cylinder can separate the left fixture plate and the right fixture plate through the first clamping and stretching ring and the second clamping and stretching ring respectively. . The mechanism for dismantling and pouring epoxy resin glue has the advantages of simple structure, high production efficiency, saving labor cost, convenient operation, and improving product quality, which the prior art does not have.
Description
Technical Field
The utility model relates to a dedicated extracting tool, especially a mechanism for dismantling irritate epoxy and glue.
Background
In the production process of some special resin products, the jig needs to be closed and then filled with epoxy resin for treatment, the cured epoxy resin is molded, and at this time, the cured product needs to be detached from the jig. The existing method generally adopts a screwdriver to disassemble two parts of the jig by a manual method, and then takes out the resin product after disassembling the jig. The operation method for manually prying the jig has the advantages of low production efficiency and high labor cost, and the surface of the product is easily scratched in the process of prying the product, so that the product quality is influenced.
In view of the above, the present invention provides a new technical solution to solve the existing technical drawbacks.
SUMMERY OF THE UTILITY MODEL
In order to overcome the not enough of prior art, the utility model provides a mechanism for dismantling to irritate epoxy glue has solved the technical defect such as production efficiency is low, the cost of labor is high, damage the product easily that prior art exists.
The utility model provides a technical scheme that its technical problem adopted is:
a mechanism for disassembling and filling epoxy resin glue comprises a mechanism bottom plate, wherein a first air cylinder mounting seat, a second air cylinder mounting seat and a product positioning column for fixing and filling epoxy resin glue products are mounted on the mechanism bottom plate, a first disassembling air cylinder and a second disassembling air cylinder are respectively fixedly mounted on the first air cylinder mounting seat and the second air cylinder mounting seat, a first air cylinder extension shaft is arranged on the first disassembling air cylinder, a first clamping stretching ring is arranged at the inner end part of the first air cylinder extension shaft, a second air cylinder extension shaft is arranged on the second disassembling air cylinder, a second clamping stretching ring is arranged at the inner end part of the second air cylinder extension shaft, the epoxy resin glue products are formed by filling the epoxy resin glue after being combined by a left jig plate and a right jig plate, a left clamping groove and a right clamping groove are respectively arranged on the left jig plate and the right jig plate, the first clamping stretching ring can be clamped into the left clamping groove of the left jig plate, the second clamping stretching ring can be clamped into a right clamping groove of the right jig plate, and the first disassembling cylinder and the second disassembling cylinder can separate the left jig plate and the right jig plate through the first clamping stretching ring and the second clamping stretching ring respectively.
As the improvement of the technical scheme, the device further comprises a cylinder control valve and a cylinder pipeline, wherein an inlet of the cylinder control valve is connected with an external air source through a pipeline, an outlet of the cylinder control valve is respectively connected with air ports of the first disassembling cylinder and the second disassembling cylinder through the cylinder pipeline, and the cylinder control valve is provided with a control valve switch.
As a further improvement of the above technical solution, a control valve mounting plate for fixing the cylinder control valve is provided at the side of the mechanism base plate, and the cylinder control valve is fixed at the side of the control valve mounting plate by a screw or a bolt.
As a further improvement of the above technical solution, the product positioning column is a cylindrical positioning column, the bottom of the epoxy resin filled product is provided with a positioning groove adapted to the product positioning column, and after the left jig plate and the right jig plate are respectively pulled open by the first disassembling cylinder and the second disassembling cylinder, the epoxy resin filled product is positioned on the upper portion of the product positioning column through the positioning groove.
As a further improvement of the above technical scheme, waist-shaped holes are formed in the second cylinder mounting seat of the first cylinder mounting seat, the first disassembling cylinder penetrates through the waist-shaped hole in the first cylinder mounting seat through a bolt and then is fixed on the inner side wall of the first cylinder mounting seat, and the second disassembling cylinder penetrates through the waist-shaped hole in the second cylinder mounting seat through a bolt and then is fixed on the inner side wall of the second cylinder mounting seat.
As a further improvement of the technical scheme, the mechanism bottom plate is provided with a mounting seat adjusting through groove, the first air cylinder mounting seat and the second air cylinder mounting seat are both mounted on the upper surface of the mechanism bottom plate through bolts, the bolts penetrate through the mounting seat adjusting through groove and then are in threaded connection with the first air cylinder mounting seat or the second air cylinder mounting seat, and the bottoms of the first air cylinder mounting seat and the second air cylinder mounting seat are both provided with screw holes matched with the bolts.
As a further improvement of the technical scheme, the first disassembling cylinder and the second disassembling cylinder are both multi-stroke cylinders.
As a further improvement of the above technical solution, an auxiliary supporting plate is fixedly arranged on a side wall of the mechanism bottom plate at a middle position thereof, and the auxiliary supporting plate is used for supporting a part of structure extending out of a side of the epoxy resin glue filling product.
As a further improvement of the technical scheme, the mechanism bottom plate is an aluminum plate.
The utility model has the advantages that: the utility model provides a mechanism for dismantling and irritate epoxy glue, this kind of mechanism for dismantling irritate epoxy glue unpacks left tool board and right tool board apart through first dismantlement cylinder and second dismantlement cylinder, uses the automation mechanized operation to accomplish the dismantlement work, has the degree of automation height, dismantles the advantage efficient, can promote production efficiency and reduce the cost of labor by a wide margin when actually using; in addition, because whole process realizes the automation and controls, removed the artifical process that adopts the screwdriver to prize the tool from, can not produce the condition that the screwdriver prized and impairs the product, help promoting the quality of product.
In a word, this kind of a mechanism for dismantling irritate epoxy glue has solved the technical defect such as production efficiency low, the cost of labor is high, easy damage product that prior art exists.
Drawings
The present invention will be further explained with reference to the drawings and examples.

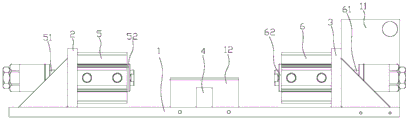

FIG. 1 is a schematic assembly view of the present invention;
fig. 2 is another assembly schematic of the present invention.
Detailed Description
The conception, the specific structure, and the technical effects produced by the present invention will be clearly and completely described below in conjunction with the embodiments and the accompanying drawings to fully understand the objects, the features, and the effects of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, and not all embodiments, and other embodiments obtained by those skilled in the art without inventive labor based on the embodiments of the present invention all belong to the protection scope of the present invention. In addition, all the connection/connection relations referred to in the patent do not mean that the components are directly connected, but mean that a better connection structure can be formed by adding or reducing connection auxiliary components according to specific implementation conditions. The technical features of the present invention can be combined interactively without conflicting with each other, as shown in fig. 1 and 2.
A mechanism for disassembling an epoxy resin adhesive filling product comprises a mechanism bottom plate 1, wherein a first air cylinder mounting seat 2, a second air cylinder mounting seat 3 and a product positioning column 4 for fixing the epoxy resin adhesive filling product are mounted on the mechanism bottom plate 1, a first disassembling air cylinder 5 and a second disassembling air cylinder 6 are respectively fixedly mounted on the first air cylinder mounting seat 2 and the second air cylinder mounting seat 3, a first air cylinder extension shaft 51 is arranged on the first disassembling air cylinder 5, a first clamping stretching ring 52 is arranged at the inner end part of the first air cylinder extension shaft 51, a second air cylinder extension shaft 61 is arranged on the second disassembling air cylinder 6, a second clamping stretching ring 62 is arranged at the inner end part of the second air cylinder extension shaft 61, the epoxy resin adhesive filling product is formed by filling the epoxy resin adhesive after a left jig plate and a right jig plate are combined, a left clamping groove and a right clamping groove are respectively arranged on the left jig plate and the right jig plate, the first clamping stretching ring 52 can be clamped into a left clamping groove of the left jig plate, the second clamping stretching ring 62 can be clamped into a right clamping groove of the right jig plate, and the first disassembling cylinder 5 and the second disassembling cylinder 6 can separate the left jig plate and the right jig plate through the first clamping stretching ring 52 and the second clamping stretching ring 62 respectively.
Preferably, still include cylinder control valve and cylinder pipeline, the entry of cylinder control valve passes through the pipeline and is connected with outside air supply, and the export of cylinder control valve passes through the cylinder pipeline and is connected with the gas port of first dismantlement cylinder 5, second dismantlement cylinder 6 respectively, the last control valve switch that has of cylinder control valve.
Preferably, the mechanism base plate 1 is provided at a side thereof with a control valve mounting plate 11 for fixing the cylinder control valve, and the cylinder control valve is fixed at a side of the control valve mounting plate 11 by a screw or a bolt.
Preferably, the product positioning column 4 is a cylindrical positioning column, the bottom of the epoxy resin pouring product is provided with a positioning groove matched with the product positioning column 4, and after the left jig plate and the right jig plate are respectively pulled open by the first disassembling cylinder 5 and the second disassembling cylinder 6, the epoxy resin pouring product is positioned on the upper portion of the product positioning column 4 through the positioning groove.
Preferably, waist-shaped holes are formed in the first cylinder mounting seat 2 and the second cylinder mounting seat 3, the first disassembling cylinder 5 penetrates through the waist-shaped holes in the first cylinder mounting seat 2 through bolts and then is fixed on the inner side wall of the first cylinder mounting seat 2, and the second disassembling cylinder 6 penetrates through the waist-shaped holes in the second cylinder mounting seat 3 through bolts and then is fixed on the inner side wall of the second cylinder mounting seat 3.
Preferably, the mechanism bottom plate 1 is provided with a mounting seat adjusting through groove, the first cylinder mounting seat 2 and the second cylinder mounting seat 3 are both mounted on the upper surface of the mechanism bottom plate 1 through bolts, the bolts penetrate through the mounting seat adjusting through groove and then are in threaded connection with the first cylinder mounting seat 2 or the second cylinder mounting seat 3, and the bottoms of the first cylinder mounting seat 2 and the second cylinder mounting seat 3 are both provided with screw holes matched with the bolts.
Preferably, the first detaching cylinder 5 and the second detaching cylinder 6 are both multi-stroke cylinders.
Preferably, the mechanism bottom plate 1 is fixedly provided with an auxiliary support plate 12 at a side wall at a middle position thereof, and the auxiliary support plate 12 is used for supporting a part of structure extending out of the side of the epoxy resin glue filling product.
Preferably, the mechanism base plate 1 is an aluminum plate.
Use specifically the utility model discloses in the time, on whole arranging product reference column 4 in with the inside tool that has the epoxy glue product of irritating of solidification, irritate the constant head tank location of epoxy product bottom on 4 upper portions of product reference column, the tool includes left tool board and right tool board, and the tensile ring 52 card of first chucking on the first cylinder 5 of dismantling is gone into the left draw-in groove on the left tool board, and the tensile ring 62 card of second chucking of cylinder 6 is dismantled to the second in the right draw-in groove of right tool board. At this time, press the control valve switch, dismantle cylinder 6 through the first dismantlement cylinder 5 of cylinder control valve control and second, the first cylinder projecting shaft 51 of dismantling cylinder 5 and the second cylinder projecting shaft 61 of second dismantlement cylinder 6 all contract backward, first cylinder projecting shaft 51 and second cylinder projecting shaft 61 pull open through the tensile ring 62 left tool boards of first chucking 52 and second chucking respectively and the right tool board of the tensile ring of second chucking, irritate epoxy glue product at this time and deviate from completely from the shaping tool, accomplish the die sinking work of product, degree of automation is high, high production efficiency, save the cost of labor.
While the preferred embodiments of the present invention have been described, the present invention is not limited to the above embodiments, and those skilled in the art can make various equivalent modifications or substitutions without departing from the spirit of the present invention, and such equivalent modifications or substitutions are intended to be included within the scope of the present invention as defined by the appended claims.
Claims (9)
1. The utility model provides a mechanism for dismantling irritate epoxy and glue which characterized in that: the epoxy resin glue pouring mechanism comprises a mechanism bottom plate (1), wherein a first cylinder mounting seat (2), a second cylinder mounting seat (3) and a product positioning column (4) for fixing an epoxy resin glue pouring product are mounted on the mechanism bottom plate (1), a first disassembling cylinder (5) and a second disassembling cylinder (6) are respectively and fixedly mounted on the first cylinder mounting seat (2) and the second cylinder mounting seat (3), a first cylinder extension shaft (51) is arranged on the first disassembling cylinder (5), a first clamping and stretching ring (52) is arranged at the inner end part of the first cylinder extension shaft (51), a second cylinder extension shaft (61) is arranged on the second disassembling cylinder (6), a second clamping and stretching ring (62) is arranged at the inner end part of the second cylinder extension shaft (61), the epoxy resin glue pouring product is formed by pouring epoxy resin glue after a left jig plate and a right jig plate are combined, have left draw-in groove and right draw-in groove on left tool board and the right tool board respectively, first tensile ring of chucking (52) can block in the left draw-in groove of left tool board, the tensile ring of second chucking (62) can block in the right draw-in groove of right tool board, and first dismantlement cylinder (5), second dismantlement cylinder (6) can be respectively through tensile ring of first chucking (52), the tensile ring of second chucking (62) with left tool board, the separation of right tool board.
2. The mechanism of claim 1, further comprising: still include cylinder control valve and cylinder pipeline, the entry of cylinder control valve passes through the pipeline and is connected with outside air supply, and the export of cylinder control valve passes through the cylinder pipeline and is connected with the first gas port of dismantling cylinder (5), second dismantlement cylinder (6) respectively, the last control valve switch that has of cylinder control valve.
3. The mechanism of claim 2, wherein the mechanism further comprises: and a control valve mounting plate (11) for fixing the cylinder control valve is arranged on the side part of the mechanism bottom plate (1), and the cylinder control valve is fixed on the side part of the control valve mounting plate (11) through screws or bolts.
4. The mechanism of claim 1, further comprising: the product positioning column (4) is a cylindrical positioning column, the bottom of the epoxy resin glue filling product is provided with a positioning groove matched with the product positioning column (4), and after the left jig plate and the right jig plate are respectively pulled open by the first disassembling cylinder (5) and the second disassembling cylinder (6), the epoxy resin filling product is positioned on the upper portion of the product positioning column (4) through the positioning groove.
5. The mechanism of claim 1, further comprising: waist-shaped holes are formed in the first air cylinder mounting seat (2) and the second air cylinder mounting seat (3), the first disassembling air cylinder (5) penetrates through the waist-shaped holes in the first air cylinder mounting seat (2) through bolts and then is fixed on the inner side wall of the first air cylinder mounting seat (2), and the second disassembling air cylinder (6) penetrates through the waist-shaped holes in the second air cylinder mounting seat (3) through bolts and then is fixed on the inner side wall of the second air cylinder mounting seat (3).
6. The mechanism of claim 1, further comprising: the mechanism is characterized in that a mounting seat adjusting through groove is formed in the mechanism bottom plate (1), the first air cylinder mounting seat (2) and the second air cylinder mounting seat (3) are mounted on the upper surface of the mechanism bottom plate (1) through bolts, the bolts penetrate through the mounting seat adjusting through groove and then are in threaded connection with the first air cylinder mounting seat (2) or the second air cylinder mounting seat (3), and screw holes matched with the bolts are formed in the bottoms of the first air cylinder mounting seat (2) and the second air cylinder mounting seat (3).
7. The mechanism of claim 1, further comprising: the first detaching cylinder (5) and the second detaching cylinder (6) are both multi-stroke cylinders.
8. The mechanism of claim 1, further comprising: the side wall of the mechanism bottom plate (1) at the middle position is fixedly provided with an auxiliary supporting plate (12), and the auxiliary supporting plate (12) is used for supporting a part of structure extending out of the side part of the epoxy resin glue filling product.
9. The mechanism of claim 1, further comprising: the mechanism bottom plate (1) is an aluminum plate.
