Abstract

The utility model provides a convenient die-cutting machine pressure regulating mechanism who adjusts, including bottom plate, stand, die holder, medium plate, roof and second connecting plate, bottom plate upper portion symmetry fixedly connected with stand, stand middle part fixedly connected with medium plate, one side fixedly connected with roof that the bottom plate was kept away from to the stand, bottom plate upper surface middle part fixedly connected with die holder, the distance adjusting device is installed on roof upper portion, the lower part of distance adjusting device is provided with the die-cutting device that can monitor in real time, be provided with the sideslip device between medium plate and the bottom plate, roof upper portion is through bolt fixedly connected with pneumatic cylinder, the expansion end of pneumatic cylinder is through bolt fixedly connected with first connecting plate, symmetrical fixedly connected with motor on the first connecting plate, the output fixedly connected with encoder of motor, the encoder is kept away from the one end fixedly connected with threaded rod of motor, the, the utility model discloses simple structure, safe and reliable uses more conveniently, and the practicality is stronger.

Description

Convenient cross cutting machine pressure regulating mechanism who adjusts

Technical Field

The utility model relates to a cross cutting machine pressure regulating mechanism technical field specifically is a convenient cross cutting machine pressure regulating mechanism who adjusts.

Background

The die cutting machine is called a beer machine, a cutting machine and a numerical control punching machine, is mainly used for die cutting (full break and half break), indentation and gold stamping operation, fitting and automatic waste discharge of corresponding nonmetal materials, non-setting adhesive, EVA, double-sided adhesive, electronics, mobile phone rubber mats and the like, and utilizes a steel knife, a hardware die and a steel wire (or a template carved by a steel plate) to apply certain pressure through a stamping plate to roll and cut a printed product or a paperboard into a certain shape.

The working principle of the die cutting machine is that a die-cutting rule, a steel knife, a hardware die and a steel wire (or a template carved by a steel plate) are utilized to apply certain pressure through a stamping plate to roll and cut a printing product or a paperboard into a certain shape, the prior flat-pressing die cutting machine usually needs to debug a machine manually before working, the debugging usually needs to be carried out by disassembling and disassembling a worker to carry out pressure regulation, the efficiency is low, the pressure regulation precision is not high, the die cutting work is carried out after the pressure regulation is proper, the performance needing to be debugged before the die cutting machine works is various, the most important is the debugging of the pressure, the prior equipment usually changes the distance between a pressure plate and a bottom plate through manually rotating a pressure control nut to indirectly realize the pressure regulation during the pressure debugging, the manual operation wastes time and labor, the error is large, the proper pressure value is not easy to adjust, on the other hand, the prior pressure, the pressure regulating mechanism is easy to damage in continuous work and is not beneficial to pressure regulation, so that the pressure regulating mechanism of the die cutting machine is convenient to regulate.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a convenient cross cutting machine pressure regulating mechanism who adjusts to solve the problem that proposes among the above-mentioned background art.

In order to achieve the purpose, the pressure regulating mechanism of the die-cutting machine convenient to adjust comprises a bottom plate, stand columns, a lower die holder, a middle plate, a top plate and a second connecting plate, wherein the stand columns are symmetrically and fixedly connected to the upper portion of the bottom plate, the middle plate is fixedly connected to the middle portion of the stand columns, the top plate is fixedly connected to one side, far away from the bottom plate, of the stand columns, the lower die holder is fixedly connected to the middle portion of the upper surface of the bottom plate, a distance adjusting device is installed on the upper portion of the top plate, a die cutting device capable of being monitored in real time is arranged on the lower portion of the distance adjusting device.

Preferably, the distance adjusting device comprises a motor, an encoder, a first connecting plate, a second connecting plate and a threaded rod, the movable end of the hydraulic cylinder is fixedly connected with the first connecting plate through a bolt, the first connecting plate is symmetrically and fixedly connected with the motor, the output end of the motor is fixedly connected with the encoder, one end of the encoder, which is far away from the motor, is fixedly connected with the threaded rod, one end of the threaded rod, which is far away from the encoder, is in threaded connection with the second connecting plate, when pressure is required to be adjusted, the motor is controlled to rotate, the threaded rod connected with the motor is driven to drive the second connecting plate to move up and down, so that the relative position between the second connecting plate and the lower die holder is controlled, the working pressure of the control device during working can be achieved, and the number of turns of the motor can be, the further displacement that can obtain the second connecting plate carries out auxiliary control to the regulation of pressure by the displacement volume, the operation of being convenient for, and the regulating variable has the trace to follow, reaches the purpose of accurate control.

Preferably, the die cutting device comprises a first electromagnet, a mounting seat, an S-shaped pressure gauge, an upper die base and a steel cutter, the lower surface of the second connecting plate is fixedly connected with the first electromagnet through a bolt, one side surface of the first electromagnet, far away from the second connecting plate, is fixedly connected with the mounting seat, the lower surface of the mounting seat is symmetrically and fixedly connected with the S-shaped pressure gauge, one side of the S-shaped pressure gauge, far away from the mounting seat, is fixedly connected with a lower die base through a bolt, the bottom of the lower die base is fixedly connected with the steel cutter, the upper distance adjusting device and the lower die cutting device are connected through the arranged first electromagnet, and due to the working characteristic of the electromagnet, magnetic force is lost when power is cut off, so that the lower mechanism is more convenient and faster to disassemble, and meanwhile, on a power transmission path, the hydraulic cylinder, the S-shaped pressure gauge arranged on the die cutting device can record the internal pressure change of the whole die cutting process in real time, and the pressure in the working process can be timely fed back, so that an operator can timely adjust the change of the pressure, and the working pressure is convenient to adjust.

Preferably, the sideslip device includes no pole cylinder and second electro-magnet, symmetry fixedly connected with does not have the pole cylinder on the stand, bolt fixedly connected with second electro-magnet is passed through to the activity side of no pole cylinder, no pole cylinder is located between medium plate and the bottom plate position, because the upper die base belongs to the moving part, and the steel cutter belongs to the loss piece, needs frequent maintenance to maintain, moves the upper die base to suitable position through the pneumatic cylinder, controls the work of second electro-magnet this moment, then cuts off the work of first electro-magnet for disconnection between the distance adjusting device on cross cutting device and upper portion, under the activity of no pole cylinder, can with the outside of cross cutting device propelling movement to the device, the operator of being convenient for maintains the maintenance.

Preferably, the one end fixedly connected with pan feeding mouth of die holder, the draw-in groove has been seted up on the pan feeding mouth, and the pan feeding mouth and the draw-in groove that set up make things convenient for the operator with accurate the putting into of material cutting die inside, the draw-in groove of cutting has certain blank pressing effect, guarantees that cross cutting in-process material can not take place the skew.

Compared with the prior art, the beneficial effects of the utility model are that:

when the pressure needs to be adjusted, the motor is controlled to rotate to drive the threaded rod connected with the motor to drive the second connecting plate to move up and down, so that the relative position between the second connecting plate and the lower die holder is controlled, the working pressure of the control device can be achieved when the control device works, the encoder is arranged in the distance adjusting device, the number of rotating circles of the motor can be accurately recorded and fed back, the moving distance of the second connecting plate can be further obtained, the displacement can be used for carrying out auxiliary control on the adjustment of the pressure, the operation is convenient, the adjustment amount can be traced, the aim of accurate control is achieved, the upper distance adjusting device is connected with the lower die cutting device through the arranged first electromagnet, and due to the working characteristic of the electromagnet, the magnetic force can be lost when the power is cut off, so that the mechanism at the lower part can be more conveniently and quickly disassembled, and meanwhile, on a power, the hydraulic cylinder transmits power to the die cutting device through the distance adjusting device, the S-shaped pressure gauge arranged on the die cutting device can record the internal pressure change in the whole die cutting process in real time at the moment, the pressure in the working process can be fed back in time, an operator can adjust the pressure change in time, and the adjustment of the working pressure is convenient, because the upper die base belongs to the moving part and the steel cutter belongs to the loss part, frequent maintenance is needed, the upper die base is moved to a proper position through the hydraulic cylinder, the second electromagnet is controlled to work at the moment, then the work of the first electromagnet is cut off, the die cutting device and the distance adjusting device on the upper part are disconnected, the die cutting device can be pushed to the outside of the device under the action of the rodless cylinder, the maintenance is convenient for the operator, and the arranged material inlet and the clamping groove are convenient for the operator to accurately place materials into the die cutting device, the clamping cutting groove has a certain edge pressing effect, and the material is prevented from deviating in the die cutting process.

Drawings

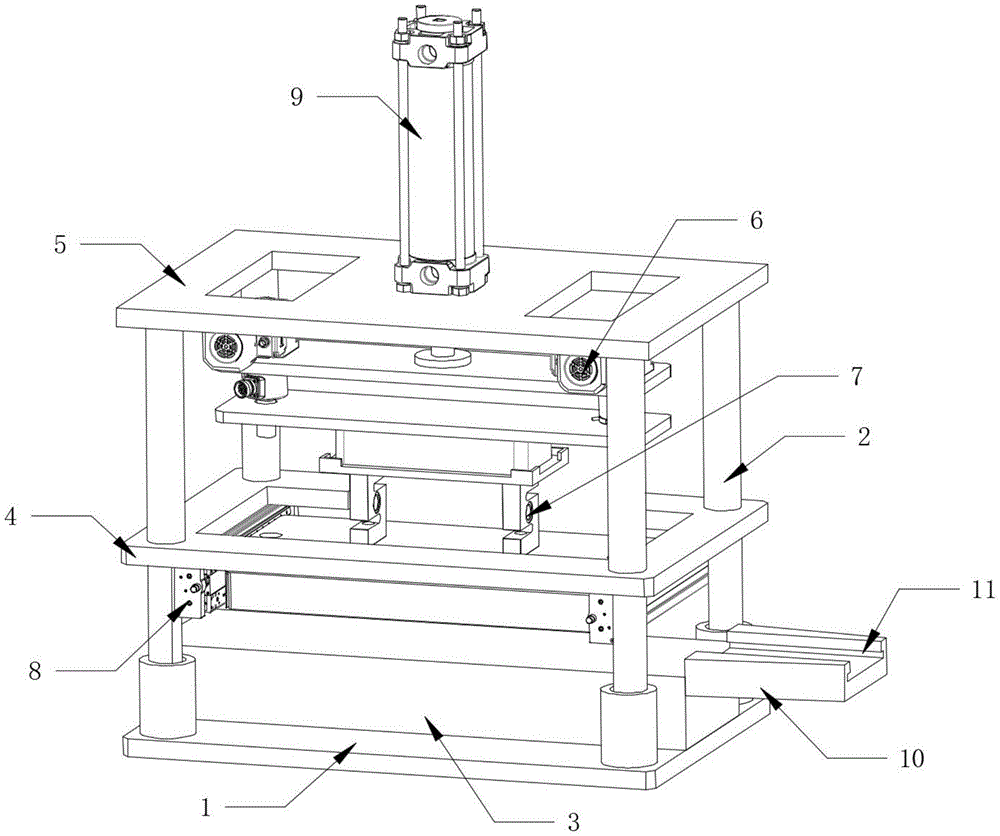

Fig. 1 is a schematic front perspective view of the present invention;

fig. 2 is a schematic view of a first side perspective structure of the present invention;

fig. 3 is a schematic view of a second side perspective structure of the present invention;

fig. 4 is a partial sectional view of the present invention.

In the figure: 1. a base plate; 2. a column; 3. a lower die holder; 4. a middle plate; 5. a top plate; 6. a distance adjusting device; 601. a motor; 602. an encoder; 603. a first connecting plate; 604. a second connecting plate; 605. a threaded rod; 7. a die cutting device; 701. a first electromagnet; 702. a mounting seat; 703. an S-shaped pressure gauge; 704. an upper die holder; 705. a steel cutter; 8. a traversing device; 801. a rodless cylinder; 802. a second electromagnet; 9. a hydraulic cylinder; 10. a feeding port; 11. a clamping groove.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-2, a conveniently adjustable pressure regulating mechanism of a die cutting machine comprises a bottom plate 1, upright posts 2, a lower die holder 3, a middle plate 4, a top plate 5 and a second connecting plate 604, wherein the upright posts 2 are symmetrically and fixedly connected to the upper portion of the bottom plate 1, the middle plate 4 is fixedly connected to the middle portion of the upright posts 2, the top plate 5 is fixedly connected to one side of the upright posts 2 away from the bottom plate 1, the lower die holder 3 is fixedly connected to the middle portion of the upper surface of the bottom plate 1, a distance adjusting device 6 is mounted on the upper portion of the top plate 5, a die cutting device 7 capable of real-time monitoring is arranged on the lower portion of the distance adjusting device 6, a traversing device 8 is arranged between the middle plate 4 and the bottom plate 1, a hydraulic cylinder 9 is fixedly connected to the upper portion of the top plate 5 through bolts, the, the movable side of the rodless cylinder 801 is fixedly connected with a second electromagnet 802 through a bolt, the rodless cylinder 801 is located between the middle plate 4 and the bottom plate 1, one end of the lower die holder 3 is fixedly connected with a feeding port 10, and the feeding port 10 is provided with a clamping groove 11.

Referring to fig. 3, the distance adjusting device 6 includes a motor 601, an encoder 602, a first connecting plate 603, a second connecting plate 604 and a threaded rod 605, the movable end of the hydraulic cylinder 9 is fixedly connected with the first connecting plate 603 through a bolt, the first connecting plate 603 is symmetrically and fixedly connected with the motor 601, the output end of the motor 601 is fixedly connected with the encoder 602, one end of the encoder 602, which is far away from the motor 601, is fixedly connected with the threaded rod 605, one end of the threaded rod 605, which is far away from the encoder 602, is in threaded connection with the second connecting plate 604, when pressure needs to be adjusted, the motor 601 is controlled to rotate, the threaded rod 605 connected with the motor is driven to move actively, so as to drive the second connecting plate 604 to move up and down, so as to control the relative position between the second connecting plate 604 and the lower die holder 3, that the working pressure of the control, the number of turns of the motor 601 can be accurately recorded and fed back, the further moving distance of the second connecting plate 604 can be obtained, the pressure can be adjusted by the displacement amount to be subjected to auxiliary control, the operation is convenient, the adjusting amount can be tracked, and the purpose of accurate control is achieved.

Referring to fig. 4, the die cutting device 7 includes a first electromagnet 701, a mounting seat 702, an S-shaped pressure gauge 703, an upper die base 704 and a steel cutter 705, the lower surface of the second connecting plate 604 is fixedly connected with the first electromagnet 701 through a bolt, one side of the first electromagnet 701 away from the second connecting plate 604 is fixedly connected with the mounting seat 702, the lower surface of the mounting seat 702 is symmetrically and fixedly connected with the S-shaped pressure gauge 703, one side of the S-shaped pressure gauge 703 away from the mounting seat 702 is fixedly connected with the lower die base 3 through a bolt, the bottom of the lower die base 3 is fixedly connected with the steel cutter 705, the upper distance adjusting device 6 is connected with the lower die cutting device 7 through the arranged first electromagnet 701, and due to the working characteristics of the electromagnets, magnetic force is lost when power is cut off, so that the lower mechanism is more convenient and rapid to disassemble and assemble, and meanwhile, the hydraulic cylinder 9 transmits power to the die cutting device 7 through the distance adjusting device 6, the S-shaped pressure gauge 703 arranged on the die cutting device 7 can record the internal pressure change of the whole die cutting process in real time, and the pressure in the working process can be timely fed back, so that an operator can timely adjust the change of the pressure, and the adjustment of the working pressure is convenient.

The working principle is as follows: when pressure needs to be adjusted, the motor 601 is controlled to rotate to drive the threaded rod 605 connected with the motor to drive the second connecting plate 604 to move up and down, so that the relative position between the second connecting plate 604 and the lower die holder 3 is controlled, and the working pressure of the control device during working can be achieved, because the encoder 602 is arranged in the distance adjusting device 6, the rotating circle number of the motor 601 can be accurately recorded and fed back, further, the moving distance of the second connecting plate 604 can be obtained, the pressure adjustment can be controlled in an auxiliary manner through the displacement, the operation is convenient, the adjustment amount can be traced, the purpose of precise control is achieved, the upper distance adjusting device 6 is connected with the lower die cutting device 7 through the arranged first electromagnet 701, and due to the working characteristic of the electromagnet, the magnetic force can be lost when power is cut off, so that the lower mechanism can be assembled and disassembled more conveniently and quickly, meanwhile, on a power transmission path, the hydraulic cylinder 9 transmits power to the die cutting device 7 through the distance adjusting device 6, at the moment, the S-shaped pressure gauge 703 arranged on the die cutting device 7 can record the internal pressure change in the whole die cutting process in real time, and can timely feed back the pressure in the working process, so that an operator can timely adjust the pressure change, and the working pressure is convenient to adjust, because the upper die holder 704 belongs to a moving part, and the steel cutter 705 belongs to a loss part, frequent maintenance is needed, the upper die holder 704 is moved to a proper position through the hydraulic cylinder 9, the second electromagnet 802 is controlled to work at the moment, and then the work of the first electromagnet 701 is cut off, so that the die cutting device 7 is disconnected with the distance adjusting device 6 on the upper part, and the die cutting device 7 can be pushed to the outside of the device under the action of the rodless cylinder 801, the operator of being convenient for maintains the maintenance, and the pan feeding mouth 10 and the draw-in groove 11 that set up make things convenient for the operator with the accurate mould cutting of putting into of material inside, and draw-in groove 11 has certain blank pressing effect, guarantees that cross cutting in-process material can not take place the skew.

There may be any such actual relationship or order between these entities or operations. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.

Claims

1. The utility model provides a convenient cross cutting machine pressure regulating mechanism who adjusts, includes bottom plate (1), stand (2), die holder (3), medium plate (4), roof (5) and second connecting plate (604), bottom plate (1) upper portion symmetry fixedly connected with stand (2), stand (2) middle part fixedly connected with medium plate (4), one side fixedly connected with roof (5) of bottom plate (1) are kept away from in stand (2), surface middle part fixedly connected with die holder (3) on bottom plate (1), its characterized in that: the device is characterized in that a distance adjusting device (6) is installed on the upper portion of the top plate (5), a die cutting device (7) capable of being monitored in real time is arranged on the lower portion of the distance adjusting device (6), a transverse moving device (8) is arranged between the middle plate (4) and the bottom plate (1), and a hydraulic cylinder (9) is fixedly connected to the upper portion of the top plate (5) through bolts.

2. The die cutting machine pressure regulating mechanism convenient to adjust according to claim 1, and is characterized in that: distance adjusting device (6) include motor (601), encoder (602), first connecting plate (603), second connecting plate (604) and threaded rod (605), the expansion end of pneumatic cylinder (9) passes through first connecting plate (603) of bolt fixedly connected with, symmetry fixedly connected with motor (601) on first connecting plate (603), the output fixedly connected with encoder (602) of motor (601), the one end fixedly connected with threaded rod (605) of motor (601) are kept away from in encoder (602), the one end threaded connection that encoder (602) were kept away from in threaded rod (605) has second connecting plate (604).

3. The die cutting machine pressure regulating mechanism convenient to adjust according to claim 1, and is characterized in that: the die cutting device (7) comprises a first electromagnet (701), a mounting seat (702), an S-shaped pressure gauge (703), an upper die seat (704) and a steel cutter (705), the lower surface of a second connecting plate (604) is fixedly connected with the first electromagnet (701) through a bolt, the first electromagnet (701) is far away from the mounting seat (702) fixedly connected with one side of the second connecting plate (604), the S-shaped pressure gauge (703) is symmetrically and fixedly connected with the lower surface of the mounting seat (702), one side of the S-shaped pressure gauge (703) far away from the mounting seat (702) is fixedly connected with a lower die seat (3) through a bolt, and the steel cutter (705) is fixedly connected with the bottom of the lower die seat (3).

4. The die cutting machine pressure regulating mechanism convenient to adjust according to claim 1, and is characterized in that: the transverse moving device (8) comprises a rodless cylinder (801) and a second electromagnet (802), the rodless cylinder (801) is symmetrically and fixedly connected to the upright post (2), the second electromagnet (802) is fixedly connected to the movable side of the rodless cylinder (801) through a bolt, and the rodless cylinder (801) is located between the middle plate (4) and the bottom plate (1).

5. The die cutting machine pressure regulating mechanism convenient to adjust according to claim 1, and is characterized in that: one end of the lower die holder (3) is fixedly connected with a feeding port (10), and a clamping groove (11) is formed in the feeding port (10).
