Abstract
The utility model discloses a bookshelf for official working relates to office equipment field, including the curb plate, one side of curb plate is provided with places the board, and places the top of board and be provided with the fixed block, the inside of fixed block is provided with the baffle, and the one end of baffle is fixed with the spring, the one end of spring is provided with the stopper, and the top that the top of stopper is located the fixed block is provided with splint, the top of curb plate is provided with the roof, and the one end of roof is provided with and runs through to the inside lead screw of curb plate, the one end of curb plate is provided with the baffle, and the one end of baffle is provided with and runs through to placing No. two lead screw pieces of inboard portion. The utility model discloses a set up splint, spring, stopper, can place books and make splint carry out the centre gripping to books through the characteristic of spring after between the splint fixed, from this alright carry out solitary fixed placing with books to solve the problem that can't be better take books.
Description
Technical Field
The utility model relates to an office equipment field specifically is a bookshelf is used in official working.
Background
Office supplies refer to auxiliary supplies used in daily work of people, are mainly applied to enterprise units, cover a wide variety of products, including file and file supplies, desktop supplies, office equipment, financial supplies, consumable supplies and the like, related to work, and a bookshelf is a special book placing appliance for people and can place some books and office materials on a bookshelf.
However, the conventional bookshelf is very complicated to install, the bolt needs to be screwed by a screwdriver, and the problem of bolt loss can occur during installation; the conventional bookshelves directly place books and folders on the bookshelves, but the placement of the bookshelves can cause the adjacent books to fall off when the books are taken out, so that unnecessary troubles are caused.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a: in order to solve the problems that the bookshelf cannot be simply and conveniently assembled and books cannot be better taken, the bookshelf for office is provided.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a bookshelf for official working, includes the curb plate, one side of curb plate is provided with places the board, and the top of placing the board is provided with the fixed block, the inside of fixed block is provided with the baffle, and the one end of baffle is fixed with the spring, the one end of spring is provided with the stopper, and the top that the top of stopper is located the fixed block is provided with splint, the top of curb plate is provided with the roof, and the one end of roof is provided with the lead screw that runs through to the inside of curb plate No. one, the one end of curb plate is provided with the baffle, and the one end of baffle is provided with and runs through to No. two lead screws of placing the inboard portion.
Preferably, the first screw rod is rotatably connected with the top plate through a bearing, and the baffle is rotatably connected with the second screw rod through a bearing.
Preferably, one side of the side plate is provided with a sliding groove matched with the sliding block.
Preferably, the top end of the fixed block is provided with a sliding groove matched with the top end of the limiting block.
Preferably, one end of each of the sliding block and the side plate is provided with a threaded hole matched with the second screw rod, and the top end of the side plate is provided with a threaded hole matched with the first screw rod.
Preferably, the spring is welded to one side of the partition plate.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model has the advantages that through the arrangement of the clamping plates, the springs and the limiting blocks, books can be clamped and fixed by the clamping plates through the characteristics of the springs after being placed between the clamping plates, so that the books can be separately and fixedly placed, and the problem that the books cannot be better taken is solved;
2. the utility model discloses a set up a lead screw, No. two lead screws, slider, the accessible rotates a lead screw and fixes roof and curb plate, and the accessible rotates No. two lead screws with baffle and curb plate, place the board and fix, because a lead screw, No. two lead screws rotate respectively with roof, baffle push rod bearing and be connected from this alright avoid the problem of bolt disappearance to solve unable simple and convenient assembling the bookshelf.
Drawings

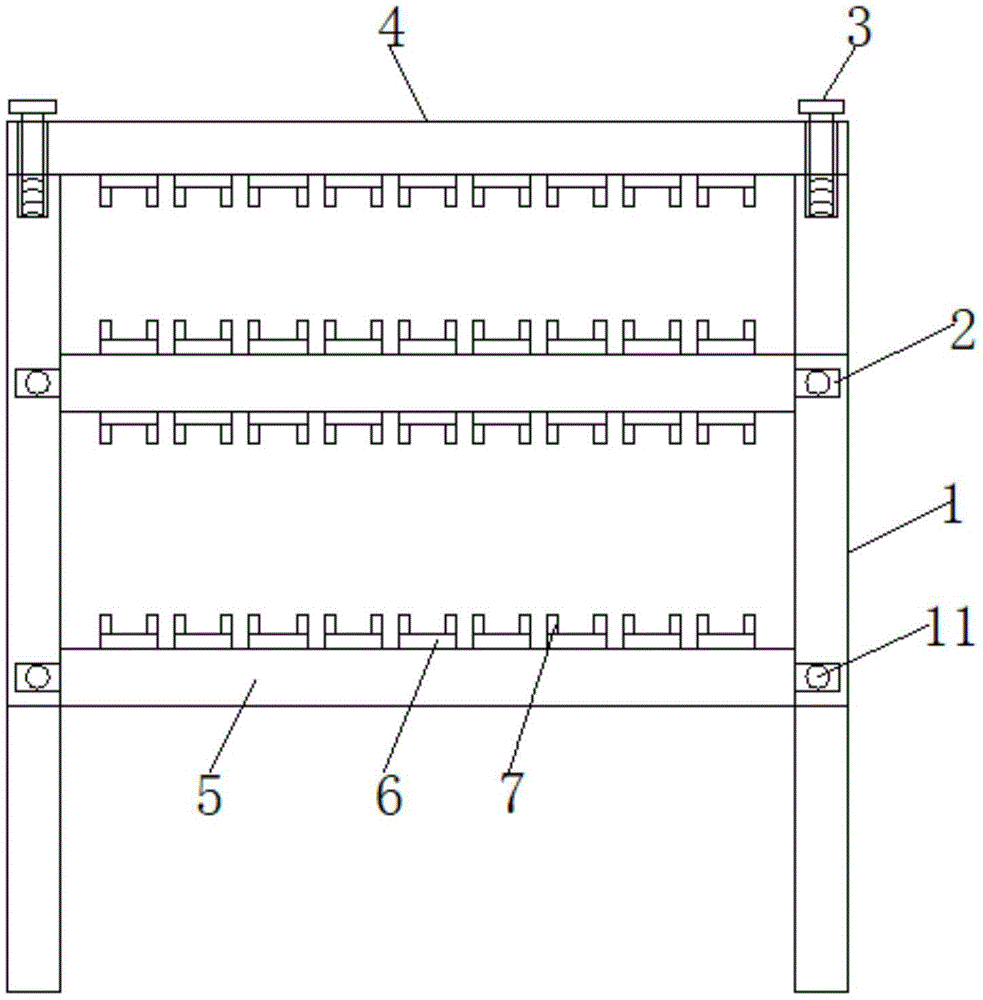

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a sectional view of the fixing block of the present invention;
FIG. 3 is a schematic view of the connection between the baffle and the side plate of the present invention;
fig. 4 is a schematic view of the connection between the fixing block and the placing plate of the present invention.
In the figure: 1. a side plate; 2. a slider; 3. a first screw rod; 4. a top plate; 5. placing the plate; 6. a fixed block; 7. a splint; 8. a limiting block; 9. a partition plate; 10. a spring; 11. a second screw rod; 12. and a baffle plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance. In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "connected" and "disposed" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art. The following describes an embodiment of the present invention according to its overall structure.
Referring to fig. 1-4, an office bookshelf comprises a side plate 1, wherein a placing plate 5 is arranged on one side of the side plate 1, a fixing block 6 is arranged at the top end of the placing plate 5, a partition plate 9 is arranged inside the fixing block 6, a spring 10 is fixed at one end of the partition plate 9, a limiting block 8 is arranged at one end of the spring 10, a clamping plate 7 is arranged at the top end of the limiting block 8, which is located at the top end of the fixing block 6, a top plate 4 is arranged at the top end of the side plate 1, a first lead screw 3 penetrating through the side plate 1 is arranged at one end of the top plate 4, a baffle 12 is arranged at one end of the side plate 1, a second lead screw 11 penetrating through the placing plate 5 is arranged at one end of the baffle 12, and.
Please refer to fig. 1 and 3, the first lead screw 3 is rotatably connected to the top plate 4 through a bearing, and the baffle 12 is rotatably connected to the second lead screw 11 through a bearing, so that the first lead screw 3 and the second lead screw 11 can rotate conveniently.
Please refer to fig. 1 and 3, a sliding slot matching with the sliding block 2 is disposed on one side of the side plate 1 for conveniently placing the sliding block 2.
Please refer to fig. 2, a sliding groove engaged with the top end of the limiting block 8 is disposed at the top end of the fixing block 6, so as to facilitate the movement of the limiting block 8.
Please refer to fig. 1 and 3, one end of the slide block 2 and the side plate 1 are respectively provided with a threaded hole matched with the second screw rod 11, so that the baffle 12 and the slide block 2 can be fixed conveniently through the second screw rod 11, and the top end of the side plate 1 is provided with a threaded hole matched with the first screw rod 3, so that the top plate 4 and the side plate 1 can be connected conveniently through the first screw rod 3.
Please refer to fig. 2, the spring 10 is welded on one side of the partition board 9, so that the stopper 8 is connected to the partition board 9 through the spring 10.
The working principle is as follows: when the device is used, a user can move the placing plate 5 to the inner sides of the two side plates 1 through the sliding block 2, the baffle plate 12 is placed at one end of the two side plates 1, the second lead screw 11 is in contact with the side plates 1, then, one end of the second lead screw 11 can be screwed into the inner side of the sliding groove of the side plates 1 by rotating the second lead screw 11, and then, the baffle plate 12 enters the threaded hole at one end of the sliding block 2, so that the baffle plate 12 can be fixed with the side plates 1 and the placing plate 5, then, the top plate 4 is placed at the top of the side plates 1, the first lead screw 3 can be rotated to enable the first lead screw 3 to enter the threaded hole at the top of the side plates 1, so that the top plate 4 and the side plates 1 can be fixed, books or folders can be placed between the clamping plates 7 after assembly is finished, so that the clamping plates 7 can be opened, the spring, thereby make splint 7 remove through dragging stopper 8, alright carry out the centre gripping with books from this and fix, only need drag books when taking books alright take out books to adjacent books drop when preventing to take books.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (6)
1. The utility model provides a bookshelf for official working, includes curb plate (1), its characterized in that: a placing plate (5) is arranged on one side of the side plate (1), a fixed block (6) is arranged at the top end of the placing plate (5), a partition plate (9) is arranged inside the fixed block (6), a spring (10) is fixed at one end of the clapboard (9), a limiting block (8) is arranged at one end of the spring (10), a clamping plate (7) is arranged at the top end of the limiting block (8) positioned at the top of the fixing block (6), a top plate (4) is arranged at the top end of the side plate (1), one end of the top plate (4) is provided with a first screw rod (3) which penetrates into the side plate (1), one end of the side plate (1) is provided with a baffle plate (12), one end of the baffle (12) is provided with a second screw rod (11) which penetrates into the placing plate (5), the two sides of the placing plate (5) are provided with sliding blocks (2) inside the side plates (1).
2. An office bookstand according to claim 1, wherein: the first screw rod (3) is rotatably connected with the top plate (4) through a bearing, and the baffle (12) is rotatably connected with the second screw rod (11) through a bearing.
3. An office bookstand according to claim 1, wherein: one side of the side plate (1) is provided with a sliding groove matched with the sliding block (2).
4. An office bookstand according to claim 1, wherein: the top end of the fixed block (6) is provided with a sliding groove matched with the top end of the limiting block (8).
5. An office bookstand according to claim 1, wherein: one end of each of the sliding block (2) and the side plate (1) is provided with a threaded hole matched with the second screw rod (11), and the top end of the side plate (1) is provided with a threaded hole matched with the first screw rod (3).
6. An office bookstand according to claim 1, wherein: the spring (10) is welded on one side of the partition plate (9).
