Abstract
The utility model discloses a plastic industrial pipe body convenient for butt joint, which comprises a pipe body, one end of the pipe body is connected with a tail end butt joint, the other end of the pipe body is connected with a head end butt joint, a connector is arranged on the outer ring wall of the head end butt joint, a clamping piece is connected on the connector through a rotating shaft, a plurality of groups of clamping pieces are arranged on the tail end butt joint, a clamping groove is arranged on the tail end butt joint, the clamping pieces are clamped in the clamping groove after the pipe body is in butt joint, mounting holes are arranged on the head end butt joint and the tail end butt joint, connecting bolts penetrate through the mounting holes, the utility model discloses a tail end butt joint and a head end butt joint are arranged at two ends of a pipeline, after the joints of two groups of pipelines are aligned, the clamping pieces on the head end butt joint are pulled, so that the clamping pieces are clamped in the clamping groove of the tail end, the connectors of the two groups of pipelines are always in an aligned state, and the aligned process is removed when the connecting bolt is used for fixing.
Description
Technical Field
The utility model relates to the technical field of pipelines, specifically be a plastics industry body convenient to butt joint.
Background
A pipeline is a device for transporting a gas, liquid or fluid with solid particles, connected by pipes, pipe couplings, valves, etc. Generally, a fluid is pressurized by a blower, a compressor, a pump, a boiler, etc., and then flows from a high pressure portion to a low pressure portion of a pipe, or is transported by the pressure or gravity of the fluid itself. The use of pipelines is very widespread, mainly in water supply, drainage, heating, gas supply, long-distance oil and gas delivery, agricultural irrigation, hydraulic engineering and various industrial installations.
However, the existing plastic industrial pipe body has the following disadvantages: in long distance's plastics industry body is laid, need to connect all plastics industry pipelines, the flange is adopted in the connection of the end between the plastics industry body usually, when accomplishing when connecting, need utilize the manual work to support always between two sets of pipelines, makes it keep the alignment state to subsequent fixed, this kind of mode makes the butt joint process slow.
Disclosure of Invention
An object of the utility model is to provide a plastics industry body convenient to butt joint to in solving among the above-mentioned background art laying at long distance plastics industry body, need connect all plastics industry pipelines, the flange is adopted in the connection of the end between the plastics industry body usually, when accomplishing when connecting, need utilize the manual work to support always between two sets of pipelines, makes it keep the alignment state, so that subsequent fixed, this kind of mode makes the slow problem of butt joint process.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a plastics industry body convenient to butt joint, includes the body, the tail end butt joint is connected to the one end of body, the head end butt joint is connected to the other end of body, install the connector on the outer rampart of head end butt joint, connect the joint piece through the pivot on the connector, the joint piece is equipped with the multiunit, be equipped with the joint groove on the tail end butt joint, joint piece joint is in the joint inslot after the body butt joint, be equipped with the mounting hole on head end butt joint and the tail end butt joint, it has the connecting bolt to run through in the mounting hole, the connecting bolt runs through head end butt joint and tail end butt joint back both ends and connects the locking cap.
Preferably, the clamping piece comprises a connecting rod, a strong spring and an L-shaped clamping rod, a cavity is formed in the connecting rod, one end of the L-shaped clamping rod is arranged in the cavity of the connecting rod, and the tail end of the L-shaped clamping rod is connected with the bottom end of the cavity of the connecting rod through the strong spring.
Preferably, one end of the L-shaped clamping rod is clamped in the clamping groove.
Preferably, the connecting bolt comprises a limiting rod and a main bolt body, the limiting rod is provided with two groups, the limiting rods are respectively arranged at two ends of the main bolt body, thread grains are respectively arranged on the limiting rod and the main bolt body, and the thread grains of the limiting rod and the thread grains of the main bolt body are opposite.
Preferably, the locking cap includes outer nut, collateraling ring and fixation nut, collateraling ring is located one side of outer nut, and collateraling ring and outer nut fixed connection, collateraling ring and fixation nut installation back collateraling ring and fixation nut surface contact are supported and are pressed.
Preferably, the fixing nut is in threaded connection with the main bolt body, and the external nut is in threaded connection with the limiting rod.
The utility model provides a plastics industry body convenient to butt joint possesses following beneficial effect:
(1) the utility model discloses a set up tail end butt joint and head end butt joint respectively at the both ends of pipeline, when docking the pipeline, align tail end butt joint and head end butt joint of two sets of pipelines, then add and pull the joint spare on the head end butt joint, make joint spare card in tail end butt joint's joint inslot, utilize multiunit joint spare to carry out quick location with the interface of two sets of pipelines, make the interface of two sets of pipelines be in the alignment state all the time, then fix once more utilizing the connecting bolt, make the process of getting rid of the alignment when utilizing the connecting bolt to fix.
(2) The utility model discloses a to connect the bolt and adopt the main bolt body and the gag lever post that the thread line is opposite to connect fixation nut on the main bolt body, connect outer nut on the gag lever post, the ring of supporting on the outer nut after the installation supports and presses fixation nut, because outer nut and fixation nut's rotating opposite direction makes when receiving vibrations, fixation nut can receive outer nut's spacing fixed, is difficult for taking place to drop.
(3) The utility model discloses an adopt connecting rod and L type joint pole to constitute with joint spare to utilize strong spring coupling between connecting rod and L type joint pole, during the use, under strong spring's effect, can make joint spare under strong spring's pulling force effect, can be with the tail end butt joint chucking.
Drawings

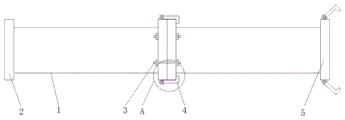

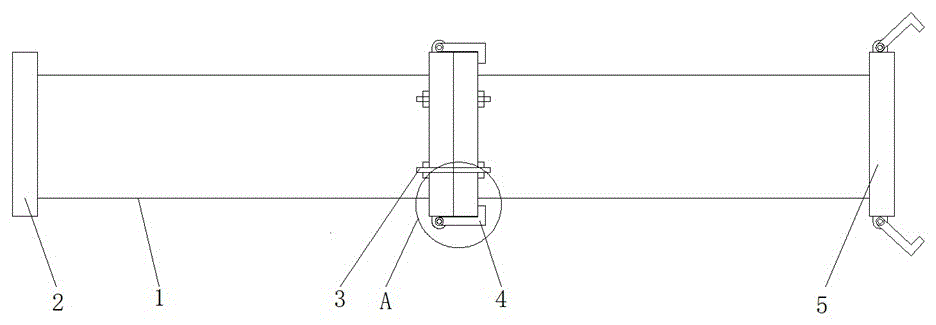

Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the pipe connection structure of the present invention;
FIG. 3 is an enlarged schematic view of the structure at the position A of the present invention;
fig. 4 is a schematic view of the connection bolt of the present invention.
In the figure: 1. a pipe body; 2. a tail end butt joint; 3. a connecting bolt; 4. a clamping piece; 5. a head end butt joint; 6. a fixing cap; 7. a limiting rod; 8. a connector; 9. a rotating shaft; 10. a main bolt body; 11. a connecting rod; 12. a strong spring; 13. an L-shaped clamping and connecting rod; 14. a clamping groove; 15. an outer nut; 16. a pressing ring; 17. and (5) fixing the nut.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.
As shown in fig. 1-4, the utility model provides a technical solution: the utility model provides a plastics industry body convenient to butt joint, includes body 1, tail end butt joint 2 is connected to the one end of body 1, head end butt joint 5 is connected to the other end of body 1, install connector 8 on the outer rampart of head end butt joint 5, connect joint spare 4 through pivot 9 on the connector 8, joint spare 4 is equipped with the multiunit, be equipped with joint groove 14 on the tail end butt joint 2, joint spare 4 joint is in joint groove 14 after body 1 butt joint, be equipped with the mounting hole on head end butt joint 5 and the tail end butt joint 2, it has connecting bolt 3 to run through in the mounting hole, both ends are connected locking cap 6 after connecting bolt 3 runs through head end butt joint 5 and tail end butt joint 2.
The connecting bolt 3 comprises a limiting rod 7 and a main bolt body 10, the limiting rod 7 is provided with two groups, the limiting rods 7 are respectively arranged at two ends of the main bolt body 10, thread grains are respectively arranged on the limiting rod 7 and the main bolt body 10, the thread grains of the limiting rod 7 and the main bolt body 10 are opposite, the fixing cap 6 comprises an outer nut 15, an abutting ring 16 and a fixing nut 17, the abutting ring 16 is positioned at one side of the outer nut 15, the abutting ring 16 is fixedly connected with the outer nut 15, the abutting ring 16 is in surface contact and abutting pressure with the fixing nut 17 after the outer nut 15 and the fixing nut 17 are arranged, the fixing nut 17 is in threaded connection with the main bolt body 10, the outer nut 15 is in threaded connection with the limiting rod 7, the fixing nut 17 of the fixing cap 6 is in threaded connection with the main bolt body 10 of the connecting bolt 3, then the outer nut 15 is connected with the limiting rod 7, at the moment, the abutting ring 16 on the outer nut 15 abuts against the fixing nut 17, because the thread lines on the main bolt body 10 and the limiting rod 7 are opposite, the rotating directions of the outer nut 15 and the fixing nut 17 are opposite, when the pipeline is vibrated, the fixing nut 17 can be limited and fixed by the outer nut 15, and when the pipeline is vibrated during material conveying, the outer nut 15 and the fixing nut 17 are mutually abutted and are not easy to fall off.
It should be noted that, when a plastic industrial pipe body convenient for butt joint works, because the two ends of the pipe body 1 are respectively provided with the head end butt joint 5 and the tail end butt joint 2, and the outer ring wall of the head end butt joint 5 is provided with the clamping piece 4, when two groups of pipe bodies 1 are butt jointed, the head end butt joint 5 of the pipe body 1 is aligned with the tail end butt joint 2 of the other group of pipe bodies 1, then the clamping piece 4 on the head end butt joint 5 is pulled off, so that the L-shaped clamping rod 13 of the clamping piece 4 is clamped in the clamping groove 14 of the tail end butt joint 2, the interfaces of two groups of pipelines are aligned and fixed by utilizing the plurality of groups of clamping pieces 4, then the connecting bolt 3 is inserted into the mounting holes of the head end butt joint 5 and the tail end butt joint 2, the fixing nut 17 of the fixing cap 6 is in threaded connection with the main bolt body 10 of the connecting bolt 3, then the outer nut 15 is connected with the limiting rod 7, at this time, the, because the thread lines on the main bolt body 10 and the limiting rod 7 are opposite, the rotating directions of the outer nut 15 and the fixing nut 17 are opposite, when the pipeline is vibrated, the fixing nut 17 can be limited and fixed by the outer nut 15, when the pipeline is vibrated during material conveying, the outer nut 15 and the fixing nut 17 are mutually supported and pressed and are not easy to fall off, because the joints of the two groups of pipe bodies 1 are butted by the clamping piece 4 firstly, the joints of the two groups of pipelines 1 are always in an aligned state in the subsequent working process, and then the aligned process is removed when the pipeline is fixed by the connecting bolt 3, wherein the clamping piece 4 consists of a connecting rod 11 and an L-shaped clamping rod 13, the connecting rod 11 is connected with the L-shaped clamping rod 13 by the strong spring 12, when the L-shaped clamping rod 13 is clamped in the clamping groove 14 of the tail end butt joint 2, the tension of the strong spring 12 can pull the L-shaped clamping rod 13 to the direction of the connecting rod 11, thereby making the connecting effect of the clip 4 good.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a plastics industry body convenient to butt joint, includes body (1), its characterized in that: the pipe joint is characterized in that one end of the pipe body (1) is connected with the tail end butt joint (2), the other end of the pipe body (1) is connected with the head end butt joint (5), a connector (8) is installed on the outer ring wall of the head end butt joint (5), the connector (8) is connected with a clamping piece (4) through a rotating shaft (9), the clamping piece (4) is provided with a plurality of groups, a clamping groove (14) is formed in the tail end butt joint (2), the pipe body (1) is clamped in the clamping groove (14) through the clamping piece (4) after being butted, mounting holes are formed in the head end butt joint (5) and the tail end butt joint (2), a connecting bolt (3) penetrates through the mounting holes, and the head end butt joint (5) and the tail end butt joint (2) are connected with two ends to form a fixing cap (6.
2. A plastic industrial pipe body for facilitating butt joint as claimed in claim 1, wherein: joint spare (4) include connecting rod (11), powerful spring (12) and L type joint pole (13), be equipped with the cavity in connecting rod (11), the cavity of connecting rod (11) is arranged in to the one end of L type joint pole (13), be connected through powerful spring (12) between the tail end of L type joint pole (13) and connecting rod (11) cavity bottom.
3. A plastic industrial pipe body for facilitating butt joint as claimed in claim 2, wherein: one end of the L-shaped clamping rod (13) is clamped on the clamping groove (14).
4. A plastic industrial pipe body for facilitating butt joint as claimed in claim 1, wherein: the connecting bolt (3) comprises a limiting rod (7) and a main bolt body (10), the limiting rod (7) is provided with two sets, the limiting rod (7) is respectively arranged at two ends of the main bolt body (10), thread grains are respectively arranged on the limiting rod (7) and the main bolt body (10), and the thread grains of the limiting rod (7) and the thread grains of the main bolt body (10) are opposite.
5. A plastic industrial pipe body for facilitating butt joint as claimed in claim 1, wherein: the fixed cap (6) comprises an outer nut (15), a mortgage ring (16) and a fixed nut (17), the mortgage ring (16) is located on one side of the outer nut (15), the mortgage ring (16) is fixedly connected with the outer nut (15), and the mortgage ring (16) is pressed against the surface of the fixed nut (17) after the outer nut (15) and the fixed nut (17) are installed.
6. A plastic industrial pipe body facilitating butt joint as claimed in claim 5, wherein: the fixed nut (17) is in threaded connection with the main bolt body (10), and the outer nut (15) is in threaded connection with the limiting rod (7).
