Abstract
本实用新型涉及机械领域，尤其涉及热风阀的查漏装置。一种热风阀快速查漏装置，包括热风阀和存储管，所述存储管的两端分别设有第一球阀和第二球阀，所述存储管通过第一球阀与热风阀相连通；还包括用于查看泄漏水位线的透明管，所述透明管的两端分别与存储管相连通，在所述透明管两端与存储管通路上分别设有第一快插接头和第二快插接头，所述的透明管与存储管形成连通器。本实用新型能准确探知热风阀芯密封状况，在热风阀较轻泄漏时排走积水，延迟检修，减少盲目操作，对于计划性检修极其有利，使高炉操作思路更为明晰。
The utility model relates to the field of machinery, in particular to a leak detection device of a hot air valve. A quick leak detection device for a hot blast valve, comprising a hot blast valve and a storage pipe, two ends of the storage pipe are respectively provided with a first ball valve and a second ball valve, and the storage pipe is communicated with the hot blast valve through the first ball valve; further comprising: A transparent tube used to check the leaking water level line, the two ends of the transparent tube are respectively connected with the storage tube, and the first quick-plug connector and the second quick-plug connector are respectively provided on the two ends of the transparent tube and the passage of the storage tube , the transparent tube and the storage tube form a communication device. The utility model can accurately detect the sealing condition of the hot blast valve core, drain the accumulated water when the hot blast valve leaks lightly, delay maintenance, and reduce blind operations, which is extremely beneficial for planned maintenance and makes the operation idea of the blast furnace clearer.
Description
Technical Field
The utility model relates to the field of machinary, especially, relate to hot-blast valve's leak hunting device.
Background
The hot blast valve is easy to cause the leakage accident of valve core cooling water in the production operation, and brings great hidden trouble to the blast furnace air temperature operation and the normal operation of the hot blast stove. Therefore, the method is extremely important for timely, accurately and quantitatively detecting the leakage condition of the cooling water of the hot blast valve core, is an important basis for prognosis treatment, and the existing hot blast valve is provided with a drain pipe at the bottom of the valve. The disadvantage of this device is that it must be opened with the system switching valve fully closed; the extent of leakage cannot be ascertained; and present a safety risk.
Disclosure of Invention
An object of the utility model is to avoid prior art's not enough to provide a simple structure, can in time visit the hot-blast valve core and leak the quick leak hunting device of hot-blast valve of degree.
In order to achieve the above purpose, the utility model adopts the following technical scheme: a quick leak detection device for a hot blast valve comprises the hot blast valve and a storage pipe, wherein a first ball valve and a second ball valve are respectively arranged at two ends of the storage pipe, and the storage pipe is communicated with the hot blast valve through the first ball valve; the device is characterized by further comprising a transparent pipe used for checking the leakage water level line, two ends of the transparent pipe are respectively communicated with the storage pipe, a first quick-plugging connector and a second quick-plugging connector are respectively arranged at two ends of the transparent pipe and on the storage pipe, and the transparent pipe and the storage pipe form a communicating vessel.
Furthermore, two ends of the transparent pipe are respectively communicated with the storage pipe through two three-way pipes, a first quick-connection-socket joint and a second quick-connection-socket joint are respectively arranged on one of the two three-way pipes of the two ends of the transparent pipe and the storage pipe passage, and a third ball valve and a fourth ball valve are respectively arranged on the other passage of the two three-way pipes.
Further, the third ball valve is arranged on the storage pipe close to the first ball valve, and the fourth ball valve is arranged on the storage pipe close to the second ball valve.
Furthermore, the hot blast valve and the first ball valve are connected through flanges, and the storage pipe, the first ball valve and the second ball valve are connected through flanges.
Further, the third ball valve and the fourth ball valve are internal thread ball valves.
Further, the transparent tube is a PU tube.
Furthermore, the storage pipe is communicated below the hot blast valve, and the first ball valve and the second ball valve are respectively arranged at the upper end and the lower end of the storage pipe.
The utility model has the advantages that: the utility model discloses can in time ascertain qualitatively and quantitatively whether the hot-blast case leaks and the leakage degree, do accurate foundation for follow-up troubleshooting. The sealing condition of the hot blast valve core is accurately detected, accumulated water is drained when the hot blast valve is slightly leaked, maintenance is delayed, blind operation is reduced, planned maintenance is extremely facilitated, and the operation idea of the blast furnace is more clear.
Drawings

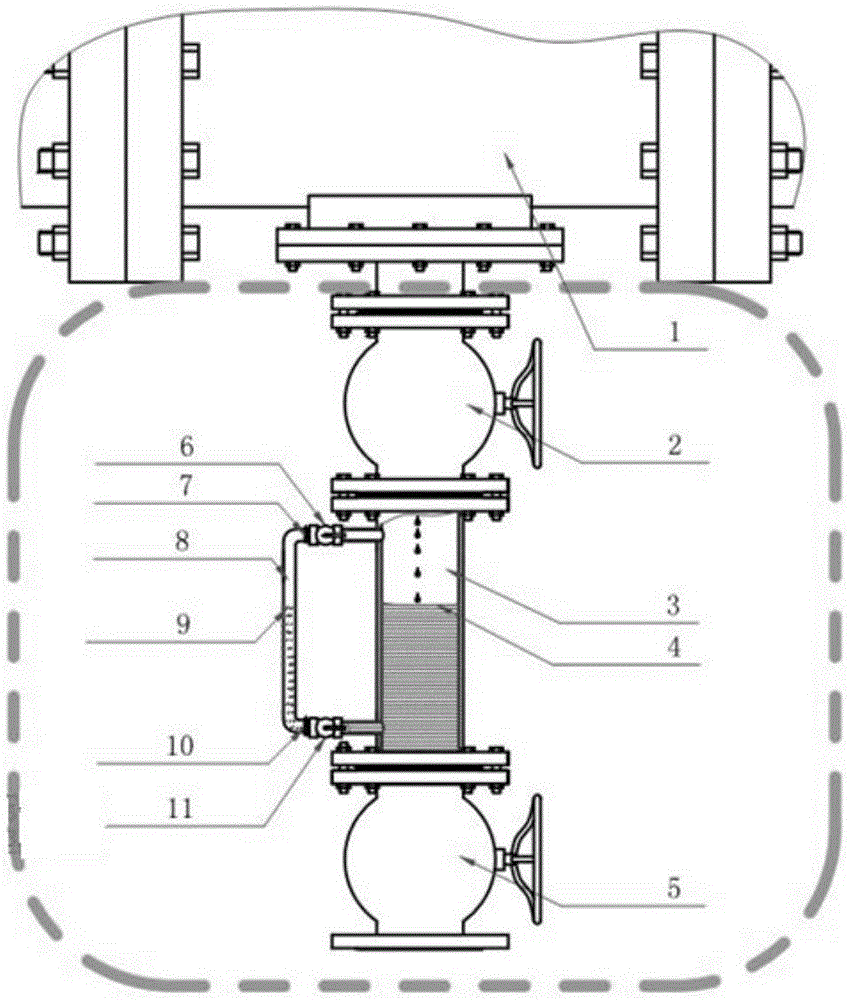

Fig. 1 is a schematic structural diagram of the present invention.
Detailed Description
The principles and features of the present invention are described below in conjunction with the following drawings, the examples given are only intended to illustrate the present invention and are not intended to limit the scope of the present invention.
Example 1: as shown in fig. 1, a hot blast valve rapid leak detection device comprises a hot blast valve 1 and a storage pipe 3, wherein a first ball valve 2 and a second ball valve 5 are respectively arranged at two ends of the storage pipe 3, and the storage pipe 3 is communicated with the hot blast valve 1 through the first ball valve 2; the water level leakage monitoring device is characterized by further comprising a transparent pipe 8 used for checking a leakage water level line, two ends of the transparent pipe 8 are communicated with the storage pipe 3 through two three-way pipes respectively, a first quick-connection-peg 7 and a second quick-connection-peg 10 are arranged on one of two three-way pipes of the passage between the two ends of the transparent pipe 8 and the storage pipe 3 respectively, a third ball valve 6 and a fourth ball valve 11 are arranged on the other passage of the two three-way pipes respectively, and the transparent pipe 8 and the storage pipe 3 form a communicating vessel. The third ball valve 6 is arranged on the storage pipe 3 close to the first ball valve 2, and the fourth ball valve 11 is arranged on the storage pipe 3 close to the second ball valve 5. The hot blast valve 1 and the first ball valve 2 are connected through flanges among the storage pipe 3, the first ball valve 2 and the second ball valve 5. The third ball valve 6 and the fourth ball valve 11 are internal thread ball valves. The transparent tube 8 is a PU tube.
Because the valve core cooling water leakage accident is easy to occur in the production and operation of the hot blast valve, the timely, accurate and quantitative detection of the hot blast valve core cooling water leakage condition is extremely important, the device provided by the utility model is installed below the hot blast valve in a flange connection mode, the disassembly is convenient, and the leakage condition can be visually seen in the transparent pipe 8 under the leakage condition of the hot blast valve; simultaneously, owing to reveal liquid storage time of a specified duration, and if reveal that liquid is the pollution liquid, then will increase the pollution and the degree of corrosion of pipeline, so the utility model discloses a first ball valve 2 and second ball valve 5 can easily block storage tube 3, washs or replaces storage tube 3 part, through adopting third ball valve 6 and fourth ball valve 11, easily blocks hyaline tube 8, makes things convenient for washing and the replacement of hyaline tube 8 part. Convenient disassembly and replacement and low cost.
Work as storage pipe 3 intercommunication in the below of hot-blast valve 1, first ball valve 2 and second ball valve 5 set up respectively in the upper and lower both ends of storage pipe 3, more effective, accurate, convenient collection like this the ventilation valve 1 reveal the cooling water.
The utility model discloses normally open at the first ball valve 2 of work, if there is leakage in 1 case of hot-blast valve, ponding 4 flows in storage pipe 3, avoids causing the hot-blast main brick lining to break, and the pipeline reddens, tears, explodes the emergence of different degree accidents such as spouting. The first ball valve 2 is closed regularly, the third ball valve 6 and the fourth ball valve 11 are opened, the leakage water level line 9 can be seen on the transparent pipe 8, the valve core leakage degree is judged according to the liquid level rising height in unit time or the rising time ratio in unit height, and the second ball valve 5 is opened to drain accumulated water. The device has the advantage that the device is very suitable for sewage working conditions, and when the storage pipe 3 is blocked, the third ball valve 6 and the fourth ball valve 11 are opened, the transparent pipe 8 is pulled out, and then the inlet can be cleaned by a thin rod-shaped tool. When the transparent pipe 8 is dirty, the first ball valve 2 and the second ball valve 5 can be closed, the transparent pipe 8 is pulled out, the materials are taken according to the length of the transparent pipe 8, and the transparent pipe is quick, safe, cheap and convenient to replace.
Example 2: the same as in example 1, except that: two ends of the transparent tube 8 are respectively communicated with the storage tube 3, a first quick-connection-peg 7 and a second quick-connection-peg 10 are respectively arranged on the two ends of the transparent tube 8 and a passage of the storage tube 3, and the transparent tube 8 and the storage tube 3 form a communicating vessel.
The above description is only for the preferred embodiment of the present invention, and is not intended to limit the present invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included within the protection scope of the present invention.
Claims (7)
1. A quick leak detection device for a hot blast valve is characterized by comprising the hot blast valve (1) and a storage pipe (3), wherein a first ball valve (2) and a second ball valve (5) are respectively arranged at two ends of the storage pipe (3), and the storage pipe (3) is communicated with the hot blast valve (1) through the first ball valve (2); the device is characterized by further comprising a transparent pipe (8) used for checking the leakage water level line, two ends of the transparent pipe (8) are respectively communicated with the storage pipe (3), a first quick-connection-peg (7) and a second quick-connection-peg (10) are respectively arranged on a passage between two ends of the transparent pipe (8) and the storage pipe (3), and the transparent pipe (8) and the storage pipe (3) form a communicating vessel.
2. The quick leak detector of the hot blast valve according to claim 1, wherein both ends of the transparent pipe (8) are respectively connected to the storage pipe (3) through two tee pipes, a first quick connector (7) and a second quick connector (10) are respectively disposed on one of the two tee pipes connecting both ends of the transparent pipe (8) to the storage pipe (3), and a third ball valve (6) and a fourth ball valve (11) are respectively disposed on the other of the two tee pipes.
3. A hot blast valve quick leak check device according to claim 2, wherein said third ball valve (6) is disposed on said storage tube (3) adjacent to said first ball valve (2), and said fourth ball valve (11) is disposed on said storage tube (3) adjacent to said second ball valve (5).
4. A hot blast valve quick leak checking device according to claim 1, wherein the hot blast valve (1) and the first ball valve (2), the storage pipe (3), the first ball valve (2) and the second ball valve (5) are all connected by flanges.
5. A hot blast valve quick leak check device according to claim 2, wherein said third ball valve (6) and said fourth ball valve (11) are female threaded ball valves.
6. A hot blast valve quick leak checking device according to any of claims 1 to 5, wherein said transparent tube (8) is a PU tube.
7. A hot blast valve quick leak checking device according to claim 1 or 2, wherein said storage tube (3) is connected to the lower part of the hot blast valve (1), and said first ball valve (2) and said second ball valve (5) are respectively disposed at the upper and lower ends of the storage tube (3).
