CN213454094U

CN213454094U - ICU ward air cycle degassing unit

Info

Publication number: CN213454094U
Application number: CN202022625716.4U
Authority: CN
Inventors: 瞿洪平; 刘嘉琳; 谭若铭; 潘婷婷; 王晓丽; 钟鸣; 徐文; 王枫
Original assignee: Ruinjin Hospital Affiliated to Shanghai Jiaotong University School of Medicine Co Ltd
Current assignee: Ruinjin Hospital Affiliated to Shanghai Jiaotong University School of Medicine Co Ltd
Priority date: 2020-11-13
Filing date: 2020-11-13
Publication date: 2021-06-15
Anticipated expiration: 2030-11-13

Abstract

The utility model relates to the field of air purification, in particular to an ICU ward air circulation disinfection device, which comprises an equipment shell, a mute fan and a movable base, wherein the mute fan is fixedly arranged at the inner bottom end of the equipment shell, the movable base is fixedly arranged at the four corners of the bottom end of the equipment shell, a louver fan is arranged at the front bottom end of the equipment shell, a control button is arranged at the middle part of the top end of the louver fan, a purification air feeder is fixedly arranged at the top end of the control button, a water receiving port is fixedly arranged at the right side position of the top end of the equipment shell, an inductor is fixedly arranged at the right side of the water receiving port, a power interface is fixedly arranged at the middle position of the back surface of the equipment shell, the material of the equipment shell is composed of rigid electricity-proof plastic, a solid impurity collecting box is fixedly arranged at the lower, the problem of air quality is solved and the demand of people's living environment can also be satisfied, the cost is saved.

Description

ICU ward air cycle degassing unit

Technical Field

The utility model relates to an air purification field especially relates to an ICU ward air cycle degassing unit.

Background

The air cleaning technology is an advanced air treatment means, which is based on air-conditioning equipment, and removes particles and pathogenic microorganisms existing in the air through a multi-stage air filtration system, and simultaneously performs flow direction control and circulation treatment on the air in the whole ICU ward to finally create a good air environment.

In the air circulation disinfection device in the existing ICU ward, the device is very inconvenient to move, each room is provided with one room and is too waste, and the existing device has simple effect when in use and can only be singly disinfected and purified, so that the device is very impractical, the structure is complex and the cost is high.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art and providing an ICU ward air circulation disinfection device.

In order to achieve the above purpose, the utility model adopts the following technical scheme: including equipment shell, silence fan and removal base, the inside bottom fixed mounting of equipment shell has the silence fan, the bottom four corners fixed mounting of equipment shell has the removal base, the positive bottom of equipment shell is equipped with the louver fan, the top middle part of louver fan is provided with control button, control button's top fixed mounting has the purification air-supply ware, the top right side fixed mounting of equipment shell has the water receiving mouth, the right side fixed mounting of water receiving mouth has the inductor.

Preferably, a power interface is fixedly installed in the middle of the back of the equipment shell, and the material of the equipment shell is made of rigid electricity-proof plastic.

Preferably, a solid impurity collecting box is fixedly mounted below the power interface, and the solid impurity collecting box is fixedly connected with the internal mute fan.

Preferably, the inside left side intermediate position of silence fan is equipped with the fixed plate, and the right side position fixedly connected with fan of fixed plate, the right-hand member fixedly connected with filter screen of fan, and the filter screen is parallel distribution with the position of fan.

Preferably, the bottom end of the filter screen is fixedly connected with an air pump, the bottom end of the air pump is fixedly connected with the solid impurity pipe, the solid impurity pipe is fixedly connected with the solid impurity collecting box, and the top end of the filter screen is fixedly connected with an air transmission pipe.

Preferably, the upper left end fixedly connected with water tank of the inside of air purifying blower, the bottom fixed mounting of water tank has the regulation fan, the bottom of regulation fan is equipped with the pasteurization storehouse, and the right side fixedly connected with anion filter box of regulation fan.

Preferably, the intelligent processor is fixedly mounted in the middle of the top end of the negative ion filter box, the top end of the intelligent processor is fixedly connected with the inductor, the right side of the negative ion filter box is fixedly connected with the air supply opening, the bottom end of the air supply opening is provided with the control panel, the control panel is connected with the negative ion filter box, and the control panel is fixedly connected with the control button.

The utility model discloses possess following beneficial effect at least:

1. this is novel in through the removal base and the inductor that set up, when needs use, do not need every room to be equipped with one, operating personnel can disinfect every room through the gyro wheel that the base was removed to the bottom and purify, the inductor can be to air temperature in the room simultaneously, humidity content carries out intelligent response, can intelligently carry out the environmental purification through the control button device and improve, thereby make the living environment in equipment pluralism improvement room, not only can solve the air quality problem and can also satisfy the demand of people's living environment like this, a tractor serves several purposes, and cost is saved.

2. This is novel in through setting up the filter screen in the silence fan, and the inside left side intermediate position of silence fan is equipped with the fixed plate, and the right side position fixedly connected with fan of fixed plate, the right-hand member fixedly connected with filter screen of fan, and the filter screen is parallel distribution with the position of fan, through the rotation of fan, drives the air and through the filter screen, thereby solid particles such as dust can collect through filter screen filtration purification in the device use time air, and the purification of level by level makes purifying effect best, realizes the multifunctionality of equipment like this.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings required to be used in the description of the embodiments are briefly introduced below, and it is obvious that the drawings in the following description are some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without any creative effort.

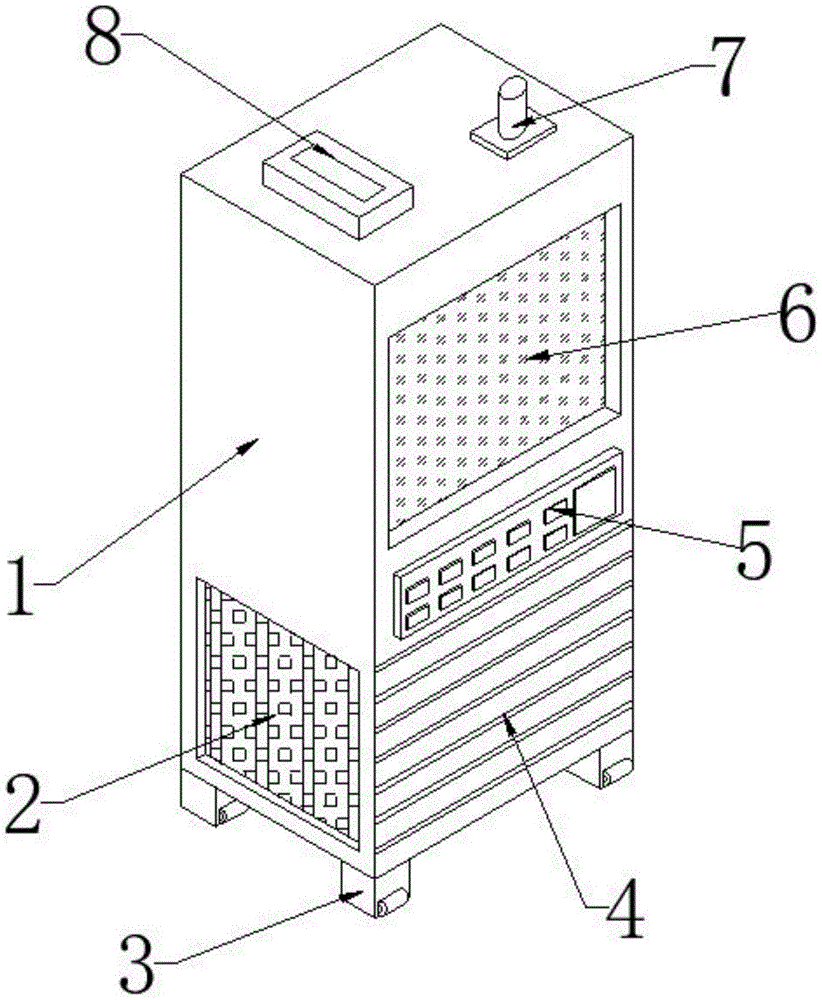

FIG. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic view of the overall rear structure of the present invention;

fig. 3 is a schematic view of the internal structure of the mute fan of the present invention;

fig. 4 is a schematic view of the internal structure of the purifying blower of the present invention.

In the figure: 1. an equipment housing; 2. a mute fan; 3. moving the base; 4. a louver fan; 5. a control button; 6. a purifying air blower; 7. a water receiving port; 8. an inductor; 9. a power interface; 10. a solid impurity collecting box; 11. a fixing plate; 12. a fan; 13. a filter screen; 14. an air pump; 15. a solid impurity tube; 16. a gas delivery pipe; 17. a water tank; 18. adjusting the fan; 19. a high-temperature sterilization bin; 20. a negative ion filter box; 21. an intelligent processor; 22. an air supply outlet; 23. and a control panel.

Detailed Description

In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.

Referring to fig. 1-4, an ICU ward air circulation disinfection device comprises an equipment housing 1, a mute fan 2 and a mobile base 3, a power supply port 9 is fixedly installed at the middle position of the back of the equipment housing 1, the material of the equipment housing 1 is made of rigid electricity-proof plastic, a solid impurity collecting box 10 is fixedly installed at the lower position of the power supply port 9, the solid impurity collecting box 10 is the prior art, no repeated description is given here, solid-state impurity collecting box 10 is fixed connection with inside silence fan 2, and the inside left side intermediate position of silence fan 2 is equipped with fixed plate 11, and the right side position fixedly connected with fan 12 of fixed plate 11, the right-hand member fixedly connected with filter screen 13 of fan 12, and filter screen 13 is parallel distribution with fan 12's position, and filter screen 13 is prior art, does not give unnecessary details here, and parallel position distributes and makes device fixed stay and absorb effectually.

Referring to fig. 1-4, an ICU ward air circulation disinfection device, the upper left end of the interior of a purification blower 6 is fixedly connected with a water tank 17, the water tank 17 is in through connection with a water receiving port 7, an adjusting fan 18 is fixedly installed at the bottom end of the water tank 17, a high temperature sterilization bin 19 is arranged at the bottom end of the adjusting fan 18, the high temperature sterilization bin 19 is the prior art and is not described herein, a negative ion filter box 20 is fixedly connected to the right side of the adjusting fan 18, the negative ion filter box 20 is the prior art and is not described herein, and the negative ion filter box 20 is connected with an air supply port 22.

Referring to fig. 1-4, an ICU ward air circulation degassing unit, the top intermediate position fixed mounting of anion filter box 20 has intelligent treater 21, intelligent treater 21 is prior art, do not do this and give unnecessary details here, intelligent treater 21's top and inductor 8 are fixed connection, the bottom of supply-air outlet 22 is equipped with control panel 23, control panel 23 is connected with anion filter box 20, control panel 23 is fixed connection with control button 5 simultaneously, the intelligent integration of induction control is prior art, do not give unnecessary details here, carry out the pluralism to room air quality and environment and handle.

The utility model discloses the theory of operation:

when the room needs to be disinfected and purified, the device is placed in the room to be cleaned, a power supply is connected through a power supply interface 9, water is injected into the device through a water receiving port 7, the equipment is opened through a control button, the inductor 8 at the top end of the equipment can induce the quality of air in the room, the induced data reach the intelligent processor 21, the intelligent processor 21 operates according to the air environment in the room, the fan 12 in the mute fan 2 at the bottom end of the equipment rotates to absorb the air in the room, the air enters the filter screen 13 in the equipment through the louver 4, the filter screen 13 filters solid impurities such as dust in the air, after a period of time, the dust and the impurities fall into the solid impurity collecting box 10, meanwhile, the filtered solid impurity air is transported upwards through the air pump 14 to the high-temperature disinfection cabin 19 for secondary disinfection and purification, and meanwhile, the fan 18 and the water tank 17 are adjusted for cooling and air supply treatment, after the air after purification and temperature reduction is purified for the third time by the anion filtering box 20, the intelligent processor 21 discharges the air after adjusting the air temperature and humidity by the air supply outlet 22.

After the induction treatment of the inductor 8 is completed, the equipment can automatically stop running, people can recover the device through the power interface 9, and the solid impurity collecting box 10 is used for cleaning dust and impurities.

The foregoing shows and describes the general principles, essential features, and advantages of the invention. It should be understood by those skilled in the art that the present invention is not limited by the above embodiments, and the description in the above embodiments and the description is only preferred examples of the present invention, and is not intended to limit the present invention, and that the present invention can have various changes and modifications without departing from the spirit and scope of the present invention, and these changes and modifications all fall into the scope of the claimed invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. The utility model provides a ICU ward air cycle degassing unit, includes equipment shell (1), silence fan (2) and removes base (3), its characterized in that: the utility model discloses an equipment, including equipment shell (1), the inside bottom fixed mounting of equipment shell (1) has silence fan (2), the bottom four corners fixed position of equipment shell (1) installs and removes base (3), the positive bottom of equipment shell (1) is equipped with louver fan (4), the top middle part of louver fan (4) is provided with control button (5), the top fixed mounting of control button (5) has purification air supply ware (6), the top right side fixed position of equipment shell (1) installs water receiving mouth (7), the right side fixed mounting of water receiving mouth (7) has inductor (8).

2. An ICU ward air circulation disinfection unit as claimed in claim 1, further comprising: the middle position of the back surface of the equipment shell (1) is fixedly provided with a power supply interface (9), and the material of the equipment shell (1) is composed of rigid electricity-proof plastic.

3. An ICU ward air circulation disinfection unit as claimed in claim 2, further comprising: the solid impurity collecting box (10) is fixedly arranged below the power interface (9), and the solid impurity collecting box (10) is fixedly connected with the internal mute fan (2).

4. An ICU ward air circulation disinfection unit as claimed in claim 1, further comprising: the utility model discloses a silence fan (2) is characterized in that the inside left side intermediate position of silence fan (2) is equipped with fixed plate (11), and the right side position fixedly connected with fan (12) of fixed plate (11), the right-hand member fixedly connected with filter screen (13) of fan (12), and the position of filter screen (13) and fan (12) is parallel distribution.

5. An ICU ward air circulation disinfection apparatus of claim 4, characterized in that: the bottom end of the filter screen (13) is fixedly connected with an air pump (14), the bottom end of the air pump (14) is fixedly connected with a solid impurity tube (15), the solid impurity tube (15) is fixedly connected with a solid impurity collecting box (10), and the top end of the filter screen (13) is fixedly connected with an air conveying tube (16).

6. An ICU ward air circulation disinfection unit as claimed in claim 1, further comprising: the utility model discloses a high temperature sterilization air blower, including purification air blower (6), the inside upper left end fixedly connected with water tank (17) of purification air blower (6), the bottom fixed mounting of water tank (17) has adjusting fan (18), the bottom of adjusting fan (18) is equipped with pasteurization storehouse (19), and the right side fixedly connected with anion filter case (20) of adjusting fan (18).

7. An ICU ward air circulation disinfection unit of claim 6, characterized by: the utility model discloses a negative ion filter box, including anion filter box (20), the top intermediate position fixed mounting of anion filter box (20) has intelligent treater (21), and the top of intelligent treater (21) is fixed connection with inductor (8), the right side and supply-air outlet (22) of anion filter box (20) are fixed connection, the bottom of supply-air outlet (22) is equipped with control panel (23), and control panel (23) are connected with anion filter box (20), and control panel (23) are fixed connection with control button (5) simultaneously.
