Abstract
本实用新型涉及一种天棚灯，天棚灯包括散热灯罩、发光机构、可拆卸连接在灯罩底部的透光板，发光机构包括光源板、电源驱动组件，光源板设于散热灯罩与透光板之间，电源驱动组件设于散热灯罩的上方，天棚灯还包括与电源驱动组件电连接的快速接头，快速接头位于电源驱动组件上方；通过将光源板与电源驱动组件分开安放，可以大大降低灯具产生的热量，从而避免灯具高温损坏，而且电源驱动组件的安放于快速接头与散热灯罩的顶部之间，对空间进行了充分的利用，这也避免了散热灯罩与透光板之间的空间过于狭小，产生限制的问题。
The utility model relates to a ceiling lamp. The ceiling lamp comprises a heat-dissipating lampshade, a light-emitting mechanism, and a light-transmitting plate detachably connected to the bottom of the lampshade. The light-emitting mechanism includes a light source plate and a power drive assembly. During the time, the power drive assembly is arranged above the heat dissipation lampshade, and the ceiling light also includes a quick connector electrically connected with the power drive assembly, and the quick connector is located above the power drive assembly; Therefore, the high temperature damage of the lamp can be avoided, and the power drive components are placed between the quick connector and the top of the heat dissipation lampshade, making full use of the space, which also avoids the space between the heat dissipation lampshade and the light-transmitting plate being too narrow. , resulting in limitations.
Description
Technical Field
The utility model relates to an illumination lamps and lanterns design field, concretely relates to ceiling lamp.
Background
The illumination brightness of the ceiling lamp is very high, and the ceiling lamp is generally used in factory workshops, stations, docks, warehouses, exhibition halls, superstores, supermarkets or other high and large hall house illumination fields; the ceiling lamp is complex in integral structure, large in size and heavy in weight, so that the ceiling lamp in the prior art is generally provided with a hanging ring at the top of the ceiling lamp, the ceiling lamp is hoisted by the hanging ring, and then an electric wire at the top of the ceiling lamp is manually connected with an external power supply, so that the ceiling lamp is very troublesome to install, the connection of the electric wire not only increases the installation time, but also needs a professional to install, and the installation cost is increased; in addition, because the ceiling lamp has high power, the heat generated during lighting is very high, and if the heat cannot be effectively dissipated, the service life of the lamp is damaged, so that the heat dissipation performance becomes an important factor to be considered during the design of the ceiling lamp; however, due to the structural design limitation of the ceiling lamp, the internal space is relatively not very large, and heat dissipation is a relatively troublesome problem.
Disclosure of Invention
The utility model aims to solve the technical problem that overcome prior art not enough, provide a dome lamp.
In order to solve the technical problem, the utility model discloses the technical scheme who takes as follows:
the utility model provides a ceiling lamp, ceiling lamp include heat dissipation lamp shade, light-emitting mechanism, can dismantle the light-passing board of connection in the lamp shade bottom, and light-emitting mechanism includes light source board, power drive subassembly, and the light source board is located between heat dissipation lamp shade and the light-passing board, and power drive subassembly locates the top of heat dissipation lamp shade, and ceiling lamp still includes the quick-operation joint of being connected with the power drive subassembly electricity, and quick-operation joint is located the power drive subassembly top.
Preferably, the ceiling lamp further comprises a connecting body which is arranged at the top of the heat dissipation lamp shade and is communicated up and down, and the quick connector is fixedly installed at the top of the connecting body.
Preferably, an accommodating cavity is formed inside the connecting body, and the power driving assembly is arranged in the accommodating cavity.
Preferably, the connecting body is of revolution.
Preferably, the bottom opening diameter of the connecting body is larger than the top opening diameter thereof.
Preferably, the connector is trumpet shaped.
Preferably, the power driving assembly comprises a power board, the power board is vertically arranged in the accommodating cavity, and the width of the bottom edge of the power board is greater than that of the top edge of the power board.
Preferably, an insulating plate is further arranged in the accommodating cavity and located between the power supply board and the top of the heat dissipation lampshade.
Preferably, the quick connector is an E40 threaded connector.
Due to the implementation of the above technical scheme, compared with the prior art, the utility model have the following advantage:
the ceiling lamp of the utility model, through the design of the quick connector, the installation work of the ceiling lamp becomes very simple, the electric wire of the ceiling lamp is not required to be connected with an external power supply by professional wiring personnel, the installation cost is greatly reduced, the installation efficiency is improved, the disassembly and the assembly are very convenient, and the replacement and the maintenance are convenient when the lamp is damaged; in addition, through separately laying light source board and power drive assembly, the heat that can greatly reduced lamps and lanterns produced to avoid lamps and lanterns high temperature to damage, power drive assembly lay between quick-operation joint and heat dissipation lamp shade's top moreover, carry out abundant utilization to the space, this space of having avoided between heat dissipation lamp shade and the light-passing board too narrow and small, the problem of production restriction.
Drawings

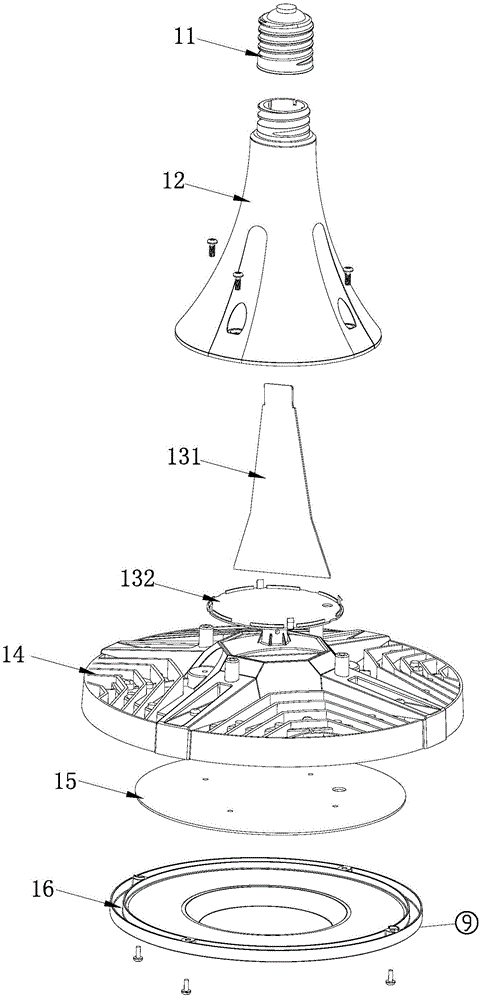

FIG. 1 is an exploded view of the ceiling light of the present invention;
FIG. 2 is a schematic perspective view of the ceiling light of the present invention;
wherein: 11. a quick coupling; 12. a linker; 131. a power panel; 132. an insulating plate; 14. a heat-dissipating lamp cover; 15. a light source plate; 16. a light-transmitting plate.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings and specific embodiments.
Referring to fig. 1 and 2, a ceiling lamp includes a heat dissipation lamp cover 14, a light emitting mechanism, and a transparent plate 16 detachably connected to the bottom of the lamp cover, where the light emitting mechanism includes a light source board 15 and a power driving component, the light source board 15 is disposed between the heat dissipation lamp cover 14 and the transparent plate 16, the power driving component is disposed above the heat dissipation lamp cover 14, the ceiling lamp further includes a quick connector 11 (the quick connector 11 is an E40 threaded connector) electrically connected to the power driving component, and the quick connector 11 is located above the power driving component; when the ceiling lamp is installed, the E40 threaded connector is rotated into the interface of the external power supply to be electrically connected with the external power supply, namely, a bulb is installed, and the operation is very simple.
Specifically, the ceiling lamp further comprises a connecting body 12 which is arranged at the top of the heat dissipation lamp shade 14 and is through up and down, and the quick connector 11 is fixedly installed at the top of the connecting body 12. A containing cavity is formed inside the connecting body 12, and the power driving component is arranged in the containing cavity; an insulating plate 132 is further disposed in the accommodating cavity, and the insulating plate 132 is located between the power board 131 and the top of the heat dissipation lampshade 14.
The connecting body 12 not only serves as a carrier to provide a mounting position for the quick connector 11, but also can fully utilize the accommodating space formed inside (provided with a power driving component). In this embodiment, the power driving assembly includes a power board 131, the power board 131 is vertically disposed in the accommodating cavity, and the width of the bottom side of the power board 131 is greater than the width of the top side thereof.
In this example, the connecting body 12 is in a revolving shape, and the bottom opening diameter of the connecting body 12 is larger than the top opening diameter thereof, and the connecting body 12 is in a trumpet shape, so that the whole structure is beautiful and not sharp; of course, the connecting body 12 may have other shapes, such as a tapered shape.
Furthermore, the utility model discloses a ceiling lamp passes through screwed joint and external power source direct switch-on, and consequently the whole weight of ceiling lamp can not be overweight, the utility model discloses mainly realize subtracting heavy, about a kilogram of whole weight through radiating lamp shade 14 on a large amount of radiating fin's fretwork design and radiating lamp shade 14 material selection (high-pressure die-casting aluminium).
To sum up, the ceiling lamp of the utility model, through the design of the quick connector, the installation work of the ceiling lamp becomes very simple, and the electric wire of the ceiling lamp is not required to be connected with the external power supply by professional wiring personnel, thus greatly reducing the installation cost, improving the installation efficiency, being convenient for disassembly and assembly and being convenient for replacement and maintenance when the lamp is damaged; in addition, through separately laying light source board and power drive assembly, the heat that can greatly reduced lamps and lanterns produced to avoid lamps and lanterns high temperature to damage, power drive assembly lay between quick-operation joint and heat dissipation lamp shade's top moreover, carry out abundant utilization to the space, this space of having avoided between heat dissipation lamp shade and the light-passing board too narrow and small, the problem of production restriction.
The present invention has been described in detail, and the purpose thereof is to enable those skilled in the art to understand the contents of the present invention and to implement the same, and the protection scope of the present invention should not be limited thereby, and all equivalent changes or modifications made according to the spirit of the present invention should be covered by the protection scope of the present invention.
Claims (9)
1. A ceiling lamp, its characterized in that: the ceiling lamp includes heat dissipation lamp shade, light-emitting mechanism, can dismantle the connection and be in the light-passing board of lamp shade bottom, light-emitting mechanism includes light source board, power drive assembly, the light source board is located between heat dissipation lamp shade and the light-passing board, power drive assembly locates the top of heat dissipation lamp shade, the ceiling lamp still include with the quick-operation joint that the power drive assembly electricity is connected, quick-operation joint is located the power drive assembly top.
2. The ceiling light of claim 1, wherein: the ceiling lamp further comprises a connecting body which is arranged at the top of the heat dissipation lamp shade and is communicated up and down, and the quick connector is fixedly installed at the top of the connecting body.
3. The ceiling light of claim 2, wherein: an accommodating cavity is formed inside the connecting body, and the power driving assembly is arranged in the accommodating cavity.
4. The ceiling light of claim 3, wherein: the connecting body is in a rotary shape.
5. The ceiling light of claim 4, wherein: the diameter of the bottom opening of the connecting body is larger than that of the top opening of the connecting body.
6. The ceiling light of claim 4, wherein: the connector is trumpet-shaped.
7. The ceiling light of claim 5, wherein: the power driving assembly comprises a power panel, the power panel is vertically arranged in the accommodating cavity, and the width of the bottom edge of the power panel is larger than that of the top edge of the power panel.
8. The ceiling light of claim 7, wherein: an insulating plate is further arranged in the accommodating cavity and is positioned between the power panel and the top of the heat dissipation lampshade.
9. The ceiling light of claim 1, wherein: the quick joint is an E40 threaded joint.
