Abstract
本申请涉及模杯加工技术领域，尤其是一种便于更换模具的定型设备，其包括呈中空设置的机架，机架上设有工作台，机架顶部设有气缸，工作台的上表面和气缸的活塞杆均安装有加热板，两块加热板相对的一面均设有模具，加热板的两侧均滑移设有水平设置的限位杆，模具的侧壁开设有限位槽，限位杆端部侧壁与限位槽的槽壁抵接配合，加热板上设有固定组件；固定组件包括固定螺栓和抵紧螺母，加热板的表面设有T型槽，固定螺栓包括螺帽和螺杆，螺帽位于T型槽内部，螺杆穿出T型槽的槽口，限位杆的表面贯穿设有长腰孔，螺杆贯穿长腰孔，抵紧螺母与限位杆远离T型槽的表面抵接配合；该定型设备具有便于更换模具的优点。
The present application relates to the technical field of mold cup processing, in particular to a sizing device for easy replacement of molds. The piston rods of the cylinders are equipped with heating plates, the opposite sides of the two heating plates are provided with molds, the two sides of the heating plates are slidingly provided with horizontally arranged limit rods, and the side walls of the molds are provided with limit grooves to limit the The side wall of the rod end is abutted and matched with the groove wall of the limit groove, and the heating plate is provided with a fixing component; the fixing component includes a fixing bolt and a pressing nut, the surface of the heating plate is provided with a T-shaped groove, and the fixing bolt includes a nut and a nut. The screw, the nut is located inside the T-slot, the screw goes out of the slot of the T-slot, the surface of the limit rod is provided with a long waist hole, the screw rod passes through the long waist hole, and the abutting nut and the limit rod are far from the T-slot. Surface abutting fit; this sizing device has the advantage of being easy to replace the mold.
Description
Technical Field
The application relates to the field of mold cup processing, in particular to a shaping device convenient for mold replacement.
Background
At present, the existing mold cup process generally includes a hot pressing process, i.e., a sponge sheet is pressed on a cloth cup mold by a shaping device, and the sponge sheet is heated at a high temperature to flow into a cup shape.
In the related art, a common shaping device comprises a hollow frame, a workbench is arranged on the frame, a cylinder is arranged at the top of the frame and positioned above the workbench, heating plates are respectively arranged on the upper surface of the workbench and a piston rod of the cylinder, and the opposite surfaces of the two heating plates are respectively fixedly connected with a die through bolts; and placing the sponge sheet on the surface of the die below, and starting the cylinder to drive the die above to press downwards so as to finish hot-pressing work.
With respect to the above-described related art, the inventors consider that the following problems exist: because the sizes of the mold cups are different, when the mold cups with different sizes are processed, different molds need to be replaced, however, the mold cups are fixedly connected to the heating plate through bolts, so that when the mold cups are disassembled, assembled and replaced, a special tool such as a screwdriver needs to be used for unlocking, the process is complicated, and improvement is needed.
SUMMERY OF THE UTILITY MODEL
In order to improve the convenience of changing the mould, this application provides a typical installation convenient to change mould.
The application provides a pair of typical installation convenient to change mould adopts following technical scheme:
a shaping device convenient for replacing a mold comprises a hollow frame, wherein a workbench is arranged on the frame, a cylinder is arranged at the top of the frame, heating plates are respectively arranged on the upper surface of the workbench and a piston rod of the cylinder, molds are arranged on the opposite surfaces of the two heating plates, horizontally arranged limiting rods are arranged on the two sides of each heating plate in a sliding manner, limiting grooves are formed in the side walls of the molds, the side walls of the end parts of the limiting rods are in butt fit with the groove walls of the limiting grooves, and fixing assemblies are arranged on the heating plates;
the fixed subassembly includes fixing bolt and supports tight nut, the surface of hot plate is provided with T type groove, fixing bolt includes nut and screw rod, the nut is located T type inslot portion, the notch in T type groove is worn out to the screw rod, the surface of gag lever post is run through and is provided with long waist hole, the screw rod runs through long waist hole, support tight nut and the surface butt cooperation that T type groove was kept away from to the gag lever post.
Through adopting above-mentioned technical scheme, when needs are changed the mould, twist and move and support the tight nut, so that support the separation of tight nut and gag lever post, the pulling gag lever post, the mould is kept away from to the gag lever post, so that gag lever post and spacing groove separate, and then the spacing of gag lever post to the mould has been relieved, place new mould on the hot plate, align spacing groove and gag lever post, remove the gag lever post, so that the gag lever post insert to the spacing inslot and with the spacing groove butt, twist and move and support the tight nut, so that support the tight nut and provide the effort to the gag lever post, thereby fix the gag lever post, and then support the tight nut and remove the gag lever post through twisting and just can realize fixing the mould, thereby indirect convenience of changing the mould has been improved.
Preferably, the fixed surface of hot plate is connected with two stoppers, two the stopper is located the both sides of gag lever post respectively, two lateral walls of gag lever post slide the cooperation with the relative lateral wall of two stoppers respectively.
Through adopting above-mentioned technical scheme, two lateral walls of gag lever post slide the cooperation with the relative lateral wall of two stoppers respectively to the ascending rotation of restriction gag lever post horizontal direction, and then reduce the gag lever post and take place to rotate at the in-process of installation, and make the position of gag lever post change, thereby the condition that influences the installation effectiveness of gag lever post takes place.
Preferably, the end part of the limiting rod, which is close to the limiting groove, is provided with a chamfer.
Through adopting above-mentioned technical scheme, the chamfer has the effect of guide, and when the gag lever post did not aim at the spacing groove completely, the gag lever post can be inserted along the chamfer and connect to the spacing inslot to the fault-tolerant rate that gag lever post and spacing groove are connected has indirectly been improved.
Preferably, the surface edge of the limiting rod is arranged in a round angle mode.
Through adopting above-mentioned technical scheme, the fillet can reduce the sharpness at gag lever post edge, and when the staff inserted the gag lever post into the spacing groove, effectively improved the comfort level that the staff hand held the gag lever post.
Preferably, the T type groove runs through the lateral wall of hot plate, the cross-section of nut is square setting, two lateral walls that the nut is relative cooperate with two relative lateral walls butt in T type groove respectively.
Through adopting above-mentioned technical scheme, when the staff twisted and moved and support when tight nut, two lateral walls that the nut is relative respectively with two relative lateral walls butt cooperations in T type groove, and then play limiting displacement to fixing bolt to it takes place pivoted condition to reduce fixing bolt and receive the effort that supports tight nut.
Preferably, the screw rod is sleeved with a gasket, the gasket is located between the abutting nut and the limiting rod, and two surfaces of the gasket are respectively abutted to the surfaces of the abutting nut and the limiting rod.
Through adopting above-mentioned technical scheme, two surfaces of gasket respectively with support the surface butt of tight nut and gag lever post to increase area of contact reduces pressure, prevents to become flexible, plays certain guard action to gag lever post and fixing bolt.
Preferably, be provided with the reference column on the hot plate, the surface of mould is provided with the constant head tank, reference column and constant head tank grafting cooperation.
Through adopting above-mentioned technical scheme, reference column and constant head tank grafting cooperation to play the positioning action to the mould, and then accelerated the efficiency of die holding indirectly.
In summary, the present application includes at least one of the following beneficial technical effects:
1. the mold can be fixed by screwing the abutting nut and moving the limiting rod, so that the convenience of replacing the mold is indirectly improved;
2. the chamfering can reduce the sharpness of the edge of the limiting rod, and when a worker inserts the limiting rod into the limiting groove, the comfort level of the worker for holding the limiting rod by hands is effectively improved;
3. two surfaces of gasket respectively with support the surface butt of tight nut and gag lever post to increase area of contact, reduce pressure prevents not hard up, plays certain guard action to gag lever post and fixing bolt.
Drawings
Fig. 1 is a schematic structural diagram of an embodiment of the present application.

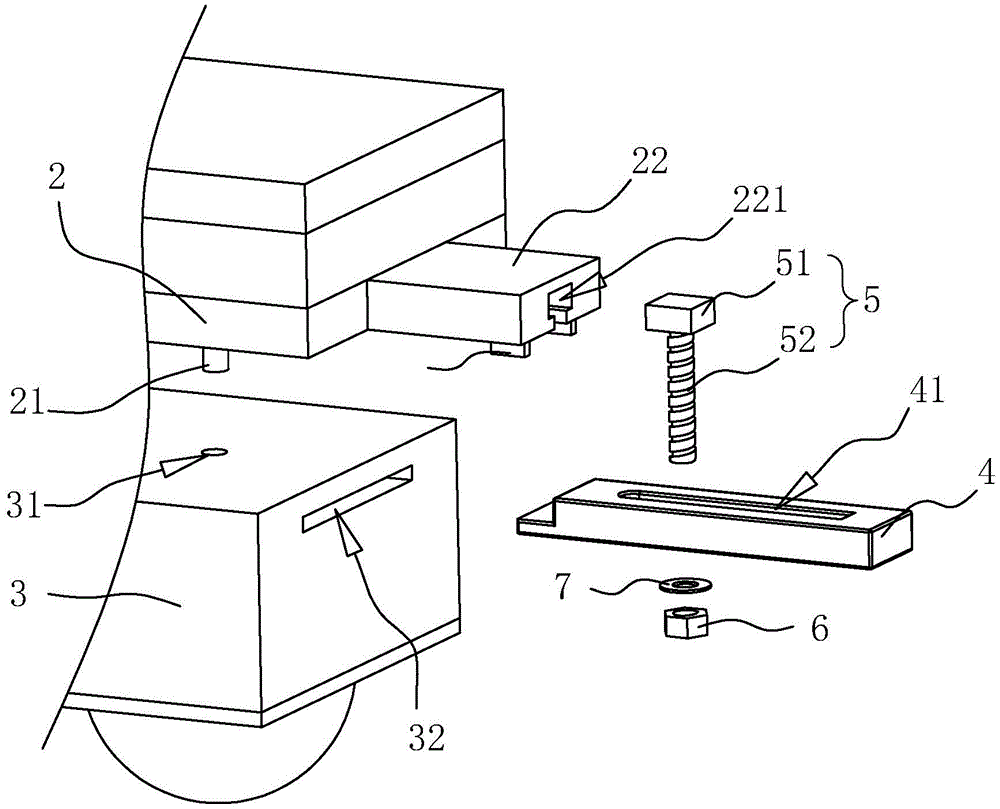

Fig. 2 is an assembly schematic of an embodiment of the present application.
Description of reference numerals: 1. a frame; 11. a work table; 2. heating plates; 21. a positioning column; 22. connecting blocks; 221. a T-shaped groove; 222. a limiting block; 3. a mold; 31. positioning a groove; 32. a limiting groove; 4. a limiting rod; 41. a long waist hole; 5. fixing the bolt; 51. a nut; 52. a screw; 6. tightly abutting the nut; 7. and (7) a gasket.
Detailed Description
The present application is described in further detail below with reference to figures 1-2.
The embodiment of the application discloses a typical installation convenient to change mould 3. Referring to fig. 1 and 2, the molding equipment convenient for replacing the mold 3 includes a hollow frame 1, a worktable 11 is arranged on the frame 1, a cylinder (not shown in the figure) is arranged at the top of the frame 1, the cylinder is located above the worktable 11, and a piston rod of the cylinder is arranged towards the worktable 11. In addition, the hot plate 2 that the level set up is all installed to the piston rod of the upper surface of workstation 11 and cylinder, and the one side that two hot plate 2 are relative all is equipped with mould 3, is provided with reference column 21 on the hot plate 2, and mould 3's surface is provided with constant head tank 31, and reference column 21 and constant head tank 31 are pegged graft and are cooperated.
Specifically, the both sides of hot plate 2 all slide and are provided with gag lever post 4 that the level set up, and spacing groove 32 has been seted up to the lateral wall of mould 3, and 4 tip lateral walls of gag lever post cooperate with the cell wall butt of spacing groove 32, and the surface edge of gag lever post 4 is the fillet setting, and the tip that gag lever post 4 is close to spacing groove 32 is provided with the chamfer. The fillet can reduce the sharpness at the 4 edges of gag lever post, and when the staff inserted gag lever post 4 in spacing groove 32, effectively improved staff's hand and held the comfort level of gag lever post 4, simultaneously, the chamfer has the effect of guide, and when gag lever post 4 did not aim at spacing groove 32 completely, gag lever post 4 can be inserted to the spacing groove 32 along the chamfer in to the fault-tolerant rate that gag lever post 4 and spacing groove 32 are connected has indirectly been improved. Furthermore, a fixing member is provided on the heating plate 2.
Specifically, the fixing component comprises a fixing bolt 5 and a tightening nut 6, and the fixing bolt 5 is in threaded fit with the tightening nut 6. Fixing bolt 5 includes nut 51 and screw rod 52, nut 51 and screw rod 52 fixed connection, the lateral wall fixedly connected with connecting block 22 of hot plate 2, connecting block 22's surface is provided with T type groove 221, T type groove 221 run-through connection block 22's lateral wall, nut 51's cross-section is square setting, two relative lateral walls of nut 51 respectively with two relative lateral walls butt cooperations of T type groove 221, and then play limiting displacement to fixing bolt 5, take place pivoted condition to reduce fixing bolt 5 and receive the effort that supports tight nut 6 and take place.
In addition, the screw 52 penetrates through the notch of the T-shaped groove 221, the long waist hole 41 is formed in the surface of the limiting rod 4 in a penetrating mode, the long waist hole 41 is formed in the length direction of the limiting rod 4, and the screw 52 penetrates through the long waist hole 41 and is matched with the long waist hole 41 in a sliding mode. Meanwhile, the abutting nut 6 is abutted and matched with the surface of the limiting rod 4, which is far away from the T-shaped groove 221.
Further, two stopper 222 of fixed surface of connecting block 22 are connected with, two stopper 222 are located the both sides of gag lever post 4 respectively, two lateral walls of gag lever post 4 slide the cooperation with the relative lateral wall of two stopper 222 respectively to the ascending rotation of restriction gag lever post 4 horizontal direction, and then reduce gag lever post 4 and take place to rotate at the in-process of installation, and make the position of gag lever post 4 change, thereby the condition that influences the installation effectiveness of gag lever post 4 takes place.
Further, the screw 52 is sleeved with a gasket 7, the gasket 7 is located between the abutting nut 6 and the limiting rod 4, and two surfaces of the gasket 7 are respectively abutted to the surfaces of the abutting nut 6 and the limiting rod 4. Two surfaces of gasket 7 respectively with support tight nut 6 and gag lever post 4's surface butt to increase area of contact, reduce pressure prevents not hard up, plays certain guard action to gag lever post 4 and fixing bolt 5.
The implementation principle of the setting equipment convenient for replacing the mold 3 in the embodiment of the application is as follows: when the mold 3 needs to be replaced, the abutting nut 6 is screwed, so that the abutting nut 6 is separated from the limiting rod 4, the limiting rod 4 is pulled, the limiting rod 4 is far away from the mold 3, so that the limiting rod 4 is separated from the limiting groove 32, the limitation of the limiting rod 4 on the mold 3 is removed, a new mold 3 is placed on the heating plate 2, the limiting groove 32 is aligned with the limiting rod 4, the limiting rod 4 is moved, so that the limiting rod 4 is inserted into the limiting groove 32 and is abutted to the limiting groove 32, the abutting nut 6 is screwed, so that the abutting nut 6 provides acting force for the limiting rod 4, the limiting rod 4 is fixed, the abutting nut 6 and the limiting rod 4 are screwed, the mold 3 can be fixed, and the convenience of replacing the mold 3 is indirectly improved.
The above embodiments are preferred embodiments of the present application, and the protection scope of the present application is not limited by the above embodiments, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.
