Abstract
The utility model provides a high-efficient sprinkling irrigation equipment is used in afforestation belongs to gardens sprinkling irrigation technical field, and this high-efficient sprinkling irrigation equipment is used in afforestation includes the automobile body, the upper surface of automobile body is from the right side to left fixed pipe of fixedly connected with and storage water tank in proper order, the inside swing joint of fixed pipe has the gear, the surface engagement of gear is connected with the gear pole, the one end fixedly connected with support frame of gear pole, the last fixed surface of support frame is connected with the catheter. This high-efficient sprinkling irrigation equipment is used in afforestation sets up through automobile body, fixed pipe, storage water tank, catheter, shower nozzle, rubber hose and the cooperation between the force pump, starts the force pump, then the force pump can pass through the shower nozzle blowout with the inside water liquid of storage water tank to the shower nozzle setting is in three position, then irrigates the place ahead, left side and right side all simultaneously, thereby inside more plants of irrigating in the shortest time, effectively improves sprinkling irrigation efficiency, reduces staff intensity of labour.
Description
Technical Field
The utility model belongs to the technical field of the gardens sprinkling irrigation, concretely relates to efficient sprinkling irrigation equipment is used in afforestation.
Background
The landscape architecture is to create a green environment through garden lawns and plants. Modern gardens focus on building landscape products and simultaneously aim at improving the ecological environment. The method comprises the steps of building a garden type city, arranging a green land system, arranging roads and rest places in the whole city, realizing urban garden, building natural ecological parks which mainly comprise road landscape and green forest lawns, beautifying the city, and enabling the city to be more beautiful and people to be more harmonious with nature. Landscape construction is implemented according to the requirements of a water-saving society, garden irrigation is carried out, and soil moisture of garden greenbelts is supplemented by using an artificial method or a mechanical method in different irrigation forms to meet the moisture requirements of plants.
When irrigating gardens, the water pipe need be laid to the current, and the staff takes up the tube head, irrigates landscape plant, not only takes time and energy, irrigates inefficiency moreover.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a high-efficient sprinkling irrigation equipment is used in afforestation aims at solving among the prior art when gardens are irrigated, need lay the water pipe, and the staff picks up the tube head, irrigates landscape plant, not only takes time and energy, irrigates the problem that efficiency is low moreover.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a high-efficient sprinkling irrigation equipment is used in afforestation, includes the automobile body, the upper surface of automobile body is from the right side to left fixed pipe of fixedly connected with and storage water tank in proper order, the inside swing joint of fixed pipe has the gear, the surface engagement of gear is connected with the gear pole, the one end fixedly connected with support frame of gear pole, the last fixed surface of support frame is connected with the catheter, the surface fixedly connected with shower nozzle of catheter, the one end fixedly connected with rubber hose of catheter, rubber hose keeps away from the one end fixedly connected with force pump of catheter.
In order to make this high-efficient sprinkling irrigation equipment for afforestation reach the purpose that the shower nozzle altitude mixture control is convenient laborsaving more, as the utility model relates to an it is preferred, the back fixedly connected with screw thread post of gear, the surface threaded connection of screw thread post has the locking cap, the positive fixedly connected with handle of gear.
In order to make this efficient sprinkling irrigation equipment for afforestation reach the better purpose of the sealed effect of storage water tank, conduct the utility model relates to an it is preferred, there is the case lid upper surface of storage water tank through hinge swing joint, the middle part fixedly connected with inlet tube of case lid upper surface.
In order to make this high-efficient sprinkling irrigation equipment for afforestation reach the purpose that the liquid medicine mixes more evenly, as the utility model relates to an it is preferred, the positive fixedly connected with backup pad of storage water tank, the last fixed surface of backup pad is connected with servo motor, servo motor's output fixedly connected with (mixing) shaft.
In order to make this efficient sprinkling irrigation equipment for afforestation reach and promote more convenient purpose, conduct the utility model relates to an it is preferred, one side fixedly connected with handrail of automobile body upper surface, the material of handrail is the stainless steel.
In order to make this efficient sprinkling irrigation equipment for afforestation reach and remove convenient laborsaving purpose more, conduct the utility model relates to an it is preferred, the equal fixedly connected with gyro wheel in four corners of automobile body lower surface, the quantity of gyro wheel is four.
Compared with the prior art, the beneficial effects of the utility model are that:
1. this high-efficient sprinkling irrigation equipment is used in afforestation sets up through automobile body, fixed pipe, storage water tank, catheter, shower nozzle, rubber hose and the cooperation between the force pump, starts the force pump, then the force pump can pass through the shower nozzle blowout with the inside water liquid of storage water tank to the shower nozzle setting is in three position, then irrigates the place ahead, left side and right side all simultaneously, thereby inside more plants of irrigating in the shortest time, effectively improves sprinkling irrigation efficiency, reduces staff intensity of labour.
2. This high-efficient sprinkling irrigation equipment is used in afforestation sets up through the cooperation between gear pole, gear, fixed pipe, handle, support frame, catheter, shower nozzle, screw thread post and the locking cap, and the locking cap is unscrewed to the staff's accessible, and twist grip can be through the cooperation of gear and gear pole, makes the catheter carry out altitude mixture control to make the device be applicable to the plant use of co-altitude not, improve its practicality.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

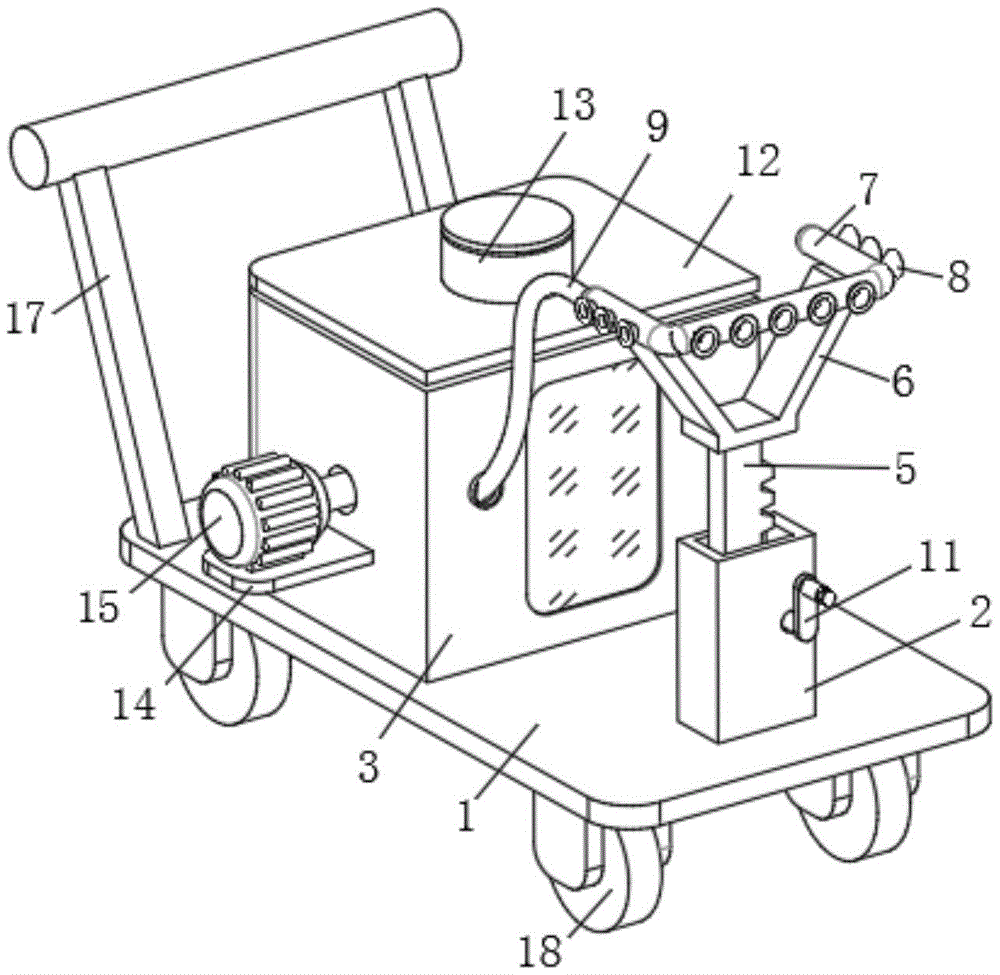

fig. 1 is a schematic view of an axial measurement structure of the present invention;
fig. 2 is a schematic rear view of the present invention;
FIG. 3 is a schematic view of the sectional structure of the water storage tank of the present invention;
fig. 4 is a schematic sectional view of the middle fixing tube of the present invention.
In the figure: 1. a vehicle body; 2. a fixed tube; 3. a water storage tank; 4. a gear; 5. a gear lever; 6. a support frame; 7. a catheter; 8. a spray head; 9. a rubber hose; 10. a pressure pump; 11. a handle; 12. a box cover; 13. a water inlet pipe; 14. a support plate; 15. a servo motor; 16. a stirring shaft; 17. a handrail; 18. and a roller.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Examples
Referring to fig. 1-4, the present invention provides the following technical solutions: the utility model provides a high-efficient sprinkling irrigation equipment is used in afforestation, which comprises a carriage body 1, the upper surface of automobile body 1 is from the right side to left fixed pipe 2 of fixedly connected with and storage water tank 3 in proper order, the inside swing joint of fixed pipe 2 has gear 4, the surface engagement of gear 4 is connected with gear pole 5, the one end fixedly connected with support frame 6 of gear pole 5, the last fixed surface of support frame 6 is connected with catheter 7, catheter 7's fixed surface is connected with shower nozzle 8, catheter 7's one end fixedly connected with flexible rubber hose 9, flexible rubber hose 9 keeps away from catheter 7's one end fixedly connected with force pump 10.
In the embodiment of the utility model, by the cooperation arrangement between the vehicle body 1, the fixed pipe 2, the water storage tank 3, the liquid guide tube 7, the spray nozzle 8, the rubber hose 9 and the pressure pump 10, the pressure pump 10 is started, then the pressure pump 10 can spray out the water liquid in the water storage tank 3 through the spray nozzle 8, and the spray nozzle 8 is arranged in three directions, then the front, the left and the right sides are irrigated simultaneously, thereby irrigating more plants in the shortest time, effectively improving the sprinkling efficiency, reducing the labor intensity of workers, by the cooperation arrangement between the gear rod 5, the gear 4, the fixed pipe 2, the handle 11, the support frame 6, the liquid guide tube 7, the spray nozzle 8, the threaded column and the fixed cap, the workers can unscrew the fixed cap, rotate the handle 11, namely, the liquid guide tube 7 can be adjusted in height through the cooperation of the gear 4 and the gear rod 5, thereby the device is suitable for the plants with different heights, the practicability is improved.
Specifically, the back of the gear 4 is fixedly connected with a threaded column, the outer surface of the threaded column is connected with a fixing cap in a threaded manner, and the front of the gear 4 is fixedly connected with a handle 11.
In this embodiment: through the arrangement of the handle 11, the height of the spray head 8 can be adjusted more conveniently and more laborsavingly.
Specifically, the upper surface of the water storage tank 3 is movably connected with a tank cover 12 through a hinge, and the middle part of the upper surface of the tank cover 12 is fixedly connected with a water inlet pipe 13.
In this embodiment: the sealing performance of the water storage tank 3 can be improved through the arrangement of the tank cover 12, and water is spilled from the inside of the water storage tank 3 in the moving process.
Specifically, the front of the water storage tank 3 is fixedly connected with a supporting plate 14, the upper surface of the supporting plate 14 is fixedly connected with a servo motor 15, and the output end of the servo motor 15 is fixedly connected with a stirring shaft 16.
In this embodiment: through the setting of (mixing) shaft 16, when the inside liquid medicine that adds of storage water tank 3, can be more even with the liquid medicine mixture.
Specifically, one side of the upper surface of the vehicle body 1 is fixedly connected with a handrail 17, and the handrail 17 is made of stainless steel.
In this embodiment: through the setting of handrail 17, the staff promotes more conveniently.
Specifically, four corners of the lower surface of the vehicle body 1 are fixedly connected with four rollers 18, and the number of the rollers 18 is four.
In this embodiment: through the arrangement of the roller 18, the device can be moved more conveniently and saves labor.
The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.
The utility model discloses a theory of operation and use flow: this a high-efficient sprinkling irrigation equipment is used in afforestation, start the force pump 10, then the force pump 10 can pass through 8 blowout of shower nozzle with 3 inside water liquids of storage water tank, and shower nozzle 8 sets up in three position, then to the place ahead, left side and right side are all irrigated simultaneously, thereby at the inside more plants of irrigating of shortest time, effectively improve sprinkling irrigation efficiency, reduce staff intensity of labour, through gear pole 5, gear 4, fixed pipe 2, handle 11, support frame 6, catheter 7, shower nozzle 8, cooperation setting between screw thread post and the locking cap, staff's accessible is unscrewed the locking cap, turning handle 11, can pass through gear 4 and gear pole 5's cooperation, make catheter 7 carry out altitude mixture control, thereby make the device be applicable to not co-altitude plant and use, improve its practicality.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (6)
1. The utility model provides a high-efficient sprinkling irrigation equipment is used in afforestation, includes automobile body (1), its characterized in that: the upper surface of automobile body (1) is from right to left fixedly connected with fixed pipe (2) and storage water tank (3) in proper order, the inside swing joint of fixed pipe (2) has gear (4), the surface meshing of gear (4) is connected with gear pole (5), one end fixedly connected with support frame (6) of gear pole (5), the last fixed surface of support frame (6) is connected with catheter (7), the surface fixedly connected with shower nozzle (8) of catheter (7), the one end fixedly connected with rubber hose (9) of catheter (7), one end fixedly connected with force pump (10) of catheter (7) are kept away from to rubber hose (9).
2. The efficient sprinkling irrigation apparatus for landscaping as claimed in claim 1, wherein: the back fixedly connected with screw thread post of gear (4), the surface threaded connection of screw thread post has the locking cap, the front fixedly connected with handle (11) of gear (4).
3. The efficient sprinkling irrigation apparatus for landscaping as claimed in claim 1, wherein: the upper surface of the water storage tank (3) is movably connected with a tank cover (12) through a hinge, and the middle part of the upper surface of the tank cover (12) is fixedly connected with a water inlet pipe (13).
4. The efficient sprinkling irrigation apparatus for landscaping as claimed in claim 1, wherein: the front face of the water storage tank (3) is fixedly connected with a supporting plate (14), the upper surface of the supporting plate (14) is fixedly connected with a servo motor (15), and the output end of the servo motor (15) is fixedly connected with a stirring shaft (16).
5. The efficient sprinkling irrigation apparatus for landscaping as claimed in claim 1, wherein: one side of the upper surface of the vehicle body (1) is fixedly connected with a handrail (17), and the handrail (17) is made of stainless steel.
6. The efficient sprinkling irrigation apparatus for landscaping as claimed in claim 1, wherein: the four corners of the lower surface of the vehicle body (1) are fixedly connected with idler wheels (18), and the number of the idler wheels (18) is four.
