Abstract
The utility model discloses a common-box bus duct, which comprises a bus duct installation box, wherein a base is installed at the bottom of the bus duct installation box, a first slider groove and a second slider groove are formed in the top of the base, sliders are respectively arranged in the first slider groove and the second slider groove, a first fixing frame and a second fixing frame are respectively installed at the top of each slider, a first bus duct, a second bus duct and a third bus duct are installed in the first fixing frame and the second fixing frame, fixing bolts are respectively installed at two ends of the first fixing frame and the second fixing frame, a heat dissipation visible window is formed in the top of the bus duct installation box, the common-box bus duct can be pulled out from the box body during installation, then the common-box bus duct is rapidly installed, the common-box bus duct is reset and then fixed after installation, the common-box bus duct is not influenced by the box body, the installation operation is convenient, the flexibility is strong, the, the stability can be strong, the fastness can be strong, the heat dispersion is strong, and the service life is long.
Description
Technical Field
The utility model relates to a bus duct field specifically is a case bus duct altogether.
Background
The bus duct is a closed metal device formed from copper and aluminium bus posts, and is used for distributing large power for every element of dispersion system. Wire and cable have been increasingly replaced in indoor low voltage power transmission mains engineering projects. The application of bus duct is very extensive, especially involves case bus duct altogether, and current case bus duct function singleness altogether needs to dismantle whole box when often wiring, then installs, and very loaded down with trivial details complicacy, and the flexibility is poor, and the installation of whole box is also very complicated with the dismantlement moreover, and inconvenient people use.
Disclosure of Invention
The utility model aims at prior art's defect, provide a total case bus duct to solve the problem that above-mentioned background art provided.
In order to achieve the above object, the utility model provides a following technical scheme: a common-box bus duct comprises a bus duct installation box, wherein a base is installed at the bottom of the bus duct installation box, a first slider groove and a second slider groove are formed in the top of the base, sliders are arranged in the first slider groove and the second slider groove, a first fixing frame and a second fixing frame are respectively installed at the top of each slider, a first bus duct, a second bus duct and a third bus duct are installed in the first fixing frame and the second fixing frame, fixing bolts are installed at two ends of the first fixing frame and the second fixing frame, a heat dissipation visible window is formed in the top of the bus duct installation box, a first fixing plate is installed at one side of the bus duct installation box, a second fixing plate is installed at the other side of the bus duct installation box, movable grooves are formed in the first fixing plate and the second fixing plate, and a second connecting plate is installed at one end of the installation box, first connecting plate is installed to the other end of bus duct install bin, all seted up the bolt hole on first connecting plate and the second connecting plate.
As a preferred technical scheme of the utility model, the base welding is on the bottom of bus duct install bin, first connecting plate and second connecting plate all link to each other with bus duct install bin welding.
As a preferred technical scheme of the utility model, first bus duct, second bus duct and third bus duct all install on first mount and second mount through the bolt, the slider passes through the bolt and installs on the bottom of first mount and second mount.
As an optimized technical scheme of the utility model, fixing bolt passes through the screw thread with base and first mount and second mount and links to each other.
As an optimal technical scheme of the utility model, the slider links to each other with first slider groove and second slider groove activity.
As a preferred technical scheme of the utility model, first fixed plate and second fixed plate all link to each other with the bus duct install bin welding, the bus duct install bin is fixed on pre-buried threaded rod through first fixed plate and second fixed plate.
As a preferred technical scheme of the utility model, first connector is all installed to the one end of first bus duct, second bus duct and third bus duct, the second connector is all installed to the other end of first bus duct, second bus duct and third bus duct, first connector and second connector are all installed on bus duct insulation mounting bracket.
The utility model has the advantages that: this be total case bus duct when the installation, can pull out the bus duct from the box in, then install fast, reset the bus duct after the installation then fix, can not receive the influence of box, the installation operation of being convenient for, the flexibility is strong, easy operation is convenient, the installation of box is very simple and convenient, and stability can be strong, and firm performance is strong, and heat dispersion is strong, long service life.
Drawings

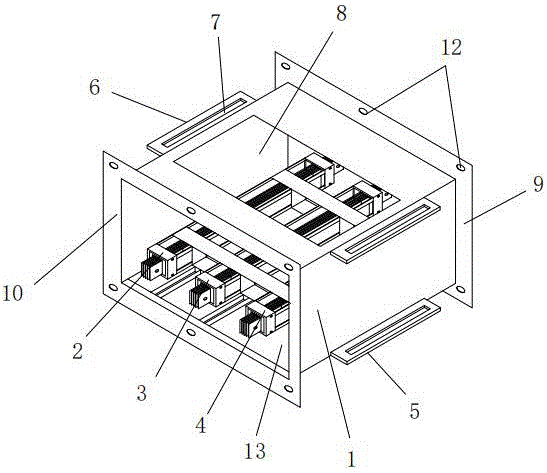

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of a partial structure of the present invention;
fig. 3 is the utility model discloses bus duct structure schematic.
In the figure: 1. bus duct install bin, 2, first bus duct, 3, second bus duct, 4, third bus duct, 5, first fixed plate, 6, second fixed plate, 7, the activity groove, 8, the heat dissipation visual window, 9, first connecting plate, 10, the second connecting plate, 11, fixing bolt, 12, the bolt hole, 13, the base, 14, first mount, 15, the second mount, 16, first slider groove, 17, the second slider groove, 18, the slider, 19, the insulating mounting bracket of bus duct, 20, first connector, 21, the second connector.
Detailed Description
The following detailed description of the preferred embodiments of the present invention will be provided in conjunction with the accompanying drawings, so that the advantages and features of the present invention can be more easily understood by those skilled in the art, and the protection scope of the present invention can be clearly and clearly defined.
Example (b): referring to fig. 1-3, the present invention provides a technical solution: a common-box bus duct comprises a bus duct installation box 1, wherein a base 13 is installed at the bottom of the bus duct installation box 1, a first slider groove 16 and a second slider groove 17 are formed in the top of the base 13, sliders 18 are respectively arranged in the first slider groove 16 and the second slider groove 17, a first fixing frame 14 and a second fixing frame 15 are respectively installed at the top of each slider 18, a first bus duct 2, a second bus duct 3 and a third bus duct 4 are installed in the first fixing frame 14 and the second fixing frame 15, fixing bolts 11 are respectively installed at two ends of the first fixing frame 14 and the second fixing frame 15, a heat dissipation visual window 8 is arranged at the top of the bus duct installation box 1, a first fixing plate 5 is installed at one side of the bus duct installation box 1, a second fixing plate 6 is installed at the other side of the bus duct installation box 1, movable grooves 7 are respectively installed on the first fixing plate 5 and the second fixing plate 6, a second connecting plate 10 is installed at one, first connecting plate 9 is installed to the other end of bus duct installing bin 1, has all seted up bolt hole 12 on first connecting plate 9 and the second connecting plate 10.
The base 13 is welded on the bottom of the bus duct installation box 1, and the first connecting plate 9 and the second connecting plate 10 are both connected with the bus duct installation box 1 in a welding mode.
The first bus duct 2, the second bus duct 3 and the third bus duct 4 are all installed on a first fixing frame 14 and a second fixing frame 15 through bolts, and the sliding block 18 is installed on the bottoms of the first fixing frame 14 and the second fixing frame 15 through bolts.
The fixing bolt 11 is connected with the base 13 and the first fixing frame 14 and the second fixing frame 15 through threads.
The slider 18 is movably connected to the first slider slot 16 and the second slider slot 17.
First fixed plate 5 and second fixed plate 6 all link to each other with bus duct install bin 1 welding, and bus duct install bin 1 is fixed on pre-buried threaded rod through first fixed plate 5 and second fixed plate 6.
The working principle is as follows: a common-box bus duct comprises a bus duct installation box 1, a first bus duct 2, a second bus duct 3, a third bus duct 4, a first fixing plate 5, a second fixing plate 6, a movable groove 7, a heat dissipation visual window 8, a first connecting plate 9, a second connecting plate 10, a fixing bolt 11, a bolt hole 12, a base 13, a first fixing frame 14, a second fixing frame 15, a first slider groove 16, a second slider groove 17, a slider 18, a bus duct insulation installation frame 19, a first connecting head 20 and a second connecting head 21, when the bus duct needs to be installed, the first bus duct 2, the second bus duct 3 and the third bus duct 4 are moved in the second slider groove 17 through the slider 18 by disassembling the fixing bolt 11 at the bottom of the base 13, so that the first bus duct 2, the second bus duct 3 and the third bus duct 4 are pulled out of the bus duct installation box 1, then install the bus duct that needs the installation on first bus duct 2 or second bus duct 3 or third bus duct 4, after the installation, reset first mount 14 and second mount 15, rethread fixing bolt 11 is fixed base 13 and first mount 14 and second mount 15, thereby with first bus duct 2, second bus duct 3 and third bus duct 4 are fixed to the inside of bus duct install bin 1, be convenient for the staff installs, after the installation, through alternating the activity groove 7 on first fixed plate 5 and the second fixed plate 6 on the pre-buried threaded rod, rethread nut is fixed, thereby fix bus duct install bin 1, heat dissipation visual window 8 has been seted up at the top of bus duct install bin 1, can dispel the heat.
This be total case bus duct when the installation, can pull out the bus duct from the box in, then install fast, reset the bus duct after the installation then fix, can not receive the influence of box, the installation operation of being convenient for, the flexibility is strong, easy operation is convenient, the installation of box is very simple and convenient, and stability can be strong, and firm performance is strong, and heat dispersion is strong, long service life.
The above examples only show some embodiments of the present invention, and the description thereof is more specific and detailed, but not to be construed as limiting the scope of the invention. It should be noted that, for those skilled in the art, without departing from the spirit of the present invention, several variations and modifications can be made, which are within the scope of the present invention.
Claims (7)
1. The utility model provides a case bus duct altogether, includes bus duct install bin (1), its characterized in that: a base (13) is installed at the bottom of the bus duct installation box (1), a first slider groove (16) and a second slider groove (17) are formed in the top of the base (13), sliders (18) are arranged in the first slider groove (16) and the second slider groove (17), a first fixing frame (14) and a second fixing frame (15) are respectively installed at the tops of the sliders (18), a first bus duct (2), a second bus duct (3) and a third bus duct (4) are installed in the first fixing frame (14) and the second fixing frame (15), fixing bolts (11) are respectively installed at two ends of the first fixing frame (14) and the second fixing frame (15), a heat dissipation window (8) is formed in the top of the bus duct installation box (1), a first bus duct fixing plate (5) is installed at one side of the bus duct installation box (1), a second fixing plate (6) is installed at the other side of the installation box (1), activity groove (7) have all been seted up on first fixed plate (5) and second fixed plate (6), second connecting plate (10) are installed to the one end of bus duct install bin (1), first connecting plate (9) are installed to the other end of bus duct install bin (1), bolt hole (12) have all been seted up on first connecting plate (9) and second connecting plate (10).
2. A common box bus duct according to claim 1, characterized in that: the base (13) is welded on the bottom of the bus duct installation box (1), and the first connecting plate (9) and the second connecting plate (10) are both connected with the bus duct installation box (1) in a welding mode.
3. A common box bus duct according to claim 1, characterized in that: the first bus duct (2), the second bus duct (3) and the third bus duct (4) are all installed on a first fixing frame (14) and a second fixing frame (15) through bolts, and the sliding block (18) is installed on the bottoms of the first fixing frame (14) and the second fixing frame (15) through bolts.
4. A common box bus duct according to claim 1, characterized in that: the fixing bolt (11) is connected with the base (13), the first fixing frame (14) and the second fixing frame (15) through threads.
5. A common box bus duct according to claim 1, characterized in that: the sliding block (18) is movably connected with the first sliding block groove (16) and the second sliding block groove (17).
6. A common box bus duct according to claim 1, characterized in that: first fixed plate (5) and second fixed plate (6) all link to each other with bus duct install bin (1) welding, bus duct install bin (1) is fixed on pre-buried threaded rod through first fixed plate (5) and second fixed plate (6).
7. A common box bus duct according to claim 1, characterized in that: first connector (20) are all installed to the one end of first bus duct (2), second bus duct (3) and third bus duct (4), second connector (21) are all installed to the other end of first bus duct (2), second bus duct (3) and third bus duct (4), first connector (20) and second connector (21) are all installed on bus duct insulation mounting bracket (19).
