本实用新型提供一种吊顶系统边部暗藏灯带节点结构，下吊顶板与墙体之间留有凹槽，该凹槽顶面设有上吊顶板，下吊顶板于凹槽底面伸出80‑150mm；所述下吊顶板与上吊顶板均通过吊装组件吊装于顶板下方，上吊顶板背面的主龙骨与下吊顶板之间设有第一基层阻燃板，该第一基层阻燃板背面的上、下两端分别于上吊顶板与下吊顶板背面的主龙骨底面设有角钢，第一基层阻燃板外侧面底部通过螺丝固定有U型安装槽，该U型安装槽底面贴于下吊顶板突出部分且设有粘结胶粘结，U型安装槽内安装有灯带，上吊顶板与次龙骨之间还设有第二基层阻燃板。
The utility model provides a node structure of a lamp belt hidden at the edge of a ceiling system, a groove is left between the lower ceiling board and the wall, the top surface of the groove is provided with an upper ceiling board, and the lower ceiling board protrudes 80 degrees from the bottom surface of the groove. ‑150mm; the lower ceiling panel and the upper ceiling panel are both hoisted under the ceiling panel by hoisting components, and a first base flame retardant board is provided between the main keel on the back of the upper ceiling panel and the lower ceiling panel, and the first base flame retardant board The upper and lower ends of the back are respectively provided with angle steel on the bottom surface of the main keel on the back of the upper ceiling panel and the lower ceiling panel. The bottom of the outer side of the first base flame retardant panel is fixed with a U-shaped installation groove by screws, and the bottom surface of the U-shaped installation groove is pasted. The protruding part of the lower ceiling board is provided with adhesive glue, a light strip is installed in the U-shaped installation groove, and a second base flame retardant board is also arranged between the upper ceiling board and the secondary keel.
Description
Technical Field
The utility model relates to an architectural decoration field especially relates to a lamp area node structure is hidden to ceiling system limit portion.
Background
The hidden lamp strip is a common aesthetic method in a ceiling system of building decoration in recent years, can create a good visual effect, and is widely adopted at present, but the hidden lamp strip has no definite node method at present, so that no standardized node structure reference exists in the construction process, and the phenomena of poor aesthetic effect and unstable structure are easy to occur in the later period.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to prior art's defect with not enough, provide a ceiling system limit portion hides lamp area node structure, this ceiling system limit portion hides lamp area node structure reasonable in design, and aesthetic property is good, and the structure is firm, and has superior fire prevention effect.
In order to achieve the above object, the utility model adopts the following technical scheme: a hidden lamp belt node structure at the edge of a suspended ceiling system comprises a lower suspended ceiling plate, a wall body, a groove, an upper suspended ceiling plate, a hoisting assembly, a top plate, screws, a first base layer flame-retardant plate, angle steel, a U-shaped mounting groove, a lamp belt, a second base layer flame-retardant plate, a first clad gypsum board, a second clad gypsum board, an emulsion paint finish coat and finished gypsum lines; a groove is reserved between the lower ceiling plate and the wall body, and an upper ceiling plate is arranged on the top surface of the groove; the lower ceiling plate extends out of 80-150mm from the bottom surface of the groove; the lower ceiling plate and the upper ceiling plate are both hoisted below the top plate through hoisting assemblies; the hoisting assembly comprises a secondary keel, a secondary keel hanger, a main keel hanger, a suspender and a nut; the lower ceiling plate and the upper ceiling plate are fixed on the secondary keel through screws, and the secondary keel is hung below the main keel through a secondary keel hanger; the upper end of the suspender is implanted into the bottom surface of the top plate, and the lower end of the suspender is fastened with a main keel pendant through two nuts; the main keel is clamped on the main keel hanging piece; a first base layer flame-retardant plate is arranged between the main keel at the back of the upper ceiling plate and the lower ceiling plate, and angle steel is respectively arranged at the upper end and the lower end of the back of the first base layer flame-retardant plate on the bottom surface of the main keel at the back of the upper ceiling plate and the bottom surface of the lower ceiling plate; one side of the angle steel is welded on the main keel, and the other side of the angle steel is provided with a screw so as to fix the first base layer flame-retardant plate on the angle steel; the bottom of the outer side surface of the first base layer flame-retardant plate is fixed with a U-shaped mounting groove through screws, and the bottom surface of the U-shaped mounting groove is attached to the protruding part of the lower ceiling plate and is provided with a bonding adhesive for bonding; a lamp strip is arranged in the U-shaped mounting groove; a second base layer flame-retardant plate is arranged between the upper ceiling plate and the secondary keel; a first clad gypsum board is fixed on the outer side surface of the first base flame-retardant board through screws; a second clad gypsum board is fixed on the end face of the lower ceiling plate through screws in the U-shaped mounting groove; emulsion paint finish coats are scraped on the outer surfaces of the lower ceiling board, the upper ceiling board, the first cladding gypsum board and the second cladding gypsum board.
Preferably, the width of the groove is 300-500 mm.
Preferably, the upper ceiling plate is 200mm higher than the top surface of the lower ceiling plate by 100 mm.
Preferably, the U-shaped mounting groove is made of stainless steel, and the surface of the U-shaped mounting groove is subjected to rust prevention and insulation treatment.
Preferably, finished gypsum lines are bonded at the corners of the wall body and the upper ceiling plate.
The utility model has the advantages that: the hidden lamp belt node at the edge of the suspended ceiling system is reasonable in structural design, good in aesthetic property, stable in structure and excellent in fireproof effect.
Drawings

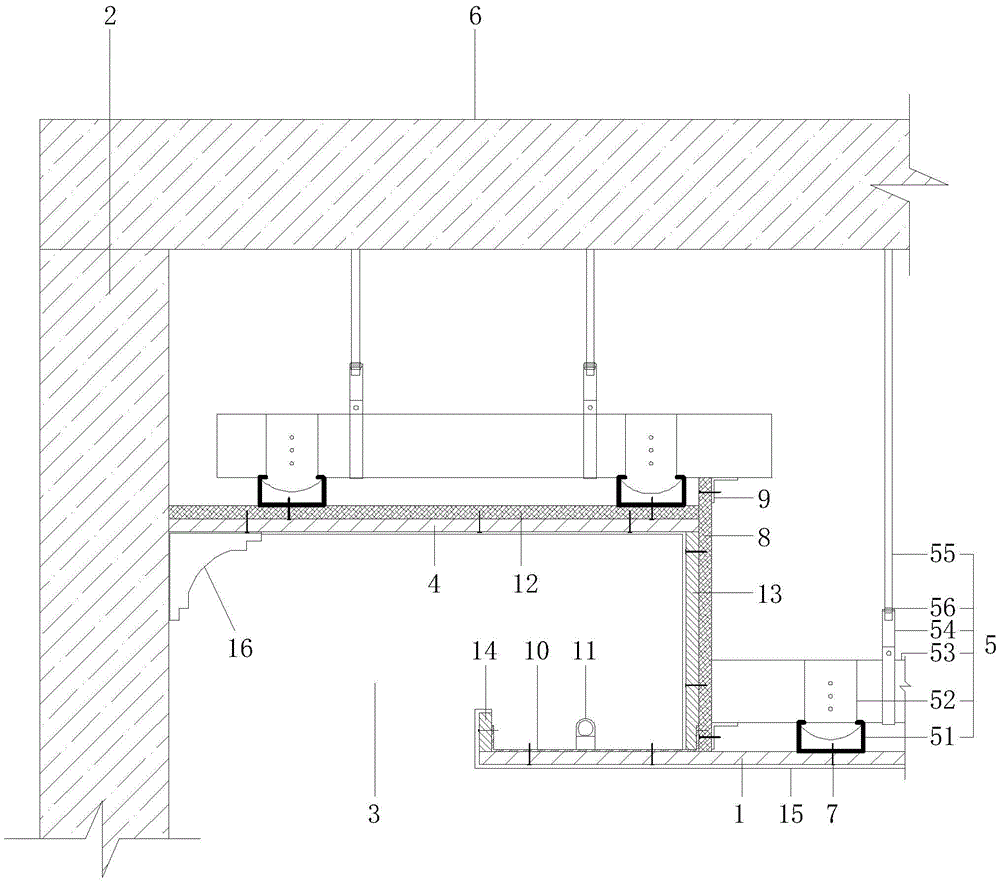

Fig. 1 is a schematic view of a structure of a lamp strip node hidden at the edge of a suspended ceiling system.
Wherein: 1 is the furred ceiling board down, 2 is the wall body, 3 is the recess, 4 is the furred ceiling board, 5 is hoisting assembly, 51 is the secondary joist, 52 is the secondary joist pendant, 53 is the main joist, 54 is the main joist pendant, 55 is the jib, 56 is the nut, 6 is the roof, 7 is the screw, 8 is the fire-retardant board of first basic unit, 9 is the angle steel, 10 is U type mounting groove, 11 is the lamp area, 12 is the fire-retardant board of second basic unit, 13 is first cladding gypsum board, 14 is second cladding gypsum board, 15 is emulsion paint finish coat, 16 is the finished product gypsum lines.
Detailed Description
The present invention will be described in further detail with reference to fig. 1.
As shown in fig. 1, the edge hidden lamp strip node structure of the suspended ceiling system comprises a lower suspended ceiling plate 1, a wall body 2, a groove 3, an upper suspended ceiling plate 4, a hoisting component 5, a top plate 6, a screw 7, a first base layer flame retardant plate 8, angle steel 9, a U-shaped mounting groove 10, a lamp strip 11, a second base layer flame retardant plate 12, a first clad gypsum board 13, a second clad gypsum board 14, an emulsion paint decorative layer 15 and a finished product gypsum line 16; a groove 3 is reserved between the lower ceiling plate 1 and the wall body 2, and an upper ceiling plate 4 is arranged on the top surface of the groove 3; the lower ceiling plate 1 extends out 80-150mm from the bottom surface of the groove 3; the lower ceiling plate 1 and the upper ceiling plate 4 are both hoisted below the top plate 6 through the hoisting assembly 5; the hoisting assembly 5 comprises a secondary keel 51, a secondary keel hanger 52, a main keel 53, a main keel hanger 54, a hanger rod 55 and a nut 56; the lower ceiling plate 1 and the upper ceiling plate 4 are both fixed on a secondary keel 51 through screws 7, and the secondary keel 51 is hung below a main keel 53 through a secondary keel hanger 52; the upper end of the suspension rod 55 is embedded into the bottom surface of the top plate 6, and the lower end of the suspension rod 55 is fastened with a main keel hanging piece 54 through two nuts 56; the main keel 53 is clamped on the main keel hanging piece 54; a first base layer flame-retardant plate 8 is arranged between the main keel 53 on the back surface of the upper ceiling plate 4 and the lower ceiling plate 1, and angle steel 9 is respectively arranged at the upper end and the lower end of the back surface of the first base layer flame-retardant plate 8 on the bottom surfaces of the main keels 53 on the back surfaces of the upper ceiling plate 4 and the lower ceiling plate 1; one side of the angle steel 9 is welded on the main keel 53, and the other side of the angle steel 9 is provided with a screw 7 so as to fix the first base layer flame retardant plate 8 on the angle steel 9; a U-shaped mounting groove 10 is fixed at the bottom of the outer side surface of the first base layer flame-retardant plate 8 through a screw 7, and the bottom surface of the U-shaped mounting groove 10 is attached to the protruding part of the lower ceiling plate 1 and is provided with a bonding adhesive; a lamp strip 11 is arranged in the U-shaped mounting groove 10; a second base layer flame-retardant plate 12 is also arranged between the upper ceiling plate 4 and the secondary keel 51; a first clad gypsum board 13 is fixed on the outer side surface of the first base flame-retardant board 8 through screws 7; a second clad gypsum board 14 is fixed on the end face of the lower ceiling plate 1 of the U-shaped mounting groove 10 through a screw 7; and emulsion paint finish coat 15 is scraped on the outer surfaces of the lower ceiling plate 1, the upper ceiling plate 4, the first clad gypsum board 13 and the second clad gypsum board 14.
In specific implementation, the width of the groove 3 is 300-500 mm.
In specific implementation, the upper ceiling plate 4 is 100 mm and 200mm higher than the top surface of the lower ceiling plate 1.
In specific implementation, the U-shaped mounting groove 10 is made of stainless steel and the surface thereof is subjected to rust prevention and insulation treatment.
In specific implementation, finished gypsum lines 16 are bonded at the corners of the wall body 2 and the upper ceiling plate 4.
Claims (5)
1. The utility model provides a lamp area node structure is hidden to ceiling system limit portion which characterized in that: the decorative wall comprises a lower ceiling plate, a wall body, a groove, an upper ceiling plate, a hoisting component, a top plate, screws, a first base layer flame-retardant plate, angle steel, a U-shaped mounting groove, a lamp strip, a second base layer flame-retardant plate, a first surface-coated gypsum board, a second surface-coated gypsum board, an emulsion paint decorative layer and finished product gypsum lines; a groove is reserved between the lower ceiling plate and the wall body, and an upper ceiling plate is arranged on the top surface of the groove; the lower ceiling plate extends out of 80-150mm from the bottom surface of the groove; the lower ceiling plate and the upper ceiling plate are both hoisted below the top plate through hoisting assemblies; the hoisting assembly comprises a secondary keel, a secondary keel hanger, a main keel hanger, a suspender and a nut; the lower ceiling plate and the upper ceiling plate are fixed on the secondary keel through screws, and the secondary keel is hung below the main keel through a secondary keel hanger; the upper end of the suspender is implanted into the bottom surface of the top plate, and the lower end of the suspender is fastened with a main keel pendant through two nuts; the main keel is clamped on the main keel hanging piece; a first base layer flame-retardant plate is arranged between the main keel at the back of the upper ceiling plate and the lower ceiling plate, and angle steel is respectively arranged at the upper end and the lower end of the back of the first base layer flame-retardant plate on the bottom surface of the main keel at the back of the upper ceiling plate and the bottom surface of the lower ceiling plate; one side of the angle steel is welded on the main keel, and the other side of the angle steel is provided with a screw so as to fix the first base layer flame-retardant plate on the angle steel; the bottom of the outer side surface of the first base layer flame-retardant plate is fixed with a U-shaped mounting groove through screws, and the bottom surface of the U-shaped mounting groove is attached to the protruding part of the lower ceiling plate and is provided with a bonding adhesive for bonding; a lamp strip is arranged in the U-shaped mounting groove; a second base layer flame-retardant plate is arranged between the upper ceiling plate and the secondary keel; a first clad gypsum board is fixed on the outer side surface of the first base flame-retardant board through screws; a second clad gypsum board is fixed on the end face of the lower ceiling plate through screws in the U-shaped mounting groove; emulsion paint finish coats are scraped on the outer surfaces of the lower ceiling board, the upper ceiling board, the first cladding gypsum board and the second cladding gypsum board.
2. A suspended ceiling system edge concealed light strip node structure as claimed in claim 1, wherein: the width of the groove is 300 mm and 500 mm.
3. A suspended ceiling system edge concealed light strip node structure as claimed in claim 1, wherein: the upper ceiling plate is 100 mm and 200mm higher than the top surface of the lower ceiling plate.
4. A suspended ceiling system edge concealed light strip node structure as claimed in claim 1, wherein: the U-shaped mounting groove is made of stainless steel, and the surface of the U-shaped mounting groove is subjected to rust prevention and insulation treatment.
5. A suspended ceiling system edge concealed light strip node structure as claimed in claim 1, wherein: finished gypsum lines are bonded at the corners of the wall body and the upper ceiling plate.
