The utility model relates to the technical field of hydrolytic acidification treatment devices, and discloses a hydrolysis acidification treatment device for sewage, which comprises a tank body, one side of the tank body is respectively fixedly connected with a water inlet, a detection device and a water outlet, the tank The inside of the tank is provided with a sewage area, an acidification area, an anaerobic area, an aerobic area and a clean water area, and a water pipe is fixedly connected to the inside of the tank body. A disinfection medicine box is fixedly connected to the top of the tank body, a disinfection medicine tube is fixedly connected to the bottom of the disinfection medicine box, a protection tube is fixedly connected to the other side of the tank body, and the tank body is fixedly connected to an electric circuit through the protection tube. A case, the front of the motor case is movably connected with an operation button, a motor is installed inside the motor case, and a rotating shaft is rotatably connected to the output end of the motor. The problem of speeding up the separation of sewage in the acidification zone affects the efficiency.

Description

Sewage is with hydrolysis-acidification treatment device

Technical Field

The utility model relates to a hydrolysis-acidification treatment device technical field specifically is a hydrolysis-acidification treatment device for sewage.

Background

Hydrolysis acidification pretreatment is an effective means for improving the biodegradability of wastewater and enhancing the water quality and water quantity impact resistance of a treatment process, and is favored by many domestic and foreign sewage treatment plants, particularly industrial wastewater treatment plants. The theoretical basis of hydrolytic acidification is Zeikus et al put forward four groups of theories of anaerobic digestion, namely a hydrolysis stage, an acidification stage, an acetogenesis stage and a methanogenesis stage.

However, in the use process of the existing hydrolysis acidification treatment device, sewage can only be naturally separated when in an acidification area, and the hydrolysis acidification treatment is not fast enough, so that the efficiency is affected.

SUMMERY OF THE UTILITY MODEL

Problems to be solved

The utility model aims to solve the defects of the prior art, and provides a hydrolytic acidification treatment device for sewage, which solves the problems that the hydrolytic acidification treatment provided in the background technology is not fast enough and the efficiency is influenced.

(II) technical scheme

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a sewage is with hydrolysising acidizing processing apparatus, includes a jar body, one side difference fixedly connected with water inlet and detection device and the delivery port of the jar body, sewage district, acidizing district, anaerobic zone and aerobic zone and clear water district have been seted up to the inside of the jar body, the inside fixedly connected with water pipe of the jar body, the crossing joint filter in sewage district and acidizing district, the top fixedly connected with disinfection medicine box of the jar body, the bottom fixedly connected with disinfection pencil of disinfection medicine box, the opposite side fixedly connected with protection tube of the jar body, the jar body is through protection tube fixedly connected with motor case, the positive swing joint of motor case has operating button, the internally mounted of motor case has the motor, the output of motor rotates and is connected with the axis of rotation, the outside fixedly connected with stirring leaf of axis of rotation.

Preferably, the tank body is cylindrical in shape and is fixedly connected with the water inlet.

Preferably, the number of the disinfection medicine tubes is two, the disinfection medicine tubes are located at the bottom of the disinfection medicine box, and the disinfection medicine tubes are fixedly connected with the disinfection medicine box.

Preferably, the motor box consists of a motor, a rotating shaft and stirring blades, and the outer surface of the motor box is smooth.

Preferably, the filter is of a filter screen structure, the filter plate is clamped at the intersection of the sewage area and the acidification area, and the filter plate is clamped with the tank body.

Preferably, the water inlet comprises a tank body at the tail end of the water inlet, a disinfection medicine box at the top end of the tank body and a disinfection medicine pipe at the bottom of the disinfection medicine box, and the water inlet is fixedly connected with the tank body.

(III) advantageous effects

Compared with the prior art, the beneficial effects of the utility model are that:

the hydrolytic acidification treatment device for sewage is improved and added on the original basis and is provided with an acidification area, an anaerobic area, an aerobic area and a clear water area, sewage firstly enters the sewage area through a water inlet pipe, then the water in the sewage area passes through a filter plate, large granular substances are blocked behind the filter plate, the water in the sewage area enters the acidification area after passing through the filter plate, after the sewage enters the acidification area, an operation button on a motor box is pressed, a motor is started, the motor is started to drive a rotating shaft to rotate clockwise, then the rotating shaft drives stirring blades to rotate clockwise by three hundred and sixty degrees, the stirring blades accelerate the separation of the sewage in the acidification area, so that the time for separating the sewage in the acidification area is saved, the efficiency for separating the sewage is improved, the water in the acidification area can be separated into anaerobic water and aerobic water, the separated anaerobic water can enter the anaerobic water in the acidification area through a water pipe on the left side, the aerobic water that separates out passes through the water pipe on acidizing district right and gets into aerobic district, then the whole postseparations of water of acidizing district the inside, the disinfection medicine box at jar body top will be opened, the disinfectant of disinfection medicine box the inside will enter anaerobic district and aerobic district the inside through the disinfection pencil, wait to disinfect the back, the water of anaerobic district and aerobic district the inside can get into the clear water district, then whether qualified if the water of detection device detection clear water district the inside, if the hydration check of clear water district the inside will pass through the delivery port discharge, through above setting, make this hydrolysis acidification treatment device have can let the acidizing district with higher speed separate sewage and the purpose of raising the efficiency.

Drawings

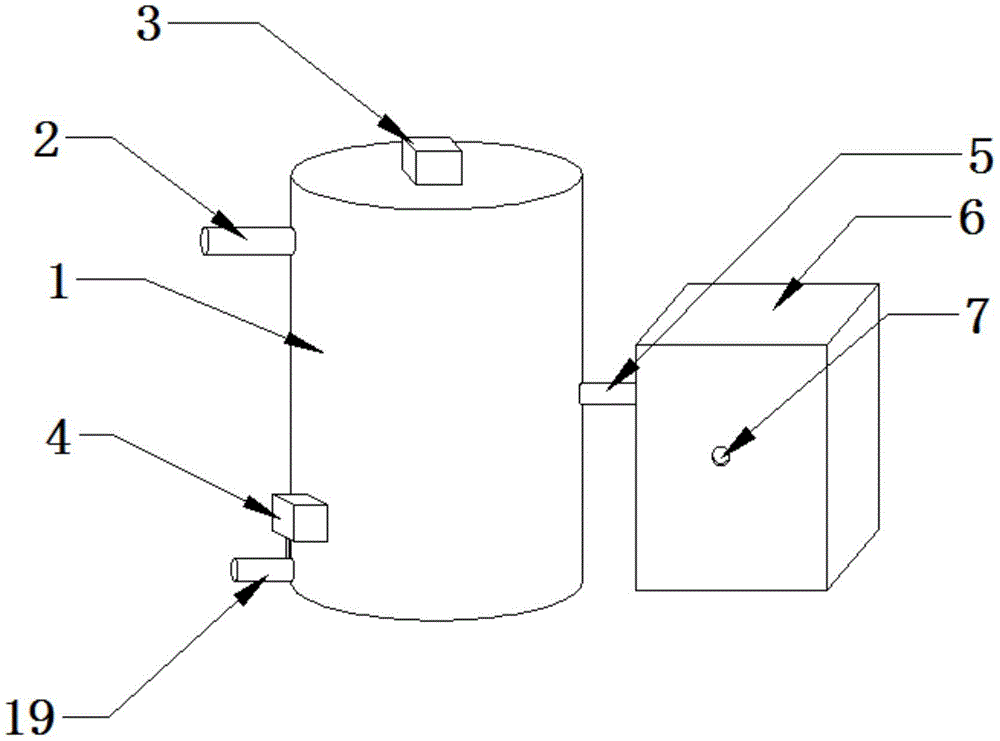

Fig. 1 is a schematic view of the overall structure of the present invention;

fig. 2 is a cross-sectional view of the present invention as a whole;

fig. 3 is a plan view of the whole of the present invention.

In the figure: 1. a tank body; 2. a water inlet; 3. sterilizing the kit; 4. a detection device; 5. protecting the tube; 6. a motor case; 7. an operation button; 8. sterilizing the medicine tube; 9. a motor; 10. a rotating shaft; 11. a filter plate; 12. stirring blades; 13. a sewage area; 14. an acidification zone; 15. an anaerobic zone; 16. a water pipe; 17. an aerobic zone; 18. a clear water zone; 19. and (7) a water outlet.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are used merely for convenience of description and simplification of the description, but do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

Referring to fig. 1-3, the present invention provides a technical solution: a hydrolytic acidification treatment device for sewage comprises a tank body 1, wherein one side of the tank body 1 is respectively and fixedly connected with a water inlet 2, a detection device 4 and a water outlet 19, a sewage area 13, an acidification area 14, an anaerobic area 15, an aerobic area 17 and a clear water area 18 are arranged in the tank body 1, a water pipe 16 is fixedly connected in the tank body 1, a filter plate 11 is clamped at the intersection of the sewage area 13 and the acidification area 14, a disinfection medicine box 3 is fixedly connected at the top end of the tank body 1, a disinfection medicine pipe 8 is fixedly connected at the bottom of the disinfection medicine box 3, a protection pipe 5 is fixedly connected at the other side of the tank body 1, the tank body 1 is fixedly connected with a motor box 6 through the protection pipe 5, an operation button 7 is movably connected at the front side of the motor box 6, a motor 9 is arranged in the motor box 6, and the output end of the motor 9, the outer side of the rotating shaft 10 is fixedly connected with a stirring blade 12.

In this embodiment, it is concrete, the appearance of jar body 1 is "cylindrical", jar body 1 and water inlet 2 fixed connection, jar body 1 is "cylindrical" can handle more sewage, improves work efficiency.

In this embodiment, it is specific, disinfection pencil 8 is provided with two, two disinfection pencil 8 all is located disinfection medicine box 3 bottoms, disinfection pencil 8 and disinfection medicine box 3 fixed connection, two disinfection pencil 8 can let anaerobic zone 15 and aerobic zone 17 disinfect simultaneously, and the water disinfection to usable degree in anaerobic zone 15 and aerobic zone 17 the inside can be disinfected to the disinfectant.

In this embodiment, specifically, the motor case 6 is composed of a motor 9, a rotating shaft 10 and a stirring blade 12, and the outer surface of the motor case 6 is smooth, so that dust adhesion to the motor case 6 can be reduced.

In this embodiment, specifically, the filter plate 11 is a filter screen structure, the intersection of the joint of the filter plate 11 with the sewage area 13 and the acidification area 14, the filter plate 11 is connected with the joint of the tank body 1, and the filter plate 11 can filter out large particulate matters in the sewage area 13.

In this embodiment, specifically, the water inlet 2 includes the jar body 1 of water inlet 2 tail end and the disinfection medicine box 3 on jar body 1 top and the disinfection pencil 8 of disinfection medicine box 3 bottom, water inlet 2 and jar body 1 fixed connection, and the disinfection pencil that needs disinfected 15 and aerobic district 17 are flowed to the anaerobism district that needs to disinfect to disinfection medicine box 3 the inside disinfection pencil 8, then reaches the degree that can use to the water disinfection in these two regions.

The working principle is as follows: firstly, the fixed installation and safety protection of the utility model are checked, firstly, sewage is enabled to enter a sewage area 13 through a water inlet 2, then the water in the sewage area 13 passes through a filter plate 11, large granular substances are blocked behind the filter plate 11, the water in the sewage area 13 passes through the filter plate 11 and enters an acidification area 14, after the sewage enters the acidification area 14, an operating button 7 on a motor box 6 is pressed, a motor 9 is started, the motor 9 is started to drive a rotating shaft 10 to rotate clockwise, then the rotating shaft 10 drives a stirring blade 12 to rotate clockwise by three hundred and sixty degrees, the stirring blade 12 can accelerate the accelerated separation of the sewage in the acidification area 14, the water in the acidification area 14 can be separated into anaerobic water and aerobic water, the separated anaerobic water can enter an anaerobic area 15 through a water pipe 16 on the left side of the acidification area 14, the separated aerobic water can enter an aerobic area 17 through a water pipe 16 on the right side of the acidification area 14, then the whole back that separates of water in the 14 the inside in acidizing district, the disinfection medicine box 3 at the 1 top of jar body will be opened, and the disinfectant of disinfection medicine box 3 the inside will get into anaerobic zone 15 and aerobic zone 17 the inside through disinfection pencil 8, waits to disinfect the back, and the water in anaerobic zone 15 and aerobic zone 17 the inside can get into clear water district 18, then whether qualified if the water of 18 the inside in detection device 4 detection clear water district, if the hydration check of 18 the inside in clear water district will pass through delivery port 19 and discharge, has just so accomplished the utility model discloses a use, the utility model discloses simple structure convenient to use.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Claims

1. A hydrolysis and acidification treatment device for sewage, comprising a tank body (1), characterized in that: a water inlet (2), a detection device (4) and a water outlet are fixedly connected to one side of the tank body (1), respectively. (19), the inside of the tank (1) is provided with a sewage area (13), an acidification area (14), an anaerobic area (15), an aerobic area (17) and a clean water area (18). 1) The interior of the tank (1) is fixedly connected with a water pipe (16), a filter plate (11) is clamped at the intersection of the sewage area (13) and the acidizing area (14), and a disinfection kit (11) is fixedly connected to the top of the tank (1). 3), a disinfectant tube (8) is fixedly connected to the bottom of the disinfection medicine box (3), a protection tube (5) is fixedly connected to the other side of the tank body (1), and the tank body (1) A motor box (6) is fixedly connected through the protection tube (5), an operation button (7) is movably connected to the front of the motor box (6), and a motor (9) is installed inside the motor box (6). A rotating shaft (10) is rotatably connected to the output end of the motor (9), and a stirring blade (12) is fixedly connected to the outer side of the rotating shaft (10).

2 . The hydrolysis and acidification treatment device for sewage according to claim 1 , wherein the tank body ( 1 ) has a “cylindrical” shape, and the tank body ( 1 ) is connected to the water inlet ( 2 ). 3 . Fixed connection.

3. A hydrolysis and acidification treatment device for sewage according to claim 1, characterized in that: there are two disinfectant pipes (8) provided, and both of the disinfectant pipes (8) are located in the disinfectant box (3) At the bottom, the disinfection medicine tube (8) is fixedly connected with the disinfection medicine box (3).

4 . The hydrolysis and acidification treatment device for sewage according to claim 1 , wherein the motor box ( 6 ) is composed of a motor ( 9 ), a rotating shaft ( 10 ) and a stirring blade ( 12 ). The outer surface of the motor box (6) is smooth.

5 . The hydrolysis and acidification treatment device for sewage according to claim 1 , wherein the filter plate ( 11 ) is a filter screen structure, and the filter plate ( 11 ) is clamped to the sewage area ( 13 ) and At the intersection of the acidification zone (14), the filter plate (11) is connected to the tank body (1) by snap connection.

6 . The hydrolysis and acidification treatment device for sewage according to claim 1 , wherein the water inlet ( 2 ) comprises a tank body ( 1 ) at the end of the water inlet ( 2 ) and a tank body ( 1 ) at the top. 7 . The disinfection medicine box (3) and the disinfection medicine pipe (8) at the bottom of the disinfection medicine box (3) are fixedly connected with the tank body (1).
