Abstract
本实用新型公开了一种尾矿污水处理装置，包括箱体、第一电机、罐体和第二电机，所述箱体的上侧内壁固定连接有承接壳，且承接壳的内部连接有支撑杆，所述支撑杆的外部套设连接有弹簧，且支撑杆的右端固定安装有收集箱，所述箱体的中侧内部固定安装有衔接板，且衔接板的右侧上方固定连接有支撑块，且衔接板的后侧上方固定安装有第一电机，所述第一电机的输出端固定连接有传动轮，所述凸块的外部连接有传动环，所述箱体的下侧固定连接有罐体，所述罐体的内部贯穿连接有搅拌杆。该尾矿污水处理装置，在处理过程中，不易被尾矿污水中较大块的杂质堵塞，便于将在罐底的凝结大颗粒絮团排出，实用性高。
The utility model discloses a tailings sewage treatment device, comprising a box body, a first motor, a tank body and a second motor. A receiving shell is fixedly connected to the upper inner wall of the box body, and a support is connected inside the receiving shell. The outside of the support rod is sleeved and connected with a spring, and the right end of the support rod is fixedly installed with a collection box, the middle side of the box body is fixedly installed with a connecting plate, and the upper right side of the connecting plate is fixedly connected with a support A first motor is fixedly installed above the rear side of the connecting plate, a transmission wheel is fixedly connected to the output end of the first motor, a transmission ring is connected to the outside of the convex block, and the lower side of the box is fixedly connected There is a tank body, and a stirring rod is connected through the inside of the tank body. The tailings sewage treatment device is not easy to be blocked by large impurities in the tailings sewage during the treatment process, and it is convenient to discharge the coagulated large particle flocs at the bottom of the tank, and has high practicability.
Description
Technical Field
The utility model relates to a relevant technical field of tailing specifically is a tailing sewage treatment plant.
Background
The tailings are one of the products of mineral separation operation, and the tailings sewage contains a large amount of harmful substances in the process of ore washing operation, so that the tailings sewage treatment device is required to be used for treating the tailings sewage in order to avoid pollution to the environment and underground water.
The general tailing sewage treatment device is easily blocked by larger impurities in tailing sewage in the treatment process, large coagulated particle flocs at the bottom of a tank are inconvenient to discharge, and the practicability is low, so that the tailing sewage treatment device is provided to solve the problems.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a tailing sewage treatment plant to solve general tailing sewage treatment plant who proposes in the above-mentioned background art, in the processing procedure, easily blockked up by more massive impurity in the tailing sewage, and the large granule that condenses at the tank bottoms wads the group and is not convenient for discharge, problem that the practicality is low.
In order to achieve the above object, the utility model provides a following technical scheme: a tailing sewage treatment device comprises a box body, a first motor, a tank body and a second motor, wherein a bearing shell is fixedly connected to the inner wall of the upper side of the box body, a supporting rod is connected to the inside of the bearing shell, a spring is sleeved and connected to the outside of the supporting rod, a collecting box is fixedly mounted at the right end of the supporting rod, a filter plate is arranged at the bottom edge of the collecting box, a connecting plate is fixedly mounted inside the middle side of the box body, a supporting block is fixedly connected to the upper portion of the right side of the connecting plate, and the first motor is fixedly mounted above the rear side of the connecting plate;
the output fixedly connected with drive wheel of first motor, and the outside fixed mounting of drive wheel has the lug, the external connection of lug has the driving ring, and the left side fixed mounting of driving ring has the push rod to the left end of push rod is connected with the collecting box, the downside fixedly connected with jar body of box, and the top fixed mounting of the jar body has the second motor, the inside through connection of the jar body has the puddler, and the downside fixedly connected with stirring leaf of puddler.
Preferably, the bearing shell forms a sliding structure in the support rod, and the longitudinal section of the bearing shell is in a T shape.
Preferably, the supporting rods are uniformly distributed on the left side wall of the collecting box, and the collecting box forms a swinging structure in the box body through the convex blocks.
Preferably, the collecting box forms an elastic structure on the bearing shell through a spring, and the bearing shell is connected with the supporting rod in a clamping mode.
Preferably, the inner part of the connecting plate is provided with a groove-shaped structure, and the groove-shaped structure is arranged corresponding to the position of the filter plate.
Preferably, the longitudinal section of the stirring blade is arc-shaped, and the stirring blade is attached to the bottom of the tank body.
Compared with the prior art, the beneficial effects of the utility model are that: the tailing sewage treatment device is not easily blocked by larger impurities in tailing sewage in the treatment process, is convenient for discharging large coagulated particle flocs at the bottom of the tank, and has high practicability;
1. the filter plate is provided with the spring and the lug, and the collecting box forms a swinging structure in the box body through the lug, so that impurities in the collecting box can swing, the filter plate is prevented from being blocked, and the collecting box forms an elastic structure on the bearing shell through the spring, so that the swinging effect on the impurities can be improved, and the practicability is improved;
2. the collecting box is provided with a bearing shell and a supporting rod, the bearing shell is prevented from sliding down due to the fact that the longitudinal section of the bearing shell is in a T shape, then the supporting rod is uniformly distributed on the left side wall of the collecting box to support the collecting box, stability of the collecting box is improved, a groove-shaped structure is arranged inside the connecting plate and corresponds to the position of the filter plate, sewage filtered by the filter plate is prevented from splashing out, and practicability is further improved;
3. be equipped with jar body and stirring leaf, be the arc through the longitudinal section shape of stirring leaf, can strike off the wadding group that condenses in jar body bottom inner wall, and the rethread stirring leaf is laminated with the bottom of jar body mutually, is convenient for flocculate the group with the granule and discharges.
Drawings

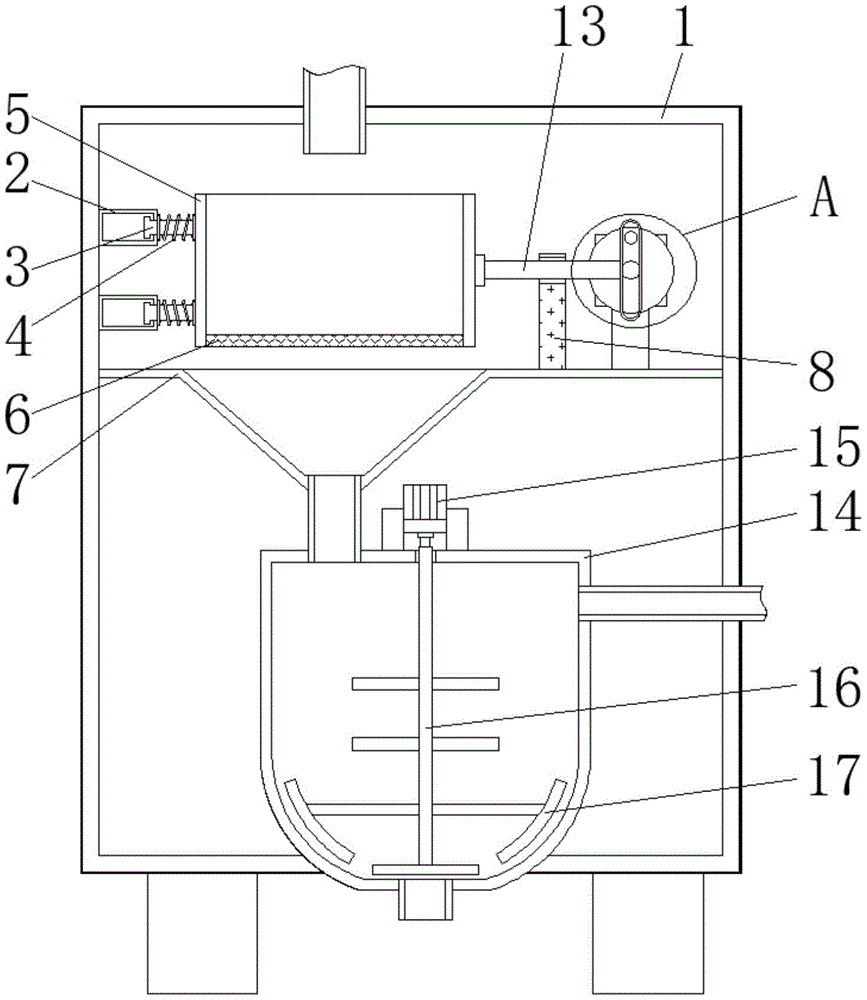

Fig. 1 is a schematic view of the front cross-sectional structure of the present invention;
FIG. 2 is an enlarged schematic view of the structure at A of FIG. 1 according to the present invention;
FIG. 3 is a schematic view of the connection overlooking section structure of the box body and the collecting box of the present invention;
fig. 4 is a schematic view of a side view profile structure of the box body and the support rod of the present invention.
In the figure: 1. a box body; 2. a bearing shell; 3. a support bar; 4. a spring; 5. a collection box; 6. filtering the plate; 7. a connector tile; 8. a support block; 9. a first motor; 10. a driving wheel; 11. a bump; 12. a drive ring; 13. a push rod; 14. a tank body; 15. a second motor; 16. a stirring rod; 17. stirring the leaves.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: a tailing sewage treatment device comprises a box body 1, a bearing shell 2, a supporting rod 3, a spring 4, a collecting box 5, a filter plate 6, a connecting plate 7, a supporting block 8, a first motor 9, a driving wheel 10, a bump 11, a driving ring 12, a push rod 13, a tank body 14, a second motor 15, a stirring rod 16 and a stirring blade 17, wherein the bearing shell 2 is fixedly connected to the inner wall of the upper side of the box body 1, the supporting rod 3 is connected to the inner part of the bearing shell 2, the spring 4 is sleeved and connected to the outer part of the supporting rod 3, the collecting box 5 is fixedly installed at the right end of the supporting rod 3, the filter plate 6 is arranged at the bottom edge of the collecting box 5, the connecting plate 7 is fixedly installed inside the middle side of the box body 1, the supporting block 8 is fixedly connected to the upper side of the connecting plate;
the output fixedly connected with drive wheel 10 of first motor 9, and the outside fixed mounting of drive wheel 10 has lug 11, the external connection of lug 11 has driving ring 12, and the left side fixed mounting of driving ring 12 has push rod 13, and the left end of push rod 13 is connected with collecting box 5, the downside fixedly connected with jar body 14 of box 1, and the top fixed mounting of jar body 14 has second motor 15, the inside through connection of jar body 14 has puddler 16, and the downside fixedly connected with stirring leaf 17 of puddler 16.
As shown in fig. 1, 2 and 4, the receiving shell 2 forms a sliding structure in the supporting rod 3, the longitudinal section of the receiving shell 2 is in a shape of a T, the receiving shell 2 is prevented from sliding off, the supporting rods 3 are uniformly distributed on the left side wall of the collecting box 5, the collecting box 5 forms a swinging structure in the box body 1 through the convex blocks 11, the collecting box 5 is supported, the stability of the collecting box 5 is improved, impurities in the collecting box 5 can be shaken, and the filter plate 6 is prevented from being blocked;
as shown in fig. 1 and 3, the collecting box 5 forms an elastic structure on the receiving shell 2 through the spring 4, and the receiving shell 2 is connected with the support rod 3 in a clamping manner, so that the shaking effect on impurities can be improved, the practicability is improved, the interior of the connecting plate 7 is provided with a groove-shaped structure, and the groove-shaped structure is arranged corresponding to the position of the filter plate 6, so that the sewage filtered by the filter plate 6 is prevented from splashing out, and the practicability is further improved;
as shown in figure 1, the longitudinal section of the stirring blade 17 is arc-shaped, and the stirring blade 17 is attached to the bottom of the tank 14, so that flocculated particles in the inner wall of the bottom of the tank 14 can be scraped, and the particles can be discharged conveniently.
The working principle is as follows: when the tailing sewage treatment device is used, firstly, as shown in fig. 1, fig. 2 and fig. 4, tailing sewage is guided into the collection box 5 through a pipeline above the box body 1, the first motor 9 is started at the same time, the first motor 9 drives the transmission ring 12 to slide through the transmission wheel 10 and the lug 11, so that the push rod 13 can drive the collection box 5 to swing left and right, impurities in the collection box 5 are shaken, the filter plate 6 is prevented from being blocked, the collection box 5 forms an elastic structure on the bearing shell 2 through the spring 4, the shaking effect on the impurities can be improved, the practicability is improved, the support rod 3 is clamped with the bearing shell 2 while the collection box 5 swings, the stability of the collection box 5 can be improved, and meanwhile, the support block 8 has a supporting function on the push rod 13;
finally, as shown in fig. 1 and fig. 3, the filtered sewage enters the tank 14 through the groove-shaped structure in the connection plate 7, meanwhile, a flocculating agent is introduced through the pipeline on the right side of the tank 14, the second motor 15 is started to drive the tank 14 and the stirring blade 17 to stir and mix the sewage, the sewage is finally precipitated and discharged through the drain pipe at the bottom of the tank 14, and the stirring blade 17 can scrape coagulated flocs in the inner wall at the bottom of the tank 14, so that the granular flocs can be discharged conveniently, which is the whole process of the tailing sewage treatment device.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
