Abstract
The utility model discloses a overhead hoist based on laminated glass production usefulness relates to overhead hoist technical field, needs a plurality of motor combined action to current overhead hoist's promotion and removal to realize, and the control degree of difficulty is bigger, and the wasting of resources is more serious, and the problem that efficiency is relatively lower now proposes following scheme, including placing the board, the top right side fixedly connected with driving motor who places the board, the first screw rod of driving motor's output shaft fixedly connected with, the outside fixed cover of first screw rod is equipped with the fourth gear, the top of placing the board is rotated and is connected with the pivot, the fixed cover in outside of pivot is equipped with the third gear, the outside slip cover of pivot is equipped with the second gear, third gear and fourth gear engagement transmission. The utility model relates to a novelty, simple structure, convenient operation can realize controlling hoisting device's promotion and removal through a driving motor, and the control degree of difficulty is lower, has effectively practiced thrift the resource, and efficiency is higher relatively.
Description
Technical Field
The utility model relates to a overhead hoist technical field especially relates to an overhead hoist based on laminated glass production usefulness.
Background
The lifting and moving of the existing lifting device are realized by the combined action of a plurality of motors, the control difficulty is high, the resource waste is serious, and the efficiency is low, so that the lifting device for producing the laminated glass is provided.
SUMMERY OF THE UTILITY MODEL
The utility model provides a pair of overhead hoist based on laminated glass production usefulness, the promotion and the removal of having solved current overhead hoist need a plurality of motor combined action to realize, and the control degree of difficulty is bigger, and the wasting of resources is more serious, problem that efficiency is lower relatively.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a lifting device for production based on laminated glass comprises a placing plate, wherein a driving motor is fixedly connected to the right side of the top of the placing plate, a first screw rod is fixedly connected to an output shaft of the driving motor, a fourth gear is fixedly sleeved on the outer portion of the first screw rod, a rotating shaft is rotatably connected to the top of the placing plate, a third gear is fixedly sleeved on the outer portion of the rotating shaft, a second gear is sleeved on the outer portion of the rotating shaft in a sliding manner, the third gear is in meshing transmission with the fourth gear, a stand column is fixedly connected to the right side of the top of the placing plate, a transverse plate is slidably connected to the left side of the stand column, a fixing plate is fixedly connected to the bottom of the transverse plate, a second bearing is fixedly connected to the bottom of the fixing plate, a second screw rod is fixedly sleeved on the inner portion of the second bearing, a first gear is fixedly connected to the, and the outer threaded sleeve of the second screw is provided with a laminated glass placing main body.
Preferably, the two sides of the bottom of the placing plate are fixedly connected with supporting columns, the top of the placing plate is fixedly connected with a first bearing, and the inside of the first bearing is fixedly sleeved with the rotating shaft.
Preferably, the right side of diaphragm is seted up threaded hole and fixed orifices, first screw rod runs through the threaded hole, the pivot runs through the fixed orifices.
Preferably, the top fixedly connected with slider of body is placed to laminated glass, the spout has been seted up to the bottom of diaphragm, the slider slides and sets up in the spout.
Preferably, the outer part of the rotating shaft is sleeved with a third bearing, the outer ring of the third bearing is fixedly connected with the transverse plate, and the inner ring of the third bearing is fixedly connected with the second gear.
Preferably, the outer part of the rotating shaft is provided with meshing teeth, the inner wall of the second gear is provided with meshing grooves, and the rotating shaft is matched with the meshing grooves in the inner wall of the second gear through the meshing teeth.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses an erection bracing post, place the board, first bearing, driving motor, the stand, first gear, the apparatus further comprises a rotating shaft, the second gear, the second bearing, the third gear, first screw rod, the fourth gear, the third bearing, the fixed plate, the spout, the slider, the diaphragm, the second screw rod, intermediate layer glass places the main part, the screw hole, fixed orifices isotructure, can realize controlling hoisting device's promotion and removal through a driving motor, whole device modern design, moreover, the steam generator is simple in structure, high durability and convenient operation, the control degree of difficulty is lower, effectively practiced thrift the resource, efficiency is relatively higher.
Drawings

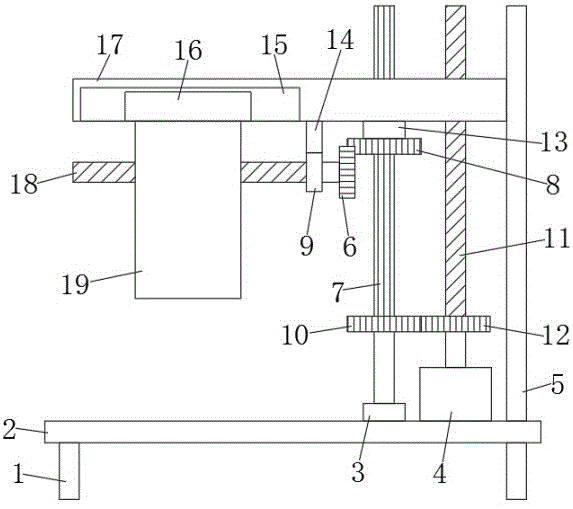

Fig. 1 is a schematic front view structure diagram of a lifting device for producing laminated glass according to the present invention;
fig. 2 is the utility model provides a structural schematic is overlooked based on overhead hoist of laminated glass production usefulness.
In the figure: the glass placing device comprises a supporting column 1, a placing plate 2, a first bearing 3, a driving motor 4, an upright post 5, a first gear 6, a rotating shaft 7, a second gear 8, a second bearing 9, a third gear 10, a first screw rod 11, a fourth gear 12, a third bearing 13, a fixing plate 14, a sliding chute 15, a sliding block 16, a transverse plate 17, a second screw rod 18 and a laminated glass 19, and is characterized in that a main body, threaded holes 20 and fixing holes 21 are placed on the laminated glass.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-2, the present solution provides an embodiment: a lifting device for producing laminated glass comprises a placing plate 2, a driving motor 4 is fixedly connected to the right side of the top of the placing plate 2, a first screw 11 is fixedly connected to an output shaft of the driving motor 4, a fourth gear 12 is fixedly sleeved outside the first screw 11, a rotating shaft 7 is rotatably connected to the top of the placing plate 2, a third gear 10 is fixedly sleeved outside the rotating shaft 7, a second gear 8 is slidably sleeved outside the rotating shaft 7, the third gear 10 and the fourth gear 12 are in meshing transmission, an upright post 5 is fixedly connected to the right side of the top of the placing plate 2, a transverse plate 17 is slidably connected to the left side of the upright post 5, a fixing plate 14 is fixedly connected to the bottom of the transverse plate 17, a second bearing 9 is fixedly connected to the bottom of the fixing plate 14, a second screw 18 is fixedly sleeved inside the second bearing 9, a first gear 6 is fixedly connected to the right end of the second screw 18, and the first gear 6 is, the outer thread of the second screw 18 is sleeved with a laminated glass placing body 19.
In this embodiment, place board 2's bottom both sides fixedly connected with support column 1, place board 2's top fixedly connected with first bearing 3, the inside and the fixed cover of pivot 7 of first bearing 3 are established.
In this embodiment, the transverse plate 17 has a threaded hole 20 and a fixing hole 21 on the right side, the first screw 11 penetrates through the threaded hole 20, and the rotating shaft 7 penetrates through the fixing hole 21.
In this embodiment, the top of the laminated glass placing main body 19 is fixedly connected with the sliding block 16, the bottom of the transverse plate 17 is provided with the sliding groove 15, and the sliding block 16 is slidably arranged in the sliding groove 15.
In this embodiment, the outer sleeve of the rotating shaft 7 is provided with the third bearing 13, the outer ring of the third bearing 13 is fixedly connected with the transverse plate 17, and the inner ring of the third bearing 13 is fixedly connected with the second gear 8.
In this embodiment, the outer portion of the rotating shaft 7 is provided with engaging teeth, the inner wall of the second gear 8 is provided with engaging grooves, and the rotating shaft 7 is matched with the engaging grooves of the inner wall of the second gear 8 through the engaging teeth.
The working principle is that firstly, the driving motor 4 is started, the driving motor 4 drives the first screw rod 11 to rotate, the transverse plate 17 in threaded transmission with the first screw 11 moves upwards, the transverse plate 17 drives the laminated glass placing main body 19 to move upwards, the first screw 11 also drives the fourth gear 12 to rotate, the third gear 10 which is meshed with the fourth gear 12 for transmission also rotates, the third gear 10 drives the rotating shaft 7 to rotate, the rotating shaft 7 drives the second gear 8 to rotate, the first gear 6 which is engaged with the second gear 8 for transmission also rotates, the first gear 6 drives the second screw 18 to rotate, the laminated glass placing main body 19 which is in threaded transmission with the second screw 18 moves leftwards, and then can realize controlling hoisting accessory's promotion and removal through a driving motor 4, whole device novel design, simple structure, convenient operation, the control degree of difficulty is lower, has effectively practiced thrift the resource, and efficiency is higher relatively.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The lifting device for producing the laminated glass comprises a placing plate (2) and is characterized in that a driving motor (4) is fixedly connected to the right side of the top of the placing plate (2), a first screw (11) is fixedly connected to an output shaft of the driving motor (4), a fourth gear (12) is fixedly sleeved on the outer portion of the first screw (11), a rotating shaft (7) is rotatably connected to the top of the placing plate (2), a third gear (10) is fixedly sleeved on the outer portion of the rotating shaft (7), a second gear (8) is slidably sleeved on the outer portion of the rotating shaft (7), the third gear (10) is meshed with the fourth gear (12) for transmission, an upright post (5) is fixedly connected to the right side of the top of the placing plate (2), a transverse plate (17) is slidably connected to the left side of the upright post (5), and a fixing plate (14) is fixedly connected to the bottom of the transverse plate (17), the bottom fixedly connected with second bearing (9) of fixed plate (14), the inside fixed cover of second bearing (9) is equipped with second screw rod (18), the first gear of right-hand member fixedly connected with (6) of second screw rod (18), first gear (6) and second gear (8) meshing transmission, the outside screw thread cover of second screw rod (18) is equipped with laminated glass and places main part (19).
2. The lifting device for producing laminated glass according to claim 1, wherein two sides of the bottom of the placing plate (2) are fixedly connected with supporting columns (1), the top of the placing plate (2) is fixedly connected with a first bearing (3), and the inside of the first bearing (3) is fixedly sleeved with a rotating shaft (7).
3. The lifting device for producing laminated glass according to claim 1, wherein a threaded hole (20) and a fixing hole (21) are formed in the right side of the transverse plate (17), the first screw (11) penetrates through the threaded hole (20), and the rotating shaft (7) penetrates through the fixing hole (21).
4. The lifting device for producing laminated glass according to claim 1, wherein a sliding block (16) is fixedly connected to the top of the laminated glass placing main body (19), a sliding groove (15) is formed in the bottom of the transverse plate (17), and the sliding block (16) is arranged in the sliding groove (15) in a sliding mode.
5. The lifting device for producing laminated glass according to claim 1, wherein a third bearing (13) is sleeved outside the rotating shaft (7), the outer ring of the third bearing (13) is fixedly connected with the transverse plate (17), and the inner ring of the third bearing (13) is fixedly connected with the second gear (8).
6. The lifting device for producing laminated glass according to claim 1, wherein meshing teeth are arranged outside the rotating shaft (7), meshing grooves are formed in the inner wall of the second gear (8), and the rotating shaft (7) is matched with the meshing grooves in the inner wall of the second gear (8) through the meshing teeth.
