Abstract
本实用新型涉及垃圾消毒技术领域，且公开了一种智能垃圾消毒装置，包括垃圾桶体和桶盖，所述垃圾桶体的外侧壁固定有支撑架，所述桶盖的外侧壁一体成型有连接件，所述支撑架远离所述垃圾桶体的一端位于所述连接件的内部，且所述支撑架的前表面和后表面均固定有伺服马达，两个所述伺服马达的输出的一端分别与所述连接件的内部前表面和内部后表面固定连接；当需要丢弃垃圾的时候，走近垃圾桶体后，当红外线传感器感应到人靠近后，会启动两个伺服马达带动桶盖开启，此时人们可以将垃圾丢弃到垃圾袋中，当人走远后，两个伺服马达会带动桶盖关闭，此时桶盖上的第一传感器监测到垃圾袋中存在垃圾，会开启紫外线灯，从而可以对垃圾袋中的垃圾进行消毒。
The utility model relates to the technical field of garbage disinfection, and discloses an intelligent garbage disinfection device, which comprises a trash can body and a bucket cover. A support frame is fixed on the outer side wall of the trash can body, and the outer side wall of the bucket cover is integrally formed with a A connecting piece, one end of the support frame away from the trash can body is located inside the connecting piece, and a servo motor is fixed on the front surface and the rear surface of the support frame, and one end of the output of the two servo motors is They are respectively fixedly connected to the inner front surface and the inner rear surface of the connecting piece; when the garbage needs to be discarded, after approaching the trash can body, when the infrared sensor senses that the person is approaching, it will start two servo motors to drive the bucket lid to open , At this time, people can discard the garbage into the garbage bag. When the person walks away, the two servo motors will drive the bucket lid to close. At this time, the first sensor on the bucket lid detects the existence of garbage in the garbage bag and turns on the ultraviolet light. , so that the garbage in the garbage bag can be disinfected.
Description
Technical Field
The utility model relates to a rubbish disinfection technical field specifically is an intelligent rubbish degassing unit.
Background
The garbage is a waste product which loses use value and cannot be utilized, and is an important link of material circulation. The medical garbage bag is made of solid and fluid substances which are not needed or useless, the traditional medical garbage bag is not different from a common garbage bag when not used, but after the medical garbage bag is used, the treatment process needs to be very careful, otherwise, a new infection source is generated due to improper treatment of wastes, a large-area medical accident is caused, the human health is harmed, and for the domestic garbage used by patients in an epidemic area, common cleaners are dared not to be easily contacted without training, and the work of garbage disinfection falls on medical staff, so that the medical garbage bag is extremely inconvenient, time-consuming and labor-consuming.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
To the not enough of prior art, the utility model provides an intelligence rubbish degassing unit has solved the problem that proposes among the above-mentioned background art.
(II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: an intelligent garbage disinfection device comprises a garbage can body and a can cover, wherein a supporting frame is fixed on the outer side wall of the garbage can body, the outer side wall of the barrel cover is integrally formed with a connecting piece, one end of the support frame far away from the garbage barrel body is positioned in the connecting piece, servo motors are fixed on the front surface and the rear surface of the supporting frame, one ends of the outputs of the two servo motors are respectively and fixedly connected with the front surface and the rear surface inside the connecting piece, an infrared sensor is fixed on the top of the outer side wall of the garbage can body, a light-operated alarm device and a garbage filling prompting lamp are sequentially fixed at the bottom of the outer side wall of the garbage can body from left to right, an ultraviolet lamp is fixed on the lower surface of the can cover, and a first sensor and a second sensor are fixed on the lower surface of the barrel cover and are respectively positioned in front of and behind the ultraviolet lamp.
Preferably, the first sensor and the second sensor are a sensor for detecting the presence or absence of garbage and a sensor for detecting whether the garbage is filled.
Preferably, the device further comprises a garbage bag, a mouth locking rope penetrates through the opening of the garbage bag, a spring buckle is arranged in front of the garbage bag, and the mouth locking rope penetrates through the spring.
Preferably, the spring buckle comprises a buckle body, a pressing block and a spring, the pressing block is located at the center of the upper surface of the buckle body and penetrates through the center of the upper surface of the buckle body, the spring is fixed on the lower surface of the inside of the buckle body, one end of the spring is fixedly connected with one side of the pressing block, a plastic film bag is fixed on one side of the pressing block in the inside of the buckle body, and disinfectant is filled in the plastic film bag.
Preferably, a small air bag is fixed inside the garbage bag through a string, a disinfectant is filled inside the small air bag, and a mist spray head is fixed on the top of the small air bag.
Preferably, the small air bag and the garbage bag are made of PE materials.
(III) advantageous effects
The utility model provides an intelligence rubbish degassing unit possesses following beneficial effect:
(1) the utility model discloses when using, in imbedding the garbage bin body with the disposal bag, when needs abandon rubbish, walk nearly garbage bin body back, after infrared sensor senses the people and is close to, can start two servo motor and drive the bung and open, people can abandon rubbish in the disposal bag this moment, walk far back when the people, two servo motor can drive the bung and close, there is rubbish in the disposal bag is monitored to the first sensor on the bung this moment, ultraviolet lamp can be opened, thereby can disinfect the rubbish in the disposal bag, when avoiding opening the bung once more, cause the propagation of bacterial virus, after the rubbish that the second sensor detected in the disposal bag is full, the rubbish warning light is opened, light-operated alarm device begins to report to the police simultaneously, can remind personnel in time to handle the rubbish in the disposal bag.
(2) The utility model provides a garbage bag is after filling with rubbish, people can press the snak link, pull the fore shaft rope simultaneously, the plastic film bag of internal portion can be extruded to the press block on the snak link this moment, thereby can crush the plastic film bag, inside antiseptic solution can flow, and paint on the fore shaft rope, thereby can disinfect to the fore shaft rope, after the sack locking with the garbage bag, then people can press the ballot in the garbage bag, disinfectant in the ballot passes through the blowout of fog shower nozzle, form disinfection fog, thereby can be further disinfect to the rubbish in the garbage bag.
Drawings

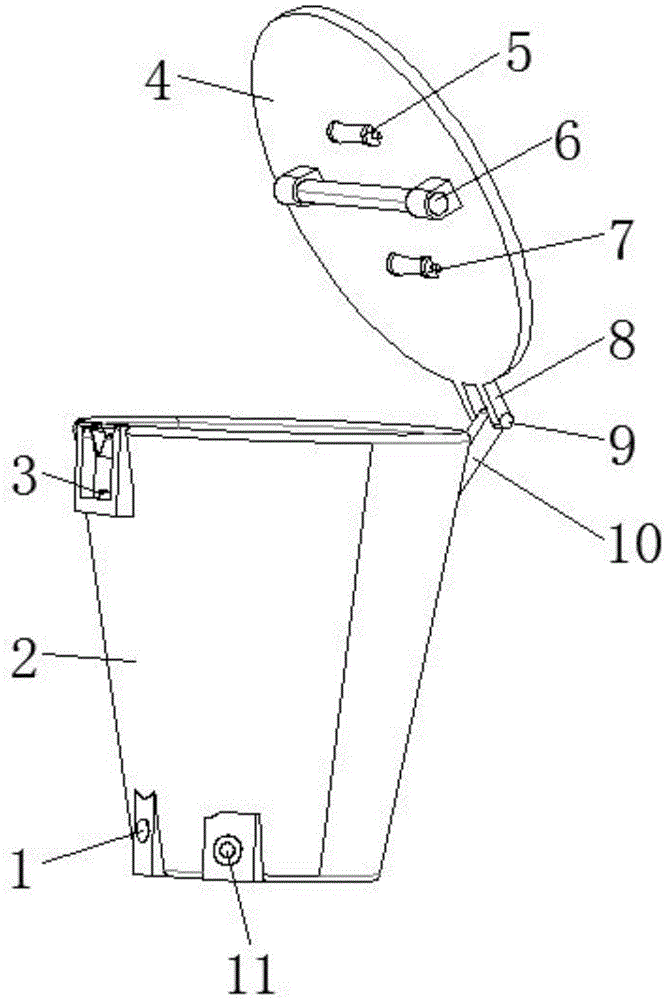

FIG. 1 is a schematic structural view of a garbage can body according to the present invention;
FIG. 2 is a schematic structural view of the garbage bag of the present invention;
fig. 3 is a schematic view of the internal structure of the middle spring buckle of the present invention.
In the figure: 1. a light-operated alarm device; 2. a garbage can body; 3. an infrared sensor; 4. a barrel cover; 5. a first sensor; 6. an ultraviolet lamp; 7. a second sensor; 8. a connecting member; 9. a servo motor; 10. a support frame; 11. a warning light for full filling of garbage; 12. a refuse bag; 13. a small air bag; 14. a mist head; 15. a locking rope; 16. a spring buckle; 1601. a buckle body; 1602. a pressing block; 1603. a spring; 17. a plastic film bag.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1-3, the utility model provides a technical solution: an intelligent garbage disinfection device comprises a garbage can body 2 and a can cover 4, a support frame 10 is fixed on the outer side wall of the garbage can body 2, a connecting piece 8 is integrally formed on the outer side wall of the can cover 4, one end, far away from the garbage can body 2, of the support frame 10 is located inside the connecting piece 8, servo motors 9 are fixed on the front surface and the rear surface of the support frame 10, one ends of outputs of the two servo motors 9 are fixedly connected with the inner front surface and the inner rear surface of the connecting piece 8 respectively, an infrared sensor 3 is fixed on the top of the outer side wall of the garbage can body 2, a light-operated alarm device 1 and a garbage filling prompting lamp 11 are sequentially fixed on the bottom of the outer side wall of the garbage can body 2 from left to right, an ultraviolet lamp 6 is fixed on the lower surface of the can cover 4, a first sensor 5 and a second sensor 7 are fixed on the lower surface of the can cover 4, when in use, the garbage bag 12 is sleeved into the garbage can body 2, when the garbage needs to be discarded, the garbage bag approaches the garbage can body 2, when the infrared sensor 3 senses that a person approaches, the two servo motors 9 are started to drive the barrel cover 4 to open, at the moment, the person can discard the garbage into the garbage bag 12, when a person walks away, the two servo motors 9 drive the barrel cover 4 to close, at the moment, the first sensor 5 on the barrel cover 4 detects that garbage exists in the garbage bag 12, the ultraviolet lamp 6 is started, thereby disinfecting the garbage in the garbage bag 12, avoiding the propagation of bacteria and virus when the barrel cover 4 is opened again, when the second sensor 7 detects that the garbage bag 12 is full of garbage, the garbage full prompt lamp 11 is turned on, meanwhile, the light-operated alarm device 1 starts to alarm, and can remind personnel of timely treating the garbage in the garbage bag 12.
Further, the first sensor 5 and the second sensor 7 are sensors for detecting whether the garbage bag 12 is filled with garbage or not and detecting whether the garbage bag 12 is filled with garbage or not, respectively, the first sensor 5 can detect whether the garbage bag 12 is filled with garbage or not, and the second sensor 7 is used for detecting whether the garbage bag 12 is filled with garbage or not.
Further, the device still includes disposal bag 12, and the sack department of disposal bag 12 wears to be equipped with fore shaft rope 15, and the place ahead of disposal bag 12 is equipped with spring fastener 16, and fore shaft rope 15 runs through spring fastener 16, and after rubbish in disposal bag 12 was full, it pulls fore shaft rope 15 simultaneously to press spring fastener 16 to can lock the sack of disposal bag 12, avoid rubbish to fall out from disposal bag 12, stopped the propagation of bacterial virus to a certain extent simultaneously.
Further, the spring buckle 16 includes a buckle body 1601, a pressing block 1602 and a spring 1603, the pressing block 1602 is located at the center of the upper surface of the buckle body 1601 and penetrates through the center of the upper surface of the buckle body 1601, the spring 1603 is fixed on the inner lower surface of the buckle body 1601, one end of the spring 1603 is fixedly connected with one side of the pressing block 1602, the plastic film bag 17 is fixed on one side of the pressing block 1602 in the buckle body 1601, the plastic film bag 17 is filled with a disinfectant, when the pressing block 1602 on the spring buckle 16 is pressed, the pressing block 1602 presses the plastic film bag 17 at the moment, the plastic film bag 17 can be crushed, the disinfectant in the interior can flow out, and the disinfectant is coated on the fore shaft rope 15, so that the fore shaft rope 15 can be sterilized.
Furthermore, a small air bag 13 is fixed inside the garbage bag 12 through a string, a disinfectant is filled inside the small air bag 13, a mist nozzle 14 is fixed at the top of the small air bag 13, after the bag opening of the garbage bag 12 is locked, people can press the small air bag 13, and the disinfectant in the small air bag 13 is sprayed out through the mist nozzle 14 to form disinfection mist, so that garbage in the garbage bag 12 can be further disinfected.
Furthermore, the small air bag 13 and the garbage bag 12 are made of PE material, the PE material has excellent low temperature resistance, good chemical stability, can resist corrosion of most of acid and alkali, is insoluble in common solvents at normal temperature, has small water absorption, excellent electrical insulation, excellent chemical stability, and can resist corrosion of various chemical substances such as hydrochloric acid, hydrofluoric acid, phosphoric acid, formic acid, amines, sodium hydroxide, potassium hydroxide and the like at room temperature.
To sum up, the utility model discloses a work flow: when the garbage can is used, the garbage bag 12 is sleeved into the garbage can body 2, when garbage needs to be discarded, the garbage can body 2 is approached, when the infrared sensor 3 senses that a person approaches, the two servo motors 9 are started to drive the can cover 4 to be opened, at the moment, the person can discard the garbage into the garbage bag 12, when the person walks away, the two servo motors 9 drive the can cover 4 to be closed, at the moment, the first sensor 5 on the can cover 4 detects that the garbage exists in the garbage bag 12, the ultraviolet lamp 6 is started, therefore, the garbage in the garbage bag 12 can be disinfected, the propagation of bacteria and viruses caused when the can cover 4 is opened again is avoided, when the second sensor 7 detects that the garbage in the garbage bag 12 is full, the garbage filling prompting lamp 11 is started, and meanwhile, the light-controlled alarm device 1 starts to alarm, so that the person can be reminded of timely treating the garbage in the garbage bag 12, then people can press the spring buckle 16 and pull the locking rope 15 at the same time, at the moment, the pressing block 1602 on the spring buckle 16 can press the plastic film bag 17 inside the buckle body 1601, so that the plastic film bag 17 can be crushed, the internal disinfectant can flow out and be coated on the locking rope 15, so that the locking rope 15 can be disinfected, after the opening of the garbage bag 12 is locked, people can press the small air bag 13 in the garbage bag 12, and the disinfectant in the small air bag 13 is sprayed out through the fog nozzle 14 to form disinfection fog, so that the garbage in the garbage bag 12 can be further disinfected.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides an intelligence rubbish degassing unit, includes garbage bin body (2) and bung (4), its characterized in that: a support frame (10) is fixed on the outer side wall of the garbage can body (2), a connecting piece (8) is integrally formed on the outer side wall of the can cover (4), one end, far away from the garbage can body (2), of the support frame (10) is located inside the connecting piece (8), servo motors (9) are fixed on the front surface and the rear surface of the support frame (10), one ends of outputs of the two servo motors (9) are fixedly connected with the inner front surface and the inner rear surface of the connecting piece (8) respectively, an infrared sensor (3) is fixed on the top of the outer side wall of the garbage can body (2), a light-operated alarm device (1) and a garbage filling prompting lamp (11) are sequentially fixed on the bottom of the outer side wall of the garbage can body (2) from left to right, an ultraviolet lamp (6) is fixed on the lower surface of the can cover (4), and a first sensor (5) and a second sensor (7) are fixed on the lower surface of the, the first sensor (5) and the second sensor (7) are respectively positioned in front of and behind the ultraviolet lamp (6).
2. The intelligent garbage disinfection device of claim 1, wherein: the first sensor (5) and the second sensor (7) are sensors for detecting whether garbage exists or not and sensors for detecting whether the garbage is full or not respectively.
3. The intelligent garbage disinfection device of claim 1, wherein: the device further comprises a garbage bag (12), a mouth locking rope (15) penetrates through the opening of the garbage bag (12), a spring fastener (16) is arranged in front of the garbage bag (12), and the mouth locking rope (15) penetrates through the spring fastener (16).
4. An intelligent garbage disinfection apparatus as claimed in claim 3, wherein: the snapclose (16) comprises a buckle body (1601), a pressing block (1602) and a spring (1603), the pressing block (1602) is located at the center of the upper surface of the buckle body (1601) and penetrates through the center of the upper surface of the buckle body (1601), the spring (1603) is fixed on the lower surface of the inside of the buckle body (1601), one end of the spring (1603) is fixedly connected with one side of the pressing block (1602), the inside of the buckle body (1601) is located, a plastic film bag (17) is fixed on one side of the pressing block (1602), and disinfectant is filled in the plastic film bag (17).
5. The intelligent garbage disinfection device of claim 4, wherein: a small air bag (13) is fixed inside the garbage bag (12) through a string, a disinfectant is filled inside the small air bag (13), and a mist spray head (14) is fixed at the top of the small air bag (13).
6. The intelligent garbage disinfection device of claim 5, wherein: the small air bag (13) and the garbage bag (12) are made of PE materials.
