Abstract

The utility model discloses a super thick garage roof concrete mixing device, the power distribution box comprises a box body, the top of box is provided with motor and feeder hopper, the bottom of box is provided with the discharging pipe, be provided with the valve on the discharging pipe, fixedly connected with pivot on the output shaft of motor, the pivot extends to the inside of box, the pivot is being located the first gear of fixedly connected with on the outer wall of box inside, fixedly connected with dead lever on the inside roof of box, the bottom fixedly connected with baffle of dead lever, the inside roof of box rotates through first bearing and is connected with first rotation pipe, the outer wall fixedly connected with second gear of first rotation pipe. The utility model can scrape off the concrete attached to the inner wall of the box body, thereby preventing the concrete from being attached to the box body, reducing the waste of the concrete and prolonging the service life of the device; and the concrete can be stirred more uniformly, so that the stirring effect on the concrete is improved.

Description

Concrete stirring device for top plate of super-thick garage
Technical Field
The utility model relates to a construction machinery technical field especially relates to an ultra-thick garage roof concrete mixing device.
Background
The concrete is needed to be used in the building engineering, and is also called concrete, and is one of the most important civil engineering materials in the present generation. It is made up by using cementing material, aggregate and water according to a certain proportion through the processes of mixing, vibrating, forming and curing under a certain condition. The concrete has the characteristics of rich raw materials, low price and simple production process, so that the dosage of the concrete is increased; meanwhile, the concrete has high compressive strength, good durability and wide strength grade range, so that the application range of the concrete is very wide.
Present super thick garage roof mixes earth agitating unit generally only stirs mixing earth through the stirring leaf, because it is great to mix the earth stickness, has the part to mix earth and adheres to at the box inner wall, and unable the discharge has caused the waste of mixing earth, mixes earth dry and knot after, and the earth that mixes that adheres to at the box inner wall is difficult to clear away, has shortened the life of device.
The person skilled in the art is dedicated to solving the above technical drawbacks.
SUMMERY OF THE UTILITY MODEL
In view of the above-mentioned defect of prior art, the utility model discloses a technique aim at solves present super thick garage roof and mixes earth agitating unit, because it is great to mix the earth stickness, has the part to mix earth and adheres to at the box inner wall, and unable discharge has caused the waste of mixing earth, mixes earth dry and knot after, and the earth that mixes that adheres to at the box inner wall is difficult to clear away, has shortened the life problem of device.
In order to achieve the technical purpose, the utility model provides an ultra-thick garage top plate concrete mixing device, which comprises a box body, wherein the top of the box body is provided with a motor and a feed hopper, the bottom of the box body is provided with a discharge pipe, a valve is arranged on the discharge pipe, a rotating shaft is fixedly connected on an output shaft of the motor and extends to the interior of the box body, the rotating shaft is fixedly connected with a first gear on the outer wall positioned in the interior of the box body, a fixed rod is fixedly connected on the inner top wall of the box body, a baffle is fixedly connected at the bottom end of the fixed rod, the inner top wall of the box body is rotatably connected with a first rotating pipe through a first bearing, a second gear is fixedly connected on the outer wall of the first rotating pipe, the first gear is meshed with the second gear, a rotating rod penetrates through the side wall of the fixed rod, and first conical gears are respectively, the bottom fixedly connected with second bevel gear of first rotating tube, the top of baffle rotates through the second bearing and is connected with the second rotating tube, the top fixedly connected with third bevel gear of second rotating tube, two head rods of two fixedly connected with respectively in the both sides of second rotating tube, two the equal fixedly connected with bull stick of lateral wall of head rod, two a plurality of stirring leaves are all fixed to the lateral wall of bull stick, be provided with on the first rotating tube and strike off the mechanism.
Preferably, the scraping mechanism comprises a first scraper, a second connecting rod and a second scraper, the first scraper is fixedly connected to the bottom end of the rotating rod, one end of the second connecting rod is fixedly connected to the side wall of the first rotating pipe, and one end of the second connecting rod, which is far away from the first rotating pipe, is fixedly connected to the second scraper.
Preferably, both of the first bevel gears are engaged with the second bevel gear, and both of the first bevel gears are engaged with the third bevel gear.
Preferably, the fixing rod penetrates through the first rotating tube and the second rotating tube, and the fixing rod penetrates through the second bevel gear and the third bevel gear.
Preferably, the bottom of box fixedly connected with support column, the bottom of box towards the discharging pipe slope.
Preferably, the two first scrapers are both in contact with the inner bottom wall of the box body, and the two second scrapers are both in contact with the inner side wall of the box body.
The utility model has the advantages that:
due to the above structure design, the utility model drives the rotating shaft to rotate through the motor, and further drives the first gear and the second gear to rotate, the second gear drives the first rotating pipe to rotate, and further drives the second scraper blade to rotate, and can scrape off the concrete attached to the inner side wall of the box body, meanwhile, the first rotating pipe drives the second conical gear to rotate, and further cooperates with the first conical gear to drive the third conical gear to rotate, the third conical gear drives the second rotating pipe to rotate, and further drives the first connecting rod and the rotating rod to rotate, and the rotating rod drives the first scraper blade to rotate, and can scrape off the concrete attached to the inner bottom of the box body, thereby preventing the concrete from being attached to the box body, reducing the waste of the concrete, and prolonging the service life of the device;
drive first conical gear through second conical gear and rotate, first conical gear drives third conical gear towards the direction rotation opposite with second conical gear rotation direction, and then has realized the rotation direction opposite of second scraper blade with the stirring leaf for it is more even to mix earth stirring, thereby has improved the stirring effect to mixing earth.
Drawings

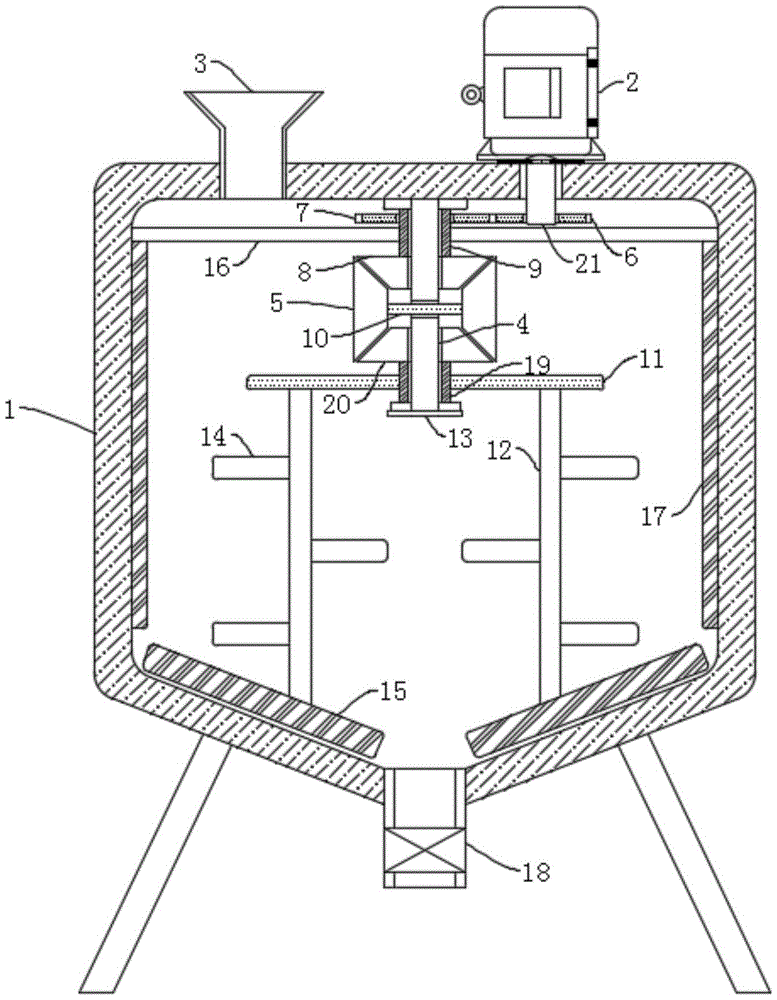

Fig. 1 is a schematic front view of a cross-sectional structure of the present invention;
fig. 2 is a front view of the present invention.
In the figure: the device comprises a box body 1, a motor 2, a feed hopper 3, a fixing rod 4, a first bevel gear 5, a first gear 6, a second gear 7, a second bevel gear 8, a first rotating pipe 9, a rotating rod 10, a first connecting rod 11, a rotating rod 12, a baffle 13, a stirring blade 14, a first scraping plate 15, a second connecting rod 16, a second scraping plate 17, a discharging pipe 18, a second rotating pipe 19, a third bevel gear 20 and a rotating shaft 21.
Detailed Description
The conception, the specific structure and the technical effects of the present invention will be further described with reference to the accompanying drawings, so as to fully understand the objects, the features and the effects of the present invention.
Example (b):
as shown in fig. 1-2, an ultra-thick garage top plate concrete mixing device comprises a box body 1, a box door is rotatably connected to the outside of the box body 1 through a hinge, so as to conveniently clean a mixing blade 14, a first scraper 15 and a second scraper 17 inside the box body 1, a motor 2 and a feed hopper 3 are arranged at the top of the box body 1, a discharge pipe 18 is arranged at the bottom of the box body 1, a valve is arranged on the discharge pipe 18, a rotating shaft 21 is fixedly connected to an output shaft of the motor 2, the rotating shaft 21 extends into the box body 1, a first gear 6 is fixedly connected to an outer wall of the box body 1, a fixing rod 4 is fixedly connected to an inner top wall of the box body 1, a baffle 13 is fixedly connected to the bottom end of the fixing rod 4, a first rotating pipe 9 is rotatably connected to the inner top wall of the box body 1 through a first bearing, and a second gear, first gear 6 and the meshing of second gear 7, the lateral wall of dead lever 4 runs through and is provided with dwang 10, the first conical gear 5 of both ends difference fixedly connected with of dwang 10, the bottom fixedly connected with second conical gear 8 of first rotating tube 9, the top of baffle 13 is connected with second rotating tube 19 through the second bearing rotation, the third conical gear 20 of top fixedly connected with of second rotating tube 19, two head rods 11 of both sides difference fixedly connected with of second rotating tube 19, the equal fixedly connected with bull stick 12 of lateral wall of two head rods 11, a plurality of stirring leaf 14 are all fixed to the lateral wall of two bull stick 12, be provided with on the first rotating tube 9 and strike off the mechanism.
Specifically, the scraping mechanism comprises a first scraper 15, a second connecting rod 16 and a second scraper 17, the first scraper 15 is fixedly connected to the bottom end of the rotating rod 12, one end of the second connecting rod 16 is fixedly connected to the side wall of the first rotating pipe 9, and one end of the second connecting rod 16, which is far away from the first rotating pipe 9, is fixedly connected to the second scraper 17.
Specifically, two first bevel gears 5 are meshed with the second bevel gear 8, and two first bevel gears 5 are meshed with the third bevel gear 20, so that the rotation directions of the second bevel gear 8 and the third bevel gear 20 are opposite.
Specifically, the fixed rod 4 passes through the first rotating tube 9 and the second rotating tube 19, and the fixed rod 4 passes through the second bevel gear 8 and the third bevel gear 20.
Specifically, the bottom fixedly connected with support column of box 1, the bottom of box 1 inclines towards discharging pipe 18, is convenient for discharge the muddy earth that will stir along discharging pipe 18.
Specifically, two first scraper blades 15 all contact with the inside diapire of box 1, and two second scraper blades 17 all contact with the inside lateral wall of box 1, are convenient for strike off the muddy earth that will adhere to at the box 1 inner wall.
The utility model discloses theory of operation and use flow: when the concrete mixing machine is used, a power supply is switched on to start the motor 2, then concrete is poured into the box body 1 along the feed hopper 3, the motor 2 drives the rotating shaft 21 to rotate, the rotating shaft 21 drives the first gear 6 to rotate, the first gear 6 drives the second gear 7 to rotate, the second gear 7 drives the first rotating pipe 9 to rotate, the first rotating pipe 9 drives the second bevel gear 8 to rotate, the second bevel gear 8 drives the second connecting rod 16 to rotate, the second connecting rod 16 drives the second scraper 17 to rotate, the second scraper 17 rotates to scrape off the concrete attached in the box body 1 and stir the concrete, the second bevel gear 8 drives the two first bevel gears 5 to rotate, the two first bevel gears 5 drive the third bevel gear 20 to rotate in the direction opposite to the rotating direction of the second bevel gear 8, the third bevel gear 20 drives the first connecting rod 11 to rotate, the first connecting rod 11 drives the rotating rod 12 to rotate, the bull stick 12 drives stirring leaf 14 and rotates, and stirring leaf 14 rotates and can stir the earth that mixes, and bull stick 12 drives first scraper blade 15 simultaneously and rotates, can strike off the earth that mixes of bottom in can being attached to box 1, and the stirring is accomplished the back, opens the valve, and the earth that mixes that the stirring is good can be along discharging pipe 18 discharges.
The foregoing has described in detail preferred embodiments of the present invention. It should be understood that numerous modifications and variations can be devised by those skilled in the art in light of the teachings of the present invention without undue experimentation. Therefore, the technical solutions that can be obtained by a person skilled in the art through logic analysis, reasoning or limited experiments based on the prior art according to the concepts of the present invention should be within the scope of protection defined by the claims.

Claims (6)

1. The utility model provides an ultra-thick garage roof concrete mixing device, includes box (1), its characterized in that: the top of the box body (1) is provided with a motor (2) and a feed hopper (3), the bottom of the box body (1) is provided with a discharge pipe (18), the discharge pipe (18) is provided with a valve, an output shaft of the motor (2) is fixedly connected with a rotating shaft (21), the rotating shaft (21) extends to the inside of the box body (1), the rotating shaft (21) is fixedly connected with a first gear (6) on the outer wall positioned in the box body (1), the inner top wall of the box body (1) is fixedly connected with a fixed rod (4), the bottom end of the fixed rod (4) is fixedly connected with a baffle (13), the inner top wall of the box body (1) is rotatably connected with a first rotating pipe (9) through a first bearing, the outer wall of the first rotating pipe (9) is fixedly connected with a second gear (7), the first gear (6) is meshed with the second gear (7), the lateral wall of dead lever (4) runs through and is provided with dwang (10), the first conical gear of both ends difference fixedly connected with (5) of dwang (10), the bottom fixedly connected with second conical gear (8) of first rotating tube (9), the top of baffle (13) is rotated through the second bearing and is connected with second rotating tube (19), the top fixedly connected with third conical gear (20) of second rotating tube (19), two first connecting rod (11), two of both sides difference fixedly connected with of second rotating tube (19) the equal fixedly connected with bull stick (12) of lateral wall of bull stick (11), two a plurality of stirring leaf (14) of the equal fixedly connected with of lateral wall of bull stick (12), be provided with on first rotating tube (9) and strike off the mechanism.
2. The ultra-thick garage roof concrete mixing device of claim 1, wherein: scraping mechanism includes first scraper blade (15), second connecting rod (16) and second scraper blade (17), first scraper blade (15) fixed connection be in the bottom of bull stick (12), the one end of second connecting rod (16) with the lateral wall fixed connection of first rotation pipe (9), keep away from in second connecting rod (16) the one end of first rotation pipe (9) with second scraper blade (17) fixed connection.
3. The ultra-thick garage roof concrete mixing device of claim 1, wherein: the two first bevel gears (5) are meshed with the second bevel gear (8), and the two first bevel gears (5) are meshed with the third bevel gear (20).
4. The ultra-thick garage roof concrete mixing device of claim 1, wherein: the fixing rod (4) penetrates through the first rotating pipe (9) and the second rotating pipe (19), and the fixing rod (4) penetrates through the second bevel gear (8) and the third bevel gear (20).
5. The ultra-thick garage roof concrete mixing device of claim 1, wherein: the bottom fixedly connected with support column of box (1), the bottom of box (1) is towards discharging pipe (18) slope.
6. The ultra-thick garage roof concrete mixing device of claim 2, wherein: the two first scrapers (15) are in contact with the inner bottom wall of the box body (1), and the two second scrapers (17) are in contact with the inner side wall of the box body (1).
