Abstract
The utility model discloses an orthopedic nursing traction frame, which comprises a traction frame supporting column, wherein the front bottom of the traction frame supporting column is fixedly connected with a control box, the right side of the top of the traction frame supporting column is movably connected with a movable retractable traction rod, the bottom end of the left side of the movable retractable traction rod is fixedly connected with a fixing frame, the front and the back of the top of the fixing frame are embedded and connected with screws, the periphery of the right side of the movable retractable traction rod is fixedly connected with a fixing block, and the top end of the right side of the movable retractable traction rod is movably connected with a second connecting seat; the utility model discloses in, the in-process that the activity contraction type traction lever carried out altitude mixture control when using, the second connecting seat is fixed on square piece, when first motor drive lead screw rotated, can realize that square piece slides on the lead screw, does benefit to height-adjusting, and electric putter can drive the push rod axle and stretch out and draw back on the level is square to conveniently adjust activity contraction type traction lever length, easy operation.
Description
Technical Field
The utility model belongs to the technical field of orthopedics nursing, specifically be an orthopedics nursing traction frame.
Background
The american society of care defines care as: "Care is the diagnosis and treatment of human response to existing or potential health problems," extending from this definition: modern nursing is a science of how to diagnose and treat human responses to existing or potential health problems, emphasizing "human behavioral responses" in that people respond to a thing in terms of physiological, psychological, social, cultural and mental ways.
The in-process that current orthopedics traction frame used is fixed mostly and is used on the bed, the in-process that its used can not carry out the position removal, thereby can not use for other patients when causing the patient to use, thereby its utilization ratio is lower, and most orthopedics traction frame majority height and length are not adjustable, and also more troublesome during the operation of adjustable traction frame, the structure is numerous and diverse, it is not convenient during the operation, and mobilizable traction frame does not have the supporting seat, lead to the patient to cause the influence to the patient because of traction frame automatic movement at the in-process that uses.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a: in order to solve the problems of inconvenient operation and the like when the height and the length are not adjustable, the orthopedic nursing traction frame is provided.
The utility model adopts the technical scheme as follows:
an orthopedic nursing traction frame comprises a traction frame supporting column, wherein the front of the bottom of the traction frame supporting column is fixedly connected with a control box, the right side of the top of the traction frame supporting column is movably connected with a movable retractable traction rod, the bottom end of the left side of the movable retractable traction rod is fixedly connected with a fixing frame, the front and the back of the top of the fixing frame are embedded and connected with screws, the periphery of the right side of the movable retractable traction rod is fixedly connected with a fixing block, the top end of the right side of the movable retractable traction rod is movably connected with a second connecting seat, the bottom end of the traction frame supporting column is embedded and connected with a supporting seat telescopic shell, and the top end of the;
the utility model discloses a telescopic clamping device of activity retractable traction lever, including the inside inner wall fixedly connected with of activity retractable traction lever, the slide bar is led to the inside inner wall fixedly connected with of activity retractable traction lever, the first connecting seat of left end top and the bottom fixedly connected with of activity retractable traction lever, the inside fixedly connected with electric putter of guide slide bar, electric putter's output shaft fixedly connected with push rod axle, the inside top embedding of the flexible shell of supporting seat is connected with the second motor, the output shaft fixedly connected with dwang of second motor, the lateral wall of dwang runs through there is fixing device, fixing device with dwang threaded connection, fixing device's bottom left side and right side fixedly connected with supporting seat, the bottom middle part embedding of the flexible shell of supporting seat is connected with fixed grip block, the bottom left side and.
The left side of the front bottom of the control box is connected with a power switch in an embedded mode, and the middle of the front bottom of the control box is movably connected with a lifting button.
The top of the right side of the control box is movably connected with a supporting seat button, and the right side of the bottom in front of the control box is movably connected with a traction rod telescopic button.
Wherein, the bottom fixedly connected with couple of mount.
The bottom end of the right side of the movable retractable traction rod is movably connected with a lifting appliance assembly, and the top of the interior of the traction frame supporting column is connected with a controller in an embedded mode.
Wherein, the first motor of inside fixed surface of traction frame support column is connected with, fixed surface is connected with the bearing on the inside of traction frame support column, the output shaft fixedly connected with lead screw of first motor, the one end of lead screw run through in the inside wall of bearing, and with bearing fixed connection, the lateral wall threaded connection of lead screw has square piece, the lateral wall fixedly connected with of square piece first connecting seat, the both sides fixedly connected with draw runner of square piece, the inside wall both sides fixedly connected with guide rail of traction frame support column, the draw runner inlays and establishes the inside wall of guide rail, the draw runner with guide rail sliding connection.
The movable retractable draw bar is formed by combining the guide sliding rod, the first connecting seat, the electric push rod and the push rod shaft together.
Wherein, the flexible shell of supporting seat is the rectangle shape, and the flexible shell of supporting seat is formed by the second motor at the inside top of the flexible shell of supporting seat, the inside dwang of second motor, the fixing device of dwang bottom, the supporting seat of fixing device bottom, the fixed grip block of the flexible shell bottom of supporting seat and the pulley combination of fixed grip block bottom jointly.
To sum up, owing to adopted above-mentioned technical scheme, the beneficial effects of the utility model are that:
1. the utility model discloses in, the in-process that the activity contraction type traction lever carried out altitude mixture control when using, the second connecting seat is fixed on square piece, when first motor drive lead screw rotated, can realize that square piece slides on the lead screw, does benefit to height-adjusting, and electric putter can drive the push rod axle and stretch out and draw back on the level is square to conveniently adjust activity contraction type traction lever length, easy operation.
2. The utility model discloses in, the embedding of second motor is in the inside of the flexible shell of supporting seat, fix the second motor, and the second motor drives inside dwang and rotates at the operation during operation, the dwang lateral wall has the screw thread, at the in-process of rotating, can drive fixing device at vertical square upper shift position, thereby can make the supporting seat support the nursing traction frame, and the flexible shell of in-process supporting seat that supports is fixed the fixed grip block, thereby when making the pulley on the fixed grip block leave the ground, prevent that the traction frame from sliding in-process that uses appearing, prevent to cause the patient to receive the influence, and the material of the flexible shell of supporting seat is stainless steel material, thereby in the in-process of using, rusty phenomenon can not appear.
Drawings

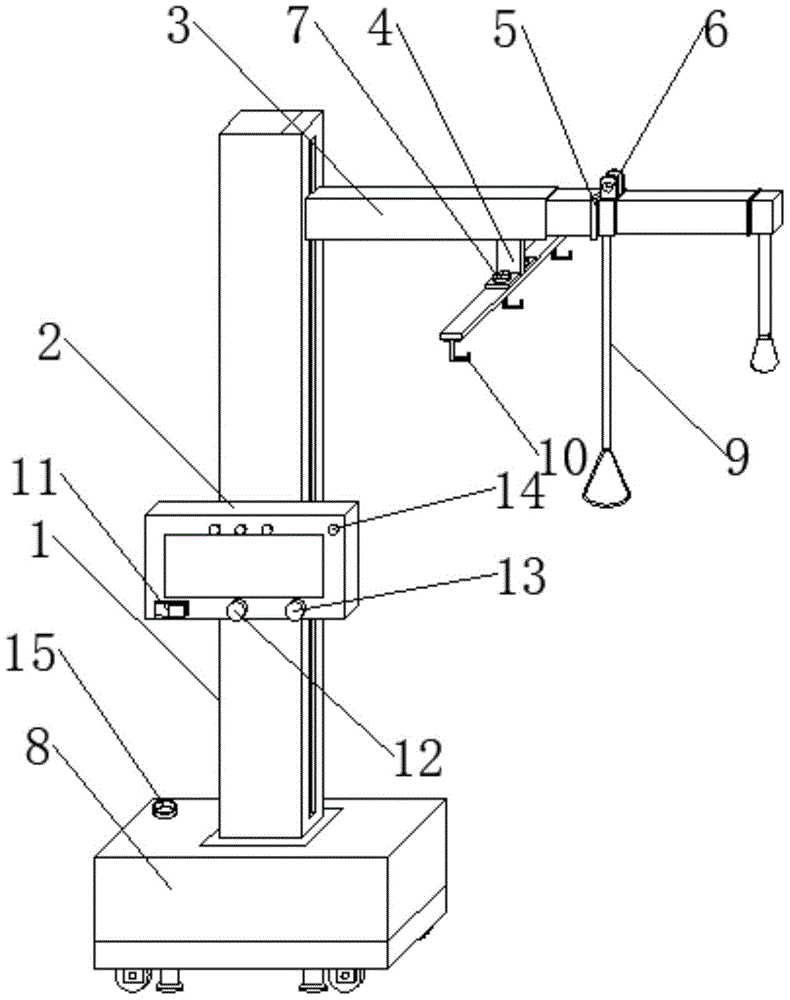

FIG. 1 is a schematic block diagram of the module structure of the present invention;
FIG. 2 is a schematic cross-sectional view of the support column of the traction frame of the present invention;
fig. 3 is a schematic sectional view of the retractable drawbar of the present invention;
fig. 4 is the schematic view of the sectional structure of the telescopic housing of the middle support seat of the present invention.
The labels in the figure are: 1. a traction frame support column; 101. a guide rail; 102. a controller; 103. a slide bar; 104. a square block; 105. a screw rod; 106. a first motor; 107. a bearing; 2. a control box; 3. a movable retractable draw bar; 301. a guide slide bar; 302. a first connecting seat; 303. An electric push rod; 304. a push rod shaft; 4. a fixed mount; 5. a fixed block; 6. a second connecting seat; 7. a screw; 8. a support seat telescopic shell; 801. a second motor; 802. rotating the rod; 803. A fixing device; 804. a supporting seat; 805. fixing the clamping plate; 806. a pulley; 9. a spreader assembly; 10. hooking; 11. a power switch; 12. a lifting button; 13. a draw bar telescopic button; 14. a support seat button; 15. and a power supply connector.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are for purposes of illustration only and are not intended to limit the invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance; furthermore, unless expressly stated or limited otherwise, the terms "mounted," "connected," and "connected" are to be construed broadly, as they may be fixedly connected, detachably connected, or integrally connected, for example; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-4, an orthopedic nursing traction frame comprises a traction frame support column 1, a control box 2 is fixedly connected to the front of the bottom of the traction frame support column 1, a movable retractable traction rod 3 is movably connected to the right side of the top of the traction frame support column 1, a fixed frame 4 is fixedly connected to the bottom end of the left side of the movable retractable traction rod 3, screws 7 are embedded and connected to the front and back of the top of the fixed frame 4, a fixed block 5 is fixedly connected to the periphery of the right side of the movable retractable traction rod 3, a second connecting seat 6 is movably connected to the top end of the right side of the movable retractable traction rod 3, a supporting seat retractable shell 8 is embedded and connected to the bottom end of the traction frame support column 1, a power connector 15 is fixedly connected to the top end of the left side of the supporting seat retractable shell 8, a guide slide rod 301 is fixedly connected to the inner, lead the inside fixedly connected with electric putter 303 of slide bar 301, electric putter 303's output shaft fixedly connected with push rod axle 304, the inside top embedding of the flexible shell 8 of supporting seat is connected with second motor 801, the output shaft fixedly connected with dwang 802 of second motor 801, the lateral wall of dwang 802 runs through fixing device 803, fixing device 803 and dwang 802 threaded connection, the bottom left side and the right side fixedly connected with supporting seat 804 of fixing device 803, the bottom middle part embedding of the flexible shell 8 of supporting seat is connected with fixed grip block 805, the bottom left side and the right side swing joint of fixed grip block 805 have pulley 806, the embedding of the preceding bottom left side of control box 2 is connected with switch 11, the swing joint of the preceding bottom middle part of control box 2 has lifting button 12, the right side top swing joint of control box 2 has supporting seat button 14, the preceding bottom right side swing joint of control box 2 has telescopic button 13 of traction.
The bottom end of the fixed frame 4 is fixedly connected with a hook 10, the bottom end of the right side of the movable retractable traction rod 3 is movably connected with a lifting appliance assembly 9, and the top of the interior of the traction frame support column 1 is connected with a controller 102 in an embedded mode;
orthopedics nursing traction frame is in-process of using, mount 4 is the J shape, medical personnel carry out the in-process of infusing to the patient and hang the infusion bottle when couple 10, can effectually hang the infusion bottle, the mount 4 on couple 10 top is owing to be that aluminum alloy material constitutes, thereby couple 10 can not appear the phenomenons of warping under the pulling force of couple 10 at in-process mount 4 that uses, hoist subassembly 9 is flexible material, hoist subassembly 9 bottom inside embedding is connected with rings, medical personnel's accessible rings are hoisted the shank that the patient fractured, thereby hoist subassembly 9 is fixed rings, thereby prevent that rings from appearing the phenomenon of droing, and activity collapsible traction lever 3 makes its lift work on traction frame support column 1 under the effect of controller 102, thereby adjust the height of activity collapsible traction lever 3.
The movable retractable traction rod 3 is formed by combining a guide sliding rod 301, a first connecting seat 302, an electric push rod 303 and a push rod shaft 304 together;
in the process of height adjustment of the movable retractable type traction rod 3 during use, the first motor 106 operates, the first motor 106 drives the screw rod 105 to rotate, the outer side wall of the screw rod 105 is in threaded connection with the square block 104, the end parts of the sliding strips 103 on two sides of the square block 104 are embedded in the sliding rail 101, in this way, the first motor 106 drives the screw rod 105 to rotate circumferentially, the moving direction of the square block 104 is changed due to the existence of the sliding rail 101 and the sliding strips 103, and the square block 104 slides on the screw rod 105, so that the height adjustment of the movable retractable type traction rod 3 is realized.
The support seat telescopic shell 8 is rectangular, and the support seat telescopic shell 8 is formed by combining a second motor 801 at the top inside the support seat telescopic shell 8, a rotating rod 802 inside the second motor 801, a fixing device 803 at the bottom end of the rotating rod 802, a support seat 804 at the bottom end of the fixing device 803, a fixed clamping plate 805 at the bottom of the support seat telescopic shell 8 and a pulley 806 at the bottom of the fixed clamping plate 805;
the flexible shell 8 of supporting seat is at the in-process that uses, the inside at the flexible shell 8 of supporting seat is embedded in second motor 801, thereby fix second motor 801, and second motor 801 drives inside dwang 802 and rotates at the operation during operation, dwang 802 lateral wall has the screw thread, at the in-process that rotates, second motor 801 makes fixing device 803 position shift under the effect of the flexible shell 8 of supporting seat, and the flexible shell 8 of in-process supporting seat that supports fixes fixed grip block 805, thereby when making pulley 806 on the fixed grip block 805 leave ground, prevent that the traction frame from appearing sliding in the in-process that uses, prevent to cause the patient to receive the influence, and the material of the flexible shell 8 of supporting seat is stainless steel material, thereby in the process of using, rusty phenomenon can not appear.
The working principle is as follows: the orthopedic nursing traction frame is characterized in that the fixing frame 4 is J-shaped, when a medical worker conducts infusion on a patient, the infusion bottle can be effectively hung on the hook 10, the fixing frame 4 at the top end of the hook 10 is made of aluminum alloy materials, so that the fixing frame 4 cannot deform under the tension of the hook 10 in the using process of the hook 10, the lifting appliance assembly 9 is made of flexible materials, a lifting ring is embedded into the bottom end of the lifting appliance assembly 9, the medical worker can lift the fractured leg of the patient through the lifting ring, the lifting appliance assembly 9 fixes the lifting ring, the phenomenon that the lifting ring falls off is avoided, the movable retractable traction rod 3 is lifted on the traction frame supporting column 1 under the action of the controller 102, and the height of the movable retractable traction rod 3 is adjusted;
the flexible shell 8 of supporting seat is at the in-process that uses, the inside at the flexible shell 8 of supporting seat is embedded in second motor 801, thereby fix second motor 801, and second motor 801 drives inside dwang 802 and rotates at the operation during operation, dwang 802 lateral wall has the screw thread, at the in-process that rotates, second motor 801 makes fixing device 803 shift in vertical square upper position under the effect of the flexible shell 8 of supporting seat, and the flexible shell 8 of in-process supporting seat that supports is fixed grip block 805, thereby when making pulley 806 on the fixed grip block 805 leave ground, prevent that the traction frame from appearing sliding in the in-process that uses, prevent to cause the patient to receive the influence, and the material of the flexible shell 8 of supporting seat is stainless steel material, thereby in the use, rusty phenomenon can not appear.
The above description is only exemplary of the present invention and should not be taken as limiting the scope of the present invention, as any modifications, equivalents, improvements and the like made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.
Claims (8)
1. An orthopedic nursing traction frame comprises a traction frame supporting column (1) and is characterized in that, the front of the bottom of the traction frame support column (1) is fixedly connected with a control box (2), the right side of the top of the traction frame supporting column (1) is movably connected with a movable retractable traction rod (3), the bottom end of the left side of the movable retractable traction rod (3) is fixedly connected with a fixed frame (4), the front and the back of the top of the fixing frame (4) are embedded and connected with screws (7), the periphery of the right side of the movable retractable traction rod (3) is fixedly connected with a fixed block (5), the top end of the right side of the movable retractable traction rod (3) is movably connected with a second connecting seat (6), the bottom end of the traction frame support column (1) is embedded and connected with a support seat telescopic shell (8), the top end of the left side of the support seat telescopic shell (8) is fixedly connected with a power supply connector (15);
the inner wall of the movable retractable type traction rod (3) is fixedly connected with a guide sliding rod (301), the top and the bottom of the left end of the movable retractable type traction rod (3) are fixedly connected with a first connecting seat (302), the inner part of the guide sliding rod (301) is fixedly connected with an electric push rod (303), the output shaft of the electric push rod (303) is fixedly connected with a push rod shaft (304), the inner top of the supporting seat retractable shell (8) is connected with a second motor (801) in an embedded manner, the output shaft of the second motor (801) is fixedly connected with a rotating rod (802), the outer side wall of the rotating rod (802) penetrates through a fixing device (803), the fixing device (803) is in threaded connection with the rotating rod (802), the bottom left side and the right side of the fixing device (803) are fixedly connected with a supporting seat (804), and the bottom middle part of the supporting seat retractable shell (8) is connected, pulleys (806) are movably connected to the left side and the right side of the bottom of the fixed clamping plate (805).
2. The orthopedic care traction frame of claim 1, wherein: the left side of the front bottom of the control box (2) is connected with a power switch (11) in an embedded mode, and the middle portion of the front bottom of the control box (2) is movably connected with a lifting button (12).
3. The orthopedic care traction frame of claim 1, wherein: the top of the right side of the control box (2) is movably connected with a supporting seat button (14), and the right side of the front bottom of the control box (2) is movably connected with a traction rod telescopic button (13).
4. The orthopedic care traction frame of claim 1, wherein: the bottom end of the fixing frame (4) is fixedly connected with a hook (10).
5. The orthopedic care traction frame of claim 1, wherein: the bottom end of the right side of the movable retractable traction rod (3) is movably connected with a lifting appliance assembly (9), and the top of the interior of the traction frame supporting column (1) is connected with a controller (102) in an embedded mode.
6. The orthopedic care traction frame of claim 1, wherein: the lower surface of the interior of the traction frame supporting column (1) is fixedly connected with a first motor (106), the upper surface of the interior of the traction frame supporting column (1) is fixedly connected with a bearing (107), an output shaft of the first motor (106) is fixedly connected with a screw rod (105), one end of the screw rod (105) penetrates through the inner side wall of the bearing (107), and is fixedly connected with the bearing (107), the outer side wall of the screw rod (105) is in threaded connection with a square block (104), the outer side wall of the square block (104) is fixedly connected with the first connecting seat (302), the two sides of the square block (104) are fixedly connected with sliding strips (103), the two sides of the inner side wall of the traction frame supporting column (1) are fixedly connected with guide rails (101), the sliding strip (103) is embedded in the inner side wall of the guide rail (101), and the sliding strip (103) is connected with the guide rail (101) in a sliding mode.
7. The orthopedic care traction frame of claim 1, wherein: the movable retractable traction rod (3) is formed by combining the guide sliding rod (301), the first connecting seat (302), the electric push rod (303) and the push rod shaft (304) together.
8. The orthopedic care traction frame of claim 1, wherein: the telescopic supporting seat shell (8) is rectangular, and the telescopic supporting seat shell (8) is formed by combining a second motor (801) at the top inside the telescopic supporting seat shell (8), a rotating rod (802) inside the second motor (801), a fixing device (803) at the bottom end of the rotating rod (802), a supporting seat (804) at the bottom end of the fixing device (803), a fixed clamping plate (805) at the bottom of the telescopic supporting seat shell (8) and a pulley (806) at the bottom of the fixed clamping plate (805) together.
