Abstract
本实用新型公开了一种建筑施工架上的管线固定装置，包括安装板，安装板的底端设置有U型夹块，U型夹块上开设有滑槽，U型夹块通过滑槽卡接在安装板上；U型夹块的一侧穿设有螺杆，螺杆的一端设置有夹块；安装板的顶端设置有滑块，滑块上开设有滑槽，滑块通过滑槽卡接在安装板上；滑块顶端设置有安装套，安装套内穿设有支撑杆，支撑杆顶端设置有第二夹板，第二夹板的一侧设置有安装座，安装座上通过销轴连接有第一夹板，第一夹板上穿设有连接杆，连接杆底端设置有活动夹板，连接杆上套设有弹簧。本实用新型能解决固定装置中的管线夹不能适配不同直径的管线，并且管线夹也不能实现转动，造成使用不够方便的技术问题。
The utility model discloses a pipeline fixing device on a construction frame, which comprises a mounting plate, a U-shaped clamping block is arranged at the bottom end of the mounting plate, a sliding groove is provided on the U-shaped clamping block, and the U-shaped clamping block is clamped through the sliding groove It is connected to the mounting plate; one side of the U-shaped clamping block is provided with a screw rod, and one end of the screw rod is provided with a clamping block; the top of the mounting plate is provided with a sliding block, and a sliding groove is provided on the sliding block, and the sliding block is clamped through the sliding groove On the mounting plate; the top of the slider is provided with a mounting sleeve, a support rod is passed through the mounting sleeve, a second splint is provided at the top of the support rod, and a mounting seat is provided on one side of the second splint, and the mounting seat is connected by a pin shaft. The first splint is provided with a connecting rod, the bottom end of the connecting rod is provided with a movable splint, and a spring is sleeved on the connecting rod. The utility model can solve the technical problem that the pipeline clip in the fixing device cannot be adapted to pipelines of different diameters, and the pipeline clip cannot be rotated, resulting in inconvenient use.
Description
Technical Field
The utility model relates to a pipeline fixing device, specific be a pipeline fixing device on building scaffold.
Background
A scaffold is often used in the construction, and the staff stands and carries out the operation on the scaffold, can use some electric equipment in the effect process, and these electric equipment's electric wire will scatter on the side of scaffold, because the electric wire is numerous, often can stir together, be not convenient for classify fixedly each electric wire, be not convenient for carry out the dismantlement after fixing to the electric wire. And the existing pipeline fixing device can not be adapted to pipelines with different diameters, and the pipeline clamp can not rotate, so that the use is not convenient enough.
SUMMERY OF THE UTILITY MODEL
Not enough to prior art, the utility model provides a pipeline fixing device on construction frame to among the solution prior art, the pipeline that pipeline clamp among the fixing device can not the different diameters of adaptation, and the pipeline clamp can not realize rotating yet, causes to use convenient technical problem inadequately.
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a pipeline fixing device on a construction frame comprises an installation plate, wherein a U-shaped clamping block is arranged at the bottom end of the installation plate, a sliding groove is formed in the U-shaped clamping block, and the U-shaped clamping block is clamped on the installation plate through the sliding groove; a screw rod penetrates through one side of the U-shaped clamping block, and one end of the screw rod is provided with the clamping block; the top end of the mounting plate is provided with a sliding block, a sliding groove is formed in the sliding block, and the sliding block is clamped on the mounting plate through the sliding groove; the fixed installation cover that is provided with in slider top, wear to be equipped with the bracing piece in the installation cover, the fixed second splint that is provided with in bracing piece top, the fixed mount pad that is provided with in one side of second splint, there is first splint through the round pin hub connection on the mount pad, wear to be equipped with the connecting rod on the first splint, the connecting rod bottom mounting is provided with movable splint, the cover is equipped with the spring on the connecting rod, the spring is located first splint with between the movable splint.
As the utility model discloses a preferred technical scheme, the fixed installation piece that is provided with on the bracing piece, wear to be equipped with on the installation piece and support the pole, support the cover and be equipped with the spring on the pole, a plurality of fixed orificess have been seted up on the slider.
As the utility model discloses an optimized technical scheme, first splint with all the fixed block that is provided with on the second splint, on the first splint there is the buckle through the round pin hub connection on the fixed block.
As the utility model discloses an optimized technical scheme, a pot head of screw rod is equipped with the bearing, corresponds the bearing the mounting hole has been seted up on the clamp splice, the bearing card is established in the mounting hole.
As the utility model discloses a preferred technical scheme, second splint inboard is provided with the rubber sleeve.
As the preferred technical scheme of the utility model, U type clamp splice top with fastening screw is worn to be equipped with respectively on the slider top.
As the utility model discloses a preferred technical scheme, there is the baffle at the both ends of mounting panel through the screw connection.
Has the advantages that:
the utility model provides a pipeline fixing device on construction frame possesses following beneficial effect: the inner side of the U-shaped clamping block is provided with the clamping block, one side surface of the clamping block is connected with the screw rod, the screw rod penetrates through the U-shaped clamping block, the clamping block is installed in the U-shaped clamping block, the steel pipe of the construction frame is clamped in the U-shaped clamping block, and the clamping block is enabled to move in the U-shaped clamping block by rotating the screw rod, so that the U-shaped clamping block is clamped on the steel pipe; a sliding groove is formed in the sliding block, and the sliding block is slidably clamped at the top end of the mounting plate by utilizing the sliding groove so that the sliding block can move on the mounting plate; the top end of the sliding block is provided with an installation sleeve, the bottom end of the second clamping plate is provided with a supporting rod, the supporting rod is arranged in the installation sleeve in a penetrating mode, the second clamping plate is installed on the sliding block, the supporting rod penetrates through the installation sleeve and can rotate, and therefore the second clamping plate can also rotate; the first clamping plate is connected to the second clamping plate through a pin shaft, the movable clamping plate is arranged on the first clamping plate, and the movable clamping plate can move between the two clamping plates, so that pipelines with different diameters can be clamped.
Drawings
Fig. 1 is a perspective view of a pipeline fixing device on a construction frame of the present invention;

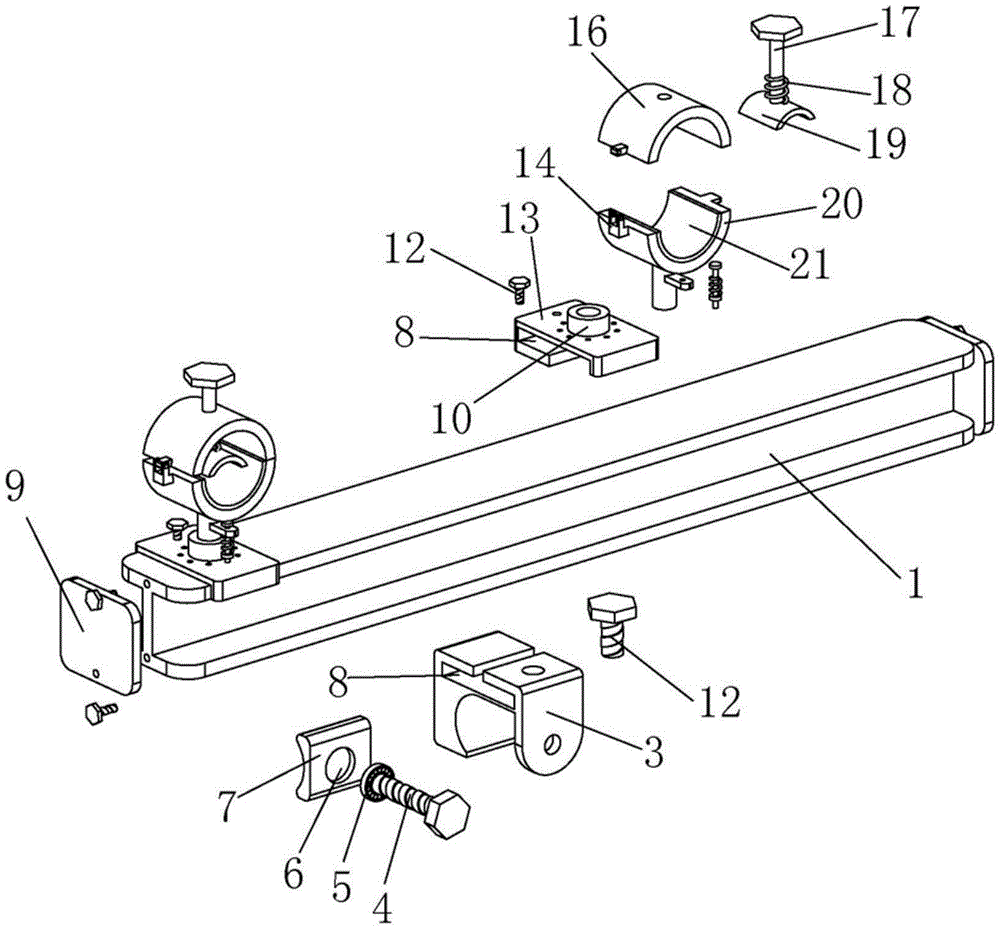

fig. 2 is an exploded view of the pipeline fixing device of the present invention on a construction frame;
fig. 3 is an assembly view of the first clamping plate and the second clamping plate in the pipeline fixing device on the construction frame of the utility model.
In the figure: 1. mounting a plate; 3. a U-shaped clamping block; 4. a screw; 5. a bearing; 6. mounting holes; 7. a clamping block; 8. a chute; 9. a baffle plate; 10. installing a sleeve; 12. fastening screws; 13. a slider; 14. a mounting seat; 16. a first splint; 17. a connecting rod; 18. a spring; 19. a movable splint; 20. a second splint; 21. a rubber sleeve; 22. a fixed block; 23. buckling; 24. a support rod; 25. a fixing hole; 26. mounting blocks; 27. a support rod.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1 to 3, the present invention provides a technical solution: a pipeline fixing device on a construction frame comprises an installation plate 1, wherein a U-shaped clamping block 3 is arranged at the bottom end of the installation plate 1, a sliding groove 8 is formed in the U-shaped clamping block 3, and the U-shaped clamping block 3 is clamped on the installation plate 1 through the sliding groove 8; a screw rod 4 penetrates through one side of the U-shaped clamping block 3, and a clamping block 7 is arranged at one end of the screw rod 4; a sliding block 13 is arranged at the top end of the mounting plate 1, a sliding groove 8 is formed in the sliding block 13, and the sliding block 13 is clamped on the mounting plate 1 through the sliding groove 8; the fixed installation cover 10 that is provided with in slider 13 top, wear to be equipped with bracing piece 27 in the installation cover 10, the fixed second splint 20 that is provided with in bracing piece 27 top, the fixed mount pad 14 that is provided with in one side of second splint 20, there is first splint 16 through the round pin hub connection on the mount pad 14, wear to be equipped with connecting rod 17 on the first splint 16, connecting rod 17 bottom mounting is provided with movable splint 19, the cover is equipped with spring 18 on the connecting rod 17, spring 18 is located first splint 16 with between the movable splint 19.
When the pipeline fixing device on the building scaffold is used, the clamping block 7 is arranged on the inner side of the U-shaped clamping block 3, one side face of the clamping block 7 is connected with the screw rod 4, the screw rod 4 penetrates through the U-shaped clamping block 3, the clamping block 7 is installed in the U-shaped clamping block 3, when the pipeline fixing device is used, a scaffold steel pipe is clamped in the U-shaped clamping block 3, the clamping block 7 is driven to move in the U-shaped clamping block 3 by rotating the screw rod 4, and therefore the U-shaped clamping block 3 is clamped and fixed on the steel pipe; the sliding block 13 is provided with a sliding chute 8, and the sliding block 13 is slidably clamped at the top end of the mounting plate 1 by utilizing the sliding chute 8, so that the sliding block 13 can move on the mounting plate 1, and the requirement of adjusting the distance between the sliding blocks 13 is met; the top end of the sliding block 13 is provided with the mounting sleeve 10, the bottom end of the second clamping plate 20 is provided with the supporting rod 27, the supporting rod 27 is arranged in the mounting sleeve 10 in a penetrating mode, the second clamping plate 20 is mounted on the sliding block 13, and when the clamping device is used, the supporting rod 27 can rotate in the mounting sleeve 10, so that the second clamping plate 20 can also rotate, and the position of the clamping sleeve can be adjusted; the first clamping plate 16 is connected to the second clamping plate 20 through a pin shaft, the movable clamping plate 19 is arranged on the first clamping plate 16, when the pipeline clamping device is used, a pipeline is arranged between the two clamping plates in a penetrating mode, the movable clamping plate 19 is abutted to clamp the pipeline through the elastic force of the spring 18, and the movable clamping plate 19 can move in the two clamping plates, so that the pipeline with different diameters can be clamped.
Referring to fig. 3, the supporting rod 27 is fixedly provided with an installation block 26, a resisting rod 24 penetrates through the installation block 26, a spring 18 is sleeved on the resisting rod 24, and the sliding block 13 is provided with a plurality of fixing holes 25. The bracing piece 27 can realize rotating in the installing sleeve 10 to the realization is adjusted and is installed the position of the cover that presss from both sides on bracing piece 27 top, after whole cover position that presss from both sides was adjusted, through inserting the bottom that will support pole 24 in one of them fixed orifices 25, just can let the bracing piece 27 can not realize rotating in the installing sleeve 10, thereby fix the cover that presss from both sides on bracing piece 27 top on a certain position, utilize the elasticity of the spring 18 that sets up to support the bottom of bracing piece 27 in fixed orifices 25, avoid bracing piece 27 bottom to break away from in the fixed orifices 25.
Referring to fig. 3, fixing blocks 22 are fixedly disposed on the first clamping plate 16 and the second clamping plate 20, and a buckle 23 is connected to the fixing block 22 on the first clamping plate 16 through a pin. After the first clamping plate 16 is covered on the second clamping plate 20, the buckle 23 arranged on the fixing block 22 on the first clamping plate 16 is pulled down to be clamped on the fixing block 22 on the second clamping plate 20, so that the first clamping plate 16 is locked on the second clamping plate 20.
Referring to fig. 2, a bearing 5 is sleeved at one end of the screw rod 4, a mounting hole 6 is formed in the clamping block 7 corresponding to the bearing 5, and the bearing 5 is clamped in the mounting hole 6. The bearing 5 is arranged to prevent the clamping block 7 arranged at one end of the screw rod 4 from rotating when the screw rod 4 is rotated.
Referring to fig. 2, a rubber sleeve 21 is disposed inside the second clamping plate 20. The rubber sleeve 21 can increase friction, so that the pipeline clamped in the two clamping plates is more stable.
Referring to fig. 2, fastening screws 12 are respectively inserted through the top ends of the U-shaped clamping blocks 3 and the top ends of the sliding blocks 13. The U-shaped clamping block 3 and the sliding block 13 can be respectively locked and fixed on the mounting plate 1 through the arranged fastening screw 12, so that the movement cannot be generated.
Referring to fig. 2, two ends of the mounting plate 1 are connected with baffles 9 through screws. The baffle 9 is arranged to prevent the U-shaped clamping block 3 and the sliding block 13 from slipping out of the mounting plate 1 when sliding on the mounting plate 1.
In summary, the sliding groove 8 is formed in the U-shaped clamping block 3, and the U-shaped clamping block 3 is slidably clamped at the bottom end of the mounting plate 1 by the sliding groove 8, so that the U-shaped clamping block 3 can move on the mounting plate 1, and the U-shaped clamping block 3 can be clamped on steel pipes at different positions; the inner side of the U-shaped clamping block 3 is provided with a clamping block 7, one side face of the clamping block 7 is connected with a screw rod 4, the screw rod 4 penetrates through the U-shaped clamping block 3, the clamping block 7 is installed in the U-shaped clamping block 3, when the steel pipe scaffold is used, a steel pipe scaffold is clamped in the U-shaped clamping block 3, the clamping block 7 is made to move in the U-shaped clamping block 3 by rotating the screw rod 4, and therefore the U-shaped clamping block 3 is clamped and fixed on the steel pipe; the sliding block 13 is provided with a sliding chute 8, and the sliding block 13 is slidably clamped at the top end of the mounting plate 1 by utilizing the sliding chute 8, so that the sliding block 13 can move on the mounting plate 1, and the requirement of adjusting the distance between the sliding blocks 13 is met; the top end of the sliding block 13 is provided with the mounting sleeve 10, the bottom end of the second clamping plate 20 is provided with the supporting rod 27, the supporting rod 27 is arranged in the mounting sleeve 10 in a penetrating mode, the second clamping plate 20 is mounted on the sliding block 13, when the clamping device is used, the supporting rod 27 can rotate in the mounting sleeve 10, the second clamping plate 20 can also rotate, the position of the clamping sleeve can be adjusted, after the position of the whole clamping sleeve is adjusted, the supporting rod 27 can not rotate in the mounting sleeve 10 by inserting the bottom end of the supporting rod 24 into one of the fixing holes 25, and therefore the clamping sleeve at the top end of the supporting rod 27 is fixed on a certain position; the first clamping plate 16 is connected to the second clamping plate 20 through a pin, and when the pipeline clamping device is used, a pipeline is inserted between the two clamping plates, and the elastic force of the spring 18 is used for pushing the movable clamping plate 19 to clamp the pipeline.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (7)
1. The utility model provides a pipeline fixing device on construction scaffold which characterized in that: the clamping device comprises a mounting plate (1), wherein a U-shaped clamping block (3) is arranged at the bottom end of the mounting plate (1), a sliding groove (8) is formed in the U-shaped clamping block (3), and the U-shaped clamping block (3) is clamped on the mounting plate (1) through the sliding groove (8); a screw rod (4) penetrates through one side of the U-shaped clamping block (3), and a clamping block (7) is arranged at one end of the screw rod (4); a sliding block (13) is arranged at the top end of the mounting plate (1), a sliding groove (8) is formed in the sliding block (13), and the sliding block (13) is clamped on the mounting plate (1) through the sliding groove (8); slider (13) top is fixed to be provided with installation cover (10), wear to be equipped with bracing piece (27) in installation cover (10), bracing piece (27) top is fixed to be provided with second splint (20), one side of second splint (20) is fixed to be provided with mount pad (14), there is first splint (16) through the round pin hub connection on mount pad (14), wear to be equipped with connecting rod (17) on first splint (16), connecting rod (17) bottom mounting is provided with movable splint (19), the cover is equipped with spring (18) on connecting rod (17), spring (18) are located first splint (16) with between movable splint (19).
2. A pipeline fixing device on a construction frame as claimed in claim 1, wherein: the supporting rod (27) is fixedly provided with an installation block (26), a supporting rod (24) penetrates through the installation block (26), the supporting rod (24) is sleeved with a spring (18), and the sliding block (13) is provided with a plurality of fixing holes (25).
3. A pipeline fixing device on a construction frame as claimed in claim 1, wherein: first splint (16) with all fixed block (22) that are provided with on second splint (20), on first splint (16) there is buckle (23) through round pin hub connection on fixed block (22).
4. A pipeline fixing device on a construction frame as claimed in claim 1, wherein: one end cover of screw rod (4) is equipped with bearing (5), corresponds bearing (5) mounting hole (6) have been seted up on clamp splice (7), bearing (5) card is established in mounting hole (6).
5. A pipeline fixing device on a construction frame as claimed in claim 1, wherein: and a rubber sleeve (21) is arranged on the inner side of the second clamping plate (20).
6. A pipeline fixing device on a construction frame as claimed in claim 1, wherein: and fastening screws (12) are respectively arranged at the top ends of the U-shaped clamping blocks (3) and the top ends of the sliding blocks (13) in a penetrating manner.
7. A pipeline fixing device on a construction frame as claimed in claim 1, wherein: the two ends of the mounting plate (1) are connected with baffle plates (9) through screws.
