本实用新型公开了一种减张拉合伤口敷料，所述敷料包括左敷料和右敷料，所述左敷料与右敷料之间通过弹性绷带连接，所述敷料由胶贴层和纱布层构成，弹性绷带的一端缝制到右敷料上，弹性绷带的另外一端下方设有魔术粘子面，左敷料表面上设有魔术粘母面，弹性绷带通过魔术粘拉合左敷料与右敷料，所述弹性绷带下表面设置伤口覆盖层；本实用新型敷料底部的透气孔和纱布能实现透气性和吸湿性比较好，可以保持伤口的空气畅通，并且吸收创面的渗液和分泌的汗液，引导脓液正常排出体外，而不是淤积在伤口中；本实用新型中间的弹性绷带实现搭桥的作用，将两边的敷料收到弹性绷带拉力，抵消伤口的张力，有效的拉合伤口，促进伤口愈合，减小疤痕，尽量使得愈合的伤口美观。
The utility model discloses a wound dressing for reducing tension and closing. The dressing includes a left dressing and a right dressing, the left dressing and the right dressing are connected by an elastic bandage, and the dressing is composed of an adhesive layer and a gauze layer. One end of the elastic bandage is sewn onto the right dressing, the other end of the elastic bandage is provided with a magic sticky surface, the surface of the left dressing is provided with a magic sticky mother surface, and the elastic bandage pulls the left dressing and the right dressing together by magic sticking, the said A wound covering layer is arranged on the lower surface of the elastic bandage; the ventilation holes and gauze at the bottom of the dressing of the utility model can achieve better air permeability and hygroscopicity, keep the air of the wound unobstructed, absorb the exudate and secreted sweat of the wound surface, and guide the pus. It is normally excreted from the body, rather than stagnating in the wound; the elastic bandage in the middle of the utility model realizes the function of bridge, and the dressings on both sides receive the tension of the elastic bandage, offset the tension of the wound, effectively pull the wound, promote wound healing, reduce Scar, try to make the healed wound beautiful.
Description
Technical Field
The utility model belongs to the technical field of the dressing, concretely relates to subtract tension-pulling wound dressing.
Background
The wound refers to a place where an injury breaks, and in many cases, the skin, muscle, mucous membrane and the like of a human or other animals are treated by cleaning, disinfecting and then bandaging with gauze or wound dressing.
The dressing adopted for dressing the wound can only achieve the purpose of healing the wound, the traditional dressing or medical adhesive plaster is only applied to the epidermis or the shallow wound, the wound is deeper, the wound tension is larger, the existing dressing or medical adhesive plaster can not pull the wound, the healing time is slow, the infection probability is increased, and the scar is larger after the wound is healed.
The common dressing and the medical adhesive plaster have poor air permeability, the air of the wound can not be smooth, the sweat on the wound surface is poor to absorb, and the pus is accumulated in the wound.
Disclosure of Invention
The utility model discloses a dressing and medical adhesive plaster that have now can't draw and close wound tension and have in the healing with healing after the scheduling problem, provide a subtract and draw and close wound dressing.
In order to realize the purpose, the utility model discloses a technical scheme as follows:
the utility model provides a subtract tension and close wound dressing, the dressing includes left dressing and right dressing, be connected through elastic bandage between left side dressing and the right dressing, the dressing comprises with the gauze layer rubberizing layer, and on right dressing was made up to elastic bandage's one end, elastic bandage's other one end below was equipped with magic adhesive surface, and left dressing is equipped with the magic mother's face of gluing on the surface, and elastic bandage passes through magic adhesive pull and closes left dressing and right dressing, the elastic bandage lower surface sets up foam dressing.
Preferably, the adhesive layer and the gauze layer form an integral dressing through a sewing edge at the side edge.
Preferably, a plurality of air holes are formed in the adhesive layer.
Preferably, the foam dressing is coated with a wound healing drug.
Preferably, the elastic bandage is in a single piece or in a plurality of strips.
Preferably, the adhesive layer is made of medical 3M adhesive.
The technical scheme can obtain the following beneficial effects:
the utility model discloses the bleeder vent and the gauze of dressing bottom can realize that gas permeability and hygroscopicity are better, can keep the air of wound unblocked to absorb the surface of a wound's sepage and secreted sweat, it is external to guide the pus normal discharge, rather than the siltation in the wound.
The utility model discloses the effect of bridging is realized to middle elastic bandage, receives the elastic bandage pulling force with the dressing on both sides, offsets the tension of wound, and the effectual wound that closes that draws promotes wound healing, reduces the scar, makes the wound of healing pleasing to the eye as far as possible.
Drawings

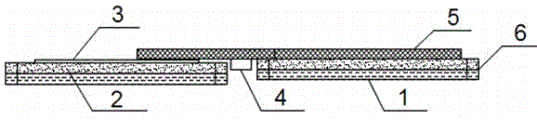

Figure 1 is a side view of the dressing.
Figure 2 is a side view of the dressing.
Figure 3 is a side view of the left dressing.
FIG. 4 is a structural view of a plurality of air holes adhesive layers.
Fig. 5 is a top plan view of the application of the one-piece elastic bandage.
Fig. 6 is a top view of the application of a strip of elastic bandage.
In the figure:
in the figure: 1. a left dressing; 2. a right dressing; 3. magic sticky mother surface; 4. a wound cover layer; 5. an elastic bandage; 6. sewing edges; 7. magic sticky noodles.
Detailed Description
The invention will be further explained with reference to the drawings:
as shown in fig. 1-6, a subtract tension and close wound dressing, the dressing includes left dressing 1 and right dressing 2, be connected through elastic bandage 5 between left side dressing 1 and the right dressing 2, the dressing comprises rubberizing layer and gauze layer, and on right dressing 2 was made up to elastic bandage 5's one end, the other one end below of elastic bandage 5 was equipped with magic binder face 7, and left dressing 1 is equipped with magic binder face 3 on the surface, and elastic bandage 5 passes through magic binder and draws left dressing 1 and right dressing 2, the 5 lower surfaces of elastic bandage set up foam dressing 4. The adhesive layer and the gauze layer form an integral dressing through a sewing edge 6 on the side edge. The adhesive layer is provided with a plurality of air holes. And the foam dressing is coated with wound healing medicaments. The elastic bandage 5 is a whole piece or a plurality of strips. The adhesive layer is made of medical 3M adhesive.
Example (b):
the use method comprises the steps that the left dressing 1 and the right dressing 2 are respectively pasted to two sides of a wound, one end of the elastic bandage 5 is fixed to the right dressing 2, the other end of the elastic bandage 5 is stretched to the upper surface of the left dressing 1 to be fixed, the specific fixing mode is that the magic adhesive surface 7 on the lower surface of the other end of the elastic bandage 5 is pasted with the magic adhesive surface 3 on the upper surface of the left dressing 1, the wound is closed under the tensile force of the elastic bandage 5, and healing is promoted, wherein the foam dressing 4 is arranged below the middle of the elastic bandage 5, and wound healing medicines are smeared on the foam dressing 4, so that the wound can be well covered, and healing is promoted.
Furthermore, the elastic bandage 5 adopts a whole block shape, and the effect is stable and cannot move.
Further, elastic bandage 5 adopts a plurality of strips, can be convenient for change the dressing, through a plurality of banding elastic bandage 5, decomposes and tears the great power of pasting of in-process, reduces to tear the problem that the wound was torn to the in-process existence secondary.
The above description is the preferred embodiment of the present invention, and for those skilled in the art, modifications of the various equivalent forms of the present invention are within the scope of the appended claims of the present application without departing from the principle of the present invention.
