Abstract
The utility model discloses a detection device for auto parts thickness measurement, including the riser, the inside of riser is equipped with measuring mechanism, and measuring mechanism includes first motor, the output fixedly connected with threaded rod of first motor, and the surface threaded connection of threaded rod has the movable block, and beneficial effect is: this device is provided with the measuring mechanism of oscilaltion, the part is placed on the measuring station, drive the measuring mechanism oscilaltion by first motor, the scale mark behind the cooperation riser, just can reach and replace the manual work to carry out accurate measuring effect to the part, and be equipped with the fly leaf that removes about on measuring mechanism, can reach accurate measuring effect when to some unevenness's part, moreover the measuring station of this device can drive its rotation by the second motor, make this device can just can make large-scale part rotatory without the manual work, cooperation measuring mechanism has reached the effect of accurate measurement part highest point and deepest.
Description
Technical Field
The utility model relates to a part thickness measurement technical field specifically is a detection device for auto parts thickness measurement.
Background
The automobile is the most common vehicle in the current society, and the production of each automobile needs to use thousands of parts with different sizes, so the automobile parts are the most important foundation of the automobile industry and are necessary factors for supporting the continuous and healthy development of the automobile industry.
The existing automobile parts need to detect the thickness of the parts to carry out the next step of process when being maintained and processed, the existing part thickness detection method is mostly the detection of an operator holding a measuring scale manually, the method is low in measurement efficiency, particularly, the manual method is very inconvenient when large parts are measured, in addition, the hand shaking of people can influence the measurement precision, not only are the parts uneven, but also the manual measurement method can not carry out accurate measurement on the highest position and the deepest position of the manual measurement method.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an auto parts is detection device for thickness measurement.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a detection device for auto parts thickness measurement, includes the riser, the inside of riser is equipped with measuring mechanism, measuring mechanism includes first motor, the output fixedly connected with threaded rod of first motor, the surperficial threaded connection of threaded rod has the movable block, one side fixedly connected with erection column of movable block, the one end fixedly connected with mounting panel of erection column, the fixed surface of erection column is connected with the erection rod, the one end fixedly connected with connecting block of erection rod, one side bottom fixedly connected with measuring stick of connecting block, the scale mark has been seted up on one side surface of riser, one side bottom fixedly connected with controller of riser.
Preferably, the measuring mechanism comprises a movable plate, the bottom of one side of the movable plate is fixedly connected with the extrusion rod, and the other side of the movable plate is fixedly connected with the clamping block.
Preferably, the opposite side fixedly connected with mount pad of riser, the inside fixedly connected with second motor of mount pad, the output of second motor runs through in mount pad fixedly connected with rotation axis, the top fixedly connected with measuring station of rotation axis.
Preferably, the inner bottom of the vertical plate is fixedly connected with a partition plate, the output end of the first motor penetrates through the partition plate, one side of the top of the partition plate is fixedly connected with a limit rod close to the threaded rod, and one end of the limit rod penetrates through the moving block.
Preferably, the measuring mechanism comprises a mounting plate, a clamping groove is formed in one side of the mounting plate, and the movable plate is movably connected with the clamping groove through a clamping block.
Compared with the prior art, the beneficial effects of the utility model include: this device is provided with the measuring mechanism of oscilaltion, the part is placed on the measuring station, drive the measuring mechanism oscilaltion by first motor, the scale mark behind the cooperation riser, just can reach and replace the manual work to carry out accurate measuring effect to the part, and be equipped with the fly leaf that removes about on measuring mechanism, can reach accurate measuring effect when to some unevenness's part, moreover the measuring station of this device can drive its rotation by the second motor, make this device can just can make large-scale part rotatory without the manual work, cooperation measuring mechanism has reached the effect of accurate measurement part highest point and deepest.
Drawings

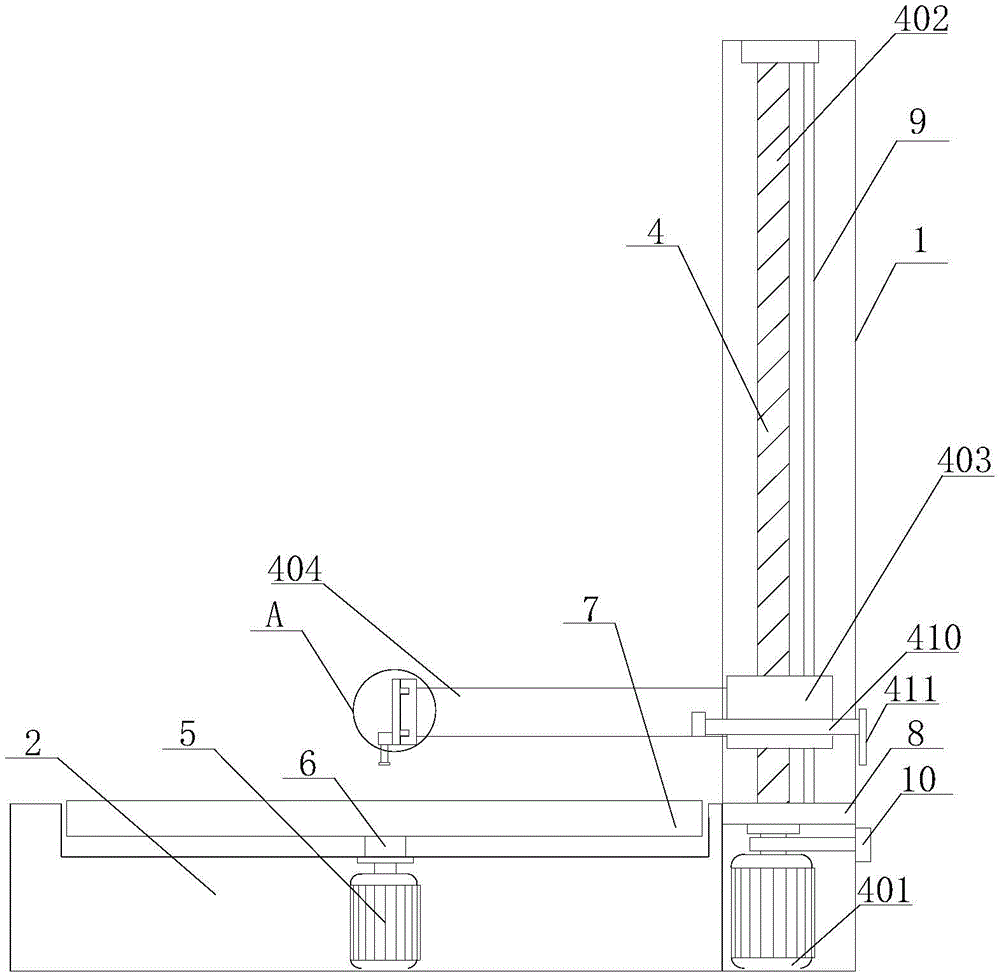

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a side view of the riser of the present invention;
FIG. 3 is a partial enlarged structure at position A of the present invention;
fig. 4 is a side view of the movable plate of the present invention.
In the figure: 1. a vertical plate; 2. a mounting seat; 3. scale lines; 4. a measuring mechanism; 401. a first motor; 402. a threaded rod; 403. a moving block; 404. mounting a column; 405. mounting a plate; 406. a card slot; 407. a clamping block; 408. a movable plate; 409. an extrusion stem; 410. mounting a rod; 411. connecting blocks; 412. a measuring rod; 5. a second motor; 6. a rotating shaft; 7. a measuring table; 8. a partition plate; 9. a limiting rod; 10. and a controller.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: the detection device for measuring the thickness of the automobile part comprises a vertical plate 1, wherein a measuring mechanism 4 is arranged inside the vertical plate 1, the measuring mechanism 4 comprises a first motor 401, the output end of the first motor 401 is fixedly connected with a threaded rod 402, the surface of the threaded rod 402 is in threaded connection with a moving block 403, one side of the moving block 403 is fixedly connected with an installation column 404, one end of the installation column 404 is fixedly connected with an installation plate 405, the surface of the installation column 404 is fixedly connected with an installation rod 410, one end of the installation rod 410 is fixedly connected with a connecting block 411, the bottom of one side of the connecting block 411 is fixedly connected with a measuring rod 412, the surface of one side of the vertical plate 1 is provided with scale marks 3, the bottom of one side of the vertical plate 1 is fixedly connected with a controller 10, the controller 10 controls the first motor 401 to rotate forward and backward to drive an extrusion rod 409 to move up and down, the traditional manual measurement method is replaced, so that the measurement precision is more accurate.
The measuring mechanism 4 comprises a movable plate 408, a pressing rod 409 is fixedly connected to the bottom of one side of the movable plate 408, a clamping block 407 is fixedly connected to the other side of the movable plate 408, the measuring mechanism 4 comprises a mounting plate 405, a clamping groove 406 is formed in one side of the mounting plate 405, the movable plate 408 is movably connected with the clamping groove 406 through the clamping block 407, the movable plate 408 sliding left and right on the mounting plate 405 can enable the device to measure different parts of the same part without moving the part, the convenience of the device is improved, the mounting base 2 is fixedly connected to the other side of the vertical plate 1, a second motor 5 is fixedly connected to the inside of the mounting base 2, the output end of the second motor 5 penetrates through the mounting base 2 and is fixedly connected with a rotating shaft 6, a measuring table 7 is fixedly connected to the top of the rotating shaft 6, and the rotatable measuring table 7 is matched with the movable plate 408, make the application scope of this device wider, increased the practicality of this device, the interior bottom fixedly connected with baffle 8 of riser 1, the output of first motor 401 runs through in baffle 8, and the fixed threaded rod 402 fixedly connected with gag lever post 9 that is close to in top one side of baffle 8, and the one end of gag lever post 9 runs through in movable block 403, and the establishment of gag lever post 9 can restrict the position of movable block 403, makes its oscilaltion on threaded rod 402.
When the device is used, automobile parts are placed in a measuring table 7 of the device, the horizontal plane of the measuring table 7 and the return-to-zero line in the scale mark 3 on one side of the vertical plate 1 are in the same horizontal line, the parts are moved to enable one side of the parts to be located at the bottom of the extrusion rod 409, the first motor 401 is started to drive the threaded rod 402 to rotate, the moving block 403 is in threaded connection with the threaded rod 402, the moving block 403 can be controlled to lift up and down on the threaded rod 402 through the controller 10, when the extrusion rod 409 is in contact with the surfaces of the parts, the first motor 401 can be closed, the thickness of the parts can be read by aligning the measuring rod 412 arranged on the mounting column 404 with the scale mark 3 on one side of the vertical plate 1, if some large-size rectangular parts with unevenness need to be measured, the extrusion rod 409 can be driven to move back and forth by moving the movable plate 408 moving left and right on the mounting plate 405, and right, and left and right, if the part is when some unevenness's large-scale arc parts, it is rotatory to drive measuring table 7 through starting second motor 5, removes the highest point and the deepest of part to the extrusion pole 409 below respectively, and the measuring mechanism 4 of rethread oscilaltion can be with accurate measure the part.
In the description of the present invention, it is to be understood that the terms "coaxial", "bottom", "one end", "top", "middle", "other end", "upper", "one side", "top", "inner", "front", "center", "both ends", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Furthermore, the terms "first", "second", "third", "fourth" are used for descriptive purposes only and are not to be construed as indicating or implying a relative importance or implicitly indicating the number of technical features indicated, whereby the features defined as "first", "second", "third", "fourth" may explicitly or implicitly include at least one such feature.
In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "disposed," "connected," "fixed," "screwed" and the like are to be construed broadly, e.g., as meaning fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; they may be directly connected or indirectly connected through an intermediate medium, and may be connected through the inside of two elements or in an interaction relationship between two elements, unless otherwise specifically defined, and the specific meaning of the above terms in the present invention will be understood by those skilled in the art according to specific situations.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The detection device for measuring the thickness of the automobile part is characterized by comprising a vertical plate (1), wherein a measuring mechanism (4) is arranged inside the vertical plate (1), the measuring mechanism (4) comprises a first motor (401), the output end of the first motor (401) is fixedly connected with a threaded rod (402), the surface of the threaded rod (402) is in threaded connection with a moving block (403), one side of the moving block (403) is fixedly connected with an installation column (404), one end of the installation column (404) is fixedly connected with an installation plate (405), the surface of the installation column (404) is fixedly connected with an installation rod (410), one end of the installation rod (410) is fixedly connected with a connection block (411), the bottom of one side of the connection block (411) is fixedly connected with a measuring rod (412), and one side surface of the vertical plate (1) is provided with scale marks (3), the bottom of one side of riser (1) fixedly connected with controller (10).
2. The detecting device for measuring the thickness of the automobile part according to claim 1, wherein: the measuring mechanism (4) comprises a movable plate (408), a pressing rod (409) is fixedly connected to the bottom of one side of the movable plate (408), and a clamping block (407) is fixedly connected to the other side of the movable plate (408).
3. The detecting device for measuring the thickness of the automobile part according to claim 1, wherein: opposite side fixedly connected with mount pad (2) of riser (1), the inside fixedly connected with second motor (5) of mount pad (2), the output of second motor (5) runs through in mount pad (2) fixedly connected with rotation axis (6), top fixedly connected with measuring station (7) of rotation axis (6).
4. The detecting device for measuring the thickness of the automobile part according to claim 1, wherein: the inner bottom of the vertical plate (1) is fixedly connected with a partition plate (8), the output end of the first motor (401) penetrates through the partition plate (8), one side of the top of the partition plate (8) is fixedly close to a threaded rod (402) and is fixedly connected with a limiting rod (9), and one end of the limiting rod (9) penetrates through a moving block (403).
5. The detecting device for measuring the thickness of the automobile part according to claim 2, wherein: the measuring mechanism (4) comprises a mounting plate (405), a clamping groove (406) is formed in one side of the mounting plate (405), and the movable plate (408) is movably connected with the clamping groove (406) through a clamping block (407).
