Abstract
本实用新型公开了一种防尘太阳能路灯，包括立柱、设置在立柱一侧的照明灯体和固定在立柱顶部的基座，基座上设有第一太阳能电池板和第二太阳能电池板，第一太阳能电池板和第二太阳能电池板相对的两端通过转轴连接，转轴的一端套接有锥齿轮甲，锥齿轮甲啮合锥齿轮乙，锥齿轮乙套装在旋转轴上，旋转轴穿过机械箱转动安装在基座上，旋转轴的下端套装有从动齿轮，从动齿轮啮合主动齿轮，主动齿轮套装在电机的输出轴上，基座的另一端固定设有支撑杆，支撑杆的顶端支撑第二太阳能电池板。本实用新型降低太阳能电池板采光面上的灰尘积聚量，提高太阳能电池板的采光效率，进而提高了太阳能电池板的光能转化率。
The utility model discloses a dust-proof solar street lamp, which comprises a column, an illuminating lamp body arranged on one side of the column, and a base fixed on the top of the column. The base is provided with a first solar cell panel and a second solar cell panel. The opposite ends of the first solar panel and the second solar panel are connected by a rotating shaft, and one end of the rotating shaft is sleeved with a bevel gear A, the bevel gear A meshes with the bevel gear B, and the bevel gear B is sleeved on the rotating shaft, and the rotating shaft passes through The mechanical box is rotatably installed on the base, the lower end of the rotating shaft is sleeved with a driven gear, the driven gear meshes with the driving gear, the driving gear is sleeved on the output shaft of the motor, the other end of the base is fixed with a support rod, and the The top end supports the second solar cell panel. The utility model reduces the accumulation of dust on the lighting surface of the solar cell panel, improves the lighting efficiency of the solar cell panel, and further improves the light energy conversion rate of the solar cell panel.
Description
Technical Field
The utility model belongs to the street lamp field, concretely relates to dustproof solar street lamp.
Background
The solar street lamp is powered by a crystalline silicon solar cell, a maintenance-free valve-controlled sealed storage battery (a colloid battery) stores electric energy, and the ultra-high-brightness LED lamp is used as a light source and is controlled by an intelligent charging and discharging controller and used for replacing the traditional public power lighting street lamp. The LED lamp has the advantages of good stability, long service life, high luminous efficiency, simple and convenient installation and maintenance, high safety performance, energy conservation, environmental protection, economy, practicability and the like.
At present, the solar cell panel of current solar street lamp all is that the expansion is fixed on the stand for solar cell panel is unable folding when out of work at night, leads to the dust accumulation volume on the solar cell panel daylighting face to increase, leads to solar cell panel's daylighting efficiency to reduce, and then has reduced solar cell panel's light energy conversion rate.
SUMMERY OF THE UTILITY MODEL
Not enough to prior art exists, the utility model provides a dustproof solar street lamp.
The utility model discloses a realize through following technical scheme: a dustproof solar street lamp comprises a stand column, a lighting lamp body arranged on one side of the stand column and a base fixed on the top of the stand column, the base is provided with a first solar cell panel and a second solar cell panel, the bottom end of the first solar cell panel is fixed at one end of the base, the two opposite ends of the first solar cell panel and the second solar cell panel are connected through a rotating shaft, one end of the rotating shaft is sleeved with a bevel gear A, the bevel gear A is meshed with a bevel gear B, the bevel gear B is sleeved on the rotating shaft, the rotating shaft passes through the mechanical box and is rotatably arranged on the base, a driven gear is sleeved at the lower end of the rotating shaft, the driven gear is engaged with the driving gear, the driving gear is sleeved on an output shaft of the motor, the motor is fixed on the base, the other end of the base is fixedly provided with a supporting rod, and the top end of the supporting rod supports the second solar cell panel.
The back of the second solar cell panel is connected with the supporting rod through an extension spring.
The top end of the supporting rod is fixedly provided with a supporting pad.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses a motor rotates and drives the driving gear and rotate, and the driving gear drives driven gear and rotates and make the rotation axis rotate and drive bevel gear second and rotate, and bevel gear second drives bevel gear first and rotates, and then drives the pivot and rotate and make second solar cell panel turn over to first solar cell panel, reduces the dust accumulation volume on the solar cell panel daylighting face, improves solar cell panel's daylighting efficiency, and then has improved solar cell panel's light energy conversion; extension spring can play stable effect to second solar cell panel, improves whole solar cell panel's anti-wind stability.
Drawings

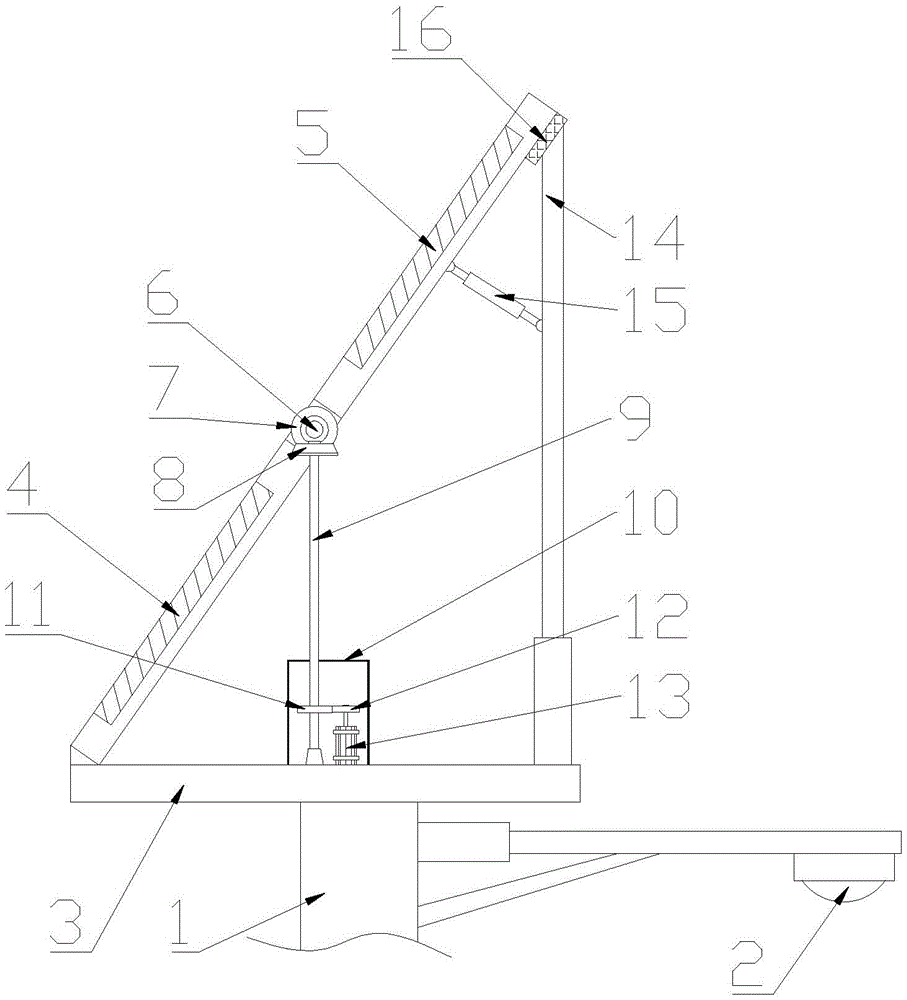

Fig. 1 is a schematic view of a second solar panel of the present invention deployed;
fig. 2 is a schematic view of a second solar panel of the present invention folded over;
fig. 3 is a schematic structural diagram of the first solar cell panel and the second solar cell panel of the present invention.
In the drawings: 1. a column; 2. an illumination lamp body; 3. a base; 4. a first solar cell panel; 5. a second solar panel; 6. a rotating shaft; 7. a bevel gear A; 8. a bevel gear B; 9. a rotating shaft; 10. a machine box; 11. a driven gear; 12. a driving gear; 13. a motor; 14. a support bar; 15. an extension spring; 16. a support pad.
Detailed Description
As shown in fig. 1 to 2 of the drawings of the specification, a dustproof solar street lamp comprises a vertical column 1, a lighting lamp body 2 arranged on one side of the vertical column 1 and a base 3 fixed on the top of the vertical column 1, wherein the base 3 is provided with a first solar cell panel 4 and a second solar cell panel 5, the bottom end of the first solar cell panel 4 is fixed on one end of the base 3, the two opposite ends of the first solar cell panel 4 and the second solar cell panel 5 are connected through a rotating shaft 6, the rotating shaft 6 penetrates through the two opposite ends of the second solar cell panel 5 and the first solar cell panel 4, the rotating shaft 6 is fixed on the end of the second solar cell panel 5, so that the rotating shaft 6 can be rotated to drive the second solar cell panel 5 to rotate along the rotating shaft 6, one end of the rotating shaft 6 is sleeved with a bevel gear a first bevel gear 7, the bevel gear a second bevel gear 7 is meshed with a bevel gear second bevel gear, rotation axis 9 passes mechanical case 10 and rotates and installs on base 3, the fixed bearing frame that is equipped with on base 3, the bottom of rotation axis 9 is inserted and is established in the bearing frame, and then has realized rotating, the lower extreme cover of rotation axis 9 is equipped with driven gear 11, driven gear 11 meshing driving gear 12, driving gear 12 suit is on the output shaft of motor 13, motor 13 is fixed on base 3, the other end of base 3 is fixed and is equipped with bracing piece 14, the second solar cell panel 5 is supported on the top of bracing piece 14.
The back of the second solar cell panel 5 is connected to a support bar 14 by a tension spring 15.
The top end of the support bar 14 is fixedly provided with a support pad 16.
A street lamp controller (the street lamp controller is a market universal device, the specific structure and model of which are common general knowledge of those skilled in the art) is arranged in the upright post 1, the street lamp controller comprises a time switch, the street lamp controller is electrically connected with a motor 13, the motor 13 is a stepping motor, instantaneous starting and instantaneous stopping can be realized, the rotating speed can also be accurately controlled, and forward and reverse rotation can be realized, at night, the street lamp controller controls the motor 13 to rotate in reverse direction to drive a driving gear 12 to rotate, the driving gear 12 drives a driven gear 11 to rotate, so that a rotating shaft 9 rotates, the rotating shaft 9 drives a bevel gear B8 to rotate, the bevel gear B8 drives a bevel gear A7 to rotate, so that the rotating shaft 6 rotates to drive a second solar cell panel 5 to be folded towards a first solar cell panel 4 (as shown in figure 2), and the stretching spring 15 can play a role in stabilizing role on the, the wind resistance stability of the whole solar cell panel is improved; in dawn, the street lamp controller controls the motor 13 to rotate forward to drive the rotating shaft 6 to rotate through the driving gear 12, the driven gear 11, the rotating shaft 9, the bevel gear second 8 and the bevel gear first 7, so that the second solar cell panel 5 is unfolded and restored to the original state (as shown in fig. 1), the extension spring 15 is contracted to play a stable role in the second solar cell panel 5, and the wind resistance stability of the whole solar cell panel is improved.
In summary, the present invention is only a preferred embodiment, and is not intended to limit the scope of the present invention, and all equivalent changes and modifications of the shapes, structures, features and spirit described in the claims of the present invention should be included in the scope of the present invention.
Claims (3)
1. The utility model provides a dustproof solar street lamp, includes stand (1), sets up illumination lamp body (2) and base (3) of fixing at stand (1) top in stand (1) one side, its characterized in that: the solar cell panel comprises a base (3), a first solar cell panel (4) and a second solar cell panel (5) are arranged on the base (3), the bottom end of the first solar cell panel (4) is fixed at one end of the base (3), two opposite ends of the first solar cell panel (4) and the second solar cell panel (5) are connected through a rotating shaft (6), a bevel gear A (7) is sleeved at one end of the rotating shaft (6), the bevel gear A (7) is meshed with a bevel gear B (8), the bevel gear B (8) is sleeved on a rotating shaft (9), the rotating shaft (9) penetrates through a mechanical box (10) to be rotatably installed on the base (3), a driven gear (11) is sleeved at the lower end of the rotating shaft (9), the driven gear (11) is meshed with a driving gear (12), and the driving gear (12) is sleeved on an output shaft of a motor (13), the motor (13) is fixed on the base (3), a supporting rod (14) is fixedly arranged at the other end of the base (3), and the top end of the supporting rod (14) supports the second solar cell panel (5).
2. The dustproof solar street lamp according to claim 1, characterized in that: the back of the second solar cell panel (5) is connected with the supporting rod (14) through an extension spring (15).
3. The dustproof solar street lamp according to claim 1, characterized in that: the top end of the supporting rod (14) is fixedly provided with a supporting pad (16).
