CN213330326U

CN213330326U - Folding structure of antirust metal supporting rod for tent

Info

Publication number: CN213330326U
Application number: CN202022046671.5U
Authority: CN
Inventors: 宋立波
Original assignee: Ningbo Dongrun Mining Co ltd
Current assignee: Ningbo Dongrun Mining Co ltd
Priority date: 2020-09-17
Filing date: 2020-09-17
Publication date: 2021-06-01
Anticipated expiration: 2030-09-17

Abstract

The utility model discloses a folding structure of an antirust metal supporting rod for a tent, which comprises a folding structure, wherein the folding structure comprises a first folding part and a second folding part, the second folding part can be folded or unfolded relative to the first folding part, the first folding part comprises a first mounting seat and two outer vertical plates which are relatively arranged on the first mounting seat in parallel, the second folding part comprises a second mounting seat and two inner vertical plates which are relatively arranged on the second mounting seat in parallel, the two inner vertical plates are clamped between the two outer vertical plates, one end of each of the two outer vertical plates and one end of each of the two inner vertical plates are connected through a rotating shaft in a penetrating way, and the inner vertical plates are rotatably arranged on the outer vertical plates through the rotating shaft; the first mounting seat is detachably provided with a lower supporting rod, and the second mounting seat is detachably provided with an upper supporting rod. Two outer risers that set up relatively press from both sides two interior risers, form the damping under the effect of frictional force when two articulated folded pieces rotate mutually, interior riser revolutes the rotation of axes under the damping effect, makes whole beta structure more stable.

Description

Folding structure of antirust metal supporting rod for tent

Technical Field

The utility model relates to an outdoor tent technical field, concretely relates to tent is with rust-resistant metal support bar beta structure.

Background

The tent is a common outdoor activity sunshade article, along with the improvement of people's living standard, the recreational activities are more and more, have many people to like go out to play in idle, all can use the tent in the in-process of playing outside.

When the tent is used outdoors, the framework of the tent per se is partially broken sometimes, and the tent cloth cannot be well supported. The vertical support rod is required to be temporarily used for supporting in the tent, so that the tent can be normally used. In practice, there is currently no ready support pole type product available for temporarily supporting a tent.

SUMMERY OF THE UTILITY MODEL

In order to solve the technical defects, the utility model adopts the technical scheme that an anti-rust metal supporting rod folding structure for a tent is provided, which comprises a folding structure, wherein the folding structure comprises a first folding part and a second folding part, the second folding part can be folded or unfolded relative to the first folding part, the first folding part comprises a first mounting seat and two outer vertical plates which are relatively and parallelly arranged on the first mounting seat, the second folding part comprises a second mounting seat and two inner vertical plates which are relatively and parallelly arranged on the second mounting seat, the two inner vertical plates are clamped between the two outer vertical plates, one ends of the two outer vertical plates, which are far away from the first mounting seat, and one ends of the two inner vertical plates, which are far away from the second mounting seat, are in through connection through a rotating shaft, and the inner vertical plates are rotatably arranged on the outer vertical plates through the rotating shaft; demountable installation has the lower support rod on the first mount pad, demountable installation has the upper support rod on the second mount pad.

Furthermore, the outer vertical plate is an elastic plastic piece, and the cross sections of the outer vertical plate and the inner vertical plate are both arc-shaped; when the inner vertical plate rotates to be in an unfolded state with the outer vertical plate, the inner vertical plate is limited and clamped at the upper ends of the two outer vertical plates; when continuously rotating the interior riser and turning over downwards, when interior riser is folding to be accomodate to being close to the outer riser, the upper end of outer riser is strutted and to applying the elasticity clamp force to the interior riser.

Furthermore, the rotating shaft is a screw rod, and locking nuts used for locking the positions of the first folding part and the second folding part are respectively installed at two ends of the screw rod.

Furthermore, threaded holes are formed in the first mounting seat and the second mounting seat in a vertically penetrating mode respectively, the upper end of the lower supporting rod is in threaded connection with the first mounting seat and is inserted between the two outer vertical plates, and the lower end of the upper supporting rod is in threaded connection with the second mounting seat and is inserted between the two inner vertical plates.

Furthermore, the outer side wall of one end of the lower supporting rod, which is far away from the first mounting seat, and the outer side wall of one end of the upper supporting rod, which is far away from the second mounting seat, are provided with anti-skid convex strips.

Furthermore, one end of the lower supporting rod, which is far away from the first mounting seat, is provided with a cross ground supporting frame, and the upper end of the upper supporting rod is transversely provided with a threading hole in a penetrating manner.

Compared with the prior art the utility model discloses technical scheme's beneficial effect does:

the utility model provides a rust-resistant metal support pole beta structure is used to tent, two outer risers of relative setting press from both sides tight two interior risers, form the damping under the effect of frictional force when two looks articulated folded pieces rotate, interior riser revolutes the rotation of axes under the damping action, makes whole beta structure more stable.

Drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention, the drawings needed to be used in the description of the embodiments will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art to obtain other drawings without creative efforts.

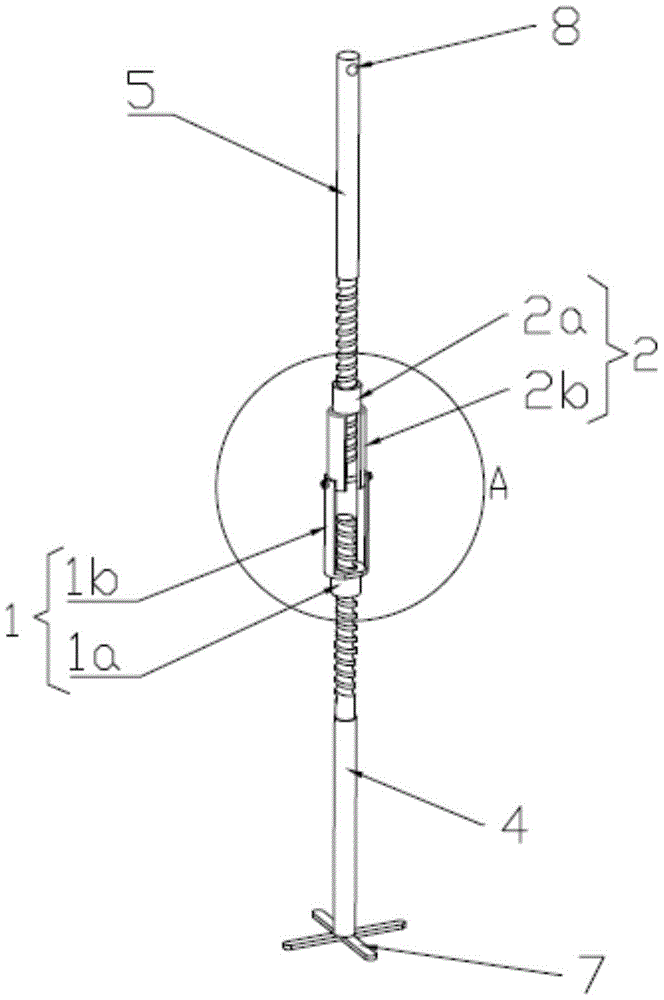

Fig. 1 is a schematic view of a folding structure of an anti-rust metal support rod for a tent according to an embodiment of the present invention;

fig. 2 is an enlarged view of a portion a of fig. 1.

The reference numbers are as follows:

1. first folded piece, 1a, first mount pad, 1b, outer riser, 2, second folded piece, 2a, second mount pad, 2b, interior riser, 3, pivot, 4, lower bracing piece, 5, go up the bracing piece, 6, lock nut, 7, cross bracing ground frame, 8, through wires hole.

Detailed Description

The invention will be further explained with reference to the drawings and the specific embodiments.

Example 1

Referring to fig. 1-2, the utility model provides an antirust metal supporting rod folding structure for tent, including folding structure, folding structure includes first folder 1 and second folder 2, second folder 2 can fold or expand relative to first folder 1, first folder 1 includes first mount pad 1a and two external risers 1b that locate on first mount pad 1a relatively parallelly, second folder 2 includes second mount pad 2a and two internal risers 2b that locate on second mount pad 2a relatively parallelly, two internal risers 2b clamp are located between two external risers 1b, and the one end of two external risers 1b that keeps away from first mount pad 1a, the one end of two internal risers 2b that keeps away from second mount pad 2a is through connection through pivot 3, internal riser 2b rotates through pivot 3 and installs on external riser 1 b; the first mounting seat 1a is detachably provided with a lower support rod 4, and the second mounting seat 2a is detachably provided with an upper support rod 5.

Specifically, the upper support rod 5 and the lower support rod 4 are rust-proof metal rods.

As one of the embodiments of the folding structure for fixing in the unfolded state, preferably, the outer vertical plate 1b is an elastic plastic piece, and the cross sections of the outer vertical plate 1b and the inner vertical plate 2b are both arc-shaped; when the inner vertical plate 2b rotates to be in an unfolded state with the outer vertical plates 1b, the inner vertical plate 2b is clamped at the upper ends of the two outer vertical plates 1b in a limiting manner; when continuously rotating interior riser 2b and rolling over downwards, interior riser 2b is folding to be accomodate to being close to when outer riser 1b, and the upper end of outer riser 1b is strutted and exerts the elasticity clamping force to interior riser 2 b.

As another embodiment for fixing the folded structure in the unfolded state, it is preferable that the rotating shaft 3 is a screw rod, and locking nuts 6 for locking the positions of the first folding member 1 and the second folding member 2 are respectively installed at both ends of the screw rod. So as to adjust the second folding member 2 to rotate along the first folding member 1 by any angle and lock the current shape, such as the folding and storage shape and the unfolding and supporting shape.

Preferably, threaded holes are respectively formed in the first mounting seat 1a and the second mounting seat 2a in a vertically penetrating manner, the upper end of the lower support rod 4 is in threaded connection with the first mounting seat 1a and is inserted between the two outer vertical plates 1b, and the lower end of the upper support rod 5 is in threaded connection with the second mounting seat 2a and is inserted between the two inner vertical plates 2 b.

In order to improve the operation feeling of the user when adjusting the lower support rod 4 and the upper support rod 5, preferably, anti-slip convex strips (not shown) are disposed on the outer side wall of the end of the lower support rod 4 far away from the first mounting seat 1a and the outer side wall of the end of the upper support rod 5 far away from the second mounting seat 2 a.

A cross ground supporting frame 7 is arranged at one end of the lower supporting rod 4 far away from the first mounting seat 1a, so that the lower supporting rod can be conveniently and stably placed on the ground; the upper end of the upper supporting rod 5 is transversely provided with a threading hole 8 in a penetrating mode, so that the upper supporting rod is conveniently connected and fixed with a framework on the tarpaulin, and the supporting stability is improved.

Above only the utility model discloses an it is preferred embodiment, the utility model discloses a scope of protection not only limits in above-mentioned embodiment, and the all belongs to the utility model discloses a technical scheme under the thinking all belongs to the utility model discloses a scope of protection. It should be noted that, for those skilled in the art, various modifications and decorations can be made without departing from the principle of the present invention, and these modifications and decorations should also be regarded as the protection scope of the present invention.

Claims

1. The utility model provides a tent is with rust-resistant metal support pole beta structure which characterized in that: comprises a folding structure which comprises a first folding part (1) and a second folding part (2), the second folding part (2) can be folded or unfolded relative to the first folding part (1), the first folding piece (1) comprises a first mounting seat (1a) and two outer vertical plates (1b) which are arranged on the first mounting seat (1a) in parallel relatively, the second folding piece (2) comprises a second mounting seat (2a) and two inner vertical plates (2b) which are arranged on the second mounting seat (2a) in parallel relatively, the two inner vertical plates (2b) are clamped between the two outer vertical plates (1b), one ends of the two outer vertical plates (1b) far away from the first mounting seat (1a) and one ends of the two inner vertical plates (2b) far away from the second mounting seat (2a) are connected in a penetrating way through a rotating shaft (3), the inner vertical plate (2b) is rotatably arranged on the outer vertical plate (1b) through a rotating shaft (3); demountable installation has lower support rod (4) on first mount pad (1a), demountable installation has upper support rod (5) on second mount pad (2 a).

2. The folding structure of rust-proof metal support pole for tent as claimed in claim 1, wherein: the outer vertical plate (1b) is an elastic plastic piece, and the cross sections of the outer vertical plate (1b) and the inner vertical plate (2b) are arc-shaped; when the inner vertical plate (2b) rotates to be in an unfolded state with the outer vertical plates (1b), the inner vertical plate (2b) is clamped at the upper ends of the two outer vertical plates (1b) in a limiting manner; when continuously rotating interior riser (2b) and rolling over downwards, interior riser (2b) are folded and are accomodate to being close to when outer riser (1b), the upper end of outer riser (1b) is strutted and to applying the elasticity clamp force to interior riser (2 b).

3. The folding structure of rust-proof metal support pole for tent as claimed in claim 1, wherein: the rotating shaft (3) is a screw rod, and locking nuts (6) used for locking the positions of the first folding piece (1) and the second folding piece (2) are respectively installed at the two ends of the screw rod.

4. The folding structure of rust-proof metal support pole for tent as claimed in claim 1, wherein: the upper end of the lower supporting rod (4) is in threaded connection with the first mounting seat (1a) and is inserted between the two outer vertical plates (1b), and the lower end of the upper supporting rod (5) is in threaded connection with the second mounting seat (2a) and is inserted between the two inner vertical plates (2 b).

5. The folding structure of rust-proof metal support pole for tent as claimed in claim 4, wherein: the outer side wall of one end of the lower supporting rod (4) far away from the first mounting seat (1a) and the outer side wall of one end of the upper supporting rod (5) far away from the second mounting seat (2a) are both provided with anti-skidding convex strips.

6. The folding structure of rust-proof metal support pole for tent as claimed in claim 1, wherein: one of the lower support rod (4) far away from the first mounting seat (1a) is provided with a cross ground supporting frame (7), and the upper end of the upper support rod (5) is provided with a threading hole (8) along the transverse direction.
