Abstract
The utility model discloses an automatic unloader of shell stamping workpiece processing procedure in great scope field, including box, work platform, punching press seat, dead lever, fixing base, frame, punching machine, punching press head, cylinder and sliding seat, rotate on the sliding seat and be connected with the screw rod, the screw rod is equipped with two and just uses the ring centre of a circle of placing as central longitudinal symmetry. The utility model discloses in, through the operation punching machine, drive the punching press under the punching press head, make the punching press head carry out the punching press to placing the stamping workpiece on the ring, the stamping workpiece acts on the punching press groove on the punching press seat, accomplish the punching press, carry the stamping workpiece after accomplishing left, the cylinder is flexible, it shifts up to drive the sliding seat, through the motor operation, it rotates to drive the screw rod, make the swivel nut remove the right side, through the manipulator toward placing the ring and put the stamping workpiece, back motor operation, transport the stamping workpiece of placing on the ring to the punching press seat directly over, the control cylinder shrink, make the sliding seat move down, thereby place the ring and fall in rubber ring top, and the rubber ring just plays the effect of buffering.
Description
Technical Field
The utility model relates to a stamping workpiece processing technology field specifically is an automatic unloader of shell stamping workpiece processing procedure.
Background
The stamping part is a forming processing method which applies external force to plates, strips, pipes, profiles and the like by a press and a die to cause plastic deformation or separation of the plates, the strips, the pipes, the profiles and the like so as to obtain workpieces (stamping parts) with required shapes and sizes. Stamping and forging are plastic working (or called pressure working), and are called forging and pressing. The stamped blanks are mainly hot and cold rolled steel sheets and strips.
The stamping part of the prior art is generally placed by artificial removal when blanking is carried out, and then the stamping part is still artificially removed after being stamped, so that the required time is long, and people also have a rest, thereby reducing the working efficiency of equipment and leading the stamping part produced by the equipment to be few. Therefore, those skilled in the art provide an automatic blanking device for manufacturing stamping parts of a housing to solve the above problems in the prior art.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an automatic unloader of shell stamping workpiece processing procedure to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides an automatic unloader of shell stamping workpiece processing procedure, includes box, work platform, punching press seat, dead lever, fixing base, frame, punching machine, punching press head, cylinder and sliding seat, it is connected with the screw rod to rotate on the sliding seat, the screw rod is equipped with two and uses the ring centre of a circle of placing as central longitudinal symmetry, two the equal fixed mounting of one end has the motor wherein of screw rod, the equal fixed mounting of downside has the motor on the sliding seat right end, two the surface of screw rod all meshes has swivel nut, two the swivel nut all with place ring fixed connection.
As a further aspect of the present invention: the movable seat is fixedly connected with the air cylinder, and the air cylinder is fixedly connected with the working platform through bolts.
As a further aspect of the present invention: the working platform is fixedly connected with the box body through bolts, and the punching seat is fixedly installed at the center of the bottom end of the working platform.
As a further aspect of the present invention: the punching seat is provided with a punching groove, and the punching seat is embedded with a rubber ring.
As a further aspect of the present invention: the fixing rod is fixedly mounted on the working platform, and a fixing seat is welded at one end, far away from the working platform, of the fixing rod.
As a further aspect of the present invention: the fixing seat is fixedly connected with the base through a bolt, the base is fixedly connected with the punching machine through a bolt, and the punching head is fixedly installed at the punching end of the punching machine.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses in, through the operation punching machine, drive the punching press under the punching press for the punching press head carries out the punching press to placing the stamping workpiece on the ring, and the stamping workpiece acts on the punching press groove on the punching press seat, accomplishes the punching press, carries the stamping workpiece after accomplishing left.
2. The utility model discloses in, flexible through the cylinder, drive the sliding seat and shift up, through the motor operation, drive the screw rod and rotate for the swivel nut removes the right side, puts the stamping workpiece through the manipulator toward placing the ring on, and back motor operation transports the stamping workpiece of placing on the ring directly over the stamping seat, and the control cylinder shrink makes the sliding seat move down, thereby places the ring and falls in rubber ring top, and the rubber ring just plays the effect of buffering.
Drawings
Fig. 1 is a schematic structural view of the present invention;

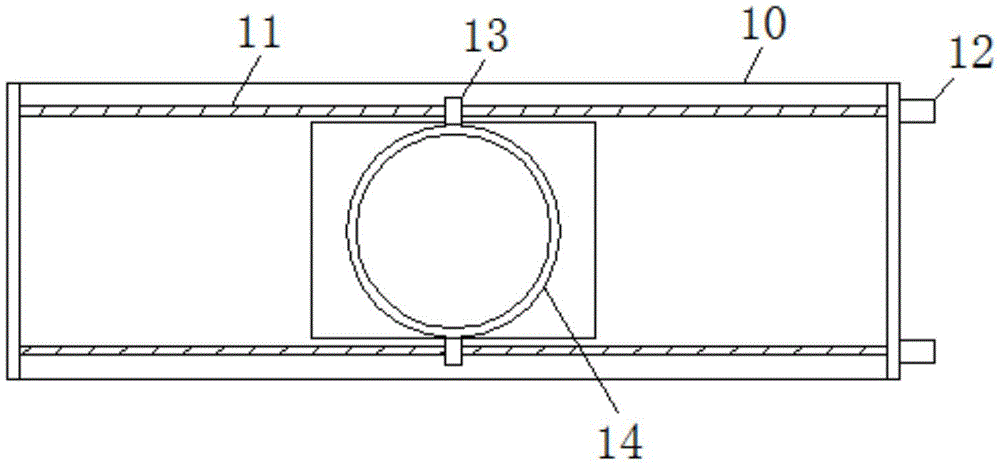

fig. 2 is a top view of the movable base shown in fig. 1 according to the present invention;
fig. 3 is a top view of the punch holder of fig. 1 according to the present invention.
In the figure: 1. a box body; 2. a working platform; 3. punching a seat; 4. fixing the rod; 5. a fixed seat; 6. a machine base; 7. a punch press; 8. punching a head; 9. a cylinder; 10. a movable seat; 11. a screw; 12. a motor; 13. a threaded sleeve; 14. placing a ring; 15. a rubber ring; 16. and (6) punching a groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1 to 3, in an embodiment of the present invention, an automatic blanking device for a manufacturing process of a shell stamping part includes a box body 1, a working platform 2, a stamping seat 3, a fixing rod 4, a fixing seat 5, a base 6, a stamping machine 7, a stamping head 8, a cylinder 9 and a movable seat 10, wherein the movable seat 10 is rotatably connected with two screws 11, the screws 11 are vertically symmetrical with each other by taking a circle center of a placing ring 14 as a center, one end of each of the two screws 11 is fixedly provided with a motor 12, the upper side and the lower side of the right end of the movable seat 10 are fixedly provided with motors 12, the outer surfaces of the two screws 11 are respectively engaged with screw sleeves 13, and the two screw sleeves 13 are respectively fixedly; stretch out and draw back through cylinder 9, drive sliding seat 10 and move up, through the operation of motor 12, drive screw rod 11 and rotate, make swivel nut 13 remove the right side, put the stamping workpiece through the manipulator toward placing ring 14 on, back motor 12 moves, transport stamping workpiece on placing ring 14 directly over punching press seat 3, control cylinder 9 shrink, make sliding seat 10 move down, thereby place ring 14 and fall in rubber ring 15 top, and rubber ring 15 just plays the effect of buffering.
The movable seat 10 is fixedly connected with the air cylinder 9, and the air cylinder 9 is fixedly connected with the working platform 2 through bolts; the cylinder 9 is used for lifting the movable seat 10.
Wherein, work platform 2 passes through bolt fixed connection with box 1, and 2 bottom centers of work platform department fixed mounting have punching press seat 3.
Wherein, be equipped with punching press groove 16 on the punching press seat 3, inlay on the punching press seat 3 and be equipped with rubber ring 15, punching press groove 16 is used for the shaping to the punching press piece, and rubber ring 15 is used for cushioning effect.
Wherein, fixed mounting has dead lever 4 on work platform 2, and the welding of the one end that work platform 2 was kept away from to dead lever 4 has fixing base 5.
The fixed seat 5 is fixedly connected with the base 6 through a bolt, the base 6 is fixedly connected with the punch 7 through a bolt, and the punching head 8 is fixedly installed at the punching end of the punch 7; and operating the punching machine 7 to drive the punching head 8 to punch downwards so that the punching head 8 punches the punching part on the placing ring 14, the punching part acts on the punching groove 16 on the punching seat 3 to complete punching, and the completed punching part is conveyed leftwards.
The utility model discloses a theory of operation is: when using, stretch out and draw back through cylinder 9, it moves up to drive sliding seat 10, move through motor 12, it rotates to drive screw rod 11, make swivel nut 13 remove the right side, place the stamping workpiece on ring 14 through the manipulator, back motor 12 moves, transport the stamping workpiece of placing on the ring 14 directly over punching seat 3, control cylinder 9 contracts, it moves down to make sliding seat 10, thereby place ring 14 and fall in rubber ring 15 top, and rubber ring 15 just plays the effect of buffering, operation punching machine 7, drive punching head 8 down stroke, make punching head 8 to place the stamping workpiece on the ring 14 and carry out the punching press, the stamping workpiece acts on punching groove 16 on punching seat 3, accomplish the punching press, carry the stamping workpiece after the completion to left.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides an automatic unloader of shell stamping workpiece processing procedure, includes box (1), work platform (2), punching press seat (3), dead lever (4), fixing base (5), frame (6), punching machine (7), punching press head (8), cylinder (9) and sliding seat (10), its characterized in that:
it is connected with screw rod (11) to rotate on movable seat (10), screw rod (11) are equipped with two and are used for placing ring (14) centre of a circle as central longitudinal symmetry, two screw rod (11) wherein the equal fixed mounting of one end has motor (12), the equal fixed mounting of downside has motor (12), two on movable seat (10) right end the surface of screw rod (11) all meshes swivel nut (13), two swivel nut (13) all with place ring (14) fixed connection.
2. The automatic blanking device for the manufacturing process of the shell stamping parts according to claim 1, wherein: the movable seat (10) is fixedly connected with the air cylinder (9), and the air cylinder (9) is fixedly connected with the working platform (2) through bolts.
3. The automatic blanking device for the manufacturing process of the shell stamping parts according to claim 1, wherein: work platform (2) with box (1) passes through bolt fixed connection, work platform (2) bottom center department fixed mounting have punching press seat (3).
4. The automatic blanking device for the manufacturing process of the shell stamping parts according to claim 1, wherein: the punching seat (3) is provided with a punching groove (16), and the punching seat (3) is embedded with a rubber ring (15).
5. The automatic blanking device for the manufacturing process of the shell stamping parts according to claim 1, wherein: fixed mounting has dead lever (4) on work platform (2), dead lever (4) are kept away from the one end welding of work platform (2) has fixing base (5).
6. The automatic blanking device for the manufacturing process of the shell stamping parts according to claim 1, wherein: fixing base (5) with frame (6) pass through bolt fixed connection, frame (6) with punching machine (7) pass through bolt fixed connection, the punching press end fixed mounting of punching machine (7) punching press head (8).
