Abstract

The utility model discloses a high water tightness sliding door with a diamond mesh leaf, which comprises a first door leaf, a second door leaf and a door frame, the door frame comprises a fixed upper slide and a high lower rail arranged in parallel with the fixed upper slide, the high lower rail comprises a first doorsill and a second doorsill connected with the first doorsill and arranged in a step shape, the height of the first doorsill is lower than that of the second doorsill, the diamond net leaf, one ends of the first door leaf and the second door leaf are respectively connected with the fixed upper slide, the other ends of the diamond net leaf and the second door leaf are respectively connected with the second doorsill in a sliding mode, the other end of the first door leaf is connected with the first doorsill in a sliding mode, and a plurality of sealing pieces are arranged between the first door leaf and the second door leaf and between the second door leaf and the diamond net leaf to enable sliding contact sealing between the first door leaf and the second door leaf. The utility model discloses take high water tightness push-and-pull door of buddha's warrior attendant net fan possesses mosquito-proof worm function, can effectively prevent the indoor infiltration condition that takes place.

Description

High-water-tightness sliding door with diamond net leaf

Technical Field

The utility model relates to a building aluminum alloy door and window field especially relates to a take high water tightness push-and-pull door of buddha's warrior attendant net fan.

Background

The sliding door is a common household door and can be pushed and pulled. With the development of technology and the diversification of decoration means, the functions and the application range of the sliding door are continuously expanded from the surface of the traditional plate to glass, cloth, rattan woven and popular building outer wall aluminum alloy doors in the market.

However, the sliding door on the market at present adopts a two-rail method, the watertight performance is poor, the indoor water seepage condition easily occurs in rainy weather, and the function of preventing mosquitoes does not exist.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a take high water tightness push-and-pull door of buddha's warrior attendant net fan to it is poor to solve the push-and-pull door watertight performance on the current market, does not have the problem of mosquito-proof function moreover.

The utility model discloses a following technical scheme realizes:

the utility model provides a take high water tightness push-and-pull door of buddha's warrior attendant net fan, including first door leaf, second door leaf, door frame, a plurality of sealing member and towards the buddha's warrior attendant net fan that indoor one side set up, the door frame including the area solid go up and with the area solid go up high lower rail that slide parallel arrangement goes up, high lower rail include first threshold and with first threshold is connected and rather than the second threshold that is the echelonment setting, the height of first threshold is less than the height of second threshold, buddha's warrior attendant net fan, first door leaf and second door leaf one end all respectively with take solid last slide connection, buddha's warrior attendant net fan and second door leaf's the other end all respectively with second threshold slide connection, the other end of first door leaf with first threshold slide connection, just first door leaf with between the second door leaf and the second door leaf with all install a plurality of sealing members so that each other forms sliding connection between the buddha's warrior attendant net fan And (5) touch sealing.

Further, take high water tightness push-and-pull door of buddha's warrior attendant net fan still includes a plurality of gyro wheels, first threshold includes first base and protruding locating first slide rail on the first base, the second threshold includes the second base and protruding locating second slide rail and third slide rail on the second base, first slide rail, second slide rail and the mutual parallel arrangement of third slide rail, the orientation of buddha's attendant net fan, first door leaf and second door leaf one side of high lower rail all is equipped with a mounting groove separately, and is a plurality of the gyro wheel install respectively in separately in the mounting groove and respectively with first slide rail, second slide rail and third slide rail rotate and connect.

Further, the top surface of the first base and the top surface of the second base are both inclined surfaces, and the distance between the top surface of the first base and the bottom surface of the first base and the distance between the top surface of the second base and the bottom surface of the second base are both arranged in an extending manner from the side close to the diamond mesh fan to the side far away from the diamond mesh fan along the trend of gradually reducing the size.

Further, the sealing element comprises a plurality of first sealing wool tops, the bottoms of the first door leaf, the second door leaf and the diamond mesh fan are all concavely provided with first accommodating grooves, the mounting groove is located in the first accommodating grooves, two inner sides of the first accommodating grooves are respectively provided with first transverse notches, and one ends of the first sealing wool tops are mounted in the first transverse notches, and the other ends of the first sealing wool tops abut against the first sliding rail, the second sliding rail or the third sliding rail and form sliding contact sealing with the first sliding rail, the second sliding rail or the third sliding rail.

Further, the high-low rail further comprises two water baffles, the first sliding rail and the second sliding rail respectively comprise a bearing piece, a vertical plate which is convexly arranged on the first threshold or the second threshold and is fixedly connected with the bottom of the bearing piece, and a supporting protrusion which is used for supporting the roller and is fixed on the top of the bearing piece, the first sealing wool top is abutted against the bearing piece, a clamping groove is formed in one end, far away from the diamond mesh fan, of the bearing piece, one end of the water baffle is clamped in the clamping groove, and the other end of the water baffle extends towards one side of the first threshold or the second threshold.

Furthermore, the sealing element further comprises a plurality of second sealing wool tops, three mounting protrusions are arranged at the bottom of the upper fixing slide, second accommodating grooves are formed in the tops of the first door leaf, the second door leaf and the diamond mesh fan in a concave mode, two inner sides of each second accommodating groove are respectively provided with a second transverse notch, one end of each second sealing wool top is mounted on the second transverse notch, and the other end of each second sealing wool top abuts against the mounting protrusions and forms sliding contact sealing with the mounting protrusions.

Furthermore, the first door leaf and the second door leaf comprise an upper portion, a lower portion, an outer portion and first hollow glass, two ends of the first hollow glass are respectively connected with the upper portion, the lower portion and the outer portion, the diamond mesh leaf comprises an upper diamond screen window, a lower diamond screen window, a diamond mesh and two diamond mesh pressing lines, two ends of the diamond mesh are respectively fixed to the upper diamond screen window and the lower diamond screen window through the two diamond mesh pressing lines, the three first accommodating grooves are respectively arranged on the lower diamond screen window and the two outer portions, and the three second accommodating grooves are respectively arranged on the upper diamond screen window and the two upper portions and the two lower portions.

Furthermore, the first door leaf and the second door leaf further comprise a first hooked rabbet positioned in the middle of the door frame and a first smooth rabbet arranged in parallel with the first hooked rabbet, one end of the first hooked rabbet and one end of the first smooth rabbet are fixedly connected with the outer lower part, the other end of the first hooked rabbet and the other end of the first smooth rabbet are fixedly connected with the upper lower part, the first hooked rabbet, the upper lower part, the first smooth rabbet and the outer lower part are enclosed to form a first square frame body, and the first hollow glass is fixed in the first square frame body.

Furthermore, the sealing element further comprises a plurality of third sealing wool tops, the diamond mesh sash comprises a second hooked rabbet positioned in the middle of the door frame and a second smooth rabbet arranged in parallel with the second hooked rabbet, one end of the second hooked rabbet and one end of the second smooth rabbet are fixedly connected with the upper diamond screen window, the other end of the second hooked rabbet and the other end of the second smooth rabbet are fixedly connected with the lower diamond screen window, the second hooked rabbet, the upper diamond screen window, the second smooth rabbet and the lower diamond screen window are enclosed to form a second square frame body, the diamond mesh is fixed in the second square frame body, one side of the second hooked rabbet, which faces the first hooked rabbet, and one side of the second hooked rabbet, which is opposite to the first hooked rabbet, are provided with vertical notches, and one end of the plurality of third sealing wool tops is respectively installed in each vertical notch, and the other end of each third sealing wool top is abutted against the corresponding first rabbet.

Further, take high water tightness push-and-pull door of buddha's warrior attendant net fan still includes fixed frame, center pillar, two edge sealings and two second cavity glass, fixed frame with take solid upward slide parallel just take solid upward slide to be located fixed frame with between the high lower rail, the one end of center pillar with take middle part fixed connection, the other end of solid upward slide with the middle part fixed connection of fixed frame, the both ends of edge sealing respectively with fixed frame with high lower rail is perpendicular to be connected, the middle part with take solid upward slide connection, just take solid upward slide, high lower rail and two edge sealings one portion to enclose synthetically the doorjamb, take another portion of solid upward slide, fixed frame, center pillar and two edge sealings to enclose synthetic two spaced third side shape frameworks, second cavity glass is fixed in the third side shape framework.

Compared with the prior art, the beneficial effects of the utility model reside in that:

the utility model discloses a take high water tightness push-and-pull door of buddha's warrior attendant net fan possesses mosquito-proof worm function, all installs a plurality of sealing members between first door leaf and the second door leaf and between second door leaf and the buddha's warrior attendant net fan so that it is sealed to form sliding contact each other, and high lower rail adopts the echelonment way, can effectively evacuate the rainwater at rainy day, effectively prevents the indoor infiltration condition that takes place, has high water tightness.

Drawings

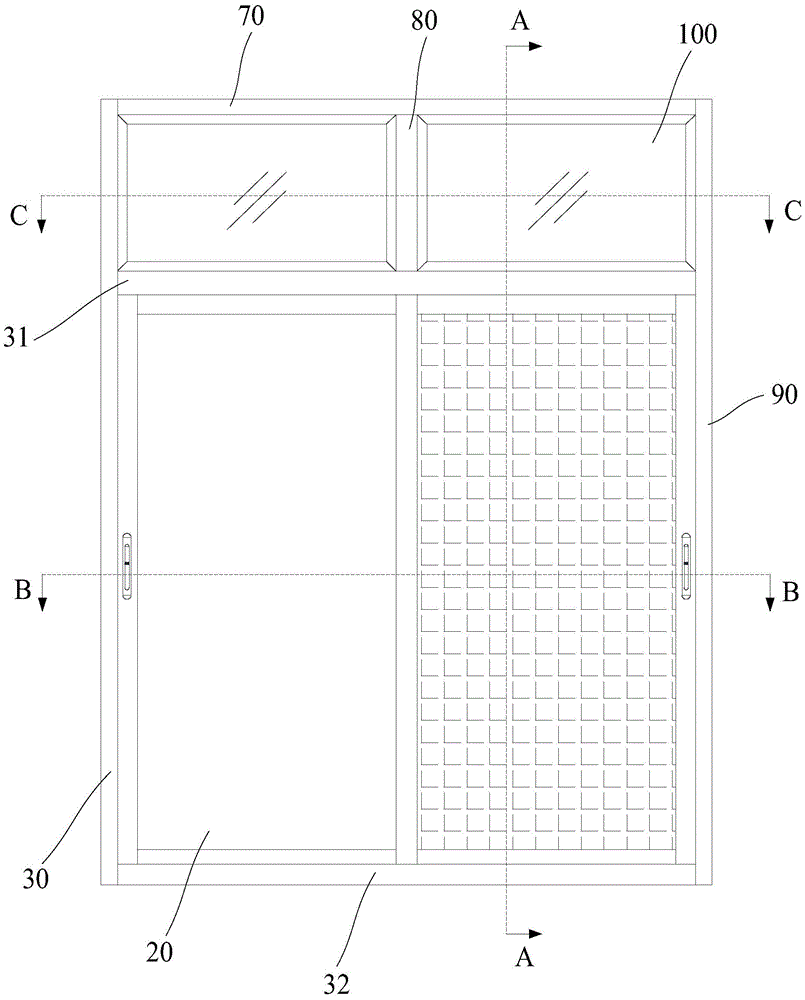

Fig. 1 is a front view of a high water tightness sliding door with a diamond mesh sash according to an embodiment of the present invention;

FIG. 2 is a cross-sectional view of the first door leaf, the second door leaf and the diamond mesh leaf of FIG. 1 all moving to a rear edge A-A of one side of the door jamb;

FIG. 3 is an enlarged partial schematic view at D of FIG. 2;

FIG. 4 is a cross-sectional view taken along line B-B of FIG. 1;

FIG. 5 is an enlarged partial schematic view at E in FIG. 4;

FIG. 6 is a cross-sectional view taken along line C-C of FIG. 1;

fig. 7 is a schematic structural view of the high-low rail according to the embodiment of the present invention.

In the figure:

10. a first door leaf; 11. upper and lower sides; 111. a second accommodating groove; 12. the outer lower part; 121. a first accommodating groove; 13. a first insulating glass; 14. a first hooked rabbet; 15. a first smooth rabbet; 20. a second door leaf; 30. a door jamb; 31. the belt is fixed to slide upwards; 311. mounting a boss; 32. high and low rails; 321. a first threshold; 3211. a first base; 3212. a first slide rail; 3213. a bearing member; 3214. a vertical plate; 3215. a support boss; 3216. a card slot; 322. a second threshold; 3221. a second base; 3222. a second slide rail; 3223. a third slide rail; 3224. a step; 323. a water baffle; 324. a partition plate; 40. a seal member; 41. a first sealing wool top; 42. a second sealing wool top; 43. third sealing wool tops; 50. a diamond mesh fan; 51. mounting a diamond screen window; 52. a lower diamond screen window; 53. a diamond mesh; 54. pressing a diamond mesh; 55. a second hooked rabbet; 56. a second smooth rabbet; 60. a roller; 70. a fixing frame; 80. a center pillar; 90. edge sealing; 100. and (4) second hollow glass.

Detailed Description

The present invention will be further described with reference to the accompanying drawings and the detailed description, and it should be noted that, on the premise of no conflict, the embodiments or technical features described below can be arbitrarily combined to form a new embodiment.

Please refer to fig. 1 to 5, the utility model discloses a take high water tightness push-and-pull door of buddha's warrior attendant net fan, also can be called for briefly high water tightness push-and-pull door hereafter, take high water tightness push-and-pull door of buddha's warrior attendant net fan 50 that the indoor one side of high water tightness push-and-pull door of buddha's warrior attendant net fan set up including first door leaf 10, second door leaf 20, door frame 30, a plurality of sealing members 40 and orientation, first door leaf 10, second door leaf 20 and buddha's warrior attendant net fan 50 all install on door frame 30, when first door leaf 10, second door leaf 20 and buddha's warrior attendant net fan 50 all push-and-pull to.

Referring to fig. 7, the doorjamb 30 includes an upper fixing rail 31 and a lower high rail 32 parallel to the upper fixing rail 31, the lower high rail 32 is fixed on the ground, the lower high rail 32 includes a first doorsill 321 and a second doorsill 322 connected to the first doorsill 321 and disposed in a step shape, the first doorsill 321 is lower than the second doorsill 322, one end of the diamond-mesh leaf 50, one end of the first door leaf 10, and one end of the second door leaf 20 are slidably connected to the upper fixing rail 31, the other ends of the diamond-mesh leaf 50 and the second door leaf 20 are slidably connected to the second doorsill 322, the other end of the first door leaf 10 is slidably connected to the first doorsill 321, and a plurality of sealing members 40 are installed between the first door leaf 10 and the second door leaf 20 and between the second door leaf 20 and the diamond-mesh leaf 50 to form a sliding contact seal therebetween, the stepped lower high rail 32 can effectively disperse rainwater in rainy days, effectively prevent the indoor infiltration condition that takes place, have high water tightness, this high water tightness push-and-pull door possesses mosquito-proof worm function simultaneously.

As a preferred embodiment, the high-water-tightness sliding door with the diamond mesh sash further includes a plurality of rollers 60, the first threshold 321 includes a first base 3211 and a first sliding rail 3212 convexly disposed on the first base 3211, the second threshold 322 includes a second base 3221 and a second sliding rail 3222 and a third sliding rail 3223 convexly disposed on the second base 3221, the first sliding rail 3212, the second sliding rail 3222 and the third sliding rail 3223 are disposed in parallel, one sides of the diamond mesh sash 50, the first door leaf 10 and the second door leaf 20 facing the high-low rail 32 are respectively provided with a mounting groove in a penetrating manner, the plurality of rollers 60 are respectively mounted in the respective mounting grooves and are respectively rotatably connected with the first sliding rail 3212, the second sliding rail 3222 and the third sliding rail 3223, the high-water-tightness of the diamond mesh sash in this embodiment can achieve three-rail operation, the diamond mesh sash 50, the first door leaf 10 and the second door leaf 20 do not interfere with each other during operation, and the roller 60 may reduce the friction between the diamond mesh leaf 50, the first leaf 10, and the second leaf 20 and the upper and lower rails 32.

In a preferred embodiment, the top surface of the first base 3211 and the top surface of the second base 3221 are both inclined surfaces, and the distance from the top surface of the first base 3211 to the bottom surface of the first base 3211 extends from the side close to the diamond mesh fan 50 to the side far from the diamond mesh fan 50 with a tendency of gradually decreasing size; the distance between the top surface of the second base 3221 and the bottom surface of the second base 3221 is also set to extend from the side close to the diamond mesh fan 50 to the side far from the diamond mesh fan 50 with a tendency of gradually decreasing size, so that when rainwater falls on the first base 3211 and the second base 3221, the rainwater flows down along the inclined surface.

In this embodiment, the sealing element 40 includes a plurality of first sealing wool tops 41, the bottoms of the first door leaf 10, the second door leaf 20 and the diamond mesh leaf 50 are all penetrated through and concavely provided with a first accommodating groove 121, the installation groove is located in the first accommodating groove 121, two inner sides of the first accommodating groove 121 are respectively provided with a first transverse notch, one end of the first sealing wool tops 41 is installed at the first transverse notch, the other end is abutted to the first sliding rail 3212 or the second sliding rail 3222 or the third sliding rail 3223 and is sealed in sliding contact with the first sliding rail 3212 or the second sliding rail 3222 or the third sliding rail 3223 in the transverse direction, so that the bottoms of the first door leaf 10, the second door leaf 20 and the diamond mesh leaf 50 are sealed in contact with the lower high rail 32, and mosquitoes, rainwater.

As a preferable embodiment, the upper and lower rails 32 further include two water baffles 323, the first sliding rail 3212 and the second sliding rail 3222 both include a bearing member 3213, a vertical plate 3214 protruding from the first threshold 321 or the second threshold 322 and fixedly connected to the bottom of the bearing member 3213, and a supporting protrusion 3215 for supporting the roller 60 and fixed to the top of the bearing member 3213, the first sealing wool top 41 abuts against the bearing member 3213, one end of the bearing member 3213, which is away from the diamond mesh sash 50, is provided with a slot 3216, one end of the water baffle 323 is inserted into the slot 3216, and the other end extends toward one side of the first threshold 321 or the second threshold 322 and is spaced apart from the first threshold 321 or the second threshold 322, the water baffle 323 can effectively block most of rainwater, and at the same time, the roller 60 is protected, the bearing member 3213 in this embodiment may be a block, or may be enclosed by a plurality of supporting rods, and the third sliding rail 3223 may have the same structure as the first sliding rail 3212 and the second sliding rail 3222, the stopper 3213 may be omitted so that the first sealing top 41 directly abuts against the vertical plate 3214.

In a preferred embodiment, the top surface of the first base 3211 and the top surface of the second base 3221 are inclined, but a step 3224 may be provided to cooperate with the water deflector 323, and the end of the water deflector 323 extends into the step 3224, so as to better prevent rainwater from penetrating through the gap between the water deflector 323 and the second threshold 322 or the first threshold 321.

In a preferred embodiment, a partition 324 for preventing rainwater from entering the room is further protruded from a side of the second base 3221 away from the first base 3211, and the third sliding rail 3223 is located between the partition 324 and the second sliding rail 3222.

As a preferred embodiment, the sealing member 40 further includes a plurality of second sealing wool tops 42, the bottom of the fixing upper slide 31 is provided with three spaced mounting protrusions 311, the tops of the first door leaf 10, the second door leaf 20 and the diamond mesh leaf 50 are all concavely provided with second receiving grooves 111, two inner sides of the second receiving grooves 111 are respectively provided with second transverse notches, one end of the second sealing wool tops 42 is mounted on the second transverse notches, and the other end of the second sealing wool tops abuts against the mounting protrusions 311 and forms a sliding contact seal therewith, so that the tops of the first door leaf 10, the second door leaf 20 and the diamond mesh leaf 50 form a sliding contact seal with the fixing upper slide 31, thereby effectively preventing mosquitoes from entering.

In this embodiment, the first door leaf 10 and the second door leaf 20 both include the upper and lower 11, outer lower 12 and the first hollow glass 13 whose two ends are respectively connected with the upper and lower 11 and outer lower 12, the diamond mesh leaf 50 includes the upper diamond mesh window 51, the lower diamond mesh window 52, the diamond mesh 53 and two diamond mesh pressing lines 54, two ends of the diamond mesh 53 are respectively fixed on the upper diamond mesh window 51 and the lower diamond mesh window 52 through the two diamond mesh pressing lines 54, the three first accommodating grooves 121 are respectively arranged at the bottoms of the lower diamond mesh window 52 and the two outer lower 12, and the three second accommodating grooves 111 are respectively arranged at the tops of the upper diamond mesh window 51 and the two upper and lower 11.

First door leaf 10 and second door leaf 20 all still include the first hooked rabbet 14 that is located door frame 30 middle part and the first smooth rabbet 15 with first hooked rabbet 14 parallel arrangement, the one end of first hooked rabbet 14 and first smooth rabbet 15 all with outer below 12 fixed connection, the other end all with upper and lower 11 fixed connection, and first hooked rabbet 14, upper and lower 11, first smooth rabbet 15 and outer below 12 enclose synthetic first square framework, first cavity glass 13 is fixed in the first square framework to form the protection to first cavity glass 13.

The sealing element 40 further comprises a plurality of third sealing wool tops 43, the diamond mesh sash 50 comprises a second hooked rabbet 55 located in the middle of the door frame 30 and a second smooth rabbet 56 arranged in parallel with the second hooked rabbet 55, one ends of the second hooked rabbet 55 and the second smooth rabbet 56 are fixedly connected with the upper diamond screen window 51, the other ends of the second hooked rabbet 55 and the second smooth rabbet 56 are fixedly connected with the lower diamond screen window 52, the second hooked rabbet 55, the upper diamond screen window 51, the second smooth rabbet 56 and the lower diamond screen window 52 are enclosed to form a second square frame body, the diamond mesh 53 is fixed in the second square frame body, one side of the second hooked rabbet 55 facing the first hooked rabbet 14 and one side of the second hooked rabbet opposite to the first hooked rabbet 14 are provided with a plurality of vertical notches, one ends of the plurality of third sealing wool tops 43 are respectively installed in the vertical notches, and the other ends of the third sealing wool tops abut against the corresponding first rabbets 14, so that the sliding contact sealing can.

Referring to fig. 1 and 6, the high-sealing sliding door with a diamond sash further includes a fixing frame 70, a center pillar 80, two edge seals 90 and two second hollow glasses 100, the fixing frame 70 is parallel to the upper fixing rail 31, the upper fixing rail 31 is located between the fixing frame 70 and the upper and lower rails 32, one end of the center pillar 80 is fixedly connected to the middle of the upper fixing rail 31, the other end of the center pillar is fixedly connected to the middle of the fixing frame 70, the two ends of the edge seal 90 are respectively vertically connected to the ends of the fixing frame 70 and the upper and lower rails 32, the middle of the edge seal is connected to the end of the upper fixing rail 31, the upper and lower rails 32 and one of the two edge seals 90 surround the door frame 30, the other ends of the upper fixing rail 31, the fixing rail 70, the center pillar 80 and the two edge seals 90 surround two spaced third square frames, and the second hollow glasses 100 are fixed in the third square frames.

To sum up, the utility model discloses a take high water tightness push-and-pull door of buddha's warrior attendant net fan possesses mosquito-proof worm an organic whole, possess multiple waterproof function, has high water tightness.

The above embodiments are only preferred embodiments of the present invention, and the protection scope of the present invention cannot be limited thereby, and any insubstantial changes and substitutions made by those skilled in the art based on the present invention are all within the protection scope of the present invention.

Claims (10)

1. The utility model provides a take high water tightness push-and-pull door of buddha's warrior attendant net fan which characterized in that: comprises a first door leaf, a second door leaf, a door frame, a plurality of sealing elements and a diamond mesh leaf arranged towards one indoor side, the door frame comprises an upper fixing slide and a lower rail arranged in parallel with the upper fixing slide, the lower rail comprises a first doorsill and a second doorsill which is connected with the first doorsill and is arranged in a step shape, the height of the first threshold is lower than that of the second threshold, one end of the diamond mesh fan, one end of the first door leaf and one end of the second door leaf are respectively connected with the belt fixing upper slide, the other ends of the diamond mesh leaf and the second door leaf are respectively connected with the second threshold in a sliding way, the other end of the first door leaf is connected with the first threshold in a sliding way, and a plurality of sealing elements are arranged between the first door leaf and the second door leaf and between the second door leaf and the diamond mesh leaf so as to form sliding contact sealing between the first door leaf and the second door leaf and between the second door leaf and the diamond mesh leaf.

2. The high-water-tightness sliding door with the diamond net sash according to claim 1, wherein the high-water-tightness sliding door with the diamond net sash further comprises a plurality of rollers, the first threshold comprises a first base and a first sliding rail protruding on the first base, the second threshold comprises a second base, and a second sliding rail and a third sliding rail protruding on the second base, the first sliding rail, the second sliding rail and the third sliding rail are arranged in parallel, one sides of the diamond net sash, the first door leaf and the second door leaf facing the high lower rail are respectively provided with a mounting groove, and the plurality of rollers are respectively mounted in the respective mounting grooves and are respectively rotatably connected with the first sliding rail, the second sliding rail and the third sliding rail.

3. The high-water-tightness sliding door with the diamond net fan according to claim 2, wherein the top surface of the first base and the top surface of the second base are both inclined surfaces, and the distance between the top surface of the first base and the bottom surface of the first base and the distance between the top surface of the second base and the bottom surface of the second base are both arranged to extend from a side close to the diamond net fan to a side far from the diamond net fan in a trend of decreasing size.

4. The sliding door with the diamond mesh sash according to claim 2, wherein the sealing element comprises a plurality of first sealing wool tops, the bottoms of the first door leaf, the second door leaf and the diamond mesh sash are all provided with first accommodating grooves in a concave manner, the mounting groove is located in the first accommodating groove, two inner sides of the first accommodating groove are respectively provided with a first transverse notch, one end of the first sealing wool top is mounted in the first transverse notch, and the other end of the first sealing wool top abuts against the first sliding rail, the second sliding rail or the third sliding rail and forms sliding contact sealing with the first sliding rail, the second sliding rail or the third sliding rail.

5. The high-water-tightness sliding door with the diamond net sash according to claim 4, wherein the high and low rails further comprise two water baffles, each of the first sliding rail and the second sliding rail comprises a bearing piece, a vertical plate which is convexly arranged on the first door sill or the second door sill and is fixedly connected with the bottom of the bearing piece, and a supporting protrusion which is used for supporting the roller and is fixed on the top of the bearing piece, the first sealing wool strip abuts against the bearing piece, one end of the bearing piece, which is far away from the diamond net sash, is provided with a clamping groove, one end of the water baffle is clamped in the clamping groove, and the other end of the water baffle extends towards one side of the first door sill or the second door sill.

6. The high-water-tightness sliding door with the diamond net sash according to claim 4, wherein the sealing element further comprises a plurality of second sealing wool tops, the bottom of the fixed upper slide is provided with three spaced mounting protrusions, the tops of the first door leaf, the second door leaf and the diamond net sash are all concavely provided with second accommodating grooves, two inner sides of the second accommodating grooves are respectively provided with a second transverse notch, one end of each second sealing wool top is mounted on the second transverse notch, and the other end of each second sealing wool top abuts against the mounting protrusions and forms sliding contact sealing with the second sealing wool top.

7. The sliding door with high water tightness according to claim 6, wherein the first door leaf and the second door leaf comprise an upper diamond screen window, a lower diamond screen window, a diamond mesh and two diamond mesh pressing lines, the two ends of the diamond mesh are respectively fixed on the upper diamond screen window and the lower diamond screen window through the two diamond mesh pressing lines, the three first accommodating grooves are respectively arranged on the lower diamond screen window and the two outer lower portions, and the three second accommodating grooves are respectively arranged on the upper diamond screen window and the two upper lower portions.

8. The high-water-tightness sliding door with the diamond net sash according to claim 7, wherein the first door leaf and the second door leaf further comprise a first hooked rabbet positioned in the middle of the door frame and a first smooth rabbet arranged in parallel with the first hooked rabbet, one ends of the first hooked rabbet and the first smooth rabbet are fixedly connected with the outer lower part, the other ends of the first hooked rabbet and the first smooth rabbet are fixedly connected with the upper lower part, the first hooked rabbet, the upper lower part, the first smooth rabbet and the outer lower part are enclosed to form a first square frame body, and the first hollow glass is fixed in the first square frame body.

9. A high water tightness sliding door with diamond mesh sash according to claim 8, the sealing element also comprises a plurality of third sealing wool tops, the diamond net fan comprises a second hooked rabbet positioned in the middle of the door frame and a second smooth rabbet arranged in parallel with the second hooked rabbet, one end of each of the second hooked rabbet and the second smooth rabbet is fixedly connected with the upper diamond screen window, the other end of each of the second hooked rabbet and the second smooth rabbet is fixedly connected with the lower diamond screen window, the second hooked rabbet, the upper diamond screen window, the second smooth rabbet and the lower diamond screen window are enclosed into a second square frame body, the diamond mesh is fixed in the second square frame, the second hooked rabbet faces one side of the first hooked rabbet and the opposite side of the first hooked rabbet are provided with vertical notches, and one end of each third sealing wool top is installed in each vertical notch and the other end of each third sealing wool top abuts against the corresponding first hooked rabbet.

10. A high water tightness sliding door with a diamond mesh sash according to claim 1, the high-water-tightness sliding door with the diamond net sash also comprises a fixing frame, a center column, two edge seals and two second hollow glasses, the fixing frame is parallel to the upper belt fixing slide and the upper belt fixing slide is positioned between the fixing frame and the high and low rails, one end of the central column is fixedly connected with the middle part of the belt fixing upper slide, the other end of the central column is fixedly connected with the middle part of the fixing frame, the two ends of the edge seal are respectively and vertically connected with the fixed frame and the high and low rails, the middle part of the edge seal is connected with the belt fixing upper slide, just one part of going up admittedly in the area, high lower rail and two edge seals encloses synthetically the door frame, another part of going up admittedly in the area, fixed frame, center pillar and two edge seals encloses synthetic two spaced third side shape frameworks, second cavity glass is fixed in the third side shape framework.
