Abstract
The utility model discloses a wire rod production is with automatic stranded conductor device, comprising a supporting seat, the first motor of left side fixedly connected with of inner cavity of a support base bottom, the output fixedly connected with bull stick of first motor, the top of bull stick runs through to the top of supporting seat, the fixed surface of bull stick is connected with the loading board, the wind-up roll has been placed at the top of loading board, the top of bull stick runs through to the inner chamber of wind-up roll, the right side fixedly connected with second motor of inner cavity of a support base bottom, the rear side fixedly connected with spacing box on supporting seat top right side, the output fixedly connected with threaded rod of second motor. The utility model discloses a supporting seat, first motor, bull stick, loading board, wind-up roll, second motor, spacing case, threaded rod, thread bush, backup pad and stopper cooperation are used, efficiency when can improving the wire rod rolling and the quality when rolling, make things convenient for the use in later stage.
Description
Technical Field
The utility model relates to a wire rod production facility technical field specifically is an automatic stranded conductor device is used in wire rod production.
Background
The wire rod is one of hot-rolled section steels with the smallest section size, eight specifications of coiled hot-rolled round steels with diameters of 5-9 mm are generally called wire rods in China, the wire rods are delivered by coiling, so the wire rods are also called wire rods, a wire twisting and winding device is needed when the wire rods are wound, but the existing winding device is easily disordered when the wire rods are wound, the winding efficiency is reduced, and inconvenience is brought to later use.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an automatic stranded conductor device is used in wire rod production possesses the efficient and good advantage of rolling quality of rolling, has solved current coiling mechanism and has appeared the confusion easily when the rolling wire rod, has not only reduced rolling efficiency but also brought inconvenient problem for the use in later stage.
In order to achieve the above object, the utility model provides a following technical scheme: an automatic wire stranding device for wire production comprises a supporting seat, wherein a first motor is fixedly connected to the left side of the bottom of an inner cavity of the supporting seat, a rotating rod is fixedly connected to the output end of the first motor, the top of the rotating rod penetrates through the top of the supporting seat, a bearing plate is fixedly connected to the surface of the rotating rod, a winding roller is placed on the top of the bearing plate, the top of the rotating rod penetrates through the inner cavity of the winding roller, a second motor is fixedly connected to the right side of the bottom of the inner cavity of the supporting seat, a limiting box is fixedly connected to the rear side of the right side of the top of the supporting seat, a threaded rod is fixedly connected to the output end of the second motor, the top of the threaded rod penetrates through the inner cavity of the limiting box and is movably connected through a bearing, a threaded sleeve is connected to the surface of the threaded rod in a threaded manner, the front side of backup pad bottom fixedly connected with stopper.
Preferably, a circular sliding groove is formed in the left side of the top of the supporting seat, pulleys are fixedly connected to the two sides of the bottom of the bearing plate, and one side, away from the supporting plate, of each pulley extends to the inner cavity of the circular sliding groove and is movably connected with the circular sliding groove.
Preferably, the two sides, the front side and the rear side of the top of the bearing plate are fixedly connected with positioning blocks, and one side of each positioning block is in contact with the winding roller.
Preferably, the bottom of the first motor is fixedly connected with a first fixing block, and the bottom of the first fixing block is fixedly connected with the inner cavity of the supporting seat.
Preferably, the bottom of the second motor is fixedly connected with a second fixed block, and the bottom of the second fixed block is fixedly connected with the bottom of the supporting seat.
Preferably, the front surface of the limiting box is provided with a through groove matched with the supporting plate, and two sides of the limiting block are in a communicated state.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model discloses a supporting seat, first motor, bull stick, loading board, wind-up roll, second motor, spacing box, threaded rod, thread bush, backup pad and stopper cooperation are used, efficiency when can improving the wire rod rolling and quality when rolling make things convenient for the use in later stage, have solved current coiling mechanism and have appeared chaotic easily when the rolling wire rod, have not only reduced rolling efficiency but also brought inconvenient problem for the use in later stage.
2. The utility model discloses a cooperation that sets up circular spout and pulley is used, can make the better rotation of loading board, through setting up the locating piece, the position of injecing the wind-up roll that can be better makes the wind-up roll skew can not appear when rotating, through setting up first fixed block, can be with the better fixing of first motor in the supporting seat, through setting up the second fixed block, can be with the better fixing of second motor in the supporting seat, through setting up logical groove, make equipment can normal use.
Drawings

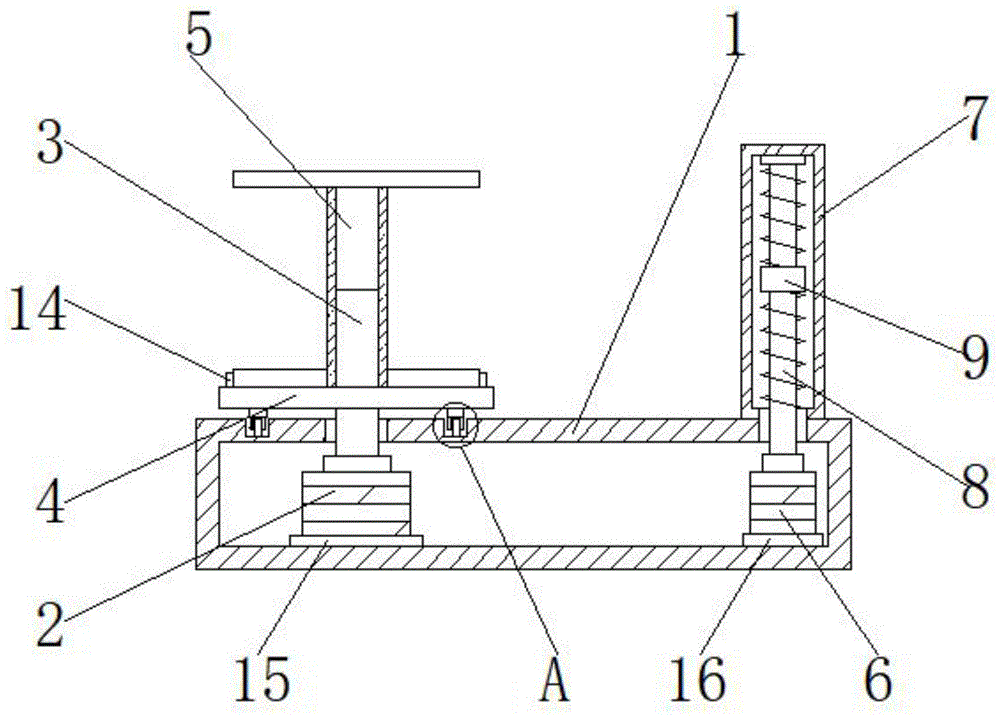

FIG. 1 is a schematic view of the internal structure of the present invention;
FIG. 2 is a schematic view of the external structure of the present invention;
FIG. 3 is a schematic top view of the structure of the present invention;
fig. 4 is a partially enlarged view of a portion a in fig. 1 according to the present invention.
In the figure: 1. a supporting seat; 2. a first motor; 3. a rotating rod; 4. a carrier plate; 5. a wind-up roll; 6. a second motor; 7. a limiting box; 8. a threaded rod; 9. a threaded sleeve; 10. a support plate; 11. a limiting block; 12. a circular chute; 13. a pulley; 14. positioning blocks; 15. a first fixed block; 16. and a second fixed block.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The components of the present invention are all standard components or components known to those skilled in the art, and the structure and principle thereof can be known by the technical manual or by the conventional experimental method.
Referring to fig. 1-4, an automatic wire twisting device for wire production comprises a supporting seat 1, a circular chute 12 is formed on the left side of the top of the supporting seat 1, pulleys 13 are fixedly connected to both sides of the bottom of a bearing plate 4, one side of each pulley 13, which is far away from a supporting plate 10, extends into an inner cavity of the circular chute 12 and is movably connected with the circular chute 12, the bearing plate 4 can better rotate by the cooperation of the circular chute 12 and the pulleys 13, a first motor 2 is fixedly connected to the left side of the bottom of the inner cavity of the supporting seat 1, a first fixing block 15 is fixedly connected to the bottom of the first motor 2, the bottom of the first fixing block 15 is fixedly connected with the inner cavity of the supporting seat 1, the first motor 2 can be better fixed in the supporting seat 1 by the arrangement of the first fixing block 15, a rotating rod 3 is fixedly connected to the output end of the first motor 2, and, the surface of the rotating rod 3 is fixedly connected with a bearing plate 4, two sides of the top of the bearing plate 4, the front side and the rear side are fixedly connected with positioning blocks 14, one side of each positioning block 14 is in contact with a winding roller 5, the position of the winding roller 5 can be better limited by arranging the positioning blocks 14, so that the winding roller 5 cannot deviate during rotation, the winding roller 5 is placed at the top of the bearing plate 4, the top of the rotating rod 3 penetrates through the inner cavity of the winding roller 5, the right side of the bottom of the inner cavity of the supporting seat 1 is fixedly connected with a second motor 6, the bottom of the second motor 6 is fixedly connected with a second fixing block 16, the bottom of the second fixing block 16 is fixedly connected with the bottom of the supporting seat 1, the second motor 6 can be better fixed in the supporting seat 1 by arranging the second fixing block 16, the rear side of the right side of the top of the supporting seat 1 is fixedly connected with a limiting, the two sides of the limiting block 11 are in a communicated state, the equipment can be normally used by arranging the through groove, the output end of the second motor 6 is fixedly connected with a threaded rod 8, the top of the threaded rod 8 penetrates through the inner cavity of the limiting box 7 and is movably connected through a bearing, the surface of the threaded rod 8 is in threaded connection with a threaded sleeve 9, the front side of the threaded sleeve 9 is fixedly connected with a supporting plate 10, the front side of the supporting plate 10 penetrates through the front side of the limiting box 7, the front side of the bottom of the supporting plate 10 is fixedly connected with the limiting block 11, the efficiency and the quality of the wire rod during winding can be improved through the supporting seat 1, the first motor 2, the rotating rod 3, the bearing plate 4, the winding roller 5, the second motor 6, the limiting box 7, the threaded rod 8, the threaded sleeve 9, the supporting plate 10 and the limiting block 11 in matched use, the later-stage use, not only reduces the winding efficiency but also brings inconvenience to the later use.
During the use, place wind-up roll 5 on loading board 4, pass the inner chamber of stopper 11 with the wire rod after-fixing on wind-up roll 5, start first motor 2 and second motor 6, the output of first motor 2 drives bull stick 3 and rotates, bull stick 3 drives loading board 4 and wind-up roll 5 and rotates, the output of second motor 6 drives threaded rod 8 and rotates, threaded rod 8 drives threaded sleeve 9 up-and-down reciprocating motion, threaded sleeve 9 drives backup pad 10 and stopper 11 up-and-down reciprocating motion, drive wire rod up-and-down reciprocating motion through stopper 11, make the wire rod can even orderly arrange from top to bottom on wind-up roll 5 when the rolling.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a wire rod production is with automatic stranded conductor device, includes supporting seat (1), its characterized in that: the winding device is characterized in that a first motor (2) is fixedly connected to the left side of the bottom of an inner cavity of the supporting seat (1), a rotating rod (3) is fixedly connected to the output end of the first motor (2), the top of the rotating rod (3) penetrates through the top of the supporting seat (1), a bearing plate (4) is fixedly connected to the surface of the rotating rod (3), a winding roller (5) is placed at the top of the bearing plate (4), the top of the rotating rod (3) penetrates through the inner cavity of the winding roller (5), a second motor (6) is fixedly connected to the right side of the bottom of the inner cavity of the supporting seat (1), a limiting box (7) is fixedly connected to the rear side of the right side of the top of the supporting seat (1), a threaded rod (8) is fixedly connected to the output end of the second motor (6), the top of the threaded rod (8) penetrates through the inner cavity of the limiting box (7) and is movably, the front side fixedly connected with backup pad (10) of thread bush (9), the front side of backup pad (10) runs through to the front side of spacing case (7), the front side fixedly connected with stopper (11) of backup pad (10) bottom.
2. The automatic wire stranding device for the wire production according to claim 1, characterized in that: circular spout (12) have been seted up on the left side at supporting seat (1) top, the equal fixedly connected with pulley (13) in both sides of loading board (4) bottom, one side that backup pad (10) were kept away from in pulley (13) extends to the inner chamber of circular spout (12) and with circular spout (12) swing joint.
3. The automatic wire stranding device for the wire production according to claim 1, characterized in that: the winding device is characterized in that positioning blocks (14) are fixedly connected to the two sides, the front side and the rear side of the top of the bearing plate (4), and one side of each positioning block (14) is in contact with the winding roller (5).
4. The automatic wire stranding device for the wire production according to claim 1, characterized in that: the bottom fixedly connected with first fixed block (15) of first motor (2), the bottom of first fixed block (15) and the inner chamber fixed connection of supporting seat (1).
5. The automatic wire stranding device for the wire production according to claim 1, characterized in that: the bottom of the second motor (6) is fixedly connected with a second fixing block (16), and the bottom of the second fixing block (16) is fixedly connected with the bottom of the supporting seat (1).
6. The automatic wire stranding device for the wire production according to claim 1, characterized in that: the front surface of the limiting box (7) is provided with a through groove matched with the supporting plate (10), and the two sides of the limiting block (11) are in a communicated state.
