Abstract

The embodiment of the utility model provides an intelligent window, including the window frame, fix the left side window on the left of window frame, the movable right side window that sets up in the window frame, when the right side window is located the window frame right side, left side window and right side window seal the window frame; the first driving mechanism is used for driving the right side window to move in the window frame; a rotary small window and a second driving mechanism for driving the rotary small window are rotatably arranged on the left side window. The user can drive through second actuating mechanism and rotate the small window and rotate, and one of them can indoor and outdoor ventilation of effectual assurance, and its two when the bottom that rotates the small window inclines down, can effectually prevent that the rainwater from getting into indoorly with the wind, adopts the embodiment of the utility model provides an intelligent window can take different opening modes according to the weather conditions of difference, has richened the selectivity that the user opened the window, has improved user experience.

Description

Intelligent window
Technical Field
The utility model relates to an intelligence house dress technical field especially relates to an intelligent window.
Background
The window is used as a channel for indoor and outdoor communication and is closely related to the healthy life of people. And the appearance of the intelligent window brings greater convenience and safety to the life of people. It is an important component of smart homes. With the development of science and technology, smart windows will be popularized in common families in the coming years, and the existing window style functions are more and more. However, the existing smart window can only realize left-right opening of the window sash, has a single function, and cannot well meet the requirements of smart home.
SUMMERY OF THE UTILITY MODEL
In order to solve prior art, current smart window only can realize opening about the casement, and its function is single, can not satisfy the technical problem of the requirement of intelligent house well, the embodiment of the utility model provides a smart window, concrete technical scheme is as follows:
the embodiment of the utility model provides an intelligent window, including window frame, the left side window of fixing in the left of window frame, the right side window that can move the setting in the window frame, when the right side window is located the window frame right side, the left side window with the right side window seals the window frame; the first driving mechanism is used for driving the right side window to move in the window frame; and a rotary small window and a second driving mechanism for driving the rotary small window are rotatably arranged on the left side window.
Optionally, a rail is arranged at the bottom of the window frame, a pulley is arranged at the bottom of the right window, the pulley is matched with the rail, and the right window can move in the rail by using the pulley.
Optionally, the first driving mechanism is arranged at the bottom of the window frame; the first driving mechanism comprises a belt roller assembly and a driving motor for driving the belt roller assembly to work, a bulge is arranged on the outer side of a belt of the belt roller assembly, and a groove matched with the bulge is formed in the bottom of the right side window; the belt with the right side window utilizes protruding and recess joint is connected.
Optionally, the second driving mechanism includes a rotating motor and a driving shaft coaxially and fixedly connected to a rotating shaft of the rotating motor; the drive shaft not with the one end fixed connection that the motor is connected rotates on the left side wall of rotation small window, the right side wall of rotation small window passes through shaft hole cooperation rotation and connects on the right side inner wall of left side window, the axis of rotation small window with the axis collineation of pivot.
Optionally, the wind-driven rain-drop wind-speed sensor further comprises a controller, and a rain-drop sensor, a light-sensitive sensor and a wind-speed sensor which are arranged outside the window frame; the controller is respectively connected with the raindrop sensor, the light sensor and the wind speed sensor in a control and communication manner; the controller is connected with the first driving mechanism and the second driving mechanism in a control mode.
Optionally, the solar cell module is further included, and the glass arranged in the left side window, the right side window and the small rotating window is atomized glass; the solar cell module supplies power to the atomized glass through a power transmission line, and the controller controls the power transmission line to be switched on and off; the solar cell module supplies power to the first driving mechanism and the second driving mechanism respectively.
Optionally, the device further comprises a voice recognizer, the voice recognizer is in communication connection with the controller, and the voice recognizer is used for recognizing and acquiring a voice control instruction of a user and sending the control instruction to the controller.
Optionally, a projection clock is disposed at a lower left corner of the left side window.
Optionally, an emergency button for controlling the first driving mechanism to stop working by one key is arranged on the first driving mechanism.
The embodiment of the utility model provides an intelligent window, including the window frame, fix the left side window on the left of window frame, the movable right side window that sets up in the window frame, when the right side window is located the window frame right side, left side window and right side window seal the window frame; the first driving mechanism is used for driving the right side window to move in the window frame; a rotary small window and a second driving mechanism for driving the rotary small window are rotatably arranged on the left side window.
In practical application, when weather conditions are good, a user can drive the right window to move towards the left side by using the first driving mechanism, the right window is opened, the opening angle of the intelligent window is the largest, air circulation is facilitated, when weather conditions are poor, for example, when raining, the user can drive the right window to move rightwards by using the first driving mechanism, so that the left window and the right window seal the window frame, at the moment, if the user wants to ventilate indoors, the user can drive the rotating small window to rotate by using the second driving mechanism, one of which can effectively ensure indoor and outdoor ventilation, and the other can effectively prevent rainwater from entering indoors along with wind when the bottom of the rotating small window inclines downwards, and by adopting the intelligent window provided by the embodiment of the utility model, different opening modes can be adopted according to different weather conditions, and the selectivity of opening the window by the user is enriched, the user experience is improved.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below.

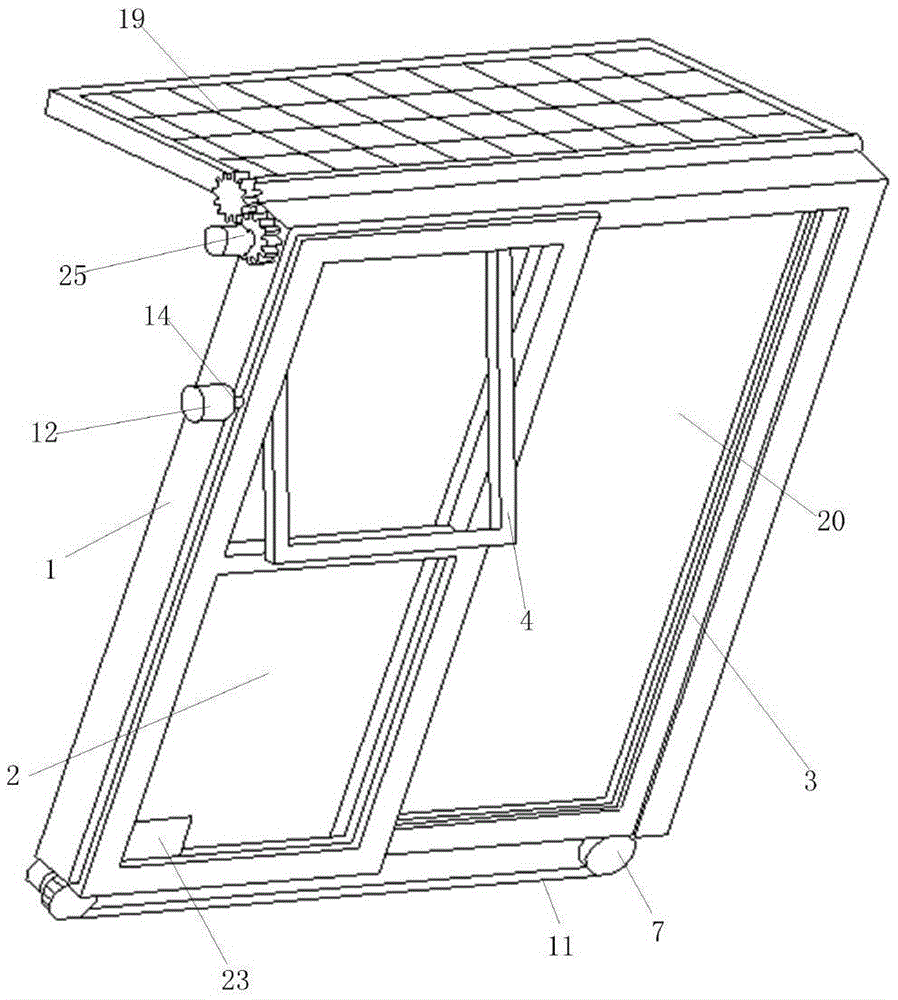

Fig. 1 is a schematic structural diagram of an intelligent window provided in an embodiment of the present invention;
fig. 2 is a schematic structural diagram of another smart window according to an embodiment of the present invention;
fig. 3 is an exploded schematic view of a first driving mechanism and a right window according to an embodiment of the present invention;
fig. 4 is a schematic partial structural view of fig. 3 according to an embodiment of the present invention;
fig. 5 is a schematic view of a disassembly structure of the rotary small window and the second driving mechanism provided in the embodiment of the present invention.
Reference numerals:
1 window frame, 2 left window, 3 right window, 4 rotating small window, 5 tracks, 6 pulleys, 7 belt roller components, 8 driving motors, 9 bulges, 10 grooves, 11 belts, 12 rotating motors, 13 rotating shafts, 14 driving shafts, 15 controllers, 16 raindrop sensors, 17 light-sensitive sensors, 18 wind speed sensors, 19 solar cell components, 20 atomized glass, 21 handles, 22 voice recognizers, 23 projection clocks, 24 emergency buttons, 25 solar panel adjusting mechanisms and 26 carriers.
Detailed Description
The technical solution in the embodiment of the present invention will be described below with reference to the accompanying drawings in the embodiment of the present invention.
Example 1
Referring to fig. 1, an embodiment of the present invention provides an intelligent window, including a window frame 1, a left side window 2 fixed on the left side of the window frame 1, and a right side window 3 movably disposed in the window frame 1, wherein when the right side window 3 is located on the right side of the window frame 1, the left side window 2 and the right side window 3 enclose the window frame 1; the device also comprises a first driving mechanism for driving the right side window 3 to move in the window frame 1; a rotary small window 4 and a second driving mechanism for driving the rotary small window 4 are rotatably arranged on the left side window 2.
The window frame 1, the left side window 2, and the right side window 3 are the same as those of conventional windows that are opened or closed by sliding, in the present embodiment, only the left side window 2 is fixed in the window frame 1, so that the left side window 2 is kept unchanged relative to the window frame 1, the right side window 3 is movable relative to the left side window 2 in the window frame 1, the movement may be sliding movement or rolling movement, as can be appreciated with reference to fig. 1, in the present embodiment, the moving direction of the right window 3 is horizontally moved, the first driving mechanism may be a telescopic rod, an end of an operating rod of the telescopic rod (i.e., an end of a rod that extends or retracts) is fixedly connected to the right side of the right window 3, the working rod penetrates through the right side wall of the window frame 1, so that the first driving mechanism can drive the right side window 3 to move in the window frame 1; the first driving mechanism may also be a gear and rack cooperation, the rack is disposed at the bottom of the right window 3, the gear is driven by a motor, and the gear is meshed with the rack, the conventional arrangement in the field is adopted, and a scheme that the first driving mechanism drives the right window 3 to move in the window frame 1 can also be realized, and the scheme that the gear and rack drive is used belongs to the conventional arrangement in the field.
It should be noted that, the second driving mechanism is used for driving the rotation of the rotating small window 4, the second driving mechanism may be a motor, one side of the rotating small window 4 is fixedly connected with a shaft, the other side is rotatably connected with the right inner wall of the left side window 2 through shaft hole matching, the shaft arranged on the rotating small window 4 penetrates through the left side wall of the left side window 2, and the end of the shaft can be directly connected to the end of the rotating shaft 13 of the motor, it can be understood that, in order to realize the scheme that the rotating small window 4 rotates relative to the left side window 2, the rotating shaft 13, the shaft and the shaft hole matched shaft of the motor are collinear, in practical application, the preferred arrangement mode of the shaft is parallel to the bottom edge of the rotating small window 4, when the arrangement mode is adopted, the sealing arrangement between the rotating small window 4 and the left side window 2 is convenient, of course, the arrangement mode that the shaft is not parallel to the bottom edge of the rotating small window 4 also belongs to the protection of the present invention The range of the window is that, when the rotating small window 4 is in a closed state, the joint between the rotating small window 4 and the left window 2 is closed, so as to ensure the tightness of the smart window provided by this embodiment; the sealing mode can be that the sealing strips are arranged on the peripheral side wall of the rotary small window 4, and similarly, the sealing strips are arranged on the inner side wall of the left side window 2 matched with the rotary small window 4, and when the rotary small window 4 is in a sealing state, sealing is realized through the sealing strips, so that the sealing performance of the intelligent window is improved.
In practical application, when weather conditions are good, a user can drive the right window 3 to move towards the left side by using the first driving mechanism, at this time, the right window 3 is opened, the opening angle of the smart window is the largest, so that air circulation is facilitated, when weather conditions are poor, for example, when raining, the user can drive the right window 3 to move towards the right by using the first driving mechanism, so that the left window 2 and the right window 3 seal the window frame 1, at this time, if the user wants to ventilate indoors, the user can drive the small rotating window 4 to rotate by using the second driving mechanism, firstly, indoor and outdoor ventilation can be effectively ensured, and secondly, when the bottom of the small rotating window 4 inclines downwards, rainwater can be effectively prevented from entering indoors along with wind, by adopting the smart window provided by the embodiment of the utility model, different opening modes can be adopted according to different weather conditions, so that the selectivity of opening the window by the user is enriched, the user experience is improved.
Example 2
On the basis of the above embodiment 1, the present embodiment further supplements and describes in detail the technical solution of the present invention.
In one embodiment, referring to fig. 3 and 4, a rail 5 is disposed at the bottom of the window frame 1, a pulley 6 is disposed at the bottom of the right window 3, the pulley 6 is engaged with the rail 5, and the right window 3 is movable in the rail 5 by the pulley 6.
Specifically, in practical application, the rail 5 needs to be provided with a carrier 26 as shown in fig. 3, the carrier 26 can be fixed inside the window frame 1, two rails 5 matched with the roller set are arranged above the carrier 26, and in the use process, the pulley 6 arranged at the bottom of the right window 3 is placed in the rail 5 to roll, so that the scheme that the right window 3 moves in the window frame 1 can be realized, it can be understood that the rail 5 has a limiting effect on the roller, and particularly referring to fig. 4, the moving direction of the right window 3 in the window frame 1 can be effectively limited by using the rail 5. In practical applications, a handle 21 may be provided on the right window, and the user may manually move the right window.
In one embodiment, referring to fig. 3, the first driving mechanism is disposed at the bottom of the window frame 1; the first driving mechanism comprises a belt 11 and roller assembly 7 and a driving motor 8 for driving the belt 11 and roller assembly 7 to work, wherein a bulge 9 is arranged on the outer side of a belt 11 of the belt 11 and roller assembly 7, and a groove 10 matched with the bulge 9 is arranged at the bottom of the right side window 3; the belt 11 and the right side window 3 are connected through the bulge 9 and the groove 10 in a clamping mode.
Specifically, as can be seen from fig. 3, a through hole is formed in the middle of the carrier 26 as shown in the figure, and a first driving mechanism is disposed at the bottom of the carrier 26, it can be understood that the carrier 26 divides the inner bottom space of the window frame 1 into two parts, the upper part of the carrier 26 is used for placing the right window 3 and limiting the moving direction of the right window 3 in the window frame 1, the lower part of the carrier 26 is used for placing the first driving mechanism, the first driving mechanism comprises a belt 11 and a roller assembly 7 and a driving motor 8, the belt 11 and the roller assembly 7 are of a structure conventional in the art, and the driving motor 8 is used for driving the belt 11 and the roller assembly 7 to rotate, for example, the driving motor 8 is used for driving one roller of the belt 11 and the roller assembly 7 to rotate, the driven roller transmits power through the belt 11 during the rotation, and the other roller also rotates along with the belt, two rollers are arranged in a roller assembly 7 of a belt 11 and used for limiting the running direction of the belt 11, in this embodiment, the running direction of the belt 11 is required to be the same as the running direction of the right window 3, specifically, a protrusion 9 is arranged on the belt 11, a groove 10 is arranged at the bottom of the right window 3, when the right window 3 is placed on the carrier 26, the groove 10 arranged at the bottom of the right window 3 is located or passes through the through hole, at this time, the first driving mechanism can be installed according to the position of the groove 10, and the principle is that when the protrusion 9 is connected with the groove 10 in a clamping manner, the matching between the rollers and the rail 5 is not affected, that is, when the groove 10 is connected with the protrusion 9 for power transmission, the rollers arranged at the bottom of the right window 3 are not pushed out of the rail 5; it should be noted that, the power transmission process is as follows: the driving motor 8 drives the roller to rotate, the belt 11 moves under the rotation of the roller, the belt 11 transmits the moving power to the right window 3 by utilizing the clamping of the groove 10 and the protrusion 9, and the right window 3 moves along with the belt 11. In practical application, a zero point may be preset, for example, the zero point is set when the window frame 1 is closed by the left window 2 and the right window 3, and a person skilled in the art may count the operating time of the driving motor 8 when the right window 3 moves to the leftmost side of the window frame 1, and based on this, the logical relationship between the operating time of the driving motor 8 and the moving distance of the right window 3 may be obtained by counting the moving distance of the right window 3, and on the premise that the logical relationship is obtained, the user may control the operating time of the driving motor 8 to control the moving distance of the right window 3.
In one embodiment, referring to fig. 5, the second driving mechanism includes a rotating motor 12, a driving shaft 14 coaxially and fixedly connected to a rotating shaft 13 of the rotating motor 12; the end of the driving shaft 14, which is not connected with the rotating motor 12, is fixedly connected to the left side wall of the rotating small window 4, the right side wall of the rotating small window 4 is connected to the right side inner wall of the left side window 2 in a matching and rotating mode through a shaft hole, and the rotating axis of the rotating small window 4 is collinear with the axis of the rotating shaft 13.
In a specific embodiment, the rain sensor 16, the light sensor 17 and the wind speed sensor 18 are arranged outside the window frame 1; the controller 15 is respectively connected with the raindrop sensor 16, the light sensor 17 and the wind speed sensor 18 in a control and communication manner; the controller 15 is connected to the first driving mechanism and the second driving mechanism in a controlled manner.
Specifically, the controller 15 may be disposed inside the window frame 1, and may be connected to the raindrop sensor 16, the light sensor 17, and the wind speed sensor 18 through data transmission lines, and the controller 15 may receive the rainfall intensity value sensed by the raindrop sensor 16, the light intensity value sensed by the light sensor 17, and the outdoor wind speed value of the wind speed sensor 18 through the data transmission lines; before the controller 15 is installed, a predetermined raindrop intensity value, a predetermined illumination intensity value, and a predetermined wind speed intensity value may be preset in the controller 15, and a comparison logic is set accordingly, where the following three logic conditions are provided: when the rainfall intensity value received by the controller 15 is greater than the preset raindrop intensity value, the controller 15 automatically controls the first driving mechanism to drive the right side window 3 to close; when the value of the illumination intensity received by the controller 15 is greater than the preset illumination intensity value, the controller 15 automatically controls the first driving mechanism to drive the right window 3 to close; when the value of the outdoor wind speed received by the controller 15 is greater than the preset wind speed intensity value, the controller 15 automatically controls the first driving mechanism to drive the right side window 3 to close; when the controller 15 meets any one of the three conditions, the controller 15 controls the first driving mechanism to drive the right window 3 to close; meanwhile, the controller 15 automatically controls the second driving mechanism to drive the small rotating window 4 to close. Specifically, in this embodiment, the controller 15 needs to control the rotation of the driving motor 8 in the first driving mechanism and the rotation of the rotating motor 12 in the second driving mechanism, and it is a conventional technical means in the art to control the rotation of the driving motor 8 or the rotating motor 12 by using the controller 15, for example, the existing method for controlling the forward and reverse rotation of the motor by using the single chip microcomputer has a control circuit and a control logic which are conventional means in the art, but the present embodiment is not improved on the control method, and further, the controller 15 controls the rotation of the motor according to a predetermined control logic, for example, when the controller 15 receives a high level, the controller controls the rotation of the motor, and also belongs to a conventional setting in the field of single chip microcomputers, which is not particularly limited in this. In practical application, a raindrop sensor 16, a light sensor 17 and a wind speed sensor 18 are mounted on the smart window. The window can be automatically controlled under various conditions without manual control of a user, and the use comfort of the user is improved.
In a specific embodiment, the solar cell module 19 is further included, and the glass arranged in the left side window 2, the right side window 3 and the small rotating window 4 is the atomized glass 20; the solar battery assembly 19 supplies power to the atomized glass 20 through a power line, and the controller 15 controls the power line to be switched on and off; the solar cell module 19 supplies power to the first driving mechanism and the second driving mechanism respectively.
Specifically, the solar cell module 19 belongs to the conventional means in the field, and is applied to the present embodiment, so that the solar cell module is more environment-friendly, and meanwhile, the solar panel in the solar cell module 19 can shield sunlight and is used as a sunshade. Referring to fig. 1 and fig. 2, the solar panel performs angle adjustment through the solar panel adjusting mechanism 25, the solar panel adjusting mechanism 25 may be a scheme that the motor drives the shaft 14 to drive the solar panel to rotate, and the setting belongs to a conventional setting in the art, and the present embodiment is not particularly limited.
The solar cell module 19 (also referred to as a solar panel or a photovoltaic module) is a core part of the solar power generation system and is the most important part of the solar power generation system. The solar energy is converted into electric energy, or the electric energy is sent to a storage battery for storage, or a load is pushed to work. Specifically, in this embodiment, the electric energy generated by the solar cell module 19 may be stored by a storage battery, and the storage battery supplies power to the driving motor 8 of the first driving mechanism, the rotating motor 12 of the second driving mechanism, and the atomizing glass 20, and certainly, in practical application, the controller 15 may be used to control the on/off of a power supply line, so as to control whether the driving motor 8, the rotating motor 12, and the atomizing glass 20 work or not.
It should be noted that the above-mentioned atomized glass 20 is an intelligent high-grade functional glass, and the change of the light-adjusting glass between the scattering (light-transmitting opaque) state and the transmission (transparent) state is controlled by the voltage, and this change realizes the dual requirements of the permeability of the glass and privacy protection, and by using this characteristic, the light-adjusting glass is widely applied to the fields of high-grade offices, machine rooms, medical institutions, commercial displays, etc. The atomized glass 20 adopts the technical principle of international patent invention, attaches the novel liquid crystal material to the basic materials such as glass, film and the like, and uses the circuit and the control technology to manufacture the dimming glass product. In this embodiment, light sense sensor 17 with controller 15 communication connection sends outdoor illumination intensity information to controller 15 in real time, and after outdoor illumination intensity was greater than predetermined illumination intensity, controller 15 control connected atomizing glass 20's power transmission line disconnection, atomizing glass 20 outage discolours, has the transparency to become the milk white, and then makes atomizing glass 20 have and shelter from the sunshine function.
In a specific embodiment, the device further comprises a voice recognizer 22, the voice recognizer 22 is communicatively connected to the controller 15, and the voice recognizer 22 is configured to recognize and acquire a voice control instruction of a user, and send the control instruction to the controller 15.
Specifically, the voice is that the recognizer can be directly purchased, the voice command can be obtained, the preset command is converted into an electric signal and sent to the controller 15, the controller 15 executes an operation command corresponding to the voice command according to the electric signal, for example, when a user says to close a window, the voice recognizer 22 obtains the command for closing the window and converts the command into the electric signal, after the electric signal is received by the controller 15, the controller 15 controls the first driving mechanism to drive the right side window 3 to move rightwards until the window is closed, by adopting the scheme, the user can control the window through voice recognition, real man-machine interaction is achieved, hands of the user are liberated, and the intelligent home is real intelligent home.
In one embodiment, a projection clock 23 is provided at the lower left corner of the left window 2.
Specifically, the projection clock 23 is directly purchased, and the purchased projection clock 23 itself has a function of displaying information such as time, temperature, weather, and the like, for example, the CRD produced by shenzhen shengrundao technologies ltd supplies the weather forecast projection clock 8190 weather perpetual calendar electronic clock projection clock, and it is only required to directly place the clock in the lower left corner of the left side window 2 in this embodiment. The placement position thereof does not affect the moving path of the right window 3 in this embodiment.
In one embodiment, an emergency button 24 is provided on the first drive mechanism for one-key control of the first drive mechanism to stop operation. When the right side window 3 glass is damaged or the window frame 1 is abnormal and needs to be overhauled or replaced, a user can press the emergency button 24, at the moment, the power supply line of the first driving mechanism is disconnected, no matter how the controller 15 controls the power supply line of the controller 15 or the driving motor 8, the driving motor 8 cannot work, and the safety is improved.
The application that current technique can not provide intelligent light control glass, the application of film of adjusting luminance has been concentrated on more, pastes it on the window and has reached the effect that becomes the light, and the utility model discloses an intelligent light control glass just can realize the function of adjusting luminance without other materials. Meanwhile, the traditional intelligent window is used by adopting an external power supply, and the solar module used in the patent can supply power to the window, is more environment-friendly, can also be used as a protective cover, and can shield sunlight when the sunlight is strong.
This embodiment provides a smart window, smart window's mechanical part adopts the gear rack structure to guarantee the stationarity that opens and shuts. The double-window manner can make the use of the glass more humanized. The use of a first drive mechanism may enable the glazing to control the opening or closing of the window depending on the wind speed. The control system of the intelligent window comprises a raindrop sensor 16, a light sensor 17 and a wind speed sensor 18. Can go down to the window under various conditions and control, ensure the comfort that people used, and glass on the window also can become opaque glass at the circular telegram, and smart window has the speech recognition function simultaneously, and the user can control the window through speech recognition, has realized real man-machine interaction, liberates our both hands, is real intelligent house.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
All the embodiments in the present specification are described in a related manner, and the same and similar parts among the embodiments may be referred to each other, and each embodiment focuses on the differences from the other embodiments. The above description is only a preferred embodiment of the present invention, and is not intended to limit the scope of the present invention. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention shall fall within the protection scope of the present invention.

Claims (9)

1. The intelligent window comprises a window frame, a left side window fixed on the left side of the window frame, and a right side window movably arranged in the window frame, wherein when the right side window is positioned on the right side of the window frame, the left side window and the right side window close the window frame; the window frame is characterized by further comprising a first driving mechanism for driving the right side window to move in the window frame; and a rotary small window and a second driving mechanism for driving the rotary small window are rotatably arranged on the left side window.
2. The smart window of claim 1, wherein a rail is provided at a bottom of the window frame, and a pulley is provided at a bottom of the right window, the pulley engaging with the rail, the right window being movable within the rail by the pulley.
3. The smart window of claim 2, wherein the first drive mechanism is disposed at a bottom of the window frame; the first driving mechanism comprises a belt roller assembly and a driving motor for driving the belt roller assembly to work, a bulge is arranged on the outer side of a belt of the belt roller assembly, and a groove matched with the bulge is formed in the bottom of the right side window; the belt with the right side window utilizes protruding and recess joint is connected.
4. The smart window of claim 1, wherein the second drive mechanism comprises a rotating motor, a drive shaft fixedly connected coaxially with a rotating shaft of the rotating motor; the drive shaft not with the one end fixed connection that the motor is connected rotates on the left side wall of rotation small window, the right side wall of rotation small window passes through shaft hole cooperation rotation and connects on the right side inner wall of left side window, the axis of rotation small window with the axis collineation of pivot.
5. The smart window of claim 1, further comprising a controller, and a raindrop sensor, a light sensor, a wind speed sensor disposed outside the window frame; the controller is respectively connected with the raindrop sensor, the light sensor and the wind speed sensor in a control and communication manner; the controller is connected with the first driving mechanism and the second driving mechanism in a control mode.
6. The smart window according to claim 5, further comprising a solar cell module, wherein the glass arranged in the left window, the right window and the rotating small window is atomized glass; the solar cell module supplies power to the atomized glass through a power transmission line, and the controller controls the power transmission line to be switched on and off; the solar cell module supplies power to the first driving mechanism and the second driving mechanism respectively.
7. The smart window of claim 5 further comprising a voice recognizer communicatively coupled to the controller, the voice recognizer configured to recognize and retrieve voice control commands from a user and send the control commands to the controller.
8. The smart window of claim 1 wherein a projection clock is provided at a lower left corner of the left side window.
9. A smart window as claimed in claim 1, wherein an emergency button is provided on the first drive mechanism for one-key control of the first drive mechanism to stop working.
