本实用新型公开了一种用于复合微生物饲料的发酵装置，包括发酵罐主体，所述发酵罐主体的上端设置有罐盖，所述罐盖的前端外表面设置有把手，所述发酵罐主体的一侧设置有搅拌箱，所述搅拌箱的下端设置有支撑板，所述支撑板的下端设置有电机，所述搅拌箱的内部设置有转动轴，所述转动轴的外表面设置有搅拌板，所述搅拌箱的下端设置有斜向出口，所述罐盖的一侧设置有连接块，所述连接块的下端设置有转动棒，所述转动棒的外表面设置有固定块，本实用新型所述的一种用于复合微生物饲料的发酵装置，罐盖与发酵罐主体之间的开合过程较为便利，有利于对发酵罐进行清洗或加料，同时通过搅拌箱的作用，可使原料混合均匀，有利于微生物的发酵，提高效率。
The utility model discloses a fermentation device for compound microorganism feed, comprising a fermentation tank main body, a tank cover is arranged on the upper end of the fermentation tank main body, a handle is arranged on the outer surface of the front end of the tank cover, and the fermentation tank main body is provided with a handle. A stirring box is arranged on one side of the box, a support plate is arranged at the lower end of the stirring box, a motor is arranged at the lower end of the support plate, a rotating shaft is arranged inside the stirring box, and a stirring shaft is arranged on the outer surface of the rotating shaft The lower end of the stirring box is provided with an oblique outlet, one side of the tank cover is provided with a connecting block, the lower end of the connecting block is provided with a rotating rod, and the outer surface of the rotating rod is provided with a fixed block. In the fermentation device for composite microbial feed described in the utility model, the opening and closing process between the tank cover and the main body of the fermentation tank is convenient, which is conducive to cleaning or feeding the fermentation tank, and at the same time, through the action of the stirring box, the The raw materials are mixed evenly, which is conducive to the fermentation of microorganisms and improves the efficiency.
Description
Technical Field
The utility model relates to a microbial fermentation field, in particular to a fermenting installation for compound microbial feed.
Background
With the improvement of science and technology, the fermented feed is more and more emphasized by the feed industry and the breeding industry, after the feed is fermented by microorganisms, not only can the antigens in the raw material components of the feed be eliminated, but also the palatability and the utilization rate of the feed can be improved, so that the application of a microbial feed fermentation device is more and more extensive; there is certain drawback in current microbial feed fermenting installation when using, at first, ferments the fodder through microbial fermentation tank, and microbial fermentation tank's stirring function is relatively poor, is unfavorable for the homogeneous mixing of feed ingredient, and in addition, the process of disassembling of fermentation tank is comparatively complicated, is unfavorable for the washing of fermentation tank, for this reason, we provide a fermenting installation for compound microbial feed.
SUMMERY OF THE UTILITY MODEL
The main object of the utility model is to provide a fermenting installation for compound microorganism fodder can effectively solve the problem in the background art.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a fermentation device for composite microbial feed comprises a fermentation tank main body, wherein a tank cover is arranged at the upper end of the fermentation tank main body, a handle is arranged on the outer surface of the front end of the tank cover, an observation window is arranged on the outer surface of the front end of the fermentation tank main body, side pillars are arranged on two sides of the fermentation tank main body, a discharge port is arranged at the lower end of the fermentation tank main body, a stirring box is arranged on one side of the fermentation tank main body, a feed inlet is arranged at the upper end of the stirring box, a support plate is arranged at the lower end of the stirring box, support legs are arranged at the lower end of the support plate, a motor is arranged at the lower end of the support plate, a baffle is arranged at the lower end of the motor, a rotating shaft is arranged in the stirring box, the lower extreme of connecting block is provided with the rotation stick, the surface of rotation stick is provided with the fixed block.
Preferably, be fixed connection between connecting block and the cover, be fixed connection between handle and the cover, the phase-match between rotation stick and the fixed block, be fixed connection between fixed block and the fermentation cylinder main part, be connected through rotating the stick between connecting block and the fixed block, be connected for rotating between connecting block and the rotation stick, be swing joint between cover and the fermentation cylinder main part.
By adopting the technical scheme, the following technical effects can be achieved: the convenient disassembly between the tank cover and the fermentation tank main body is convenient, and the cleaning and feeding of the fermentation tank are facilitated.
Preferably, the quantity of axis of rotation is two sets of, the axis of rotation is the symmetry in the inside of agitator tank and arranges, be connected for rotating between axis of rotation and the motor, be fixed connection between stirring board and the axis of rotation, phase-match between axis of rotation and the agitator tank.
By adopting the technical scheme, the following technical effects can be achieved: the feed is convenient to stir according to the feed principle, the raw materials are convenient to be uniformly mixed, and the fermentation of microorganisms is facilitated.
Preferably, the feed inlet communicates in the inside of agitator tank, be fixed connection between agitator tank and the backup pad, the axis of rotation runs through in the backup pad, be fixed connection between motor and the baffle.
By adopting the technical scheme, the following technical effects can be achieved: the feed raw materials are convenient to add, and the rotation of the rotating shaft driven by the motor is facilitated.
Preferably, the inclined outlet is communicated with the stirring box and the inner part of the fermentation tank main body, and the support legs are fixedly connected with the support plate and the baffle plate.
By adopting the technical scheme, the following technical effects can be achieved: the stirred feed is conveniently conveyed to the inside of the fermentation tank, and the smooth proceeding of the microbial fermentation process is ensured.
Preferably, the number of the side pillars is four, the side pillars are symmetrically arranged on two sides of the fermentation tank main body, and the side pillars are fixedly connected with the fermentation tank main body.
By adopting the technical scheme, the following technical effects can be achieved: the fermentation tank main body is convenient to fix, and the stability of the fermentation tank main body in the fermentation process is ensured.
Compared with the prior art, the utility model discloses following beneficial effect has: the microbial feed fermentation device is provided with the rotating shaft, the stirring box, the stirring plate and the motor, before microbial feed fermentation, feed raw materials are firstly put into the stirring box through the feed inlet, the rotating shaft is driven by the motor, the rotating shaft drives the stirring plate to rotate together, the feed raw materials are conveyed into the fermentation box main body through an inclined outlet after being uniformly stirred in the stirring box, then fermentation is carried out, the convenience is realized, the stirring box is more convenient for stirring the feed raw materials, the uniform mixing of the feed raw materials is favorably realized, the microbial fermentation is convenient, by the arrangement of the handle, the connecting block, the fixed block and the rotating rod, the handle is pulled upwards, the tank cover and the connecting block can be rotated together along with the rotating rod until the tank cover is completely opened, the cleaning of the inside of the fermentation tank is favorably realized, meanwhile, the feeding to the fermentation tank is convenient, and the whole fermentation device for composite microbial feed is, convenient operation, the effect of using is better than traditional mode.
Drawings

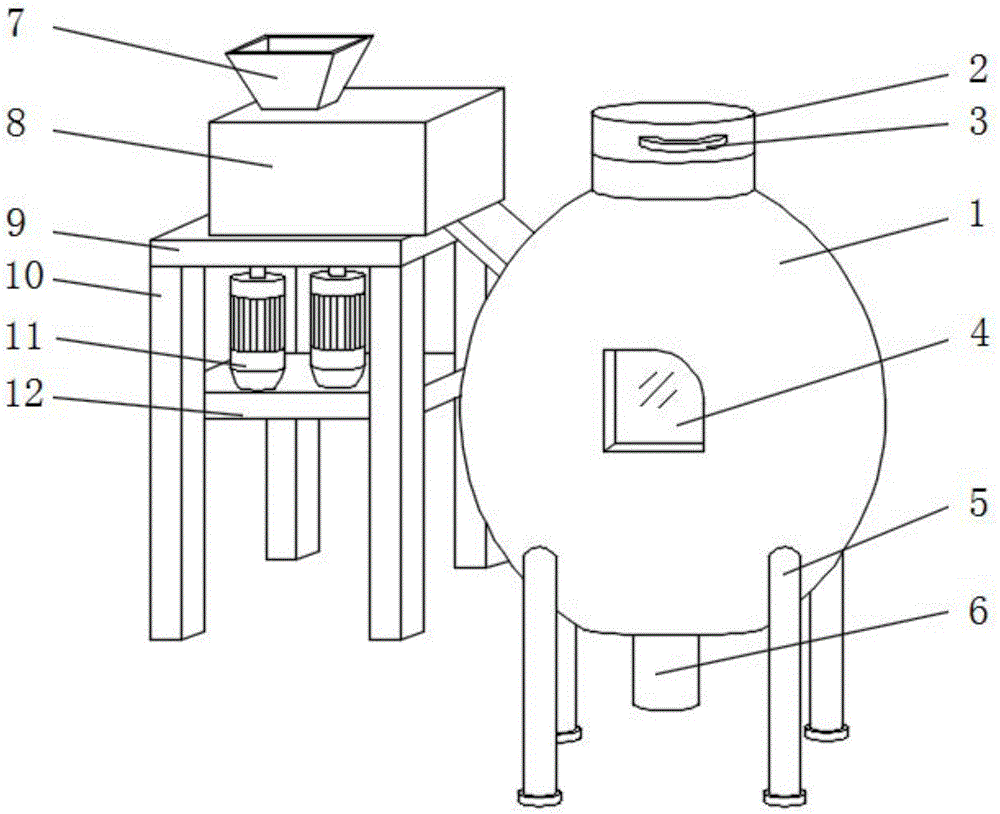

FIG. 1 is a schematic view of the overall structure of a fermentation device for composite microbial feed of the present invention;
FIG. 2 is a side sectional view of the fermentation device for composite microbial feed according to the present invention;
FIG. 3 is a rear view of the overall structure of a fermentation apparatus for a compound microorganism feed of the present invention;
fig. 4 is a partial structure enlarged view of a fermentation device for composite microbial feed of the present invention.
In the figure: 1. a fermenter main body; 2. a can lid; 3. a handle; 4. an observation window; 5. a side pillar; 6. a discharge port; 7. a feed inlet; 8. a stirring box; 9. a support plate; 10. a support leg; 11. a motor; 12. a baffle plate; 13. a rotating shaft; 14. a stirring plate; 15. an oblique outlet; 16. connecting blocks; 17. rotating the rod; 18. and (5) fixing blocks.
Detailed Description
In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.
As shown in figures 1-4, a fermentation device for composite microbial feed comprises a fermentation tank main body 1, a tank cover 2 is arranged at the upper end of the fermentation tank main body 1, a handle 3 is arranged on the outer surface of the front end of the tank cover 2, an observation window 4 is arranged on the outer surface of the front end of the fermentation tank main body 1, side pillars 5 are arranged on two sides of the fermentation tank main body 1, a discharge port 6 is arranged at the lower end of the fermentation tank main body 1, a stirring tank 8 is arranged on one side of the fermentation tank main body 1, a feed inlet 7 is arranged at the upper end of the stirring tank 8, a supporting plate 9 is arranged at the lower end of the stirring tank 8, a supporting leg 10 is arranged at the lower end of the supporting plate 9, a motor 11 is arranged at the lower end of the supporting plate 9, a baffle plate 12 is arranged at the, one side of the tank cover 2 is provided with a connecting block 16, the lower end of the connecting block 16 is provided with a rotating rod 17, and the outer surface of the rotating rod 17 is provided with a fixing block 18.
Be fixed connection between connecting block 16 and cover 2, be fixed connection between handle 3 and cover 2, rotate and match between stick 17 and the fixed block 18, be fixed connection between fixed block 18 and the fermentation cylinder main part 1, be connected through rotating stick 17 between connecting block 16 and the fixed block 18, connecting block 16 and rotate and be connected for rotating between the stick 17, be swing joint between cover 2 and the fermentation cylinder main part 1, be favorable to opening and shutting between cover 2 and the fermentation cylinder main part 1, be convenient for to the inside washing of fermentation cylinder, it is reinforced also to be convenient for simultaneously.
The quantity of axis of rotation 13 is two sets of, and axis of rotation 13 is the symmetry in the inside of agitator tank 8 and arranges, is connected for rotating between axis of rotation 13 and the motor 11, is fixed connection between stirring board 14 and the axis of rotation 13, and the phase-match between axis of rotation 13 and the agitator tank 8 is favorable to stirring board 14 to feed ingredient's stirring, makes feed ingredient misce bene, the fermentation of being convenient for.
Feed inlet 7 communicates in the inside of agitator tank 8, is fixed connection between agitator tank 8 and the backup pad 9, and axis of rotation 13 runs through in backup pad 9, is fixed connection between motor 11 and the baffle 12, is favorable to feeding in to the inside of agitator tank 8, the rotation of the axis of rotation 13 of being convenient for simultaneously.
The inside homogeneous phase intercommunication of slant export 15 and agitator tank 8 and fermentation cylinder main part 1 is fixed connection between landing leg 10 and backup pad 9 and the baffle 12, is favorable to the fodder raw materials after 8 internal mixings of agitator tank to the inside transport of fermentation cylinder main part 1, the going on smoothly of the fermentation of being convenient for.
The quantity of side pillar 5 is four groups, and side pillar 5 is the symmetry in the both sides of fermentation cylinder main part 1 and arranges, is fixed connection between side pillar 5 and the fermentation cylinder main part 1, is favorable to side pillar 5 to the fixed of fermentation cylinder main part 1, ensures the stability of fermentation cylinder main part 1 in the fermentation process.
It should be noted that, the utility model relates to a fermentation device for compound microorganism feed, when in use, the microorganism feed fermentation device, before the microorganism feed fermentation, firstly put the feed raw material into the stirring box 8 through the feed inlet 7, drive the rotation axis 13 through the motor 11, make the rotation axis 13 drive the stirring plate 14 to rotate together, after making the feed raw material stir evenly in the stirring box 8, carry into the fermentation tank main body 1 through the slant outlet 15, then ferment, more convenient, the stirring of the feed raw material by the stirring box 8 is more convenient, be favorable to making the feed raw material mix evenly, be convenient for the microorganism fermentation, avoid the phenomenon of poor feed quality caused by uneven feed raw material mixing, improve the quality of microorganism feed, through pulling the handle 3 upwards, can make the cover 2 and the connecting block 16 rotate along with the rotating rod 17 together, until opening cover 2 completely, be favorable to wasing the inside of fermentation cylinder, keep the cleanness of fermentation cylinder, be favorable to the continuous use of fermentation cylinder, be convenient for simultaneously reinforced in to the fermentation cylinder, ensure going on smoothly of fermentation process, whole a fermenting installation for compound microorganism fodder simple structure, convenient operation, the effect of use is better for traditional mode, comparatively practical.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are intended to illustrate the principles of the invention, and that various changes and modifications may be made without departing from the spirit and scope of the invention, which is defined by the appended claims and their equivalents.
Claims (6)
1. A fermenting installation for compound microorganism fodder, includes fermentation cylinder main part (1), its characterized in that: the fermentation tank is characterized in that a tank cover (2) is arranged at the upper end of the fermentation tank main body (1), a handle (3) is arranged on the outer surface of the front end of the tank cover (2), an observation window (4) is arranged on the outer surface of the front end of the fermentation tank main body (1), side pillars (5) are arranged on two sides of the fermentation tank main body (1), a discharge port (6) is arranged at the lower end of the fermentation tank main body (1), a stirring box (8) is arranged on one side of the fermentation tank main body (1), a feed inlet (7) is arranged at the upper end of the stirring box (8), a supporting plate (9) is arranged at the lower end of the stirring box (8), supporting legs (10) are arranged at the lower end of the supporting plate (9), a motor (11) is arranged at the lower end of the motor (11), a baffle (, the surface of axis of rotation (13) is provided with stirring board (14), the lower extreme of agitator tank (8) is provided with slant export (15), one side of cover (2) is provided with connecting block (16), the lower extreme of connecting block (16) is provided with and rotates stick (17), the surface of rotating stick (17) is provided with fixed block (18).
2. A fermentation device for composite microbial feed according to claim 1, characterized in that: be fixed connection between connecting block (16) and cover (2), be fixed connection between handle (3) and cover (2), rotate between stick (17) and fixed block (18) phase-match, be fixed connection between fixed block (18) and fermentation cylinder main part (1), be connected through rotating stick (17) between connecting block (16) and fixed block (18), be connected for rotating between connecting block (16) and the rotation stick (17), be swing joint between cover (2) and the fermentation cylinder main part (1).
3. A fermentation device for composite microbial feed according to claim 1, characterized in that: the quantity of axis of rotation (13) is two sets of, axis of rotation (13) are the symmetry in the inside of agitator tank (8) and arrange, be connected for rotating between axis of rotation (13) and motor (11), be fixed connection between stirring board (14) and axis of rotation (13), phase-match between axis of rotation (13) and agitator tank (8).
4. A fermentation device for composite microbial feed according to claim 1, characterized in that: feed inlet (7) communicate in the inside of agitator tank (8), be fixed connection between agitator tank (8) and backup pad (9), axis of rotation (13) run through in backup pad (9), be fixed connection between motor (11) and baffle (12).
5. A fermentation device for composite microbial feed according to claim 1, characterized in that: the inclined outlet (15) is communicated with the stirring box (8) and the interior of the fermentation tank main body (1), and the support legs (10), the support plate (9) and the baffle (12) are fixedly connected.
6. A fermentation device for composite microbial feed according to claim 1, characterized in that: the number of the side pillars (5) is four, the side pillars (5) are symmetrically arranged on two sides of the fermentation tank main body (1), and the side pillars (5) are fixedly connected with the fermentation tank main body (1).
