Abstract
本实用新型提供一种农村一体式三格化粪池，包括罐体和冲洗装置；罐体内部一体成型有第一隔板、第二隔板，第一隔板与第二隔板将罐体内部分割成三个密封的腔体，分别为第一腔体、第二腔体和第三腔体，第一隔板、第二隔板均与罐体一体成型，第一隔板上部一体成型有第一过粪管，第二隔板上部一体成型有第二过粪管，第一腔体上部的一侧开设有进粪口，第一腔体的顶部开设有排气口，第一腔体、第二腔体及第三腔体的顶部均开设有清粪口，清粪口顶部设有密封盖，第三腔体上部的一侧连通有出粪管，第一腔体、第二腔体以及第三腔体的底部均连通有排污管。采用一体成型结构，避免发生渗漏，冲洗装置对罐体内部进行冲洗，解决了化粪池内部容易堵塞的问题。
The utility model provides a rural integrated three-grid septic tank, comprising a tank body and a flushing device; a first partition plate and a second partition plate are integrally formed inside the tank body, and the first partition plate and the second partition plate separate the tank body The interior is divided into three sealed cavities, which are the first cavity, the second cavity and the third cavity. The first partition and the second partition are integrally formed with the tank body, and the upper part of the first partition is integrally formed. There is a first manure passage, the upper part of the second partition is integrally formed with a second manure passage, a manure inlet is opened on one side of the upper part of the first cavity, an exhaust port is opened on the top of the first cavity, and the first cavity is The top of the body, the second cavity and the third cavity are all provided with a fecal cleaning port, the top of the fecal cleaning port is provided with a sealing cover, and one side of the upper part of the third cavity is connected with a fecal outlet pipe. Both the cavity and the bottom of the third cavity are connected with a sewage pipe. The integrated structure is adopted to avoid leakage, and the flushing device flushes the inside of the tank, which solves the problem of easy blockage inside the septic tank.
Description
Technical Field
The utility model belongs to the technical field of sewage treatment, especially, relate to a three manure pits of check of rural integral type.
Background
Because rural infrastructure construction lags behind the city far away, and the rural area population is dispersed, and population quantity is great, lead to excrement and urine sewage to concentrate to collect, handle the difficulty, can not adopt the mode of centralized processing like the urban area. In order to improve the environmental quality of rural areas, three-grid septic tanks for rural areas appear on the market in recent years. The traditional three-grid septic tank consists of three connected tanks which are communicated by excrement passing pipes, wherein the first tank mainly plays a role in intercepting excrement residues, fermenting and precipitating worm eggs, the second tank mainly plays a role in continuing fermentation, and the third tank mainly plays a role in storing fermented excrement liquid. However, the three-compartment septic tanks commonly used in the prior art currently have two problems: the septic tank is formed by folding an upper tank body and a lower tank body, the upper tank body and the lower tank body are fixed by bolts and glue, and partition plates between the three lattices are bonded with the tank bodies by the glue, so that the hidden troubles of outward liquid leakage and mutual water channeling between the three lattices exist; and (II) the dirt accumulated in the septic tank is inconvenient to clean in time, so that the septic tank is easy to block.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a three manure pits of rural integral type to three manure pits of formatting among the solution prior art have outside weeping, scurry the hidden danger of water and the inside easy technical problem who blocks up of manure pit each other between three lattices.
In order to solve the technical problem, the utility model discloses the technical scheme who adopts is: the rural integrated three-grid septic tank comprises a tank body and a flushing device which is arranged at the top of the tank body and used for flushing dirt in the tank body; the tank body is fixedly connected with a first partition plate and a second partition plate which are arranged at intervals, the first partition plate and the second partition plate divide the interior of the tank body into three sealed cavities which are respectively a first cavity, a second cavity and a third cavity, the tank body is of an integrally formed cylindrical structure, the first partition plate and the second partition plate are integrally formed with the tank body, a first excrement passing pipe for communicating the first cavity with the second cavity is integrally formed at the upper part of the first partition plate, the free end of the first excrement passing pipe is positioned in the first cavity, a second excrement passing pipe for communicating the second cavity with the third cavity is integrally formed at the upper part of the second partition plate, the free end of the second excrement passing pipe is positioned in the second cavity, an excrement inlet is formed at one side of the upper part of the first cavity, the excrement inlet is communicated with the excrement inlet, an exhaust port is formed at the top of the first cavity, excrement cleaning ports are formed at the top of the first cavity, the top of the second cavity and the top of the third cavity, a sealing cover is arranged at the top of the excrement cleaning port, one side of the upper portion of the third cavity is communicated with an excrement discharging pipe, the bottom of the first cavity, the bottom of the second cavity and the bottom of the third cavity are communicated with sewage discharging pipes, and valves are arranged on the excrement discharging pipe and the sewage discharging pipes.
The flushing device comprises a flushing pipe which is arranged at the top of the tank body and is horizontally arranged, one end of the flushing pipe is arranged in a closed mode, the other end of the flushing pipe is communicated with a water inlet pipe, the bottom of the flushing pipe is sequentially communicated with three branch pipes which are arranged at intervals and correspond to the three excrement cleaning ports one by one, the free ends of the branch pipes are arranged in a closed mode, the free ends of the branch pipes penetrate through the excrement cleaning ports and extend to the interiors of the corresponding first cavity, the second cavity and the third cavity respectively, and a plurality of water outlet holes are formed in the pipe wall of the branch pipe located in the tank body; under the flushing state, the excrement cleaning port is in an open state, and the branch pipe is inserted into the excrement cleaning port.
The first partition plate and the second partition plate are identical in structure, the first partition plate is circular, and a mounting hole for the first excrement passing pipe to pass through is formed in the first partition plate.
Reinforcing ribs are arranged on the outer wall of the tank body, the first partition plate and the second partition plate.
The inside blast pipe of pegging graft of gas vent, fixedly connected with exhaust cap can be dismantled at the top of blast pipe.
The top of clear excrement mouth is fixed with the connecting pipe that upwards extends, and the external screw thread has been seted up to the periphery of connecting pipe, the inside of sealed lid is seted up there is the internal thread, and sealed lid and connecting pipe threaded connection, the intermediate position at sealed caping portion has seted up cylindrical recess, fixedly connected with tongs in the cylindrical recess.
The first excrement passing pipe and the second excrement passing pipe are both L-shaped, the end part of the horizontal section of the first excrement passing pipe is fixed on the first partition plate, the vertical section of the first excrement passing pipe is positioned in the first cavity, the end part of the horizontal section of the second excrement passing pipe is fixed on the second partition plate, the vertical section of the second excrement passing pipe is positioned in the second cavity, and the end part of the vertical section of the first excrement passing pipe and the end part of the vertical section of the second excrement passing pipe are both oval.
The bottom of the tank body is integrally formed with supporting legs.
The utility model has the advantages that: (1) the structure is simple, the tank body, the first partition plate, the second partition plate, the first excrement passing pipe and the second excrement passing pipe are subjected to one-step injection molding, the upper tank body, the lower tank body and each part in the tank body are prevented from being installed, the installation steps are simplified, and meanwhile the problems that liquid leaks outwards from the septic tank and water is mixed between three grids due to the fact that a gap exists at the joint of the two parts are also avoided; (2) the washing device is arranged, a high-pressure water source is sequentially sprayed into the first cavity, the second cavity and the third cavity through the water inlet pipe, the washing pipe and the branch pipe to wash the interior of the tank body, and sewage is discharged through the sewage discharge pipe, so that the problem that the interior of a traditional septic tank is difficult to clean is solved; (3) reinforcing ribs are fixed on the outer wall of the tank body, the first partition plate and the second partition plate, so that the compression resistance and the deformation resistance of the septic tank are improved, and the service life is prolonged; (4) the top of the exhaust pipe is provided with an exhaust cap to prevent rainwater, sundries and the like from entering the exhaust pipe; (5) the tip of the vertical section of first excrement pipe of crossing all is oval with the tip of the vertical section of second excrement pipe of crossing, and the excrement area is crossed in the increase, prevents the pipeline jam.
Drawings

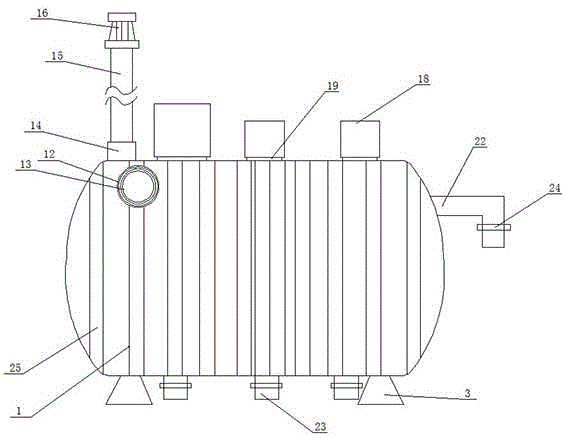

FIG. 1 is a schematic structural view of the present invention in a normal use state;
FIG. 2 is a schematic structural view of the present invention in a flushing state;
FIG. 3 is a cross-sectional view of FIG. 1;
FIG. 4 is a cross-sectional view of FIG. 2;
fig. 5 is a schematic structural view of the first separator.
Reference numerals: 1-tank body, 2-flushing device, 3-supporting leg, 4-first baffle, 5-second baffle, 6-first cavity, 7-second cavity, 8-third cavity, 9-first excrement passing pipe, 10-second excrement passing pipe, 11-mounting hole, 12-excrement inlet, 13-excrement inlet, 14-exhaust port, 15-exhaust pipe, 16-exhaust cap, 17-excrement cleaning port, 18-sealing cap, 19-connecting pipe, 20-cylindrical groove, 21-gripper, 22-excrement outlet pipe, 23-sewage discharge pipe, 24-valve, 25-reinforcing rib, 26-flushing pipe, 27-excrement inlet pipe, 28-branch pipe and 29-water outlet hole.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention clearer, embodiments of the present invention are described in further detail below with reference to the accompanying drawings.
As shown in the figures 1 and 2, the utility model comprises a tank body 1 and a washing device 2 arranged at the top of the tank body 1 and used for washing the filth in the tank body 1, wherein the bottom of the tank body 1 is integrally formed with a supporting leg 3, which provides a stable support for the device. As shown in fig. 3 and 4, a first partition plate 4 and a second partition plate 5 which are arranged at intervals are fixedly connected inside the tank body 1, and the first partition plate 4 and the second partition plate 5 divide the inside of the tank body 1 into three sealed cavities, namely a first cavity 6, a second cavity 7 and a third cavity 8. The tank body 1 is of an integrally formed tubular structure, the first partition plate 4 and the second partition plate 5 are integrally formed with the tank body 1, the upper portion of the first partition plate 4 is integrally formed with a first excrement passing pipe 9 used for communicating the first cavity 6 with the second cavity 7, the free end of the first excrement passing pipe 9 is located inside the first cavity 6, the upper portion of the second partition plate 5 is integrally formed with a second excrement passing pipe 10 used for communicating the second cavity 7 with the third cavity 8, and the free end of the second excrement passing pipe 10 is located inside the second cavity 7. The first partition plate 4 and the second partition plate 5 have the same structure, and as shown in fig. 5, the first partition plate 4 is circular, and the first partition plate 4 is provided with a mounting hole 11 for the first fecal passing pipe 9 to pass through. As shown in fig. 2 and 4, the first fecal passing pipe 9 and the second fecal passing pipe 10 are both L-shaped, the end of the horizontal section of the first fecal passing pipe 9 is fixed on the first partition board 4, the vertical section of the first fecal passing pipe 9 is located in the first cavity 6, the end of the horizontal section of the second fecal passing pipe 10 is fixed on the second partition board 5, the vertical section of the second fecal passing pipe 10 is located in the second cavity 7, the end of the vertical section of the first fecal passing pipe 9 and the end of the vertical section of the second fecal passing pipe 10 are both oval, the fecal passing area is increased, and pipeline blockage is prevented. As shown in fig. 1 and 2, a feces inlet 12 is formed in one side of the upper portion of the first cavity 6, a feces inlet pipe 13 is communicated with the feces inlet 12, an exhaust port 14 is formed in the top of the first cavity 6, an exhaust pipe 15 is inserted into the exhaust port 14, and an exhaust cap 16 is detachably and fixedly connected to the top of the exhaust pipe 15. Top of first cavity 6, clear excrement mouth 17 has all been seted up at the top of second cavity 7 and the top of third cavity 8, clear excrement mouth 17 top is provided with sealed lid 18, as shown in fig. 3, clear excrement mouth 17's top is fixed with the connecting pipe 19 that upwards extends, the external screw thread has been seted up to the periphery of connecting pipe 19, the internal thread has been seted up to the inside of sealed lid 18, sealed lid 18 and connecting pipe 19 threaded connection, cylindrical recess 20 has been seted up to the intermediate position at sealed lid 18 top, fixedly connected with tongs 21 in the cylindrical recess 20, through holding tongs 21 rotatory sealed lid 18, conveniently open and shut sealed lid 18. One side of the upper part of the third cavity 8 is communicated with a feces outlet pipe 22, the bottom of the first cavity 6, the bottom of the second cavity 7 and the bottom of the third cavity 8 are communicated with a sewage discharge pipe 23, and valves 24 are arranged on the feces outlet pipe 22 and the sewage discharge pipe 23. All be equipped with strengthening rib 25 on the outer wall of jar body 1 and first baffle 4, the second baffle 5, improved the resistance to compression, the resistance to deformation performance of this septic tank, prolonged life.
As shown in fig. 2 and 4, the washing device 2 includes a washing pipe 26 horizontally disposed at the top of the tank body 1, one end of the washing pipe 26 is sealed, the other end of the washing pipe 26 is communicated with a water inlet pipe 27, the bottom of the washing pipe 26 is sequentially communicated with three branch pipes 28 which are disposed at intervals and correspond to the three dung cleaning ports 17 one by one, the free ends of the branch pipes 28 are sealed, the free ends of the branch pipes 28 penetrate the dung cleaning ports 17 and extend to the interiors of the corresponding first cavity 6, second cavity 7 and third cavity 8, and the pipe walls of the branch pipes 28 located in the tank body 1 are provided with a plurality of water outlet holes 29; in the flushing state, the manure cleaning port 17 is in an open state, and the branch pipe 28 is inserted into the manure cleaning port 17.
In a normal use state, the sealing cover 18 covers the top of the excrement cleaning port 17, and the excrement cleaning port 17 is in a covered state; in the flushing state, the sealing cover 18 is opened, the excrement cleaning port 17 is in the opened state, and the branch pipe 28 is inserted into the excrement cleaning port 17 for flushing operation.
Rubber sealing rings (not shown) are arranged at the joint of the exhaust pipe 15 and the exhaust port 14, the joint of the branch pipe 28 and the excrement cleaning port 17 and the joint of the excrement outlet pipe 22 and the upper part of the third cavity 8, so that liquid leakage is prevented. Septic tank have three kinds of specifications, be capacity 1.5 cubic meter, the size is 2010x1070x1080mm, the whole wall thickness of jar body ≧ 3.6mm respectively, capacity 1.2 cubic meter, the size is 1580x1170x1140mm, the whole wall thickness of jar body ≧ 3mm to and capacity 1.0 cubic meter, the size is 1796x974x940mm, the whole wall thickness of jar body ≧ 3mm, the septic tank of above-mentioned three kinds of specifications is once moulded by PE plastics material, resistance to compression, corrosion-resistant, increased service life.
The utility model discloses when using, will advance excrement pipe 13 and link to each other with the toilet bowl in lavatory, fresh excrement liquid is inside by advancing excrement mouth 12 and get into first cavity 6, and excrement and urine ferments in first cavity 6 and decomposes, because of the proportion is different, and excrement and urine liquid can fall into the three-layer naturally, and the upper strata is paste excrement skin, and the middle level is for comparing clear excrement liquid, and the lower floor is cubic or graininess excrement sediment. The middle layer liquid dung of the primary fermentation overflows to the second cavity 7 through the first dung passing pipe 9, and most of the dung skin and the dung slag which are not fully fermented are retained in the first cavity 6 for continuous fermentation. The liquid dung entering the second cavity 7 is further fermented and decomposed, the parasitic ova continue to sink, pathogens die gradually, the thickness of the generated dung skin and the generated dung residues is obviously reduced compared with that of the first cavity 6, and the liquid dung in the second cavity 7 flows into the third cavity 8 through the second dung passing pipe 10 to be precipitated and layered. The liquid manure in the third chamber 8 is decomposed, and the germs and parasitic ova therein are basically killed, and can be discharged into farmland through the manure discharge pipe 22. When needing to clear up the septic tank, open sealed lid 18, arrange the dredge pump in jar body 1 and draw the excrement liquid, insert branch pipe 28 afterwards in clear excrement mouth 17, be connected inlet tube 27 and high-pressure water source, high-pressure water source is in proper order through inlet tube 27, wash pipe 26, branch pipe 28 spout respectively into first cavity 6, second cavity 7, in the third cavity 8, wash jar internal wall 1, sewage is then discharged through blow off pipe 23, the inside of having solved traditional septic tank is difficult to carry out abluent problem.
The above-mentioned embodiment is right the utility model discloses an explanation, it is not right the utility model discloses a limited, any right the scheme after the simple transform of the utility model all belongs to the protection scope of the utility model.
