The utility model relates to a to open packing carton, including box body, first lid and second lid all are articulated with box body bottom surface edge, first lid and second lid are located the both sides that the box body is relative respectively, the fixed folded sheet that is provided with in box body bottom surface, the folded sheet both sides pass through the connecting band with first lid and second lid internal surface respectively and are connected, and the packing carton of this application has solved how to make the better and more novel problem of structure of the effect that presents of article.

Description

Split type packing box
Technical Field
The utility model relates to a packing carton field especially relates to a to open packing carton.
Background
At present, the packing boxes used in the market are usually of a swing cover type or a top-bottom cover type, and the structure is too traditional and poor in novelty, so that the packing box which is novel in structure and enables the article to be better in presenting effect needs to be provided.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the technical problem that a to open packing carton is provided, solved how to make the better and more novel problem of structure of effect of presenting of article.
The utility model provides an above-mentioned technical problem's technical scheme as follows: the utility model provides a to open packing carton, includes box body, first lid and second lid all are articulated with box body bottom surface edge, first lid and second lid are located the both sides that the box body is relative respectively, the fixed folded sheet that is provided with in box body bottom surface, the folded sheet both sides pass through the connecting band with first lid and second lid internal surface respectively and are connected.
Furthermore, cover plates are fixedly arranged on the inner surfaces of the first box cover and the second box cover, and the two cover plates cover the opening of the box body.
Furthermore, the two sides of the cover plate are respectively and fixedly provided with a baffle plate.
Further, still including carrying the thing board, carry the thing groove on the thing board surface, it can dismantle the setting in the apron top to carry the thing board, the box body bottom surface is provided with puts the thing groove.
Further, first lid and second lid all include roof and three curb plate, the curb plate is fixed to be set up at the roof edge, the curb plate is perpendicular with the roof, one side that the roof was kept away from to a curb plate of first lid is fixed to be provided with the limiting plate, the limiting plate sets up in the one side with the lateral wall of box body opposite side.
Further, the packing box is made of cardboard.
The beneficial effects brought by the technical scheme at least comprise: when people need take out article, directly turn over first lid and second lid along with the articulated department between the box body bottom surface and turn over a book and open, because the folded sheet is fixed on the box body bottom surface and the both sides of folded sheet pass through the connecting band with first lid and second lid internal surface respectively and are connected, the folded sheet is fan form folding form, along with the opening of first lid and second lid, the folded sheet is turned over a book and is opened, for opening the box people and bring the surprise of vision and joy, make the effect that presents of article, can print required picture and text on the folded sheet surface according to actual need, the packing carton of this application has novel structure, make article present the better beneficial effect of effect.
Drawings

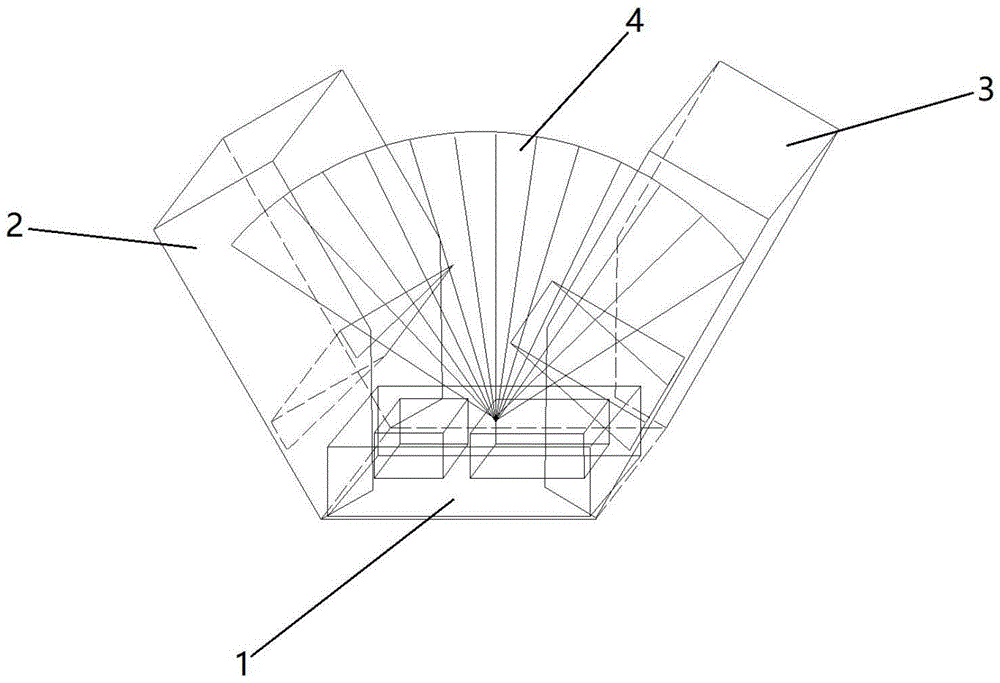

FIG. 1 is a schematic view of the whole structure of the split packing box of the present invention;
fig. 2 is the overall structure diagram of the split packing box of the present invention.
In the drawings, the components represented by the respective reference numerals are listed below:
1. box body, 2, first lid, 3, second lid, 4, folded sheet, 5, apron, 6, baffle, 7, put the thing groove, 8, limiting plate.
Detailed Description
The principles and features of the present invention are described below in conjunction with the following drawings, the examples given are only intended to illustrate the present invention and are not intended to limit the scope of the present invention.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "center", "inner", "outer", "top", "bottom", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
As shown in figure 1, the utility model provides a split type packing box, which comprises a box body 1, a first box cover 2 and a second box cover 3, wherein the first box cover 2 and the second box cover 3 are hinged with the bottom edge of the box body 1, the first box cover 2 and the second box cover 3 are respectively arranged at two opposite sides of the box body 1, the bottom surface of the box body 1 is fixedly provided with a folding plate 4, two sides of the folding plate 4 are respectively connected with the inner surfaces of the first box cover 2 and the second box cover 3 through connecting belts, the packing box has a novel structure, which has the beneficial effect of improving the presenting effect of articles, the packing box used in the market at present is usually a shaking cover type or a top-bottom cover type packing box, the structure is over traditional and poor in novelty, therefore, the packing box with the novel structure and the better presenting effect of articles is needed to be provided, when in use, the articles are directly placed in the box body 1, further folding and buckling the first box cover 2 and the second box cover 3 along the hinged position between the first box cover and the edge of the bottom surface of the box body 1, when people need to take out the article, the first box cover 2 and the second box cover 3 are directly turned over and opened along the hinged part between the bottom surfaces of the box bodies 1, because the folding plate 4 is fixed on the bottom surface of the box body 1 and the two sides of the folding plate 4 are respectively connected with the inner surfaces of the first box cover 2 and the second box cover 3 through the connecting belts, the folding plate 4 is in a fan-shaped folding shape, and the folding plate 4 is folded and opened along with the opening of the first box cover 2 and the second box cover 3, thereby bringing visual surprise to people who open the box and leading the appearance effect of the article, according to actual need can be on the required picture and text of printing on folding plate 4 surface, the packing carton of this application has novel structure for article present the better beneficial effect of effect.
The split packing box of the utility model, as shown in fig. 2, can also be on the basis of the technical scheme described in the foregoing: the fixed surface of first lid 2 and 3 internal surfaces of second lid is provided with apron 5, two apron 5 covers 1 opening part of box body, and when first lid 2 and 3 lock joints of second lid, two apron 5 are close to the direction that is close to each other earlier, finally cover at 1 opening part of box body, play further fixed action to 1 inside article of box body to can place other article at 5 top surfaces of apron at the in-process that the packing carton used, make the usability of packing carton stronger, and the utilization ratio is higher.
The split packing box of the utility model, as shown in fig. 2, can also be on the basis of the technical scheme described in the foregoing: the both sides of apron 5 are fixed respectively and are provided with baffle 6, and after first lid 2 and the 3 locks of second lid, two spaces have been cut apart into by apron 5 to packing carton inside, and one is box body 1 because the space of the lock formation of apron 5, and another is the space except that box body 1 for the structure of packing carton is more novel.
The utility model discloses a to open packing carton can also be on the basis of the technical scheme of preceding description: still including carrying the thing board, carry the thing groove to have seted up on the thing board surface, carry the thing board and can dismantle the setting in apron 5 top, 1 bottom surface of box body is provided with puts thing groove 7, puts thing groove 7 and carries the thing groove and all be used for placing object article, further fixed article's position.
The split packing box of the present invention, as shown in fig. 1 and 2, can also be based on the above-described technical solution: first lid 2 and second lid 3 all include roof and three curb plate, the curb plate is fixed to be set up at the roof edge, the curb plate is perpendicular with the roof, one side that the roof was kept away from to a curb plate of first lid 2 is fixed and is provided with limiting plate 8, limiting plate 8 sets up in one side with the lateral wall of 1 opposite side of box body, and limiting plate 8 can be so that inseparabler, firm more of first lid 2 and 3 locks of second lid.
The utility model discloses a to open packing carton can also be on the basis of the technical scheme of preceding description: the packing carton is made by the cardboard, and the cardboard includes white cardboard, grey blank, copper edition cardboard, kraft paper board, gold cardboard, silver cardboard, corrugated container board etc. has the material environmental protection, but reuse and recovery, reduce cost's beneficial effect.
The above description is only for the preferred embodiment of the present invention, and is not intended to limit the present invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included within the protection scope of the present invention.

Claims (6)

1. A split packing box is characterized in that: including box body (1), first lid (2) and second lid (3) all with box body (1) bottom surface edge hinged, first lid (2) and second lid (3) are located the both sides that box body (1) is relative respectively, box body (1) bottom surface is fixed and is provided with folded sheet (4), folded sheet (4) both sides pass through the connecting band with first lid (2) and second lid (3) internal surface respectively and are connected.
2. The split-pack of claim 1, wherein: the inner surfaces of the first box cover (2) and the second box cover (3) are fixedly provided with cover plates (5), and the two cover plates (5) cover the opening of the box body (1).
3. The split package of claim 2, wherein: and two sides of the cover plate (5) are respectively and fixedly provided with a baffle plate (6).
4. The split stack of claim 3, wherein: still including carrying the thing board, carry the thing groove to have seted up on the thing board surface, carry the thing board and can dismantle the setting in apron (5) top, box body (1) bottom surface is provided with puts thing groove (7).
5. The split stack of claim 4, wherein: first lid (2) and second lid (3) all include roof and three curb plate, the curb plate is fixed to be set up at the roof edge, the curb plate is perpendicular with the roof, one side that the roof was kept away from to a curb plate of first lid (2) is fixed and is provided with limiting plate (8), limiting plate (8) set up in the one side with the lateral wall of box body (1) opposite side.
6. The split stack of claim 5, wherein: the package is made of cardboard.
