Abstract
The utility model relates to the technical field of cable protection pipes, and discloses an anticorrosive CPVC cable protection pipe, which comprises a pipe body, a thermal insulation layer and an anticorrosive layer, wherein the thermal insulation layer is arranged on the inner wall of the pipe body; the corrosion-resistant layer is arranged on the outer wall of the pipe body; a reinforcing rib is connected between the outer wall of the pipe body and the inner wall of the corrosion-resistant layer; and a plurality of protective sleeves are sleeved on the outer wall of the corrosion-resistant layer. This anticorrosive CPVC cable protection pipe is connected with the strengthening rib through evenly distributed between the outer wall at the body and the inner wall on corrosion resistant layer to evenly distributed has cup jointed a plurality of protective sheaths on corrosion resistant layer's outer wall, has reached when laying the protective sheath, and a plurality of protective sheaths have avoided cable protection pipe and building rubbish to take place to scratch, produce the damaged condition, have avoided CPVC cable protection pipe's skin to appear damaged back, the condition that anticorrosive effect worsens.
Description
Technical Field
The utility model relates to a cable protection tube technical field specifically is an anticorrosive CPVC cable protection tube.
Background
The CPVC pipe is usually used as a cable protection pipe, the CPVC pipe has the characteristics of high strength, good flexibility, high temperature resistance, corrosion resistance, flame retardance, good insulating property, no pollution, difficult aging, light weight, convenient construction and the like, all performance indexes of the CPVC pipe reach or exceed the level of domestic similar products through national grade and provincial detection, identification and certification, and the performance of the CPVC pipe is greatly superior to that of the traditional asbestos calandria cable and common PVC pipes, so that the CPVC pipe is an ideal substitute for the traditional power cable sheath pipe.
The corrosion-resistant layer spraying is usually around outside to current anticorrosive CPVC cable protection pipe, and then reaches the anticorrosive effect to the cable, but when installing, laying anticorrosive CPVC cable protection pipe, the damage probably appears in the skin of CPVC cable protection pipe, and then leads to anticorrosive CPVC cable protection pipe's anticorrosive effect relatively poor, so proposes above one kind anticorrosive CPVC cable protection pipe in order to solve above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides an anticorrosive CPVC cable protection pipe has solved the current anticorrosive CPVC cable protection pipe that proposes in the above-mentioned background art, when installation, laying, the damage probably appears in the skin of CPVC cable protection pipe, and then leads to the relatively poor problem of anticorrosive effect of anticorrosive CPVC cable protection pipe.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes:
an anticorrosion CPVC cable protection pipe comprises a pipe body, a thermal insulation layer and an anticorrosion layer, wherein the thermal insulation layer is arranged on the inner wall of the pipe body; the corrosion-resistant layer is arranged on the outer wall of the pipe body; a reinforcing rib is connected between the outer wall of the pipe body and the inner wall of the corrosion-resistant layer; and a plurality of protective sleeves are sleeved on the outer wall of the corrosion-resistant layer.
Further, the reinforcing ribs are uniformly distributed between the pipe body and the corrosion-resistant layer.
Further, a plurality of the protective sleeves are uniformly distributed on the outer wall of the corrosion-resistant layer.
Furthermore, the heat insulation layer is made of a ceramic heat insulation material.
Furthermore, the corrosion-resistant layer is made of a phenolic epoxy corrosion-resistant material.
(III) advantageous effects
The utility model provides an anticorrosive CPVC cable protection pipe possesses following beneficial effect:
this anticorrosive CPVC cable protection pipe is connected with the strengthening rib through evenly distributed between the outer wall at the body and the inner wall on corrosion resistant layer to evenly distributed has cup jointed a plurality of protective sheaths on corrosion resistant layer's outer wall, has reached when laying the protective sheath, and a plurality of protective sheaths have avoided cable protection pipe and building rubbish to take place to scratch, produce the damaged condition, have avoided CPVC cable protection pipe's skin to appear damaged back, the condition that anticorrosive effect worsens.
Drawings

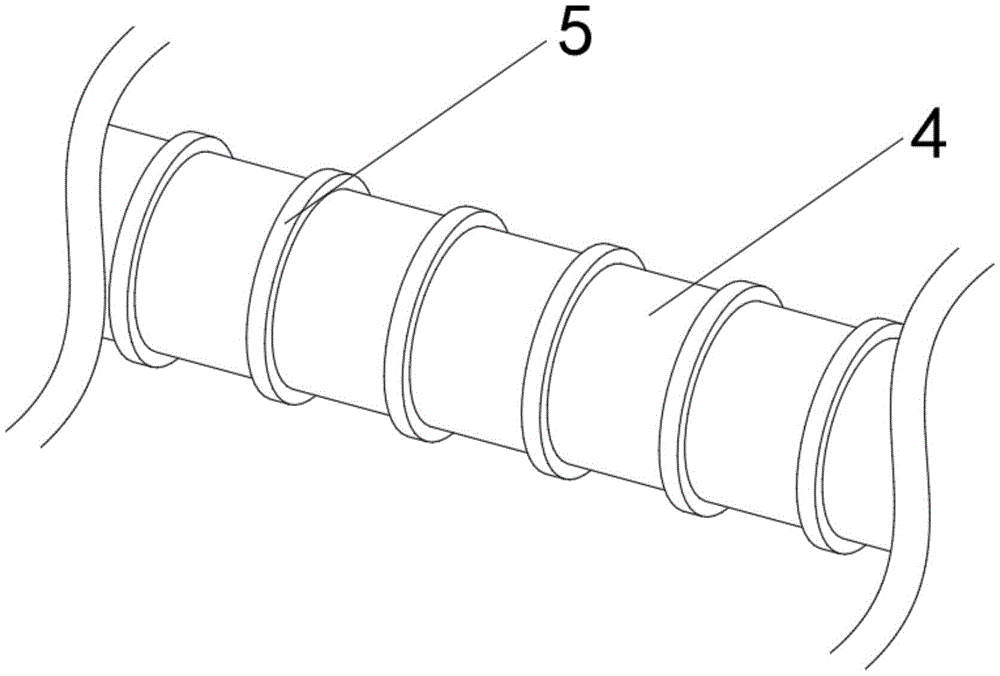

Fig. 1 is a schematic view of a partial structure of the anti-corrosion CPVC cable protection tube of the present invention;
fig. 2 is the cross-sectional view of the utility model discloses anticorrosive CPVC cable protection pipe.
In the figure: the pipe comprises a pipe body 1, a heat insulation layer 2, a reinforcing rib 3, a corrosion-resistant layer 4 and a protective sleeve 5.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-2, the present invention provides a technical solution:
an anticorrosion CPVC cable protection pipe comprises a pipe body 1, a thermal insulation layer 2 and an anticorrosion layer 4, wherein the thermal insulation layer 2 is arranged on the inner wall of the pipe body 1; the corrosion-resistant layer 4 is arranged on the outer wall of the pipe body 1; reinforcing ribs 3 are connected between the outer wall of the pipe body 1 and the inner wall of the corrosion-resistant layer 4, and the reinforcing ribs 3 are uniformly distributed between the pipe body 1 and the corrosion-resistant layer 4; the outer wall of the corrosion-resistant layer 4 is sleeved with a plurality of protective sleeves 5, and the plurality of protective sleeves 5 are uniformly distributed on the outer wall of the corrosion-resistant layer; the heat insulation layer 2 is made of ceramic heat insulation materials; the corrosion-resistant layer 4 is made of phenolic epoxy anticorrosive material.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (5)
1. An anticorrosion CPVC cable protection pipe comprises a pipe body (1), a thermal insulation layer (2) and an anticorrosion layer (4), and is characterized in that the thermal insulation layer (2) is arranged on the inner wall of the pipe body (1); the corrosion-resistant layer (4) is arranged on the outer wall of the pipe body (1); a reinforcing rib (3) is connected between the outer wall of the pipe body (1) and the inner wall of the corrosion-resistant layer (4); and the outer wall of the corrosion-resistant layer (4) is sleeved with a plurality of protective sleeves (5).
2. A corrosion resistant CPVC cable protection pipe according to claim 1, wherein said reinforcing ribs (3) are uniformly distributed between the pipe body (1) and the corrosion resistant layer (4).
3. A corrosion-resistant CPVC cable protection tube according to claim 1, characterized in that a plurality of said protective sheaths (5) are evenly distributed on the outer wall of the corrosion-resistant layer.
4. An anti-corrosion CPVC cable protection pipe according to claim 1, wherein said thermal insulation layer (2) is made of ceramic thermal insulation material.
5. An anti-corrosion CPVC cable protection tube according to claim 1, wherein said anti-corrosion layer (4) is made of phenolic epoxy anti-corrosion material.
