CN213182525U - Mainframe box for big data statistics and calculation

Info

Publication number: CN213182525U
Application number: CN202021539399.8U
Authority: CN
Inventors: 姜碧怡; 董琴; 赵雪梅; 陈瑾; 刘伟
Original assignee: Yancheng Yunbao Technology Co ltd
Current assignee: Giant Security Beijing Technology Co ltd
Priority date: 2020-07-30
Filing date: 2020-07-30
Publication date: 2021-05-11
Anticipated expiration: 2030-07-30

Abstract

The utility model discloses a main box for statistical calculation of big data in the field of computer hardware, comprising a box body, a buffer table is detachably installed at the bottom end of the box body, the middle part of the bottom end of the box body is in contact with the top end of the buffer table, and the box body The top of the front is provided with a groove, the top of the groove is fixed with an interface area, and a plurality of USB sockets and headphone holes are fixed on the interface area. The surface of the interface area is movably connected with a dust cover, and the dust cover is movably connected with a A plurality of dust-proof boards of different sizes have the beneficial effects of increasing the stability of the box body placement, preventing the box body from tipping over, and increasing the buffering properties of the box body, preventing the components inside the box body from being damaged by impact. ; Increase the dust resistance of the interface area through the dust cover, and connect a plurality of dust plates of different sizes through the dust cover, which is convenient for selective movement of the dust plates, which is beneficial to the protection of a single USB socket or earphone. hole for protection.

Description

Mainframe box for big data statistics and calculation

Technical Field

The utility model relates to a computer hardware field specifically is a mainframe box is used in big data statistics calculation.

Background

Big data (big data, mega data) or huge data refers to massive, high growth rate and diversified information assets which need a new processing mode to have stronger decision power, insight and flow optimization capability. Big data is the object of calculation, and needs to be statistically calculated by using a computer.

The chassis typically includes a housing, brackets, various switches on the panel, indicator lights, etc. The case is used as a part of computer accessories and has the main function of placing and fixing the computer accessories, thereby having a supporting and protecting function. However, a computer case in the prior art is lack of protection performance and is relatively weak in stability, the case is prone to toppling and does not have buffering performance under the condition that the case is accidentally subjected to external force, internal elements of the case are affected, an interface area on the existing case does not have a dustproof structure, dust entering a socket easily causes the phenomenon of poor connection and connection contact, and the case with the dustproof structure is not convenient for protecting a single socket.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a big data statistics is mainframe box for calculation to it easily emptys and the cushioning nature is not good to provide quick-witted case in solving above-mentioned background art, and gets into the dust in the socket and easily causes the problem of wiring access contact failure.

In order to achieve the above object, the utility model provides a following technical scheme: the portable multifunctional box comprises a box body, the bottom demountable installation of box has the cushion pad, the middle part of box bottom contacts with the top of cushion pad, the positive top of box is seted up flutedly, the fixed interface area that is equipped with in top of recess, fixed a plurality of USB socket and the earphone hole of being equipped with in the interface area, the surperficial swing joint in interface area has the dust cover, swing joint has a plurality of dust guards of different sizes on the dust cover.

As a further aspect of the present invention: the equal fixedly connected with support column of four corners of box bottom, every the bottom of support column all alternates with the cushion table and is connected, is convenient for make box and cushion table built-up connection use to increase protectiveness and the buffer to the box.

As a further aspect of the present invention: the fixed first boss that is equipped with in the positive bottom of box, the fixed surface of first boss is equipped with a plurality of enhancement strips, increases the structural strength of box to increase the crashworthiness of box.

As a further aspect of the present invention: the top and both sides of the interior of the box body are fixedly provided with a group of heat dissipation fans, and the back of the box body is rotatably connected with a back plate, so that elements in the interior of the box body can be conveniently overhauled and installed.

As a further aspect of the present invention: the both sides of box all are fixed and are equipped with the second boss, two one side of second boss all is fixed and is equipped with the heat dissipation window, a plurality of evenly distributed's louvre is seted up to the bottom of recess, guarantees the thermal diffusivity of box.

As a further aspect of the present invention: the buffer station is the arc structure, just a plurality of openings, every have all been seted up to the both sides of buffer station the support column alternates with the opening that corresponds respectively and is connected, through a plurality of open-ended settings, avoids the bottom of box to be sheltered from the influence and dispels the heat.

As a further aspect of the present invention: two of them corners of box one side all are fixed and are equipped with the anticollision angle, and two the anticollision angle is the inclined plane structure, increases the anticollision nature to reduce the potential safety hazard.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses in, but have the cushion table through the bottom demountable installation of box, the middle part of box bottom contacts with the top of cushion table, and the cushion table is the arc structure, increases the stability that the box was placed, when the box was promoted by accident, increases protectiveness to the box through the cushion table, prevents that the box from empting, and increases the cushion ability to the box through the cushion table when the box is carried, prevents that the inside component of box from receiving to strike impairedly.

2. The utility model discloses in, through the fixed interface district that is equipped with in top of recess, fixed a plurality of USB socket and the earphone hole of being equipped with in the interface district, the surperficial swing joint in interface district has the dust cover, increases the dust excrescence to the interface district, and swing joint has a plurality of dust guards of different sizes through the dust cover, the selectivity activity dust guard of being convenient for to be favorable to protecting single USB socket or earphone hole.

Drawings

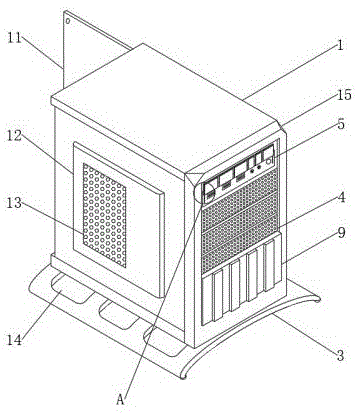

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of a partial structure of the present invention A;

fig. 3 is a schematic view of the sectional structure inside the middle box body of the present invention.

In the figure: 1. a box body; 2. a support pillar; 3. a buffer table; 4. a groove; 5. an interface region; 6. a USB socket; 7. a dust cover; 8. a dust-proof plate; 9. a first boss; 10. a heat dissipation fan; 11. a back plate; 12. a second boss; 13. a heat dissipation window; 14. an opening; 15. and (5) preventing a collision angle.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Please refer to fig. 1-3, in the embodiment of the utility model, a mainframe box for big data statistics calculation, including box 1, box 1's bottom demountable installation has cushion table 3, the middle part of box 1 bottom contacts with cushion table 3's top, increase box 1's protectiveness and buffering nature, prevent that box 1 from empting and box 1 internal component from being damaged, positive top is seted up recess 4, the fixed interface district 5 that is equipped with in top of recess 4, it is a plurality of to fix on the interface district 5, the surface activity in interface district 5 is connected with dust cover 7, increase the dustproofness to interface district 5, swing joint has a plurality of dust guards 8 that differ in size on the dust cover 7, the selectivity activity guard 8 of being convenient for, thereby be favorable to protecting single USB socket 6 or earphone hole.

The four corners of the bottom end of the box body 1 are fixedly connected with the supporting columns 2, and the bottom end of each supporting column 2 is in penetrating connection with the buffer table 3, so that the box body 1 and the buffer table 3 are conveniently combined and connected for use, and the protection performance and the buffering performance of the box body 1 are improved; the bottom of the front surface of the box body 1 is fixedly provided with a first boss 9, the surface of the first boss 9 is fixedly provided with a plurality of reinforcing strips, the structural strength of the box body 1 is increased, and therefore the impact resistance of the box body 1 is increased; a group of heat dissipation fans 10 are fixedly arranged at the top end and two sides of the interior of the box body 1, so that heat generated in the box body 1 can be dissipated in time, and a back plate 11 is rotatably connected to the back surface of the box body 1, so that elements in the box body 1 can be maintained and installed conveniently; the two sides of the box body 1 are both fixedly provided with second bosses 12, one sides of the two second bosses 12 are both fixedly provided with heat dissipation windows 13, and the bottom of the groove 4 is provided with a plurality of heat dissipation holes which are uniformly distributed, so that the heat dissipation performance of the box body 1 is ensured; the buffer table 3 is of an arc-shaped structure, a plurality of openings 14 are formed in the two sides of the buffer table 3, each support column 2 is respectively and alternately connected with the corresponding opening 14, and the bottom end of the box body 1 is prevented from being shielded to influence heat dissipation through the arrangement of the plurality of openings 14; two of them corners of box 1 one side are all fixed and are equipped with crashproof angle 15, and two crashproof angles 15 are the inclined plane structure, increase crashworthiness to reduce the potential safety hazard.

The utility model discloses a theory of operation is: when the box body 1 is used, firstly, the four support columns 2 at the bottom end of the box body 1 are respectively inserted and connected with the corresponding openings 14, the box body 1 and the buffer table 3 are combined and connected for use, when the box body 1 is carried, the buffer performance of the box body 1 is increased through the buffer table 3, elements in the box body 1 are prevented from being impacted and damaged, the stability of the placement of the box body 1 is increased due to the arc-shaped structure of the buffer table 3, when the box body 1 is accidentally pushed, the protection performance of the box body 1 is increased through the buffer table 3, the box body 1 is prevented from toppling over, when the computer element is arranged in the box body 1, when the host works, as the top end and two sides in the box body 1 are both fixedly provided with a group of radiating fans 10, the radiating treatment of heat generated in the box body 1 is convenient to be carried out in time, the heat is discharged through the radiating windows 13 and a plurality of radiating holes, when the wire, because there are a plurality of dust guards 8 that differ in size through swing joint on the dust cover 7, the selectivity activity dust guard 8 of being convenient for to be favorable to protecting single USB socket 6 or earphone hole, when using one of them USB socket 6, this USB socket 6 exposes, move several other dust guards 8 to sheltering from USB socket 6 and earphone hole, when interface district 5 does not use, move dust cover 7 to sheltering from it, increase the dirt proofness to interface district 5.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides a big data statistics is mainframe box for calculation, includes box (1), its characterized in that: the utility model discloses a portable earphone with USB interface, including box (1), the bottom demountable installation of box (1) has cushion table (3), the middle part of box (1) bottom contacts with the top of cushion table (3), box (1) positive top is seted up flutedly (4), the fixed interface district (5) that is equipped with in top of recess (4), fixed a plurality of USB sockets (6) and the earphone hole of being equipped with on interface district (5), the surperficial swing joint in interface district (5) has dust cover (7), swing joint has a plurality of dust guard (8) not of uniform size on dust cover (7).

2. A mainframe box for big data statistics calculation according to claim 1, characterized in that: the equal fixedly connected with support column (2) in four corners of box (1) bottom, every the bottom of support column (2) all alternates with cushion table (3) and is connected.

3. A mainframe box for big data statistics calculation according to claim 1, characterized in that: the bottom of the front face of the box body (1) is fixedly provided with a first boss (9), and the surface of the first boss (9) is fixedly provided with a plurality of reinforcing strips.

4. A mainframe box for big data statistics calculation according to claim 1, characterized in that: the top and both sides of box (1) inside all are fixed and are equipped with a set of heat dissipation fan (10), the back of box (1) rotates and is connected with backplate (11).

5. A mainframe box for big data statistics calculation according to claim 1, characterized in that: the two sides of the box body (1) are fixedly provided with second bosses (12), two heat dissipation windows (13) are fixedly arranged on one sides of the second bosses (12), and a plurality of heat dissipation holes are uniformly distributed in the bottom of the groove (4).

6. A mainframe box for big data statistics calculation according to claim 2, characterized in that: buffer stage (3) are the arc structure, just a plurality of openings (14) have all been seted up to the both sides of buffer stage (3), every support column (2) alternate with corresponding opening (14) respectively and are connected.

7. A mainframe box for big data statistics calculation according to claim 1, characterized in that: two of them corners of box (1) one side all are fixed and are equipped with crashproof angle (15), and two crashproof angle (15) are the inclined plane structure.
