Abstract
The utility model discloses a hydraulic engineering building site is with dampproofing filing cabinet, including placing the cabinet, it is equipped with the ventilation top to place cabinet top central point and puts, is located to place the inside upper end of cabinet and is equipped with first chamber and the chamber is placed to the second of placing to first chamber and the second of placing is placed and is separated through placing the board between the chamber, is located to place the board longitudinal symmetry position and has all seted up the spout. The utility model discloses in the inner wall of placing the cabinet be equipped with dampproofing board and dampproofing coating, the dampproofing function of placing the cabinet has been improved, and be equipped with induced air case in the rear end of placing the cabinet, the effect on the draught fan cooperation ventilation top of the inside bottom of induced air case makes and places the inside barrier plate that can adjust that ventilates of cabinet, change drying effect, two placing the chamber in placing the inside upper end of cabinet all are equipped with the barrier plate that can adjust, can place according to the classification of file, and can adjust the space size, and every placing the chamber and corresponding the memo clamp, be convenient for classify the file, be convenient for look for.
Description
Technical Field
The utility model belongs to the technical field of the filing cabinet, especially, relate to a hydraulic engineering building site is with dampproofing filing cabinet.
Background
The filing cabinet is the cupboard of placing file and data etc. generally uses in office, archives room, data room, locker room or individual study to store the file, conveniently classify to the file of storing and deposit, can find out in short time when taking, and is more regular, can carry out fine protection to the file simultaneously, avoids the file to receive the damage.
Filing cabinet that hydraulic engineering building site was used receives the influence of moisture very easily, filing cabinet on the present market, mostly do not possess damp-proofing function, when storing the file, because some storage files are not commonly used, the storage time is longer back, the filing cabinet is under the condition of not commonly used, the internal air of cabinet does not circulate, thereby make mould breed fast easily, the file of storage receives the damage easily, it is very inconvenient to use, and the space of filing cabinet all is fixed unchangeable, can not carry out space control according to the user demand, so propose a damp-proofing filing cabinet and solve foretell problem.
SUMMERY OF THE UTILITY MODEL
The utility model provides a hydraulic engineering building site is with dampproofing filing cabinet aims at solving the problem that the filing cabinet does not have dampproofing function and space control.
The utility model relates to a realize like this, a hydraulic engineering building site is with dampproofing filing cabinet, include:
the device comprises a placing cabinet, a ventilating top is arranged at the center of the top end of the placing cabinet, a first placing cavity and a second placing cavity are arranged at the upper end inside the placing cabinet, the first placing cavity and the second placing cavity are separated by a placing plate, and sliding grooves are formed in the vertically symmetrical positions of the placing plate;
blocking plates are arranged in the first placing cavity and the second placing cavity, sliding blocks which are integrated at the upper end and the lower end of each blocking plate are arranged in the sliding chutes, and the installation structure of the blocking plates of the second placing cavity is the same as that of the first placing cavity;
a drawer is arranged below the first placing cavity and the second placing cavity of the placing cabinet;
a storage cavity is arranged below the drawer of the placing cabinet, and the storage cavity is provided with a plurality of placing cavities which are submitted evenly;
a base is arranged at the bottom end of the placing cabinet;
a moisture-proof plate is arranged on the inner wall of the placing cabinet, and moisture-proof paint is brushed on the inner wall of the moisture-proof plate;
place the cabinet rear end and install induced draft case, be located induced draft case bottom and install the draught fan, be located induced draft case bottom and seted up the air outlet on the draught fan right side to induced draft case places the cabinet through placing the vent intercommunication on the cabinet back wall.
In order to classify the file of difference, be convenient for look for the file, as the utility model relates to an it is preferred, first place the chamber and the second is placed the intracavity portion top and is all installed the connecting rod to install the label holder who rotates the connection bottom the connecting rod.
In order to carry out classification mark to every file of placing intracavity portion, as the utility model relates to an it is preferred, the label holder corresponds the baffler respectively with first place the chamber, the second place the space that forms between the chamber.
Produce the removal of scraping and influence the position in order to prevent both ends from top to bottom the baffler, conduct the utility model relates to an it is preferred, terminal surface is equipped with the interval respectively with first chamber, the second of placing about the chamber upper and lower inner wall is placed to the baffler.
In order to increase the stability and the dampproofing effect of placing the cabinet, as the utility model relates to an it is preferred, base both ends face salient in place cabinet both ends face to the base is inside to be hollow structure.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses in the inner wall of placing the cabinet be equipped with dampproofing board and dampproofing coating, improved the dampproofing function of placing the cabinet, be equipped with induced air case in the rear end of placing the cabinet moreover, the effect on the draught fan cooperation ventilation top of the inside bottom of induced air case makes and places the inside ventilation of cabinet, the dry effect of reforming into shape.
2. The utility model discloses in placing two of the inside upper end of cabinet and placing the chamber and all being equipped with the baffler that can adjust, can place according to the classification of file to can adjust the space size, every is placed the chamber and corresponds the memo clamp moreover, is convenient for classify the file, is convenient for look for.
Drawings

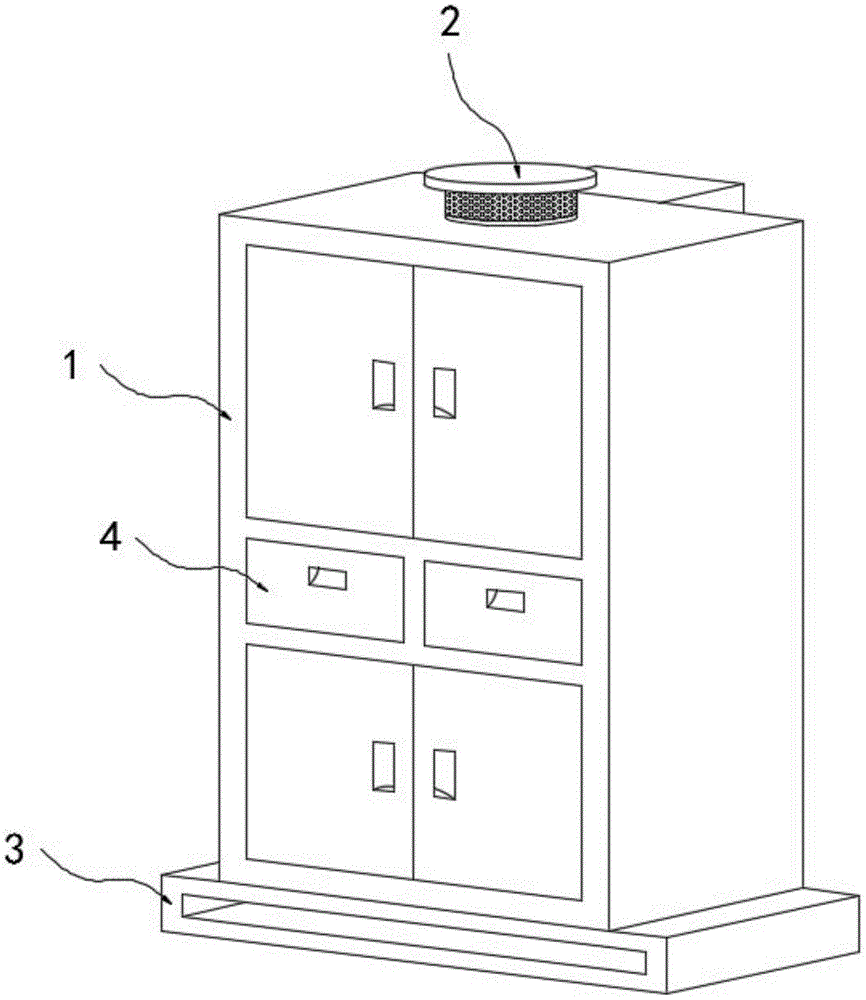

Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the internal structure of the present invention;
FIG. 3 is a schematic view of the exploded structure of the placement plate and the blocking plate of the present invention;
FIG. 4 is a schematic view of the connection structure of the label holder and the connecting rod of the present invention;
FIG. 5 is a schematic view of the inner wall structure of the storage cabinet of the present invention;
FIG. 6 is a right side view of the interior of the cabinet of the present invention;
fig. 7 is a schematic view of the back structure of the present invention.
In the figure: 1. a placing cabinet; 2. a ventilation top; 3. a base; 4. a drawer; 5. a first placing cavity; 6. a second placing cavity; 7. placing the plate; 701. a chute; 8. a barrier plate; 801. a slider; 9. a storage chamber; 10. a label holder; 11. a wind guide box; 12. a connecting rod; 13. moisture-proof paint; 14. a moisture-proof plate; 15. a vent; 16. an induced draft fan.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
In the description of the present invention, it is to be understood that the terms "length", "width", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are merely for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. Furthermore, in the description of the present invention, furthermore, "first", "second", "third", and "fourth" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it should be further noted that, unless explicitly stated or limited otherwise, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected, mechanically connected, electrically connected, directly connected, connected through an intermediate medium, or connected to the inside of two elements. To those of ordinary skill in the art, it will be understood that the specific meaning of the above terms in the present invention "a plurality" means two or more unless otherwise specifically limited.
Referring to fig. 1-7, the present invention provides a technical solution: the method comprises the following steps:
the device comprises a placing cabinet 1, wherein a ventilation top 2 is arranged at the center of the top end of the placing cabinet 1, a first placing cavity 5 and a second placing cavity 6 are arranged at the upper end of the interior of the placing cabinet 1, the first placing cavity 5 and the second placing cavity 6 are separated by a placing plate 7, and sliding grooves 701 are formed in the vertically symmetrical positions of the placing plate 7;
a drawer 4 is arranged below the first placing cavity 5 and the second placing cavity 6 of the placing cabinet 1;
a storage cavity 9 is arranged below the drawer 4 of the placing cabinet 1, and the storage cavity 9 is provided with a plurality of placing cavities which are submitted evenly;
a base 3 is arranged at the bottom end of the placing cabinet 1;
a moisture-proof plate 14 is arranged on the inner wall of the placing cabinet 1, and moisture-proof paint 13 is brushed on the inner wall of the moisture-proof plate 14;
install induced air case 11 at placing 1 rear end of cabinet, be located induced air case 11 bottom and install draught fan 16, be located induced air case 11 bottom and seted up the air outlet on draught fan 16 right side to induced air case 11 communicates through vent 15 on placing 1 back wall of cabinet and places cabinet 1.
Specifically, first chamber 5 and the second of placing is placed the inside top in chamber 6 and is all installed connecting rod 12 to install the label holder 10 that rotates the connection in connecting rod 12 bottom, in order can classify the file of difference in this embodiment, be convenient for look for the file.
Specifically, the label holder 10 corresponds to the space formed between the blocking plate 8 and the first placing cavity 5 and the second placing cavity 6, and in this embodiment, the documents inside each placing cavity can be classified and marked.
Specifically, 8 up and down terminal surfaces of baffler respectively with first place chamber 5, the second place and be equipped with the interval between the chamber 6 upper and lower inner wall, in order to prevent that both ends produce the removal of scraping and influencing the position about the baffler in this embodiment.
Specifically, 3 both ends faces of base are outstanding in placing 1 both ends face of cabinet to base 3 is inside to be hollow structure, places the stability and the dampproofing effect of cabinet in order to increase in this embodiment.
The utility model discloses an use flow: during the use, place according to the file and slide 8 baffler, baffler 8 slides in spout 701 is inside, can adjust the space and play the effect of separation, then mark the kind of file and place inside the label holder 10, the searching of the file of being convenient for, the effect of 16 cooperation ventilation tops 2 of ventilation blower 16 cooperation induced air box 11 bottoms simultaneously is to placing 1 inside processing of ventilating, improve the inside drying effect of placing 1 cabinet, prevent to place 1 inside file of cabinet and receive the influence of moisture.
