Abstract
The application discloses air-cooled heat pump cold water machine's heat pump shock absorber support, including bottom plate, first loading board, second loading board, triangle shock absorber support, first spring and second spring, first loading board and second loading board set up in the top of bottom plate, and first loading board and second loading board are used for placing different heat pumps. The quantity of triangle shock attenuation frame is a plurality of, and a plurality of triangle shock attenuation frames evenly set up in the both sides of first loading board and second loading board, the one end fixed connection bottom plate of triangle shock attenuation frame, and required absorbing heat pump is connected to the other end of triangle shock attenuation frame. The first spring is arranged at the bottom of the first bearing plate, and the second spring is arranged at the bottom of the second bearing plate. The heat pump system solves the problems that in the simultaneous working process of a plurality of heat pumps, the vibration of the heat pumps can influence the work of adjacent heat pumps, so that the adjacent heat pumps are easy to damage and the work is unstable.
Description
Technical Field
The application relates to auxiliary parts of a heat pump, in particular to a heat pump damping support of an air-cooled heat pump water chiller.
Background
An air-cooled heat pump is an air conditioning unit which is different from an air-cooled water chilling unit in the air conditioning industry. Besides the function of preparing cold water by the air-cooled water chilling unit, the air-cooled heat pump unit can be switched to a heating working condition to prepare hot water. The basic principle of the air-cooled heat pump is based on a compression refrigeration cycle, a refrigerant is used as a carrier, and heat is absorbed or discharged from the atmosphere through forced heat exchange of a fan so as to meet the requirements of refrigeration or heating.
In order to improve the working strength of the working efficiency of the air-cooled heat pump water chiller, a plurality of heat pumps are added to the existing air-cooled heat pump water chiller to work together, and the vibration of the heat pumps can influence the work of the adjacent heat pumps in the simultaneous working process, so that the adjacent heat pumps are easily damaged and work is unstable.
SUMMERY OF THE UTILITY MODEL
The application provides a heat pump shock absorber support of air-cooled heat pump cold water machine can be convenient for reduce the vibrations between the adjacent heat pump and disturb.
According to an aspect of the present application, a heat pump shock mount of air-cooled heat pump cold water machine is provided for reduce the vibrations between the adjacent heat pump and disturb, the heat pump shock mount of the present application includes:
a base plate;
the heat pump heat exchanger comprises a first bearing plate and a second bearing plate, wherein the first bearing plate and the second bearing plate are arranged above a bottom plate and are parallel to the bottom plate;
the triangular shock absorption frames are arranged at two sides of the first bearing plate and the second bearing plate uniformly, one end of each triangular shock absorption frame is fixedly connected with the bottom plate, and the other end of each triangular shock absorption frame is connected with a heat pump needing shock absorption;
the spring support comprises a first spring and a second spring, wherein the first spring is arranged at the bottom of a first bearing plate, one end of the first spring is connected with the bottom of the first bearing plate, the other end of the first spring is connected with a bottom plate, the second spring is arranged at the bottom of a second bearing plate, one end of the second spring is connected with the bottom of the second bearing plate, and the other end of the second spring is connected with the bottom plate.
According to some embodiments, the triangular shock absorbing bracket of the heat pump shock absorbing support comprises a first shock absorber, a second shock absorber and a connecting piece, wherein one end of the first shock absorber is connected with the connecting piece, the other end of the first shock absorber is connected with the bottom plate, one end of the second shock absorber is connected with the connecting piece, the other end of the second shock absorber is connected with the bottom plate, and the connecting piece is connected with a heat pump needing shock absorption.
According to some embodiments, the heat pump shock absorber support's of this application connecting piece includes the triangle body, elastic connection ball and dead lever, and the elastic connection ball sets up in the triangle body, and the lateral surface of the one end fixed connection triangle body of dead lever, first bumper shock absorber and second bumper shock absorber all connect the elastic connection ball.
According to some embodiments, the first damper of the heat pump shock absorption bracket of the present application includes a housing, a cylinder assembly, a connecting rod, a connecting plate, and a third spring, one end of the cylinder assembly is disposed through the bottom of the housing, one end of the third spring is connected to the bottom of the housing, the other end of the third spring is connected to the connecting plate, the connecting plate is disposed at the bottom of the cylinder assembly, one end of the connecting rod is connected to the bottom of the connecting plate, and the other end of the connecting rod is connected to the bottom plate.
According to some embodiments, the cylinder assembly of the heat pump shock absorption bracket comprises a cylinder body, a sliding block and a push rod, wherein one end of the push rod is connected with an elastic connecting ball, the other end of the push rod is connected with the sliding block, the sliding block is arranged in the cylinder body in a sealing mode and is parallel to the bottom surface of the cylinder body, and the sliding block can slide along the inner wall of the cylinder body.
According to some embodiments, the number of the first springs of the heat pump shock absorption bracket is multiple, and the multiple first springs are uniformly arranged at the bottom of the first bearing plate.
According to some embodiments, the number of the second springs of the heat pump shock absorption bracket is multiple, and the multiple second springs are uniformly arranged at the bottom of the second bearing plate.
According to some embodiments, the first spring, the second spring and the third spring of the heat pump shock mount of the present application are all reinforcing springs.
According to some embodiments, the base plate of the heat pump shock mount of the present application is a steel plate.
According to some embodiments, the first bearing plate and the second bearing plate of the heat pump shock absorption bracket of the present application have the same shape and size, and the second bearing plate of the first bearing plate is a steel plate.
The application provides a heat pump shock absorption bracket of an air-cooled heat pump water cooler, wherein two heat pumps of the air-cooled heat pump water cooler are respectively arranged on a first bearing plate and a second bearing plate in the specific use process, the left sides and the right sides of the two heat pumps are respectively connected with a triangular shock absorption bracket, when vibration is generated in the working process of the heat pumps, the triangular shock absorption bracket can buffer the left vibration and the right vibration of the heat pumps, a first spring arranged at the bottom of the first bearing plate and a second spring arranged at the bottom of the second bearing plate can buffer the up vibration and the down vibration of the heat pumps, the heat pump shock absorption bracket is suitable for an air-cooled heat pump water cooler set with a plurality of working heat pumps, and by arranging the adjacent heat pumps on different bearing plates, the problem that the adjacent heat pumps are easily damaged due to the influence of the vibration of the heat pumps on the work of the adjacent heat pumps in the simultaneous working process of the, the problem of the unstable condition of work, the heat pump shock absorber support of this application has simultaneously cushioned horizontal vibrations and the vertical vibrations of heat pump, has reduced the vibration range of heat pump, makes the work of heat pump more stable, and the work efficiency of each device is higher, and life is longer.
Drawings
In order to more clearly illustrate the embodiments of the present application or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present application, and other drawings can be obtained by those skilled in the art without creative efforts.

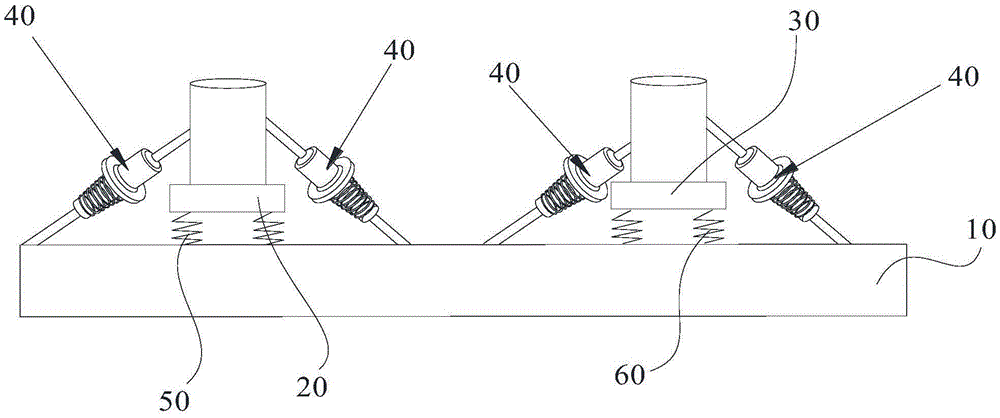

Fig. 1 is a front view of a heat pump shock absorption bracket of an air-cooled heat pump water chiller in an embodiment provided by the present application;
fig. 2 is a top view of a heat pump shock absorption bracket of an air-cooled heat pump water chiller in an embodiment provided herein;
fig. 3 is a schematic perspective view illustrating a connection member of a heat pump shock absorption bracket of an air-cooled heat pump water chiller according to an embodiment of the present disclosure;
fig. 4 is a perspective view of a first damper of a heat pump damping bracket of an air-cooled heat pump water chiller according to an embodiment of the present disclosure;
fig. 5 is a sectional view of a first damper of a heat pump damper bracket of an air-cooled heat pump water chiller according to an embodiment of the present disclosure.
Detailed Description
An air-cooled heat pump is an air conditioning unit which is different from an air-cooled water chilling unit in the air conditioning industry. Besides the function of preparing cold water by the air-cooled water chilling unit, the air-cooled heat pump unit can be switched to a heating working condition to prepare hot water. The basic principle of the air-cooled heat pump is based on a compression refrigeration cycle, a refrigerant is used as a carrier, and heat is absorbed or discharged from the atmosphere through forced heat exchange of a fan so as to meet the requirements of refrigeration or heating.
In order to improve the working strength of the working efficiency of the air-cooled heat pump water chiller, a plurality of heat pumps are added to the existing air-cooled heat pump water chiller to work together, and the vibration of the heat pumps can influence the work of the adjacent heat pumps in the simultaneous working process, so that the adjacent heat pumps are easily damaged and work is unstable.
According to fig. 1-5, the present application provides an embodiment of a heat pump shock mount of an air-cooled heat pump water chiller, which is used to reduce vibration interference between adjacent heat pumps. The heat pump shock absorption bracket in this embodiment includes a bottom plate 10, a first bearing plate 20, a second bearing plate 30, a triangular shock absorption frame 40, a first spring 50 and a second spring 60, wherein the first bearing plate 20 and the second bearing plate 30 are disposed above the bottom plate 10, both the first bearing plate 20 and the second bearing plate 30 are parallel to the bottom plate 10, the first bearing plate 20 and the second bearing plate 30 are disposed on the same horizontal plane, and the first bearing plate 20 and the second bearing plate 30 are used for placing different heat pumps. The quantity of triangle shock attenuation frame 40 is a plurality of, and a plurality of triangle shock attenuation frames 40 evenly set up in the both sides of first loading board 20 and second loading board 30, and the one end fixed connection bottom plate 10 of triangle shock attenuation frame, the other end of triangle shock attenuation frame connect the heat pump of required shock attenuation. The first spring 50 is disposed at the bottom of the first loading plate 20, one end of the first spring 50 is connected to the bottom of the first loading plate 20, the other end of the first spring 50 is connected to the bottom plate 10, the second spring 60 is disposed at the bottom of the second loading plate 30, one end of the second spring 60 is connected to the bottom of the second loading plate 30, and the other end of the second spring 60 is connected to the bottom plate 10.
The embodiment provides a heat pump shock absorption bracket of an air-cooled heat pump water chiller, wherein two heat pumps of the air-cooled heat pump water chiller are respectively arranged on a first bearing plate 20 and a second bearing plate 30 in the specific use process, the left side and the right side of the two heat pumps are respectively connected with a triangular shock absorption bracket 40, when the shock is generated in the working process of the heat pumps, the triangular shock absorption bracket 40 can buffer the left shock and the right shock of the heat pumps, a first spring 50 arranged at the bottom of the first bearing plate 20 and a second spring 60 arranged at the bottom of the second bearing plate 30 can buffer the up shock and the down shock of the heat pumps, the heat pump shock absorption bracket is suitable for the air-cooled heat pump water chiller with a plurality of heat pumps working, and adjacent heat pumps are arranged on different bearing plates, so that the influence of the heat pump shock on the adjacent heat pumps in the simultaneous working process of the plurality of heat pumps is solved, the heat pump damping support has the advantages that the adjacent heat pumps are easy to damage, the work is unstable, the horizontal vibration and the vertical vibration of the heat pumps are simultaneously buffered, the vibration amplitude of the heat pumps is reduced, the work of the heat pumps is more stable, the working efficiency of each device is higher, and the service life is longer.
In the implementation process of the above embodiment, the triangular shock absorbing bracket 40 of the heat pump shock absorbing bracket in the embodiment includes the first shock absorber 400, the second shock absorber 410 and the connecting member 420, one end of the first shock absorber 400 is connected to the connecting member 420, the other end of the first shock absorber 400 is connected to the base plate 10, one end of the second shock absorber 410 is connected to the connecting member 420, the other end of the second shock absorber 410 is connected to the base plate 10, and the connecting member 420 is connected to the heat pump to be damped.
The triangular shock absorbing frame 40 in this embodiment receives the vibration of the heat pump through the connecting piece 420, transmit the vibration of the heat pump to the first shock absorber 400 and the second shock absorber 410, the first shock absorber 400 and the second shock absorber buffer after receiving the vibration of the heat pump, an included angle between the first shock absorber 400 and the second shock absorber 410 is less than 180 degrees, the horizontal vibration of the heat pump can be effectively buffered by the first shock absorber 400 and the second shock absorber 410 according to the law of the force transmission direction, so that the vibration amplitude of the heat pump is reduced, the heat pump is protected from being damaged due to the self vibration, and the work of the heat pump is more stable.
In the above embodiment, the connection member 420 of the heat pump shock absorbing bracket in this embodiment includes a triangular body 421, an elastic connection ball 422 and a fixing rod 423, the elastic connection ball 422 is disposed in the triangular body 421, one end of the fixing rod 423 is fixedly connected to the outer side surface of the triangular body 421, and the first shock absorber 400 and the second shock absorber 410 are both connected to the elastic connection ball 422.
The vibrations of heat pump in this embodiment are when transmitting for the connection, transmit to first bumper shock absorber 400 and second bumper shock absorber 410 through the triangle body 421, in the transmission process, the vibration range of transmission can be cushioned earlier to the inside elastic connection ball 422 of triangle body 421 for first bumper shock absorber 400 and second bumper shock absorber 410 need absorbing vibrations diminish, promote first bumper shock absorber 400 and the absorbing shock attenuation efficiency of second shock absorber, thereby make the shock absorption rate of triangle shock absorber frame 40 bigger, the shock attenuation effect is more obvious.
In the above embodiment, the first damper 400 of the heat pump shock absorbing bracket in the present embodiment includes a housing 440, a cylinder assembly 450, a connecting rod 460, a connecting plate 470, and a third spring 480, wherein one end of the cylinder assembly 450 is disposed through the bottom of the housing 440, one end of the third spring 480 is connected to the bottom of the housing 440, the other end of the third spring 480 is connected to the connecting plate 470, the connecting plate 470 is disposed at the bottom of the cylinder assembly 450, one end of the connecting rod 460 is connected to the bottom of the connecting plate 470, and the other end of the connecting rod 460 is connected to the base plate 10.
The first damper 400 and the second damper 410 in this embodiment have the same structure and the same damping principle. When the first shock absorber 400 in this embodiment receives the shock transmitted by the connection member 420, the third spring 480 is pushed to compress by the housing 440, the third spring 480 buffers the shock, the housing 440 can also push the cylinder assembly 450 to work, and the cylinder assembly 450 can buffer the shock at the same time, so that the shock amplitude is reduced.
In the above embodiment, the cylinder assembly 450 of the heat pump shock absorber support in this embodiment includes a cylinder body 451, a slider 452 and a push rod 453, one end of the push rod 453 is connected with the elastic connection ball 422, the other end of the push rod 453 is connected with the slider 452, the slider 452 is hermetically disposed in the cylinder body 451 parallel to the bottom surface of the cylinder body 451, and the slider 452 can slide along the inner wall of the cylinder body 451.
The cylinder assembly 450 in this embodiment pushes the slider 452 to move in the cylinder body 451 through the push rod 453, so as to compress the air in the cylinder body 451, and to generate a force opposite to the vibration in the cylinder body 451, thereby reducing the amplitude of the vibration and achieving the effect of shock absorption.
In the above embodiment, the number of the first springs 50 of the heat pump shock absorbing bracket in the embodiment is multiple, and the multiple first springs 50 are uniformly disposed at the bottom of the first bearing plate 20. The number of the second springs 60 of the heat pump shock absorbing bracket in this embodiment is multiple, and the multiple second springs 60 are uniformly disposed at the bottom of the second loading plate 30.
The first spring 50 and the second spring 60 in this embodiment can be compressed when receiving the force of the vertical vibration of the heat pump, and generate a force opposite to the vibration direction, thereby achieving the effect of shock absorption.
In the implementation process of the above embodiment, the first spring 50, the second spring 60 and the third spring 480 of the heat pump shock absorption bracket in the present embodiment are all reinforcing springs.
The strength of the spring can be strengthened by the reinforcing spring, so that the spring cannot be easily damaged, and the strength of the heat pump damping support in the embodiment is improved.
In the implementation process of the above embodiment, the bottom plate 10 of the shock absorbing bracket for a heat pump in the embodiment is a steel plate.
The same or similar reference numerals in the drawings of the present embodiment correspond to the same or similar components; in the description of the present application, it is to be understood that if there is an orientation or positional relationship indicated by the terms "upper", "lower", "left", "right", etc. based on the orientation or positional relationship shown in the drawings, it is only for convenience of description and simplification of description, but it is not intended to indicate or imply that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and therefore, the terms describing the positional relationship in the drawings are only for illustrative purposes and are not to be construed as limitations of the present patent, and specific meanings of the above terms may be understood by those skilled in the art according to specific situations.
The above description is only exemplary of the present application and should not be taken as limiting the present application, as any modification, equivalent replacement, or improvement made within the spirit and principle of the present application should be included in the protection scope of the present application.
Claims (10)
1. The utility model provides a heat pump shock mount of air-cooled heat pump cold water machine which characterized in that includes:
a base plate;
the heat pump heat exchanger comprises a first bearing plate and a second bearing plate, wherein the first bearing plate and the second bearing plate are arranged above a bottom plate and are both parallel to the bottom plate;
the triangular shock absorption frames are uniformly arranged on two sides of the first bearing plate and the second bearing plate, one end of each triangular shock absorption frame is fixedly connected with the bottom plate, and the other end of each triangular shock absorption frame is connected with a heat pump needing shock absorption;
the spring loading device comprises a first spring and a second spring, wherein the first spring is arranged at the bottom of the first loading plate, one end of the first spring is connected with the bottom of the first loading plate, the other end of the first spring is connected with the bottom plate, the second spring is arranged at the bottom of the second loading plate, one end of the second spring is connected with the bottom of the second loading plate, and the other end of the second spring is connected with the bottom plate.
2. The heat pump shock absorption bracket of the air-cooled heat pump water chiller as claimed in claim 1,
the triangular shock absorption frame comprises a first shock absorber, a second shock absorber and a connecting piece, one end of the first shock absorber is connected with the connecting piece, the other end of the first shock absorber is connected with the bottom plate, one end of the second shock absorber is connected with the connecting piece, the other end of the second shock absorber is connected with the bottom plate, and the connecting piece is connected with a heat pump with required shock absorption.
3. The heat pump shock absorption bracket of the air-cooled heat pump water chiller as claimed in claim 2,
the connecting piece includes the triangle body, elastic connection ball and dead lever, the elastic connection ball set up in the triangle body, the one end fixed connection of dead lever the lateral surface of the triangle body, first bumper shock absorber with the second bumper shock absorber all connects the elastic connection ball.
4. The heat pump shock absorption bracket of the air-cooled heat pump water chiller as claimed in claim 3,
the first shock absorber comprises a shell, a cylinder assembly, a connecting rod, a connecting plate and a third spring, one end of the cylinder assembly penetrates through the bottom of the shell, one end of the third spring is connected with the bottom of the shell, the other end of the third spring is connected with the connecting plate, the connecting plate is arranged at the bottom of the cylinder assembly, one end of the connecting rod is connected with the bottom of the connecting plate, and the other end of the connecting rod is connected with the bottom plate.
5. The heat pump shock absorption bracket of the air-cooled heat pump water chiller as claimed in claim 4,
the air cylinder assembly comprises a cylinder body, a sliding block and a push rod, one end of the push rod is connected with the elastic connecting ball, the other end of the push rod is connected with the sliding block, the sliding block is parallel to the bottom surface of the cylinder body and is arranged in the cylinder body in a sealing mode, and the sliding block can slide along the inner wall of the cylinder body.
6. The heat pump shock absorption bracket of the air-cooled heat pump water chiller as claimed in claim 5,
the first springs are arranged at the bottom of the first bearing plate uniformly.
7. The heat pump shock absorption bracket of the air-cooled heat pump water chiller as claimed in claim 6,
the number of the second springs is multiple, and the second springs are uniformly arranged at the bottom of the second bearing plate.
8. The heat pump shock absorption bracket of the air-cooled heat pump water chiller as claimed in claim 7,
the first spring, the second spring and the third spring are all reinforced springs.
9. The heat pump shock absorption bracket of the air-cooled heat pump water chiller as claimed in claim 1,
the bottom plate is a steel plate.
10. The heat pump shock absorption bracket of the air-cooled heat pump water chiller as claimed in claim 1,
the first bearing plate and the second bearing plate are the same in shape and size, and the second bearing plate of the first bearing plate is made of steel plates.
