Abstract
本实用新型公开了一种不干胶纸加工用涂层设备，包括加工座和显示设备，加工座上表面的拐角均固定连接有连接箱，所述连接箱内部的顶端均固定连接有第一气缸，所述第一气缸的底端固定连接有压制框，所述压制框上表面的两侧均固定连接有第二气缸，所述第二气缸的顶端均固定连接有连接板，两组所述连接板之间的一侧转动连接有螺旋杆，且两组连接板的另一侧固定连接有滑动杆，本实用新型涉及不干胶纸技术领域。该不干胶纸加工用涂层设备方便搬运，可以根据需要安装在不同的设备上，并且本装置设置有原料的压制结构，可以在涂胶时将原料进行固定，防止其发生移动，涂胶结构安装在压制结构上，可以减少涂胶结构的工作距离。
The utility model discloses a coating equipment for self-adhesive paper processing, which comprises a processing seat and a display device. The corners of the upper surface of the processing seat are fixedly connected with a connection box, and the top of the inside of the connection box is fixedly connected with a first Air cylinder, the bottom end of the first air cylinder is fixedly connected with a pressing frame, both sides of the upper surface of the pressing frame are fixedly connected with a second air cylinder, and the top end of the second air cylinder is fixedly connected with a connecting plate. One side between the connecting plates is rotatably connected with a screw rod, and the other side of the two groups of connecting plates is fixedly connected with a sliding rod. The utility model relates to the technical field of self-adhesive paper. The coating equipment for self-adhesive paper processing is easy to handle and can be installed on different equipment according to needs, and the device is provided with a pressing structure for raw materials, which can fix the raw materials during gluing to prevent them from moving and gluing. The structure is mounted on the pressed structure, which can reduce the working distance of the glued structure.
Description
Technical Field
The utility model relates to a non-setting adhesive paper technical field specifically is a coating equipment for non-setting adhesive paper processing.
Background
The self-adhesive label material is a composite material which uses paper, film or special material as face material, the back surface is coated with adhesive and uses silicon-coated protective paper as base paper.
Chinese patent discloses coating equipment for processing adhesive tapes (publication number: CN 210333206U), which comprises a motor, a heating machine and a controller, wherein a machine body is arranged at the upper end of a base, a bottom plate is arranged at the inner side of the machine body, a feeding shaft is arranged at the upper side of the bottom plate, a fastening nut is arranged at one side of the feeding shaft, raw materials are arranged on the feeding shaft, an adhesive to be heated is coated on the raw materials, the motor is arranged at the other side of the feeding shaft, which is opposite to the fastening nut, the lower end of the motor is provided with a motor support, the lower end of the motor support.
The existing coating equipment is single in function, inconvenient to glue discontinuous raw materials, and when the raw materials are glued, the raw materials are required to be kept stable, the problem that the gluing quality is poor due to the fact that the raw materials are moved when being glued is solved, and meanwhile, the gluing quality of the existing device is poor and the painting efficiency is low.
SUMMERY OF THE UTILITY MODEL
The utility model provides a not enough to prior art, the utility model provides a coating equipment is used in non-setting adhesive paper processing has solved current coating equipment function singleness, and is inconvenient to the rubber coating of discontinuous raw materials to when the raw materials carries out the rubberizing, need keep stable with the raw materials, prevent to take place to remove in the rubberizing, lead to the problem of rubberizing quality variation, the device rubberizing quality that has now simultaneously is relatively poor and paint the lower problem of efficiency.
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a coating device for processing adhesive sticker paper comprises a processing seat and a display device, wherein corners on the upper surface of the processing seat are fixedly connected with a connecting box, the top ends of the inner parts of the connecting boxes are fixedly connected with first air cylinders, the bottom ends of the first air cylinders are fixedly connected with pressing frames, the two sides of the upper surface of the pressing frame are fixedly connected with second cylinders, the top ends of the second cylinders are fixedly connected with connecting plates, one side between the two groups of connecting plates is rotatably connected with a screw rod, and the other sides of the two groups of connecting plates are fixedly connected with sliding rods, the upper surfaces of the connecting plates are fixedly connected with first driving equipment, a first synchronous belt is sleeved between the output end of the first driving device and the screw rod, a smearing box is arranged at the lower side of the connecting plate, the two sides of the smearing box are respectively sleeved on the outer sides of the spiral rod and the sliding rod, and the display device is in threaded connection with one side of the upper surface of the smearing box.
Preferably, the smearing box is in threaded connection with the screw rod, and the smearing box is in sliding connection with the sliding rod.
Preferably, it includes the drive case to paint case, one side fixedly connected with second drive arrangement of drive case upper surface, and the inside of drive case rotates and is connected with the dwang, the cover is equipped with the second hold-in range between output and the dwang of second drive arrangement.
Preferably, the equal fixedly connected with electric telescopic handle in both sides of dwang, and dwang one side electric telescopic handle's output fixedly connected with scraper blade, the equipment is glued to dwang opposite side electric telescopic handle's output fixedly connected with point.
Preferably, one side fixedly connected with of drive case upper surface near second drive equipment advances the rubber tube, advance fixedly connected with communicating pipe between rubber tube and the glue dispensing equipment, the stop member in the communicating pipe outside is established to the inside fixedly connected with cover of drive case.
Preferably, the height of the pressing frame is smaller than the length of the working distance of the second air cylinder, and the length of the working distance of the first air cylinder is larger than the height of the processing seat.
Advantageous effects
The utility model provides a coating equipment for processing adhesive paper. Compared with the prior art, the method has the following beneficial effects:
(1) the coating equipment for processing the non-setting adhesive paper is characterized in that the corners of the upper surface of the processing seat are fixedly connected with a connecting box, the top end inside the connecting box is fixedly connected with a first air cylinder, the bottom end of the first air cylinder is fixedly connected with a pressing frame, the two sides of the upper surface of the pressing frame are fixedly connected with a second air cylinder, the top end of the second air cylinder is fixedly connected with a connecting plate, a first synchronous belt is sleeved between the output end of a first driving device and a screw rod, and the lower side of the connecting plate is provided with a coating box, so that the coating equipment is suitable for the coating process of non-continuous raw materials, is convenient to carry and can be installed on different equipment as required, is provided with a pressing structure of the raw materials, can fix the raw materials during coating to prevent the raw materials from moving, and meanwhile, a coating structure in the coating equipment is installed on the, thereby reducing the size of the device.
(2) This coating equipment is used in non-setting adhesive paper processing, establish the outside at hob and slide bar respectively through the both sides of paining the case, the display device spiro union is in the one side of paining the case upper surface, the equal fixedly connected with electric telescopic handle in both sides of dwang, and dwang one side electric telescopic handle's output fixedly connected with scraper blade, dwang opposite side electric telescopic handle's output fixedly connected with point is glued the equipment, one side fixedly connected with that the drive box upper surface is close to second drive arrangement advances the rubber tube, advance fixedly connected with communicating pipe between rubber tube and the point equipment, the rubber coating component in this device will the rubberizing with paint the setting together, thereby conveniently carry out the rubberizing when the rubberizing, and the rubber coating component rubber coating simple structure, it is convenient to.
Drawings

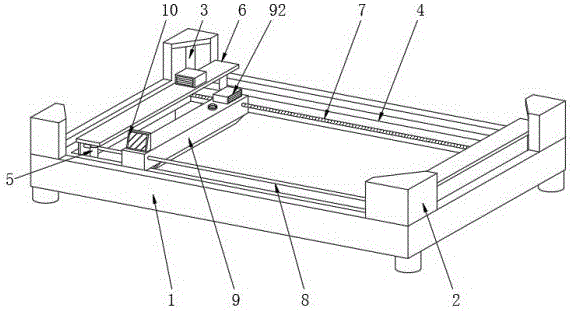

FIG. 1 is a block diagram of the present invention;
fig. 2 is a cross-sectional view of the present invention;
fig. 3 is a partial sectional view of the painting box of the present invention.
In the figure: 1. processing a base; 2. a connecting box; 3. a first cylinder; 4. pressing a frame; 5. a second cylinder; 6. a connecting plate; 7. a screw rod; 8. a slide bar; 9. a smearing box; 10. a display device; 11. a first driving device; 111. a first synchronization belt; 91. a drive box; 92. a second driving device; 93. a second synchronous belt; 94. rotating the rod; 95. an electric telescopic rod; 96. a squeegee; 97. dispensing equipment; 98. and (4) feeding the rubber pipe.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a coating device for processing adhesive sticker paper comprises a processing seat 1 and a display device 10, wherein corners of the upper surface of the processing seat 1 are fixedly connected with a connecting box 2, the top end inside the connecting box 2 is fixedly connected with a first air cylinder 3, the bottom end of the first air cylinder 3 is fixedly connected with a pressing frame 4, two sides of the upper surface of the pressing frame 4 are fixedly connected with second air cylinders 5, the top ends of the second air cylinders 5 are fixedly connected with connecting plates 6, one side between the two groups of connecting plates 6 is rotatably connected with a screw rod 7, the other side of the two groups of connecting plates 6 is fixedly connected with a sliding rod 8, the upper surface of the connecting plate 6 is fixedly connected with a first driving device 11, a first synchronous belt 111 is sleeved between the output end of the first driving device 11 and the screw rod 7, a coating box 9 is arranged on the lower side of the connecting plate 6, two sides of the coating box 9 are respectively sleeved, the display device 10 is screwed on one side of the upper surface of the smearing box 9, the display device 10 is used for monitoring information of each electrical component in the device, the smearing box 9 is in threaded connection with the screw rod 7, the smearing box 9 is in sliding connection with the sliding rod 8, the smearing box 9 comprises a driving box 91, one side of the upper surface of the driving box 91 is fixedly connected with a second driving device 92, the driving box 91 is internally and rotatably connected with a rotating rod 94, a second synchronous belt 93 is sleeved between the output end of the second driving device 92 and the rotating rod 94, both sides of the rotating rod 94 are fixedly connected with electric telescopic rods 95, the electric telescopic rods 95 are of an XTL100 type, the output end of the electric telescopic rod 95 on one side of the rotating rod 94 is fixedly connected with a scraper 96, the output end of the electric telescopic rod 95 on the other side of the rotating rod 94 is fixedly connected with a glue dispensing device 97, one, fixedly connected with communicating pipe between advancing rubber tube 98 and the some adhesive apparatus 97, the inside fixedly connected with cover of drive box 91 establishes the stop member in the communicating pipe outside, the height of suppressing frame 4 is less than the length of second cylinder 5 working distance, the length of first cylinder 3 working distance is greater than the height of processing seat 1, drive arrangement in this device all includes 40W-90 type motor, and all be provided with locking structure and speed reduction structure, the content that does not make detailed description in this description all belongs to the known prior art of technical staff in the field simultaneously, on the other hand, each electric part all with outside controller electric connection in this device, and the working logic and the working sequence between each electric part can be controlled through programming and manual work.
When the automatic adhesive dispensing device works, the device is arranged on the upper side of the adhesive dispensing paper conveying device, the external adhesive supply device is connected with the adhesive inlet pipe 98 through a pipeline, after the adhesive sticker moves to the inside of the device, the first air cylinder 3 is started, the first air cylinder 3 drives the pressing frame 4 to descend to press the adhesive dispenser, the second driving device 92 in the coating box 9 drives the rotating rod 94 to rotate through the second synchronous belt 93, the adhesive dispensing device 97 is turned to the lower side, after the rotating, the limiting component in the driving box 91 can limit the communicating pipe to prevent the communicating pipe from winding to the outer side of the rotating rod 94, the external adhesive supply device is started to supply the adhesive to the inside of the adhesive dispensing device 97, the electric telescopic rod 95 connected with the adhesive dispensing device 97 is started, the electric telescopic rod 95 drives the adhesive dispensing device 97 to descend to dispense the adhesive onto the adhesive sticker, the adhesive dispensing device 97 is collected, the second driving device 92 is started again, second drive arrangement 92 drives dwang 94 and rotates, rotate scraper blade 96 to the downside, start electric telescopic handle 95 of being connected with scraper blade 96 afterwards, descend scraper blade 96 to on the self-adhesive paper, start first drive arrangement 11 afterwards, first drive arrangement 11 drives hob 7 through first hold-in range 111 and rotates, can drive and paint case 9 and slide along slide bar 8, thereby can drive scraper blade 96 and paint the non-adhesive paper with gluing, before the use device, need to test the distance that different gluey quantities can be paintd, thereby after painting suitable distance, repeat above-mentioned step and glue again.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a non-setting adhesive paper processing is with coating equipment, is including processing seat (1) and display device (10), the equal fixedly connected with connecting box (2) in turning of processing seat (1) upper surface, the equal fixedly connected with first cylinder (3) in top of connecting box (2) inside, its characterized in that: the bottom end of the first cylinder (3) is fixedly connected with a pressing frame (4), both sides of the upper surface of the pressing frame (4) are fixedly connected with second cylinders (5), the top ends of the second cylinders (5) are fixedly connected with connecting plates (6), one side between the two groups of connecting plates (6) is rotatably connected with a screw rod (7), and the other side of the two groups of connecting plates (6) is fixedly connected with a sliding rod (8), the upper surface of the connecting plate (6) is fixedly connected with a first driving device (11), a first synchronous belt (111) is sleeved between the output end of the first driving device (11) and the screw rod (7), the lower side of the connecting plate (6) is provided with a smearing box (9), two sides of the smearing box (9) are respectively sleeved on the outer sides of the screw rod (7) and the sliding rod (8), the display device (10) is screwed on one side of the upper surface of the smearing box (9).
2. The coating apparatus for processing the sticker paper according to claim 1, wherein: the smearing box (9) is in threaded connection with the screw rod (7), and the smearing box (9) is in sliding connection with the sliding rod (8).
3. The coating apparatus for processing the sticker paper according to claim 2, wherein: scribble case (9) including drive case (91), one side fixedly connected with second drive arrangement (92) of drive case (91) upper surface, and the inside of drive case (91) rotates and is connected with dwang (94), the cover is equipped with second hold-in range (93) between output and dwang (94) of second drive arrangement (92).
4. The coating apparatus for processing the sticker paper according to claim 3, wherein: the equal fixedly connected with electric telescopic handle (95) in both sides of dwang (94), and the output fixedly connected with scraper blade (96) of dwang (94) one side electric telescopic handle (95), equipment (97) are glued to the output fixedly connected with point of dwang (94) opposite side electric telescopic handle (95).
5. The coating apparatus for processing the sticker paper according to claim 4, wherein: one side fixedly connected with of drive case (91) upper surface near second drive arrangement (92) advances rubber tube (98), advance fixedly connected with communicating pipe between rubber tube (98) and the gluey equipment (97), the stop member in the communicating pipe outside is established to the inside fixedly connected with cover of drive case (91).
6. The coating apparatus for processing the sticker paper according to claim 1, wherein: the height of the pressing frame (4) is smaller than the length of the working distance of the second air cylinder (5), and the length of the working distance of the first air cylinder (3) is larger than the height of the processing seat (1).
