Intestinal canal stoma nursing device Download PDFInfo
- Publication number
- CN213076875U CN213076875U CN202020718374.8U CN202020718374U CN213076875U CN 213076875 U CN213076875 U CN 213076875U CN 202020718374 U CN202020718374 U CN 202020718374U CN 213076875 U CN213076875 U CN 213076875U
- Authority
- CN
- China
- Prior art keywords
- enema
- intestine
- expanding
- tube
- intestinal
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 230000000968 intestinal effect Effects 0.000 title claims abstract description 66
- 230000000474 nursing effect Effects 0.000 title claims abstract description 28
- 239000007920 enema Substances 0.000 claims abstract description 86
- 229940095399 enema Drugs 0.000 claims abstract description 86
- 241000792859 Enema Species 0.000 claims abstract description 85
- 210000000936 intestine Anatomy 0.000 claims abstract description 84
- 238000003780 insertion Methods 0.000 claims abstract description 54
- 230000037431 insertion Effects 0.000 claims abstract description 52
- 239000007788 liquid Substances 0.000 claims abstract description 32
- 210000001035 gastrointestinal tract Anatomy 0.000 claims abstract description 29
- 230000007246 mechanism Effects 0.000 claims abstract description 16
- 238000001802 infusion Methods 0.000 claims abstract description 9
- 230000000149 penetrating effect Effects 0.000 claims abstract description 6
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 claims description 32
- 230000008602 contraction Effects 0.000 claims description 10
- 238000007789 sealing Methods 0.000 claims description 8
- 230000007480 spreading Effects 0.000 claims description 4
- 230000000694 effects Effects 0.000 abstract description 7
- 230000005574 cross-species transmission Effects 0.000 description 4
- 210000003815 abdominal wall Anatomy 0.000 description 2
- 239000003292 glue Substances 0.000 description 2
- 230000002093 peripheral effect Effects 0.000 description 2
- 206010022642 Intestinal dilatation Diseases 0.000 description 1
- 208000031481 Pathologic Constriction Diseases 0.000 description 1
- 210000001015 abdomen Anatomy 0.000 description 1
- 230000000903 blocking effect Effects 0.000 description 1
- 230000008859 change Effects 0.000 description 1
- 239000003814 drug Substances 0.000 description 1
- 230000003903 intestinal lesions Effects 0.000 description 1
- 238000012423 maintenance Methods 0.000 description 1
- 238000000034 method Methods 0.000 description 1
- 238000012986 modification Methods 0.000 description 1
- 230000004048 modification Effects 0.000 description 1
- 239000002504 physiological saline solution Substances 0.000 description 1
- 208000037974 severe injury Diseases 0.000 description 1
- 230000009528 severe injury Effects 0.000 description 1
- 238000009958 sewing Methods 0.000 description 1
- 239000000243 solution Substances 0.000 description 1
- 230000036262 stenosis Effects 0.000 description 1
- 208000037804 stenosis Diseases 0.000 description 1
- 238000001356 surgical procedure Methods 0.000 description 1
- 210000002700 urine Anatomy 0.000 description 1
Images
Landscapes
- Infusion, Injection, And Reservoir Apparatuses (AREA)
Abstract
The utility model belongs to the technical field of medical equipment, in particular to an intestinal canal stoma nursing device, which comprises an insertion tube, an enema mechanism and an intestine expanding mechanism, wherein the insertion tube is provided with an insertion end for being inserted into the intestinal canal of a patient; the intestine expanding mechanism comprises an intestine expanding driving assembly and an intestine expanding piece, the intestine expanding piece is arranged on the insertion end, and the intestine expanding driving assembly is connected with the intestine expanding piece and is used for driving the intestine expanding piece to switch back and forth between an expanded state and a contracted state so as to enable the intestine expanding piece to be in the expanded state when inserted into the intestinal tract of a patient, so that the intestinal tract of the patient is expanded; the enema mechanism comprises an enema infusion assembly and an enema tube, wherein a liquid inlet of the enema tube is connected with a liquid outlet of the enema infusion assembly, the enema tube is arranged in the insertion tube in a penetrating way, and the liquid outlet of the enema tube penetrates out of the insertion end and is exposed out of the enema piece. The utility model discloses nursing device is made a mouthful to intestinal can accomplish simultaneously and expand intestines and enema operation, and the function is various, and easy operation is convenient, excellent in use effect.
Description
Technical Field
The utility model belongs to the technical field of medical equipment, especially, relate to a nursing device is made to intestinal.
Background
At present, intestinal stoma is a common clinical treatment method for various patients advocated to suffer from severe injury; the intestinal stoma refers to a surgical treatment method for excreting excrement or urine by pulling a section of intestinal tube out of the abdominal wall and then turning over and sewing the intestinal opening to the abdominal wall after a doctor cuts an intestinal lesion; patient after the intestinal stoma operation still needs regularly to carry out multinomial conventional nursing after the operation, but the nursing device is made to current intestinal, and the function is single, can't satisfy multinomial conventional nursing operation simultaneously.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a nursing device is made to intestinal, aim at solving the intestinal among the prior art and make a mouthful technical problem of nursing device function singleness.
In order to achieve the above object, the utility model adopts the following technical scheme: an enterostomy care device comprises an insertion tube, an enema mechanism and an intestine expanding mechanism, wherein the insertion tube is provided with an insertion end for being inserted into the intestinal tract of a patient; the intestine expanding mechanism comprises an intestine expanding driving assembly and an intestine expanding piece, the intestine expanding piece is arranged on the inserting end, the intestine expanding driving assembly is connected with the intestine expanding piece and is used for driving the intestine expanding piece to switch back and forth between a spreading state and a contracting state, so that the intestine expanding piece is in the spreading state when being inserted into the intestinal tract of the patient, and the intestinal tract of the patient is expanded; enema mechanism includes enema infusion subassembly and enema pipe, the inlet of enema pipe with enema infusion subassembly's liquid outlet is connected, enema pipe wears to locate in the insert tube, just enema pipe's liquid outlet is followed insert the end and wear out and expose expand outside the intestines spare.
Optionally, expand intestines spare and be the gasbag, expand intestines drive assembly and include air supply equipment and air supply pipe, air supply equipment pass through the air supply pipe with the gasbag intercommunication, the gasbag encloses to be located around the play liquid end of enema tube.
Optionally, a fixing hole is formed in the air bag, and the liquid outlet end of the enema tube penetrates out of the fixing hole and is connected with the fixing hole in a sealing manner; the enema tube dorsad be provided with the fixed part on the tip periphery wall of play liquid end, the tip cover that the inserted tube inserted the end dorsad is located on the fixed part and with fixed part sealing connection, the opening that inserts the end with the opening intercommunication of gasbag, the air supply pipe with the inserted tube intercommunication.
Optionally, the insert pipe is provided with a branch pipe communicated with the insert pipe, an air inlet of the branch pipe is provided with a joint, and the air supply pipe is inserted into the joint.
Optionally, the intestine expanding piece is a water bag, the intestine expanding driving assembly comprises water supply equipment and a water supply pipe, the water supply equipment is communicated with the water bag through the water supply pipe, and the water bag is arranged around the liquid outlet end of the enema pipe.
Optionally, the enema transfusion assembly comprises an enema bag, and a liquid outlet of the enema bag is communicated with a liquid inlet of the enema tube.
Optionally, the intestinal ostomy nursing device comprises a plug for plugging an intestinal opening in the intestinal tract of the patient, the plug is provided with a through hole, and the insertion tube is arranged in the through hole in a penetrating way.
Optionally, the plug includes a conical portion, a cylindrical portion, and a disk portion for sealing the intestinal opening, the cylindrical portion extends from an end surface of the disk portion toward the insertion end, the conical portion extends from the end surface of the cylindrical portion toward the insertion end, and the small-sized section of the conical portion is disposed toward the insertion end.
Optionally, the plug is provided with a clamp for clamping or unclamping the insertion tube.
Optionally, the intestinal ostomy nursing device further comprises an umbrella-shaped contraction part, the contraction part is fixedly sleeved on the insertion tube, the contraction part is coated outside the intestine expanding part and is unfolded or contracted to be gathered at any time when the intestine expanding part is unfolded, and the large-size periphery of the contraction part extends out of the intestine expanding part.
The utility model provides an among the intestinal ostomy nursing device above-mentioned one or more technical scheme have one of following technological effect at least: before using, expand intestines drive assembly drive and expand intestines spare and be in the contraction state, conveniently expand intestines spare, the play liquid end of enema pipe inserts the intestinal from patient's intestinal opening part together with the inserting end of insert pipe in, after expanding intestines spare and inserting in the intestinal, expand intestines drive assembly drive and expand intestines spare and be in the expansion state, expand intestines spare and expand back and strut the intestinal, thereby realize the intestinal nursing of expanding intestines, avoid the intestinal to be stained with and glue, improve intestinal open-ended narrow problem effectively, and simultaneously, enema infusion subassembly will irritate in the intestinal is carried from enema pipe, thereby realize the enema operation of intestinal, the utility model discloses an intestinal stoma nursing device can accomplish simultaneously and expand intestines and enema operation, and the function is various, and easy operation is convenient, excellent in use effect.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings required for the embodiments or the prior art descriptions will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art to obtain other drawings without inventive labor.

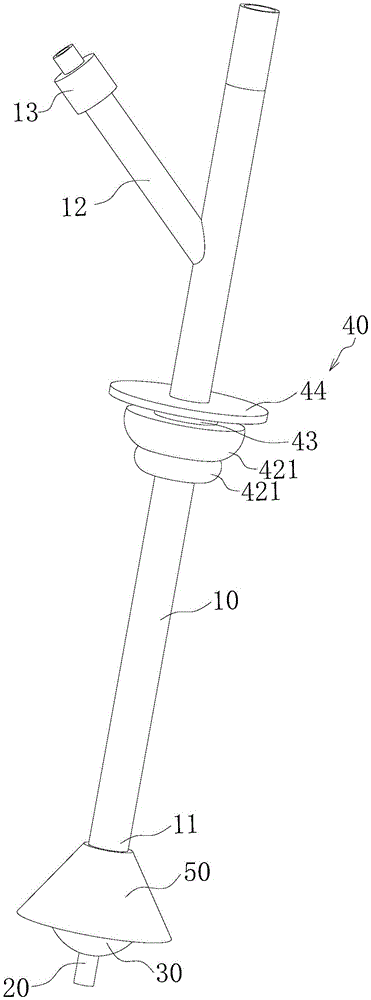

Fig. 1 is a schematic structural view of a viewing angle of an intestinal tract ostomy care device provided by an embodiment of the invention.
Fig. 2 is a schematic view of another perspective of the enterostomy care device of fig. 1.
Fig. 3 is a cross-sectional view of the enterostomy care device shown in fig. 2.
Fig. 4 is a schematic view of the stopper of the enterostomy care device of fig. 2.
Wherein, in the figures, the respective reference numerals:
10-insertion pipe 11-insertion end 12-branch pipe
13-joint 20-enema tube 21-fixed part
30-air bag 31-fixed hole 40-plug
41-through hole 42-conical part 43-cylindrical part
44-disc portion 50-constriction 421-second annular projection.
Detailed Description
Reference will now be made in detail to embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to fig. 1-4 are exemplary and intended to be used to illustrate the invention, but should not be construed as limiting the invention.
In the description of the present invention, it is to be understood that the terms "length", "width", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are merely for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.
In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," and "fixed" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
As shown in fig. 1 to 4, in an embodiment of the present invention, an enterostomy care device is provided, which is suitable for daily nursing operation of an enterostomy patient, the enterostomy care device includes an insertion tube 10, an enema mechanism (not shown) and an intestine expanding mechanism (not shown), the insertion tube 10 has an insertion end 11 for inserting into the intestine of the patient;
the intestine expanding mechanism comprises an intestine expanding driving assembly (not shown) and an intestine expanding piece (not shown), the intestine expanding piece is arranged on the insertion end 11, and the intestine expanding driving assembly is connected with the intestine expanding piece and is used for driving the intestine expanding piece to switch between an expanded state and a contracted state back and forth, so that the intestine expanding piece is in the expanded state when being inserted into the intestinal tract of a patient, and the intestinal tract of the patient is expanded;
the enema mechanism comprises an enema infusion component (not shown) and an enema tube 20, wherein a liquid inlet of the enema tube 20 is connected with a liquid outlet of the enema infusion component, the enema tube 20 is arranged in the insertion tube 10 in a penetrating way, and the liquid outlet of the enema tube 20 penetrates out of the insertion end 11 and is exposed out of the intestine expanding piece.
Specifically, the utility model discloses a nursing device is made to intestinal, before using, expand intestines drive assembly drive and expand intestines spare and be in the contraction state, conveniently expand intestines spare, enema tube 20's play liquid end and insert end 11 of insert pipe 10 insert in the intestinal from patient's intestinal opening part together, after expanding intestines spare and insert in the intestinal, expand intestines drive assembly drive and expand intestines spare and be in the expansion state, expand intestines after expanding intestines spare and expand, thereby realize the intestinal nursing of expanding intestines, avoid the intestinal to be stained with and glue, improve intestinal open-ended stenosis problem effectively, simultaneously, the enema subassembly will be irritated in the intestines is carried enema from enema tube 20, thereby realize the intestinal enema operation, the utility model discloses an intestinal nursing device is made to intestinal can accomplish simultaneously and expand intestines and enema operation, and is various in function, and easy operation is convenient, excellent in use effect.
Further, the enema can be water, physiological saline or liquid medicine, and the specific choice thereof can be selected according to the treatment scheme of the doctor, which is not limited herein.
In another embodiment of the present invention, referring to fig. 1, fig. 2 and fig. 3, the intestine expanding member of the enterostomy nursing device is provided as an air bag 30, the intestine expanding driving assembly includes an air supply device and an air supply tube, the air supply device is communicated with the air bag 30 through the air supply tube, and the air bag 30 is surrounded around the liquid outlet end of the enema tube 20. Specifically, the gas supply device delivers gas into the balloon 30 through the gas supply tube, so that the volume of the balloon 30 is continuously increased, thereby expanding the intestinal tract and realizing the intestinal dilatation operation.
Further, the gas supply device may be an inflator.
In this embodiment, referring to fig. 1, 2 and 3, a fixing hole 31 is formed on an air bag 30 of the enterostomy care device, and a liquid outlet end of the enema tube 20 penetrates through the fixing hole 31 and is hermetically connected with the fixing hole 31; the peripheral wall of the end part of the enema tube 20 opposite to the liquid outlet end is provided with a fixing part 21, the end part of the insertion tube 10 opposite to the insertion end 11 is sleeved on the fixing part 21 and is in sealing connection with the fixing part 21, the insertion tube 10 is communicated with the opening of the air bag 30, and the air supply tube is communicated with the insertion tube 10. Specifically, when the intestinal canal stoma nursing device is used, the air supply pipe is communicated with the insertion pipe 10, and air in the air supply pipe enters the air bag 30 through the insertion pipe 10, so that the air bag 30 is expanded, and the intestinal canal dilatation effect is achieved, therefore, the insertion pipe 10 is used as a part for inserting the intestinal canal and can also be used as the air supply pipe of the air bag 30, and the intestinal canal stoma nursing device is simpler in structure.
Further, the fixing portion 21 may be a first annular protrusion, and the inner wall of the insertion tube 10 is connected to the first annular protrusion through a clamping structure or a spiral structure, so as to connect and seal the insertion tube 10 and the enema tube 20.
In this embodiment, referring to fig. 1, 2 and 3, the insertion tube 10 of the enterostomy care device is provided with a branch tube 12 communicating with the insertion tube 10, the air inlet of the branch tube 12 is provided with a joint 13, and the air supply tube is plugged into the joint 13.
Specifically, during the use, the air supply pipe only needs to peg graft and can realize the inflation of gasbag 30 and expand on the joint 13 of branch pipe 12, thereby uses the completion back, thereby pulls out the air supply pipe on the joint 13, can realize the gassing shrink of gasbag 30, and it uses the operation more simple to can dismantle connection structure like this, the intestinal ostomy nursing device's of also being convenient for maintenance, change and accomodating.
In another embodiment of the present invention, the intestine expanding member of the intestinal ostomy nursing device is a water bag, the intestine expanding driving assembly includes a water supply device and a water supply pipe, the water supply device is communicated with the water bag through the water supply pipe, and the water bag is surrounded around the liquid outlet end of the enema tube 20. Specifically, the water supply equipment conveys water into the water bag through the water supply pipe, so that the volume of the water bag is continuously increased, the intestinal tract is expanded, and the intestinal tract expanding operation is realized.
Further, the water supply device may be a water pump.
Further, in the present embodiment, the structures of the insertion tube 10, the enema tube 20, and the water bag of the enterostomy care apparatus may be the same as those of the insertion tube 10, the enema tube 20, and the air bag 30 in the above-described embodiment using the air bag 30, which is different from the embodiment using the air bag 30 in that: the structure of the bowel expansion driving assembly is different, mainly because the air bag 30 needs to be filled with air, and the water bag needs to be filled with water.
In another embodiment of the present invention, the enema feeding set of the enterostomy nursing device comprises an enema bag, the liquid outlet of the enema bag is communicated with the liquid inlet of the enema tube 20. Specifically, during the use, the enema bag is extruded, and the enema liquid in the enema bag flows into the intestinal through enema tube 20 to realize the enema operation, adopt the structure of enema bag, its simple structure, convenient to use, and low cost.
In another embodiment of the present invention, referring to fig. 1, fig. 2 and fig. 3, the intestinal tract stoma nursing device provided includes a plug 40 for plugging an intestinal tract opening on the intestinal tract of a patient, the plug 40 is provided with a through hole 41, and the insertion tube 10 is inserted into the through hole 41.
Specifically, insert the end 11 back in inserting the patient intestinal with inserting end 10, insert end cap 40 in patient's intestinal opening to block up the intestinal opening, avoid the enema of pouring into in the intestinal to spill over from the intestinal opening part, make the enema can fully stop in the intestinal, improve treatment.
In another embodiment of the present invention, referring to fig. 2, 3 and 4, the plug 40 of the enterostomy care device comprises a conical portion 42, a cylindrical portion 43 and a disk portion 44 for sealing the intestinal opening, the cylindrical portion 43 extends from the end surface of the disk portion 44 toward the insertion end 11, the conical portion 42 extends from the end surface of the disk portion 43 toward the insertion end 11, and the small-sized section of the conical portion 42 is disposed toward the insertion end 11.
Specifically, during the use, thereby insert the intestinal opening with circular cone portion 42 of end cap 40 in the intestinal, thereby plug up the intestinal opening, avoid the enema backward flow to spill over, simultaneously, disc portion 44 laminates on patient's belly, thereby seal the intestinal opening completely, furthermore, avoid the backward flow of enema to spill over, improve treatment, in addition, circular cone portion 42 is along the direction that inserts end 11, its cross sectional dimension is more and more little, circular cone portion 42 inserts the cross sectional dimension in the intestinal more and more greatly, thereby progressively open the intestinal opening, make the more labour saving and time saving of the operation of inserting of end cap 40.
Further, the outer diameter of the disc part 44 is larger than the maximum outer diameter of the conical part 42, so that after the conical part 42 is inserted into the intestinal tract, the disc part 44 completely covers the opening of the intestinal tract, and the blocking effect is improved; the external diameter of cylinder portion 43 is less than the biggest external diameter of cone portion 42, and like this when cone portion 42 inserts the intestinal back, be close to the intestinal open-ended intestinal tissue can retract on the periphery wall of cylinder portion 43, furtherly, improves the shutoff effect, avoids the backward flow of enema to spill over.
Furthermore, the outer peripheral wall of the conical portion 42 is provided with second annular protrusions 421 extending along the axial direction of the conical portion 42, the cross sections of the second annular protrusions 421 are arc-shaped, the number of the second annular protrusions 421 is multiple, and the second annular protrusions 421 are sequentially arranged along the axial direction of the conical portion 42, so that after the conical portion 42 is inserted into the intestinal tract, the inner wall of the intestinal tract is attached to the second annular protrusions 421, the contact area between the conical portion 42 and the inner wall of the intestinal tract is increased, and the plugging effect of the plug 40 is further improved.
In another embodiment of the present invention, the stopper 40 of the enterostomy care device is provided with a clip (not shown) for clamping or releasing the insertion tube 10. Specifically, when the clip is clamped on the insertion tube 10, the position of the plug 40 on the insertion tube 10 is relatively fixed, so that when the plug 40 is inserted into the intestinal opening, the plug 40 is fixed on the insertion tube 10 through the clip, the plug 40 stably plugs the intestinal opening, and a person does not need to fix the plug 40, so that the operation is more convenient and reliable.
Further, the clip is mounted on the disc portion 44 to facilitate operation by the medical staff.
Preferably, the clamp is a clampband.
In another embodiment of the present invention, referring to fig. 1, 2 and 3, the enterostomy care device further includes an umbrella-shaped contracting member 50, the contracting member 50 is fixedly sleeved on the insertion tube 10, the contracting member 50 is covered outside the intestine expanding member and is expanded or contracted to be gathered at any time when the intestine expanding member is expanded, and a large-sized periphery of the contracting member 50 extends out of the intestine expanding member.
Specifically, after the intestine expanding member is expanded, the contracting member 50 is deformed under stress to expand, and the large-size circumference of the contracting member 50 extends out of the intestine expanding member, so that the large-size circumference of the contracting member 50 abuts against the inner wall of the intestinal tract after the contracting member is expanded, the intestinal tract is blocked, and backflow and overflow of the enema are avoided.
The above description is only exemplary of the present invention and should not be construed as limiting the present invention, and any modifications, equivalents and improvements made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.
Claims (10)
1. An enterostomy care device characterized in that: the intestinal tract dilator comprises an insertion tube, an enema mechanism and an intestine expanding mechanism, wherein the insertion tube is provided with an insertion end which is used for being inserted into the intestinal tract of a patient;
the intestine expanding mechanism comprises an intestine expanding driving assembly and an intestine expanding piece, the intestine expanding piece is arranged on the inserting end, the intestine expanding driving assembly is connected with the intestine expanding piece and is used for driving the intestine expanding piece to switch back and forth between a spreading state and a contracting state, so that the intestine expanding piece is in the spreading state when being inserted into the intestinal tract of the patient, and the intestinal tract of the patient is expanded;
enema mechanism includes enema infusion subassembly and enema pipe, the inlet of enema pipe with enema infusion subassembly's liquid outlet is connected, enema pipe wears to locate in the insert tube, just enema pipe's liquid outlet is followed insert the end and wear out and expose expand outside the intestines spare.
2. The enterostomy care device of claim 1, wherein: expand intestines spare and be the gasbag, expand intestines drive assembly and include air supply equipment and air supply pipe, air supply equipment passes through the air supply pipe with the gasbag intercommunication, the gasbag encloses to be located enema tube's play liquid end all around.
3. The enterostomy care device of claim 2 wherein: the air bag is provided with a fixing hole, and the liquid outlet end of the enema tube penetrates out of the fixing hole and is connected with the fixing hole in a sealing way; the enema tube dorsad be provided with the fixed part on the tip periphery wall of play liquid end, the tip cover that the inserted tube inserted the end dorsad is located on the fixed part and with fixed part sealing connection, the opening that inserts the end with the opening intercommunication of gasbag, the air supply pipe with the inserted tube intercommunication.
4. The enterostomy care device of claim 3, wherein: the insert pipe is provided with a branch pipe communicated with the insert pipe, a joint is arranged at an air inlet of the branch pipe, and the air supply pipe is inserted into the joint.
5. The enterostomy care device of claim 1, wherein: the intestine expanding piece is a water bag, the intestine expanding driving assembly comprises water supply equipment and a water supply pipe, the water supply equipment is communicated with the water bag through the water supply pipe, and the water bag is arranged around the liquid outlet end of the enema pipe.
6. The enterostomy care device of any one of claims 1 to 5, characterized in that: the enema transfusion assembly comprises an enema bag, and a liquid outlet of the enema bag is communicated with a liquid inlet of the enema tube.
7. The enterostomy care device of any one of claims 1 to 5, characterized in that: the intestinal tract stoma nursing device comprises a plug used for plugging an intestinal tract opening on the intestinal tract of a patient, a penetrating hole is formed in the plug, and the insertion tube is arranged in the penetrating hole in a penetrating way.
8. The enterostomy care device of claim 7 wherein: the plug comprises a conical part, a cylindrical part and a disk part for sealing the intestinal opening, the cylindrical part extends from the end face of the disk part towards the insertion end, the conical part extends from the end face of the cylindrical part towards the insertion end, and the small-size section of the conical part is arranged towards the insertion end.
9. The enterostomy care device of claim 7 wherein: the plug is provided with a clamp for clamping or loosening the insertion tube.
10. The enterostomy care device of any one of claims 1 to 5, characterized in that: the intestinal ostomy nursing device further comprises an umbrella-shaped contraction part, the contraction part is fixedly sleeved on the insertion tube, the contraction part is coated outside the intestine expanding part and is stretched or contracted to gather at any time when the intestine expanding part is unfolded, and the large-size periphery of the contraction part extends out of the intestine expanding part.
