CN213071756U

CN213071756U - Closed outdoor switch cabinet body with theftproof function

Info

Publication number: CN213071756U
Application number: CN202020941570.1U
Authority: CN
Inventors: 何帆; 施春云; 陈隆定; 刘俊; 王家盼; 罗建松
Original assignee: Yunnan Yuntu Intelligent Manufacturing Electrical Co ltd
Current assignee: Yunnan Yuntu Intelligent Manufacturing Electrical Co ltd
Priority date: 2020-05-29
Filing date: 2020-05-29
Publication date: 2021-04-27
Anticipated expiration: 2030-05-29

Abstract

The utility model discloses a closed outdoor switch cabinet body with theftproof function, including mounting plate, mounting plate's top fixedly connected with casing, the first baffle of the equal fixedly connected with in bottom of casing both sides, the equal fixedly connected with fixed block in both sides at mounting plate top. The utility model discloses a set up first chamber door, the fixed block, the joint lock, the first in command, the control main part, first slider, the camera main part, the spout, the second slider, the second baffle, electric telescopic handle, the second chamber door, the connecting plate, data switching socket, the storage card, it is protruding, travel switch and recess cooperation are used, have that the theftproof nature is good and can shoot the unexpected advantage of opening personnel's outward appearance characteristic, it is relatively poor to have solved current outdoor switch cabinet theftproof nature, there is certain potential safety hazard, and can't shoot the unexpected personnel's outward appearance characteristic of opening the switch cabinet, be not convenient for follow-up to the unexpected pursuit and the investigation of opening personnel, the problem of outdoor switch cabinet practicality has been reduced.

Description

Closed outdoor switch cabinet body with theftproof function

Technical Field

The utility model relates to an outdoor switch cabinet technical field specifically is a closed outdoor switch cabinet body with theftproof function.

Background

The switch cabinet is an electrical device, the exterior line of the switch cabinet firstly enters a main control switch in the cabinet and then enters a branch control switch, each branch circuit is arranged according to the requirement, such as an instrument, an automatic control, a motor magnetic switch, various alternating current contactors and the like, some switch cabinets are also provided with a high-voltage chamber and a low-voltage chamber, high-voltage buses are arranged, such as a power plant and the like, some switch cabinets are also provided with low-frequency load shedding for protecting main equipment, and the switch cabinet is mainly used for opening, closing, controlling and protecting the electrical equipment in the process of power generation, power transmission, power distribution and electric energy conversion of an electric power system.

Along with the development of science and technology's progress and society, derive outdoor switch cabinet gradually and be used for saving certain electrical facilities, current outdoor switch cabinet theftproof nature is relatively poor, has certain potential safety hazard, and can't shoot the personnel's outward appearance characteristic that the cubical switchboard was opened to the accident, the follow-up pursuit and the investigation to the personnel that open the cubical switchboard to the accident of being not convenient for have reduced outdoor switch cabinet's practicality.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a closed outdoor switch cabinet body with theftproof function possesses the theftproof nature and well and can shoot the unexpected advantage of opening personnel's outward appearance characteristic, and it is relatively poor to have solved current outdoor switch cabinet theftproof nature, has certain potential safety hazard, and can't shoot the unexpected personnel's outward appearance characteristic of opening the cubical switchboard, and follow-up pursuit and the investigation to the unexpected personnel of opening of being not convenient for have reduced the problem of outdoor switch cabinet practicality.

In order to achieve the above object, the utility model provides a following technical scheme: a closed outdoor switch cabinet body with an anti-theft function comprises a mounting bottom plate, wherein the top of the mounting bottom plate is fixedly connected with a shell, the bottoms of the two sides of the shell are fixedly connected with a first baffle, the two sides of the top of the mounting bottom plate are fixedly connected with fixed blocks, a first sliding block is arranged on one side, opposite to the two vertical fixed blocks, of the left side, the two sides of the front surface of the shell are movably connected with a first door, the center of the front surface of the first door is fixedly connected with a first handle, the surface of the first handle is provided with a connecting lock, the left bottom of an inner cavity of the shell is embedded with a control main body, the front sides of the two sides of the inner cavity of the shell are movably connected with a second door, the front surface of the second door is fixedly connected with a second handle, the top of the front surface of the second door on the left side is, the utility model discloses a portable electronic device, including recess inner chamber, recess inner chamber's rear side fixedly connected with travel switch, the arch that the back of the body surface fixedly connected with of the first chamber door in left side and travel switch cooperation were used, and the top at the back of the body surface of left side second chamber door is inlayed and is had data switching socket, the storage card is installed to the inner chamber of data switching socket, the back of the body surface fixedly connected with electric telescopic handle of right side second chamber door, electric telescopic handle's left side fixedly connected with connecting plate, the left side fixedly connected with second baffle of connecting plate, the equal fixedly connected with second slider in both sides on second baffle positive surface, the spout that uses with the.

Preferably, the number of the fixed blocks is four, the surfaces of the first sliding blocks are connected with the joints of the fixed blocks in a sliding manner, and one sides of the two first sliding blocks, which are opposite to each other, are fixedly connected with damping fixture blocks and provided with clamping grooves matched with the damping fixture blocks for use.

Preferably, the first baffle is arranged in an inclined mode, and the transverse length of the first baffle is larger than that of the fixing block.

Preferably, the surface of the second sliding block is connected with the inner wall of the sliding groove in a sliding mode, and the second sliding block is in a T shape.

Preferably, the camera main part includes transparent window and camera, the control main part includes electric door lock and controller, and external safety power supply, controller, travel switch and camera main part constitute series circuit, the camera main part is connected with the data switching socket electricity, and external safety power supply, electric door lock, controller and electric telescopic handle constitute series circuit.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. the utility model discloses a set up first chamber door, the fixed block, the joint lock, the first in command, the control main part, first slider, the camera main part, the spout, the second slider, the second baffle, electric telescopic handle, the second chamber door, the connecting plate, data switching socket, the storage card, it is protruding, travel switch and recess cooperation are used, have that the theftproof nature is good and can shoot the unexpected advantage of opening personnel's outward appearance characteristic, it is relatively poor to have solved current outdoor switch cabinet theftproof nature, there is certain potential safety hazard, and can't shoot the unexpected personnel's outward appearance characteristic of opening the switch cabinet, be not convenient for follow-up to the unexpected pursuit and the investigation of opening personnel, the problem of outdoor switch cabinet practicality has been reduced.

2. The utility model discloses a set up first baffle, can play and hide rain and sun-proof additional action, use through setting up damping fixture block and draw-in groove cooperation, can increase the frictional force between two first sliders, prevent that first slider from removing at will, use through setting up the cooperation of connecting lock and the first in command, can play the effect of a heavy protection theftproof, use with the spout cooperation through the second slider that sets up "T" shape, can prevent that the second slider from breaking away from the spout, through setting up the connecting plate, can install and connect more second baffles, improve the spacing steadiness of device, use through setting up data switching socket and storage card cooperation, can be with the data transmission of camera main part shooting and save to the storage card in.

Drawings

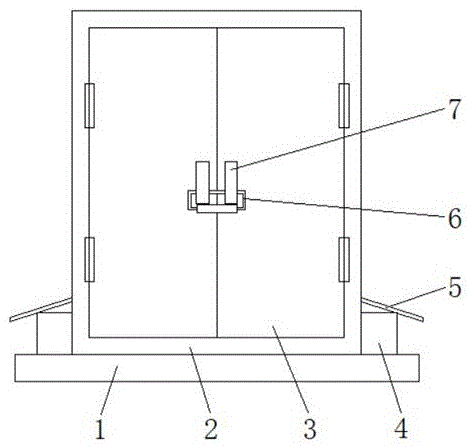

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a top sectional view of the housing structure of the present invention;

FIG. 3 is a rear view of the second door structure of the present invention;

fig. 4 is an enlarged schematic view of the structure a in fig. 2 according to the present invention.

In the figure: the device comprises an installation bottom plate 1, a shell 2, a first box door 3, a fixed block 4, a first baffle 5, a connecting lock 6, a first handle 7, a control main body 8, a first sliding block 9, a camera main body 10, a second handle 11, a sliding chute 12, a second sliding block 13, a second baffle 14, an electric telescopic rod 15, a second box door 16, a connecting plate 17, a data switching socket 18, a memory card 19, a bulge 20, a travel switch 21 and a groove 22.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, a closed outdoor switch cabinet body with an anti-theft function comprises an installation bottom plate 1, a shell 2 is fixedly connected to the top of the installation bottom plate 1, first baffles 5 are fixedly connected to the bottoms of the two sides of the shell 2, the first baffles 5 are arranged in an inclined manner, fixed blocks 4 are fixedly connected to the two sides of the top of the installation bottom plate 1, the number of the fixed blocks 4 is four, the transverse length of each first baffle 5 is larger than that of each fixed block 4, the first baffles 5 can play an auxiliary role of rain shielding and sun shielding, first sliding blocks 9 are arranged on the opposite sides of two fixed blocks 4 in the longitudinal direction on the left side, the surfaces of the first sliding blocks 9 are connected with the joints of the fixed blocks 4 in a sliding manner, damping clamping blocks are fixedly connected to the opposite sides of the two first sliding blocks 9, clamping grooves matched with the damping clamping blocks are formed on the opposite sides of, the friction force between the two first sliding blocks 9 can be increased, the first sliding blocks 9 are prevented from moving randomly, the two sides of the front surface of the shell 2 are movably connected with the first box door 3, the center of the front surface of the first box door 3 is fixedly connected with the first handle 7, the surface of the first handle 7 is provided with the connecting lock 6, the connecting lock 6 and the first handle 7 are matched for use, the anti-theft effect can be achieved, the control main body 8 is embedded at the left bottom of the inner cavity of the shell 2 and comprises an electric door lock and a controller, the front sides of the two sides of the inner cavity of the shell 2 are movably connected with the second box door 16, the front surface of the second box door 16 is fixedly connected with the second handle 11, the top of the front surface of the left second box door 16 is embedded with the camera main body 10, the camera main body 10 comprises a transparent window and a camera, the front surface of the left second box door 16 is provided with the groove 22, the rear side, the back surface of the first box door 3 on the left side is fixedly connected with a bulge 20 matched with a travel switch 21 for use, the top of the back surface of the second box door 16 on the left side is inlaid with a data transfer socket 18, the camera main body 10 is electrically connected with the data transfer socket 18, a memory card 19 is installed in the inner cavity of the data transfer socket 18, data shot by the camera main body 10 can be transmitted and stored in the memory card 19 by arranging the data transfer socket 18 and the memory card 19 for use, the back surface of the second box door 16 on the right side is fixedly connected with an electric telescopic rod 15, the left side of the electric telescopic rod 15 is fixedly connected with a connecting plate 17, more second baffles 14 can be installed and connected by arranging the connecting plate 17, the limiting stability of the device is improved, the second baffle 14 is fixedly connected on the left side of the connecting plate 17, the second sliding blocks 13 are fixedly connected on both sides of the front surface of the second baffle 14, the, the surface of the second sliding block 13 is connected with the inner wall of the sliding groove 12 in a sliding way, the second sliding block 13 is in a T shape, the second sliding block 13 is matched with the sliding groove 12 to prevent the second sliding block 13 from being separated from the sliding groove 12, an external safety power supply, a controller, a travel switch 21 and a camera main body 10 form a series circuit, the external safety power supply, an electric door lock, the controller and an electric telescopic rod 15 form the series circuit, and the first door 3, the fixed block 4, the connecting lock 6, the first handle 7, the control main body 8, the first sliding block 9, the camera main body 10, the sliding groove 12, the second sliding block 13, the second baffle 14, the electric telescopic rod 15, the second door 16, the connecting plate 17, the data transfer socket 18, the memory card 19, the bulge 20, the travel switch 21 and the groove 22 are matched to use, so that the anti-theft performance is good and the appearance characteristic of an accidental opening person can be shot, the problem of current outdoor switch cabinet theftproof nature relatively poor, have certain potential safety hazard, and can't shoot the personnel appearance characteristic that the cubical switchboard was opened to the accident, be not convenient for follow-up to the pursuit and the investigation of the unexpected personnel of opening, reduced outdoor switch cabinet practicality is solved.

When the electric retractable door is used, all the parts are in an initial state, namely the electric retractable rod 15 extends out, the second baffle plate 14 stretches across the two second door boxes 16, when a worker uses the electric retractable door, the connecting lock 6 is opened through the connecting lock 6 corresponding to a key, the first slide block 9 is moved inwards to expose the control main body 8, the control main body 8 is opened through the electric door lock corresponding to the key, a circuit where the travel switch 21 is controlled by the controller to be disconnected, the electric retractable rod 15 is controlled to be retracted, the connecting plate 17 is moved rightwards, the second baffle plate 14 is driven to move rightwards, the second slide block 13 is moved in the sliding groove 12 until the second baffle plate 14 moves to the rear side of the right second door box 16 and does not stretch across the two second door boxes 16 any more, at the moment, the worker can sequentially open the first door 3 and the second box door 16 to overhaul electric facilities in the shell 2, and after an accidental opener breaks the connecting lock, at this moment, the external safety power supply, the controller, the travel switch 21 and the camera main body 10 form a series loop, when the first box door 3 is opened, the protrusion 20 is separated from the groove 22, the travel switch 21 resets to control the camera main body 10 to automatically start a shooting function, the appearance characteristics of an accident starting person are shot, data are transmitted into the storage card 19 through the data transfer socket 18, and follow-up workers can track and investigate according to the data in the storage card 19.

All kinds of parts used in this application file are standard parts, can purchase from the market, and the concrete connected mode of each part all adopts conventional means such as ripe bolt, rivet and welding among the prior art, and machinery, part and electrical equipment all adopt conventional model among the prior art, and circuit connection adopts conventional connected mode among the prior art, and electrical equipment all communicates with external safe power supply, does not make specific statement here again.

In summary, the following steps: this closed outdoor switch cabinet body with theftproof function, through setting up first chamber door 3, the fixed block 4, the lock 6 is connected, the first in command 7, control main part 8, first slider 9, camera main part 10, spout 12, second slider 13, second baffle 14, electric telescopic handle 15, second chamber door 16, connecting plate 17, data switching socket 18, storage card 19, arch 20, travel switch 21 and recess 22 cooperation are used, have that the theftproof nature is good and can shoot the unexpected advantage of opening personnel's outward appearance characteristic, it is relatively poor to have solved current outdoor switch cabinet theftproof nature, there is certain potential safety hazard, and can't shoot the unexpected personnel's outward appearance characteristic of opening the cubical switchboard, be not convenient for follow-up to unexpected pursuit and the investigation of opening personnel, the problem of outdoor switch cabinet practicality has been reduced.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a closed outdoor switch cabinet body with theftproof function, includes mounting plate (1), its characterized in that: the top of the mounting bottom plate (1) is fixedly connected with a shell (2), the bottoms of the two sides of the shell (2) are fixedly connected with a first baffle (5), the two sides of the top of the mounting bottom plate (1) are fixedly connected with fixed blocks (4), one side of the left side, opposite to the two vertical fixed blocks (4), is provided with a first slider (9), the two sides of the front surface of the shell (2) are movably connected with a first box door (3), the center of the front surface of the first box door (3) is fixedly connected with a first handle (7), the surface of the first handle (7) is provided with a connecting lock (6), the left bottom of the inner cavity of the shell (2) is inlaid with a control main body (8), the front sides of the two sides of the inner cavity of the shell (2) are movably connected with a second box door (16), and the front surface of the second box door (16), a camera main body (10) is inlaid in the top of the front surface of the left second box door (16), a groove (22) is formed in the front surface of the left second box door (16), a travel switch (21) is fixedly connected to the rear side of the inner cavity of the groove (22), a protrusion (20) matched with the travel switch (21) for use is fixedly connected to the back surface of the left first box door (3), a data transfer socket (18) is inlaid in the top of the back surface of the left second box door (16), a storage card (19) is installed in the inner cavity of the data transfer socket (18), an electric telescopic rod (15) is fixedly connected to the back surface of the right second box door (16), a connecting plate (17) is fixedly connected to the left side of the electric telescopic rod (15), a second baffle plate (14) is fixedly connected to the left side of the connecting plate (17), and second sliders (13) are fixedly connected to both sides of the, and sliding chutes (12) matched with the second sliding blocks (13) for use are formed in the back surfaces of the second box doors (16).

2. The enclosed outdoor switch cabinet body with the anti-theft function of claim 1, characterized in that: the number of the fixed blocks (4) is four, the surface of each first sliding block (9) is in sliding connection with the joint of the fixed blocks (4), and one side, opposite to the two first sliding blocks (9), of each first sliding block is fixedly connected with a damping clamping block and provided with clamping grooves matched with the damping clamping blocks for use.

3. The enclosed outdoor switch cabinet body with the anti-theft function of claim 1, characterized in that: the first baffle (5) is obliquely arranged, and the transverse length of the first baffle (5) is greater than that of the fixing block (4).

4. The enclosed outdoor switch cabinet body with the anti-theft function of claim 1, characterized in that: the surface of the second sliding block (13) is in sliding connection with the inner wall of the sliding groove (12), and the second sliding block (13) is T-shaped.

5. The enclosed outdoor switch cabinet body with the anti-theft function of claim 1, characterized in that: camera main part (10) include transparent window and camera, control main part (8) include electric door lock and controller, and external safe power, controller, travel switch (21) and camera main part (10) constitute series circuit, camera main part (10) are connected with data switching socket (18) electricity, and external safe power, electric door lock, controller and electric telescopic handle (15) constitute series circuit.
