CN212997137U

CN212997137U - Nursing frame for gynecological hospital bed

Info

Publication number: CN212997137U
Application number: CN202020769028.2U
Authority: CN
Inventors: 张希朦; 靳子健; 王翡; 史苗; 盘天德
Original assignee: China Japan Friendship Hospital
Current assignee: China Japan Friendship Hospital
Priority date: 2020-05-11
Filing date: 2020-05-11
Publication date: 2021-04-20
Anticipated expiration: 2030-05-11

Abstract

The utility model discloses a nursing frame for gynecological hospital bed, the on-line screen storage device comprises a base, the top fixedly connected with bracing piece of base, the top of bracing piece articulates there is the regulation pole, the movable sleeve has been cup jointed in the surface activity of adjusting the pole, movable sleeve's fixed surface is connected with places the board, the bottom activity of placing the board is provided with the articulated slab, the position swing joint who adjusts the corresponding articulated slab bottom of pole has the regulating plate, the middle part of regulating plate is rotated through the bearing and is connected with the transfer line. The utility model discloses a rotating the articulated slab bottom placing the board for the articulated slab is kept away from and is placed board one end and hug closely the surface of adjusting the pole, removes the regulating plate to the bottom of articulated slab this moment, rotates the transfer line and makes the fixed block and the close laminating in surface of adjusting the pole and fix the regulating plate, and the rack drives the bottom that the supporting shoe removed to the articulated slab through the drive block and plays the supporting role to the articulated slab simultaneously, thereby realizes carrying out the purpose of adjusting according to the specification of gynaecology's sick bed.

Description

Nursing frame for gynecological hospital bed

Technical Field

The utility model relates to the technical field of medical equipment, specifically a nursing frame for gynecological hospital bed.

Background

The department of gynecology is a diagnosis and treatment subject of medical institutions, the department of gynecology is a branch of department of gynecology, and the department of gynecology is a professional department taking female gynecopathy as diagnosis and treatment, and is divided into western medicine gynecopathy and traditional Chinese medicine gynecopathy. Gynecological diseases include: the female reproductive system diseases are gynecological diseases, including vulvar diseases, vaginal diseases, uterine diseases, fallopian tube diseases, ovarian diseases and the like, a plurality of gynecological patients in sickrooms of hospitals can not walk out of a bed and can all time every day when the patients live on the sickbed, a great number of patients still have the function of sitting on the sickbed, but the patients have certain difficulties in eating, washing hair and washing face due to the limitation of the existing conditions of the sickrooms, and can only depend on the help of other people.

However, in the prior art, the height of the nursing frame cannot be adjusted during actual use, the nursing frame can only be used with a gynecological bed with fixed specification, and the nursing frame cannot be adjusted according to the specification of the gynecological bed, so that the application range of the device is reduced.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a nursing frame of gynaecology's sick bed to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the adjustable screw driver comprises a base, wherein a supporting rod is fixedly connected to the top of the base, an adjusting rod is hinged to the top of the supporting rod, a movable sleeve is sleeved on the surface of the adjusting rod in a movable mode, a placing plate is fixedly connected to the surface of the movable sleeve, a hinged plate is movably arranged at the bottom of the placing plate, an adjusting plate is movably connected to the position, corresponding to the bottom of the hinged plate, of the adjusting rod, a transmission rod is rotatably connected to the middle of the adjusting plate through a bearing, a movable groove is formed in the adjusting plate, a first special-shaped gear is fixedly connected to the inner wall, corresponding to the movable groove, of the transmission rod, a second special-shaped gear is meshed to the surface of the first special-shaped gear, a first threaded rod is fixedly connected to one end of the second special-shaped, and the fixed block is movably connected to the inner wall of the movable groove, the adjusting plate is provided with an annular groove at the top corresponding to the position of the adjusting rod, the inner wall of the annular groove is movably connected with a driving block, the top of the driving block is fixedly connected with a supporting block, the top of the supporting block is movably connected with the bottom of the hinged plate, the top of the fixed block is fixedly connected with a rack, and one end surface of the rack is meshed with the surface of the driving block.

Preferably, the rack movably penetrates through and extends to the top of the adjusting plate, and the rack is of an L-shaped structure.

Preferably, the fixed surface of fixed block is connected with the stopper, the spacing groove has been seted up to the inside of the corresponding stopper of regulating plate, the surface of stopper and the inner wall swing joint in spacing groove, the inside and the inside in activity groove of spacing groove are linked together.

Preferably, the bottom fixedly connected with mount of placing the board, both ends all run through the embedding around the mount and have the leading truck, the inner wall swing joint of leading truck has fixed round bar, and fixed round bar fixed connection is in the corresponding one end of placing the board position of articulated slab, the inside activity of fixed round bar is pegged graft and is had fixing bolt, a plurality of fixing hole have been seted up to the inside of the corresponding fixing bolt position of leading truck, and fixing hole's inner wall and fixing bolt's surperficial swing joint.

Preferably, the top of base is rotated through the bearing and is connected with the second threaded rod, the surperficial threaded connection of second threaded rod has the lifting plate, the corresponding both ends fixedly connected with fixed sleeve who adjusts the pole position of lifting plate, and the fixed sleeve activity cup joints on the surface of adjusting the pole, the top fixedly connected with hand wheel of second threaded rod.

Preferably, the diameters of the supporting rods and the adjusting rods are equal, the number of the supporting rods is two, and the two supporting rods are symmetrically arranged around the horizontal axis of the midpoint of the base.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model rotates the hinged plate at the bottom of the placing plate, so that one end of the hinged plate, which is far away from the placing plate, is tightly attached to the surface of the adjusting rod, the adjusting plate is moved to the bottom of the hinged plate, the transmission rod is rotated to tightly attach the fixed block to the surface of the adjusting rod and fix the adjusting plate, and meanwhile, the rack drives the supporting block to move to the bottom of the hinged plate through the driving block to support the hinged plate, thereby realizing the purpose of adjusting according to the specification of the gynecological hospital bed;

2. the utility model discloses still simultaneously through rotating the hand wheel for the hand wheel drives the lifting plate through the second threaded rod and reciprocates, thereby make the lifting plate drive the boundary department that fixed sleeving removed to the bracing piece and adjusted the pole, can prevent that bracing piece and regulation pole from taking place to articulate, and when this equipment of needs folding, remove the fixed sleeving to the top of base this moment, and make the bracing piece and adjust the pole articulated, make to adjust pole and base parallel arrangement, take out the movable sleeve from the top of adjusting the pole this moment, fold and accomodate.

Drawings

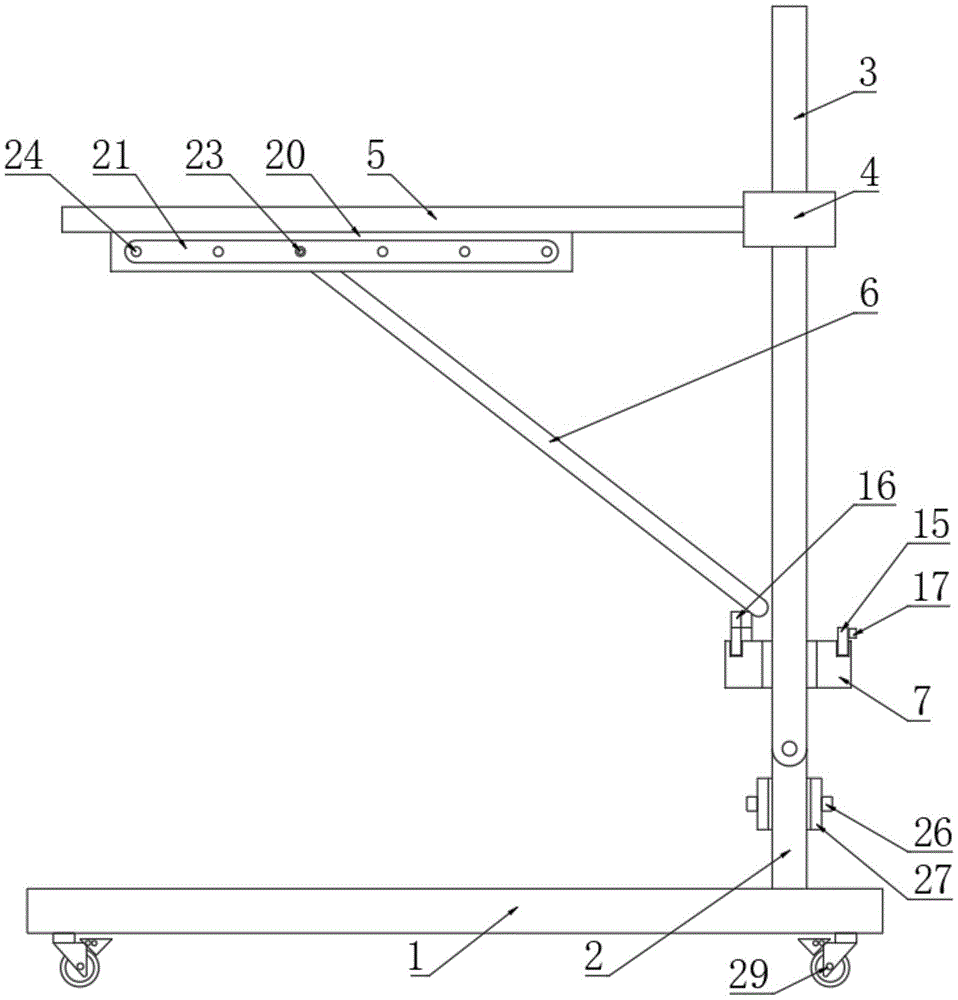

FIG. 1 is a front sectional view of the overall structure of a nursing frame for a gynecological hospital bed of the present invention;

FIG. 2 is a top view of the adjusting plate structure of the nursing frame for gynecological hospital bed of the present invention;

FIG. 3 is an enlarged view of the structure at A in FIG. 2 of the nursing frame for gynecological hospital bed of the present invention;

FIG. 4 is a sectional view of the adjusting plate structure of the nursing frame for gynecological hospital bed of the present invention;

fig. 5 is a top view of the lifting plate structure of the nursing frame for gynecological hospital bed.

Fig. 6 is a sectional view of the fixing frame structure of the nursing frame for gynecological hospital bed.

In the figure: 1. a base; 2. a support bar; 3. adjusting a rod; 4. an active cannula; 5. placing the plate; 6. a hinge plate; 7. an adjusting plate; 8. a transmission rod; 9. a movable groove; 10. a first shaped gear; 11. a second shaped gear; 12. a first threaded rod; 13. a fixed block; 14. an annular groove; 15. a drive block; 16. a support block; 17. a rack; 18. a limiting block; 19. a limiting groove; 20. a fixed mount; 21. a guide frame; 22. Fixing the round rod; 23. fixing the bolt; 24. a fixing through hole; 25. a second threaded rod; 26. a lifting plate; 27. fixing the sleeve; 28. a handwheel.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-6, the present invention provides a technical solution: comprises a base 1, a supporting rod 2 is fixedly arranged at the top of the base 1, an adjusting rod 3 is hinged at the top of the supporting rod 2, a movable sleeve 4 is movably sleeved on the surface of the adjusting rod 3, a placing plate 5 is fixedly arranged on the surface of the movable sleeve 4, a hinged plate 6 is movably arranged at the bottom of the placing plate 5, an adjusting plate 7 is movably connected at the position of the adjusting rod 3 corresponding to the bottom of the hinged plate 6, the middle part of the adjusting plate 7 is rotatably connected with a transmission rod 8 through a bearing, a movable groove 9 is arranged in the adjusting plate 7, a first special-shaped gear 10 is fixedly arranged on the inner wall of the position of the transmission rod 8 corresponding to the movable groove 9, a second special-shaped gear 11 is meshed on the surface of the first special-shaped gear 10, a first threaded rod 12 is fixedly arranged at one end of the second special-shaped gear, the fixing block 13 is movably connected to the inner wall of the movable groove 9, the adjusting plate 7 is provided with an annular groove 14 at the top corresponding to the position of the adjusting rod 3, the inner wall of the annular groove 14 is movably connected with a driving block 15, a supporting block 16 is fixedly installed at the top of the driving block 15, the top of the supporting block 16 is movably connected with the bottom of the hinged plate 6, a rack 17 is fixedly installed at the top of the fixing block 13, and one end surface of the rack 17 is meshed with the surface of the driving block 15.

The rack 17 movably penetrates and extends to the top of the adjusting plate 7, and the rack 17 is of an L-shaped structure.

The fixed surface of fixed block 13 installs stopper 18, and the corresponding stopper 18's of regulating plate 7 inside has seted up spacing groove 19, and the surface of stopper 18 and the inner wall swing joint of spacing groove 19, the inside of spacing groove 19 is linked together with the inside of activity groove 9.

Place the bottom fixed mounting of board 5 and have mount 20, both ends all run through the embedding around mount 20 and have leading truck 21, the inner wall swing joint of leading truck 21 has fixed round bar 22, and fixed round bar 22 fixed mounting is in the corresponding one end of placing board 5 position of articulated slab 6, fixed round bar 22's inside activity is pegged graft and is had fixing bolt 23, a plurality of fixing hole 24 have been seted up to the inside of the corresponding fixing bolt 23 position of leading truck 21, and fixing hole 24's inner wall and fixing bolt 23's surface swing joint.

The top of the base 1 is rotatably connected with a second threaded rod 25 through a bearing, the surface of the second threaded rod 25 is in threaded connection with a lifting plate 26, two ends of the lifting plate 26 corresponding to the position of the adjusting rod 3 are fixedly provided with fixed sleeves 27, the fixed sleeves 27 are movably sleeved on the surface of the adjusting rod 3, the top of the second threaded rod 25 is fixedly provided with a hand wheel 28, the hand wheel 28 drives the lifting plate 26 to move up and down through the second threaded rod 25 by rotating the hand wheel 28, so that the lifting plate 26 drives the fixed sleeves 27 to move to the junction of the supporting rod 2 and the adjusting rod 3, the supporting rod 2 and the adjusting rod 3 can be prevented from being hinged, and when the device needs to be folded, the fixed sleeves 27 are moved to the top of the base 1 at the moment, the supporting rod 2 is hinged to the adjusting rod 3, the adjusting rod 3 is arranged in parallel to the base, and folding and storing.

The diameters of the support rods 2 and the adjusting rods 3 are equal, the number of the support rods 2 is two, and the two support rods 2 are symmetrically arranged about the horizontal axis of the midpoint of the base 1.

The working principle is as follows: when in use, the utility model is provided with the fixed mount 20, the guide frame 21, the fixed round rod 22, the fixed bolt 23 and the fixed through hole 24, so that the hinging angle of the hinged plate 6 and the placing plate 5 can be changed, when the movable sleeve 4 slides on the surface of the adjusting rod 3 and adjusts the position of the placing plate 5, the hinged plate 6 is rotated at the bottom of the placing plate 5, so that one end of the hinged plate 6 far away from the placing plate 5 is clung to the surface of the adjusting rod 3, the adjusting plate 7 is moved to the bottom of the hinged plate 6, the transmission rod 8 is rotated, the transmission rod 8 drives the first threaded rod 12 to rotate through the first special-shaped gear 10 and the second special-shaped gear 11, so that the first threaded rod 12 drives the fixed block 13 to move towards one end of the adjusting rod 3, and the fixed block 13 is tightly clung to the surface of the adjusting rod 3, thereby achieving the purpose of fixing the adjusting plate 7, the fixing block 13 can drive the rack 17 to mesh with the surface of the driving block 15 until the driving block 15 drives the supporting block 16 to move to the bottom of the hinged plate 6 to support the hinged plate 6, so that the effect of fixing the placing plate 5 is achieved, and the purpose of adjusting according to the specification of the gynecological hospital bed is achieved.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a gynaecology's sick bed nursing frame, includes base (1), its characterized in that: the top of the base (1) is fixedly connected with a supporting rod (2), the top of the supporting rod (2) is hinged with an adjusting rod (3), a movable sleeve (4) is sleeved on the surface of the adjusting rod (3) in a movable mode, a placing plate (5) is fixedly connected to the surface of the movable sleeve (4), a hinged plate (6) is movably arranged at the bottom of the placing plate (5), an adjusting plate (7) is movably connected to the position, corresponding to the bottom of the hinged plate (6), of the adjusting rod (3), the middle of the adjusting plate (7) is rotatably connected with a transmission rod (8) through a bearing, a movable groove (9) is formed in the adjusting plate (7), a first special-shaped gear (10) is fixedly connected to the inner wall, corresponding to the position of the movable groove (9), of the transmission rod (8), and a second special-shaped gear (, the one end fixedly connected with first threaded rod (12) of second dysmorphism gear (11), first threaded rod (12) rotate through the bearing and connect the inner wall in activity groove (9), the surface threaded connection of first threaded rod (12) has fixed block (13), and fixed block (13) swing joint is at the inner wall of activity groove (9), ring channel (14) have been seted up at the top of regulating plate (7) corresponding regulation pole (3) position, the inner wall swing joint of ring channel (14) has drive block (15), the top fixedly connected with supporting shoe (16) of drive block (15), and the top of supporting shoe (16) and the bottom swing joint of articulated slab (6), the top fixedly connected with rack (17) of fixed block (13), the surface engagement of the one end surface of rack (17) and drive block (15).

2. A gynecological bed care rack according to claim 1, characterized in that: the rack (17) movably penetrates through and extends to the top of the adjusting plate (7), and the rack (17) is of an L-shaped structure.

3. A gynecological bed care rack according to claim 1, characterized in that: the fixed surface of fixed block (13) is connected with stopper (18), spacing groove (19) have been seted up to the inside of the corresponding stopper (18) of regulating plate (7), the surface of stopper (18) and the inner wall swing joint of spacing groove (19), the inside and the inside in activity groove (9) of spacing groove (19) are linked together.

4. A gynecological bed care rack according to claim 1, characterized in that: the bottom fixedly connected with mount (20) of placing board (5), both ends all run through the embedding around mount (20) and have leading truck (21), the inner wall swing joint of leading truck (21) has fixed round bar (22), and fixed round bar (22) fixed connection is in the corresponding one end of placing board (5) position of articulated slab (6), the inside activity of fixed round bar (22) is pegged graft and is had fixing bolt (23), a plurality of fixing hole (24) have been seted up to the inside of the corresponding fixing bolt (23) position of leading truck (21), and the surface swing joint of the inner wall of fixing hole (24) and fixing bolt (23).

5. A gynecological bed care rack according to claim 1, characterized in that: the top of base (1) is rotated through the bearing and is connected with second threaded rod (25), the surperficial threaded connection of second threaded rod (25) has lifting plate (26), lifting plate (26) are corresponding to be adjusted the both ends fixedly connected with fixed sleeve (27) of pole (3) position, and fixed sleeve (27) activity cup joints on the surface of adjusting pole (3), the top fixedly connected with hand wheel (28) of second threaded rod (25).

6. A gynecological bed care rack according to claim 1, characterized in that: the diameters of the support rods (2) and the adjusting rods (3) are equal, the number of the support rods (2) is two, and the two support rods (2) are symmetrically arranged about the horizontal axis of the midpoint of the base (1).
