Abstract
本实用新型公开了血糖仪治疗盘，包括治疗盘体，所述治疗盘体内分别设置有血糖仪槽、血糖试纸槽、血糖测试针头槽、酒精槽、棉签槽，所述血糖仪槽内设置有第一保护盖，且血糖仪槽内壁一侧与第一保护盖相对应的位置固定连接有固定块，所述固定块的外表面靠近第一保护盖的一侧开设有凹槽，所述第一保护盖靠近固定块的一侧内部开设有限位槽，所述限位槽内设置有限位块。本实用新型中，通过每个槽的单独设置可以很好的起到规整作用，不仅分布明确而且便于拿取，通过设置第一保护盖则可以很好的对血糖仪进行保护作用，通过设置的废料收集槽与废料口则可以很好的将废料与工作区隔开，减少感染情况发生，同时也便于清理工作。
The utility model discloses a blood glucose meter treatment disc, which comprises a treatment disc body, wherein a blood glucose meter groove, a blood glucose test paper groove, a blood glucose test needle groove, an alcohol groove and a cotton swab groove are respectively arranged in the treatment disc body, and a blood glucose meter groove is arranged in the blood glucose meter groove. A first protective cover, and a fixing block is fixedly connected to a position corresponding to the first protective cover on one side of the inner wall of the blood glucose meter tank, and a groove is opened on the side of the outer surface of the fixing block close to the first protective cover. One side of the protective cover close to the fixing block is internally provided with a limiting groove, and a limiting block is arranged in the limiting groove. In the utility model, the separate arrangement of each slot can play a good role in regulation, not only the distribution is clear but also easy to take, and the blood glucose meter can be well protected by setting the first protective cover. The waste collection tank and the waste port can well separate the waste from the work area, reduce the occurrence of infection, and also facilitate the cleaning work.
Description
Technical Field
The utility model relates to a treatment dish technical field especially relates to blood glucose meter treatment dish.
Background
The treatment disc is a common use tool for doctors and nurses in hospitals during work, is convenient to operate and clean, is various in types, has different functional requirements for different subjects, such as a glucometer treatment disc, and has certain requirements for regular use when being specially used for blood glucose measurement;
current blood glucose meter treatment dish has article to put mixed and disorderly unordered, and it is very inconvenient to use, influences the operation, also does not accord with hospital infection standard requirement simultaneously, places to blood glucose meter this type of precision instruments at will and lacks the protection, the condition of damage appears easily, and medical waste handles simultaneously trouble, the problem of also not convenient clearance.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a blood glucose meter treatment disc.
In order to achieve the above purpose, the utility model adopts the following technical scheme: a glucometer treatment disc comprises a treatment disc body, wherein a glucometer groove, a blood glucose test paper groove, a blood glucose test needle groove, an alcohol groove and a cotton swab groove are respectively arranged in the treatment disc body, a first protective cover is arranged in the glucometer groove, a fixed block is fixedly connected to the position, corresponding to the first protective cover, of one side of the inner wall of the glucometer groove, a groove is formed in one side, close to the first protective cover, of the outer surface of the fixed block, a limit groove is formed in one side, close to the fixed block, of the first protective cover, a limit block is arranged in the limit groove, a spring is connected between one side of the outer surface of the limit block and the inner wall of the limit groove, a connector in nested fit with the groove is fixedly connected to one side, away from the spring, of the outer surface of the limit block, a partition board is arranged in the cotton swab groove, a, the accommodating groove is connected with a moving plate in a sliding mode, and a second protective cover is arranged on one side of the outer surface of the treatment tray body.
As a further description of the above technical solution:
the equal fixedly connected with in bottom both sides position of fixed block takes the piece, and the top of two pieces of taking is laminated with the bottom of first protective cover mutually.
As a further description of the above technical solution:
the top fixedly connected with catch bar of stopper, it inlays the gliding activity groove mutually with the catch bar to open in the first protective cover, the activity groove is linked together with the spacing groove.
As a further description of the above technical solution:
an inner groove is formed in the treatment disc body and is located at the bottom of the partition plate, a waste collecting groove is connected in the inner groove in a sliding mode, and a pull ring is arranged on one side of the outer surface of the waste collecting groove.
As a further description of the above technical solution:
the top of movable plate just is located waste material mouth position fixedly connected with and promotes the piece, waste material mouth inner wall one side is seted up and is promoted the piece and nest mutually the complex notch.
As a further description of the above technical solution:
all rotate through the hinge between first visor and the blood glucose meter groove, between second visor and the treatment disk body and be connected, be provided with the waterproof bag in the second visor, be provided with the zip fastener on the waterproof bag.
The utility model discloses following beneficial effect has:
the blood glucose meter treatment disc comprises a treatment disc body, a blood glucose meter groove, a blood glucose test paper groove, a blood glucose test needle groove, an alcohol groove, a cotton swab groove, a first protective cover, a lapping block, a groove, a limiting block, a spring, a push rod, a connector, a waste collecting groove, a pull ring, a waste opening, a containing groove, a movable plate, a push block, a second protective cover, a waterproof bag and a zipper, wherein the blood glucose meter is placed into the blood glucose meter groove, the blood glucose test paper is placed into the blood glucose test paper groove, a blood glucose test needle is placed into the blood glucose test needle groove, alcohol is placed into the alcohol groove, a cotton swab is placed into the cotton swab groove, the second protective cover is opened when the blood glucose meter treatment disc is used, a corresponding tool is taken out from the corresponding groove, the push rod is pushed, the push rod drives the limiting block to compress the spring, the limiting block drives the connector to be separated from the groove, the locking structure can be, therefore, the glucometer can be conveniently taken, the pushing block is pulled open, the pushing block drives the movable plate to be accommodated in the accommodating groove, the waste opening can be automatically opened, waste generated by measuring blood sugar is placed into the waste collecting groove from the waste opening, the waste opening can be closed again by driving the movable plate to move by pulling the pushing block, the pull ring is pulled to drive the waste collecting groove to be pulled out, medical waste can be conveniently cleaned, and the medical waste can be conveniently cleaned and disinfected, and can be placed into the inner groove after treatment is finished, information card objects such as medical record cards and the like can be placed through the waterproof bag, the medical record cards and the like can be conveniently stored and protected through the zipper, and the glucometer and the like can be conveniently taken, the basic therapeutic disk classification and arrangement of the therapeutic disk can be realized through the whole structure, the glucometer and the like can be conveniently separated and can be conveniently taken, the waste collecting and separating can be conveniently cleaned subsequently, the problem of current blood glucose meter treatment dish, article are put in a jumble unordered, use very inconvenient, influence the operation, do not accord with hospital infection standard requirement simultaneously yet, place to blood glucose meter this type of precision instruments at will and lack the protection, the condition of damage appears easily, and medical waste handles simultaneously trouble, also inconvenient clearance is solved.
Drawings

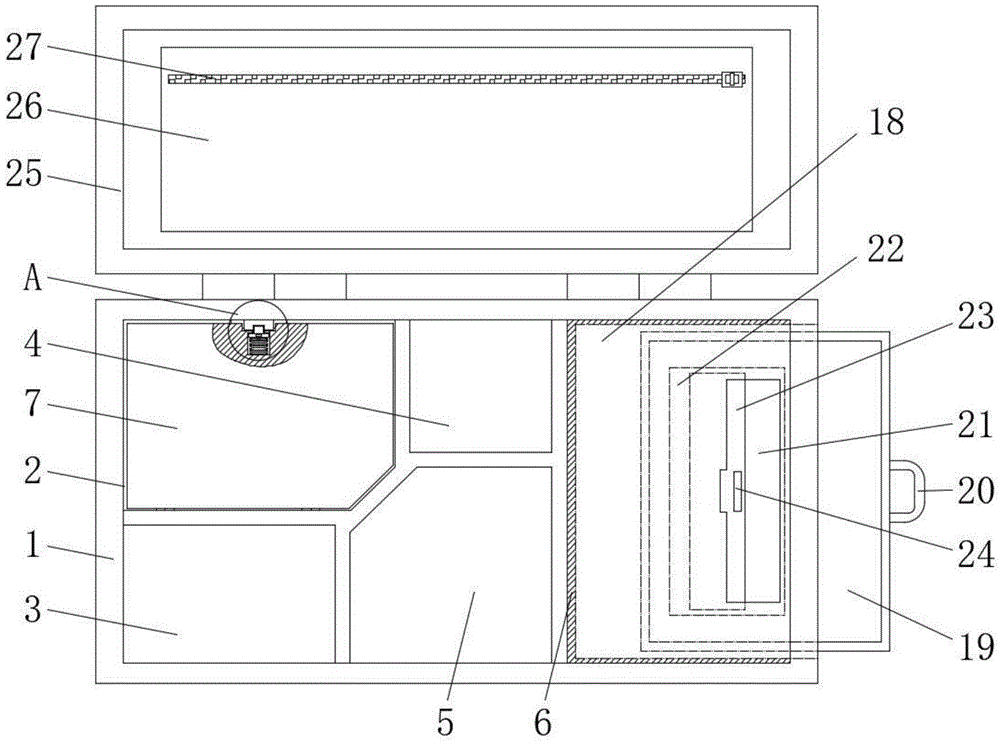

Fig. 1 is a top view of a blood glucose meter treatment tray provided by the present invention;
fig. 2 is a front view of a blood glucose meter treatment tray provided by the present invention;
fig. 3 is a side view of the position of the blood glucose meter slot of the blood glucose meter treatment tray of the present invention;
fig. 4 is an enlarged view of the treatment tray of the blood glucose meter of the present invention at a in fig. 1.
Illustration of the drawings:
1. treating the disc body; 2. a glucometer slot; 3. a blood sugar test paper groove; 4. a blood glucose test needle slot; 5. alcohol tank; 6. a cotton swab groove; 7. a first protective cover; 8. a fixed block; 9. building blocks; 10. a groove; 11. a limiting groove; 12. a limiting block; 13. a spring; 14. a push rod; 15. a movable groove; 16. a connector; 17. a partition plate; 18. an inner tank; 19. a waste collection tank; 20. a pull ring; 21. a waste material port; 22. a receiving groove; 23. moving the plate; 24. a pushing block; 25. a second protective cover; 26. a waterproof bag; 27. a zipper.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-4, the present invention provides an embodiment: the glucometer treatment disc comprises a treatment disc body 1, a glucometer groove 2, a blood glucose test paper groove 3, a blood glucose test needle groove 4, an alcohol groove 5 and a cotton swab groove 6 are respectively arranged in the treatment disc body 1, a first protection cover 7 is arranged in the glucometer groove 2, a fixed block 8 is fixedly connected with one side of the inner wall of the glucometer groove 2 corresponding to the first protection cover 7, a groove 10 is formed in one side of the outer surface of the fixed block 8 close to the first protection cover 7, a limit groove 11 is formed in one side of the first protection cover 7 close to the fixed block 8, a limit block 12 is arranged in the limit groove 11, a spring 13 is connected between one side of the outer surface of the limit block 12 and the inner wall of the limit groove 11, a connector 16 which is in nested fit with the groove 10 is fixedly connected with one side of the outer surface of the limit block 12 away from the spring 13, a partition board, and the position communicated with the waste port 21 in the clapboard 17 is provided with a receiving groove 22, a moving plate 23 is connected in the receiving groove 22 in a sliding way, and one side of the outer surface of the treatment tray body 1 is provided with a second protective cover 25.
The two sides of the bottom of the fixed block 8 are fixedly connected with the lapping blocks 9, the tops of the two lapping blocks 9 are attached to the bottom of the first protective cover 7, the first protective cover 7 can be stably placed through the lapping blocks 9, the load on the hinge is reduced, and the stability of structural use is guaranteed; the top of the limiting block 12 is fixedly connected with a pushing rod 14, a movable groove 15 which is embedded and slides with the pushing rod 14 is formed in the first protective cover 7, the movable groove 15 is communicated with the limiting groove 11, the pushing rod 14 is pushed to move in the movable groove 15, the pushing rod 14 drives the limiting block 12 to compress a spring 13, so that a connecting head 16 is driven to be separated from the groove 10, the locking structure can be automatically opened, the first protective cover 7 can be conveniently opened, the first protective cover 7 can be locked through similar operation, and a good protection effect on a glucometer can be achieved; an inner groove 18 is formed in the treatment disc body 1 and positioned at the bottom of the partition plate 17, a waste collecting groove 19 is connected in the inner groove 18 in a sliding mode, a pull ring 20 is arranged on one side of the outer surface of the waste collecting groove 19, waste can automatically fall into the waste collecting groove 19 by putting the waste into a waste opening 21 through the waste collecting groove 19 arranged in the inner groove 18, the waste collecting groove 19 can be automatically driven to be pulled out by pulling the pull ring 20, and therefore the waste can be conveniently cleaned and the waste collecting groove 19 can be cleaned; the pushing block 24 is fixedly connected to the top of the moving plate 23 and located at the position of the waste material opening 21, a notch matched with the pushing block 24 in a nested mode is formed in one side of the inner wall of the waste material opening 21, the pushing block 24 drives the moving plate 23 to move by pushing the pushing block 24, the waste material opening 21 can be opened or closed automatically, the structural connection can be tighter by the arrangement of the notch, and the waste material opening 21 can be opened completely; between first protective cover 7 and blood glucose meter groove 2, all be connected through the hinge rotation between second protective cover 25 and the treatment disk body 1, be provided with waterproof bag 26 in the second protective cover 25, be provided with zip fastener 27 on the waterproof bag 26, it has the flexibility to connect to set up to make the structure more to have through the hinge rotation, not only facilitate the use, just receive the protection simultaneously, can place article convenience records such as some case cards in the waterproof bag 26 of setting, and zip fastener 27 then can play the protection to the structure, place the problem of losing.
The working principle is as follows: when the glucometer treatment disc is used, a glucometer is placed into a glucometer groove 2, a blood glucose test paper is placed into a blood glucose test paper groove 3, a blood glucose test needle head is placed into a blood glucose test needle head groove 4, alcohol is placed into an alcohol groove 5, a cotton swab is placed into a cotton swab groove 6, when the glucometer treatment disc is used, a second protective cover 25 is opened, a corresponding tool is taken out of the corresponding groove, a push rod 14 is pushed, the push rod 14 drives a limiting block 12 to compress a spring 13, meanwhile, the limiting block 12 drives a connecting head 16 to be separated from a groove 10, a locking structure can be automatically opened, meanwhile, a first protective cover 7 can be opened through hinge rotation connection, so that the glucometer can be conveniently taken, the push block 24 is pulled open, the push block 24 drives a moving plate 23 to be taken into a containing groove 22, a waste material opening 21 can be automatically realized, waste materials generated by blood glucose measurement are placed into a waste material, the pulling promotes piece 24 and drives movable plate 23 and remove and can close waste opening 21 again, pulling ring 20, and pulling ring 20 drives garbage collection groove 19 and pulls out, can conveniently clear up medical waste, and the cleaning and disinfecting of also being convenient for simultaneously handles the back and puts into inner tank 18 again, can place information card articles such as some case history cards through waterproof bag 26, then conveniently receives through zip fastener 27 and deposits the protection, also conveniently takes simultaneously.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.
Claims (6)
